GetId3\Module\AudioVideo\Flv Class Reference

GetId3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //. More...

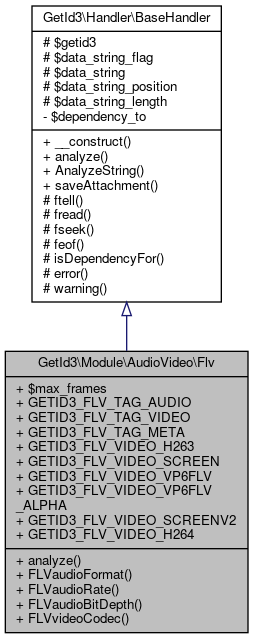

+ Inheritance diagram for GetId3\Module\AudioVideo\Flv:

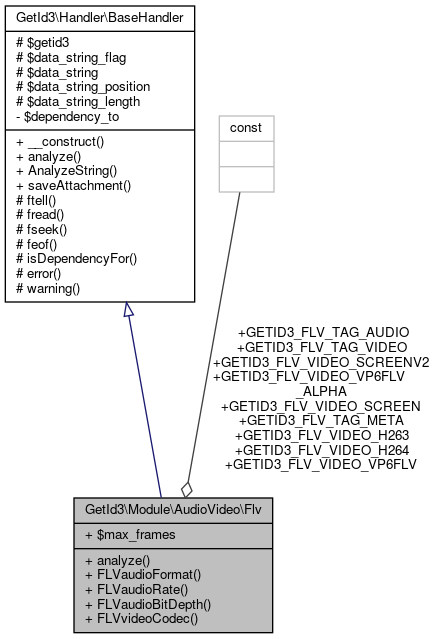

+ Collaboration diagram for GetId3\Module\AudioVideo\Flv:

Public Member Functions

 analyze ()

 FLVaudioFormat ($id)

 FLVaudioRate ($id)

 FLVaudioBitDepth ($id)

 FLVvideoCodec ($id)

- Public Member Functions inherited from GetId3\Handler\BaseHandler
 __construct (GetId3Core $getid3, $call_module=null)

 analyze ()
 Analyze from file pointer. More...

 AnalyzeString (&$string)
 Analyze from string instead. More...

 saveAttachment (&$ThisFileInfoIndex, $filename, $offset, $length)


Data Fields

 $max_frames = 100000

const GETID3_FLV_TAG_AUDIO = 8

const GETID3_FLV_TAG_VIDEO = 9

const GETID3_FLV_TAG_META = 18

const GETID3_FLV_VIDEO_H263 = 2

const GETID3_FLV_VIDEO_SCREEN = 3

const GETID3_FLV_VIDEO_VP6FLV = 4

const GETID3_FLV_VIDEO_VP6FLV_ALPHA = 5

const GETID3_FLV_VIDEO_SCREENV2 = 6

const GETID3_FLV_VIDEO_H264 = 7


Additional Inherited Members

- Protected Member Functions inherited from GetId3\Handler\BaseHandler
 ftell ()

 fread ($bytes)

 fseek ($bytes, $whence=SEEK_SET)

 feof ()

 isDependencyFor ($module)

 error ($text)

 warning ($text)

- Protected Attributes inherited from GetId3\Handler\BaseHandler
 $getid3

 $data_string_flag = false

 $data_string = ''

 $data_string_position = 0

 $data_string_length = 0


Detailed Description

GetId3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //.

module for analyzing Shockwave Flash Video files

Author
James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g
Seth Kaufman seth@.nosp@m.whir.nosp@m.l-i-g.nosp@m.ig.c.nosp@m.om GetId3 GetId3 GetId3 http://www.getid3.org

Definition at line 68 of file Flv.php.

Member Function Documentation

◆ analyze()

GetId3\Module\AudioVideo\Flv::analyze ( )
Returns
boolean

Definition at line 90 of file Flv.php.

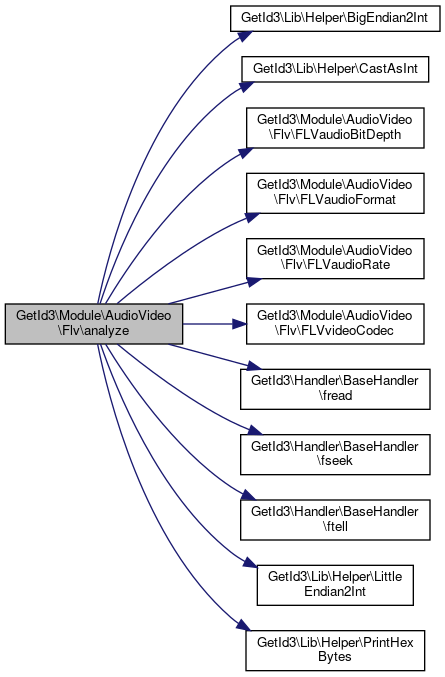

References $info, $reader, array, GetId3\Lib\Helper\BigEndian2Int(), GetId3\Lib\Helper\CastAsInt(), GetId3\Module\AudioVideo\Flv\FLVaudioBitDepth(), GetId3\Module\AudioVideo\Flv\FLVaudioFormat(), GetId3\Module\AudioVideo\Flv\FLVaudioRate(), GetId3\Module\AudioVideo\Flv\FLVvideoCodec(), GetId3\Handler\BaseHandler\fread(), GetId3\Handler\BaseHandler\fseek(), GetId3\Handler\BaseHandler\ftell(), GetId3\Module\AudioVideo\AVCSequenceParameterSetReader\H264_AVC_SEQUENCE_HEADER, GetId3\Lib\Helper\LittleEndian2Int(), and GetId3\Lib\Helper\PrintHexBytes().

91  {
92  $info = &$this->getid3->info;
93
94  fseek($this->getid3->fp, $info['avdataoffset'], SEEK_SET);
95
96  $FLVdataLength = $info['avdataend'] - $info['avdataoffset'];
97  $FLVheader = fread($this->getid3->fp, 5);
98
99  $info['fileformat'] = 'flv';
100  $info['flv']['header']['signature'] = substr($FLVheader, 0, 3);
101  $info['flv']['header']['version'] = Helper::BigEndian2Int(substr($FLVheader,
102  3,
103  1));
104  $TypeFlags = Helper::BigEndian2Int(substr($FLVheader, 4, 1));
105
106  $magic = 'FLV';
107  if ($info['flv']['header']['signature'] != $magic) {
108  $info['error'][] = 'Expecting "' . Helper::PrintHexBytes($magic) . '" at offset ' . $info['avdataoffset'] . ', found "' . Helper::PrintHexBytes($info['flv']['header']['signature']) . '"';
109  unset($info['flv']);
110  unset($info['fileformat']);
111
112  return false;
113  }
114
115  $info['flv']['header']['hasAudio'] = (bool) ($TypeFlags & 0x04);
116  $info['flv']['header']['hasVideo'] = (bool) ($TypeFlags & 0x01);
117
118  $FrameSizeDataLength = Helper::BigEndian2Int(fread($this->getid3->fp,
119  4));
120  $FLVheaderFrameLength = 9;
121  if ($FrameSizeDataLength > $FLVheaderFrameLength) {
122  fseek($this->getid3->fp,
123  $FrameSizeDataLength - $FLVheaderFrameLength, SEEK_CUR);
124  }
125  $Duration = 0;
126  $found_video = false;
127  $found_audio = false;
128  $found_meta = false;
129  $found_valid_meta_playtime = false;
130  $tagParseCount = 0;
131  $info['flv']['framecount'] = array('total' => 0, 'audio' => 0, 'video' => 0);
132  $flv_framecount = &$info['flv']['framecount'];
133  while (((ftell($this->getid3->fp) + 16) < $info['avdataend']) && (($tagParseCount++ <= $this->max_frames) || !$found_valid_meta_playtime)) {
134  $ThisTagHeader = fread($this->getid3->fp, 16);
135
136  $PreviousTagLength = Helper::BigEndian2Int(substr($ThisTagHeader,
137  0, 4));
138  $TagType = Helper::BigEndian2Int(substr($ThisTagHeader,
139  4, 1));
140  $DataLength = Helper::BigEndian2Int(substr($ThisTagHeader,
141  5, 3));
142  $Timestamp = Helper::BigEndian2Int(substr($ThisTagHeader,
143  8, 3));
144  $LastHeaderByte = Helper::BigEndian2Int(substr($ThisTagHeader,
145  15, 1));
146  $NextOffset = ftell($this->getid3->fp) - 1 + $DataLength;
147  if ($Timestamp > $Duration) {
148  $Duration = $Timestamp;
149  }
150
151  $flv_framecount['total']++;
152  switch ($TagType) {
153  case self::GETID3_FLV_TAG_AUDIO:
154  $flv_framecount['audio']++;
155  if (!$found_audio) {
156  $found_audio = true;
157  $info['flv']['audio']['audioFormat'] = ($LastHeaderByte >> 4) & 0x0F;
158  $info['flv']['audio']['audioRate'] = ($LastHeaderByte >> 2) & 0x03;
159  $info['flv']['audio']['audioSampleSize'] = ($LastHeaderByte >> 1) & 0x01;
160  $info['flv']['audio']['audioType'] = $LastHeaderByte & 0x01;
161  }
162  break;
163
164  case self::GETID3_FLV_TAG_VIDEO:
165  $flv_framecount['video']++;
166  if (!$found_video) {
167  $found_video = true;
168  $info['flv']['video']['videoCodec'] = $LastHeaderByte & 0x07;
169
170  $FLVvideoHeader = fread($this->getid3->fp, 11);
171
172  if ($info['flv']['video']['videoCodec'] == self::GETID3_FLV_VIDEO_H264) {
173  // this code block contributed by: moysevichØgmail*com
174
175  $AVCPacketType = Helper::BigEndian2Int(substr($FLVvideoHeader,
176  0,
177  1));
178  if ($AVCPacketType == AVCSequenceParameterSetReader::H264_AVC_SEQUENCE_HEADER) {
179  // read AVCDecoderConfigurationRecord
180  $configurationVersion = Helper::BigEndian2Int(substr($FLVvideoHeader,
181  4,
182  1));
183  $AVCProfileIndication = Helper::BigEndian2Int(substr($FLVvideoHeader,
184  5,
185  1));
186  $profile_compatibility = Helper::BigEndian2Int(substr($FLVvideoHeader,
187  6,
188  1));
189  $lengthSizeMinusOne = Helper::BigEndian2Int(substr($FLVvideoHeader,
190  7,
191  1));
192  $numOfSequenceParameterSets = Helper::BigEndian2Int(substr($FLVvideoHeader,
193  8,
194  1));
195
196  if (($numOfSequenceParameterSets & 0x1F) != 0) {
197  // there is at least one SequenceParameterSet
198  // read size of the first SequenceParameterSet
199  //$spsSize = GetId3_lib::BigEndian2Int(substr($FLVvideoHeader, 9, 2));
200  $spsSize = Helper::LittleEndian2Int(substr($FLVvideoHeader,
201  9,
202  2));
203  // read the first SequenceParameterSet
204  $sps = fread($this->getid3->fp, $spsSize);
205  if (strlen($sps) == $spsSize) { // make sure that whole SequenceParameterSet was red
206  $spsReader = new AVCSequenceParameterSetReader($sps);
207  $spsReader->readData();
208  $info['video']['resolution_x'] = $spsReader->getWidth();
209  $info['video']['resolution_y'] = $spsReader->getHeight();
210  }
211  }
212  }
213  // end: moysevichØgmail*com
214  } elseif ($info['flv']['video']['videoCodec'] == self::GETID3_FLV_VIDEO_H263) {
215
216  $PictureSizeType = (Helper::BigEndian2Int(substr($FLVvideoHeader,
217  3,
218  2))) >> 7;
219  $PictureSizeType = $PictureSizeType & 0x0007;
220  $info['flv']['header']['videoSizeType'] = $PictureSizeType;
221  switch ($PictureSizeType) {
222  case 0:
223  //$PictureSizeEnc = GetId3_lib::BigEndian2Int(substr($FLVvideoHeader, 5, 2));
224  //$PictureSizeEnc <<= 1;
225  //$info['video']['resolution_x'] = ($PictureSizeEnc & 0xFF00) >> 8;
226  //$PictureSizeEnc = GetId3_lib::BigEndian2Int(substr($FLVvideoHeader, 6, 2));
227  //$PictureSizeEnc <<= 1;
228  //$info['video']['resolution_y'] = ($PictureSizeEnc & 0xFF00) >> 8;
229
230  $PictureSizeEnc['x'] = Helper::BigEndian2Int(substr($FLVvideoHeader,
231  4,
232  2));
233  $PictureSizeEnc['y'] = Helper::BigEndian2Int(substr($FLVvideoHeader,
234  5,
235  2));
236  $PictureSizeEnc['x'] >>= 7;
237  $PictureSizeEnc['y'] >>= 7;
238  $info['video']['resolution_x'] = $PictureSizeEnc['x'] & 0xFF;
239  $info['video']['resolution_y'] = $PictureSizeEnc['y'] & 0xFF;
240  break;
241
242  case 1:
243  $PictureSizeEnc['x'] = Helper::BigEndian2Int(substr($FLVvideoHeader,
244  4,
245  3));
246  $PictureSizeEnc['y'] = Helper::BigEndian2Int(substr($FLVvideoHeader,
247  6,
248  3));
249  $PictureSizeEnc['x'] >>= 7;
250  $PictureSizeEnc['y'] >>= 7;
251  $info['video']['resolution_x'] = $PictureSizeEnc['x'] & 0xFFFF;
252  $info['video']['resolution_y'] = $PictureSizeEnc['y'] & 0xFFFF;
253  break;
254
255  case 2:
256  $info['video']['resolution_x'] = 352;
257  $info['video']['resolution_y'] = 288;
258  break;
259
260  case 3:
261  $info['video']['resolution_x'] = 176;
262  $info['video']['resolution_y'] = 144;
263  break;
264
265  case 4:
266  $info['video']['resolution_x'] = 128;
267  $info['video']['resolution_y'] = 96;
268  break;
269
270  case 5:
271  $info['video']['resolution_x'] = 320;
272  $info['video']['resolution_y'] = 240;
273  break;
274
275  case 6:
276  $info['video']['resolution_x'] = 160;
277  $info['video']['resolution_y'] = 120;
278  break;
279
280  default:
281  $info['video']['resolution_x'] = 0;
282  $info['video']['resolution_y'] = 0;
283  break;
284  }
285  }
286  $info['video']['pixel_aspect_ratio'] = $info['video']['resolution_x'] / $info['video']['resolution_y'];
287  }
288  break;
289
290  // Meta tag
291  case self::GETID3_FLV_TAG_META:
292  if (!$found_meta) {
293  $found_meta = true;
294  fseek($this->getid3->fp, -1, SEEK_CUR);
295  $datachunk = fread($this->getid3->fp, $DataLength);
296  $AMFstream = new AMFStream($datachunk);
297  $reader = new AMFReader($AMFstream);
298  $eventName = $reader->readData();
299  $info['flv']['meta'][$eventName] = $reader->readData();
300  unset($reader);
301
302  $copykeys = array('framerate' => 'frame_rate', 'width' => 'resolution_x', 'height' => 'resolution_y', 'audiodatarate' => 'bitrate', 'videodatarate' => 'bitrate');
303  foreach ($copykeys as $sourcekey => $destkey) {
304  if (isset($info['flv']['meta']['onMetaData'][$sourcekey])) {
305  switch ($sourcekey) {
306  case 'width':
307  case 'height':
308  $info['video'][$destkey] = intval(round($info['flv']['meta']['onMetaData'][$sourcekey]));
309  break;
310  case 'audiodatarate':
311  $info['audio'][$destkey] = Helper::CastAsInt(round($info['flv']['meta']['onMetaData'][$sourcekey] * 1000));
312  break;
313  case 'videodatarate':
314  case 'frame_rate':
315  default:
316  $info['video'][$destkey] = $info['flv']['meta']['onMetaData'][$sourcekey];
317  break;
318  }
319  }
320  }
321  if (!empty($info['flv']['meta']['onMetaData']['duration'])) {
322  $found_valid_meta_playtime = true;
323  }
324  }
325  break;
326
327  default:
328  // noop
329  break;
330  }
331  fseek($this->getid3->fp, $NextOffset, SEEK_SET);
332  }
333
334  $info['playtime_seconds'] = $Duration / 1000;
335  if ($info['playtime_seconds'] > 0) {
336  $info['bitrate'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / $info['playtime_seconds'];
337  }
338
339  if ($info['flv']['header']['hasAudio']) {
340  $info['audio']['codec'] = $this->FLVaudioFormat($info['flv']['audio']['audioFormat']);
341  $info['audio']['sample_rate'] = $this->FLVaudioRate($info['flv']['audio']['audioRate']);
342  $info['audio']['bits_per_sample'] = $this->FLVaudioBitDepth($info['flv']['audio']['audioSampleSize']);
343
344  $info['audio']['channels'] = $info['flv']['audio']['audioType'] + 1; // 0=mono,1=stereo
345  $info['audio']['lossless'] = ($info['flv']['audio']['audioFormat'] ? false : true); // 0=uncompressed
346  $info['audio']['dataformat'] = 'flv';
347  }
348  if (!empty($info['flv']['header']['hasVideo'])) {
349  $info['video']['codec'] = $this->FLVvideoCodec($info['flv']['video']['videoCodec']);
350  $info['video']['dataformat'] = 'flv';
351  $info['video']['lossless'] = false;
352  }
353
354  // Set information from meta
355  if (!empty($info['flv']['meta']['onMetaData']['duration'])) {
356  $info['playtime_seconds'] = $info['flv']['meta']['onMetaData']['duration'];
357  $info['bitrate'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / $info['playtime_seconds'];
358  }
359  if (isset($info['flv']['meta']['onMetaData']['audiocodecid'])) {
360  $info['audio']['codec'] = $this->FLVaudioFormat($info['flv']['meta']['onMetaData']['audiocodecid']);
361  }
362  if (isset($info['flv']['meta']['onMetaData']['videocodecid'])) {
363  $info['video']['codec'] = $this->FLVvideoCodec($info['flv']['meta']['onMetaData']['videocodecid']);
364  }
365
366  return true;
367  }
GetId3\Lib\Helper\PrintHexBytes
static PrintHexBytes($string, $hex=true, $spaces=true, $htmlencoding='UTF-8')
Definition: Helper.php:36
GetId3\Handler\BaseHandler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: BaseHandler.php:148
$info
$info
Definition: example_052.php:80
GetId3\Lib\Helper\CastAsInt
static CastAsInt($floatnum)
Definition: Helper.php:107
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
GetId3\Lib\Helper\LittleEndian2Int
static LittleEndian2Int($byteword, $signed=false)
Definition: Helper.php:413
GetId3\Lib\Helper\BigEndian2Int
static BigEndian2Int($byteword, $synchsafe=false, $signed=false)
Definition: Helper.php:374
+ Here is the call graph for this function:

◆ FLVaudioBitDepth()

GetId3\Module\AudioVideo\Flv::FLVaudioBitDepth (   $id)
Parameters
type$id
Returns
type

Definition at line 420 of file Flv.php.

References array.

Referenced by GetId3\Module\AudioVideo\Flv\analyze().

421  {
422  $FLVaudioBitDepth = array(
423  0 => 8,
424  1 => 16,
425  );
426
427  return (isset($FLVaudioBitDepth[$id]) ? $FLVaudioBitDepth[$id] : false);
428  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:

◆ FLVaudioFormat()

GetId3\Module\AudioVideo\Flv::FLVaudioFormat (   $id)
Parameters
type$id
Returns
type

Definition at line 374 of file Flv.php.

References array.

Referenced by GetId3\Module\AudioVideo\Flv\analyze().

375  {
376  $FLVaudioFormat = array(
377  0 => 'Linear PCM, platform endian',
378  1 => 'ADPCM',
379  2 => 'mp3',
380  3 => 'Linear PCM, little endian',
381  4 => 'Nellymoser 16kHz mono',
382  5 => 'Nellymoser 8kHz mono',
383  6 => 'Nellymoser',
384  7 => 'G.711A-law logarithmic PCM',
385  8 => 'G.711 mu-law logarithmic PCM',
386  9 => 'reserved',
387  10 => 'AAC',
388  11 => false, // unknown?
389  12 => false, // unknown?
390  13 => false, // unknown?
391  14 => 'mp3 8kHz',
392  15 => 'Device-specific sound',
393  );
394
395  return (isset($FLVaudioFormat[$id]) ? $FLVaudioFormat[$id] : false);
396  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:

◆ FLVaudioRate()

GetId3\Module\AudioVideo\Flv::FLVaudioRate (   $id)
Parameters
type$id
Returns
type

Definition at line 403 of file Flv.php.

References array.

Referenced by GetId3\Module\AudioVideo\Flv\analyze().

404  {
405  $FLVaudioRate = array(
406  0 => 5500,
407  1 => 11025,
408  2 => 22050,
409  3 => 44100,
410  );
411
412  return (isset($FLVaudioRate[$id]) ? $FLVaudioRate[$id] : false);
413  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:

◆ FLVvideoCodec()

GetId3\Module\AudioVideo\Flv::FLVvideoCodec (   $id)
Parameters
type$id
Returns
type

Definition at line 435 of file Flv.php.

References array.

Referenced by GetId3\Module\AudioVideo\Flv\analyze().

436  {
437  $FLVvideoCodec = array(
438  self::GETID3_FLV_VIDEO_H263 => 'Sorenson H.263',
439  self::GETID3_FLV_VIDEO_SCREEN => 'Screen video',
440  self::GETID3_FLV_VIDEO_VP6FLV => 'On2 VP6',
441  self::GETID3_FLV_VIDEO_VP6FLV_ALPHA => 'On2 VP6 with alpha channel',
442  self::GETID3_FLV_VIDEO_SCREENV2 => 'Screen video v2',
443  self::GETID3_FLV_VIDEO_H264 => 'Sorenson H.264',
444  );
445
446  return (isset($FLVvideoCodec[$id]) ? $FLVvideoCodec[$id] : false);
447  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:

Field Documentation

◆ $max_frames

GetId3\Module\AudioVideo\Flv::$max_frames = 100000

Definition at line 74 of file Flv.php.

◆ GETID3_FLV_TAG_AUDIO

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_TAG_AUDIO = 8

Definition at line 76 of file Flv.php.

◆ GETID3_FLV_TAG_META

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_TAG_META = 18

Definition at line 78 of file Flv.php.

◆ GETID3_FLV_TAG_VIDEO

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_TAG_VIDEO = 9

Definition at line 77 of file Flv.php.

◆ GETID3_FLV_VIDEO_H263

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_VIDEO_H263 = 2

Definition at line 79 of file Flv.php.

◆ GETID3_FLV_VIDEO_H264

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_VIDEO_H264 = 7

Definition at line 84 of file Flv.php.

◆ GETID3_FLV_VIDEO_SCREEN

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_VIDEO_SCREEN = 3

Definition at line 80 of file Flv.php.

◆ GETID3_FLV_VIDEO_SCREENV2

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_VIDEO_SCREENV2 = 6

Definition at line 83 of file Flv.php.

◆ GETID3_FLV_VIDEO_VP6FLV

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_VIDEO_VP6FLV = 4

Definition at line 81 of file Flv.php.

◆ GETID3_FLV_VIDEO_VP6FLV_ALPHA

const GetId3\Module\AudioVideo\Flv::GETID3_FLV_VIDEO_VP6FLV_ALPHA = 5

Definition at line 82 of file Flv.php.

The documentation for this class was generated from the following file:
