Public Member Functions
GetId3\Module\Graphic\Tiff Class Reference

GetId3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //. More...

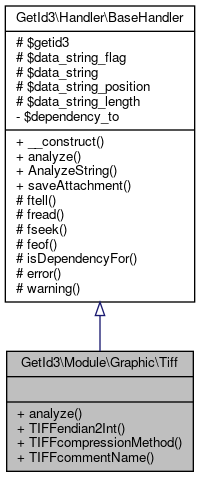

+ Inheritance diagram for GetId3\Module\Graphic\Tiff:
+ Collaboration diagram for GetId3\Module\Graphic\Tiff:

Public Member Functions

 analyze ()

 TIFFendian2Int ($bytestring, $byteorder)

 TIFFcompressionMethod ($id)
 array $TIFFcompressionMethod More...

 TIFFcommentName ($id)
 array $TIFFcommentName More...

- Public Member Functions inherited from GetId3\Handler\BaseHandler
 __construct (GetId3Core $getid3, $call_module=null)

 analyze ()
 Analyze from file pointer. More...

 AnalyzeString (&$string)
 Analyze from string instead. More...

 saveAttachment (&$ThisFileInfoIndex, $filename, $offset, $length)


Additional Inherited Members

- Protected Member Functions inherited from GetId3\Handler\BaseHandler
 ftell ()

 fread ($bytes)

 fseek ($bytes, $whence=SEEK_SET)

 feof ()

 isDependencyFor ($module)

 error ($text)

 warning ($text)

- Protected Attributes inherited from GetId3\Handler\BaseHandler
 $getid3

 $data_string_flag = false

 $data_string = ''

 $data_string_position = 0

 $data_string_length = 0


Detailed Description

GetId3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //.

module for analyzing TIFF files

Author
James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g http://www.getid3.org

Definition at line 29 of file Tiff.php.

Member Function Documentation

◆ analyze()

GetId3\Module\Graphic\Tiff::analyze ( )
Returns
boolean

Definition at line 36 of file Tiff.php.

References $info, array, GetId3\Handler\BaseHandler\fread(), GetId3\Handler\BaseHandler\fseek(), GetId3\Module\Graphic\Tiff\TIFFcommentName(), GetId3\Module\Graphic\Tiff\TIFFcompressionMethod(), and GetId3\Module\Graphic\Tiff\TIFFendian2Int().

37  {
38  $info = &$this->getid3->info;
39
40  fseek($this->getid3->fp, $info['avdataoffset'], SEEK_SET);
41  $TIFFheader = fread($this->getid3->fp, 4);
42
43  switch (substr($TIFFheader, 0, 2)) {
44  case 'II':
45  $info['tiff']['byte_order'] = 'Intel';
46  break;
47  case 'MM':
48  $info['tiff']['byte_order'] = 'Motorola';
49  break;
50  default:
51  $info['error'][] = 'Invalid TIFF byte order identifier ('.substr($TIFFheader, 0, 2).') at offset '.$info['avdataoffset'];
52
53  return false;
54  break;
55  }
56
57  $info['fileformat'] = 'tiff';
58  $info['video']['dataformat'] = 'tiff';
59  $info['video']['lossless'] = true;
60  $info['tiff']['ifd'] = array();
61  $CurrentIFD = array();
62
63  $FieldTypeByteLength = array(1=>1, 2=>1, 3=>2, 4=>4, 5=>8);
64
65  $nextIFDoffset = $this->TIFFendian2Int(fread($this->getid3->fp, 4), $info['tiff']['byte_order']);
66
67  while ($nextIFDoffset > 0) {
68
69  $CurrentIFD['offset'] = $nextIFDoffset;
70
71  fseek($this->getid3->fp, $info['avdataoffset'] + $nextIFDoffset, SEEK_SET);
72  $CurrentIFD['fieldcount'] = $this->TIFFendian2Int(fread($this->getid3->fp, 2), $info['tiff']['byte_order']);
73
74  for ($i = 0; $i < $CurrentIFD['fieldcount']; $i++) {
75  $CurrentIFD['fields'][$i]['raw']['tag'] = $this->TIFFendian2Int(fread($this->getid3->fp, 2), $info['tiff']['byte_order']);
76  $CurrentIFD['fields'][$i]['raw']['type'] = $this->TIFFendian2Int(fread($this->getid3->fp, 2), $info['tiff']['byte_order']);
77  $CurrentIFD['fields'][$i]['raw']['length'] = $this->TIFFendian2Int(fread($this->getid3->fp, 4), $info['tiff']['byte_order']);
78  $CurrentIFD['fields'][$i]['raw']['offset'] = fread($this->getid3->fp, 4);
79
80  switch ($CurrentIFD['fields'][$i]['raw']['type']) {
81  case 1: // BYTE An 8-bit unsigned integer.
82  if ($CurrentIFD['fields'][$i]['raw']['length'] <= 4) {
83  $CurrentIFD['fields'][$i]['value'] = $this->TIFFendian2Int(substr($CurrentIFD['fields'][$i]['raw']['offset'], 0, 1), $info['tiff']['byte_order']);
84  } else {
85  $CurrentIFD['fields'][$i]['offset'] = $this->TIFFendian2Int($CurrentIFD['fields'][$i]['raw']['offset'], $info['tiff']['byte_order']);
86  }
87  break;
88
89  case 2: // ASCII 8-bit bytes that store ASCII codes; the last byte must be null.
90  if ($CurrentIFD['fields'][$i]['raw']['length'] <= 4) {
91  $CurrentIFD['fields'][$i]['value'] = substr($CurrentIFD['fields'][$i]['raw']['offset'], 3);
92  } else {
93  $CurrentIFD['fields'][$i]['offset'] = $this->TIFFendian2Int($CurrentIFD['fields'][$i]['raw']['offset'], $info['tiff']['byte_order']);
94  }
95  break;
96
97  case 3: // SHORT A 16-bit (2-byte) unsigned integer.
98  if ($CurrentIFD['fields'][$i]['raw']['length'] <= 2) {
99  $CurrentIFD['fields'][$i]['value'] = $this->TIFFendian2Int(substr($CurrentIFD['fields'][$i]['raw']['offset'], 0, 2), $info['tiff']['byte_order']);
100  } else {
101  $CurrentIFD['fields'][$i]['offset'] = $this->TIFFendian2Int($CurrentIFD['fields'][$i]['raw']['offset'], $info['tiff']['byte_order']);
102  }
103  break;
104
105  case 4: // LONG A 32-bit (4-byte) unsigned integer.
106  if ($CurrentIFD['fields'][$i]['raw']['length'] <= 1) {
107  $CurrentIFD['fields'][$i]['value'] = $this->TIFFendian2Int($CurrentIFD['fields'][$i]['raw']['offset'], $info['tiff']['byte_order']);
108  } else {
109  $CurrentIFD['fields'][$i]['offset'] = $this->TIFFendian2Int($CurrentIFD['fields'][$i]['raw']['offset'], $info['tiff']['byte_order']);
110  }
111  break;
112
113  case 5: // RATIONAL Two LONG_s: the first represents the numerator of a fraction, the second the denominator.
114  break;
115  }
116  }
117
118  $info['tiff']['ifd'][] = $CurrentIFD;
119  $CurrentIFD = array();
120  $nextIFDoffset = $this->TIFFendian2Int(fread($this->getid3->fp, 4), $info['tiff']['byte_order']);
121
122  }
123
124  foreach ($info['tiff']['ifd'] as $IFDid => $IFDarray) {
125  foreach ($IFDarray['fields'] as $key => $fieldarray) {
126  switch ($fieldarray['raw']['tag']) {
127  case 256: // ImageWidth
128  case 257: // ImageLength
129  case 258: // BitsPerSample
130  case 259: // Compression
131  if (!isset($fieldarray['value'])) {
132  fseek($this->getid3->fp, $fieldarray['offset'], SEEK_SET);
133  $info['tiff']['ifd'][$IFDid]['fields'][$key]['raw']['data'] = fread($this->getid3->fp, $fieldarray['raw']['length'] * $FieldTypeByteLength[$fieldarray['raw']['type']]);
134
135  }
136  break;
137
138  case 270: // ImageDescription
139  case 271: // Make
140  case 272: // Model
141  case 305: // Software
142  case 306: // DateTime
143  case 315: // Artist
144  case 316: // HostComputer
145  if (isset($fieldarray['value'])) {
146  $info['tiff']['ifd'][$IFDid]['fields'][$key]['raw']['data'] = $fieldarray['value'];
147  } else {
148  fseek($this->getid3->fp, $fieldarray['offset'], SEEK_SET);
149  $info['tiff']['ifd'][$IFDid]['fields'][$key]['raw']['data'] = fread($this->getid3->fp, $fieldarray['raw']['length'] * $FieldTypeByteLength[$fieldarray['raw']['type']]);
150
151  }
152  break;
153  }
154  switch ($fieldarray['raw']['tag']) {
155  case 256: // ImageWidth
156  $info['video']['resolution_x'] = $fieldarray['value'];
157  break;
158
159  case 257: // ImageLength
160  $info['video']['resolution_y'] = $fieldarray['value'];
161  break;
162
163  case 258: // BitsPerSample
164  if (isset($fieldarray['value'])) {
165  $info['video']['bits_per_sample'] = $fieldarray['value'];
166  } else {
167  $info['video']['bits_per_sample'] = 0;
168  for ($i = 0; $i < $fieldarray['raw']['length']; $i++) {
169  $info['video']['bits_per_sample'] += $this->TIFFendian2Int(substr($info['tiff']['ifd'][$IFDid]['fields'][$key]['raw']['data'], $i * $FieldTypeByteLength[$fieldarray['raw']['type']], $FieldTypeByteLength[$fieldarray['raw']['type']]), $info['tiff']['byte_order']);
170  }
171  }
172  break;
173
174  case 259: // Compression
175  $info['video']['codec'] = $this->TIFFcompressionMethod($fieldarray['value']);
176  break;
177
178  case 270: // ImageDescription
179  case 271: // Make
180  case 272: // Model
181  case 305: // Software
182  case 306: // DateTime
183  case 315: // Artist
184  case 316: // HostComputer
185  $TIFFcommentName = $this->TIFFcommentName($fieldarray['raw']['tag']);
186  if (isset($info['tiff']['comments'][$TIFFcommentName])) {
187  $info['tiff']['comments'][$TIFFcommentName][] = $info['tiff']['ifd'][$IFDid]['fields'][$key]['raw']['data'];
188  } else {
189  $info['tiff']['comments'][$TIFFcommentName] = array($info['tiff']['ifd'][$IFDid]['fields'][$key]['raw']['data']);
190  }
191  break;
192
193  default:
194  break;
195  }
196  }
197  }
198
199  return true;
200  }
GetId3\Module\Graphic\Tiff\TIFFendian2Int
TIFFendian2Int($bytestring, $byteorder)
Definition: Tiff.php:208
GetId3\Module\Graphic\Tiff\TIFFcommentName
TIFFcommentName($id)
array $TIFFcommentName
Definition: Tiff.php:247
GetId3\Handler\BaseHandler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: BaseHandler.php:148
$info
$info
Definition: example_052.php:80
GetId3\Module\Graphic\Tiff\TIFFcompressionMethod
TIFFcompressionMethod($id)
array $TIFFcompressionMethod
Definition: Tiff.php:225
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19

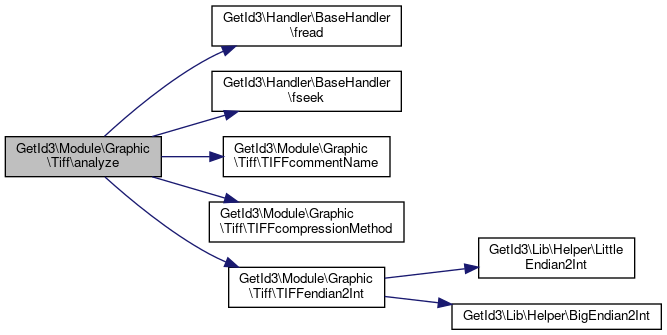

+ Here is the call graph for this function:

◆ TIFFcommentName()

GetId3\Module\Graphic\Tiff::TIFFcommentName (   $id)

array $TIFFcommentName

Parameters
type$id
Returns
type

Definition at line 247 of file Tiff.php.

References array.

Referenced by GetId3\Module\Graphic\Tiff\analyze().

248  {
249  static $TIFFcommentName = array();
250  if (empty($TIFFcommentName)) {
251  $TIFFcommentName = array(
252  270 => 'imagedescription',
253  271 => 'make',
254  272 => 'model',
255  305 => 'software',
256  306 => 'datetime',
257  315 => 'artist',
258  316 => 'hostcomputer',
259  );
260  }
261
262  return (isset($TIFFcommentName[$id]) ? $TIFFcommentName[$id] : 'unknown/invalid ('.$id.')');
263  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:

◆ TIFFcompressionMethod()

GetId3\Module\Graphic\Tiff::TIFFcompressionMethod (   $id)

array $TIFFcompressionMethod

Parameters
type$id
Returns
type

Definition at line 225 of file Tiff.php.

References array.

Referenced by GetId3\Module\Graphic\Tiff\analyze().

226  {
227  static $TIFFcompressionMethod = array();
228  if (empty($TIFFcompressionMethod)) {
229  $TIFFcompressionMethod = array(
230  1 => 'Uncompressed',
231  2 => 'Huffman',
232  3 => 'Fax - CCITT 3',
233  5 => 'LZW',
234  32773 => 'PackBits',
235  );
236  }
237
238  return (isset($TIFFcompressionMethod[$id]) ? $TIFFcompressionMethod[$id] : 'unknown/invalid ('.$id.')');
239  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:

◆ TIFFendian2Int()

GetId3\Module\Graphic\Tiff::TIFFendian2Int (   $bytestring,
  $byteorder
)
Parameters
type$bytestring
type$byteorder
Returns
boolean

Definition at line 208 of file Tiff.php.

References GetId3\Lib\Helper\BigEndian2Int(), and GetId3\Lib\Helper\LittleEndian2Int().

Referenced by GetId3\Module\Graphic\Tiff\analyze().

209  {
210  if ($byteorder == 'Intel') {
211  return Helper::LittleEndian2Int($bytestring);
212  } elseif ($byteorder == 'Motorola') {
213  return Helper::BigEndian2Int($bytestring);
214  }
215
216  return false;
217  }
GetId3\Lib\Helper\LittleEndian2Int
static LittleEndian2Int($byteword, $signed=false)
Definition: Helper.php:413
GetId3\Lib\Helper\BigEndian2Int
static BigEndian2Int($byteword, $synchsafe=false, $signed=false)
Definition: Helper.php:374
+ Here is the call graph for this function:
+ Here is the caller graph for this function:
The documentation for this class was generated from the following file:
