PHPExcel_Style_Color Class Reference

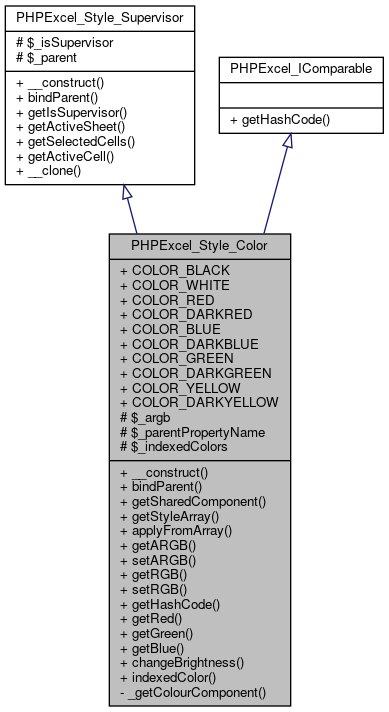

+ Inheritance diagram for PHPExcel_Style_Color:

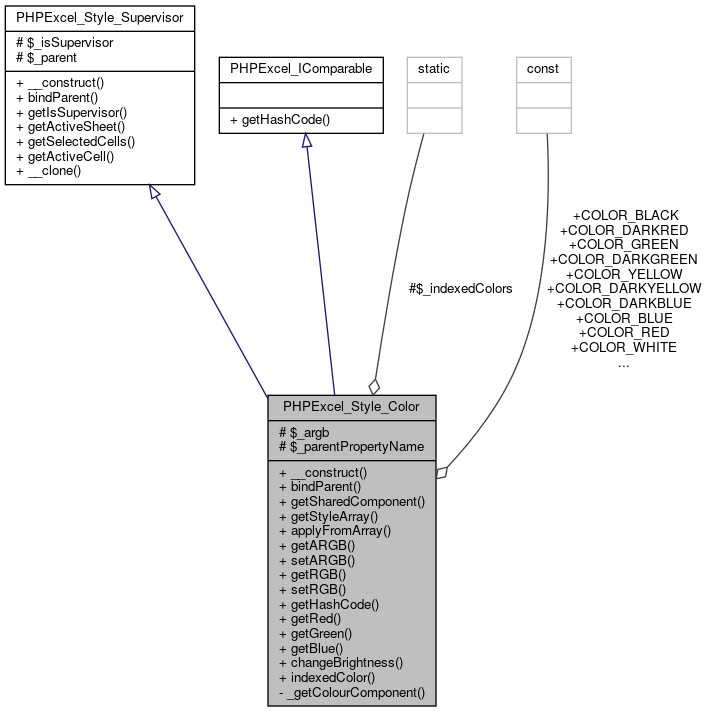

+ Collaboration diagram for PHPExcel_Style_Color:

Public Member Functions

 __construct ($pARGB=PHPExcel_Style_Color::COLOR_BLACK, $isSupervisor=FALSE, $isConditional=FALSE)
 Create a new PHPExcel_Style_Color. More...

 bindParent ($parent, $parentPropertyName=NULL)
 Bind parent. More...

 getSharedComponent ()
 Get the shared style component for the currently active cell in currently active sheet. More...

 getStyleArray ($array)
 Build style array from subcomponents. More...

 applyFromArray ($pStyles=NULL)
 Apply styles from array. More...

 getARGB ()
 Get ARGB. More...

 setARGB ($pValue=PHPExcel_Style_Color::COLOR_BLACK)
 Set ARGB. More...

 getRGB ()
 Get RGB. More...

 setRGB ($pValue='000000')
 Set RGB. More...

 getHashCode ()
 Get hash code. More...

- Public Member Functions inherited from PHPExcel_Style_Supervisor
 __construct ($isSupervisor=FALSE)
 Create a new PHPExcel_Style_Alignment. More...

 bindParent ($parent, $parentPropertyName=NULL)
 Bind parent. More...

 getIsSupervisor ()
 Is this a supervisor or a cell style component? More...

 getActiveSheet ()
 Get the currently active sheet. More...

 getSelectedCells ()
 Get the currently active cell coordinate in currently active sheet. More...

 getActiveCell ()
 Get the currently active cell coordinate in currently active sheet. More...

 __clone ()
 Implement PHP __clone to create a deep clone, not just a shallow copy. More...


Static Public Member Functions

static getRed ($RGB, $hex=TRUE)
 Get the red colour component of an RGB value. More...

static getGreen ($RGB, $hex=TRUE)
 Get the green colour component of an RGB value. More...

static getBlue ($RGB, $hex=TRUE)
 Get the blue colour component of an RGB value. More...

static changeBrightness ($hex, $adjustPercentage)
 Adjust the brightness of a color. More...

static indexedColor ($pIndex, $background=FALSE)
 Get indexed color. More...


Data Fields

const COLOR_BLACK = 'FF000000'

const COLOR_WHITE = 'FFFFFFFF'

const COLOR_RED = 'FFFF0000'

const COLOR_DARKRED = 'FF800000'

const COLOR_BLUE = 'FF0000FF'

const COLOR_DARKBLUE = 'FF000080'

const COLOR_GREEN = 'FF00FF00'

const COLOR_DARKGREEN = 'FF008000'

const COLOR_YELLOW = 'FFFFFF00'

const COLOR_DARKYELLOW = 'FF808000'


Protected Attributes

 $_argb = NULL

 $_parentPropertyName

- Protected Attributes inherited from PHPExcel_Style_Supervisor
 $_isSupervisor

 $_parent


Static Protected Attributes

static $_indexedColors


Static Private Member Functions

static _getColourComponent ($RGB, $offset, $hex=TRUE)
 Get a specified colour component of an RGB value. More...


Detailed Description

Definition at line 36 of file Color.php.

Constructor & Destructor Documentation

◆ __construct()

PHPExcel_Style_Color::__construct (   $pARGB = PHPExcel_Style_Color::COLOR_BLACK,
  $isSupervisor = FALSE,
  $isConditional = FALSE
)

Create a new PHPExcel_Style_Color.

Parameters
string$pARGBARGB value for the colour
boolean$isSupervisorFlag indicating if this is a supervisor or not Leave this value at default unless you understand exactly what its ramifications are
boolean$isConditionalFlag indicating if this is a conditional style or not Leave this value at default unless you understand exactly what its ramifications are

Definition at line 83 of file Color.php.

84  {
85  // Supervisor?
86  parent::__construct($isSupervisor);
87
88  // Initialise values
89  if (!$isConditional) {
90  $this->_argb = $pARGB;
91  }
92  }

Member Function Documentation

◆ _getColourComponent()

static PHPExcel_Style_Color::_getColourComponent (   $RGB,
  $offset,
  $hex = TRUE
)
staticprivate

Get a specified colour component of an RGB value.

Parameters
string$RGBThe colour as an RGB value (e.g. FF00CCCC or CCDDEE
int$offsetPosition within the RGB value to extract
boolean$hexFlag indicating whether the component should be returned as a hex or a decimal value
Returns
string The extracted colour component

Definition at line 250 of file Color.php.

250  {
251  $colour = substr($RGB, $offset, 2);
252  if (!$hex)
253  $colour = hexdec($colour);
254  return $colour;
255  }

◆ applyFromArray()

PHPExcel_Style_Color::applyFromArray (   $pStyles = NULL)

Apply styles from array.

$objPHPExcel->getActiveSheet()->getStyle('B2')->getFont()->getColor()->applyFromArray( array('rgb' => '808080') );

Parameters
array$pStylesArray containing style information
Exceptions
PHPExcel_Exception
Returns
PHPExcel_Style_Color

Definition at line 160 of file Color.php.

References PHPExcel_Style_Supervisor\getActiveSheet(), PHPExcel_Style_Supervisor\getSelectedCells(), getStyleArray(), setARGB(), and setRGB().

160  {
161  if (is_array($pStyles)) {
162  if ($this->_isSupervisor) {
163  $this->getActiveSheet()->getStyle($this->getSelectedCells())->applyFromArray($this->getStyleArray($pStyles));
164  } else {
165  if (array_key_exists('rgb', $pStyles)) {
166  $this->setRGB($pStyles['rgb']);
167  }
168  if (array_key_exists('argb', $pStyles)) {
169  $this->setARGB($pStyles['argb']);
170  }
171  }
172  } else {
173  throw new PHPExcel_Exception("Invalid style array passed.");
174  }
175  return $this;
176  }
PHPExcel_Style_Color\setARGB
setARGB($pValue=PHPExcel_Style_Color::COLOR_BLACK)
Set ARGB.
Definition: Color.php:196
PHPExcel_Exception
Definition: Exception.php:36
PHPExcel_Style_Supervisor\getSelectedCells
getSelectedCells()
Get the currently active cell coordinate in currently active sheet.
Definition: Supervisor.php:103
PHPExcel_Style_Color\getStyleArray
getStyleArray($array)
Build style array from subcomponents.
Definition: Color.php:132
PHPExcel_Style_Color\setRGB
setRGB($pValue='000000')
Set RGB.
Definition: Color.php:227
PHPExcel_Style_Supervisor\getActiveSheet
getActiveSheet()
Get the currently active sheet.
Definition: Supervisor.php:92

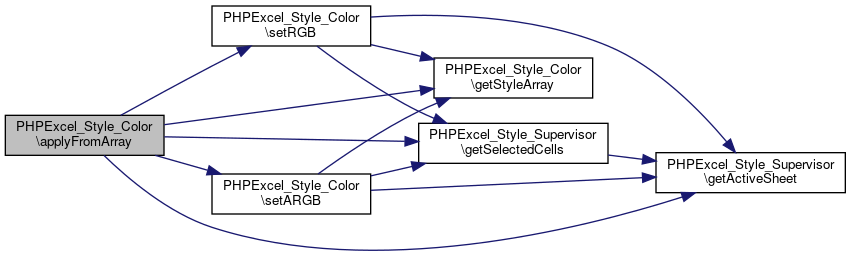

+ Here is the call graph for this function:

◆ bindParent()

PHPExcel_Style_Color::bindParent (   $parent,
  $parentPropertyName = NULL
)

Bind parent.

Only used for supervisor

Parameters
mixed$parent
string$parentPropertyName
Returns
PHPExcel_Style_Color

Definition at line 101 of file Color.php.

102  {
103  $this->_parent = $parent;
104  $this->_parentPropertyName = $parentPropertyName;
105  return $this;
106  }

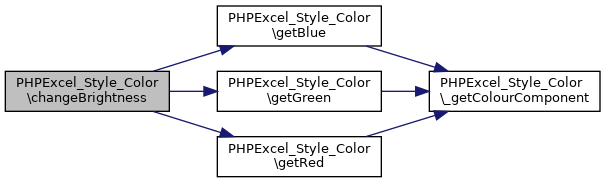

◆ changeBrightness()

static PHPExcel_Style_Color::changeBrightness (   $hex,
  $adjustPercentage
)
static

Adjust the brightness of a color.

Parameters
string$hexThe colour as an RGBA or RGB value (e.g. FF00CCCC or CCDDEE)
float$adjustPercentageThe percentage by which to adjust the colour as a float from -1 to 1
Returns
string The adjusted colour as an RGBA or RGB value (e.g. FF00CCCC or CCDDEE)

Definition at line 300 of file Color.php.

References $blue, $green, and $red.

Referenced by PHPExcel_Reader_Excel2007\_readColor().

300  {
301  $rgba = (strlen($hex) == 8);
302
303  $red = self::getRed($hex, FALSE);
304  $green = self::getGreen($hex, FALSE);
305  $blue = self::getBlue($hex, FALSE);
306  if ($adjustPercentage > 0) {
307  $red += (255 - $red) * $adjustPercentage;
308  $green += (255 - $green) * $adjustPercentage;
309  $blue += (255 - $blue) * $adjustPercentage;
310  } else {
311  $red += $red * $adjustPercentage;
312  $green += $green * $adjustPercentage;
313  $blue += $blue * $adjustPercentage;
314  }
315
316  if ($red < 0) $red = 0;
317  elseif ($red > 255) $red = 255;
318  if ($green < 0) $green = 0;
319  elseif ($green > 255) $green = 255;
320  if ($blue < 0) $blue = 0;
321  elseif ($blue > 255) $blue = 255;
322
323  $rgb = strtoupper( str_pad(dechex($red), 2, '0', 0) .
324  str_pad(dechex($green), 2, '0', 0) .
325  str_pad(dechex($blue), 2, '0', 0)
326  );
327  return (($rgba) ? 'FF' : '') . $rgb;
328  }
$blue
$blue
Definition: example_030.php:81
$red
$red
Definition: example_030.php:80
$green
$green
Definition: example_030.php:83
if
PHPExcel root directory.
Definition: Database.php:30
+ Here is the caller graph for this function:

◆ getARGB()

PHPExcel_Style_Color::getARGB ( )

Get ARGB.

Returns
string

Definition at line 183 of file Color.php.

References $_argb, and getSharedComponent().

183  {
184  if ($this->_isSupervisor) {
185  return $this->getSharedComponent()->getARGB();
186  }
187  return $this->_argb;
188  }
PHPExcel_Style_Color\getSharedComponent
getSharedComponent()
Get the shared style component for the currently active cell in currently active sheet.
Definition: Color.php:114
PHPExcel_Style_Color\$_argb
$_argb
Definition: Color.php:62
+ Here is the call graph for this function:

◆ getBlue()

static PHPExcel_Style_Color::getBlue (   $RGB,
  $hex = TRUE
)
static

Get the blue colour component of an RGB value.

Parameters
string$RGBThe colour as an RGB value (e.g. FF00CCCC or CCDDEE
boolean$hexFlag indicating whether the component should be returned as a hex or a decimal value
Returns
string The blue colour component

Definition at line 289 of file Color.php.

289  {
290  return self::_getColourComponent($RGB, strlen($RGB) - 2, $hex);
291  }

◆ getGreen()

static PHPExcel_Style_Color::getGreen (   $RGB,
  $hex = TRUE
)
static

Get the green colour component of an RGB value.

Parameters
string$RGBThe colour as an RGB value (e.g. FF00CCCC or CCDDEE
boolean$hexFlag indicating whether the component should be returned as a hex or a decimal value
Returns
string The green colour component

Definition at line 277 of file Color.php.

277  {
278  return self::_getColourComponent($RGB, strlen($RGB) - 4, $hex);
279  }

◆ getHashCode()

PHPExcel_Style_Color::getHashCode ( )

Get hash code.

Returns
string Hash code

Implements PHPExcel_IComparable.

Definition at line 419 of file Color.php.

References getSharedComponent().

419  {
420  if ($this->_isSupervisor) {
421  return $this->getSharedComponent()->getHashCode();
422  }
423  return md5(
424  $this->_argb
425  . __CLASS__
426  );
427  }
PHPExcel_Style_Color\getSharedComponent
getSharedComponent()
Get the shared style component for the currently active cell in currently active sheet.
Definition: Color.php:114
+ Here is the call graph for this function:

◆ getRed()

static PHPExcel_Style_Color::getRed (   $RGB,
  $hex = TRUE
)
static

Get the red colour component of an RGB value.

Parameters
string$RGBThe colour as an RGB value (e.g. FF00CCCC or CCDDEE
boolean$hexFlag indicating whether the component should be returned as a hex or a decimal value
Returns
string The red colour component

Definition at line 265 of file Color.php.

265  {
266  return self::_getColourComponent($RGB, strlen($RGB) - 6, $hex);
267  }

◆ getRGB()

PHPExcel_Style_Color::getRGB ( )

Get RGB.

Returns
string

Definition at line 214 of file Color.php.

References getSharedComponent().

214  {
215  if ($this->_isSupervisor) {
216  return $this->getSharedComponent()->getRGB();
217  }
218  return substr($this->_argb, 2);
219  }
PHPExcel_Style_Color\getSharedComponent
getSharedComponent()
Get the shared style component for the currently active cell in currently active sheet.
Definition: Color.php:114
+ Here is the call graph for this function:

◆ getSharedComponent()

PHPExcel_Style_Color::getSharedComponent ( )

Get the shared style component for the currently active cell in currently active sheet.

Only used for style supervisor

Returns
PHPExcel_Style_Color

Definition at line 114 of file Color.php.

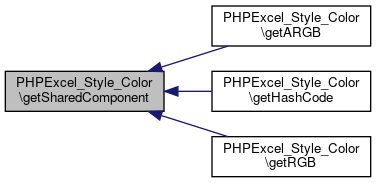

Referenced by getARGB(), getHashCode(), and getRGB().

115  {
116  switch ($this->_parentPropertyName) {
117  case '_endColor':
118  return $this->_parent->getSharedComponent()->getEndColor(); break;
119  case '_color':
120  return $this->_parent->getSharedComponent()->getColor(); break;
121  case '_startColor':
122  return $this->_parent->getSharedComponent()->getStartColor(); break;
123  }
124  }

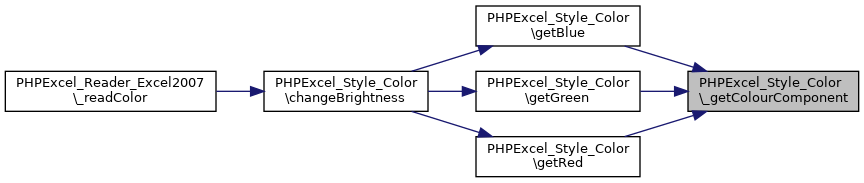

+ Here is the caller graph for this function:

◆ getStyleArray()

PHPExcel_Style_Color::getStyleArray (   $array)

Build style array from subcomponents.

Parameters
array$array
Returns
array

Definition at line 132 of file Color.php.

References array.

Referenced by applyFromArray(), setARGB(), and setRGB().

133  {
134  switch ($this->_parentPropertyName) {
135  case '_endColor':
136  $key = 'endcolor';
137  break;
138  case '_color':
139  $key = 'color';
140  break;
141  case '_startColor':
142  $key = 'startcolor';
143  break;
144
145  }
146  return $this->_parent->getStyleArray(array($key => $array));
147  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19

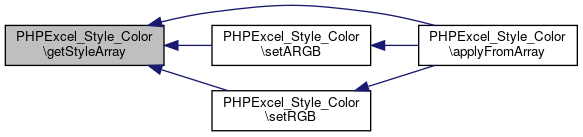

+ Here is the caller graph for this function:

◆ indexedColor()

static PHPExcel_Style_Color::indexedColor (   $pIndex,
  $background = FALSE
)
static

Get indexed color.

Parameters
int$pIndexIndex entry point into the colour array
boolean$backgroundFlag to indicate whether default background or foreground colour should be returned if the indexed colour doesn't exist
Returns
PHPExcel_Style_Color

Definition at line 338 of file Color.php.

References array.

Referenced by PHPExcel_Reader_Excel2007_Chart\_readColor(), and PHPExcel_Reader_Excel2007\_readColor().

338  {
339  // Clean parameter
340  $pIndex = intval($pIndex);
341
342  // Indexed colors
343  if (is_null(self::$_indexedColors)) {
344  self::$_indexedColors = array(
345  1 => 'FF000000', // System Colour #1 - Black
346  2 => 'FFFFFFFF', // System Colour #2 - White
347  3 => 'FFFF0000', // System Colour #3 - Red
348  4 => 'FF00FF00', // System Colour #4 - Green
349  5 => 'FF0000FF', // System Colour #5 - Blue
350  6 => 'FFFFFF00', // System Colour #6 - Yellow
351  7 => 'FFFF00FF', // System Colour #7- Magenta
352  8 => 'FF00FFFF', // System Colour #8- Cyan
353  9 => 'FF800000', // Standard Colour #9
354  10 => 'FF008000', // Standard Colour #10
355  11 => 'FF000080', // Standard Colour #11
356  12 => 'FF808000', // Standard Colour #12
357  13 => 'FF800080', // Standard Colour #13
358  14 => 'FF008080', // Standard Colour #14
359  15 => 'FFC0C0C0', // Standard Colour #15
360  16 => 'FF808080', // Standard Colour #16
361  17 => 'FF9999FF', // Chart Fill Colour #17
362  18 => 'FF993366', // Chart Fill Colour #18
363  19 => 'FFFFFFCC', // Chart Fill Colour #19
364  20 => 'FFCCFFFF', // Chart Fill Colour #20
365  21 => 'FF660066', // Chart Fill Colour #21
366  22 => 'FFFF8080', // Chart Fill Colour #22
367  23 => 'FF0066CC', // Chart Fill Colour #23
368  24 => 'FFCCCCFF', // Chart Fill Colour #24
369  25 => 'FF000080', // Chart Line Colour #25
370  26 => 'FFFF00FF', // Chart Line Colour #26
371  27 => 'FFFFFF00', // Chart Line Colour #27
372  28 => 'FF00FFFF', // Chart Line Colour #28
373  29 => 'FF800080', // Chart Line Colour #29
374  30 => 'FF800000', // Chart Line Colour #30
375  31 => 'FF008080', // Chart Line Colour #31
376  32 => 'FF0000FF', // Chart Line Colour #32
377  33 => 'FF00CCFF', // Standard Colour #33
378  34 => 'FFCCFFFF', // Standard Colour #34
379  35 => 'FFCCFFCC', // Standard Colour #35
380  36 => 'FFFFFF99', // Standard Colour #36
381  37 => 'FF99CCFF', // Standard Colour #37
382  38 => 'FFFF99CC', // Standard Colour #38
383  39 => 'FFCC99FF', // Standard Colour #39
384  40 => 'FFFFCC99', // Standard Colour #40
385  41 => 'FF3366FF', // Standard Colour #41
386  42 => 'FF33CCCC', // Standard Colour #42
387  43 => 'FF99CC00', // Standard Colour #43
388  44 => 'FFFFCC00', // Standard Colour #44
389  45 => 'FFFF9900', // Standard Colour #45
390  46 => 'FFFF6600', // Standard Colour #46
391  47 => 'FF666699', // Standard Colour #47
392  48 => 'FF969696', // Standard Colour #48
393  49 => 'FF003366', // Standard Colour #49
394  50 => 'FF339966', // Standard Colour #50
395  51 => 'FF003300', // Standard Colour #51
396  52 => 'FF333300', // Standard Colour #52
397  53 => 'FF993300', // Standard Colour #53
398  54 => 'FF993366', // Standard Colour #54
399  55 => 'FF333399', // Standard Colour #55
400  56 => 'FF333333' // Standard Colour #56
401  );
402  }
403
404  if (array_key_exists($pIndex, self::$_indexedColors)) {
405  return new PHPExcel_Style_Color(self::$_indexedColors[$pIndex]);
406  }
407
408  if ($background) {
409  return new PHPExcel_Style_Color('FFFFFFFF');
410  }
411  return new PHPExcel_Style_Color('FF000000');
412  }
PHPExcel_Style_Color
Definition: Color.php:36
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19

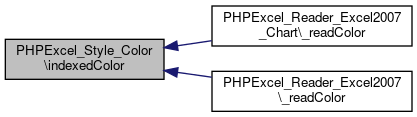

+ Here is the caller graph for this function:

◆ setARGB()

PHPExcel_Style_Color::setARGB (   $pValue = PHPExcel_Style_Color::COLOR_BLACK)

Set ARGB.

Parameters
string$pValue
Returns
PHPExcel_Style_Color

Definition at line 196 of file Color.php.

References array, COLOR_BLACK, PHPExcel_Style_Supervisor\getActiveSheet(), PHPExcel_Style_Supervisor\getSelectedCells(), and getStyleArray().

Referenced by applyFromArray().

196  {
197  if ($pValue == '') {
198  $pValue = PHPExcel_Style_Color::COLOR_BLACK;
199  }
200  if ($this->_isSupervisor) {
201  $styleArray = $this->getStyleArray(array('argb' => $pValue));
202  $this->getActiveSheet()->getStyle($this->getSelectedCells())->applyFromArray($styleArray);
203  } else {
204  $this->_argb = $pValue;
205  }
206  return $this;
207  }
PHPExcel_Style_Supervisor\getSelectedCells
getSelectedCells()
Get the currently active cell coordinate in currently active sheet.
Definition: Supervisor.php:103
PHPExcel_Style_Color\getStyleArray
getStyleArray($array)
Build style array from subcomponents.
Definition: Color.php:132
PHPExcel_Style_Color\COLOR_BLACK
const COLOR_BLACK
Definition: Color.php:39
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
PHPExcel_Style_Supervisor\getActiveSheet
getActiveSheet()
Get the currently active sheet.
Definition: Supervisor.php:92

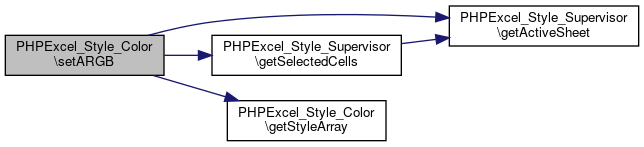

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ setRGB()

PHPExcel_Style_Color::setRGB (   $pValue = '000000')

Set RGB.

Parameters
string$pValueRGB value
Returns
PHPExcel_Style_Color

Definition at line 227 of file Color.php.

References array, PHPExcel_Style_Supervisor\getActiveSheet(), PHPExcel_Style_Supervisor\getSelectedCells(), and getStyleArray().

Referenced by applyFromArray().

227  {
228  if ($pValue == '') {
229  $pValue = '000000';
230  }
231  if ($this->_isSupervisor) {
232  $styleArray = $this->getStyleArray(array('argb' => 'FF' . $pValue));
233  $this->getActiveSheet()->getStyle($this->getSelectedCells())->applyFromArray($styleArray);
234  } else {
235  $this->_argb = 'FF' . $pValue;
236  }
237  return $this;
238  }
PHPExcel_Style_Supervisor\getSelectedCells
getSelectedCells()
Get the currently active cell coordinate in currently active sheet.
Definition: Supervisor.php:103
PHPExcel_Style_Color\getStyleArray
getStyleArray($array)
Build style array from subcomponents.
Definition: Color.php:132
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
PHPExcel_Style_Supervisor\getActiveSheet
getActiveSheet()
Get the currently active sheet.
Definition: Supervisor.php:92
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Field Documentation

◆ $_argb

PHPExcel_Style_Color::$_argb = NULL
protected

Definition at line 62 of file Color.php.

Referenced by getARGB().

◆ $_indexedColors

PHPExcel_Style_Color::$_indexedColors
staticprotected

Definition at line 55 of file Color.php.

◆ $_parentPropertyName

PHPExcel_Style_Color::$_parentPropertyName
protected

Definition at line 69 of file Color.php.

◆ COLOR_BLACK

const PHPExcel_Style_Color::COLOR_BLACK = 'FF000000'

Definition at line 39 of file Color.php.

Referenced by PHPExcel_Style_Border\__construct(), PHPExcel_Style_Fill\__construct(), PHPExcel_Worksheet_Drawing_Shadow\__construct(), PHPExcel_Style_Font\__construct(), PHPExcel_Writer_Excel5_Worksheet\_writeCFRule(), and setARGB().

◆ COLOR_BLUE

const PHPExcel_Style_Color::COLOR_BLUE = 'FF0000FF'

Definition at line 43 of file Color.php.

◆ COLOR_DARKBLUE

const PHPExcel_Style_Color::COLOR_DARKBLUE = 'FF000080'

Definition at line 44 of file Color.php.

◆ COLOR_DARKGREEN

const PHPExcel_Style_Color::COLOR_DARKGREEN = 'FF008000'

Definition at line 46 of file Color.php.

◆ COLOR_DARKRED

const PHPExcel_Style_Color::COLOR_DARKRED = 'FF800000'

Definition at line 42 of file Color.php.

◆ COLOR_DARKYELLOW

const PHPExcel_Style_Color::COLOR_DARKYELLOW = 'FF808000'

Definition at line 48 of file Color.php.

◆ COLOR_GREEN

const PHPExcel_Style_Color::COLOR_GREEN = 'FF00FF00'

Definition at line 45 of file Color.php.

◆ COLOR_RED

const PHPExcel_Style_Color::COLOR_RED = 'FFFF0000'

Definition at line 41 of file Color.php.

◆ COLOR_WHITE

const PHPExcel_Style_Color::COLOR_WHITE = 'FFFFFFFF'

Definition at line 40 of file Color.php.

Referenced by PHPExcel_Style_Fill\__construct().

◆ COLOR_YELLOW

const PHPExcel_Style_Color::COLOR_YELLOW = 'FFFFFF00'

Definition at line 47 of file Color.php.

The documentation for this class was generated from the following file:
