SAML2\HTTPRedirect Class Reference

Inheritance diagram for SAML2\HTTPRedirect:

Collaboration diagram for SAML2\HTTPRedirect:

Public Member Functions
	getRedirectURL (Message $message)
	Create the redirect URL for a message. More...
	send (Message $message)
	Send a SAML 2 message using the HTTP-Redirect binding. More...
	receive ()
	Receive a SAML 2 message sent using the HTTP-Redirect binding. More...
Public Member Functions inherited from SAML2\Binding
	getDestination ()
	Retrieve the destination of a message. More...
	setDestination ($destination)
	Override the destination of a message. More...
	send (Message $message)
	Send a SAML 2 message. More...
	receive ()
	Receive a SAML 2 message. More...

Static Public Member Functions
static	validateSignature (array $data, XMLSecurityKey $key)
	Validate the signature on a HTTP-Redirect message. More...
Static Public Member Functions inherited from SAML2\Binding
static	getBinding ($urn)
	Retrieve a binding with the given URN. More...
static	getCurrentBinding ()
	Guess the current binding. More...

Data Fields
const	DEFLATE = 'urn:oasis:names:tc:SAML:2.0:bindings:URL-Encoding:DEFLATE'

Static Private Member Functions
static	parseQuery ()
	Helper function to parse query data. More...

Additional Inherited Members
Protected Attributes inherited from SAML2\Binding
	$destination
	The destination of messages. More...

Detailed Description

Definition at line 12 of file HTTPRedirect.php.

Member Function Documentation

getRedirectURL()

SAML2\HTTPRedirect::getRedirectURL

(

Message

$message

)

Create the redirect URL for a message.

Parameters

\SAML2\Message

$message

The message.

Returns

string The URL the user should be redirected to in order to send a message.

Definition at line 22 of file HTTPRedirect.php.

References $destination, $key, $relayState, SAML2\Message\getDestination(), SAML2\Message\getRelayState(), SAML2\Message\getSignatureKey(), and SAML2\Message\toUnsignedXML().

    {
        if ($this->destination === null) {
            $destination = $message->getDestination();
        } else {
            $destination = $this->destination;
        }

        $relayState = $message->getRelayState();

        $key = $message->getSignatureKey();

        $msgStr = $message->toUnsignedXML();
        $msgStr = $msgStr->ownerDocument->saveXML($msgStr);

        Utils::getContainer()->debugMessage($msgStr, 'out');

        $msgStr = gzdeflate($msgStr);
        $msgStr = base64_encode($msgStr);

        /* Build the query string. */

        if ($message instanceof Request) {
            $msg = 'SAMLRequest=';
        } else {
            $msg = 'SAMLResponse=';
        }
        $msg .= urlencode($msgStr);

        if ($relayState !== null) {
            $msg .= '&RelayState=' . urlencode($relayState);
        }

        if ($key !== null) {
            /* Add the signature. */
            $msg .= '&SigAlg=' . urlencode($key->type);

            $signature = $key->signData($msg);
            $msg .= '&Signature=' . urlencode(base64_encode($signature));
        }

        if (strpos($destination, '?') === false) {
            $destination .= '?' . $msg;
        } else {
            $destination .= '&' . $msg;
        }

        return $destination;
    }

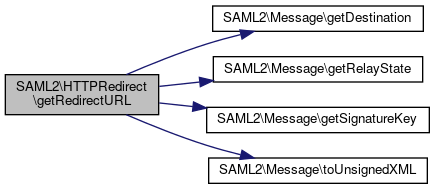

Here is the call graph for this function:

parseQuery()

static SAML2\HTTPRedirect::parseQuery ( )

staticprivate

Helper function to parse query data.

This function returns the query string split into key=>value pairs. It also adds a new parameter, SignedQuery, which contains the data that is signed.

Returns

string The query data that is signed.

Definition at line 159 of file HTTPRedirect.php.

References $_SERVER, $data, $name, $relayState, and array.

    {
        /*
         * Parse the query string. We need to do this ourself, so that we get access
         * to the raw (urlencoded) values. This is required because different software
         * can urlencode to different values.
         */
        $data = array();
        $relayState = '';
        $sigAlg = '';
        $sigQuery = '';
        foreach (explode('&', $_SERVER['QUERY_STRING']) as $e) {
            $tmp = explode('=', $e, 2);
            $name = $tmp[0];
            if (count($tmp) === 2) {
                $value = $tmp[1];
            } else {
                /* No value for this parameter. */
                $value = '';
            }
            $name = urldecode($name);
            $data[$name] = urldecode($value);

            switch ($name) {
                case 'SAMLRequest':
                case 'SAMLResponse':
                    $sigQuery = $name . '=' . $value;
                    break;
                case 'RelayState':
                    $relayState = '&RelayState=' . $value;
                    break;
                case 'SigAlg':
                    $sigAlg = '&SigAlg=' . $value;
                    break;
            }
        }

        $data['SignedQuery'] = $sigQuery . $relayState . $sigAlg;

        return $data;
    }

receive()

SAML2\HTTPRedirect::receive

(

)

Receive a SAML 2 message sent using the HTTP-Redirect binding.

Throws an exception if it is unable receive the message.

Returns

The received message.

Exceptions

Definition at line 97 of file HTTPRedirect.php.

References $data, $message, $xml, and array.

    {
        $data = self::parseQuery();
        if (array_key_exists('SAMLRequest', $data)) {
            $message = $data['SAMLRequest'];
        } elseif (array_key_exists('SAMLResponse', $data)) {
            $message = $data['SAMLResponse'];
        } else {
            throw new \Exception('Missing SAMLRequest or SAMLResponse parameter.');
        }

        if (isset($data['SAMLEncoding']) && $data['SAMLEncoding'] !== self::DEFLATE) {
            throw new \Exception('Unknown SAMLEncoding: ' . var_export($data['SAMLEncoding'], true));
        }

        $message = base64_decode($message);
        if ($message === false) {
            throw new \Exception('Error while base64 decoding SAML message.');
        }

        $message = gzinflate($message);
        if ($message === false) {
            throw new \Exception('Error while inflating SAML message.');
        }

        Utils::getContainer()->debugMessage($message, 'in');
        $document = DOMDocumentFactory::fromString($message);
        $xml      = $document->firstChild;
        $message  = Message::fromXML($xml);

        if (array_key_exists('RelayState', $data)) {
            $message->setRelayState($data['RelayState']);
        }

        if (!array_key_exists('Signature', $data)) {
            return $message;
        }

        if (!array_key_exists('SigAlg', $data)) {
            throw new \Exception('Missing signature algorithm.');
        }

        $signData = array(
            'Signature' => $data['Signature'],
            'SigAlg'    => $data['SigAlg'],
            'Query'     => $data['SignedQuery'],
        );

        $message->addValidator(array(get_class($this), 'validateSignature'), $signData);

        return $message;
    }

send()

SAML2\HTTPRedirect::send

(

Message

$message

)

Send a SAML 2 message using the HTTP-Redirect binding.

Note: This function never returns.

Parameters

\SAML2\Message

$message

The message we should send.

Definition at line 79 of file HTTPRedirect.php.

References $destination.

    {
        $destination = $this->getRedirectURL($message);
        Utils::getContainer()->getLogger()->debug('Redirect to ' . strlen($destination) . ' byte URL: ' . $destination);
        Utils::getContainer()->redirect($destination);
    }

validateSignature()

static SAML2\HTTPRedirect::validateSignature ( array  $data, XMLSecurityKey  $key  )

static

Validate the signature on a HTTP-Redirect message.

Throws an exception if we are unable to validate the signature.

Parameters

array	$data	The data we need to validate the query string.
XMLSecurityKey	$key	The key we should validate the query against.

Exceptions

Definition at line 210 of file HTTPRedirect.php.

References $query, and RobRichards\XMLSecLibs\XMLSecurityKey\verifySignature().

    {
        assert(array_key_exists("Query", $data));
        assert(array_key_exists("SigAlg", $data));
        assert(array_key_exists("Signature", $data));

        $query = $data['Query'];
        $sigAlg = $data['SigAlg'];
        $signature = $data['Signature'];

        $signature = base64_decode($signature);

        if ($key->type !== XMLSecurityKey::RSA_SHA1) {
            throw new \Exception('Invalid key type for validating signature on query string.');
        }
        if ($key->type !== $sigAlg) {
            $key = Utils::castKey($key, $sigAlg);
        }

        if ($key->verifySignature($query, $signature) !== 1) {
            throw new \Exception('Unable to validate signature on query string.');
        }
    }

Here is the call graph for this function:

Field Documentation

DEFLATE

const SAML2\HTTPRedirect::DEFLATE = 'urn:oasis:names:tc:SAML:2.0:bindings:URL-Encoding:DEFLATE'

Definition at line 14 of file HTTPRedirect.php.

---

The documentation for this class was generated from the following file:

• libs/composer/vendor/simplesamlphp/saml2/src/SAML2/HTTPRedirect.php
