SimpleSAML\XML\Validator Class Reference

Collaboration diagram for SimpleSAML\XML\Validator:

Public Member Functions
	__construct ($xmlNode, $idAttribute=null, $publickey=false)
	This function initializes the validator. More...
	getX509Certificate ()
	Retrieve the X509 certificate which was used to sign the XML. More...
	validateFingerprint ($fingerprints)
	Validate the fingerprint of the certificate which was used to sign this document. More...
	isNodeValidated ($node)
	This function checks if the given XML node was signed. More...
	validateCA ($caFile)
	Validate the certificate used to sign the XML against a CA file. More...

Static Public Member Functions
static	validateCertificate ($certificate, $caFile)
	Validate the certificate used to sign the XML against a CA file. More...

Static Private Member Functions
static	calculateX509Fingerprint ($x509cert)
	Calculates the fingerprint of an X509 certificate. More...
static	validateCertificateFingerprint ($certificate, $fingerprints)
	Helper function for validating the fingerprint. More...
static	validateCABuiltIn ($certificate, $caFile)
	Validate a certificate against a CA file, by using the builtin openssl_x509_checkpurpose function. More...
static	validateCAExec ($certificate, $caFile)
	Validate the certificate used to sign the XML against a CA file, by using the "openssl verify" command. More...

Private Attributes
	$x509Certificate
	$validNodes = null

Detailed Description

Definition at line 16 of file Validator.php.

Constructor & Destructor Documentation

__construct()

SimpleSAML\XML\Validator::__construct	(		$xmlNode,
			$idAttribute = null,
			$publickey = false
	)

This function initializes the validator.

This function accepts an optional parameter $publickey, which is the public key or certificate which should be used to validate the signature. This parameter can take the following values:

• NULL/FALSE: No validation will be performed. This is the default.
• A string: Assumed to be a PEM-encoded certificate / public key.
• An array: Assumed to be an array returned by SimpleSAML_Utilities::loadPublicKey.

Parameters

\DOMNode	$xmlNode	The XML node which contains the Signature element.
string | array	$idAttribute	The ID attribute which is used in node references. If this attribute is NULL (the default), then we will use whatever is the default ID. Can be eigther a string with one value, or an array with multiple ID attrbute names.
array | bool	$publickey	The public key / certificate which should be used to validate the XML node.

Exceptions

Definition at line 49 of file Validator.php.

References $certificate, array, and RobRichards\XMLSecLibs\XMLSecEnc\staticLocateKeyInfo().

    {
        assert('$xmlNode instanceof \DOMNode');

        if ($publickey === null) {
            $publickey = false;
        } elseif (is_string($publickey)) {
            $publickey = array(
                'PEM' => $publickey,
            );
        } else {
            assert('$publickey === FALSE || is_array($publickey)');
        }

        // Create an XML security object
        $objXMLSecDSig = new XMLSecurityDSig();

        // Add the id attribute if the user passed in an id attribute
        if ($idAttribute !== null) {
            if (is_string($idAttribute)) {
                $objXMLSecDSig->idKeys[] = $idAttribute;
            } elseif (is_array($idAttribute)) {
                foreach ($idAttribute as $ida) {
                    $objXMLSecDSig->idKeys[] = $ida;
                }
            }
        }

        // Locate the XMLDSig Signature element to be used
        $signatureElement = $objXMLSecDSig->locateSignature($xmlNode);
        if (!$signatureElement) {
            throw new \Exception('Could not locate XML Signature element.');
        }

        // Canonicalize the XMLDSig SignedInfo element in the message
        $objXMLSecDSig->canonicalizeSignedInfo();

        // Validate referenced xml nodes
        if (!$objXMLSecDSig->validateReference()) {
            throw new \Exception('XMLsec: digest validation failed');
        }


        // Find the key used to sign the document
        $objKey = $objXMLSecDSig->locateKey();
        if (empty($objKey)) {
            throw new \Exception('Error loading key to handle XML signature');
        }

        // Load the key data
        if ($publickey !== false && array_key_exists('PEM', $publickey)) {
            // We have PEM data for the public key / certificate
            $objKey->loadKey($publickey['PEM']);
        } else {
            // No PEM data. Search for key in signature

            if (!XMLSecEnc::staticLocateKeyInfo($objKey, $signatureElement)) {
                throw new \Exception('Error finding key data for XML signature validation.');
            }

            if ($publickey !== false) {
                /* $publickey is set, and should therefore contain one or more fingerprints.
                 * Check that the response contains a certificate with a matching
                 * fingerprint.
                 */
                assert('is_array($publickey["certFingerprint"])');

                $certificate = $objKey->getX509Certificate();
                if ($certificate === null) {
                    // Wasn't signed with an X509 certificate
                    throw new \Exception('Message wasn\'t signed with an X509 certificate,' .
                        ' and no public key was provided in the metadata.');
                }

                self::validateCertificateFingerprint($certificate, $publickey['certFingerprint']);
                // Key OK
            }
        }

        // Check the signature
        if ($objXMLSecDSig->verify($objKey) !== 1) {
            throw new \Exception("Unable to validate Signature");
        }

        // Extract the certificate
        $this->x509Certificate = $objKey->getX509Certificate();

        // Find the list of validated nodes
        $this->validNodes = $objXMLSecDSig->getValidatedNodes();
    }

Here is the call graph for this function:

Member Function Documentation

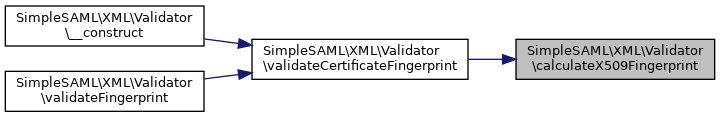

calculateX509Fingerprint()

static SimpleSAML\XML\Validator::calculateX509Fingerprint (   $x509cert )

staticprivate

Calculates the fingerprint of an X509 certificate.

Parameters

string

$x509cert

The certificate as a base64-encoded string. The string may optionally be framed with '--—BEGIN CERTIFICATE--—' and '--—END CERTIFICATE--—'.

Returns

string The fingerprint as a 40-character lowercase hexadecimal number. NULL is returned if the argument isn't an X509 certificate.

Definition at line 163 of file Validator.php.

References $data.

    {
        assert('is_string($x509cert)');

        $lines = explode("\n", $x509cert);

        $data = '';

        foreach ($lines as $line) {
            // Remove '\r' from end of line if present
            $line = rtrim($line);
            if ($line === '-----BEGIN CERTIFICATE-----') {
                // Delete junk from before the certificate
                $data = '';
            } elseif ($line === '-----END CERTIFICATE-----') {
                // Ignore data after the certificate
                break;
            } elseif ($line === '-----BEGIN PUBLIC KEY-----') {
                // This isn't an X509 certificate
                return null;
            } else {
                // Append the current line to the certificate data
                $data .= $line;
            }
        }

        /* $data now contains the certificate as a base64-encoded string. The fingerprint
         * of the certificate is the sha1-hash of the certificate.
         */
        return strtolower(sha1(base64_decode($data)));
    }

getX509Certificate()

SimpleSAML\XML\Validator::getX509Certificate

(

)

Retrieve the X509 certificate which was used to sign the XML.

This function will return the certificate as a PEM-encoded string. If the XML wasn't signed by an X509 certificate, NULL will be returned.

Returns

string The certificate as a PEM-encoded string, or NULL if not signed with an X509 certificate.

Definition at line 149 of file Validator.php.

References SimpleSAML\XML\Validator\$x509Certificate.

    {
        return $this->x509Certificate;
    }

isNodeValidated()

SimpleSAML\XML\Validator::isNodeValidated

(

$node

)

This function checks if the given XML node was signed.

Parameters

\DOMNode

$node

The XML node which we should verify that was signed.

Returns

bool TRUE if this node (or a parent node) was signed. FALSE if not.

Definition at line 275 of file Validator.php.

    {
        assert('$node instanceof \DOMNode');

        while ($node !== null) {
            if (in_array($node, $this->validNodes, true)) {
                return true;
            }

            $node = $node->parentNode;
        }

        /* Neither this node nor any of the parent nodes could be found in the list of
         * signed nodes.
         */
        return false;
    }

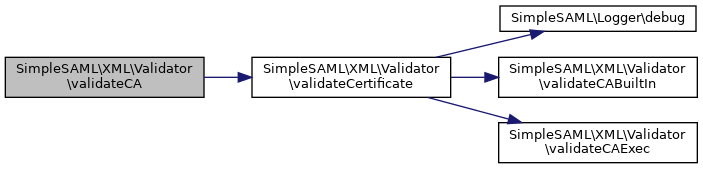

validateCA()

SimpleSAML\XML\Validator::validateCA

(

$caFile

)

Validate the certificate used to sign the XML against a CA file.

This function throws an exception if unable to validate against the given CA file.

Parameters

string

$caFile

File with trusted certificates, in PEM-format.

Exceptions

Definition at line 302 of file Validator.php.

    {
        assert('is_string($caFile)');

        if ($this->x509Certificate === null) {
            throw new \Exception('Key used to sign the message was not an X509 certificate.');
        }

        self::validateCertificate($this->x509Certificate, $caFile);
    }

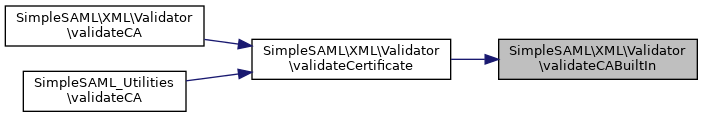

validateCABuiltIn()

static SimpleSAML\XML\Validator::validateCABuiltIn (   $certificate,   $caFile  )

staticprivate

Validate a certificate against a CA file, by using the builtin openssl_x509_checkpurpose function.

Parameters

string	$certificate	The certificate, in PEM format.
string	$caFile	File with trusted certificates, in PEM-format.

Returns

boolean|string TRUE on success, or a string with error messages if it failed.

Deprecated:

Definition at line 322 of file Validator.php.

References $certificate, $error, $errors, $res, and array.

    {
        assert('is_string($certificate)');
        assert('is_string($caFile)');

        // Clear openssl errors
        while (openssl_error_string() !== false);

        $res = openssl_x509_checkpurpose($certificate, X509_PURPOSE_ANY, array($caFile));

        $errors = '';
        // Log errors
        while (($error = openssl_error_string()) !== false) {
            $errors .= ' [' . $error . ']';
        }

        if ($res !== true) {
            return $errors;
        }

        return true;
    }

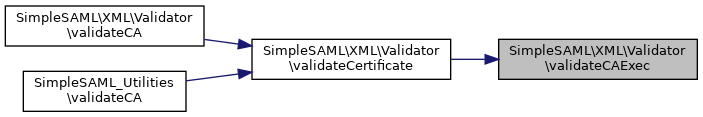

validateCAExec()

static SimpleSAML\XML\Validator::validateCAExec (   $certificate,   $caFile  )

staticprivate

Validate the certificate used to sign the XML against a CA file, by using the "openssl verify" command.

This function uses the openssl verify command to verify a certificate, to work around limitations on the openssl_x509_checkpurpose function. That function will not work on certificates without a purpose set.

Parameters

string	$certificate	The certificate, in PEM format.
string	$caFile	File with trusted certificates, in PEM-format.

Returns

bool|string TRUE on success, a string with error messages on failure.

Exceptions

Definition at line 359 of file Validator.php.

References $certificate, $out, and array.

    {
        assert('is_string($certificate)');
        assert('is_string($caFile)');

        $command = array(
            'openssl', 'verify',
            '-CAfile', $caFile,
            '-purpose', 'any',
        );

        $cmdline = '';
        foreach ($command as $c) {
            $cmdline .= escapeshellarg($c) . ' ';
        }

        $cmdline .= '2>&1';
        $descSpec = array(
            0 => array('pipe', 'r'),
            1 => array('pipe', 'w'),
        );
        $process = proc_open($cmdline, $descSpec, $pipes);
        if (!is_resource($process)) {
            throw new \Exception('Failed to execute verification command: ' . $cmdline);
        }

        if (fwrite($pipes[0], $certificate) === false) {
            throw new \Exception('Failed to write certificate for verification.');
        }
        fclose($pipes[0]);

        $out = '';
        while (!feof($pipes[1])) {
            $line = trim(fgets($pipes[1]));
            if (strlen($line) > 0) {
                $out .= ' [' . $line . ']';
            }
        }
        fclose($pipes[1]);

        $status = proc_close($process);
        if ($status !== 0 || $out !== ' [stdin: OK]') {
            return $out;
        }

        return true;
    }

validateCertificate()

static SimpleSAML\XML\Validator::validateCertificate (   $certificate,   $caFile  )

static

Validate the certificate used to sign the XML against a CA file.

This function throws an exception if unable to validate against the given CA file.

Parameters

string	$certificate	The certificate, in PEM format.
string	$caFile	File with trusted certificates, in PEM-format.

Exceptions

Definition at line 418 of file Validator.php.

References $certificate, and SimpleSAML\Logger\debug().

Referenced by SimpleSAML_Utilities\validateCA().

    {
        assert('is_string($certificate)');
        assert('is_string($caFile)');

        if (!file_exists($caFile)) {
            throw new \Exception('Could not load CA file: ' . $caFile);
        }

        Logger::debug('Validating certificate against CA file: ' . var_export($caFile, true));

        $resBuiltin = self::validateCABuiltIn($certificate, $caFile);
        if ($resBuiltin !== true) {
            Logger::debug('Failed to validate with internal function: ' . var_export($resBuiltin, true));

            $resExternal = self::validateCAExec($certificate, $caFile);
            if ($resExternal !== true) {
                Logger::debug('Failed to validate with external function: ' . var_export($resExternal, true));
                throw new \Exception('Could not verify certificate against CA file "'
                    . $caFile . '". Internal result:' . $resBuiltin .
                    ' External result:' . $resExternal);
            }
        }

        Logger::debug('Successfully validated certificate.');
    }

Here is the call graph for this function:

Here is the caller graph for this function:

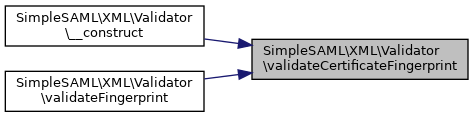

validateCertificateFingerprint()

static SimpleSAML\XML\Validator::validateCertificateFingerprint (   $certificate,   $fingerprints  )

staticprivate

Helper function for validating the fingerprint.

Checks the fingerprint of a certificate against an array of valid fingerprints. Will throw an exception if none of the fingerprints matches.

Parameters

string	$certificate	The X509 certificate we should validate.
array	$fingerprints	The valid fingerprints.

Exceptions

Definition at line 206 of file Validator.php.

References $certificate.

    {
        assert('is_string($certificate)');
        assert('is_array($fingerprints)');

        $certFingerprint = self::calculateX509Fingerprint($certificate);
        if ($certFingerprint === null) {
            // Couldn't calculate fingerprint from X509 certificate. Should not happen.
            throw new \Exception('Unable to calculate fingerprint from X509' .
                ' certificate. Maybe it isn\'t an X509 certificate?');
        }

        foreach ($fingerprints as $fp) {
            assert('is_string($fp)');

            if ($fp === $certFingerprint) {
                // The fingerprints matched
                return;
            }
        }

        // None of the fingerprints matched. Throw an exception describing the error.
        throw new \Exception('Invalid fingerprint of certificate. Expected one of [' .
            implode('], [', $fingerprints) . '], but got [' . $certFingerprint . ']');
    }

validateFingerprint()

SimpleSAML\XML\Validator::validateFingerprint

(

$fingerprints

)

Validate the fingerprint of the certificate which was used to sign this document.

This function accepts either a string, or an array of strings as a parameter. If this is an array, then any string (certificate) in the array can match. If this is a string, then that string must match,

Parameters

string | array

$fingerprints

The fingerprints which should match. This can be a single string, or an array of fingerprints.

Exceptions

Definition at line 244 of file Validator.php.

References array.

    {
        assert('is_string($fingerprints) || is_array($fingerprints)');

        if ($this->x509Certificate === null) {
            throw new \Exception('Key used to sign the message was not an X509 certificate.');
        }

        if (!is_array($fingerprints)) {
            $fingerprints = array($fingerprints);
        }

        // Normalize the fingerprints
        foreach ($fingerprints as &$fp) {
            assert('is_string($fp)');

            // Make sure that the fingerprint is in the correct format
            $fp = strtolower(str_replace(":", "", $fp));
        }

        self::validateCertificateFingerprint($this->x509Certificate, $fingerprints);
    }

Field Documentation

$validNodes

SimpleSAML\XML\Validator::$validNodes = null

private

Definition at line 28 of file Validator.php.

$x509Certificate

SimpleSAML\XML\Validator::$x509Certificate

private

Definition at line 23 of file Validator.php.

Referenced by SimpleSAML\XML\Validator\getX509Certificate().

---

The documentation for this class was generated from the following file:

• libs/composer/vendor/simplesamlphp/simplesamlphp/lib/SimpleSAML/XML/Validator.php
