ilStartEventElement Class Reference

Class ilStartEventElement. More...

Inheritance diagram for ilStartEventElement:

Collaboration diagram for ilStartEventElement:

Public Member Functions
	getPHP ($element, ilWorkflowScaffold $class_object)
Public Member Functions inherited from ilBaseElement
	getBpmn2Array ()
	setBpmn2Array ($bpmn2_array)
	handleDataAssociations ($element, $class_object, $element_varname)
	getDataInputAssociationIdentifiers ($element)
	getDataOutputAssociationIdentifiers ($element)

Data Fields
	$element_varname

Additional Inherited Members
Protected Attributes inherited from ilBaseElement
	$bpmn2_array

Detailed Description

Class ilStartEventElement.

Author

Maximilian Becker mbeck.nosp@m.er@d.nosp@m.ataba.nosp@m.y.de

Version

$Id$

/

Definition at line 12 of file class.ilStartEventElement.php.

Member Function Documentation

getPHP()

ilStartEventElement::getPHP	(		$element,
		ilWorkflowScaffold	$class_object
	)

Parameters

	$element
\ilWorkflowScaffold	$class_object

Returns

string

Definition at line 23 of file class.ilStartEventElement.php.

    {
        $code = "";
        $element_id = ilBPMN2ParserUtils::xsIDToPHPVarname($element['attributes']['id']);
        $this->element_varname = '$_v_' . $element_id; // TODO: xsd:ID allows hyphens and periods. Deal with it!

        $event_definition = null;

        $hasChildren = (isset($element['children']) && is_array($element['children']) && count($element['children']) > 0);
        if ($hasChildren) {
            foreach ($element['children'] as $child) {
                if ($child['name'] == 'messageEventDefinition') {
                    $class_object->registerStartEventRef($child['attributes']['messageRef']);
                    $event_definition = ilBPMN2ParserUtils::extractILIASEventDefinitionFromProcess(
                        $child['attributes']['messageRef'],
                        'message',
                        $this->bpmn2_array
                    );
                }
                if ($child['name'] == 'signalEventDefinition') {
                    $class_object->registerStartSignalRef($child['attributes']['signalRef']);
                    $event_definition = ilBPMN2ParserUtils::extractILIASEventDefinitionFromProcess(
                        $child['attributes']['signalRef'],
                        'signal',
                        $this->bpmn2_array
                    );
                }
                if ($child['name'] == 'timerEventDefinition') {
                    $class_object->registerStartTimerRef($child['attributes']['id']);
                    $event_definition = ilBPMN2ParserUtils::extractTimeDateEventDefinitionFromElement(
                        $child['attributes']['id'],
                        'startEvent',
                        $this->bpmn2_array
                    );
                    //$event_definition = $class_object->getTimeDateEventDefinition($child['attributes']['id']);
                }
            }
        }
        $class_object->registerRequire('./Services/WorkflowEngine/classes/nodes/class.ilBasicNode.php');
        $code .= '
                        ' . $this->element_varname . ' = new ilBasicNode($this);
                        $this->addNode(' . $this->element_varname . ');
                        ' . $this->element_varname . '->setName(\'' . $this->element_varname . '\');
                ';

        if (is_array($event_definition)) {
            $class_object->registerRequire('./Services/WorkflowEngine/classes/detectors/class.ilEventDetector.php');
            $code .= '
                        ' . $this->element_varname . '_detector = new ilEventDetector(' . $this->element_varname . ');
                        ' . $this->element_varname . '_detector->setName(\'' . $this->element_varname . '_detector\');
                        ' . $this->element_varname . '_detector->setEvent(                      "' . $event_definition['type'] . '",                    "' . $event_definition['content'] . '");
                        ' . $this->element_varname . '_detector->setEventSubject(       "' . $event_definition['subject_type'] . '",    "' . $event_definition['subject_id'] . '");
                        ' . $this->element_varname . '_detector->setEventContext(       "' . $event_definition['context_type'] . '",    "' . $event_definition['context_id'] . '");
                        ';
            if (isset($event_definition['listening_start']) || isset($event_definition['listening_end'])) {
                $code .= $this->element_varname . '_detector->setListeningTimeframe(' . (int) $event_definition['listening_start'] .
                    ', ' . (int) $event_definition['listening_end'] . ');';
            } elseif (isset($event_definition['listening_relative']) && isset($event_definition['listening_interval'])) {
                $code .= $this->element_varname . '_detector->setTimerRelative(true);';
                $code .= $this->element_varname . '_detector->setTimerLimit(' . (int) $event_definition['listening_interval'] . ');';
            }
        } else {
            $code .= '
                        $this->setStartNode(' . $this->element_varname . ');
                        ';
        }

        $code .= $this->handleDataAssociations($element, $class_object, $this->element_varname);

        return $code;
    }

References ilBPMN2ParserUtils\extractILIASEventDefinitionFromProcess(), ilBPMN2ParserUtils\extractTimeDateEventDefinitionFromElement(), ilWorkflowScaffold\registerRequire(), ilWorkflowScaffold\registerStartEventRef(), ilWorkflowScaffold\registerStartSignalRef(), ilWorkflowScaffold\registerStartTimerRef(), and ilBPMN2ParserUtils\xsIDToPHPVarname().

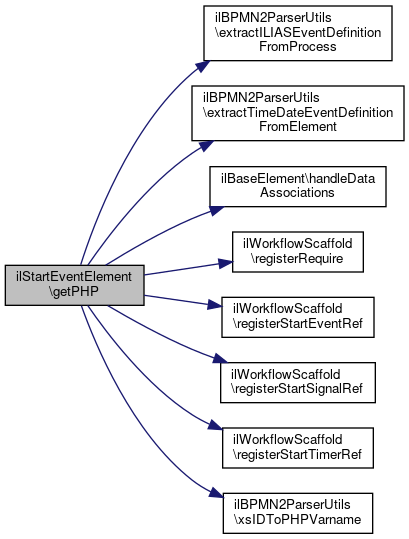

Here is the call graph for this function:

Field Documentation

$element_varname

string ilStartEventElement::$element_varname

Definition at line 15 of file class.ilStartEventElement.php.

---

The documentation for this class was generated from the following file:

• Services/WorkflowEngine/classes/parser/elements/event/class.ilStartEventElement.php
