assTextQuestionExport Class Reference
Modules/TestQuestionPool

Class for essay question exports. More...

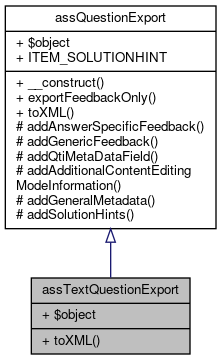

+ Inheritance diagram for assTextQuestionExport:

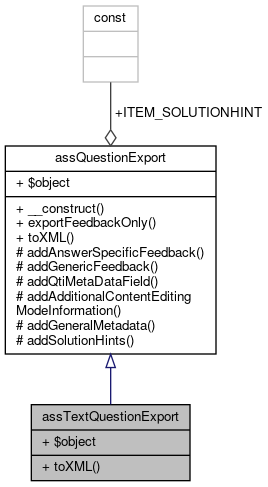

+ Collaboration diagram for assTextQuestionExport:

Public Member Functions

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question. More...

- Public Member Functions inherited from assQuestionExport
 __construct ($a_object)
 assQuestionExport constructor More...

 exportFeedbackOnly ($a_xml_writer)

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question. More...


Data Fields

 $object

- Data Fields inherited from assQuestionExport
 $object

const ITEM_SOLUTIONHINT = 'solutionhint'


Additional Inherited Members

- Protected Member Functions inherited from assQuestionExport
 addAnswerSpecificFeedback (ilXmlWriter $a_xml_writer, $answers)

 addGenericFeedback (ilXmlWriter $a_xml_writer)

 addQtiMetaDataField (ilXmlWriter $a_xml_writer, $fieldLabel, $fieldValue)
 adds a qti meta data field with given name and value to the passed xml writer (xml writer must be in context of opened "qtimetadata" tag) More...

 addAdditionalContentEditingModeInformation (ilXmlWriter $a_xml_writer)
 adds a qti meta data field for ilias specific information of "additional content editing mode" (xml writer must be in context of opened "qtimetadata" tag) More...

 addGeneralMetadata (ilXmlWriter $xmlwriter)

 addSolutionHints (ilXmlWriter $writer)


Detailed Description

Class for essay question exports.

assTextQuestionExport is a class for essay question exports

Author
Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m
Version
$Id$

Definition at line 15 of file class.assTextQuestionExport.php.

Member Function Documentation

◆ toXML()

assTextQuestionExport::toXML (   $a_include_header = true,
  $a_include_binary = true,
  $a_shuffle = false,
  $test_output = false,
  $force_image_references = false
)

Returns a QTI xml representation of the question.

Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation

Returns
string The QTI xml representation of the question @access public

Reimplemented from assQuestionExport.

Definition at line 31 of file class.assTextQuestionExport.php.

32 {
33 global $DIC;
34 $ilias = $DIC['ilias'];
35
36 include_once("./Services/Xml/classes/class.ilXmlWriter.php");
37 $a_xml_writer = new ilXmlWriter;
38 // set xml header
39 $a_xml_writer->xmlHeader();
40 $a_xml_writer->xmlStartTag("questestinterop");
41 $attrs = array(
42 "ident" => "il_" . IL_INST_ID . "_qst_" . $this->object->getId(),
43 "title" => $this->object->getTitle(),
44 "maxattempts" => $this->object->getNrOfTries()
45 );
46 $a_xml_writer->xmlStartTag("item", $attrs);
47 // add question description
48 $a_xml_writer->xmlElement("qticomment", null, $this->object->getComment());
49 // add estimated working time
50 $workingtime = $this->object->getEstimatedWorkingTime();
51 $duration = sprintf("P0Y0M0DT%dH%dM%dS", $workingtime["h"], $workingtime["m"], $workingtime["s"]);
52 $a_xml_writer->xmlElement("duration", null, $duration);
53 // add ILIAS specific metadata
54 $a_xml_writer->xmlStartTag("itemmetadata");
55 $a_xml_writer->xmlStartTag("qtimetadata");
56 $a_xml_writer->xmlStartTag("qtimetadatafield");
57 $a_xml_writer->xmlElement("fieldlabel", null, "ILIAS_VERSION");
58 $a_xml_writer->xmlElement("fieldentry", null, $ilias->getSetting("ilias_version"));
59 $a_xml_writer->xmlEndTag("qtimetadatafield");
60 $a_xml_writer->xmlStartTag("qtimetadatafield");
61 $a_xml_writer->xmlElement("fieldlabel", null, "QUESTIONTYPE");
62 $a_xml_writer->xmlElement("fieldentry", null, TEXT_QUESTION_IDENTIFIER);
63 $a_xml_writer->xmlEndTag("qtimetadatafield");
64 $a_xml_writer->xmlStartTag("qtimetadatafield");
65 $a_xml_writer->xmlElement("fieldlabel", null, "AUTHOR");
66 $a_xml_writer->xmlElement("fieldentry", null, $this->object->getAuthor());
67 $a_xml_writer->xmlEndTag("qtimetadatafield");
68
69 // additional content editing information
70 $this->addAdditionalContentEditingModeInformation($a_xml_writer);
71 $this->addGeneralMetadata($a_xml_writer);
72
73 $this->addQtiMetaDataField($a_xml_writer, 'wordcounter', (int) $this->object->isWordCounterEnabled());
74
75 $a_xml_writer->xmlStartTag("qtimetadatafield");
76 $a_xml_writer->xmlElement("fieldlabel", null, "textrating");
77 $a_xml_writer->xmlElement("fieldentry", null, $this->object->getTextRating());
78 $a_xml_writer->xmlEndTag("qtimetadatafield");
79
80 /*
81 $a_xml_writer->xmlStartTag("qtimetadatafield");
82 $a_xml_writer->xmlElement("fieldlabel", NULL, "keywords");
83 $a_xml_writer->xmlElement("fieldentry", NULL, $this->object->getKeywords());
84 $a_xml_writer->xmlEndTag("qtimetadatafield");
85 */
86
87 $a_xml_writer->xmlStartTag("qtimetadatafield");
88 $a_xml_writer->xmlElement("fieldlabel", null, "matchcondition");
89 $a_xml_writer->xmlElement("fieldentry", null, $this->object->matchcondition);
90 $a_xml_writer->xmlEndTag("qtimetadatafield");
91
92 $a_xml_writer->xmlStartTag("qtimetadatafield");
93 $a_xml_writer->xmlElement("fieldlabel", null, "termscoring");
94 $scores = base64_encode(serialize($this->object->getAnswers()));
95 $a_xml_writer->xmlElement("fieldentry", null, $scores);
96 $a_xml_writer->xmlEndTag("qtimetadatafield");
97
98 $a_xml_writer->xmlStartTag("qtimetadatafield");
99 $a_xml_writer->xmlElement("fieldlabel", null, "termrelation");
100 $a_xml_writer->xmlElement("fieldentry", null, $this->object->getKeywordRelation());
101 $a_xml_writer->xmlEndTag("qtimetadatafield");
102
103 $a_xml_writer->xmlStartTag("qtimetadatafield");
104 $a_xml_writer->xmlElement("fieldlabel", null, "specificfeedback");
105 $a_xml_writer->xmlElement("fieldentry", null, $this->object->getKeywordRelation());
106 $a_xml_writer->xmlEndTag("qtimetadatafield");
107
108 $a_xml_writer->xmlEndTag("qtimetadata");
109 $a_xml_writer->xmlEndTag("itemmetadata");
110
111 // PART I: qti presentation
112 $attrs = array(
113 "label" => $this->object->getTitle()
114 );
115 $a_xml_writer->xmlStartTag("presentation", $attrs);
116 // add flow to presentation
117 $a_xml_writer->xmlStartTag("flow");
118 // add material with question text to presentation
119 $this->object->addQTIMaterial($a_xml_writer, $this->object->getQuestion());
120 // add information on response rendering
121 $attrs = array(
122 "ident" => "TEXT",
123 "rcardinality" => "Ordered"
124 );
125 $a_xml_writer->xmlStartTag("response_str", $attrs);
126 $attrs = array(
127 "fibtype" => "String",
128 "prompt" => "Box"
129 );
130 if ($this->object->getMaxNumOfChars() > 0) {
131 $attrs["maxchars"] = $this->object->getMaxNumOfChars();
132 }
133 $a_xml_writer->xmlStartTag("render_fib", $attrs);
134 $attrs = array(
135 "ident" => "A"
136 );
137 $a_xml_writer->xmlStartTag("response_label", $attrs);
138 $a_xml_writer->xmlEndTag("response_label");
139 $a_xml_writer->xmlEndTag("render_fib");
140
141 $solution = $this->object->getSuggestedSolution(0);
142 if (count($solution)) {
143 if (preg_match("/il_(\d*?)_(\w+)_(\d+)/", $solution["internal_link"], $matches)) {
144 $a_xml_writer->xmlStartTag("material");
145 $intlink = "il_" . IL_INST_ID . "_" . $matches[2] . "_" . $matches[3];
146 if (strcmp($matches[1], "") != 0) {
147 $intlink = $solution["internal_link"];
148 }
149 $attrs = array(
150 "label" => "suggested_solution"
151 );
152 $a_xml_writer->xmlElement("mattext", $attrs, $intlink);
153 $a_xml_writer->xmlEndTag("material");
154 }
155 }
156 $a_xml_writer->xmlEndTag("response_str");
157 $a_xml_writer->xmlEndTag("flow");
158 $a_xml_writer->xmlEndTag("presentation");
159
160 // PART II: qti resprocessing
161 $attrs = array(
162 "scoremodel" => "HumanRater"
163 );
164 $a_xml_writer->xmlStartTag("resprocessing", $attrs);
165 $a_xml_writer->xmlStartTag("outcomes");
166 $attrs = array(
167 "varname" => "WritingScore",
168 "vartype" => "Integer",
169 "minvalue" => "0",
170 "maxvalue" => $this->object->getPoints()
171 );
172 $a_xml_writer->xmlStartTag("decvar", $attrs);
173 $a_xml_writer->xmlEndTag("decvar");
174 $a_xml_writer->xmlEndTag("outcomes");
175
176 $feedback_allcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
177 $this->object->getId(),
178 true
179 );
180 $feedback_onenotcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
181 $this->object->getId(),
182 false
183 );
184 if (strlen($feedback_allcorrect . $feedback_onenotcorrect)) {
185 if (strlen($feedback_allcorrect)) {
186 $attrs = array(
187 "continue" => "Yes"
188 );
189 $a_xml_writer->xmlStartTag("respcondition", $attrs);
190 // qti conditionvar
191 $a_xml_writer->xmlStartTag("conditionvar");
192 $attrs = array(
193 "respident" => "points"
194 );
195 $a_xml_writer->xmlElement("varequal", $attrs, $this->object->getPoints());
196 $a_xml_writer->xmlEndTag("conditionvar");
197 // qti displayfeedback
198 $attrs = array(
199 "feedbacktype" => "Response",
200 "linkrefid" => "response_allcorrect"
201 );
202 $a_xml_writer->xmlElement("displayfeedback", $attrs);
203 $a_xml_writer->xmlEndTag("respcondition");
204 }
205
206 if (strlen($feedback_onenotcorrect)) {
207 $attrs = array(
208 "continue" => "Yes"
209 );
210 $a_xml_writer->xmlStartTag("respcondition", $attrs);
211 // qti conditionvar
212 $a_xml_writer->xmlStartTag("conditionvar");
213 $a_xml_writer->xmlStartTag("not");
214 $attrs = array(
215 "respident" => "points"
216 );
217 $a_xml_writer->xmlElement("varequal", $attrs, $this->object->getPoints());
218 $a_xml_writer->xmlEndTag("not");
219 $a_xml_writer->xmlEndTag("conditionvar");
220 // qti displayfeedback
221 $attrs = array(
222 "feedbacktype" => "Response",
223 "linkrefid" => "response_onenotcorrect"
224 );
225 $a_xml_writer->xmlElement("displayfeedback", $attrs);
226 $a_xml_writer->xmlEndTag("respcondition");
227 }
228 }
229
230 $a_xml_writer->xmlStartTag("respcondition");
231 $a_xml_writer->xmlStartTag("conditionvar");
232 $a_xml_writer->xmlElement("other", null, "tutor_rated");
233 $a_xml_writer->xmlEndTag("conditionvar");
234 $a_xml_writer->xmlEndTag("respcondition");
235 $a_xml_writer->xmlEndTag("resprocessing");
236
237 $this->addAnswerSpecificFeedback($a_xml_writer, $this->object->feedbackOBJ->getAnswerOptionsByAnswerIndex());
238
239 if (strlen($feedback_allcorrect)) {
240 $attrs = array(
241 "ident" => "response_allcorrect",
242 "view" => "All"
243 );
244 $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
245 // qti flow_mat
246 $a_xml_writer->xmlStartTag("flow_mat");
247 $this->object->addQTIMaterial($a_xml_writer, $feedback_allcorrect);
248 $a_xml_writer->xmlEndTag("flow_mat");
249 $a_xml_writer->xmlEndTag("itemfeedback");
250 }
251 if (strlen($feedback_onenotcorrect)) {
252 $attrs = array(
253 "ident" => "response_onenotcorrect",
254 "view" => "All"
255 );
256 $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
257 // qti flow_mat
258 $a_xml_writer->xmlStartTag("flow_mat");
259 $this->object->addQTIMaterial($a_xml_writer, $feedback_onenotcorrect);
260 $a_xml_writer->xmlEndTag("flow_mat");
261 $a_xml_writer->xmlEndTag("itemfeedback");
262 }
263
264 $a_xml_writer = $this->addSolutionHints($a_xml_writer);
265
266 $a_xml_writer->xmlEndTag("item");
267 $a_xml_writer->xmlEndTag("questestinterop");
268
269 $xml = $a_xml_writer->xmlDumpMem(false);
270 if (!$a_include_header) {
271 $pos = strpos($xml, "?>");
272 $xml = substr($xml, $pos + 2);
273 }
274 return $xml;
275 }
assQuestionExport\addGeneralMetadata
addGeneralMetadata(ilXmlWriter $xmlwriter)
Definition: class.assQuestionExport.php:206
assQuestionExport\addQtiMetaDataField
addQtiMetaDataField(ilXmlWriter $a_xml_writer, $fieldLabel, $fieldValue)
adds a qti meta data field with given name and value to the passed xml writer (xml writer must be in ...
Definition: class.assQuestionExport.php:178
assQuestionExport\addAnswerSpecificFeedback
addAnswerSpecificFeedback(ilXmlWriter $a_xml_writer, $answers)
Definition: class.assQuestionExport.php:36
assQuestionExport\addSolutionHints
addSolutionHints(ilXmlWriter $writer)
Definition: class.assQuestionExport.php:225
assQuestionExport\addAdditionalContentEditingModeInformation
addAdditionalContentEditingModeInformation(ilXmlWriter $a_xml_writer)
adds a qti meta data field for ilias specific information of "additional content editing mode" (xml w...
Definition: class.assQuestionExport.php:194
ilXmlWriter
XML writer class.
Definition: class.ilXmlWriter.php:18
ilXmlWriter\xmlHeader
xmlHeader()
Writes xml header @access public.
Definition: class.ilXmlWriter.php:275
IL_INST_ID
const IL_INST_ID
Definition: constants.php:38
$DIC
global $DIC
Definition: goto.php:24
TEXT_QUESTION_IDENTIFIER
const TEXT_QUESTION_IDENTIFIER
Definition: inc.AssessmentConstants.php:34
$xml
$xml
Definition: metadata.php:332

References $DIC, $xml, assQuestionExport\addAdditionalContentEditingModeInformation(), assQuestionExport\addAnswerSpecificFeedback(), assQuestionExport\addGeneralMetadata(), assQuestionExport\addQtiMetaDataField(), assQuestionExport\addSolutionHints(), IL_INST_ID, TEXT_QUESTION_IDENTIFIER, and ilXmlWriter\xmlHeader().

+ Here is the call graph for this function:

Field Documentation

◆ $object

assTextQuestionExport::$object

Definition at line 20 of file class.assTextQuestionExport.php.

The documentation for this class was generated from the following file:
