ilAuthProviderSaml Class Reference

Class ilAuthProviderSaml. More...

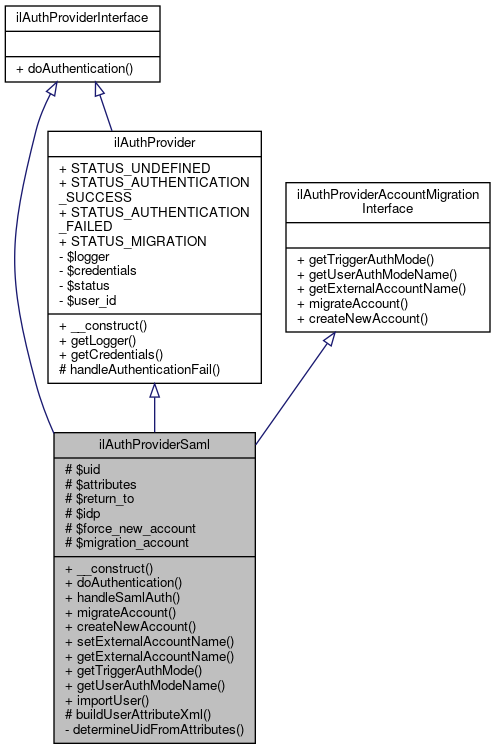

Inheritance diagram for ilAuthProviderSaml:

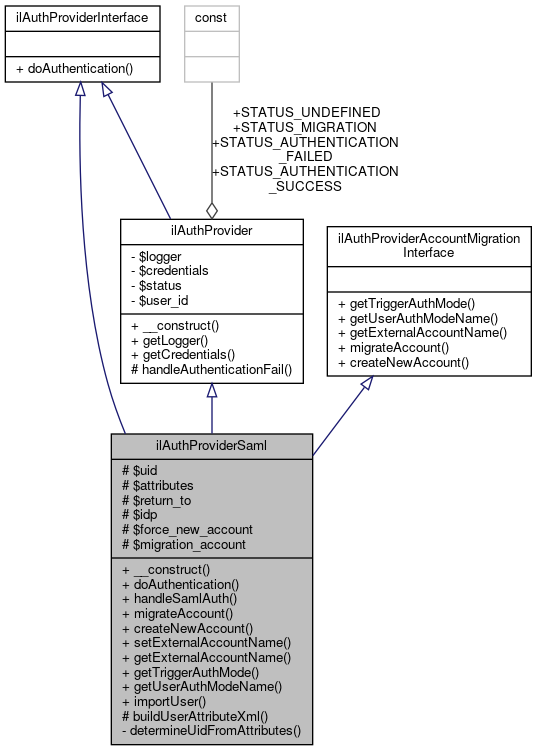

Collaboration diagram for ilAuthProviderSaml:

Public Member Functions
	__construct (ilAuthFrontendCredentials $credentials, ?int $a_idp_id=null)
	ilAuthProviderSaml constructor. More...
	doAuthentication (ilAuthStatus $status)
	handleSamlAuth (ilAuthStatus $status)
	migrateAccount (ilAuthStatus $status)
	Create new account. Parameters ilAuthStatus More...
	createNewAccount (ilAuthStatus $status)
	Create new ILIAS account for external_account. Parameters ilAuthStatus More...
	setExternalAccountName (string $a_name)
	Set external account name. More...
	getExternalAccountName ()
	Get external account name. Returns string More...
	getTriggerAuthMode ()
	Get auth mode which triggered the account migration 2_1 for ldap account migration with server id 1 11 for apache auth. See also ilAuthUtils Returns string More...
	getUserAuthModeName ()
	Get user auth mode name ldap_1 for ldap account migration with server id 1 apache for apache auth. More...
	importUser (?string $a_internal_login, string $a_external_account, array $a_user_data=[])
Public Member Functions inherited from ilAuthProvider
	__construct (ilAuthCredentials $credentials)
	Constructor. More...
	getLogger ()
	Get logger. More...
	getCredentials ()
Public Member Functions inherited from ilAuthProviderInterface
	doAuthentication (\ilAuthStatus $status)
	Do authentication. More...
	getTriggerAuthMode ()
	Get auth mode which triggered the account migration 2_1 for ldap account migration with server id 1 11 for apache auth. More...
	getUserAuthModeName ()
	Get user auth mode name ldap_1 for ldap account migration with server id 1 apache for apache auth. More...
	getExternalAccountName ()
	Get external account name. More...
	migrateAccount (ilAuthStatus $status)
	Create new account. More...
	createNewAccount (ilAuthStatus $status)
	Create new ILIAS account for external_account. More...

Protected Member Functions
	buildUserAttributeXml (ilXmlWriter $xml_writer, ilExternalAuthUserAttributeMappingRule $rule, string $value)
Protected Member Functions inherited from ilAuthProvider
	handleAuthenticationFail (ilAuthStatus $status, $a_reason)
	Handle failed authentication. More...

Protected Attributes
	$uid = ''
	$attributes = []
	$return_to = ''
	$idp
	$force_new_account = false
	$migration_account = ''

Private Member Functions
	determineUidFromAttributes ()

Additional Inherited Members
Data Fields inherited from ilAuthProvider
const	STATUS_UNDEFINED = 0
const	STATUS_AUTHENTICATION_SUCCESS = 1
const	STATUS_AUTHENTICATION_FAILED = 2
const	STATUS_MIGRATION = 3

Detailed Description

Class ilAuthProviderSaml.

Definition at line 7 of file class.ilAuthProviderSaml.php.

Constructor & Destructor Documentation

__construct()

ilAuthProviderSaml::__construct	(	ilAuthFrontendCredentials	$credentials,
		?int	$a_idp_id = null
	)

ilAuthProviderSaml constructor.

Parameters

ilAuthFrontendCredentials	$credentials
int | null	$a_idp_id

Exceptions

ilSamlException

Definition at line 28 of file class.ilAuthProviderSaml.php.

    {
        parent::__construct($credentials);

        if (null === $a_idp_id || 0 === $a_idp_id) {
            $this->idp = ilSamlIdp::getFirstActiveIdp();
        } else {
            $this->idp = ilSamlIdp::getInstanceByIdpId($a_idp_id);
        }

        if ($credentials instanceof ilAuthFrontendCredentialsSaml) {
            $this->attributes = $credentials->getAttributes();
            $this->return_to = $credentials->getReturnTo();
        }
    }

References ilAuthProvider\$credentials, ILIAS\GlobalScreen\Provider\__construct(), ilSamlIdp\getFirstActiveIdp(), and ilSamlIdp\getInstanceByIdpId().

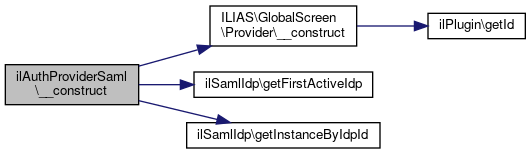

Here is the call graph for this function:

Member Function Documentation

buildUserAttributeXml()

ilAuthProviderSaml::buildUserAttributeXml ( ilXmlWriter  $xml_writer, ilExternalAuthUserAttributeMappingRule  $rule, string  $value  )

protected

Parameters

ilXmlWriter	$xml_writer
ilExternalAuthUserAttributeMappingRule	$rule
string	$value

Definition at line 410 of file class.ilAuthProviderSaml.php.

      {
        switch (strtolower($rule->getAttribute())) {
            case 'gender':
                switch (strtolower($value)) {
                    case 'n':
                    case 'neutral':
                        $xml_writer->xmlElement('Gender', [], 'n');
                        break;

                    case 'm':
                    case 'male':
                        $xml_writer->xmlElement('Gender', [], 'm');
                        break;

                    case 'f':
                    case 'female':
                    default:
                        $xml_writer->xmlElement('Gender', [], 'f');
                        break;
                }
                break;

            case 'firstname':
                $xml_writer->xmlElement('Firstname', [], $value);
                break;

            case 'lastname':
                $xml_writer->xmlElement('Lastname', [], $value);
                break;

            case 'email':
                $xml_writer->xmlElement('Email', [], $value);
                break;

            case 'institution':
                $xml_writer->xmlElement('Institution', [], $value);
                break;

            case 'department':
                $xml_writer->xmlElement('Department', [], $value);
                break;

            case 'hobby':
                $xml_writer->xmlElement('Hobby', [], $value);
                break;

            case 'title':
                $xml_writer->xmlElement('Title', [], $value);
                break;

            case 'street':
                $xml_writer->xmlElement('Street', [], $value);
                break;

            case 'city':
                $xml_writer->xmlElement('City', [], $value);
                break;

            case 'zipcode':
                $xml_writer->xmlElement('PostalCode', [], $value);
                break;

            case 'country':
                $xml_writer->xmlElement('Country', [], $value);
                break;

            case 'phone_office':
                $xml_writer->xmlElement('PhoneOffice', [], $value);
                break;

            case 'phone_home':
                $xml_writer->xmlElement('PhoneHome', [], $value);
                break;

            case 'phone_mobile':
                $xml_writer->xmlElement('PhoneMobile', [], $value);
                break;

            case 'fax':
                $xml_writer->xmlElement('Fax', [], $value);
                break;

            case 'referral_comment':
                $xml_writer->xmlElement('Comment', [], $value);
                break;

            case 'matriculation':
                $xml_writer->xmlElement('Matriculation', [], $value);
                break;

            case 'birthday':
                $xml_writer->xmlElement('Birthday', [], $value);
                break;

            default:
                if (substr($rule->getAttribute(), 0, 4) !== 'udf_') {
                    break;
                }

                $udf_data = explode('_', $rule->getAttribute());
                if (!isset($udf_data[1])) {
                    break;
                }

                $definition = ilUserDefinedFields::_getInstance()->getDefinition($udf_data[1]);
                $xml_writer->xmlElement(
                    'UserDefinedField',
                    ['Id' => $definition['il_id'], 'Name' => $definition['field_name']],
                    $value
                );
                break;
        }
    }

References ilUserDefinedFields\_getInstance(), ilExternalAuthUserAttributeMappingRule\getAttribute(), and ilXmlWriter\xmlElement().

Referenced by importUser().

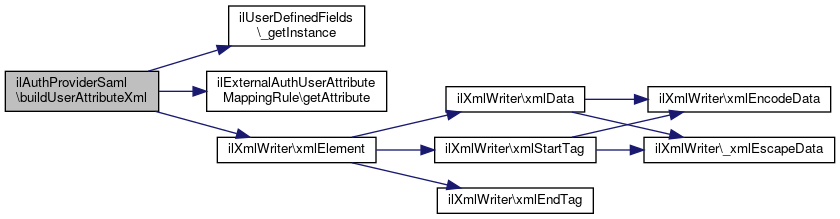

Here is the call graph for this function:

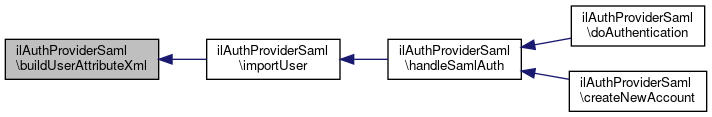

Here is the caller graph for this function:

createNewAccount()

ilAuthProviderSaml::createNewAccount

(

ilAuthStatus

$status

)

Create new ILIAS account for external_account.

Parameters

ilAuthStatus

Implements ilAuthProviderAccountMigrationInterface.

Definition at line 265 of file class.ilAuthProviderSaml.php.

    {
        if (
            0 === strlen($this->getCredentials()->getUsername()) ||
            !is_array(ilSession::get('tmp_attributes')) ||
            0 === count(ilSession::get('tmp_attributes'))
        ) {
            $this->getLogger()->warning('Cannot find user id for external account: ' . $this->getCredentials()->getUsername());
            $this->handleAuthenticationFail($status, 'err_wrong_login');

            return false;
        }

        $this->uid = $this->getCredentials()->getUsername();
        $this->attributes = ilSession::get('tmp_attributes');
        $this->return_to = ilSession::get('tmp_return_to');

        $this->force_new_account = true;

        return $this->handleSamlAuth($status);
    }

References ilSession\get(), ilAuthProvider\getCredentials(), ilAuthProvider\getLogger(), ilAuthProvider\handleAuthenticationFail(), and handleSamlAuth().

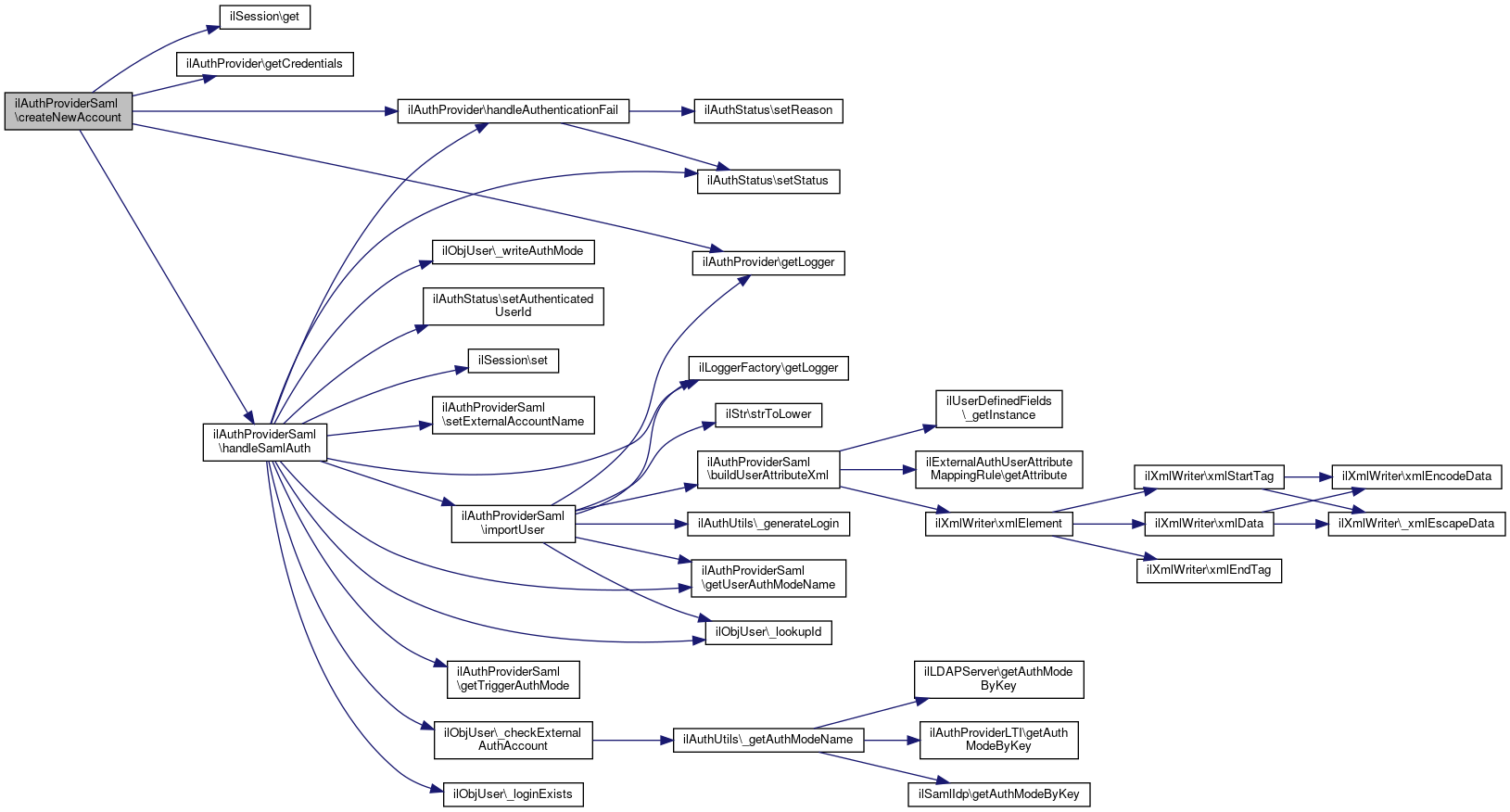

Here is the call graph for this function:

determineUidFromAttributes()

ilAuthProviderSaml::determineUidFromAttributes ( )

private

Exceptions

ilException

Definition at line 47 of file class.ilAuthProviderSaml.php.

                                                  : void
    {
        if (
            !array_key_exists($this->idp->getUidClaim(), $this->attributes) ||
            !is_array($this->attributes[$this->idp->getUidClaim()]) ||
            !array_key_exists(0, $this->attributes[$this->idp->getUidClaim()]) ||
            0 === strlen($this->attributes[$this->idp->getUidClaim()][0])
        ) {
            throw new ilException(sprintf(
                'Could not find unique SAML attribute for the configured identifier: %s',
                print_r($this->idp->getUidClaim(), true)
            ));
        }

        $this->uid = $this->attributes[$this->idp->getUidClaim()][0];
    }

Referenced by doAuthentication().

Here is the caller graph for this function:

doAuthentication()

ilAuthProviderSaml::doAuthentication

(

ilAuthStatus

$status

)

Definition at line 67 of file class.ilAuthProviderSaml.php.

    {
        if (!is_array($this->attributes) || 0 === count($this->attributes)) {
            $this->getLogger()->warning('Could not parse any attributes from SAML response.');
            $this->handleAuthenticationFail($status, 'err_wrong_login');

            return false;
        }

        try {
            $this->determineUidFromAttributes();

            return $this->handleSamlAuth($status);
        } catch (ilException $e) {
            $this->getLogger()->warning($e->getMessage());
            $this->handleAuthenticationFail($status, 'err_wrong_login');

            return false;
        }
    }

References Vendor\Package\$e, determineUidFromAttributes(), ilAuthProvider\getLogger(), ilAuthProvider\handleAuthenticationFail(), and handleSamlAuth().

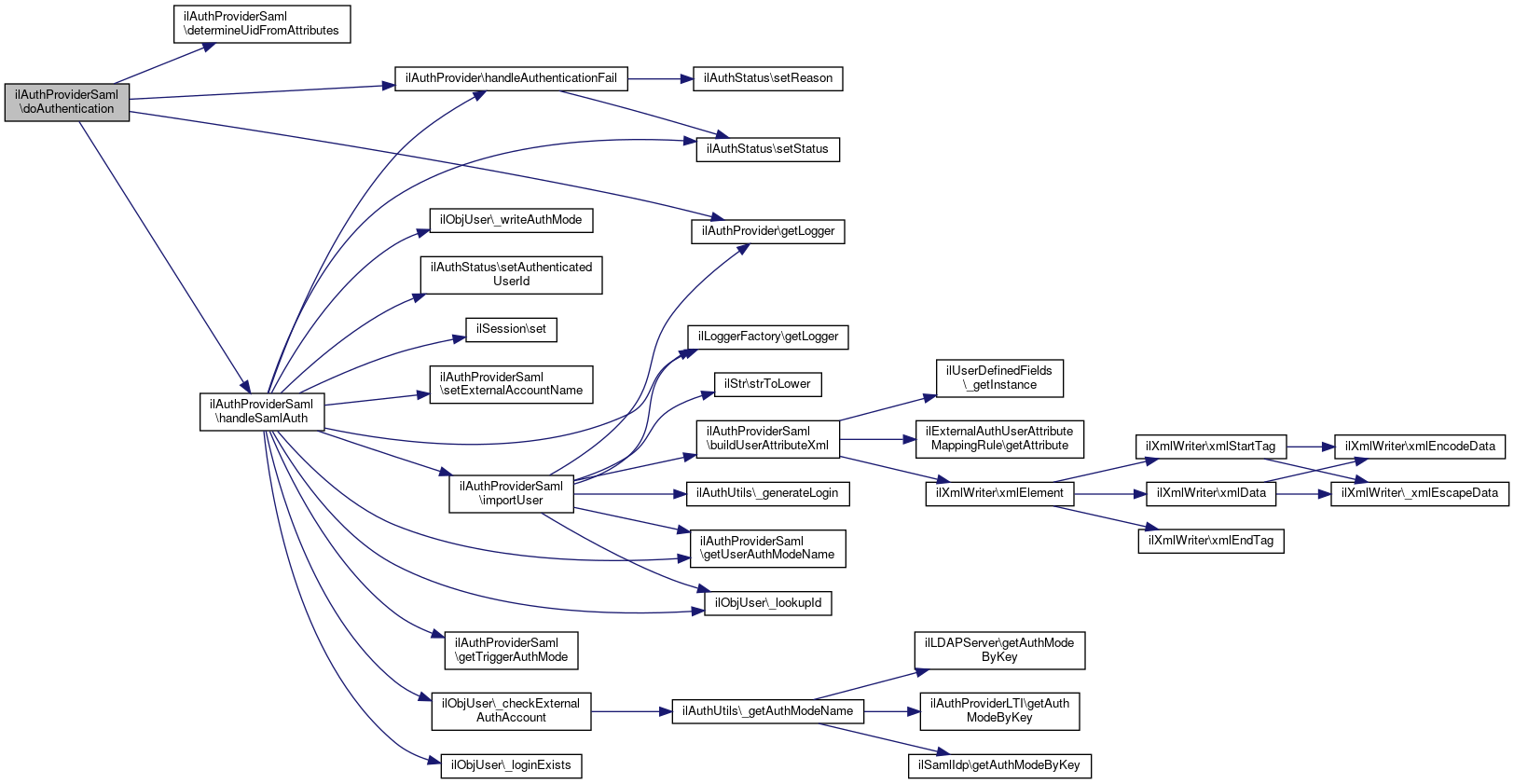

Here is the call graph for this function:

getExternalAccountName()

ilAuthProviderSaml::getExternalAccountName

(

)

Get external account name.

Returns

string

Implements ilAuthProviderAccountMigrationInterface.

Definition at line 299 of file class.ilAuthProviderSaml.php.

    {
        return $this->migration_account;
    }

References $migration_account.

getTriggerAuthMode()

ilAuthProviderSaml::getTriggerAuthMode

(

)

Get auth mode which triggered the account migration 2_1 for ldap account migration with server id 1 11 for apache auth.

See also

ilAuthUtils

Returns

string

Implements ilAuthProviderAccountMigrationInterface.

Definition at line 307 of file class.ilAuthProviderSaml.php.

    {
        return AUTH_SAML . '_' . $this->idp->getIdpId();
    }

References AUTH_SAML.

Referenced by handleSamlAuth().

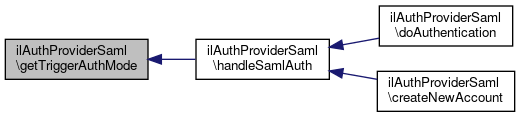

Here is the caller graph for this function:

getUserAuthModeName()

ilAuthProviderSaml::getUserAuthModeName

(

)

Get user auth mode name ldap_1 for ldap account migration with server id 1 apache for apache auth.

Implements ilAuthProviderAccountMigrationInterface.

Definition at line 315 of file class.ilAuthProviderSaml.php.

    {
        return 'saml_' . $this->idp->getIdpId();
    }

Referenced by handleSamlAuth(), and importUser().

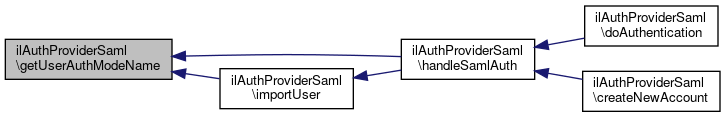

Here is the caller graph for this function:

handleSamlAuth()

ilAuthProviderSaml::handleSamlAuth

(

ilAuthStatus

$status

)

Parameters

ilAuthStatus

$status

Returns

bool

Definition at line 92 of file class.ilAuthProviderSaml.php.

                                                         : bool
    {
        $update_auth_mode = false;

        ilLoggerFactory::getLogger('auth')->debug(sprintf(
            'Login observer called for SAML authentication request of ext_account "%s" and auth_mode "%s".',
            $this->uid,
            $this->getUserAuthModeName()
        ));
        ilLoggerFactory::getLogger('auth')->debug(sprintf('Target set to: %s', print_r($this->return_to, true)));
        ilLoggerFactory::getLogger('auth')->debug(sprintf(
            'Trying to find ext_account "%s" for auth_mode "%s".',
            $this->uid,
            $this->getUserAuthModeName()
        ));

        $internal_account = ilObjUser::_checkExternalAuthAccount(
            $this->getUserAuthModeName(),
            $this->uid,
            false
        );

        if (!is_string($internal_account) || $internal_account === '') {
            $update_auth_mode = true;

            ilLoggerFactory::getLogger('auth')->debug(sprintf(
                'Could not find ext_account "%s" for auth_mode "%s".',
                $this->uid,
                $this->getUserAuthModeName()
            ));

            $fallback_auth_mode = 'local';
            ilLoggerFactory::getLogger('auth')->debug(sprintf(
                'Trying to find ext_account "%s" for auth_mode "%s".',
                $this->uid,
                $fallback_auth_mode
            ));
            $internal_account = ilObjUser::_checkExternalAuthAccount($fallback_auth_mode, $this->uid, false);

            $defaultAuth = AUTH_LOCAL;
            if ($GLOBALS['DIC']['ilSetting']->get('auth_mode')) {
                $defaultAuth = $GLOBALS['DIC']['ilSetting']->get('auth_mode');
            }

            if ((!is_string($internal_account) || 0 === strlen($internal_account)) && ($defaultAuth == AUTH_LOCAL || $defaultAuth == $this->getTriggerAuthMode())) {
                ilLoggerFactory::getLogger('auth')->debug(sprintf(
                    'Could not find ext_account "%s" for auth_mode "%s".',
                    $this->uid,
                    $fallback_auth_mode
                ));

                $fallback_auth_mode = 'default';
                ilLoggerFactory::getLogger('auth')->debug(sprintf(
                    'Trying to find ext_account "%s" for auth_mode "%s".',
                    $this->uid,
                    $fallback_auth_mode
                ));
                $internal_account = ilObjUser::_checkExternalAuthAccount($fallback_auth_mode, $this->uid, false);
            }
        }

        if (is_string($internal_account) && $internal_account !== '') {
            ilLoggerFactory::getLogger('auth')->debug(sprintf(
                'Found user "%s" for ext_account "%s" in ILIAS database.',
                $internal_account,
                $this->uid
            ));

            if ($this->idp->isSynchronizationEnabled()) {
                ilLoggerFactory::getLogger('auth')->debug(sprintf(
                    'SAML user synchronisation is enabled, so update existing user "%s" with ext_account "%s".',
                    $internal_account,
                    $this->uid
                ));
                $internal_account = $this->importUser($internal_account, $this->uid, $this->attributes);
            }

            if ($update_auth_mode) {
                $usr_id = ilObjUser::_loginExists($internal_account);
                if ($usr_id > 0) {
                    ilObjUser::_writeAuthMode($usr_id, $this->getUserAuthModeName());
                    ilLoggerFactory::getLogger('auth')->debug(sprintf(
                        'SAML Switched auth_mode of user with login "%s" and ext_account "%s" to "%s".',
                        $internal_account,
                        $this->uid,
                        $this->getUserAuthModeName()
                    ));
                } else {
                    ilLoggerFactory::getLogger('auth')->debug(sprintf(
                        'SAML Could not switch auth_mode of user with login "%s" and ext_account "%s" to "%s".',
                        $internal_account,
                        $this->uid,
                        $this->getUserAuthModeName()
                    ));
                }
            }

            ilLoggerFactory::getLogger('auth')->debug(sprintf(
                'Authentication succeeded: Found internal login "%s for ext_account "%s" and auth_mode "%s".',
                $internal_account,
                $this->uid,
                $this->getUserAuthModeName()
            ));

            $status->setStatus(ilAuthStatus::STATUS_AUTHENTICATED);
            $status->setAuthenticatedUserId(ilObjUser::_lookupId($internal_account));
            ilSession::set('used_external_auth', true);

            return true;
        }

        ilLoggerFactory::getLogger('auth')->debug(sprintf(
            'Could not find an existing user for ext_account "%s" for any relevant auth_mode.',
            $this->uid
        ));
        if ($this->idp->isSynchronizationEnabled()) {
            ilLoggerFactory::getLogger('auth')->debug(sprintf(
                'SAML user synchronisation is enabled, so determine action for ext_account "%s" and auth_mode "%s".',
                $this->uid,
                $this->getUserAuthModeName()
            ));
            if ($this->idp->isAccountMigrationEnabled() && !$this->force_new_account) {
                ilSession::set('tmp_attributes', $this->attributes);
                ilSession::set('tmp_return_to', $this->return_to);

                ilLoggerFactory::getLogger('auth')->debug(sprintf(
                    'Account migration is enabled, so redirecting ext_account "%s" to account migration screen.',
                    $this->uid
                ));

                $this->setExternalAccountName($this->uid);
                $status->setStatus(ilAuthStatus::STATUS_ACCOUNT_MIGRATION_REQUIRED);

                return false;
            }

            $new_name = $this->importUser(null, $this->uid, $this->attributes);
            ilLoggerFactory::getLogger('auth')->debug(sprintf(
                'Created new user account with login "%s" and ext_account "%s".',
                $new_name,
                $this->uid
            ));

            ilSession::set('tmp_attributes', null);
            ilSession::set('tmp_return_to', null);
            ilSession::set('used_external_auth', true);

            if (strlen($this->return_to)) {
                $_GET['target'] = $this->return_to;
            }

            $status->setStatus(ilAuthStatus::STATUS_AUTHENTICATED);
            $status->setAuthenticatedUserId(ilObjUser::_lookupId($new_name));

            return true;
        }

        ilLoggerFactory::getLogger('auth')->debug("SAML user synchronisation is not enabled, auth failed.");
        $this->handleAuthenticationFail($status, 'err_auth_saml_no_ilias_user');

        return false;
    }

References $_GET, $GLOBALS, $return_to, ilAuthProvider\$status, ilObjUser\_checkExternalAuthAccount(), ilObjUser\_loginExists(), ilObjUser\_lookupId(), ilObjUser\_writeAuthMode(), AUTH_LOCAL, ilLoggerFactory\getLogger(), getTriggerAuthMode(), getUserAuthModeName(), ilAuthProvider\handleAuthenticationFail(), importUser(), ilSession\set(), setExternalAccountName(), ilAuthStatus\setStatus(), ilAuthStatus\STATUS_ACCOUNT_MIGRATION_REQUIRED, and ilAuthStatus\STATUS_AUTHENTICATED.

Referenced by createNewAccount(), and doAuthentication().

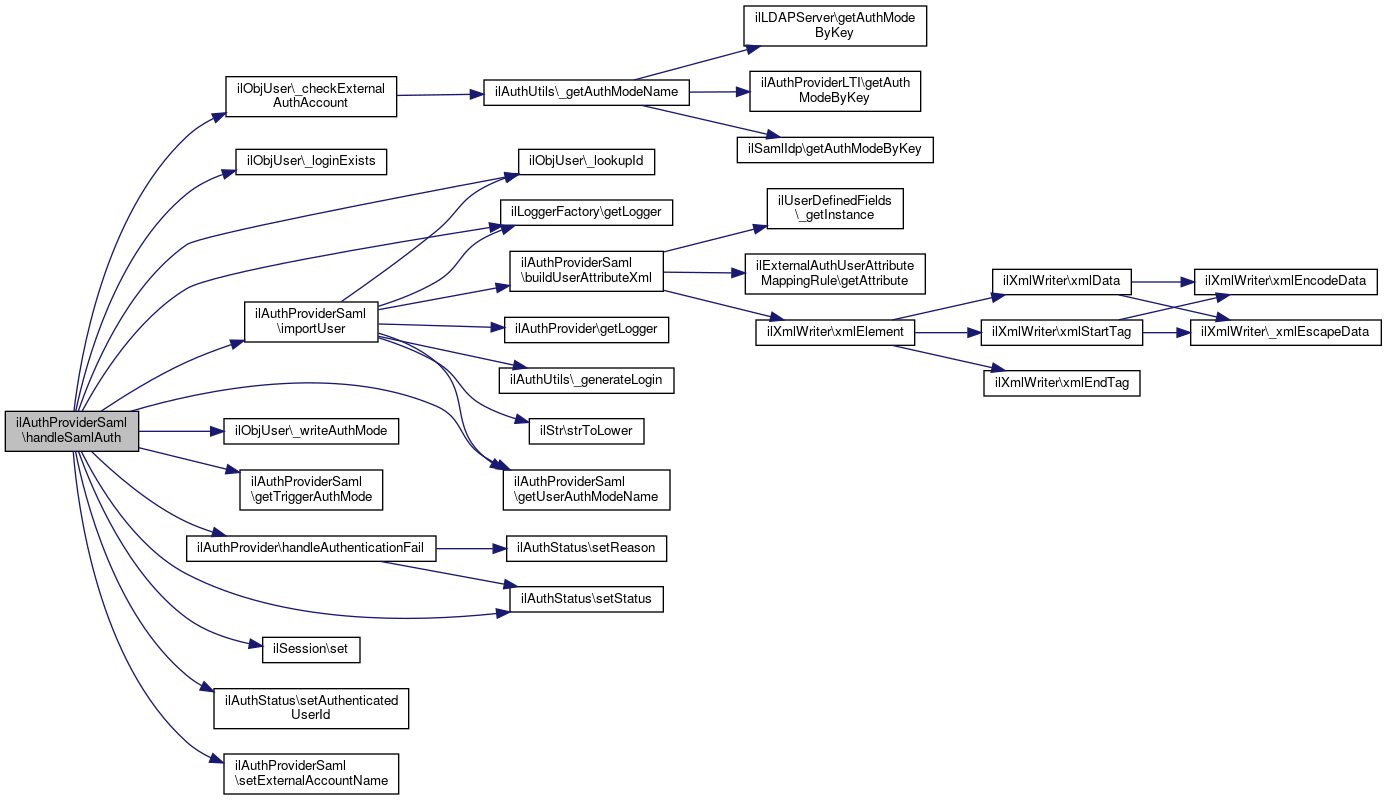

Here is the call graph for this function:

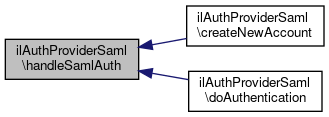

Here is the caller graph for this function:

importUser()

ilAuthProviderSaml::importUser	(	?string	$a_internal_login,
		string	$a_external_account,
		array	$a_user_data = []
	)

Parameters

string | null	$a_internal_login
string	$a_external_account
array	$a_user_data

Returns

string

Definition at line 326 of file class.ilAuthProviderSaml.php.

    {
        $mapping = new ilExternalAuthUserAttributeMapping('saml', $this->idp->getIdpId());

        $xml_writer = new ilXmlWriter();
        $xml_writer->xmlStartTag('Users');
        if (null === $a_internal_login) {
            $login = $a_user_data[$this->idp->getLoginClaim()][0];
            $login = ilAuthUtils::_generateLogin($login);

            $xml_writer->xmlStartTag('User', ['Action' => 'Insert']);
            $xml_writer->xmlElement('Login', [], $login);

            $xml_writer->xmlElement('Role', [
                'Id' => $this->idp->getDefaultRoleId(),
                'Type' => 'Global',
                'Action' => 'Assign'
            ]);

            $xml_writer->xmlElement('Active', [], "true");
            $xml_writer->xmlElement('TimeLimitOwner', [], USER_FOLDER_ID);
            $xml_writer->xmlElement('TimeLimitUnlimited', [], 1);
            $xml_writer->xmlElement('TimeLimitFrom', [], time());
            $xml_writer->xmlElement('TimeLimitUntil', [], time());
            $xml_writer->xmlElement(
                'AuthMode',
                ['type' => $this->getUserAuthModeName()],
                $this->getUserAuthModeName()
            );
            $xml_writer->xmlElement('ExternalAccount', [], $a_external_account);

            $mapping = new ilExternalAuthUserCreationAttributeMappingFilter($mapping);
        } else {
            $login = $a_internal_login;
            $usr_id = ilObjUser::_lookupId($a_internal_login);

            $xml_writer->xmlStartTag('User', ['Action' => 'Update', 'Id' => $usr_id]);

            $loginClaim = $a_user_data[$this->idp->getLoginClaim()][0];
            if (ilStr::strToLower($login) !== ilStr::strToLower($loginClaim)) {
                $login = ilAuthUtils::_generateLogin($loginClaim);
                $xml_writer->xmlElement('Login', [], $login);
            }

            $mapping = new ilExternalAuthUserUpdateAttributeMappingFilter($mapping);
        }

        foreach ($mapping as $rule) {
            try {
                $attributeValueParser = new ilSamlMappedUserAttributeValueParser($rule, $a_user_data);
                $value = $attributeValueParser->parse();
                $this->buildUserAttributeXml($xml_writer, $rule, $value);
            } catch (ilSamlException $e) {
                $this->getLogger()->warning($e->getMessage());
                continue;
            }
        }

        $xml_writer->xmlEndTag('User');
        $xml_writer->xmlEndTag('Users');

        ilLoggerFactory::getLogger('auth')->debug(sprintf(
            'Started import of user "%s" with ext_account "%s" and auth_mode "%s".',
            $login,
            $a_external_account,
            $this->getUserAuthModeName()
        ));
        $importParser = new ilUserImportParser();
        $importParser->setXMLContent($xml_writer->xmlDumpMem(false));
        $importParser->setRoleAssignment([
            $this->idp->getDefaultRoleId() => $this->idp->getDefaultRoleId(),
        ]);
        $importParser->setFolderId(USER_FOLDER_ID);
        $importParser->setUserMappingMode(IL_USER_MAPPING_ID);
        $importParser->startParsing();

        return $login;
    }

References Vendor\Package\$e, $login, ilAuthUtils\_generateLogin(), ilObjUser\_lookupId(), buildUserAttributeXml(), ilLoggerFactory\getLogger(), ilAuthProvider\getLogger(), getUserAuthModeName(), IL_USER_MAPPING_ID, ilStr\strToLower(), and USER_FOLDER_ID.

Referenced by handleSamlAuth().

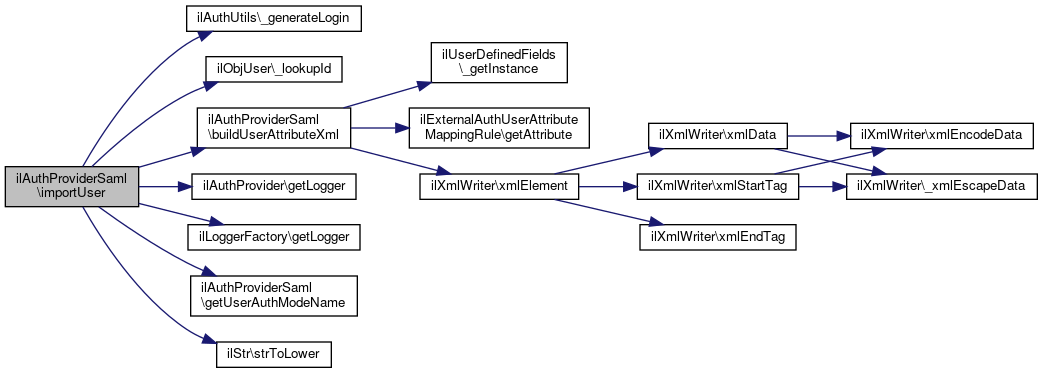

Here is the call graph for this function:

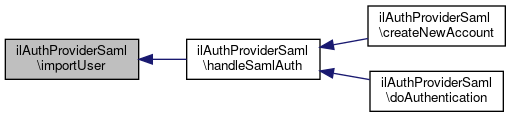

Here is the caller graph for this function:

migrateAccount()

ilAuthProviderSaml::migrateAccount

(

ilAuthStatus

$status

)

Create new account.

Parameters

ilAuthStatus

Implements ilAuthProviderAccountMigrationInterface.

Definition at line 258 of file class.ilAuthProviderSaml.php.

    {
    }

setExternalAccountName()

ilAuthProviderSaml::setExternalAccountName

(

string

$a_name

)

Set external account name.

Parameters

string

$a_name

Definition at line 291 of file class.ilAuthProviderSaml.php.

                                                           : void
    {
        $this->migration_account = $a_name;
    }

Referenced by handleSamlAuth().

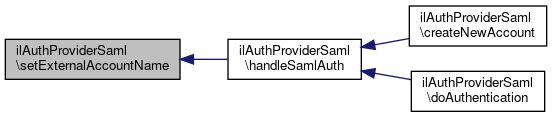

Here is the caller graph for this function:

Field Documentation

$attributes

ilAuthProviderSaml::$attributes = []

protected

Definition at line 12 of file class.ilAuthProviderSaml.php.

$force_new_account

ilAuthProviderSaml::$force_new_account = false

protected

Definition at line 18 of file class.ilAuthProviderSaml.php.

$idp

ilAuthProviderSaml::$idp

protected

Definition at line 16 of file class.ilAuthProviderSaml.php.

$migration_account

ilAuthProviderSaml::$migration_account = ''

protected

Definition at line 20 of file class.ilAuthProviderSaml.php.

Referenced by getExternalAccountName().

$return_to

ilAuthProviderSaml::$return_to = ''

protected

Definition at line 14 of file class.ilAuthProviderSaml.php.

Referenced by handleSamlAuth().

$uid

ilAuthProviderSaml::$uid = ''

protected

Definition at line 10 of file class.ilAuthProviderSaml.php.

---

The documentation for this class was generated from the following file:

• Services/Saml/classes/class.ilAuthProviderSaml.php
