nusoap_xmlschema Class Reference
parses an XML Schema, allows access to it's data, other utility methods. More...
Inheritance diagram for nusoap_xmlschema:
Collaboration diagram for nusoap_xmlschema:
Public Member Functions | |
| __construct ($schema='', $xml='', $namespaces=array()) | |
| constructor More... | |
| parseFile ($xml, $type) | |
| parse an XML file More... | |
| parseString ($xml, $type) | |
| CreateTypeName ($ename) | |
| gets a type name for an unnamed type More... | |
| schemaStartElement ($parser, $name, $attrs) | |
| start-element handler More... | |
| schemaEndElement ($parser, $name) | |
| end-element handler More... | |
| schemaCharacterData ($parser, $data) | |
| element content handler More... | |
| serializeSchema () | |
| serialize the schema More... | |
| xdebug ($string) | |
| adds debug data to the clas level debug string More... | |
| getPHPType ($type, $ns) | |
| get the PHP type of a user defined type in the schema PHP type is kind of a misnomer since it actually returns 'struct' for assoc. More... | |
| getTypeDef ($type) | |
| returns an associative array of information about a given type returns false if no type exists by the given name More... | |
| serializeTypeDef ($type) | |
| returns a sample serialization of a given type, or false if no type by the given name More... | |
| typeToForm ($name, $type) | |
| returns HTML form elements that allow a user to enter values for creating an instance of the given type. More... | |
| addComplexType ($name, $typeClass='complexType', $phpType='array', $compositor='', $restrictionBase='', $elements=array(), $attrs=array(), $arrayType='') | |
| adds a complex type to the schema More... | |
| addSimpleType ($name, $restrictionBase='', $typeClass='simpleType', $phpType='scalar', $enumeration=array()) | |
| adds a simple type to the schema More... | |
| addElement ($attrs) | |
| adds an element to the schema More... | |
| Public Member Functions inherited from nusoap_base | |
| debug ($string) | |
| adds debug data to the class level debug string More... | |
| expandEntities ($val) | |
| expands entities, e.g. More... | |
| getError () | |
| returns error string if present More... | |
| setError ($str) | |
| sets error string More... | |
| isArraySimpleOrStruct ($val) | |
| detect if array is a simple array or a struct (associative array) More... | |
| serialize_val ($val, $name=false, $type=false, $name_ns=false, $type_ns=false, $attributes=false, $use='encoded') | |
| serializeEnvelope ($body, $headers=false, $namespaces=array(), $style='rpc', $use='encoded') | |
| serialize message More... | |
| formatDump ($str) | |
| contractQname ($qname) | |
| contracts a qualified name More... | |
| expandQname ($qname) | |
| expands a qualified name More... | |
| getLocalPart ($str) | |
| returns the local part of a prefixed string returns the original string, if not prefixed More... | |
| getPrefix ($str) | |
| returns the prefix part of a prefixed string returns false, if not prefixed More... | |
| getNamespaceFromPrefix ($prefix) | |
| pass it a prefix, it returns a namespace returns false if no namespace registered with the given prefix More... | |
| getPrefixFromNamespace ($ns) | |
| returns the prefix for a given namespace (or prefix) or false if no prefixes registered for the given namespace More... | |
| varDump ($data) | |
| __construct () | |
| constructor More... | |
| getGlobalDebugLevel () | |
| gets the global debug level, which applies to future instances More... | |
| setGlobalDebugLevel ($level) | |
| sets the global debug level, which applies to future instances More... | |
| getDebugLevel () | |
| gets the debug level for this instance More... | |
| setDebugLevel ($level) | |
| sets the debug level for this instance More... | |
| debug ($string) | |
| adds debug data to the instance debug string with formatting More... | |
| appendDebug ($string) | |
| adds debug data to the instance debug string without formatting More... | |
| clearDebug () | |
| clears the current debug data for this instance More... | |
| & | getDebug () |
| gets the current debug data for this instance More... | |
| & | getDebugAsXMLComment () |
| gets the current debug data for this instance as an XML comment this may change the contents of the debug data More... | |
| expandEntities ($val) | |
| expands entities, e.g. More... | |
| getError () | |
| returns error string if present More... | |
| setError ($str) | |
| sets error string More... | |
| isArraySimpleOrStruct ($val) | |
| detect if array is a simple array or a struct (associative array) More... | |
| serialize_val ($val, $name=false, $type=false, $name_ns=false, $type_ns=false, $attributes=false, $use='encoded', $soapval=false) | |
| serializeEnvelope ($body, $headers=false, $namespaces=array(), $style='rpc', $use='encoded', $encodingStyle='http://schemas.xmlsoap.org/soap/encoding/') | |
| serializes a message More... | |
| formatDump ($str) | |
| formats a string to be inserted into an HTML stream More... | |
| contractQname ($qname) | |
| contracts (changes namespace to prefix) a qualified name More... | |
| expandQname ($qname) | |
| expands (changes prefix to namespace) a qualified name More... | |
| getLocalPart ($str) | |
| returns the local part of a prefixed string returns the original string, if not prefixed More... | |
| getPrefix ($str) | |
| returns the prefix part of a prefixed string returns false, if not prefixed More... | |
| getNamespaceFromPrefix ($prefix) | |
| pass it a prefix, it returns a namespace More... | |
| getPrefixFromNamespace ($ns) | |
| returns the prefix for a given namespace (or prefix) or false if no prefixes registered for the given namespace More... | |
| getmicrotime () | |
| returns the time in ODBC canonical form with microseconds More... | |
| varDump ($data) | |
| Returns a string with the output of var_dump. More... | |
| __toString () | |
| represents the object as a string More... | |
Data Fields | |
| $schema = '' | |
| $xml = '' | |
| $enclosingNamespaces | |
| $schemaInfo = array() | |
| $schemaTargetNamespace = '' | |
| $attributes = array() | |
| $complexTypes = array() | |
| $complexTypeStack = array() | |
| $currentComplexType = null | |
| $elements = array() | |
| $elementStack = array() | |
| $currentElement = null | |
| $simpleTypes = array() | |
| $simpleTypeStack = array() | |
| $currentSimpleType = null | |
| $imports = array() | |
| $parser | |
| $position = 0 | |
| $depth = 0 | |
| $depth_array = array() | |
| $message = array() | |
| $defaultNamespace = array() | |
| Data Fields inherited from nusoap_base | |
| $title = 'NuSOAP' | |
| $version = '0.6.7' | |
| $revision = '$Revision$' | |
| $error_str = false | |
| Current error string (manipulated by getError/setError) More... | |
| $debug_str = '' | |
| Current debug string (manipulated by debug/appendDebug/clearDebug/getDebug/getDebugAsXMLComment) More... | |
| $charencoding = true | |
| $XMLSchemaVersion = 'http://www.w3.org/2001/XMLSchema' | |
| $soap_defencoding = 'UTF-8' | |
| $namespaces | |
| $usedNamespaces = array() | |
| $typemap | |
| $xmlEntities | |
| $debugLevel | |
Detailed Description
parses an XML Schema, allows access to it's data, other utility methods.
imperfect, no validation... yet, but quite functional.
- Version
- $Id$ @access public
Definition at line 1096 of file nusoap.php.
Constructor & Destructor Documentation
◆ __construct()
| nusoap_xmlschema::__construct | ( | $schema = '', |
|
$xml = '', |
|||
$namespaces = array() |
|||
| ) |
constructor
- Parameters
-
string $schema schema document URI string $xml xml document URI string $namespaces namespaces defined in enclosing XML @access public
Definition at line 1135 of file nusoap.php.
1135 {
1136 parent::__construct();
1138 // files
1139 $this->schema = $schema;
1140 $this->xml = $xml;
1141
1142 // namespaces
1143 $this->enclosingNamespaces = $namespaces;
1144 $this->namespaces = array_merge($this->namespaces, $namespaces);
1145
1146 // parse schema file
1150 }
1151
1152 // parse xml file
1156 }
1157
1158 }
References nusoap_base\$namespaces, $schema, $xml, ILIAS\GlobalScreen\Provider\__construct(), nusoap_base\debug(), and parseFile().
Here is the call graph for this function:
Member Function Documentation
◆ addComplexType()
| nusoap_xmlschema::addComplexType | ( | $name, | |
$typeClass = 'complexType', |
|||
$phpType = 'array', |
|||
$compositor = '', |
|||
$restrictionBase = '', |
|||
$elements = array(), |
|||
$attrs = array(), |
|||
$arrayType = '' |
|||
| ) |
adds a complex type to the schema
example: array
addType( 'ArrayOfstring', 'complexType', 'array', '', 'SOAP-ENC:Array', array('ref'=>'SOAP-ENC:arrayType','wsdl:arrayType'=>'string[]'), 'xsd:string' );
example: PHP associative array ( SOAP Struct )
addType( 'SOAPStruct', 'complexType', 'struct', 'all', array('myVar'=> array('name'=>'myVar','type'=>'string') );
- Parameters
-
name typeClass (complexType|simpleType|attribute) phpType currently supported are array and struct (php assoc array) compositor (all|sequence|choice) restrictionBase namespace:name (http://schemas.xmlsoap.org/soap/encoding/:Array) elements = array ( name = array(name=>'',type=>'') ) attrs = array( array( 'ref' => "http://schemas.xmlsoap.org/soap/encoding/:arrayType", "http://schemas.xmlsoap.org/wsdl/:arrayType" => "string[]" ) ) arrayType namespace:name (http://www.w3.org/2001/XMLSchema:string) @access public
- See also
- getTypeDef
Reimplemented in XMLSchema.
Definition at line 1952 of file nusoap.php.
1952 {
1953 $this->complexTypes[$name] = array(
1955 'typeClass' => $typeClass,
1956 'phpType' => $phpType,
1957 'compositor'=> $compositor,
1958 'restrictionBase' => $restrictionBase,
1960 'attrs' => $attrs,
1961 'arrayType' => $arrayType
1962 );
1963
1966 }
appendDebug($string)
adds debug data to the instance debug string without formatting
Definition: nusoap.php:298
References $elements, $name, nusoap_base\appendDebug(), nusoap_base\varDump(), and xdebug().
Here is the call graph for this function:
◆ addElement()
| nusoap_xmlschema::addElement | ( | $attrs | ) |
adds an element to the schema
- Parameters
-
array $attrs attributes that must include name and type
- See also
- nusoap_xmlschema @access User interface
Definition at line 2000 of file nusoap.php.
2000 {
2002 $attrs['type'] = $this->schemaTargetNamespace . ':' . $attrs['type'];
2003 }
2004 $this->elements[ $attrs['name'] ] = $attrs;
2005 $this->elements[ $attrs['name'] ]['typeClass'] = 'element';
2006
2009 }
getPrefix($str)
returns the prefix part of a prefixed string returns false, if not prefixed
Definition: nusoap.php:525
References nusoap_base\appendDebug(), nusoap_base\getPrefix(), nusoap_base\varDump(), and xdebug().
Here is the call graph for this function:
◆ addSimpleType()
| nusoap_xmlschema::addSimpleType | ( | $name, | |
$restrictionBase = '', |
|||
$typeClass = 'simpleType', |
|||
$phpType = 'scalar', |
|||
$enumeration = array() |
|||
| ) |
adds a simple type to the schema
- Parameters
-
string $name string $restrictionBase namespace:name (http://schemas.xmlsoap.org/soap/encoding/:Array) string $typeClass (should always be simpleType) string $phpType (should always be scalar) array $enumeration array of values @access public
- See also
- nusoap_xmlschema
- getTypeDef
Definition at line 1980 of file nusoap.php.
1980 {
1981 $this->simpleTypes[$name] = array(
1983 'typeClass' => $typeClass,
1984 'phpType' => $phpType,
1985 'type' => $restrictionBase,
1986 'enumeration' => $enumeration
1987 );
1988
1991 }
References $name, nusoap_base\appendDebug(), nusoap_base\varDump(), and xdebug().
Here is the call graph for this function:
◆ CreateTypeName()
| nusoap_xmlschema::CreateTypeName | ( | $ename | ) |
gets a type name for an unnamed type
- Parameters
-
string Element name
- Returns
- string A type name for an unnamed type @access private
Definition at line 1241 of file nusoap.php.
1241 {
1242 $scope = '';
1245 }
1246 return $scope . $ename . '_ContainedType';
1247 }
References $i.
Referenced by schemaStartElement().
Here is the caller graph for this function:
◆ getPHPType()
| nusoap_xmlschema::getPHPType | ( | $type, | |
| $ns | |||
| ) |
get the PHP type of a user defined type in the schema PHP type is kind of a misnomer since it actually returns 'struct' for assoc.
arrays returns false if no type exists, or not w/ the given namespace else returns a string that is either a native php type, or 'struct'
- Parameters
-
string $type name of defined type string $ns namespace of type
- Returns
- mixed @access public
Reimplemented in XMLSchema.
Definition at line 1735 of file nusoap.php.
1735 {
1737 //print "found type '$type' and ns $ns in typemap<br>";
1739 } elseif(isset($this->complexTypes[$type])){
1740 //print "getting type '$type' and ns $ns from complexTypes array<br>";
1742 }
1743 return false;
1744 }
References $type.
◆ getTypeDef()
| nusoap_xmlschema::getTypeDef | ( | $type | ) |
returns an associative array of information about a given type returns false if no type exists by the given name
For a complexType typeDef = array(
'restrictionBase' => '',
'phpType' => '',
'compositor' => '(sequence|all)',
'elements' => array(), // refs to elements array
'attrs' => array() // refs to attributes array
... and so on (see addComplexType)
)
For simpleType or element, the array has different keys.
- Parameters
-
string $type
- Returns
- mixed @access public
- See also
- addComplexType
- addSimpleType
- addElement
Reimplemented in XMLSchema.
Definition at line 1768 of file nusoap.php.
1768 {
1769 //$this->debug("in getTypeDef for type $type");
1771 $is_element = 1;
1773 } else {
1774 $is_element = 0;
1775 }
1776
1780 } elseif((! $is_element) && isset($this->simpleTypes[$type])){
1783 // get info for type to tack onto the simple type
1784 // TODO: can this ever really apply (i.e. what is a simpleType really?)
1785 $uqType = substr($this->simpleTypes[$type]['type'], strrpos($this->simpleTypes[$type]['type'], ':') + 1);
1786 $ns = substr($this->simpleTypes[$type]['type'], 0, strrpos($this->simpleTypes[$type]['type'], ':'));
1787 $etype = $this->getTypeDef($uqType);
1788 if ($etype) {
1791 if (isset($etype['phpType'])) {
1793 }
1794 if (isset($etype['elements'])) {
1796 }
1797 }
1798 }
1800 } elseif(isset($this->elements[$type])){
1803 // get info for type to tack onto the element
1804 $uqType = substr($this->elements[$type]['type'], strrpos($this->elements[$type]['type'], ':') + 1);
1806 $etype = $this->getTypeDef($uqType);
1807 if ($etype) {
1810 if (isset($etype['phpType'])) {
1812 }
1813 if (isset($etype['elements'])) {
1815 }
1816 } elseif ($ns == 'http://www.w3.org/2001/XMLSchema') {
1819 }
1820 }
1822 } elseif(isset($this->attributes[$type])){
1827 $typeDef['typeClass'] = 'simpleType';
1828 $typeDef['phpType'] = 'scalar';
1829 $typeDef['type'] = 'http://www.w3.org/2001/XMLSchema:string';
1830 return $typeDef;
1831 }
1833 return false;
1834 }
getTypeDef($type)
returns an associative array of information about a given type returns false if no type exists by the...
Definition: nusoap.php:1768
References $type, getTypeDef(), nusoap_base\varDump(), and xdebug().
Referenced by getTypeDef(), serializeTypeDef(), and typeToForm().
Here is the call graph for this function:

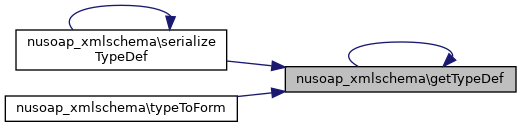

Here is the caller graph for this function:
◆ parseFile()
| nusoap_xmlschema::parseFile | ( | $xml, | |
| $type | |||
| ) |
parse an XML file
- Parameters
-
string $xml path/URL to XML file string $type (schema | xml)
- Returns
- boolean @access public
Reimplemented in XMLSchema.
Definition at line 1168 of file nusoap.php.
1168 {
1169 // parse xml file
1172 if($xmlStr == ""){
1173 $msg = 'Error reading XML from '.$xml;
1174 $this->setError($msg);
1175 $this->debug($msg);
1176 return false;
1177 } else {
1181 return true;
1182 }
1183 }
1184 return false;
1185 }
References $type, $xml, nusoap_base\debug(), parseString(), and nusoap_base\setError().
Referenced by __construct().
Here is the call graph for this function:
Here is the caller graph for this function:
◆ parseString()
| nusoap_xmlschema::parseString | ( | $xml, | |
| $type | |||
| ) |
parse an XML string @param string $xml path or URL
- Parameters
-
string $type (schema|xml) @access private
Reimplemented in XMLSchema.
Definition at line 1194 of file nusoap.php.
1194 {
1195 // parse xml string
1197
1198 // Create an XML parser.
1199 $this->parser = xml_parser_create();
1200 // Set the options for parsing the XML data.
1201 xml_parser_set_option($this->parser, XML_OPTION_CASE_FOLDING, 0);
1202
1203 // Set the object for the parser.
1204 xml_set_object($this->parser, $this);
1205
1206 // Set the element handlers for the parser.
1208 xml_set_element_handler($this->parser, 'schemaStartElement','schemaEndElement');
1209 xml_set_character_data_handler($this->parser,'schemaCharacterData');
1211 xml_set_element_handler($this->parser, 'xmlStartElement','xmlEndElement');
1212 xml_set_character_data_handler($this->parser,'xmlCharacterData');
1213 }
1214
1215 // Parse the XML file.
1217 // Display an error message.
1218 $errstr = sprintf('XML error parsing XML schema on line %d: %s',
1219 xml_get_current_line_number($this->parser),
1220 xml_error_string(xml_get_error_code($this->parser))
1221 );
1222 $this->debug($errstr);
1224 $this->setError($errstr);
1225 }
1226
1227 xml_parser_free($this->parser);
1228 } else{
1231 }
1232 }
References $type, $xml, nusoap_base\debug(), and nusoap_base\setError().
Referenced by parseFile().
Here is the call graph for this function:
Here is the caller graph for this function:
◆ schemaCharacterData()
| nusoap_xmlschema::schemaCharacterData | ( | $parser, | |
| $data | |||
| ) |
element content handler
- Parameters
-
string $parser XML parser object string $data element content @access private
Reimplemented in XMLSchema.
Definition at line 1591 of file nusoap.php.
1591 {
1592 $pos = $this->depth_array[$this->depth - 1];
1594 }
References $data.
◆ schemaEndElement()
| nusoap_xmlschema::schemaEndElement | ( | $parser, | |
| $name | |||
| ) |
end-element handler
- Parameters
-
string $parser XML parser object string $name element name @access private
Reimplemented in XMLSchema.
Definition at line 1554 of file nusoap.php.
1554 {
1555 // bring depth down a notch
1556 $this->depth--;
1557 // position of current element is equal to the last value left in depth_array for my depth
1558 if(isset($this->depth_array[$this->depth])){
1559 $pos = $this->depth_array[$this->depth];
1560 }
1561 // get element prefix
1563 // get unqualified name
1565 } else {
1566 $prefix = '';
1567 }
1568 // move on...
1570 $this->xdebug('done processing complexType ' . ($this->currentComplexType ? $this->currentComplexType : '(unknown)'));
1571 $this->currentComplexType = array_pop($this->complexTypeStack);
1572 //$this->currentElement = false;
1573 }
1575 $this->xdebug('done processing element ' . ($this->currentElement ? $this->currentElement : '(unknown)'));
1576 $this->currentElement = array_pop($this->elementStack);
1577 }
1579 $this->xdebug('done processing simpleType ' . ($this->currentSimpleType ? $this->currentSimpleType : '(unknown)'));
1580 $this->currentSimpleType = array_pop($this->simpleTypeStack);
1581 }
1582 }
getLocalPart($str)
returns the local part of a prefixed string returns the original string, if not prefixed
Definition: nusoap.php:508
References $depth, $name, nusoap_base\getLocalPart(), nusoap_base\getPrefix(), and xdebug().
Here is the call graph for this function:
◆ schemaStartElement()
| nusoap_xmlschema::schemaStartElement | ( | $parser, | |
| $name, | |||
| $attrs | |||
| ) |
start-element handler
- Parameters
-
string $parser XML parser object string $name element name string $attrs associative array of attributes @access private
Reimplemented in XMLSchema.
Definition at line 1257 of file nusoap.php.
1257 {
1258
1259 // position in the total number of elements, starting from 0
1260 $pos = $this->position++;
1261 $depth = $this->depth++;
1262 // set self as current value for this depth
1263 $this->depth_array[$depth] = $pos;
1264 $this->message[$pos] = array('cdata' => '');
1266 $this->defaultNamespace[$pos] = $this->defaultNamespace[$this->depth_array[$depth - 1]];
1267 } else {
1268 $this->defaultNamespace[$pos] = false;
1269 }
1270
1271 // get element prefix
1273 // get unqualified name
1275 } else {
1276 $prefix = '';
1277 }
1278
1279 // loop thru attributes, expanding, and registering namespace declarations
1280 if(count($attrs) > 0){
1281 foreach($attrs as $k => $v){
1282 // if ns declarations, add to class level array of valid namespaces
1283 if(preg_match('/^xmlns/',$k)){
1284 //$this->xdebug("$k: $v");
1285 //$this->xdebug('ns_prefix: '.$this->getPrefix($k));
1286 if($ns_prefix = substr(strrchr($k,':'),1)){
1287 //$this->xdebug("Add namespace[$ns_prefix] = $v");
1288 $this->namespaces[$ns_prefix] = $v;
1289 } else {
1290 $this->defaultNamespace[$pos] = $v;
1292 $this->namespaces['ns'.(count($this->namespaces)+1)] = $v;
1293 }
1294 }
1295 if($v == 'http://www.w3.org/2001/XMLSchema' || $v == 'http://www.w3.org/1999/XMLSchema' || $v == 'http://www.w3.org/2000/10/XMLSchema'){
1296 $this->XMLSchemaVersion = $v;
1297 $this->namespaces['xsi'] = $v.'-instance';
1298 }
1299 }
1300 }
1301 foreach($attrs as $k => $v){
1302 // expand each attribute
1305 $eAttrs[$k] = $v;
1306 }
1307 $attrs = $eAttrs;
1308 } else {
1309 $attrs = array();
1310 }
1311 // find status, register data
1313 case 'all': // (optional) compositor content for a complexType
1314 case 'choice':
1315 case 'group':
1316 case 'sequence':
1317 //$this->xdebug("compositor $name for currentComplexType: $this->currentComplexType and currentElement: $this->currentElement");
1319 //if($name == 'all' || $name == 'sequence'){
1320 // $this->complexTypes[$this->currentComplexType]['phpType'] = 'struct';
1321 //}
1322 break;
1323 case 'attribute': // complexType attribute
1324 //$this->xdebug("parsing attribute $attrs[name] $attrs[ref] of value: ".$attrs['http://schemas.xmlsoap.org/wsdl/:arrayType']);
1327 if (!isset($attrs['form'])) {
1328 $attrs['form'] = $this->schemaInfo['attributeFormDefault'];
1329 }
1330 if (isset($attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'])) {
1331 $v = $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'];
1332 if (!strpos($v, ':')) {
1333 // no namespace in arrayType attribute value...
1334 if ($this->defaultNamespace[$pos]) {
1335 // ...so use the default
1336 $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'] = $this->defaultNamespace[$pos] . ':' . $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'];
1337 }
1338 }
1339 }
1340 if(isset($attrs['name'])){
1341 $this->attributes[$attrs['name']] = $attrs;
1342 $aname = $attrs['name'];
1343 } elseif(isset($attrs['ref']) && $attrs['ref'] == 'http://schemas.xmlsoap.org/soap/encoding/:arrayType'){
1344 if (isset($attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'])) {
1345 $aname = $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'];
1346 } else {
1347 $aname = '';
1348 }
1349 } elseif(isset($attrs['ref'])){
1350 $aname = $attrs['ref'];
1351 $this->attributes[$attrs['ref']] = $attrs;
1352 }
1353
1354 if($this->currentComplexType){ // This should *always* be
1356 }
1357 // arrayType attribute
1358 if(isset($attrs['http://schemas.xmlsoap.org/wsdl/:arrayType']) || $this->getLocalPart($aname) == 'arrayType'){
1360 $prefix = $this->getPrefix($aname);
1361 if(isset($attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'])){
1362 $v = $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'];
1363 } else {
1364 $v = '';
1365 }
1366 if(strpos($v,'[,]')){
1368 }
1369 $v = substr($v,0,strpos($v,'[')); // clip the []
1370 if(!strpos($v,':') && isset($this->typemap[$this->XMLSchemaVersion][$v])){
1371 $v = $this->XMLSchemaVersion.':'.$v;
1372 }
1374 }
1375 break;
1376 case 'complexContent': // (optional) content for a complexType
1377 break;
1378 case 'complexType':
1379 array_push($this->complexTypeStack, $this->currentComplexType);
1380 if(isset($attrs['name'])){
1381 // TODO: what is the scope of named complexTypes that appear
1382 // nested within other c complexTypes?
1384 //$this->currentElement = false;
1385 $this->currentComplexType = $attrs['name'];
1386 $this->complexTypes[$this->currentComplexType] = $attrs;
1388 // This is for constructs like
1389 // <complexType name="ListOfString" base="soap:Array">
1390 // <sequence>
1391 // <element name="string" type="xsd:string"
1392 // minOccurs="0" maxOccurs="unbounded" />
1393 // </sequence>
1394 // </complexType>
1395 if(isset($attrs['base']) && preg_match('/:Array$/',$attrs['base'])){
1398 } else {
1400 }
1401 } else {
1403 $this->xdebug('processing unnamed complexType for element ' . $this->currentElement . ' named ' . $name);
1404 $this->currentComplexType = $name;
1405 //$this->currentElement = false;
1406 $this->complexTypes[$this->currentComplexType] = $attrs;
1408 // This is for constructs like
1409 // <complexType name="ListOfString" base="soap:Array">
1410 // <sequence>
1411 // <element name="string" type="xsd:string"
1412 // minOccurs="0" maxOccurs="unbounded" />
1413 // </sequence>
1414 // </complexType>
1415 if(isset($attrs['base']) && preg_match('/:Array$/',$attrs['base'])){
1418 } else {
1420 }
1421 }
1422 break;
1423 case 'element':
1424 array_push($this->elementStack, $this->currentElement);
1425 if (!isset($attrs['form'])) {
1426 $attrs['form'] = $this->schemaInfo['elementFormDefault'];
1427 }
1428 if(isset($attrs['type'])){
1431 if ($this->defaultNamespace[$pos]) {
1432 $attrs['type'] = $this->defaultNamespace[$pos] . ':' . $attrs['type'];
1434 }
1435 }
1436 // This is for constructs like
1437 // <complexType name="ListOfString" base="soap:Array">
1438 // <sequence>
1439 // <element name="string" type="xsd:string"
1440 // minOccurs="0" maxOccurs="unbounded" />
1441 // </sequence>
1442 // </complexType>
1443 if ($this->currentComplexType && $this->complexTypes[$this->currentComplexType]['phpType'] == 'array') {
1446 }
1447 $this->currentElement = $attrs['name'];
1448 $ename = $attrs['name'];
1449 } elseif(isset($attrs['ref'])){
1451 $this->currentElement = "ref to ".$attrs['ref'];
1453 } else {
1456 $this->currentElement = $attrs['name'];
1458 $ename = $attrs['name'];
1459 }
1460 if (isset($ename) && $this->currentComplexType) {
1463 } elseif (!isset($attrs['ref'])) {
1465 $this->elements[ $attrs['name'] ] = $attrs;
1466 $this->elements[ $attrs['name'] ]['typeClass'] = 'element';
1467 }
1468 break;
1469 case 'enumeration': // restriction value list member
1471 if ($this->currentSimpleType) {
1473 } elseif ($this->currentComplexType) {
1475 }
1476 break;
1477 case 'extension': // simpleContent or complexContent type extension
1479 if ($this->currentComplexType) {
1481 }
1482 break;
1483 case 'import':
1484 if (isset($attrs['schemaLocation'])) {
1485 //$this->xdebug('import namespace ' . $attrs['namespace'] . ' from ' . $attrs['schemaLocation']);
1486 $this->imports[$attrs['namespace']][] = array('location' => $attrs['schemaLocation'], 'loaded' => false);
1487 } else {
1488 //$this->xdebug('import namespace ' . $attrs['namespace']);
1489 $this->imports[$attrs['namespace']][] = array('location' => '', 'loaded' => true);
1491 $this->namespaces['ns'.(count($this->namespaces)+1)] = $attrs['namespace'];
1492 }
1493 }
1494 break;
1495 case 'list': // simpleType value list
1496 break;
1497 case 'restriction': // simpleType, simpleContent or complexContent value restriction
1499 if($this->currentSimpleType){
1501 } elseif($this->currentComplexType){
1503 if(strstr($attrs['base'],':') == ':Array'){
1505 }
1506 }
1507 break;
1508 case 'schema':
1509 $this->schemaInfo = $attrs;
1511 if (isset($attrs['targetNamespace'])) {
1512 $this->schemaTargetNamespace = $attrs['targetNamespace'];
1513 }
1514 if (!isset($attrs['elementFormDefault'])) {
1515 $this->schemaInfo['elementFormDefault'] = 'unqualified';
1516 }
1517 if (!isset($attrs['attributeFormDefault'])) {
1518 $this->schemaInfo['attributeFormDefault'] = 'unqualified';
1519 }
1520 break;
1521 case 'simpleContent': // (optional) content for a complexType
1522 break;
1523 case 'simpleType':
1524 array_push($this->simpleTypeStack, $this->currentSimpleType);
1525 if(isset($attrs['name'])){
1527 $this->currentSimpleType = $attrs['name'];
1528 $this->simpleTypes[ $attrs['name'] ] = $attrs;
1529 $this->simpleTypes[ $attrs['name'] ]['typeClass'] = 'simpleType';
1530 $this->simpleTypes[ $attrs['name'] ]['phpType'] = 'scalar';
1531 } else {
1533 $this->xdebug('processing unnamed simpleType for element ' . $this->currentElement . ' named ' . $name);
1534 $this->currentSimpleType = $name;
1535 //$this->currentElement = false;
1536 $this->simpleTypes[$this->currentSimpleType] = $attrs;
1538 }
1539 break;
1540 case 'union': // simpleType type list
1541 break;
1542 default:
1543 //$this->xdebug("do not have anything to do for element $name");
1544 }
1545 }
getNamespaceFromPrefix($prefix)
pass it a prefix, it returns a namespace returns false if no namespace registered with the given pref...
Definition: nusoap.php:541
getPrefixFromNamespace($ns)
returns the prefix for a given namespace (or prefix) or false if no prefixes registered for the given...
Definition: nusoap.php:557
References $currentComplexType, $currentSimpleType, $depth, $name, $type, nusoap_base\appendDebug(), CreateTypeName(), nusoap_base\expandQname(), nusoap_base\getLocalPart(), nusoap_base\getNamespaceFromPrefix(), nusoap_base\getPrefix(), nusoap_base\getPrefixFromNamespace(), nusoap_base\varDump(), and xdebug().
Here is the call graph for this function:
◆ serializeSchema()
| nusoap_xmlschema::serializeSchema | ( | ) |
serialize the schema
@access public
Reimplemented in XMLSchema.
Definition at line 1601 of file nusoap.php.
1601 {
1602
1603 $schemaPrefix = $this->getPrefixFromNamespace($this->XMLSchemaVersion);
1605 // imports
1606 if (sizeof($this->imports) > 0) {
1607 foreach($this->imports as $ns => $list) {
1608 foreach ($list as $ii) {
1609 if ($ii['location'] != '') {
1610 $xml .= " <$schemaPrefix:import location=\"" . $ii['location'] . '" namespace="' . $ns . "\" />\n";
1611 } else {
1613 }
1614 }
1615 }
1616 }
1617 // complex types
1618 foreach($this->complexTypes as $typeName => $attrs){
1619 $contentStr = '';
1620 // serialize child elements
1621 if(isset($attrs['elements']) && (count($attrs['elements']) > 0)){
1622 foreach($attrs['elements'] as $element => $eParts){
1623 if(isset($eParts['ref'])){
1624 $contentStr .= " <$schemaPrefix:element ref=\"$element\"/>\n";
1625 } else {
1626 $contentStr .= " <$schemaPrefix:element name=\"$element\" type=\"" . $this->contractQName($eParts['type']) . "\"";
1627 foreach ($eParts as $aName => $aValue) {
1628 // handle, e.g., abstract, default, form, minOccurs, maxOccurs, nillable
1629 if ($aName != 'name' && $aName != 'type') {
1630 $contentStr .= " $aName=\"$aValue\"";
1631 }
1632 }
1633 $contentStr .= "/>\n";
1634 }
1635 }
1636 // compositor wraps elements
1637 if (isset($attrs['compositor']) && ($attrs['compositor'] != '')) {
1638 $contentStr = " <$schemaPrefix:$attrs[compositor]>\n".$contentStr." </$schemaPrefix:$attrs[compositor]>\n";
1639 }
1640 }
1641 // attributes
1642 if(isset($attrs['attrs']) && (count($attrs['attrs']) >= 1)){
1643 foreach($attrs['attrs'] as $attr => $aParts){
1644 $contentStr .= " <$schemaPrefix:attribute";
1647 $contentStr .= " $a=\"".$this->contractQName($v).'"';
1649 $this->usedNamespaces['wsdl'] = $this->namespaces['wsdl'];
1650 $contentStr .= ' wsdl:arrayType="'.$this->contractQName($v).'"';
1651 } else {
1652 $contentStr .= " $a=\"$v\"";
1653 }
1654 }
1655 $contentStr .= "/>\n";
1656 }
1657 }
1658 // if restriction
1659 if (isset($attrs['restrictionBase']) && $attrs['restrictionBase'] != ''){
1660 $contentStr = " <$schemaPrefix:restriction base=\"".$this->contractQName($attrs['restrictionBase'])."\">\n".$contentStr." </$schemaPrefix:restriction>\n";
1661 // complex or simple content
1662 if ((isset($attrs['elements']) && count($attrs['elements']) > 0) || (isset($attrs['attrs']) && count($attrs['attrs']) > 0)){
1663 $contentStr = " <$schemaPrefix:complexContent>\n".$contentStr." </$schemaPrefix:complexContent>\n";
1664 }
1665 }
1666 // finalize complex type
1667 if($contentStr != ''){
1668 $contentStr = " <$schemaPrefix:complexType name=\"$typeName\">\n".$contentStr." </$schemaPrefix:complexType>\n";
1669 } else {
1670 $contentStr = " <$schemaPrefix:complexType name=\"$typeName\"/>\n";
1671 }
1672 $xml .= $contentStr;
1673 }
1674 // simple types
1675 if(isset($this->simpleTypes) && count($this->simpleTypes) > 0){
1676 foreach($this->simpleTypes as $typeName => $eParts){
1677 $xml .= " <$schemaPrefix:simpleType name=\"$typeName\">\n <$schemaPrefix:restriction base=\"".$this->contractQName($eParts['type'])."\">\n";
1678 if (isset($eParts['enumeration'])) {
1681 }
1682 }
1684 }
1685 }
1686 // elements
1687 if(isset($this->elements) && count($this->elements) > 0){
1688 foreach($this->elements as $element => $eParts){
1689 $xml .= " <$schemaPrefix:element name=\"$element\" type=\"".$this->contractQName($eParts['type'])."\"/>\n";
1690 }
1691 }
1692 // attributes
1693 if(isset($this->attributes) && count($this->attributes) > 0){
1694 foreach($this->attributes as $attr => $aParts){
1695 $xml .= " <$schemaPrefix:attribute name=\"$attr\" type=\"".$this->contractQName($aParts['type'])."\"\n/>";
1696 }
1697 }
1698 // finish 'er up
1699 $attr = '';
1700 foreach ($this->schemaInfo as $k => $v) {
1701 if ($k == 'elementFormDefault' || $k == 'attributeFormDefault') {
1702 $attr .= " $k=\"$v\"";
1703 }
1704 }
1705 $el = "<$schemaPrefix:schema$attr targetNamespace=\"$this->schemaTargetNamespace\"\n";
1706 foreach (array_diff($this->usedNamespaces, $this->enclosingNamespaces) as $nsp => $ns) {
1707 $el .= " xmlns:$nsp=\"$ns\"";
1708 }
1711 }
$a
thx to https://mlocati.github.io/php-cs-fixer-configurator for the examples
Definition: example_cleaned.php:31
References Vendor\Package\$a, Vendor\Package\$e, $xml, and nusoap_base\getPrefixFromNamespace().
Here is the call graph for this function:
◆ serializeTypeDef()
| nusoap_xmlschema::serializeTypeDef | ( | $type | ) |
returns a sample serialization of a given type, or false if no type by the given name
- Parameters
-
string $type name of type
- Returns
- mixed @access public
Reimplemented in XMLSchema.
Definition at line 1844 of file nusoap.php.
1844 {
1845 //print "in sTD() for type $type<br>";
1847 $str .= '<'.$type;
1848 if(is_array($typeDef['attrs'])){
1850 $str .= " $attName=\"{type = ".$data['type']."}\"";
1851 }
1852 }
1853 $str .= " xmlns=\"".$this->schema['targetNamespace']."\"";
1854 if(count($typeDef['elements']) > 0){
1855 $str .= ">";
1856 foreach($typeDef['elements'] as $element => $eData){
1857 $str .= $this->serializeTypeDef($element);
1858 }
1859 $str .= "</$type>";
1860 } elseif($typeDef['typeClass'] == 'element') {
1861 $str .= "></$type>";
1862 } else {
1863 $str .= "/>";
1864 }
1865 return $str;
1866 }
1867 return false;
1868 }
serializeTypeDef($type)
returns a sample serialization of a given type, or false if no type by the given name
Definition: nusoap.php:1844
References $data, $type, getTypeDef(), and serializeTypeDef().
Referenced by serializeTypeDef().
Here is the call graph for this function:
Here is the caller graph for this function:
◆ typeToForm()
| nusoap_xmlschema::typeToForm | ( | $name, | |
| $type | |||
| ) |
returns HTML form elements that allow a user to enter values for creating an instance of the given type.
- Parameters
-
string $name name for type instance string $type name of type
- Returns
- string @access public
Reimplemented in XMLSchema.
Definition at line 1880 of file nusoap.php.
1880 {
1881 // get typedef
1883 // if struct
1884 if($typeDef['phpType'] == 'struct'){
1885 $buffer .= '<table>';
1886 foreach($typeDef['elements'] as $child => $childDef){
1887 $buffer .= "
1888 <tr><td align='right'>$childDef[name] (type: ".$this->getLocalPart($childDef['type'])."):</td>
1890 }
1891 $buffer .= '</table>';
1892 // if array
1893 } elseif($typeDef['phpType'] == 'array'){
1894 $buffer .= '<table>';
1896 $buffer .= "
1897 <tr><td align='right'>array item (type: $typeDef[arrayType]):</td>
1898 <td><input type='text' name='parameters[".$name."][]'></td></tr>";
1899 }
1900 $buffer .= '</table>';
1901 // if scalar
1902 } else {
1903 $buffer .= "<input type='text' name='parameters[$name]'>";
1904 }
1905 } else {
1906 $buffer .= "<input type='text' name='parameters[$name]'>";
1907 }
1908 return $buffer;
1909 }
References $i, $name, $type, and getTypeDef().
Here is the call graph for this function:

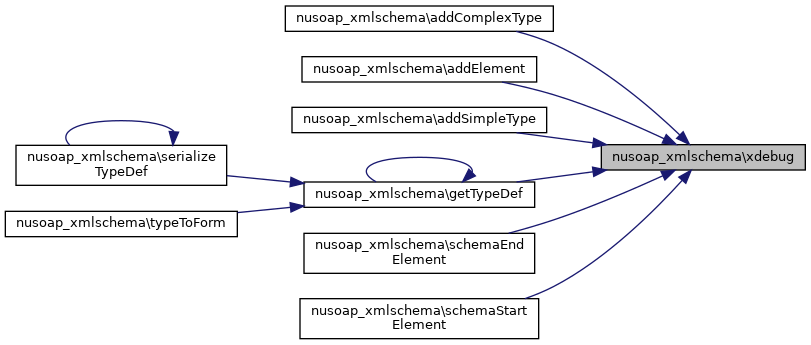

◆ xdebug()
| nusoap_xmlschema::xdebug | ( | $string | ) |
adds debug data to the clas level debug string
- Parameters
-
string $string debug data @access private
Reimplemented in XMLSchema.
Definition at line 1719 of file nusoap.php.
References nusoap_base\debug().
Referenced by addComplexType(), addElement(), addSimpleType(), getTypeDef(), schemaEndElement(), and schemaStartElement().
Here is the call graph for this function:
Here is the caller graph for this function:
Field Documentation
◆ $attributes
| nusoap_xmlschema::$attributes = array() |
Definition at line 1107 of file nusoap.php.
◆ $complexTypes
| nusoap_xmlschema::$complexTypes = array() |
Definition at line 1108 of file nusoap.php.
◆ $complexTypeStack
| nusoap_xmlschema::$complexTypeStack = array() |
Definition at line 1109 of file nusoap.php.
◆ $currentComplexType
| nusoap_xmlschema::$currentComplexType = null |
Definition at line 1110 of file nusoap.php.
Referenced by schemaStartElement().
◆ $currentElement
| nusoap_xmlschema::$currentElement = null |
Definition at line 1113 of file nusoap.php.
◆ $currentSimpleType
| nusoap_xmlschema::$currentSimpleType = null |
Definition at line 1116 of file nusoap.php.
Referenced by schemaStartElement().
◆ $defaultNamespace
| nusoap_xmlschema::$defaultNamespace = array() |
Definition at line 1125 of file nusoap.php.
◆ $depth
| nusoap_xmlschema::$depth = 0 |
Definition at line 1122 of file nusoap.php.
Referenced by schemaEndElement(), and schemaStartElement().
◆ $depth_array
| nusoap_xmlschema::$depth_array = array() |
Definition at line 1123 of file nusoap.php.
◆ $elements
| nusoap_xmlschema::$elements = array() |
Definition at line 1111 of file nusoap.php.
Referenced by addComplexType().
◆ $elementStack
| nusoap_xmlschema::$elementStack = array() |
Definition at line 1112 of file nusoap.php.
◆ $enclosingNamespaces
| nusoap_xmlschema::$enclosingNamespaces |
Definition at line 1102 of file nusoap.php.
◆ $imports
| nusoap_xmlschema::$imports = array() |
Definition at line 1118 of file nusoap.php.
◆ $message
| nusoap_xmlschema::$message = array() |
Definition at line 1124 of file nusoap.php.
◆ $parser
| nusoap_xmlschema::$parser |
Definition at line 1120 of file nusoap.php.
◆ $position
| nusoap_xmlschema::$position = 0 |
Definition at line 1121 of file nusoap.php.
◆ $schema
| nusoap_xmlschema::$schema = '' |
Definition at line 1099 of file nusoap.php.
Referenced by __construct().
◆ $schemaInfo
| nusoap_xmlschema::$schemaInfo = array() |
Definition at line 1104 of file nusoap.php.
◆ $schemaTargetNamespace
| nusoap_xmlschema::$schemaTargetNamespace = '' |
Definition at line 1105 of file nusoap.php.
◆ $simpleTypes
| nusoap_xmlschema::$simpleTypes = array() |
Definition at line 1114 of file nusoap.php.
◆ $simpleTypeStack
| nusoap_xmlschema::$simpleTypeStack = array() |
Definition at line 1115 of file nusoap.php.
◆ $xml
| nusoap_xmlschema::$xml = '' |
Definition at line 1100 of file nusoap.php.
Referenced by __construct(), parseFile(), parseString(), and serializeSchema().
The documentation for this class was generated from the following file:
- webservice/soap/lib/nusoap.php
