ilPCIIMTriggerEditorGUI Class Reference

User interface class for page content map editor. More...

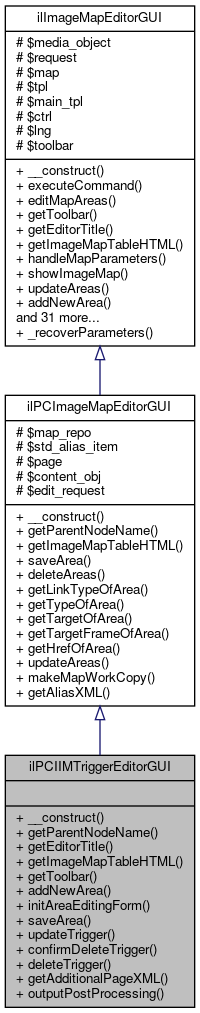

Inheritance diagram for ilPCIIMTriggerEditorGUI:

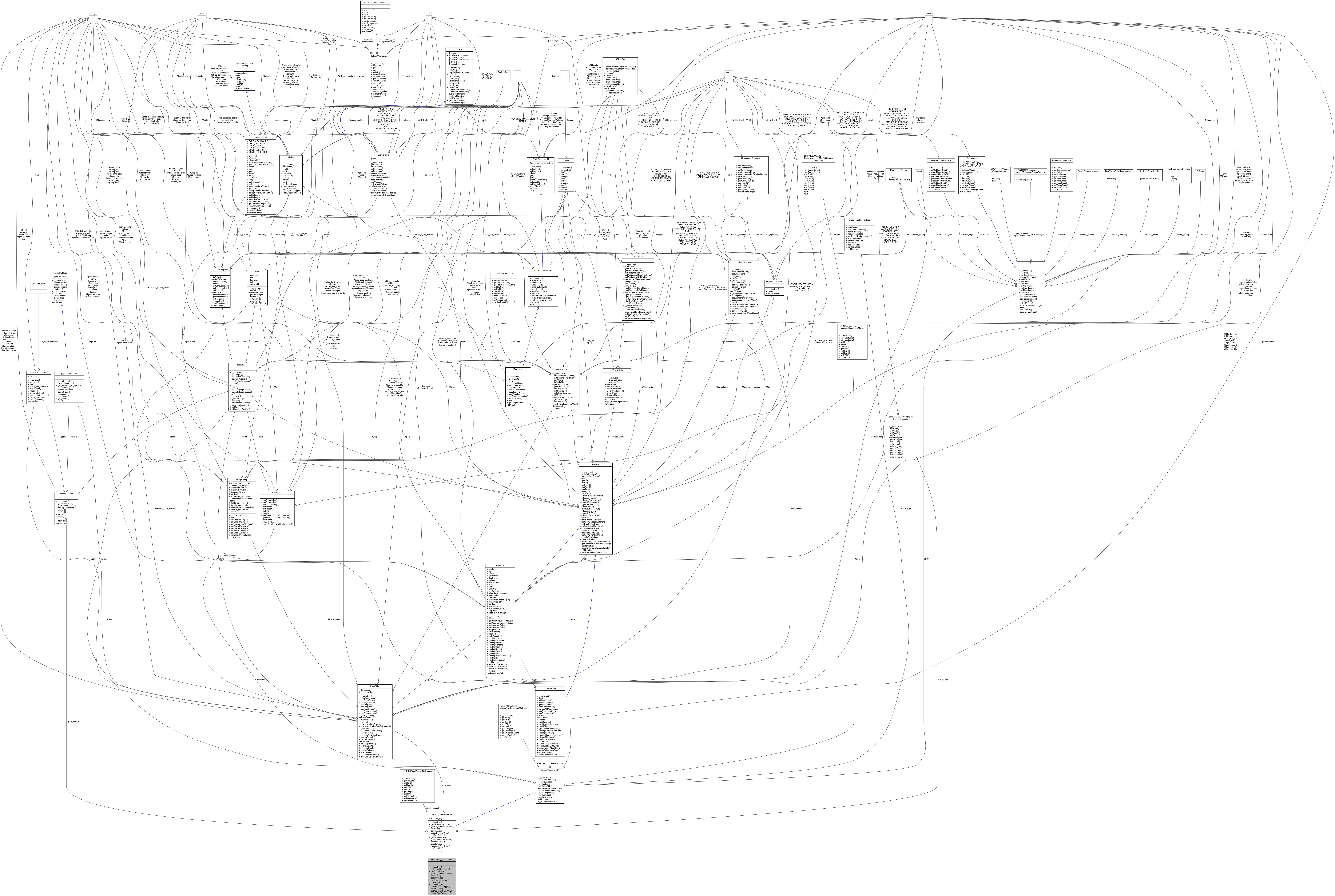

Collaboration diagram for ilPCIIMTriggerEditorGUI:

Public Member Functions
	__construct (ilPCInteractiveImage $a_content_obj, ilPageObject $a_page, EditGUIRequest $request)
	getParentNodeName ()
	getEditorTitle ()
	getImageMapTableHTML ()
	Get trigger table. More...
	getToolbar ()
	addNewArea ()
	initAreaEditingForm (string $a_edit_property)
	Init area editing form. More...
	saveArea ()
	Save new or updated map area. More...
	updateTrigger ()
	Update trigger. More...
	confirmDeleteTrigger ()
	Confirm trigger deletion. More...
	deleteTrigger ()
	Delete trigger. More...
	getAdditionalPageXML ()
	Get additional page xml (to be overwritten) More...
	outputPostProcessing (string $a_output)
Public Member Functions inherited from ilPCImageMapEditorGUI
	__construct ( $a_content_obj, ilPageObject $a_page, EditGUIRequest $request)
	getParentNodeName ()
	getImageMapTableHTML ()
	saveArea ()
	Save new or updated map area. More...
	deleteAreas ()
	Delete map areas. More...
	getLinkTypeOfArea (int $a_nr)
	Get Link Type of Area. More...
	getTypeOfArea (int $a_nr)
	Get Type of Area (only internal link) More...
	getTargetOfArea (int $a_nr)
	Get Target of Area (only internal link) More...
	getTargetFrameOfArea (int $a_nr)
	Get TargetFrame of Area (only internal link) More...
	getHrefOfArea (int $a_nr)
	Get Href of Area (only external link) More...
	updateAreas ()
	Update map areas. More...
	makeMapWorkCopy (string $a_edit_property="", int $a_area_nr=0, bool $a_output_new_area=false, string $a_area_type="", string $a_coords="")
	Make work file for editing. More...
	getAliasXML ()
Public Member Functions inherited from ilImageMapEditorGUI
	__construct (ilObjMediaObject $a_media_object)
	executeCommand ()
	editMapAreas ()
	getToolbar ()
	getEditorTitle ()
	getImageMapTableHTML ()
	handleMapParameters ()
	showImageMap ()
	updateAreas ()
	addNewArea ()
	linkWholePicture ()
	addRectangle ()
	addCircle ()
	addPolygon ()
	clearSessionVars ()
	addArea (bool $a_handle=true)
	editMapArea (bool $a_get_next_coordinate=false, bool $a_output_new_area=false, bool $a_save_form=false, string $a_edit_property="", int $a_area_nr=0)
	Edit a single map area. More...
	initAreaEditingForm (string $a_edit_property)
	makeMapWorkCopy (string $a_edit_property="", int $a_area_nr=0, bool $a_output_new_area=false, string $a_area_type="", string $a_coords="")
	Make work file for editing. More...
	getImageMapOutput (string $a_map_edit_mode="")
	Render the image map. More...
	getAdditionalPageXML ()
	Get additional page xml (to be overwritten) More...
	outputPostProcessing (string $a_output)
	getAliasXML ()
	getMapAreaLinkString (string $a_target, string $a_type, string $a_frame)
	Get text name of internal link. More...
	editImagemapForward ()
	Get image map coordinates. More...
	saveArea ()
	Save new or updated map area. More...
	setInternalLink ()
	setLink (bool $a_handle=true)
	getLinkTypeOfArea (int $a_nr)
	getTypeOfArea (int $a_nr)
	Get Type of Area (only internal link) More...
	getTargetOfArea (int $a_nr)
	Get Target of Area (only internal link) More...
	getTargetFrameOfArea (int $a_nr)
	Get TargetFrame of Area (only internal link) More...
	getHrefOfArea (int $a_nr)
	Get Href of Area (only external link) More...
	deleteAreas ()
	Delete map areas. More...
	editLink ()
	Edit existing link. More...
	editShapeWholePicture ()
	Edit an existing shape (make it a whole picture link) More...
	editShapeRectangle ()
	Edit an existing shape (make it a rectangle) More...
	editShapeCircle ()
	Edit an existing shape (make it a circle) More...
	editShapePolygon ()
	Edit an existing shape (make it a polygon) More...
	setShape (bool $a_handle=true)
	edit shape of existing map area More...
	setHighlight ()
	Set highlight settings. More...

Additional Inherited Members
Static Public Member Functions inherited from ilImageMapEditorGUI
static	_recoverParameters ()
	Recover parameters from session variables (static) More...
Protected Attributes inherited from ilPCImageMapEditorGUI
MapEditorSessionRepository	$map_repo
ilMediaAliasItem	$std_alias_item
ilPageObject	$page
	$content_obj
EditGUIRequest	$edit_request
Protected Attributes inherited from ilImageMapEditorGUI
ilObjMediaObject	$media_object
ImageMapGUIRequest	$request
ImageMapManager	$map
ilTemplate	$tpl
ilGlobalTemplateInterface	$main_tpl
ilCtrl	$ctrl
ilLanguage	$lng
ilToolbarGUI	$toolbar

Detailed Description

User interface class for page content map editor.

Author

Alexander Killing killi.nosp@m.ng@l.nosp@m.eifos.nosp@m..de ilPCIIMTriggerEditorGUI: ilInternalLinkGUI

Definition at line 27 of file class.ilPCIIMTriggerEditorGUI.php.

Constructor & Destructor Documentation

__construct()

ilPCIIMTriggerEditorGUI::__construct	(	ilPCInteractiveImage	$a_content_obj,
		ilPageObject	$a_page,
		EditGUIRequest	$request
	)

Definition at line 29 of file class.ilPCIIMTriggerEditorGUI.php.

References ILIAS\GlobalScreen\Provider\__construct(), ilAccordionGUI\addCss(), ilAccordionGUI\addJavaScript(), and iljQueryUtil\initjQueryUI().

      {
        iljQueryUtil::initjQueryUI();
        parent::__construct($a_content_obj, $a_page, $request);

        $this->main_tpl->addJavaScript("./Services/COPage/js/ilCOPagePres.js");
        $this->main_tpl->addJavaScript("./Services/COPage/js/ilCOPagePCInteractiveImage.js");

        ilAccordionGUI::addJavaScript();
        ilAccordionGUI::addCss();
    }

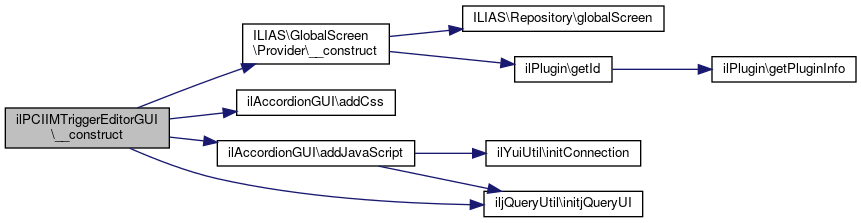

Here is the call graph for this function:

Member Function Documentation

addNewArea()

ilPCIIMTriggerEditorGUI::addNewArea

(

)

Definition at line 107 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$ctrl, ilImageMapEditorGUI\$lng, and ilLanguage\txt().

                                : string
    {
        $ilCtrl = $this->ctrl;
        $lng = $this->lng;

        if ($this->edit_request->getString("shape") == "Marker") {
            $this->content_obj->addTriggerMarker();
            $this->page->update();
            $this->main_tpl->setOnScreenMessage('success', $lng->txt("cont_saved_map_data"), true);
            $ilCtrl->redirect($this, "editMapAreas");
        } else {
            return parent::addNewArea();
        }
        return "";
    }

Here is the call graph for this function:

confirmDeleteTrigger()

ilPCIIMTriggerEditorGUI::confirmDeleteTrigger

(

)

Confirm trigger deletion.

Definition at line 230 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$ctrl, $i, ilImageMapEditorGUI\$lng, ilImageMapEditorGUI\$main_tpl, ilGlobalTemplateInterface\setContent(), and ilLanguage\txt().

                                          : void
    {
        $ilCtrl = $this->ctrl;
        $main_tpl = $this->main_tpl;
        $lng = $this->lng;

        $trigger = $this->edit_request->getStringArray("tr");
        $titles = $this->edit_request->getStringArray("title");

        if (count($trigger) == 0) {
            $this->main_tpl->setOnScreenMessage('failure', $lng->txt("no_checkbox"), true);
            $ilCtrl->redirect($this, "editMapAreas");
        } else {
            $cgui = new ilConfirmationGUI();
            $cgui->setFormAction($ilCtrl->getFormAction($this));
            $cgui->setHeaderText($lng->txt("cont_really_delete_triggers"));
            $cgui->setCancel($lng->txt("cancel"), "editMapAreas");
            $cgui->setConfirm($lng->txt("delete"), "deleteTrigger");

            foreach ($trigger as $i) {
                $cgui->addItem("tr[]", $i, $titles[$i]);
            }
            $main_tpl->setContent($cgui->getHTML());
        }
    }

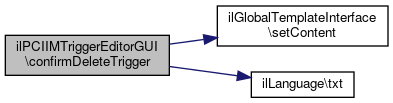

Here is the call graph for this function:

deleteTrigger()

ilPCIIMTriggerEditorGUI::deleteTrigger

(

)

Delete trigger.

Exceptions

ilDateTimeException

Definition at line 260 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$ctrl, ilImageMapEditorGUI\$lng, and ilLanguage\txt().

                                   : void
    {
        $ilCtrl = $this->ctrl;
        $lng = $this->lng;

        $trigger = $this->edit_request->getStringArray("tr");

        if (count($trigger) > 0) {
            foreach ($trigger as $tr_nr) {
                $this->content_obj->deleteTrigger($this->std_alias_item, $tr_nr);
            }
            $this->page->update();
            $this->main_tpl->setOnScreenMessage('success', $lng->txt("cont_areas_deleted"), true);
        }

        $ilCtrl->redirect($this, "editMapAreas");
    }

Here is the call graph for this function:

getAdditionalPageXML()

ilPCIIMTriggerEditorGUI::getAdditionalPageXML

(

)

Get additional page xml (to be overwritten)

Definition at line 281 of file class.ilPCIIMTriggerEditorGUI.php.

                                          : string
    {
        return $this->page->getMultimediaXML();
    }

getEditorTitle()

ilPCIIMTriggerEditorGUI::getEditorTitle

(

)

Definition at line 49 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$lng, and ilLanguage\txt().

                                    : string
    {
        $lng = $this->lng;

        return $lng->txt("cont_pc_iim");
    }

Here is the call graph for this function:

getImageMapTableHTML()

ilPCIIMTriggerEditorGUI::getImageMapTableHTML

(

)

Get trigger table.

Definition at line 59 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$ctrl, ilImageMapEditorGUI\$lng, ilImageMapEditorGUI\$toolbar, getParentNodeName(), and ilLanguage\txt().

                                          : string
    {
        $ilToolbar = $this->toolbar;
        $lng = $this->lng;
        $ilCtrl = $this->ctrl;


        $ilToolbar->addText($lng->txt("cont_drag_element_click_save"));
        $ilToolbar->setId("drag_toolbar");
        $ilToolbar->setHidden(true);
        $ilToolbar->addButton($lng->txt("save"), "#", "", null, "", "save_pos_button");

        $ilToolbar->addButton(
            $lng->txt("cancel"),
            $ilCtrl->getLinkTarget($this, "editMapAreas")
        );

        $image_map_table = new ilPCIIMTriggerTableGUI(
            $this,
            "editMapAreas",
            $this->content_obj,
            $this->getParentNodeName()
        );
        return $image_map_table->getHTML();
    }

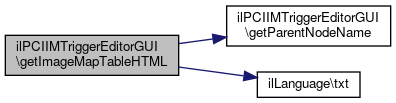

Here is the call graph for this function:

getParentNodeName()

ilPCIIMTriggerEditorGUI::getParentNodeName

(

)

Definition at line 44 of file class.ilPCIIMTriggerEditorGUI.php.

Referenced by getImageMapTableHTML().

                                       : string
    {
        return "InteractiveImage";
    }

Here is the caller graph for this function:

getToolbar()

ilPCIIMTriggerEditorGUI::getToolbar

(

)

Definition at line 85 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$ctrl, ilImageMapEditorGUI\$lng, and ilLanguage\txt().

                                : ilToolbarGUI
    {
        $ilCtrl = $this->ctrl;
        $lng = $this->lng;

        // toolbar
        $tb = new ilToolbarGUI();
        $tb->setFormAction($ilCtrl->getFormAction($this));
        $options = array(
            "Rect" => $lng->txt("cont_Rect"),
            "Circle" => $lng->txt("cont_Circle"),
            "Poly" => $lng->txt("cont_Poly"),
            "Marker" => $lng->txt("cont_marker")
            );
        $si = new ilSelectInputGUI($lng->txt("cont_trigger_area"), "shape");
        $si->setOptions($options);
        $tb->addInputItem($si, true);
        $tb->addFormButton($lng->txt("add"), "addNewArea");

        return $tb;
    }

Here is the call graph for this function:

initAreaEditingForm()

ilPCIIMTriggerEditorGUI::initAreaEditingForm

(

string

$a_edit_property

)

Init area editing form.

Definition at line 126 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$lng, and ilLanguage\txt().

     : ilPropertyFormGUI {
        $lng = $this->lng;
        $form = new ilPropertyFormGUI();
        $form->setOpenTag(false);
        $form->setCloseTag(false);

        // name
        if ($a_edit_property != "link" && $a_edit_property != "shape") {
            $ti = new ilTextInputGUI($lng->txt("cont_name"), "area_name");
            $ti->setMaxLength(200);
            $ti->setSize(20);
            //$ti->setRequired(true);
            $form->addItem($ti);
        }

        // save and cancel commands
        if ($a_edit_property == "") {
            $form->setTitle($lng->txt("cont_new_trigger_area"));
        } else {
            $form->setTitle($lng->txt("cont_new_area"));
        }
        $form->addCommandButton("saveArea", $lng->txt("save"));

        return $form;
    }

Here is the call graph for this function:

outputPostProcessing()

ilPCIIMTriggerEditorGUI::outputPostProcessing

(

string

$a_output

)

Definition at line 286 of file class.ilPCIIMTriggerEditorGUI.php.

References ilPageObjectGUI\PREVIEW, and ilPageObjectGUI\setOutputMode().

                                                          : string
    {

        // for question html get the page gui object
        $pg_gui = new ilPageObjectGUI($this->page->getParentType(), $this->page->getId());
        $pg_gui->setOutputMode(ilPageObjectGUI::PREVIEW);
        $pg_gui->getPageConfig()->setEnableSelfAssessment(true);
        //              $pg_gui->initSelfAssessmentRendering(true);             // todo: solve in other way
        $qhtml = $pg_gui->getQuestionHTML();
        if (is_array($qhtml)) {
            foreach ($qhtml as $k => $h) {
                $a_output = str_replace($pg_gui->pl_start . "Question;il__qst_$k" . $pg_gui->pl_end, " " . $h, $a_output);
            }
        }

        return $a_output;
    }

Here is the call graph for this function:

saveArea()

ilPCIIMTriggerEditorGUI::saveArea

(

)

Save new or updated map area.

Definition at line 157 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$ctrl, ilImageMapEditorGUI\$lng, ilCtrl\redirect(), and ilLanguage\txt().

                              : string
    {
        $lng = $this->lng;
        $ilCtrl = $this->ctrl;

        switch ($this->map_repo->getMode()) {
            // save edited shape
            case "edit_shape":
                $this->std_alias_item->setShape(
                    $this->map->getAreaNr(),
                    $this->map->getAreaType(),
                    $this->map->getCoords()
                );
                $this->page->update();
                break;

            // save new area
            default:
                $area_type = $this->map->getAreaType();
                $coords = $this->map->getCoords();
                $this->content_obj->addTriggerArea(
                    $this->std_alias_item,
                    $area_type,
                    $coords,
                    $this->edit_request->getString("area_name")
                );
                $this->page->update();
                break;
        }

        //$this->initMapParameters();
        $this->main_tpl->setOnScreenMessage('success', $lng->txt("cont_saved_map_area"), true);
        $ilCtrl->redirect($this, "editMapAreas");
        return "";
    }

Here is the call graph for this function:

updateTrigger()

ilPCIIMTriggerEditorGUI::updateTrigger

(

)

Update trigger.

Definition at line 196 of file class.ilPCIIMTriggerEditorGUI.php.

References ilImageMapEditorGUI\$ctrl, ilImageMapEditorGUI\$lng, ilCtrl\redirect(), and ilLanguage\txt().

                                   : void
    {
        $lng = $this->lng;
        $ilCtrl = $this->ctrl;

        $this->content_obj->setTriggerOverlays(
            $this->edit_request->getStringArray("ov")
        );
        $this->content_obj->setTriggerPopups(
            $this->edit_request->getStringArray("pop")
        );
        $this->content_obj->setTriggerOverlayPositions(
            $this->edit_request->getStringArray("ovpos")
        );
        $this->content_obj->setTriggerMarkerPositions(
            $this->edit_request->getStringArray("markpos")
        );
        $this->content_obj->setTriggerPopupPositions(
            $this->edit_request->getStringArray("poppos")
        );
        $this->content_obj->setTriggerPopupSize(
            $this->edit_request->getStringArray("popsize")
        );
        $this->content_obj->setTriggerTitles(
            $this->edit_request->getStringArray("title")
        );
        $this->page->update();
        $this->main_tpl->setOnScreenMessage('success', $lng->txt("msg_obj_modified"), true);
        $ilCtrl->redirect($this, "editMapAreas");
    }

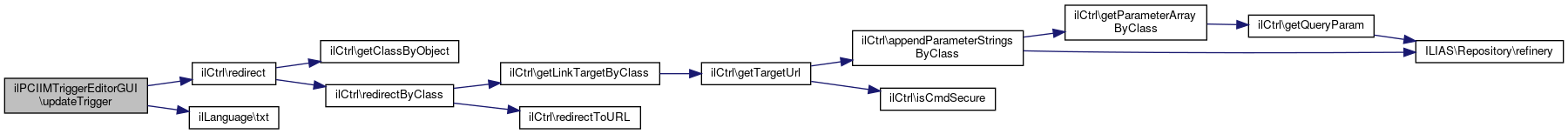

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• Services/COPage/classes/class.ilPCIIMTriggerEditorGUI.php
