ILIAS  release_8 Revision v8.24
Public Member Functions | Protected Attributes
ilTCPDFRenderer Class Reference

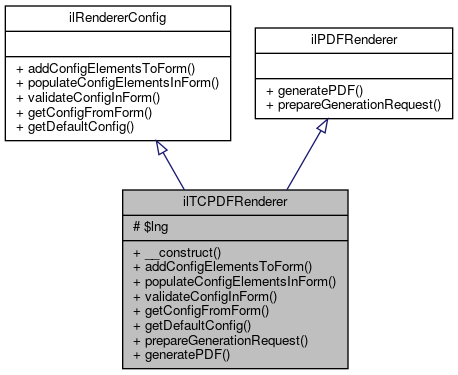

+ Inheritance diagram for ilTCPDFRenderer:

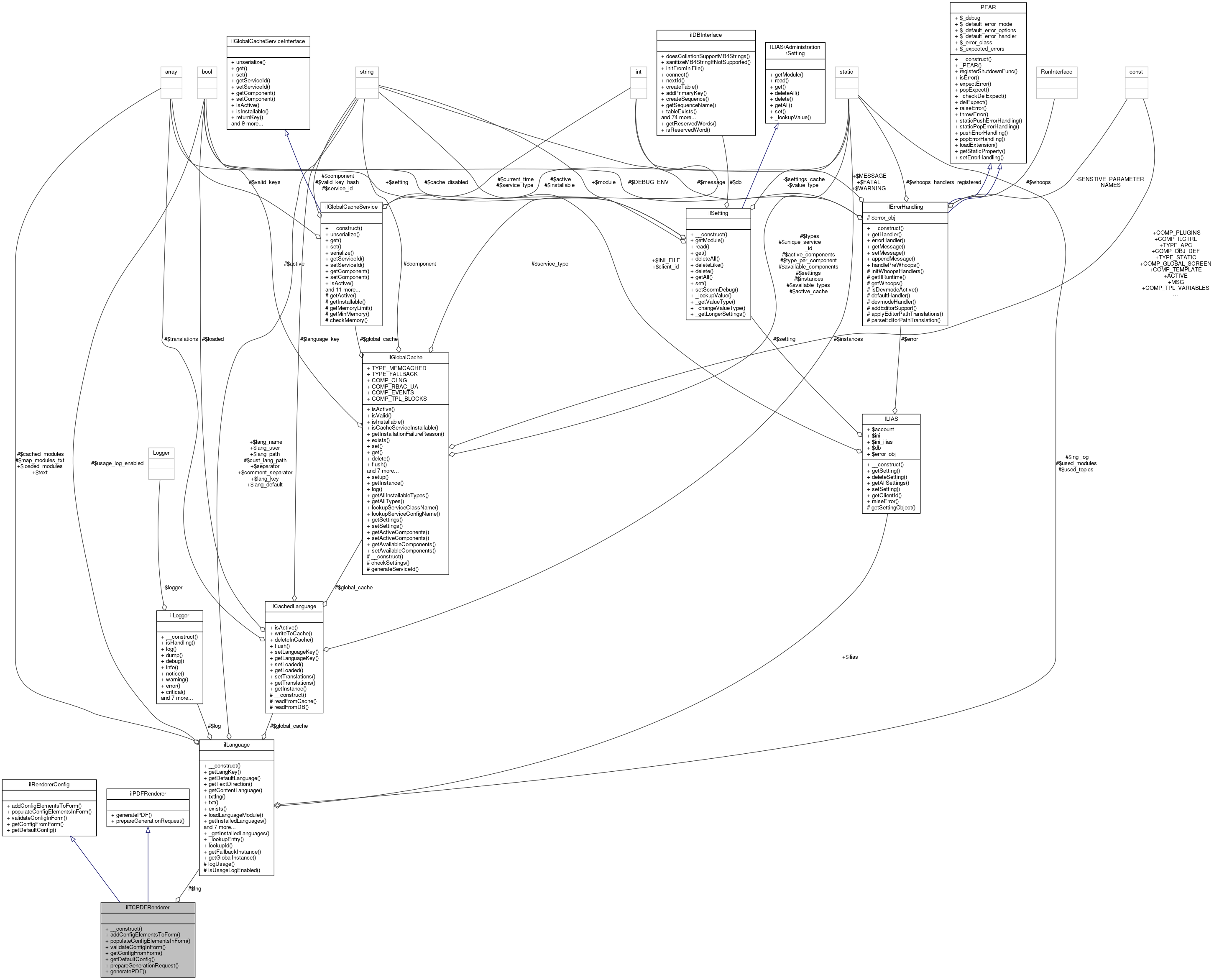

+ Collaboration diagram for ilTCPDFRenderer:

Public Member Functions

 __construct ()

 addConfigElementsToForm (ilPropertyFormGUI $form, string $service, string $purpose)

 populateConfigElementsInForm (ilPropertyFormGUI $form, string $service, string $purpose, array $config)

 validateConfigInForm (ilPropertyFormGUI $form, string $service, string $purpose)

 getConfigFromForm (ilPropertyFormGUI $form, string $service, string $purpose)

 getDefaultConfig (string $service, string $purpose)

 prepareGenerationRequest (string $service, string $purpose)
 Prepare the content processing at the beginning of a PDF generation request Should be used to initialize the processing of latex code The PDF renderers require different image formats generated by the MathJax service. More...

 generatePDF (string $service, string $purpose, array $config, ilPDFGenerationJob $job)

 addConfigElementsToForm (ilPropertyFormGUI $form, string $service, string $purpose)

 populateConfigElementsInForm (ilPropertyFormGUI $form, string $service, string $purpose, array $config)

 validateConfigInForm (ilPropertyFormGUI $form, string $service, string $purpose)

 getConfigFromForm (ilPropertyFormGUI $form, string $service, string $purpose)

 getDefaultConfig (string $service, string $purpose)

 generatePDF (string $service, string $purpose, array $config, ilPDFGenerationJob $job)

 prepareGenerationRequest (string $service, string $purpose)
 Prepare the content processing at the beginning of a PDF generation request Should be used to initialize the processing of latex code The PDF renderers require different image formats generated by the MathJax service. More...


Protected Attributes

ilLanguage $lng


Detailed Description

Deprecated:

Definition at line 24 of file class.ilTCPDFRenderer.php.

Constructor & Destructor Documentation

◆ __construct()

ilTCPDFRenderer::__construct ( )

Definition at line 28 of file class.ilTCPDFRenderer.php.

29 {
30 global $DIC;
31 $this->lng = $DIC->language();
32 }
$DIC
global $DIC
Definition: feed.php:28

References $DIC, and ILIAS\Repository\lng().

+ Here is the call graph for this function:

Member Function Documentation

◆ addConfigElementsToForm()

ilTCPDFRenderer::addConfigElementsToForm ( ilPropertyFormGUI  $form,
string  $service,
string  $purpose
)
Parameters
ilPropertyFormGUI$formThe config form for the administration
string$serviceService Title
string$purposePurpose Title
Returns
void

Implements ilRendererConfig.

Definition at line 34 of file class.ilTCPDFRenderer.php.

34 : void
35 {
36 $margin_left = new ilTextInputGUI($this->lng->txt('margin_left'), 'margin_left');
37 $form->addItem($margin_left);
38
39 $margin_top = new ilTextInputGUI($this->lng->txt('margin_top'), 'margin_top');
40 $form->addItem($margin_top);
41
42 $margin_right = new ilTextInputGUI($this->lng->txt('margin_right'), 'margin_right');
43 $form->addItem($margin_right);
44
45 $margin_bottom = new ilTextInputGUI($this->lng->txt('margin_bottom'), 'margin_bottom');
46 $form->addItem($margin_bottom);
47
48 $image_scale = new ilTextInputGUI($this->lng->txt('image_scale'), 'image_scale');
49 $form->addItem($image_scale);
50 }
ilTextInputGUI
This class represents a text property in a property form.
Definition: class.ilTextInputGUI.php:27

References ilPropertyFormGUI\addItem(), and ILIAS\Repository\lng().

+ Here is the call graph for this function:

◆ generatePDF()

ilTCPDFRenderer::generatePDF ( string  $service,
string  $purpose,
array  $config,
ilPDFGenerationJob  $job
)
Parameters
string$service
string$purpose
array<string,mixed>$config
ilPDFGenerationJob$job
Returns
void

Implements ilPDFRenderer.

Definition at line 101 of file class.ilTCPDFRenderer.php.

101 : void
102 {
103 // create new PDF document
104 $pdf = new TCPDF(PDF_PAGE_ORIENTATION, PDF_UNIT, PDF_PAGE_FORMAT, true, 'UTF-8', false);
105
106 $pdf->SetMargins($config['margin_left'], $config['margin_top'], $config['margin_right']);
107 $pdf->SetAutoPageBreak('auto', $config['margin_bottom']);
108 $pdf->setImageScale($config['image_scale']);
109
110 $pdf->setHeaderFont([PDF_FONT_NAME_MAIN, '', PDF_FONT_SIZE_MAIN]);
111 $pdf->setFooterFont([PDF_FONT_NAME_DATA, '', PDF_FONT_SIZE_DATA]);
112 $pdf->SetDefaultMonospacedFont(PDF_FONT_MONOSPACED);
113 $pdf->SetHeaderMargin(PDF_MARGIN_HEADER);
114 $pdf->SetFooterMargin(PDF_MARGIN_FOOTER);
115 $pdf->SetFont('dejavusans', '', 10);
116 $pdf->setSpacesRE('/[^\S\xa0]/'); // Fixing unicode/PCRE-mess #17547
117
118 foreach ($job->getPages() as $page) {
119 $page = ' ' . $page;
120 $pdf->AddPage();
121 $pdf->writeHTML($page, true, false, true, false, '');
122 }
123 $result = $pdf->Output($job->getFilename(), $job->getOutputMode()); // (I - Inline, D - Download, F - File)
124
125 if (in_array($job->getOutputMode(), ['I', 'D'])) {
126 exit();
127 }
128 }
exit
exit
Definition: login.php:28
$config
if(!array_key_exists('PATH_INFO', $_SERVER)) $config
Definition: metadata.php:85

References $config, exit, ilPDFGenerationJob\getFilename(), ilPDFGenerationJob\getOutputMode(), and ilPDFGenerationJob\getPages().

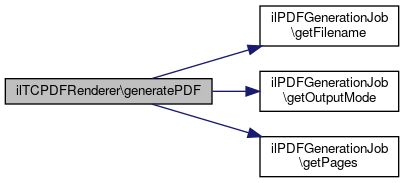

+ Here is the call graph for this function:

◆ getConfigFromForm()

ilTCPDFRenderer::getConfigFromForm ( ilPropertyFormGUI  $form,
string  $service,
string  $purpose
)
Parameters
ilPropertyFormGUI$formThe config form for the administration
string$serviceService Title
string$purposePurpose Title
Returns
array<string, mixed> KV-array with config

Implements ilRendererConfig.

Definition at line 66 of file class.ilTCPDFRenderer.php.

66 : array
67 {
68 $retval = [
69 'margin_left' => $form->getItemByPostVar('margin_left')->getValue(),
70 'margin_right' => $form->getItemByPostVar('margin_right')->getValue(),
71 'margin_top' => $form->getItemByPostVar('margin_top')->getValue(),
72 'margin_bottom' => $form->getItemByPostVar('margin_bottom')->getValue(),
73 'image_scale' => $form->getItemByPostVar('image_scale')->getValue(),
74 ];
75
76 return $retval;
77 }
ilPropertyFormGUI\getItemByPostVar
getItemByPostVar(string $a_post_var)
Definition: class.ilPropertyFormGUI.php:250

References ilPropertyFormGUI\getItemByPostVar().

+ Here is the call graph for this function:

◆ getDefaultConfig()

ilTCPDFRenderer::getDefaultConfig ( string  $service,
string  $purpose
)
Parameters
string$serviceService Title
string$purposePurpose Title
Returns
mixed KV-array with config or an config instance

Implements ilRendererConfig.

Definition at line 79 of file class.ilTCPDFRenderer.php.

79 : array
80 {
81 $retval = [
82 'margin_left' => '10',
83 'margin_top' => '10',
84 'margin_right' => '10',
85 'margin_bottom' => '10',
86 'image_scale' => '1',
87 ];
88
89 return $retval;
90 }

◆ populateConfigElementsInForm()

ilTCPDFRenderer::populateConfigElementsInForm ( ilPropertyFormGUI  $form,
string  $service,
string  $purpose,
array  $config
)
Parameters
ilPropertyFormGUI$formThe config form for the administration
string$serviceService Title
string$purposePurpose Title
array<string,mixed>$config KV-array with config
Returns
void

Implements ilRendererConfig.

Definition at line 52 of file class.ilTCPDFRenderer.php.

52 : void
53 {
54 $form->getItemByPostVar('margin_left')->setValue($config['margin_left']);
55 $form->getItemByPostVar('margin_right')->setValue($config['margin_right']);
56 $form->getItemByPostVar('margin_top')->setValue($config['margin_top']);
57 $form->getItemByPostVar('margin_bottom')->setValue($config['margin_bottom']);
58 $form->getItemByPostVar('image_scale')->setValue($config['image_scale']);
59 }

References $config, and ilPropertyFormGUI\getItemByPostVar().

+ Here is the call graph for this function:

◆ prepareGenerationRequest()

ilTCPDFRenderer::prepareGenerationRequest ( string  $service,
string  $purpose
)

Prepare the content processing at the beginning of a PDF generation request Should be used to initialize the processing of latex code The PDF renderers require different image formats generated by the MathJax service.

Parameters
string$service
string$purpose
Returns
void

Implements ilPDFRenderer.

Definition at line 92 of file class.ilTCPDFRenderer.php.

92 : void
93 {
94 ilMathJax::getInstance()
95 ->init(ilMathJax::PURPOSE_PDF)
96 ->setRendering(ilMathJax::RENDER_PNG_AS_IMG_EMBED)
97 ->setDpi(600)
98 ->setZoomFactor(0.17);
99 }
ilMathJax\getInstance
static getInstance()
Singleton: get instance for use in ILIAS requests with a config loaded from the settings.
Definition: class.ilMathJax.php:123
ilMathJax\PURPOSE_PDF
const PURPOSE_PDF
Definition: class.ilMathJax.php:33
ilMathJax\RENDER_PNG_AS_IMG_EMBED
const RENDER_PNG_AS_IMG_EMBED
Definition: class.ilMathJax.php:44

References ilMathJax\getInstance(), ilMathJax\PURPOSE_PDF, and ilMathJax\RENDER_PNG_AS_IMG_EMBED.

+ Here is the call graph for this function:

◆ validateConfigInForm()

ilTCPDFRenderer::validateConfigInForm ( ilPropertyFormGUI  $form,
string  $service,
string  $purpose
)
Parameters
ilPropertyFormGUI$formThe config form for the administration
string$serviceService Title
string$purposePurpose Title
Returns
bool True, if the form holds a valid config

Implements ilRendererConfig.

Definition at line 61 of file class.ilTCPDFRenderer.php.

61 : bool
62 {
63 return true;
64 }

Field Documentation

◆ $lng

ilLanguage ilTCPDFRenderer::$lng
protected

Definition at line 26 of file class.ilTCPDFRenderer.php.

The documentation for this class was generated from the following file:
