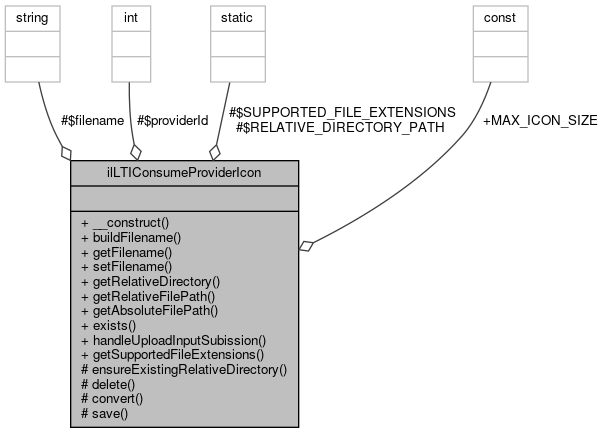

Collaboration diagram for ilLTIConsumeProviderIcon:

Public Member Functions
	__construct (int $providerId, string $filename='')
	ilLTIConsumeProviderIcon constructor. More...

	buildFilename (string $fileExtension)

	getFilename ()

	setFilename (string $filename)

	getRelativeDirectory ()

	getRelativeFilePath ()

	getAbsoluteFilePath ()

	exists ()

	handleUploadInputSubission (ilImageFileInputGUI $fileInput, array $fileData)

Static Public Member Functions
static	getSupportedFileExtensions ()

Data Fields
const	MAX_ICON_SIZE = 32

Protected Member Functions
	ensureExistingRelativeDirectory ()

	delete ()

	convert ()

	save (string $uploadFile)

Protected Attributes
int	$providerId

string	$filename

Static Protected Attributes
static array	$RELATIVE_DIRECTORY_PATH

static array	$SUPPORTED_FILE_EXTENSIONS

Detailed Description

Definition at line 29 of file class.ilLTIConsumeProviderIcon.php.

Constructor & Destructor Documentation

◆ __construct()

ilLTIConsumeProviderIcon::__construct	(	int	$providerId,
		string	$filename = `''`
	)

ilLTIConsumeProviderIcon constructor.

Exceptions

Definition at line 55 of file class.ilLTIConsumeProviderIcon.php.

References $DIC, $filename, $providerId, and ensureExistingRelativeDirectory().

     {
         global $DIC; /* @var \ILIAS\DI\Container $DIC */

         $this->providerId = $providerId;
         $this->filename = $filename;

         $this->ensureExistingRelativeDirectory();
     }

Here is the call graph for this function:

Member Function Documentation

◆ buildFilename()

ilLTIConsumeProviderIcon::buildFilename ( string $fileExtension )

Definition at line 65 of file class.ilLTIConsumeProviderIcon.php.

Referenced by save().

                                                         : string
     {
         return $this->providerId . "." . $fileExtension;
     }

Here is the caller graph for this function:

◆ convert()

ilLTIConsumeProviderIcon::convert ( )

protected

Definition at line 137 of file class.ilLTIConsumeProviderIcon.php.

References ilShellUtil\execConvert(), and getAbsoluteFilePath().

Referenced by save().

                                 : void
     {
         // convert to square with same side length (optimal for tile view)

         list($width, $height, $type, $attr) = getimagesize($this->getAbsoluteFilePath());
         $minSize = min($width, $height);

         if (self::MAX_ICON_SIZE) {
             $minSize = min($minSize, self::MAX_ICON_SIZE);
         }

         $convertCmd = "{$this->getAbsoluteFilePath()}[0]";
         $convertCmd .= " -geometry {$minSize}x{$minSize}^ -gravity center";
         $convertCmd .= " -extent {$minSize}x{$minSize}";
         $convertCmd .= " {$this->getAbsoluteFilePath()}";

         ilShellUtil::execConvert($convertCmd);
     }

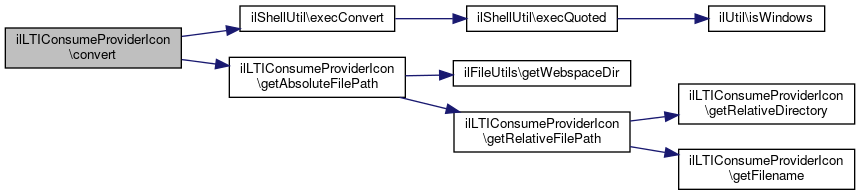

Here is the call graph for this function:

Here is the caller graph for this function:

◆ delete()

ilLTIConsumeProviderIcon::delete ( )

protected

Exceptions

Definition at line 126 of file class.ilLTIConsumeProviderIcon.php.

References $DIC, getRelativeFilePath(), and setFilename().

                                : void
     {
         global $DIC; /* @var \ILIAS\DI\Container $DIC */

         if ($DIC->filesystem()->web()->has($this->getRelativeFilePath())) {
             $DIC->filesystem()->web()->delete($this->getRelativeFilePath());
         }

         $this->setFilename('');
     }

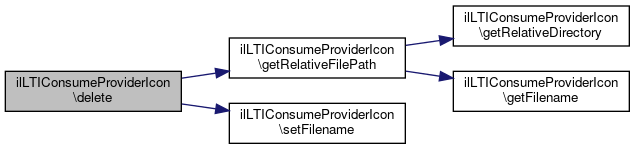

Here is the call graph for this function:

◆ ensureExistingRelativeDirectory()

ilLTIConsumeProviderIcon::ensureExistingRelativeDirectory ( )

protected

Exceptions

Definition at line 102 of file class.ilLTIConsumeProviderIcon.php.

References $DIC, and getRelativeDirectory().

Referenced by __construct().

                                                         : void
     {
         global $DIC; /* @var \ILIAS\DI\Container $DIC */

         if (!$DIC->filesystem()->web()->has($this->getRelativeDirectory())) {
             $DIC->filesystem()->web()->createDir($this->getRelativeDirectory());
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exists()

ilLTIConsumeProviderIcon::exists ( )

Definition at line 111 of file class.ilLTIConsumeProviderIcon.php.

References $DIC, getFilename(), and getRelativeFilePath().

                             : bool
     {
         global $DIC; /* @var \ILIAS\DI\Container $DIC */

         if ($this->getFilename() === '') {
             return false;
         }

         return $DIC->filesystem()->web()->has($this->getRelativeFilePath());
     }

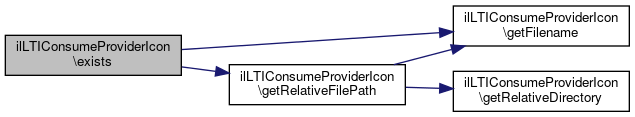

Here is the call graph for this function:

◆ getAbsoluteFilePath()

ilLTIConsumeProviderIcon::getAbsoluteFilePath ( )

Definition at line 92 of file class.ilLTIConsumeProviderIcon.php.

References getRelativeFilePath(), and ilFileUtils\getWebspaceDir().

Referenced by convert().

                                          : string
     {
         return implode(DIRECTORY_SEPARATOR, [
             ilFileUtils::getWebspaceDir(), $this->getRelativeFilePath()
         ]);
     }

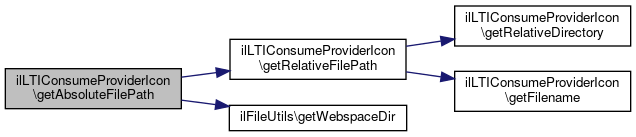

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFilename()

ilLTIConsumeProviderIcon::getFilename ( )

Definition at line 70 of file class.ilLTIConsumeProviderIcon.php.

References $filename.

Referenced by exists(), and getRelativeFilePath().

                                  : string
     {
         return $this->filename;
     }

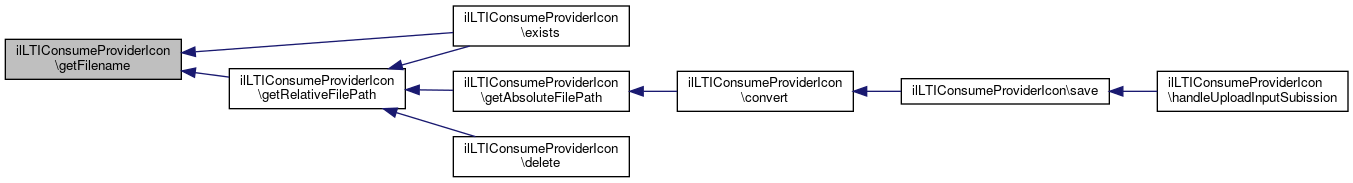

Here is the caller graph for this function:

◆ getRelativeDirectory()

ilLTIConsumeProviderIcon::getRelativeDirectory ( )

Definition at line 80 of file class.ilLTIConsumeProviderIcon.php.

Referenced by ensureExistingRelativeDirectory(), getRelativeFilePath(), and save().

                                           : string
     {
         return implode(DIRECTORY_SEPARATOR, self::$RELATIVE_DIRECTORY_PATH);
     }

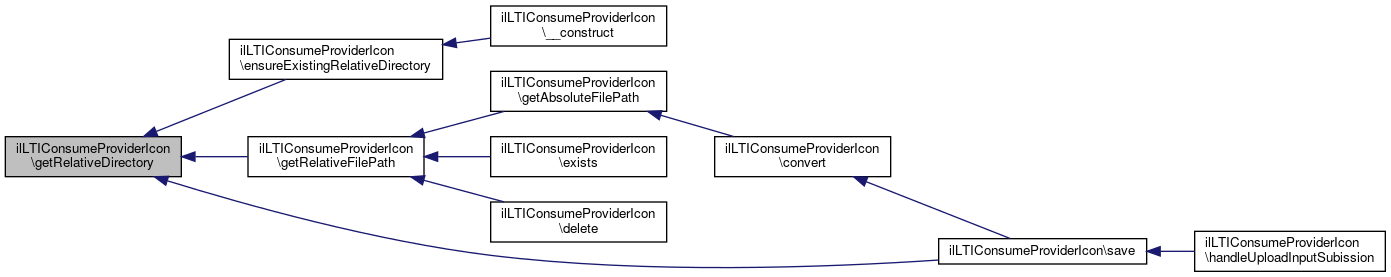

Here is the caller graph for this function:

◆ getRelativeFilePath()

ilLTIConsumeProviderIcon::getRelativeFilePath ( )

Definition at line 85 of file class.ilLTIConsumeProviderIcon.php.

References getFilename(), and getRelativeDirectory().

Referenced by delete(), exists(), and getAbsoluteFilePath().

                                          : string
     {
         return implode(DIRECTORY_SEPARATOR, [
             $this->getRelativeDirectory(), $this->getFilename()
         ]);
     }

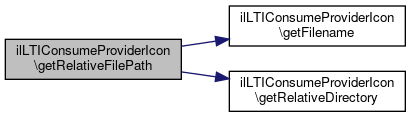

Here is the call graph for this function:

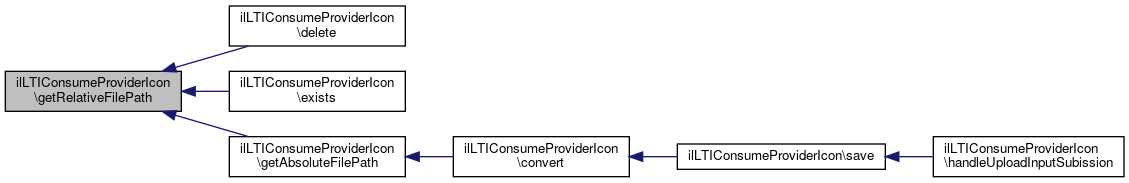

Here is the caller graph for this function:

◆ getSupportedFileExtensions()

static ilLTIConsumeProviderIcon::getSupportedFileExtensions ( )

static

Returns: mixed[]

Definition at line 218 of file class.ilLTIConsumeProviderIcon.php.

Referenced by ilLTIConsumeProviderFormGUI\initForm(), and ilLTIConsumeProviderFormGUI\initToolConfigForm().

                                                        : array
     {
         return self::$SUPPORTED_FILE_EXTENSIONS;
     }

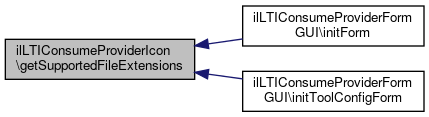

Here is the caller graph for this function:

◆ handleUploadInputSubission()

ilLTIConsumeProviderIcon::handleUploadInputSubission	(	ilImageFileInputGUI	$fileInput,
		array	$fileData
	)

Exceptions

Definition at line 202 of file class.ilLTIConsumeProviderIcon.php.

References $DIC, ilImageFileInputGUI\getDeletionFlag(), and save().

                                                                                                : void
     {
         global $DIC;

         if ($fileInput->getDeletionFlag()) {
             $this->delete();
         }

         if ($fileData['tmp_name']) {
             $this->save($fileData['tmp_name']);
         }
     }

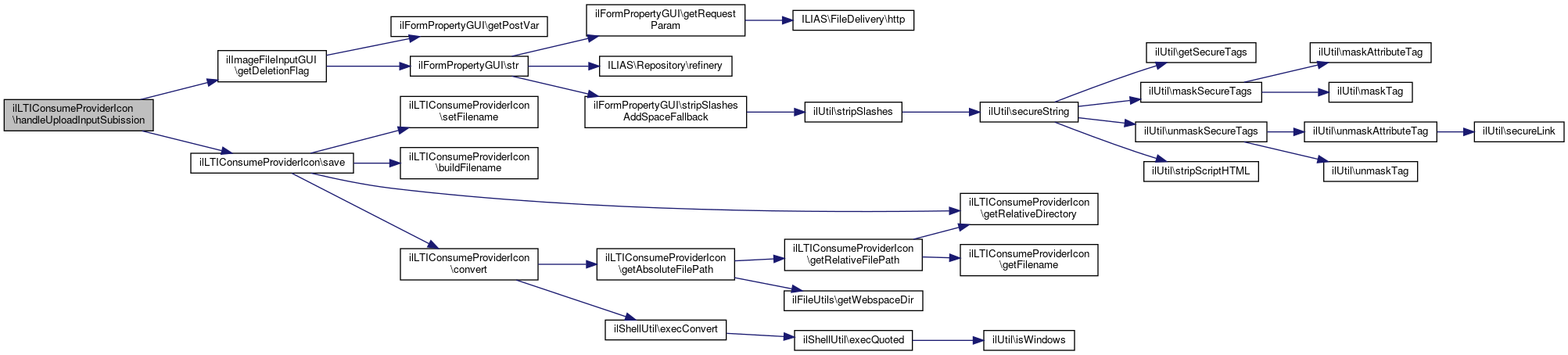

Here is the call graph for this function:

◆ save()

ilLTIConsumeProviderIcon::save ( string $uploadFile )

protected

Exceptions

Definition at line 161 of file class.ilLTIConsumeProviderIcon.php.

References $DIC, $results, buildFilename(), convert(), getRelativeDirectory(), and setFilename().

Referenced by handleUploadInputSubission().

                                                : void
     {
         global $DIC; /* @var \ILIAS\DI\Container $DIC */

         if ($DIC->upload()->hasUploads()) {
             if (!$DIC->upload()->hasBeenProcessed()) {
                 $DIC->upload()->process();
             }

             /* @var \ILIAS\FileUpload\DTO\UploadResult $result */

             $results = $DIC->upload()->getResults();

             if (isset($results[$uploadFile])) {
                 $result = $results[$uploadFile];

                 if ($result->isOK()) {
                     $fileExtentsion = pathinfo($result->getName(), PATHINFO_EXTENSION);
                     $this->setFilename($this->buildFilename($fileExtentsion));

                     $DIC->upload()->moveOneFileTo(
                         $result,
                         $this->getRelativeDirectory(),
                         \ILIAS\FileUpload\Location::WEB,
                         $this->getFileName(),
                         true
                     );

                     if ($fileExtentsion !== "svg") {
                         $this->convert();
                     }
                 }
             }
         }
     }

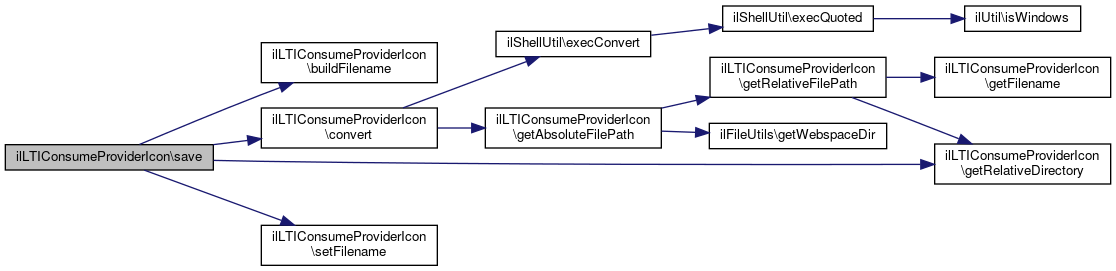

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setFilename()

ilLTIConsumeProviderIcon::setFilename ( string $filename )

Definition at line 75 of file class.ilLTIConsumeProviderIcon.php.

References $filename.

Referenced by delete(), and save().

                                                  : void
     {
         $this->filename = $filename;
     }

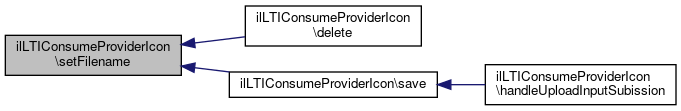

Here is the caller graph for this function:

Field Documentation

◆ $filename

string ilLTIConsumeProviderIcon::$filename

protected

Definition at line 49 of file class.ilLTIConsumeProviderIcon.php.

Referenced by __construct(), getFilename(), and setFilename().

◆ $providerId

int ilLTIConsumeProviderIcon::$providerId

protected

Definition at line 44 of file class.ilLTIConsumeProviderIcon.php.

Referenced by __construct().

◆ $RELATIVE_DIRECTORY_PATH

array ilLTIConsumeProviderIcon::$RELATIVE_DIRECTORY_PATH

staticprotected

Initial value:

= [
        'lti_data', 'provider_icon'
    ]

Definition at line 33 of file class.ilLTIConsumeProviderIcon.php.

◆ $SUPPORTED_FILE_EXTENSIONS

array ilLTIConsumeProviderIcon::$SUPPORTED_FILE_EXTENSIONS

staticprotected

Initial value:

= [
        'png', 'jpg', 'jpeg', 'svg'
    ]

Definition at line 37 of file class.ilLTIConsumeProviderIcon.php.

◆ MAX_ICON_SIZE

const ilLTIConsumeProviderIcon::MAX_ICON_SIZE = 32

Definition at line 31 of file class.ilLTIConsumeProviderIcon.php.

The documentation for this class was generated from the following file:

Modules/LTIConsumer/classes/class.ilLTIConsumeProviderIcon.php
