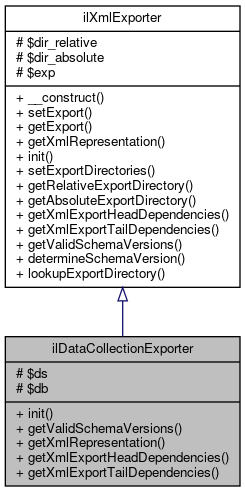

Inheritance diagram for ilDataCollectionExporter:

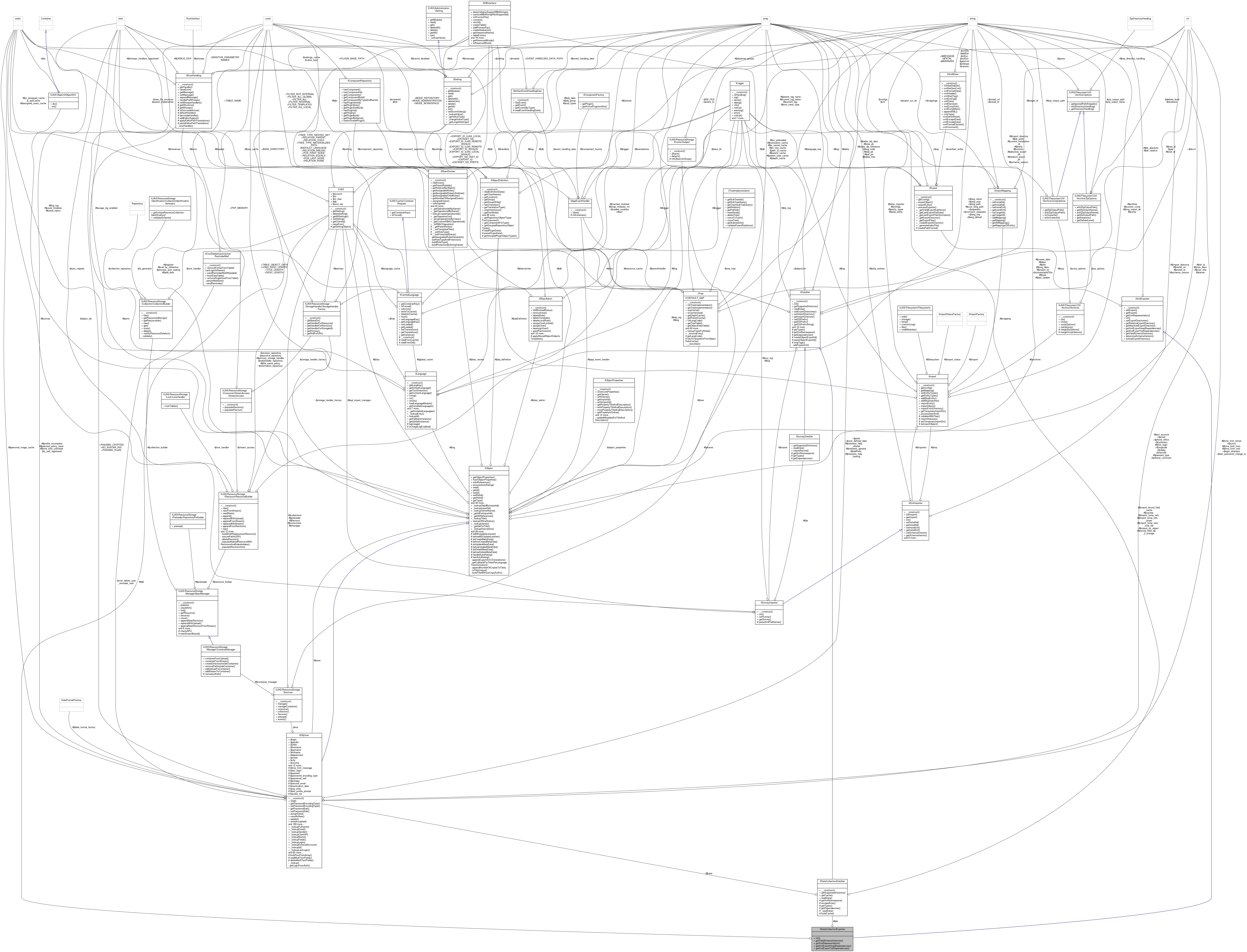

Collaboration diagram for ilDataCollectionExporter:

Public Member Functions
	init ()

	getValidSchemaVersions (string $a_entity)

	getXmlRepresentation (string $a_entity, string $a_schema_version, string $a_id)

	getXmlExportHeadDependencies (string $a_entity, string $a_target_release, array $a_ids)
	MOB/File fieldtypes objects are head dependencies They must be exported and imported first, so the new DC has the new IDs of those objects available. More...

	getXmlExportTailDependencies (string $a_entity, string $a_target_release, array $a_ids)

Public Member Functions inherited from ilXmlExporter
	__construct ()

	setExport (ilExport $a_exp)

	getExport ()

	getXmlRepresentation (string $a_entity, string $a_schema_version, string $a_id)

	init ()

	setExportDirectories (string $a_dir_relative, string $a_dir_absolute)

	getRelativeExportDirectory ()

	getAbsoluteExportDirectory ()

	getXmlExportHeadDependencies (string $a_entity, string $a_target_release, array $a_ids)
	Get head dependencies. More...

	getXmlExportTailDependencies (string $a_entity, string $a_target_release, array $a_ids)
	Get tail dependencies. More...

	getValidSchemaVersions (string $a_entity)
	Returns schema versions that the component can export to. More...

	determineSchemaVersion (string $a_entity, string $a_target_release)

Protected Attributes
ilDataCollectionDataSet	$ds

ilDBInterface	$db

Protected Attributes inherited from ilXmlExporter
string	$dir_relative = ""

string	$dir_absolute = ""

ilExport	$exp

Additional Inherited Members
Static Public Member Functions inherited from ilXmlExporter
static	lookupExportDirectory (string $a_obj_type, int $a_obj_id, string $a_export_type='xml', string $a_entity="")

Detailed Description

Definition at line 21 of file class.ilDataCollectionExporter.php.

Member Function Documentation

◆ getValidSchemaVersions()

ilDataCollectionExporter::getValidSchemaVersions ( string $a_entity )

Parameters

string $a_entity

Returns: array

Definition at line 39 of file class.ilDataCollectionExporter.php.

                                                             : array
     {
         return [
             '4.5.0' => [
                 'namespace' => 'https://www.ilias.de/Modules/DataCollection/dcl/4_5',
                 'xsd_file" => "ilias_dcl_4_5.xsd',
                 'uses_dataset' => true,
                 'min' => '4.5.0',
                 'max' => '8.12',
             ],
             '8.13' => [
                 'namespace' => 'https://www.ilias.de/Modules/DataCollection/dcl/4_5',
                 'xsd_file" => "ilias_dcl_4_5.xsd',
                 'uses_dataset' => true,
                 'min' => '8.13',
                 'max' => '',
             ],
         ];
     }

◆ getXmlExportHeadDependencies()

ilDataCollectionExporter::getXmlExportHeadDependencies	(	string	$a_entity,
		string	$a_target_release,
		array	$a_ids
	)

MOB/File fieldtypes objects are head dependencies They must be exported and imported first, so the new DC has the new IDs of those objects available.

Parameters

string	$a_entity
string	$a_target_release
array	$a_ids

Returns: array

Definition at line 75 of file class.ilDataCollectionExporter.php.

References ilDclDatatype\INPUTFORMAT_FILEUPLOAD, ilDclDatatype\INPUTFORMAT_MOB, and ILIAS\Repository\int().

                                                                                                           : array
     {
         $dependencies = [
             ilDclDatatype::INPUTFORMAT_FILEUPLOAD => [
                 'component' => 'Modules/File',
                 'entity' => 'file',
                 'ids' => [],
             ],
             ilDclDatatype::INPUTFORMAT_MOB => [
                 'component' => 'Services/MediaObjects',
                 'entity' => 'mob',
                 'ids' => [],
             ],
         ];

         // Direct SQL query is faster than looping over objects
         foreach ($a_ids as $dcl_obj_id) {
             $sql = "SELECT stloc2.value AS ext_id, f." . $this->db->quoteIdentifier('datatype_id') . " FROM il_dcl_stloc2_value AS stloc2 "
                 . "INNER JOIN il_dcl_record_field AS rf ON (rf." . $this->db->quoteIdentifier('id') . " = stloc2." . $this->db->quoteIdentifier('record_field_id') . ") "
                 . "INNER JOIN il_dcl_field AS f ON (rf." . $this->db->quoteIdentifier('field_id') . " = f." . $this->db->quoteIdentifier('id') . ") " . "INNER JOIN il_dcl_table AS t ON (t."
                 . $this->db->quoteIdentifier('id') . " = f." . $this->db->quoteIdentifier('table_id') . ") "
                 . "WHERE t." . $this->db->quoteIdentifier('obj_id') . " = " . $this->db->quote(
                     $dcl_obj_id,
                     'integer'
                 ) . " " . "AND f.datatype_id IN ("
                 . implode(
                     ',',
                     array_keys($dependencies)
                 ) . ") AND stloc2." . $this->db->quoteIdentifier('value') . " IS NOT NULL";
             $set = $this->db->query($sql);
             while ($rec = $this->db->fetchObject($set)) {
                 $dependencies[$rec->datatype_id]['ids'][] = (int) $rec->ext_id;
             }
         }

         // Return external dependencies/IDs if there are any
         $return = [];
         if (count($dependencies[ilDclDatatype::INPUTFORMAT_FILEUPLOAD]['ids'])) {
             $return[] = $dependencies[ilDclDatatype::INPUTFORMAT_FILEUPLOAD];
         }
         if (count($dependencies[ilDclDatatype::INPUTFORMAT_MOB]['ids'])) {
             $return[] = $dependencies[ilDclDatatype::INPUTFORMAT_MOB];
         }

         return $return;
     }

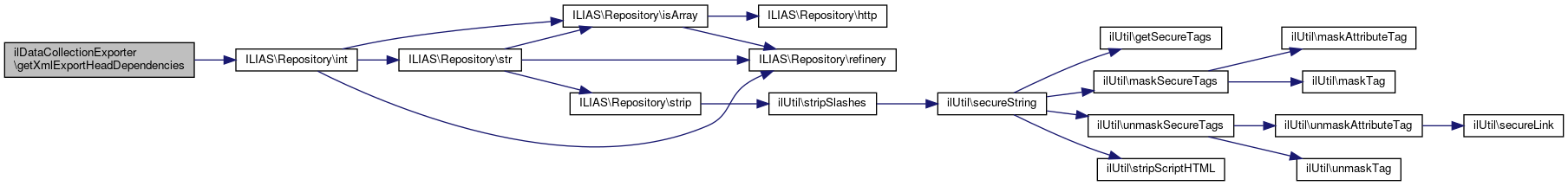

Here is the call graph for this function:

◆ getXmlExportTailDependencies()

ilDataCollectionExporter::getXmlExportTailDependencies	(	string	$a_entity,
		string	$a_target_release,
		array	$a_ids
	)

Parameters

string	$a_entity
string	$a_target_release
array	$a_ids

Returns: array

Definition at line 128 of file class.ilDataCollectionExporter.php.

                                                                                                           : array
     {
         $page_object_ids = [];
         foreach ($a_ids as $dcl_obj_id) {
             // If a DCL table has a detail view, we need to export the associated page objects!
             $sql = "SELECT page_id FROM page_object "
                 . "WHERE parent_type = " . $this->db->quote(
                     'dclf',
                     'text'
                 ) . " AND parent_id = " . $this->db->quote($dcl_obj_id, 'integer');
             $set = $this->db->query($sql);
             while ($rec = $this->db->fetchObject($set)) {
                 $page_object_ids[] = "dclf:" . $rec->page_id;
             }
         }
         if (count($page_object_ids)) {
             return [
                 [
                     'component' => 'Services/COPage',
                     'entity' => 'pg',
                     'ids' => $page_object_ids,
                 ],
             ];
         }

         return [];
     }

◆ getXmlRepresentation()

ilDataCollectionExporter::getXmlRepresentation	(	string	$a_entity,
		string	$a_schema_version,
		string	$a_id
	)

Definition at line 59 of file class.ilDataCollectionExporter.php.

References ilXmlExporter\getAbsoluteExportDirectory(), and ilFileUtils\makeDirParents().

                                                                                                   : string
     {
         ilFileUtils::makeDirParents($this->getAbsoluteExportDirectory());
         $this->ds->setExportDirectories($this->dir_relative, $this->dir_absolute);

         return $this->ds->getXmlRepresentation($a_entity, $a_schema_version, [$a_id], '', true, true);
     }

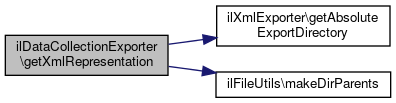

Here is the call graph for this function:

◆ init()

ilDataCollectionExporter::init ( )

Definition at line 26 of file class.ilDataCollectionExporter.php.

References $DIC, and $ilDB.

                           : void
     {
         global $DIC;
         $ilDB = $DIC['ilDB'];
         $this->ds = new ilDataCollectionDataSet();
         $this->ds->setDSPrefix('ds');
         $this->db = $ilDB;
     }

Field Documentation

◆ $db

ilDBInterface ilDataCollectionExporter::$db

protected

Definition at line 24 of file class.ilDataCollectionExporter.php.

◆ $ds

ilDataCollectionDataSet ilDataCollectionExporter::$ds

protected

Definition at line 23 of file class.ilDataCollectionExporter.php.

The documentation for this class was generated from the following file:

Modules/DataCollection/classes/class.ilDataCollectionExporter.php
