ILIAS\Data\Link\LinkManager Class Reference
+ Collaboration diagram for ILIAS\Data\Link\LinkManager:

Public Member Functions

 __construct ()

 getInternalLinks (\DOMDocument $dom, ?\Closure $media_collector=null)

 containsFileLinkId (\DOMDocument $dom, string $file_link_id)

 extractFileFromLinkId (string $file_link_id)

 resolveIntLinks (\DOMDocument $dom, ?array $a_link_map=null)
 Resolves all internal link targets of the page, if targets are available (after import) More...

 moveIntLinks (\DOMDocument $dom, array $a_from_to, ?\Closure $lm_type_lookup=null)
 Move internal links from one destination to another. More...

 handleRepositoryLinksOnCopy (\DOMDocument $dom, array $a_mapping, int $a_source_ref_id, \ilTree $tree)
 Handle repository links on copy process. More...

 deleteInternalLinks (\ilPageObject $page)
 Delete internal links. More...

 saveInternalLinks (\ilPageObject $page, \DOMDocument $a_domdoc,)
 save internal links of page More...


Protected Member Functions

 getDefaultMediaCollector ()

 getDefaultLMTypeLookuper ()


Protected Attributes

ilLogger $log

ILIAS COPage Dom DomUtil $dom_util

ilObjectDefinition $obj_definition


Detailed Description

Author
Alexander Killing killi.nosp@m.ng@l.nosp@m.eifos.nosp@m..de

Definition at line 26 of file LinkManager.php.

Constructor & Destructor Documentation

◆ __construct()

ILIAS\Data\Link\LinkManager::__construct ( )

Definition at line 32 of file LinkManager.php.

References $DIC.

33  {
34  global $DIC;
35
36  $this->dom_util = $DIC->copage()->internal()->domain()->domUtil();
37  $this->obj_definition = $DIC["objDefinition"];
38  $this->log = $DIC->copage()->internal()->domain()->log();
39  }
$DIC
global $DIC
Definition: shib_login.php:22

Member Function Documentation

◆ containsFileLinkId()

ILIAS\Data\Link\LinkManager::containsFileLinkId ( \DOMDocument  $dom,
string  $file_link_id
)

Definition at line 105 of file LinkManager.php.

References $id, and ILIAS\Data\Link\LinkManager\getInternalLinks().

105  : bool
106  {
107  $int_links = $this->getInternalLinks(
108  $dom,
109  function (int $id): array {
110  return [];
111  }
112  );
113  foreach ($int_links as $il) {
114  if ($il["Target"] == str_replace("_file_", "_dfile_", $file_link_id)) {
115  return true;
116  }
117  }
118  return false;
119  }
$id
$id
plugin.php for ilComponentBuildPluginInfoObjectiveTest::testAddPlugins
Definition: plugin.php:23
+ Here is the call graph for this function:

◆ deleteInternalLinks()

ILIAS\Data\Link\LinkManager::deleteInternalLinks ( \ilPageObject  $page)

Delete internal links.

Definition at line 433 of file LinkManager.php.

References ilInternalLink\_deleteAllLinksOfSource(), ilPageObject\getId(), ilPageObject\getLanguage(), and ilPageObject\getParentType().

Referenced by ILIAS\Data\Link\LinkManager\saveInternalLinks().

435  : void {
436  \ilInternalLink::_deleteAllLinksOfSource(
437  $page->getParentType() . ":pg",
438  $page->getId(),
439  $page->getLanguage()
440  );
441  }
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ extractFileFromLinkId()

ILIAS\Data\Link\LinkManager::extractFileFromLinkId ( string  $file_link_id)

Definition at line 121 of file LinkManager.php.

121  : int
122  {
123  $file = explode("_", $file_link_id);
124  return (int) $file[count($file) - 1];
125  }

◆ getDefaultLMTypeLookuper()

ILIAS\Data\Link\LinkManager::getDefaultLMTypeLookuper ( )
protected

Definition at line 181 of file LinkManager.php.

References $id, and ilLMObject\_lookupType().

Referenced by ILIAS\Data\Link\LinkManager\moveIntLinks().

181  : \Closure
182  {
183  return fn(int $id) => \ilLMObject::_lookupType($id);
184  }
$id
$id
plugin.php for ilComponentBuildPluginInfoObjectiveTest::testAddPlugins
Definition: plugin.php:23
ilLMObject\_lookupType
static _lookupType(int $a_obj_id, int $a_lm_id=0)
Definition: class.ilLMObject.php:247
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getDefaultMediaCollector()

ILIAS\Data\Link\LinkManager::getDefaultMediaCollector ( )
protected

Definition at line 41 of file LinkManager.php.

References $id, and ilMediaItem\_getMapAreasIntLinks().

Referenced by ILIAS\Data\Link\LinkManager\getInternalLinks().

41  : \Closure
42  {
43  return fn(int $id) => \ilMediaItem::_getMapAreasIntLinks($id);
44  }
ilMediaItem\_getMapAreasIntLinks
static _getMapAreasIntLinks(int $a_mob_id)
get all internal links of map areas of a mob
Definition: class.ilMediaItem.php:991
$id
$id
plugin.php for ilComponentBuildPluginInfoObjectiveTest::testAddPlugins
Definition: plugin.php:23
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getInternalLinks()

ILIAS\Data\Link\LinkManager::getInternalLinks ( \DOMDocument  $dom,
?\Closure  $media_collector = null
)

Definition at line 46 of file LinkManager.php.

References $id, $path, and ILIAS\Data\Link\LinkManager\getDefaultMediaCollector().

Referenced by ILIAS\Data\Link\LinkManager\containsFileLinkId().

49  : array {
50  if (is_null($media_collector)) {
51  $media_collector = $this->getDefaultMediaCollector();
52  }
53  // get all internal links of the page
54  $path = "//IntLink";
55  $links = array();
56  $cnt_multiple = 1;
57  $nodes = $this->dom_util->path($dom, $path);
58  foreach ($nodes as $node) {
59  $target = $node->getAttribute("Target");
60  $type = $node->getAttribute("Type");
61  $targetframe = $node->getAttribute("TargetFrame");
62  $anchor = $node->getAttribute("Anchor");
63  $links[$target . ":" . $type . ":" . $targetframe . ":" . $anchor] =
64  array("Target" => $target,
65  "Type" => $type,
66  "TargetFrame" => $targetframe,
67  "Anchor" => $anchor
68  );
69
70  // get links (image map areas) for inline media objects
71  if ($type == "MediaObject" && $targetframe == "") {
72  if (substr($target, 0, 4) == "il__") {
73  $id_arr = explode("_", $target);
74  $id = $id_arr[count($id_arr) - 1];
75
76  $med_links = $media_collector((int) $id);
77  // \ilMediaItem::_getMapAreasIntLinks($id);
78  foreach ($med_links as $key => $med_link) {
79  $links[$key] = $med_link;
80  }
81  }
82  }
83  }
84
85  // get all media aliases
86  $path = "//MediaAlias";
87  $nodes = $this->dom_util->path($dom, $path);
88  foreach ($nodes as $node) {
89  $oid = $node->getAttribute("OriginId");
90  if (substr($oid, 0, 4) == "il__") {
91  $id_arr = explode("_", $oid);
92  $id = $id_arr[count($id_arr) - 1];
93
94  $med_links = $media_collector((int) $id);
95  foreach ($med_links as $key => $med_link) {
96  $links[$key] = $med_link;
97  }
98  }
99  }
100
101  return $links;
102  }
$path
$path
Definition: ltiservices.php:29
$id
$id
plugin.php for ilComponentBuildPluginInfoObjectiveTest::testAddPlugins
Definition: plugin.php:23
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ handleRepositoryLinksOnCopy()

ILIAS\Data\Link\LinkManager::handleRepositoryLinksOnCopy ( \DOMDocument  $dom,
array  $a_mapping,
int  $a_source_ref_id,
\ilTree  $tree
)

Handle repository links on copy process.

Definition at line 341 of file LinkManager.php.

References ILIAS\Data\Link\LinkManager\$obj_definition, $path, $ref_id, IL_INST_ID, and ilTree\isGrandChild().

346  : void {
347  $type = "";
348  $objDefinition = $this->obj_definition;
349  $ext_link_mapper = new ExtLinkMapper(
350  $this->obj_definition,
351  ILIAS_HTTP_PATH,
352  $a_mapping
353  );
354
355
356  // resolve normal internal links
357  $path = "//IntLink";
358  $nodes = $this->dom_util->path($dom, $path);
359  foreach ($nodes as $node) {
360  $target = $node->getAttribute("Target");
361  $type = $node->getAttribute("Type");
362  //$this->log->debug("Target: " . $target);
363  $t = explode("_", $target);
364  if ($type == "RepositoryItem" && ((int) $t[1] == 0 || (int) $t[1] == IL_INST_ID)) {
365  if (isset($a_mapping[$t[3]])) {
366  // we have a mapping -> replace the ID
367  //$this->log->debug("... replace " . $t[3] . " with " . $a_mapping[$t[3]] . ".");
368  $node->setAttribute(
369  "Target",
370  "il__obj_" . $a_mapping[$t[3]]
371  );
372  } elseif ($tree->isGrandChild($a_source_ref_id, (int) $t[3])) {
373  // we have no mapping, but the linked object is child of the original node -> remove link
374  //$this->log->debug("... remove links.");
375  if ($node->parentNode->nodeName === "MapArea") { // simply remove map areas
376  $parent = $node->parentNode;
377  $parent->parentNode->removeChild($parent);
378  } else { // replace link by content of the link for other internal links
379  $source_node = $node;
380  $new_node = $source_node->cloneNode(true);
381  //$new_node->parentNode->removeChild($new_node);
382  $childs = $new_node->child_nodes();
383  foreach ($new_node->childNodes as $child) {
384  //$this->log->debug("... move node $j " . $child->node_name() . " before " . $source_node->node_name());
385  $source_node->parentNode->insertBefore($child, $source_node);
386  }
387  $source_node->parentNode->removeChild($source_node);
388  }
389  }
390  }
391  }
392
393  // resolve normal external links
394  $ilias_url = parse_url(ILIAS_HTTP_PATH);
395  $path = "//ExtLink";
396  $nodes = $this->dom_util->path($dom, $path);
397  foreach ($nodes as $node) {
398  $href = $node->getAttribute("Href");
399
400  $this->log->debug("Href: " . $href);
401  $ref_id = $ext_link_mapper->getRefId($href);
402  $this->log->debug("Ref Id: " . $ref_id);
403
404  if ($ref_id > 0) {
405  $new_href = $ext_link_mapper->getNewHref($ref_id);
406  $this->log->debug("New ref id: " . $new_href);
407  if ($new_href !== "") {
408  $node->setAttribute("Href", $new_href);
409  } elseif ($tree->isGrandChild($a_source_ref_id, $ref_id)) {
410  // we have no mapping, but the linked object is child of the original node -> remove link
411  //$this->log->debug("... remove ext links.");
412  if ($node->parentNode->nodeName == "MapArea") { // simply remove map areas
413  $parent = $node->parentNode;
414  $parent->parentNode->removeChild($parent);
415  } else { // replace link by content of the link for other internal links
416  $source_node = $node;
417  $new_node = $source_node->cloneNode(true);
418  //$new_node->unlink_node($new_node);
419  foreach ($new_node->childNodes as $child) {
420  //$this->log->debug("... move node $j " . $childs[$j]->node_name() . " before " . $source_node->node_name());
421  $source_node->parentNode->insertBefore($child, $source_node);
422  }
423  $source_node->parentNode->removeChild($source_node);
424  }
425  }
426  }
427  }
428  }
IL_INST_ID
const IL_INST_ID
Definition: constants.php:40
$path
$path
Definition: ltiservices.php:29
$ref_id
$ref_id
Definition: ltiauth.php:65
+ Here is the call graph for this function:

◆ moveIntLinks()

ILIAS\Data\Link\LinkManager::moveIntLinks ( \DOMDocument  $dom,
array  $a_from_to,
?\Closure  $lm_type_lookup = null
)

Move internal links from one destination to another.

This is used for pages and structure links. Just use IDs in "from" and "to".

Definition at line 190 of file LinkManager.php.

References $id, $path, ilInternalLink\_extractObjIdOfTarget(), and ILIAS\Data\Link\LinkManager\getDefaultLMTypeLookuper().

194  : bool {
195  if (is_null($lm_type_lookup)) {
196  $lm_type_lookup = $this->getDefaultLMTypeLookuper();
197  }
198
199  $changed = false;
200
201  // resolve normal internal links
202  $path = "//IntLink";
203  $nodes = $this->dom_util->path($dom, $path);
204  foreach ($nodes as $node) {
205  $target = $node->getAttribute("Target");
206  $type = $node->getAttribute("Type");
207  $obj_id = \ilInternalLink::_extractObjIdOfTarget($target);
208  if (($a_from_to[$obj_id] ?? 0) > 0 && is_int(strpos($target, "__"))) {
209  if ($type == "PageObject" && $lm_type_lookup($a_from_to[$obj_id]) == "pg") {
210  $node->setAttribute("Target", "il__pg_" . $a_from_to[$obj_id]);
211  $changed = true;
212  }
213  if ($type == "StructureObject" && $lm_type_lookup($a_from_to[$obj_id]) == "st") {
214  $node->setAttribute("Target", "il__st_" . $a_from_to[$obj_id]);
215  $changed = true;
216  }
217  if ($type == "PortfolioPage") {
218  $node->setAttribute("Target", "il__ppage_" . $a_from_to[$obj_id]);
219  $changed = true;
220  }
221  if ($type == "WikiPage") {
222  $node->setAttribute("Target", "il__wpage_" . $a_from_to[$obj_id]);
223  $changed = true;
224  }
225  }
226  }
227
228  // map areas
229  $path = "//MediaAlias";
230  $nodes = $this->dom_util->path($dom, $path);
231  foreach ($nodes as $node) {
232  $media_object_node = $node->parentNode;
233  $page_content_node = $media_object_node->parentNode;
234  $c_hier_id = $page_content_node->getAttribute("HierId");
235
236  // first check, wheter we got instance map areas -> take these
237  $std_alias_item = new \ilMediaAliasItem(
238  $dom,
239  $c_hier_id,
240  "Standard"
241  );
242  $areas = $std_alias_item->getMapAreas();
243  $correction_needed = false;
244  if (count($areas) > 0) {
245  // check if correction needed
246  foreach ($areas as $area) {
247  if ($area["Type"] == "PageObject" ||
248  $area["Type"] == "StructureObject") {
249  $t = $area["Target"];
250  $tid = \ilInternalLink::_extractObjIdOfTarget($t);
251  if ($a_from_to[$tid] > 0) {
252  $correction_needed = true;
253  }
254  }
255  }
256  } else {
257  $areas = array();
258
259  // get object map areas and check whether at least one must
260  // be corrected
261  $oid = $node->getAttribute("OriginId");
262  if (substr($oid, 0, 4) == "il__") {
263  $id_arr = explode("_", $oid);
264  $id = $id_arr[count($id_arr) - 1];
265
266  $mob = new \ilObjMediaObject((int) $id);
267  $med_item = $mob->getMediaItem("Standard");
268  $med_areas = $med_item->getMapAreas();
269
270  foreach ($med_areas as $area) {
271  $link_type = ($area->getLinkType() == "int")
272  ? "IntLink"
273  : "ExtLink";
274
275  $areas[] = array(
276  "Nr" => $area->getNr(),
277  "Shape" => $area->getShape(),
278  "Coords" => $area->getCoords(),
279  "Link" => array(
280  "LinkType" => $link_type,
281  "Href" => $area->getHref(),
282  "Title" => $area->getTitle(),
283  "Target" => $area->getTarget(),
284  "Type" => $area->getType(),
285  "TargetFrame" => $area->getTargetFrame()
286  )
287  );
288
289  if ($area->getType() == "PageObject" ||
290  $area->getType() == "StructureObject") {
291  $t = $area->getTarget();
292  $tid = \ilInternalLink::_extractObjIdOfTarget($t);
293  if ($a_from_to[$tid] > 0) {
294  $correction_needed = true;
295  }
296  //var_dump($a_from_to);
297  }
298  }
299  }
300  }
301
302  // correct map area links
303  if ($correction_needed) {
304  $changed = true;
305  $std_alias_item->deleteAllMapAreas();
306  foreach ($areas as $area) {
307  if ($area["Link"]["LinkType"] == "IntLink") {
308  $target = $area["Link"]["Target"];
309  $type = $area["Link"]["Type"];
310  $obj_id = \ilInternalLink::_extractObjIdOfTarget($target);
311  if ($a_from_to[$obj_id] > 0) {
312  if ($type == "PageObject" && $lm_type_lookup($a_from_to[$obj_id]) == "pg") {
313  $area["Link"]["Target"] = "il__pg_" . $a_from_to[$obj_id];
314  }
315  if ($type == "StructureObject" && $lm_type_lookup($a_from_to[$obj_id]) == "st") {
316  $area["Link"]["Target"] = "il__st_" . $a_from_to[$obj_id];
317  }
318  }
319  }
320
321  $std_alias_item->addMapArea(
322  $area["Shape"],
323  $area["Coords"],
324  $area["Link"]["Title"],
325  array("Type" => $area["Link"]["Type"],
326  "TargetFrame" => $area["Link"]["TargetFrame"],
327  "Target" => $area["Link"]["Target"],
328  "Href" => $area["Link"]["Href"],
329  "LinkType" => $area["Link"]["LinkType"],
330  )
331  );
332  }
333  }
334  }
335  return $changed;
336  }
$path
$path
Definition: ltiservices.php:29
$id
$id
plugin.php for ilComponentBuildPluginInfoObjectiveTest::testAddPlugins
Definition: plugin.php:23
+ Here is the call graph for this function:

◆ resolveIntLinks()

ILIAS\Data\Link\LinkManager::resolveIntLinks ( \DOMDocument  $dom,
?array  $a_link_map = null
)

Resolves all internal link targets of the page, if targets are available (after import)

Definition at line 131 of file LinkManager.php.

References $path, ilInternalLink\_exists(), ilInternalLink\_extractInstOfTarget(), ilInternalLink\_getIdForImportId(), ilInternalLink\_removeInstFromTarget(), ilMediaItem\_resolveMapAreaLinks(), IL_INST_ID, and null.

134  : bool {
135  $changed = false;
136  // resolve normal internal links
137  $path = "//IntLink";
138  $nodes = $this->dom_util->path($dom, $path);
139  foreach ($nodes as $node) {
140  $target = $node->getAttribute("Target");
141  $type = $node->getAttribute("Type");
142
143  if ($a_link_map === null) {
144  $new_target = \ilInternalLink::_getIdForImportId($type, $target);
145  //$this->log->debug("no map, type: " . $type . ", target: " . $target . ", new target: " . $new_target);
146  } else {
147  $nt = explode("_", $a_link_map[$target] ?? "");
148  $new_target = false;
149  if (($nt[1] ?? "") == IL_INST_ID) {
150  $new_target = "il__" . $nt[2] . "_" . $nt[3];
151  }
152  //$this->log->debug("map, type: " . $type . ", target: " . $target . ", new target: " . $new_target);
153  }
154  if ($new_target !== false && !is_null($new_target)) {
155  $node->setAttribute("Target", $new_target);
156  $changed = true;
157  } else { // check wether link target is same installation
158  if (\ilInternalLink::_extractInstOfTarget($target) == IL_INST_ID &&
159  IL_INST_ID > 0 && $type != "RepositoryItem") {
160  $new_target = \ilInternalLink::_removeInstFromTarget($target);
161  if (\ilInternalLink::_exists($type, $new_target)) {
162  $node->setAttribute("Target", $new_target);
163  $changed = true;
164  }
165  }
166  }
167  }
168
169  // resolve internal links in map areas
170  $path = "//MediaAlias";
171  $nodes = $this->dom_util->path($dom, $path);
172  foreach ($nodes as $node) {
173  $orig_id = $node->getAttribute("OriginId");
174  $id_arr = explode("_", $orig_id);
175  $mob_id = $id_arr[count($id_arr) - 1];
176  \ilMediaItem::_resolveMapAreaLinks((int) $mob_id);
177  }
178  return $changed;
179  }
IL_INST_ID
const IL_INST_ID
Definition: constants.php:40
$path
$path
Definition: ltiservices.php:29
null
while($session_entry=$r->fetchRow(ilDBConstants::FETCHMODE_ASSOC)) return null
Definition: shib_logout.php:142
ilMediaItem\_resolveMapAreaLinks
static _resolveMapAreaLinks(int $a_mob_id)
resolve internal links of all media items of a media object
Definition: class.ilMediaItem.php:969

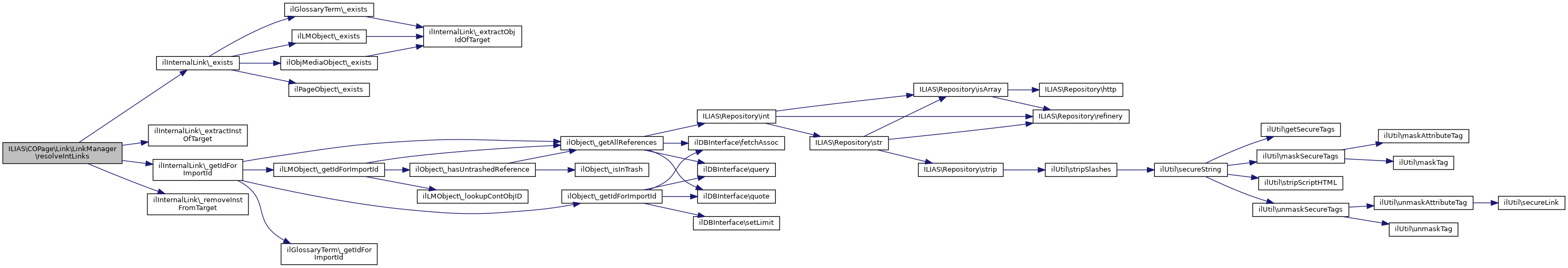

+ Here is the call graph for this function:

◆ saveInternalLinks()

ILIAS\Data\Link\LinkManager::saveInternalLinks ( \ilPageObject  $page,
\DOMDocument  $a_domdoc
)

save internal links of page

Definition at line 447 of file LinkManager.php.

References ilInternalLink\_saveLink(), ILIAS\Data\Link\LinkManager\deleteInternalLinks(), ilPageObject\getId(), ilPageObject\getLanguage(), ilPageObject\getParentType(), and ILIAS\Repository\int().

450  : void {
451  $this->deleteInternalLinks(
452  $page
453  );
454  $t_type = "";
455  // query IntLink elements
456  $xpath = new \DOMXPath($a_domdoc);
457  $nodes = $xpath->query('//IntLink');
458  foreach ($nodes as $node) {
459  $link_type = $node->getAttribute("Type");
460
461  switch ($link_type) {
462  case "StructureObject":
463  $t_type = "st";
464  break;
465
466  case "PageObject":
467  $t_type = "pg";
468  break;
469
470  case "GlossaryItem":
471  $t_type = "git";
472  break;
473
474  case "MediaObject":
475  $t_type = "mob";
476  break;
477
478  case "RepositoryItem":
479  $t_type = "obj";
480  break;
481
482  case "File":
483  $t_type = "file";
484  break;
485
486  case "WikiPage":
487  $t_type = "wpage";
488  break;
489
490  case "PortfolioPage":
491  $t_type = "ppage";
492  break;
493
494  case "User":
495  $t_type = "user";
496  break;
497  }
498
499  $target = $node->getAttribute("Target");
500  $target_arr = explode("_", $target);
501  $t_id = (int) $target_arr[count($target_arr) - 1];
502
503  // link to other internal object
504  if (is_int(strpos($target, "__"))) {
505  $t_inst = 0;
506  } else { // link to unresolved object in other installation
507  $t_inst = (int) ($target_arr[1] ?? 0);
508  }
509
510  if ($t_id > 0) {
511  \ilInternalLink::_saveLink(
512  $page->getParentType() . ":pg",
513  $page->getId(),
514  $t_type,
515  $t_id,
516  $t_inst,
517  $page->getLanguage()
518  );
519  }
520  }
521  }
+ Here is the call graph for this function:

Field Documentation

◆ $dom_util

ILIAS COPage Dom DomUtil ILIAS\Data\Link\LinkManager::$dom_util
protected

Definition at line 29 of file LinkManager.php.

◆ $log

ilLogger ILIAS\Data\Link\LinkManager::$log
protected

Definition at line 28 of file LinkManager.php.

◆ $obj_definition

ilObjectDefinition ILIAS\Data\Link\LinkManager::$obj_definition
protected

Definition at line 30 of file LinkManager.php.

Referenced by ILIAS\Data\Link\LinkManager\handleRepositoryLinksOnCopy().

The documentation for this class was generated from the following file:
