Collaboration diagram for ilExcel:

Public Member Functions
	__construct ()

	loadFromFile (string $filename)
	Loads a spreadsheet from file. More...

	getValidFormats ()

	setFormat (string $a_format)
	Set file format. More...

	addSheet (string $a_name, bool $a_activate=true)
	Add sheet. More...

	setActiveSheet (int $a_index)

	getSheetCount ()
	Returns number of sheets. More...

	getSheetTitle ()
	Return the current sheet title. More...

	setCellByCoordinates ($a_coords, $a_value)
	Set cell value by coordinates. More...

	setCell (int $a_row, int $col, $value, ?string $datatype=null)
	Set cell value. More...

	setCellArray (array $a_values, string $a_top_left='A1', $a_null_value=null)
	Set cell values from array. More...

	getCell (int $a_row, int $a_col)
	Returns the value of a cell. More...

	getSheetAsArray ()
	Returns the active sheet as an array. More...

	getColumnCount ()
	Returns the number of columns the sheet contains. More...

	getColumnCoord (int $a_col)
	Get column "name" from number. More...

	sendToClient (string $a_file_name)
	Send workbook to client. More...

	writeToFile (string $a_file)
	Save workbook to file. More...

	writeToTmpFile ()

	setBold (string $a_coords)
	Set cell(s) to bold. More...

	setColors (string $a_coords, string $a_background, ?string $a_font=null)
	Set cell(s) colors. More...

	setBorders (string $a_coords, bool $a_top, bool $a_right=false, bool $a_bottom=false, bool $a_left=false)
	Toggle cell(s) borders. More...

	getCoordByColumnAndRow (int $pColumn=1, int $pRow=1)
	Get cell coordinate (e.g. More...

	addLink (int $a_row, int $a_column, string $a_path)

	columnIndexAdjustment (int $column)
	Adjustment needed because of migration PHPExcel to PhpSpreadsheet. More...

	mergeCells (string $coordinatesRange)

Data Fields
const	FORMAT_XML = 'Xlsx'

const	FORMAT_BIFF = 'Xls'

Protected Member Functions
	prepareValue ($value)
	Prepare value for cell. More...

	prepareDateValue (ilDateTime $a_value)

	prepareBooleanValue (bool $a_value)

	prepareString (string $value,)

	setDateFormat (Cell $a_cell, $a_value)
	Set date format of cell. More...

	setGlobalAutoSize ()
	Set all existing columns on all sheets to autosize. More...

	prepareStorage (string $a_file_name)
	Prepare workbook for storage/delivery. More...

Protected Attributes
string	$format

ilLanguage	$lng

Spreadsheet	$workbook

string	$type

Private Member Functions
	cleanupNonCharachters (string $string)

Private Attributes
array	$noncharacters

Detailed Description

Definition at line 34 of file class.ilExcel.php.

Constructor & Destructor Documentation

◆ __construct()

ilExcel::__construct ( )

Exceptions

PhpOffice\PhpSpreadsheet\Exception

Definition at line 68 of file class.ilExcel.php.

    {
        global $DIC;

        $this->lng = $DIC->language();
        $this->setFormat(self::FORMAT_XML);
        $this->workbook = new Spreadsheet();
        $this->workbook->removeSheetByIndex(0);
    }

References $DIC, ILIAS\Repository\lng(), and setFormat().

Here is the call graph for this function:

Member Function Documentation

◆ addLink()

ilExcel::addLink	(	int	$a_row,
		int	$a_column,
		string	$a_path
	)

Exceptions

PhpOffice\PhpSpreadsheet\Exception

Definition at line 565 of file class.ilExcel.php.

     : void {
        $coordinate = $this->getCoordByColumnAndRow($a_column, $a_row);
        $this->workbook->getActiveSheet()->getCell($coordinate)->getHyperlink()->setUrl($a_path);
    }

◆ addSheet()

ilExcel::addSheet	(	string	$a_name,
		bool	$a_activate = `true`
	)

Add sheet.

Exceptions

PhpOffice\PhpSpreadsheet\Exception

Definition at line 122 of file class.ilExcel.php.

     : int {
        #20749
        // see Worksheet::$_invalidCharacters;
        $invalid = ['*', ':', '/', '\\', '?', '[', ']', '\'-', '\''];

        $a_name = str_replace($invalid, '', $a_name);

        // #19056 - phpExcel only allows 31 chars
        // see https://github.com/PHPOffice/PHPExcel/issues/79
        $a_name = ilStr::shortenTextExtended($a_name, 31);

        $sheet = new Worksheet($this->workbook, $a_name);
        $this->workbook->addSheet($sheet);
        $new_index = $this->workbook->getSheetCount() - 1;

        if ($a_activate) {
            $this->setActiveSheet($new_index);
        }

        return $new_index;
    }

◆ cleanupNonCharachters()

ilExcel::cleanupNonCharachters ( string $string )

private

Definition at line 592 of file class.ilExcel.php.

                                                          : string
    {
        return mb_ereg_replace('[' . implode('', $this->noncharacters) . ']', '', $string);
    }

◆ columnIndexAdjustment()

ilExcel::columnIndexAdjustment ( int $column )

Adjustment needed because of migration PHPExcel to PhpSpreadsheet.

PhpExcel column was 0 index based and PhpSpreadshet set this index to 1

Definition at line 578 of file class.ilExcel.php.

                                                      : int
    {
        return ++$column;
    }

◆ getCell()

ilExcel::getCell	(	int	$a_row,
		int	$a_col
	)

Returns the value of a cell.

Returns: mixed

Definition at line 359 of file class.ilExcel.php.

      {
        $coordinate = $this->getCoordByColumnAndRow($a_col, $a_row);
        return $this->workbook->getActiveSheet()->getCell($coordinate)->getValue();
    }

Referenced by ilDclBaseRecordFieldModel\getValueFromExcel(), ilDclStandardField\getValueFromExcel(), and ilDclTextRecordFieldModel\getValueFromExcel().

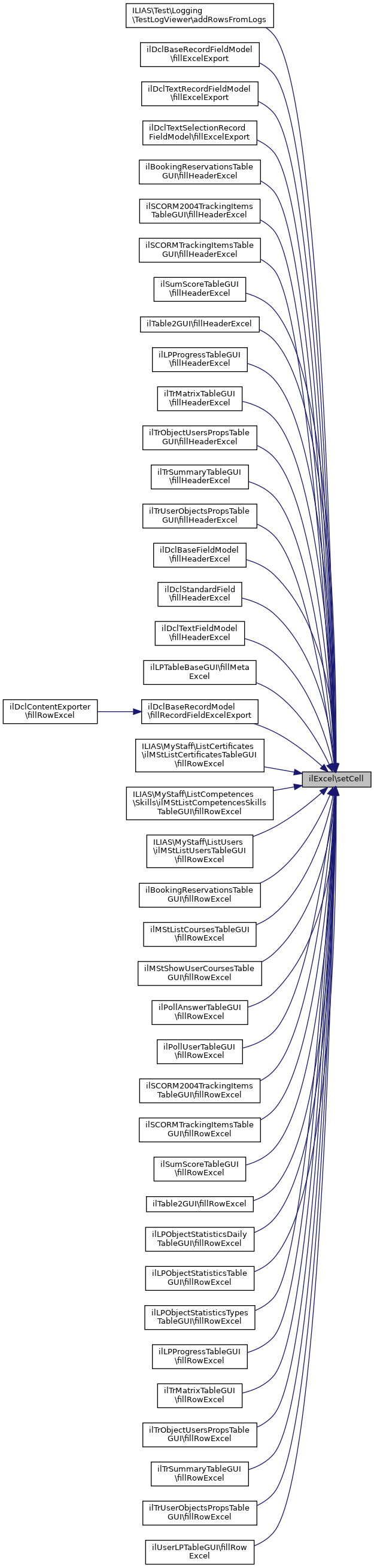

Here is the caller graph for this function:

◆ getColumnCoord()

ilExcel::getColumnCoord ( int $a_col )

Get column "name" from number.

Definition at line 386 of file class.ilExcel.php.

                                              : string
    {
        $col = $this->columnIndexAdjustment($a_col);
        return Coordinate::stringFromColumnIndex($col);
    }

Referenced by ilSumScoreTableGUI\fillHeaderExcel(), ilTable2GUI\fillHeaderExcel(), ilTrMatrixTableGUI\fillHeaderExcel(), ilTrObjectUsersPropsTableGUI\fillHeaderExcel(), ilTrSummaryTableGUI\fillHeaderExcel(), and ilTrUserObjectsPropsTableGUI\fillHeaderExcel().

Here is the caller graph for this function:

◆ getColumnCount()

ilExcel::getColumnCount ( )

Returns the number of columns the sheet contains.

Definition at line 378 of file class.ilExcel.php.

                                    : int
    {
        return Coordinate::columnIndexFromString($this->workbook->getActiveSheet()->getHighestDataColumn());
    }

◆ getCoordByColumnAndRow()

ilExcel::getCoordByColumnAndRow	(	int	$pColumn = `1`,
		int	$pRow = `1`
	)

Get cell coordinate (e.g.

"B2") for column and row number

Definition at line 552 of file class.ilExcel.php.

     : string {
        $col = $this->columnIndexAdjustment($pColumn);
        $columnLetter = Coordinate::stringFromColumnIndex($col);

        return $columnLetter . $pRow;
    }

◆ getSheetAsArray()

ilExcel::getSheetAsArray ( )

Returns the active sheet as an array.

Definition at line 370 of file class.ilExcel.php.

                                     : array
    {
        return $this->workbook->getActiveSheet()->toArray();
    }

◆ getSheetCount()

ilExcel::getSheetCount ( )

Returns number of sheets.

Definition at line 159 of file class.ilExcel.php.

                                   : int
    {
        return $this->workbook->getSheetCount();
    }

◆ getSheetTitle()

ilExcel::getSheetTitle ( )

Return the current sheet title.

Definition at line 168 of file class.ilExcel.php.

                                   : string
    {
        return $this->workbook->getActiveSheet()->getTitle();
    }

◆ getValidFormats()

ilExcel::getValidFormats ( )

Returns: list<string>

Definition at line 97 of file class.ilExcel.php.

                                     : array
    {
        return [self::FORMAT_XML, self::FORMAT_BIFF];
    }

References FORMAT_BIFF, and FORMAT_XML.

Referenced by setFormat().

Here is the caller graph for this function:

◆ loadFromFile()

ilExcel::loadFromFile ( string $filename )

Loads a spreadsheet from file.

Definition at line 85 of file class.ilExcel.php.

                                                  : void
    {
        $this->workbook = IOFactory::load($filename);
    }

References $filename.

◆ mergeCells()

ilExcel::mergeCells ( string $coordinatesRange )

Parameters

string $coordinatesRange A coordinates range string like 'A1:B5'

Exceptions

PhpOffice\PhpSpreadsheet\Exception

Definition at line 587 of file class.ilExcel.php.

                                                        : void
    {
        $this->workbook->getActiveSheet()->mergeCells($coordinatesRange);
    }

◆ prepareBooleanValue()

ilExcel::prepareBooleanValue ( bool $a_value )

protected

Definition at line 220 of file class.ilExcel.php.

                                                         : string
    {
        $lng = $this->lng;

        return $a_value ? $lng->txt('yes') : $lng->txt('no');
    }

References $lng.

◆ prepareDateValue()

ilExcel::prepareDateValue ( ilDateTime $a_value )

protected

Parameters

ilDateTime $a_value

Returns: false|float

Definition at line 205 of file class.ilExcel.php.

    {
        switch (true) {
            case $a_value instanceof ilDate:
                $a_value = Date::stringToExcel($a_value->get(IL_CAL_DATE));
                break;

            default:
                $a_value = Date::stringToExcel($a_value->get(IL_CAL_DATETIME));
                break;
        }

        return $a_value;
    }

References ilDateTime\get(), IL_CAL_DATE, and IL_CAL_DATETIME.

Here is the call graph for this function:

◆ prepareStorage()

ilExcel::prepareStorage ( string $a_file_name )

protected

Prepare workbook for storage/delivery.

Definition at line 416 of file class.ilExcel.php.

                                                          : string
    {
        $this->setGlobalAutoSize();
        $this->workbook->setActiveSheetIndex(0);

        switch ($this->format) {
            case self::FORMAT_BIFF:
                if (stripos($a_file_name, '.xls') === false) {
                    $a_file_name .= '.xls';
                }
                break;

            case self::FORMAT_XML:
                if (stripos($a_file_name, '.xlsx') === false) {
                    $a_file_name .= '.xlsx';
                }
                break;
        }

        return $a_file_name;
    }

◆ prepareString()

ilExcel::prepareString ( string $value )

protected

Definition at line 227 of file class.ilExcel.php.

     : string {
        if (!mb_check_encoding($value, 'UTF-8')) {
            throw new InvalidArgumentException('Invalid UTF-8 passed.');
        }

        return $this->cleanupNonCharachters(strip_tags($value));
    }

◆ prepareValue()

ilExcel::prepareValue ( $value )

protected

Prepare value for cell.

Parameters

mixed $value

Returns: mixed

Exceptions

InvalidArgumentException

Definition at line 184 of file class.ilExcel.php.

    {
        if (is_bool($value)) {
            return $this->prepareBooleanValue($value);
        }

        if ($value instanceof ilDateTime) {
            return $this->prepareDateValue($value);
        }

        if (is_string($value)) {
            return $this->prepareString($value);
        }

        return $value;
    }

◆ sendToClient()

ilExcel::sendToClient ( string $a_file_name )

Send workbook to client.

Exceptions

PhpOffice\PhpSpreadsheet\Writer\Exception

Definition at line 442 of file class.ilExcel.php.

                                                     : void
    {
        $a_file_name = $this->prepareStorage($a_file_name);
        switch ($this->format) {
            case self::FORMAT_BIFF:
                $a_mime_type = MimeType::APPLICATION__VND_MS_EXCEL;
                break;

            case self::FORMAT_XML:
                $a_mime_type = MimeType::APPLICATION__VND_OPENXMLFORMATS_OFFICEDOCUMENT_SPREADSHEETML_SHEET;
                break;
            default:
                $a_mime_type = MimeType::APPLICATION__OCTET_STREAM;
                break;
        }
        $tmp_name = ilFileUtils::ilTempnam();

        $writer = IOFactory::createWriter($this->workbook, $this->format);
        $writer->save($tmp_name);

        ilFileDelivery::deliverFileAttached($tmp_name, $a_file_name, $a_mime_type, true);
    }

References ilFileDelivery\deliverFileAttached(), and ilFileUtils\ilTempnam().

Here is the call graph for this function:

◆ setActiveSheet()

ilExcel::setActiveSheet ( int $a_index )

Exceptions

PhpOffice\PhpSpreadsheet\Exception

Definition at line 150 of file class.ilExcel.php.

                                                : void
    {
        $this->workbook->setActiveSheetIndex($a_index);
    }

◆ setBold()

ilExcel::setBold ( string $a_coords )

Set cell(s) to bold.

Definition at line 493 of file class.ilExcel.php.

                                             : void
    {
        $this->workbook->getActiveSheet()->getStyle($a_coords)->getFont()->setBold(true);
    }

Referenced by ilSumScoreTableGUI\fillHeaderExcel(), ilTable2GUI\fillHeaderExcel(), ilLPProgressTableGUI\fillHeaderExcel(), ilTrMatrixTableGUI\fillHeaderExcel(), ilTrObjectUsersPropsTableGUI\fillHeaderExcel(), ilTrSummaryTableGUI\fillHeaderExcel(), and ilTrUserObjectsPropsTableGUI\fillHeaderExcel().

Here is the caller graph for this function:

◆ setBorders()

ilExcel::setBorders	(	string	$a_coords,
		bool	$a_top,
		bool	$a_right = `false`,
		bool	$a_bottom = `false`,
		bool	$a_left = `false`
	)

Toggle cell(s) borders.

Definition at line 525 of file class.ilExcel.php.

     : void {
        $style = $this->workbook->getActiveSheet()->getStyle($a_coords);

        // :TODO: border styles?
        if ($a_top) {
            $style->getBorders()->getTop()->setBorderStyle(Border::BORDER_THIN);
        }
        if ($a_right) {
            $style->getBorders()->getRight()->setBorderStyle(Border::BORDER_THIN);
        }
        if ($a_bottom) {
            $style->getBorders()->getBottom()->setBorderStyle(Border::BORDER_THIN);
        }
        if ($a_left) {
            $style->getBorders()->getLeft()->setBorderStyle(Border::BORDER_THIN);
        }
    }

◆ setCell()

ilExcel::setCell	(	int	$a_row,
		int	$col,
			$value,
		?string	$datatype = `null`
	)

Set cell value.

Parameters

int	$a_row
int	$col
mixed	$value
	?string	$datatype Explicit data type, see DataType::TYPE_*

Definition at line 288 of file class.ilExcel.php.

     : void {
        $coordinate = $this->getCoordByColumnAndRow($col, $a_row);

        if ($datatype === DataType::TYPE_STRING) {
            $this->workbook->getActiveSheet()->setCellValueExplicit(
                $coordinate,
                $this->prepareString($value),
                $datatype
            );
        } elseif ($datatype !== null) {
            $this->workbook->getActiveSheet()->setCellValueExplicit(
                $coordinate,
                $this->prepareValue($value),
                $datatype
            );
        } elseif ($value instanceof ilDateTime) {
            $wb = $this->workbook->getActiveSheet()->setCellValue(
                $coordinate,
                $this->prepareValue($value)
            );
            $this->setDateFormat($wb->getCell($coordinate), $value);
        } elseif (is_numeric($value)) {
            $this->workbook->getActiveSheet()->setCellValueExplicit(
                $coordinate,
                $this->prepareValue($value),
                DataType::TYPE_NUMERIC
            );
        } else {
            $this->workbook->getActiveSheet()->setCellValueExplicit(
                $coordinate,
                $this->prepareValue($value),
                DataType::TYPE_STRING
            );
        }
    }

Here is the caller graph for this function:

◆ setCellArray()

ilExcel::setCellArray	(	array	$a_values,
		string	$a_top_left = `'A1'`,
			$a_null_value = `null`
	)

Set cell values from array.

Parameters

	array<int,mixed\|array<int,mixed>>	$a_values
string	$a_top_left
mixed	$a_null_value	Value in source array that stands for blank cell

Definition at line 336 of file class.ilExcel.php.

     : void {
        foreach ($a_values as $row_idx => $cols) {
            if (is_array($cols)) {
                foreach ($cols as $col_idx => $col_value) {
                    $a_values[$row_idx][$col_idx] = $this->prepareValue($col_value);
                }
            } else {
                $a_values[$row_idx] = $this->prepareValue($cols);
            }
        }

        $this->workbook->getActiveSheet()->fromArray($a_values, $a_null_value, $a_top_left);
    }

◆ setCellByCoordinates()

ilExcel::setCellByCoordinates	(	$a_coords,
		$a_value
	)

Set cell value by coordinates.

Parameters

string	$a_coords	Coordinate of the cell, eg: 'A1'
mixed	$a_value

Definition at line 257 of file class.ilExcel.php.

                                                             : void
    {
        if ($a_value instanceof ilDateTime) {
            $wb = $this->workbook->getActiveSheet()->setCellValue(
                $a_coords,
                $this->prepareValue($a_value)
            );
            $cell = $wb->getCell($a_coords);
            $this->setDateFormat($cell, $a_value);
        } elseif (is_numeric($a_value)) {
            $this->workbook->getActiveSheet()->setCellValueExplicit(
                $a_coords,
                $this->prepareValue($a_value),
                DataType::TYPE_NUMERIC
            );
        } else {
            $this->workbook->getActiveSheet()->setCellValueExplicit(
                $a_coords,
                $this->prepareValue($a_value),
                DataType::TYPE_STRING
            );
        }
    }

◆ setColors()

ilExcel::setColors	(	string	$a_coords,
		string	$a_background,
		?string	$a_font = `null`
	)

Set cell(s) colors.

Definition at line 501 of file class.ilExcel.php.

     : void {
        $opts = [
            'fill' => [
                'fillType' => Fill::FILL_SOLID,
                'color' => ['rgb' => $a_background]
            ]
        ];

        if ($a_font) {
            $opts['font'] = [
                'color' => ['rgb' => $a_font]
            ];
        }

        $this->workbook->getActiveSheet()->getStyle($a_coords)->applyFromArray($opts);
    }

◆ setDateFormat()

ilExcel::setDateFormat	(	Cell	$a_cell,
			$a_value
	)

protected

Set date format of cell.

Parameters

Cell	$a_cell
mixed	$a_value

Definition at line 243 of file class.ilExcel.php.

                                                            : void
    {
        if ($a_value instanceof ilDate) {
            $a_cell->getStyle()->getNumberFormat()->setFormatCode('dd.mm.yyyy');
        } elseif ($a_value instanceof ilDateTime) {
            $a_cell->getStyle()->getNumberFormat()->setFormatCode('dd.mm.yyyy hh:mm:ss');
        }
    }

◆ setFormat()

ilExcel::setFormat ( string $a_format )

Set file format.

Definition at line 105 of file class.ilExcel.php.

                                               : void
    {
        if (in_array($a_format, $this->getValidFormats())) {
            $this->format = $a_format;
        }
    }

References getValidFormats().

Referenced by __construct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setGlobalAutoSize()

ilExcel::setGlobalAutoSize ( )

protected

Set all existing columns on all sheets to autosize.

Definition at line 395 of file class.ilExcel.php.

                                          : void
    {
        // this may change the active sheet
        foreach ($this->workbook->getWorksheetIterator() as $worksheet) {
            $this->workbook->setActiveSheetIndex($this->workbook->getIndex($worksheet));
            $sheet = $this->workbook->getActiveSheet();
            $cellIterator = $sheet->getRowIterator()->current()->getCellIterator();
            $cellIterator->setIterateOnlyExistingCells(true);
            foreach ($cellIterator as $cell) {
                $sheet->getColumnDimension($cell->getColumn())->setAutoSize(true);
            }
        }
    }

◆ writeToFile()

ilExcel::writeToFile ( string $a_file )

Save workbook to file.

Exceptions

PhpOffice\PhpSpreadsheet\Writer\Exception

Definition at line 470 of file class.ilExcel.php.

                                               : void
    {
        $a_file = $this->prepareStorage($a_file);

        $writer = IOFactory::createWriter($this->workbook, $this->format);
        $writer->save($a_file);
    }

◆ writeToTmpFile()

ilExcel::writeToTmpFile ( )

Exceptions

PhpOffice\PhpSpreadsheet\Writer\Exception

Definition at line 481 of file class.ilExcel.php.

                                    : string
    {
        $writer = IOFactory::createWriter($this->workbook, $this->format);
        $filename = ilFileUtils::ilTempnam();
        $writer->save($filename);

        return $filename;
    }

References $filename, and ilFileUtils\ilTempnam().

Here is the call graph for this function:

Field Documentation

◆ $format

string ilExcel::$format

protected

Definition at line 38 of file class.ilExcel.php.

◆ $lng

ilLanguage ilExcel::$lng

protected

Definition at line 61 of file class.ilExcel.php.

◆ $noncharacters

array ilExcel::$noncharacters

private

Initial value:

= [
        '\x{FFFE}-\x{FFFF}',
        '\x{1FFFE}-\x{1FFFF}',
        '\x{2FFFE}-\x{2FFFF}',
        '\x{3FFFE}-\x{3FFFF}',
        '\x{4FFFE}-\x{4FFFF}',
        '\x{5FFFE}-\x{5FFFF}',
        '\x{6FFFE}-\x{6FFFF}',
        '\x{7FFFE}-\x{7FFFF}',
        '\x{8FFFE}-\x{8FFFF}',
        '\x{9FFFE}-\x{9FFFF}',
        '\x{AFFFE}-\x{AFFFF}',
        '\x{BFFFE}-\x{BFFFF}',
        '\x{CFFFE}-\x{CFFFF}',
        '\x{DFFFE}-\x{DFFFF}',
        '\x{EFFFE}-\x{EFFFF}',
        '\x{FFFFE}-\x{FFFFF}',
        '\x{10FFFE}-\x{10FFFF}',
        '\x{FDD0}-\x{FDEF}'
    ]

Definition at line 40 of file class.ilExcel.php.

◆ $type

string ilExcel::$type

protected

Definition at line 63 of file class.ilExcel.php.

◆ $workbook

Spreadsheet ilExcel::$workbook

protected

Definition at line 62 of file class.ilExcel.php.

◆ FORMAT_BIFF

const ilExcel::FORMAT_BIFF = 'Xls'

Definition at line 37 of file class.ilExcel.php.

Referenced by getValidFormats().

◆ FORMAT_XML

const ilExcel::FORMAT_XML = 'Xlsx'

Definition at line 36 of file class.ilExcel.php.

Referenced by getValidFormats(), and ILIAS\Test\ExportImport\ResultsExportExcel\write().

The documentation for this class was generated from the following file:

components/ILIAS/Excel/classes/class.ilExcel.php

Public Member Functions

Data Fields

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ __construct()

Member Function Documentation

◆ addLink()

◆ addSheet()

◆ cleanupNonCharachters()

◆ columnIndexAdjustment()

◆ getCell()

◆ getColumnCoord()

◆ getColumnCount()

◆ getCoordByColumnAndRow()

◆ getSheetAsArray()

◆ getSheetCount()

◆ getSheetTitle()

◆ getValidFormats()

◆ loadFromFile()

◆ mergeCells()

◆ prepareBooleanValue()

◆ prepareDateValue()

◆ prepareStorage()

◆ prepareString()

◆ prepareValue()

◆ sendToClient()

◆ setActiveSheet()

◆ setBold()

◆ setBorders()

◆ setCell()

◆ setCellArray()

◆ setCellByCoordinates()

◆ setColors()

◆ setDateFormat()

◆ setFormat()

◆ setGlobalAutoSize()

◆ writeToFile()

◆ writeToTmpFile()

Field Documentation

◆ $format

◆ $lng

◆ $noncharacters

◆ $type

◆ $workbook

◆ FORMAT_BIFF

◆ FORMAT_XML
