Collaboration diagram for ILIAS\Filesystem\Util\Convert\ImageConverter:

Public Member Functions
	__construct (protected ImageConversionOptions $conversion_options, protected ImageOutputOptions $output_options, protected FileStream $stream)

	isOK ()

	getThrowableIfAny ()

	getStream ()

Protected Member Functions
	handleImageDimension ()

	buildOutputStream ()

	handleFormatAndQuality ()

	handleBackgroundColor ()

	readInputStream ()

	doCrop (int $width, int $height)

	doResize (int $width, int $height)

	doThumbnail (int $width, int $height)

Protected Attributes
const	STATUS_OK = 1

const	STATUS_FAILED = 2

const	STATUS_UNKNOWN = 4

const	RESOLUTION = 72

const	RESOLUTION_FACTOR = self::RESOLUTION / 72

int	$status = self::STATUS_UNKNOWN

FileStream	$output_stream = null

Throwable	$throwable = null

string	$requested_background = null

Imagick	$image

Private Member Functions
	convert ()

	factoredResolution (int $initial)

Detailed Description

Author: Fabian Schmid fabia.nosp@m.n@sr.nosp@m..solu.nosp@m.tion.nosp@m.s

Definition at line 31 of file ImageConverter.php.

Constructor & Destructor Documentation

◆ __construct()

ILIAS\Filesystem\Util\Convert\ImageConverter::__construct	(	protected ImageConversionOptions	$conversion_options,
		protected ImageOutputOptions	$output_options,
		protected FileStream	$stream
	)

Definition at line 48 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageConverter\convert().

       {
         $this->image = new \Imagick();
         $this->convert();
     }

Here is the call graph for this function:

Member Function Documentation

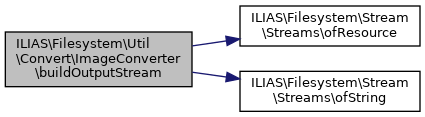

◆ buildOutputStream()

ILIAS\Filesystem\Util\Convert\ImageConverter::buildOutputStream ( )

protected

Definition at line 156 of file ImageConverter.php.

References null.

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\convert().

                                           : void
     {
         if ($this->conversion_options->getOutputPath() === null) {
             $this->output_stream = Streams::ofString($this->image->getImageBlob());
         } else {
             $this->image->writeImage($this->conversion_options->getOutputPath());
             $this->output_stream = Streams::ofResource(fopen($this->conversion_options->getOutputPath(), 'rb'));
         }

         $this->output_stream->rewind();

         $this->status = self::STATUS_OK;
     }

Here is the caller graph for this function:

◆ convert()

ILIAS\Filesystem\Util\Convert\ImageConverter::convert ( )

private

Definition at line 57 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageConverter\buildOutputStream(), ILIAS\Filesystem\Util\Convert\ImageConverter\handleBackgroundColor(), ILIAS\Filesystem\Util\Convert\ImageConverter\handleFormatAndQuality(), ILIAS\Filesystem\Util\Convert\ImageConverter\handleImageDimension(), and ILIAS\Filesystem\Util\Convert\ImageConverter\readInputStream().

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\__construct().

                               : void
     {
         try {
             $this->handleBackgroundColor();
             $this->readInputStream();
             $this->handleFormatAndQuality();
             $this->handleImageDimension();
             $this->buildOutputStream();
         } catch (\Throwable $t) {
             $this->status = self::STATUS_FAILED;
             $this->throwable = $t;
             if ($this->conversion_options->throwOnError()) {
                 throw $t;
             }
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ doCrop()

ILIAS\Filesystem\Util\Convert\ImageConverter::doCrop	(	int	$width,
		int	$height
	)

protected

Definition at line 273 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageConverter\factoredResolution().

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\handleImageDimension().

                                                       : void
     {
         $this->image->setGravity(\Imagick::GRAVITY_CENTER);
         $this->image->cropThumbnailImage(
             $this->factoredResolution($width),
             $this->factoredResolution($height)
         );
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ doResize()

ILIAS\Filesystem\Util\Convert\ImageConverter::doResize	(	int	$width,
		int	$height
	)

protected

Definition at line 282 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageConverter\factoredResolution().

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\handleImageDimension().

                                                         : void
     {
         $this->image->resizeImage(
             $this->factoredResolution($width),
             $this->factoredResolution($height),
             \Imagick::FILTER_LANCZOS,
             1
         );
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ doThumbnail()

ILIAS\Filesystem\Util\Convert\ImageConverter::doThumbnail	(	int	$width,
		int	$height
	)

protected

Definition at line 292 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageConverter\factoredResolution().

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\handleImageDimension().

                                                            : void
     {
         $this->image->thumbnailImage(
             $this->factoredResolution($width),
             $this->factoredResolution($height),
             true,
             !$this->conversion_options->keepAspectRatio(),
         );
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ factoredResolution()

ILIAS\Filesystem\Util\Convert\ImageConverter::factoredResolution ( int $initial )

private

Definition at line 268 of file ImageConverter.php.

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\doCrop(), ILIAS\Filesystem\Util\Convert\ImageConverter\doResize(), and ILIAS\Filesystem\Util\Convert\ImageConverter\doThumbnail().

                                                      : int
     {
         return intval(round($initial * self::RESOLUTION_FACTOR, 0));
     }

Here is the caller graph for this function:

◆ getStream()

ILIAS\Filesystem\Util\Convert\ImageConverter::getStream ( )

Definition at line 263 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageConverter\$output_stream.

Referenced by ILIAS\Filesystem\Util\Convert\LegacyImages\storeStream().

                                : FileStream
     {
         return $this->output_stream;
     }

Here is the caller graph for this function:

◆ getThrowableIfAny()

ILIAS\Filesystem\Util\Convert\ImageConverter::getThrowableIfAny ( )

Definition at line 257 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageConverter\$throwable.

Referenced by ILIAS\Filesystem\Util\Convert\LegacyImages\storeStream().

                                        : ?\Throwable
     {
         return $this->throwable;
     }

Here is the caller graph for this function:

◆ handleBackgroundColor()

ILIAS\Filesystem\Util\Convert\ImageConverter::handleBackgroundColor ( )

protected

Definition at line 226 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageOutputOptions\FORMAT_JPG, ILIAS\Filesystem\Util\Convert\ImageOutputOptions\FORMAT_PNG, and null.

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\convert().

                                               : void
     {
         $this->requested_background = $this->conversion_options->getBackgroundColor();
         if ($this->output_options->getFormat(
         ) === ImageOutputOptions::FORMAT_JPG && $this->requested_background === null) {
             $this->requested_background = '#FFFFFF';
         }
         if ($this->output_options->getFormat(
         ) === ImageOutputOptions::FORMAT_PNG && $this->requested_background === null) {
             $this->requested_background = 'transparent';
         }
         if ($this->requested_background !== null) {
             $this->image->setBackgroundColor(new \ImagickPixel($this->requested_background));
         }
     }

Here is the caller graph for this function:

◆ handleFormatAndQuality()

ILIAS\Filesystem\Util\Convert\ImageConverter::handleFormatAndQuality ( )

protected

Definition at line 170 of file ImageConverter.php.

References ILIAS\Filesystem\Util\Convert\ImageOutputOptions\FORMAT_JPG, ILIAS\Filesystem\Util\Convert\ImageOutputOptions\FORMAT_KEEP, ILIAS\Filesystem\Util\Convert\ImageOutputOptions\FORMAT_PNG, ILIAS\Filesystem\Util\Convert\ImageOutputOptions\FORMAT_WEBP, and null.

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\convert().

                                                : void
     {
         $this->image->setImageResolution(
             self::RESOLUTION,
             self::RESOLUTION
         );
         // High density images do not support Resampling, cache to small. we deactivate this
         /*$this->image->resampleImage(
             self::RESOLUTION,
             self::RESOLUTION,
             \Imagick::FILTER_LANCZOS,
             1
         );*/
         $quality = $this->output_options->getQuality();

         // if $this->output_options->getFormat() is 'keep', we map it to the original format
         if ($this->output_options->getFormat() === ImageOutputOptions::FORMAT_KEEP) {
             try {
                 $this->output_options = $this->output_options->withFormat(strtolower($this->image->getImageFormat()));
             } catch (\InvalidArgumentException) {
             }
         }

         switch ($this->output_options->getFormat()) {
             case ImageOutputOptions::FORMAT_WEBP:
                 $this->image->setImageFormat('webp');
                 $this->image->setImageAlphaChannel(\Imagick::ALPHACHANNEL_REMOVE);
                 $this->image = $this->image->mergeImageLayers(\Imagick::LAYERMETHOD_FLATTEN);
                 if ($quality === 0) {
                     $this->image->setOption('webp:lossless', 'false');
                 }
                 if ($quality === 100) {
                     $this->image->setOption('webp:lossless', 'true');
                 }
                 break;
             case ImageOutputOptions::FORMAT_JPG:
                 $this->image->setImageFormat('jpeg');
                 $this->image->setImageAlphaChannel(\Imagick::ALPHACHANNEL_REMOVE);
                 $this->image = $this->image->mergeImageLayers(\Imagick::LAYERMETHOD_FLATTEN);
                 $this->image->setImageCompression(\Imagick::COMPRESSION_JPEG);
                 $this->image->setImageCompressionQuality($quality);
                 break;
             case ImageOutputOptions::FORMAT_PNG:
                 $png_compression_level = round($quality / 100 * 9, 0);
                 if ($this->requested_background !== null && $this->requested_background !== 'transparent') {
                     $this->image->setImageAlphaChannel(\Imagick::ALPHACHANNEL_REMOVE);
                 } else {
                     $this->image->setImageAlphaChannel(\Imagick::ALPHACHANNEL_ACTIVATE);
                 }
                 $this->image->setImageFormat('png');
                 $this->image->setOption('png:compression-level', (string) $png_compression_level);
                 break;
         }
         $this->image->stripImage();
     }

Here is the caller graph for this function:

◆ handleImageDimension()

ILIAS\Filesystem\Util\Convert\ImageConverter::handleImageDimension ( )

protected

Definition at line 75 of file ImageConverter.php.

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\convert().

                                              : void
     {
         $requested_width = $this->conversion_options->getWidth();
         $requested_height = $this->conversion_options->getHeight();
         $original_image_width = $this->image->getImageWidth();
         $original_image_height = $this->image->getImageHeight();

         switch ($this->conversion_options->getDimensionMode()) {
             default:
             case ImageConversionOptions::DIMENSION_MODE_NONE:
                 // no resizing
                 return;
             case ImageConversionOptions::DIMENSION_MODE_FIT:
                 if ($this->conversion_options->hasCrop()) {
                     $final_height = $requested_height;
                     $final_width = $requested_width;
                 } else {
                     // this is a special case, where we want to fit the image into the given dimensions and
                     // Imagick knows the thumbnail method for that
                     $this->doThumbnail(
                         $requested_width,
                         $requested_height
                     );
                     return;
                 }
                 break;
             case ImageConversionOptions::DIMENSTION_MODE_RESIZE_TO_FIXED:
                 // by width and height
                 if ($requested_width > 0 && $requested_height > 0) {
                     $final_width = $requested_width;
                     $final_height = $requested_height;
                 } else {
                     throw new \InvalidArgumentException('Dimension Mode does not match the given width/height');
                 }
                 break;
             case ImageConversionOptions::DIMENSTION_MODE_RESIZE_BY_HEIGHT:
                 // by height
                 if ($requested_width === null && $requested_height > 0) {
                     $ratio = $original_image_height / $requested_height;
                     $final_width = intval($original_image_width / $ratio);
                     $final_height = $requested_height;
                     $l = 1;
                 } else {
                     throw new \InvalidArgumentException('Dimension Mode does not match the given width/height');
                 }
                 break;
             case ImageConversionOptions::DIMENSTION_MODE_RESIZE_BY_WIDTH:
                 // by width
                 if ($requested_width > 0 && $requested_height === null) {
                     $ratio = $original_image_width / $requested_width;
                     $final_width = $requested_width;
                     $final_height = intval($original_image_height / $ratio);
                 } else {
                     throw new \InvalidArgumentException('Dimension Mode does not match the given width/height');
                 }
                 break;
             case ImageConversionOptions::DIMENSION_MODE_KEEP:
                 // by none of them
                 if ($requested_width === null && $requested_height === null) {
                     $final_width = $original_image_width;
                     $final_height = $original_image_height;
                 } else {
                     throw new \InvalidArgumentException('Dimension Mode does not match the given width/height');
                 }
                 break;
         }

         if ($this->conversion_options->hasCrop()) {
             $this->doCrop(
                 $final_width,
                 $final_height
             );
         } else {
             $this->doResize(
                 $final_width,
                 $final_height
             );
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isOK()

ILIAS\Filesystem\Util\Convert\ImageConverter::isOK ( )

Definition at line 252 of file ImageConverter.php.

Referenced by ILIAS\Filesystem\Util\Convert\LegacyImages\storeStream().

                           : bool
     {
         return $this->status === self::STATUS_OK;
     }

Here is the caller graph for this function:

◆ readInputStream()

ILIAS\Filesystem\Util\Convert\ImageConverter::readInputStream ( )

protected

Definition at line 242 of file ImageConverter.php.

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\convert().

                                         : void
     {
         if ($this->conversion_options->makeTemporaryFiles()) {
             $this->stream = $this->maybeSafeToTempStream($this->stream);
         }
         $this->stream->rewind();
         $this->image->readImageFile($this->stream->detach());
     }

Here is the caller graph for this function:

Field Documentation

◆ $image

Imagick ILIAS\Filesystem\Util\Convert\ImageConverter::$image

protected

Definition at line 46 of file ImageConverter.php.

◆ $output_stream

FileStream ILIAS\Filesystem\Util\Convert\ImageConverter::$output_stream = null

protected

Definition at line 43 of file ImageConverter.php.

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\getStream().

◆ $requested_background

string ILIAS\Filesystem\Util\Convert\ImageConverter::$requested_background = null

protected

Definition at line 45 of file ImageConverter.php.

◆ $status

int ILIAS\Filesystem\Util\Convert\ImageConverter::$status = self::STATUS_UNKNOWN

protected

Definition at line 42 of file ImageConverter.php.

◆ $throwable

Throwable ILIAS\Filesystem\Util\Convert\ImageConverter::$throwable = null

protected

Definition at line 44 of file ImageConverter.php.

Referenced by ILIAS\Filesystem\Util\Convert\ImageConverter\getThrowableIfAny().

◆ RESOLUTION

const ILIAS\Filesystem\Util\Convert\ImageConverter::RESOLUTION = 72

protected

Definition at line 39 of file ImageConverter.php.

◆ RESOLUTION_FACTOR

const ILIAS\Filesystem\Util\Convert\ImageConverter::RESOLUTION_FACTOR = self::RESOLUTION / 72

protected

Definition at line 40 of file ImageConverter.php.

◆ STATUS_FAILED

const ILIAS\Filesystem\Util\Convert\ImageConverter::STATUS_FAILED = 2

protected

Definition at line 36 of file ImageConverter.php.

◆ STATUS_OK

const ILIAS\Filesystem\Util\Convert\ImageConverter::STATUS_OK = 1

protected

Definition at line 35 of file ImageConverter.php.

◆ STATUS_UNKNOWN

const ILIAS\Filesystem\Util\Convert\ImageConverter::STATUS_UNKNOWN = 4

protected

Definition at line 37 of file ImageConverter.php.

The documentation for this class was generated from the following file:

components/ILIAS/Filesystem/src/Util/Convert/ImageConverter.php

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ __construct()

Member Function Documentation

◆ buildOutputStream()

◆ convert()

◆ doCrop()

◆ doResize()

◆ doThumbnail()

◆ factoredResolution()

◆ getStream()

◆ getThrowableIfAny()

◆ handleBackgroundColor()

◆ handleFormatAndQuality()

◆ handleImageDimension()

◆ isOK()

◆ readInputStream()

Field Documentation

◆ $image

◆ $output_stream

◆ $requested_background

◆ $status

◆ $throwable

◆ RESOLUTION

◆ RESOLUTION_FACTOR

◆ STATUS_FAILED

◆ STATUS_OK

◆ STATUS_UNKNOWN
