assClozeTestExport Class Reference

Class for cloze question exports. More...

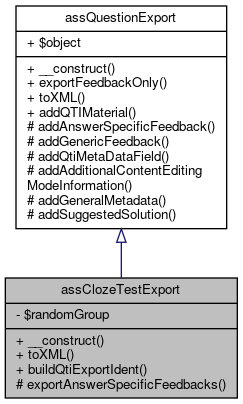

+ Inheritance diagram for assClozeTestExport:

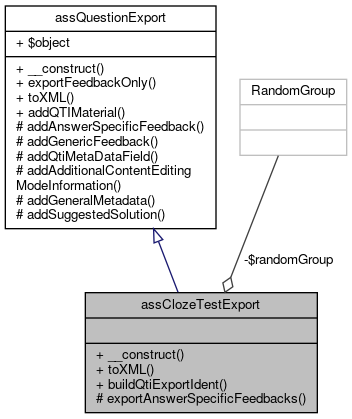

+ Collaboration diagram for assClozeTestExport:

Public Member Functions

 __construct ($object)

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation. More...

 buildQtiExportIdent (ilAssSpecificFeedbackIdentifier $fbIdentifier)

- Public Member Functions inherited from assQuestionExport
 __construct ($a_object)
 assQuestionExport constructor More...

 exportFeedbackOnly ($a_xml_writer)

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation. More...

 addQTIMaterial (ilXmlWriter $a_xml_writer, string $a_material, bool $close_material_tag=true, bool $add_mobs=true)


Protected Member Functions

 exportAnswerSpecificFeedbacks (ilXmlWriter $xmlWriter)

- Protected Member Functions inherited from assQuestionExport
 addAnswerSpecificFeedback (ilXmlWriter $a_xml_writer, $answers)

 addGenericFeedback (ilXmlWriter $a_xml_writer)

 addQtiMetaDataField (ilXmlWriter $a_xml_writer, $fieldLabel, $fieldValue)
 adds a qti meta data field with given name and value to the passed xml writer (xml writer must be in context of opened "qtimetadata" tag) More...

 addAdditionalContentEditingModeInformation (ilXmlWriter $a_xml_writer)
 adds a qti meta data field for ilias specific information of "additional content editing mode" (xml writer must be in context of opened "qtimetadata" tag) More...

 addGeneralMetadata (ilXmlWriter $xmlwriter)

 addSuggestedSolution (ilXmlWriter $writer)


Private Attributes

RandomGroup $randomGroup


Additional Inherited Members

- Data Fields inherited from assQuestionExport
 $object


Detailed Description

Class for cloze question exports.

assClozeTestExport is a class for cloze question exports

Author
Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m
Version
$Id$ \

Definition at line 31 of file class.assClozeTestExport.php.

Constructor & Destructor Documentation

◆ __construct()

assClozeTestExport::__construct (   $object)

Definition at line 35 of file class.assClozeTestExport.php.

References $DIC, assQuestionExport\$object, and ILIAS\GlobalScreen\Provider\__construct().

36  {
37  global $DIC;
38
40
41  $this->randomGroup = $DIC->refinery()->random();
42  }
global $DIC
Definition: shib_login.php:26
__construct(Container $dic, ilPlugin $plugin)
+ Here is the call graph for this function:

Member Function Documentation

◆ buildQtiExportIdent()

assClozeTestExport::buildQtiExportIdent ( ilAssSpecificFeedbackIdentifier  $fbIdentifier)
Parameters
ilAssSpecificFeedbackIdentifier$fbIdentifier
Returns
string

Definition at line 481 of file class.assClozeTestExport.php.

Referenced by exportAnswerSpecificFeedbacks().

481  : string
482  {
483  return "{$fbIdentifier->getQuestionIndex()}_{$fbIdentifier->getAnswerIndex()}";
484  }
+ Here is the caller graph for this function:

◆ exportAnswerSpecificFeedbacks()

assClozeTestExport::exportAnswerSpecificFeedbacks ( ilXmlWriter  $xmlWriter)
protected
Parameters
ilXmlWriter$xmlWriter

Definition at line 453 of file class.assClozeTestExport.php.

References assQuestionExport\addQTIMaterial(), buildQtiExportIdent(), ILIAS\Repository\object(), ilXmlWriter\xmlEndTag(), and ilXmlWriter\xmlStartTag().

Referenced by toXML().

453  : void
454  {
455  $feedbackIdentifierList = new ilAssSpecificFeedbackIdentifierList();
456  $feedbackIdentifierList->load($this->object->getId());
457
458  foreach ($feedbackIdentifierList as $fbIdentifier) {
459  $feedback = $this->object->feedbackOBJ->getSpecificAnswerFeedbackExportPresentation(
460  $this->object->getId(),
461  $fbIdentifier->getQuestionIndex(),
462  $fbIdentifier->getAnswerIndex()
463  );
464
465  $xmlWriter->xmlStartTag("itemfeedback", [
466  "ident" => $this->buildQtiExportIdent($fbIdentifier), "view" => "All"
467  ]);
468
469  $xmlWriter->xmlStartTag("flow_mat");
470  $this->addQTIMaterial($xmlWriter, $feedback);
471  $xmlWriter->xmlEndTag("flow_mat");
472
473  $xmlWriter->xmlEndTag("itemfeedback");
474  }
475  }
addQTIMaterial(ilXmlWriter $a_xml_writer, string $a_material, bool $close_material_tag=true, bool $add_mobs=true)
buildQtiExportIdent(ilAssSpecificFeedbackIdentifier $fbIdentifier)
xmlEndTag(string $tag)
Writes an endtag.
xmlStartTag(string $tag, ?array $attrs=null, bool $empty=false, bool $encode=true, bool $escape=true)
Writes a starttag.

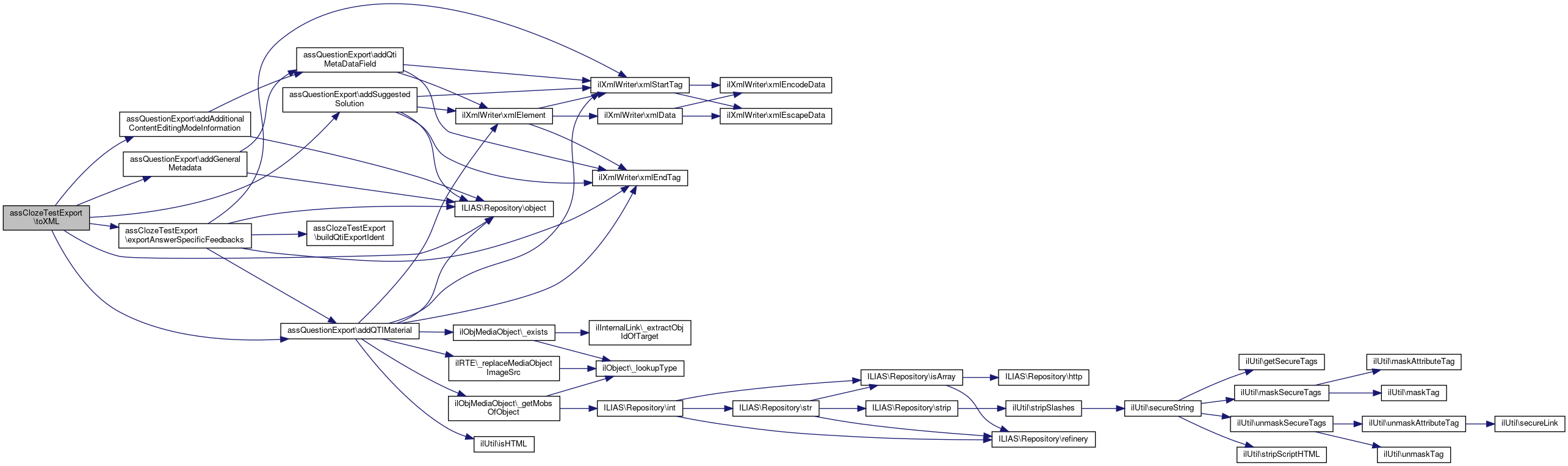

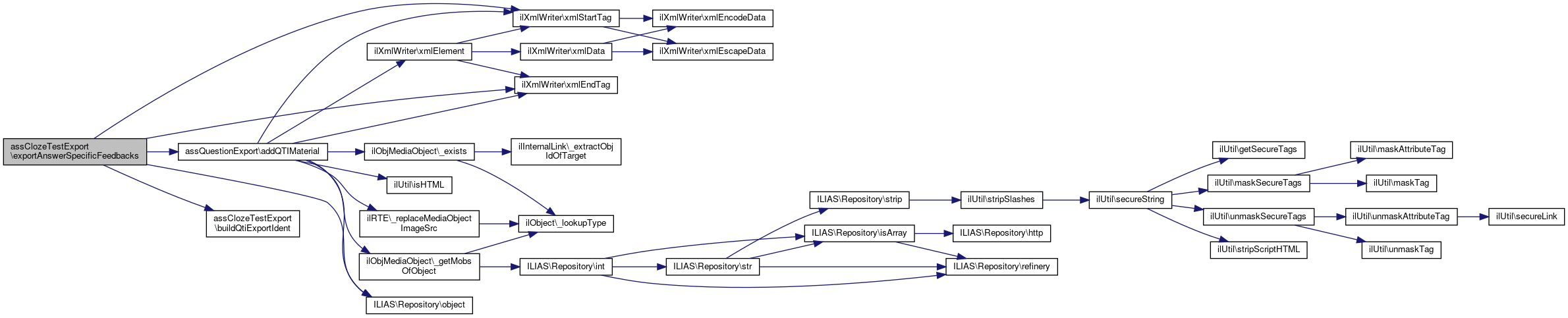

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ toXML()

assClozeTestExport::toXML (   $a_include_header = true,
  $a_include_binary = true,
  $a_shuffle = false,
  $test_output = false,
  $force_image_references = false
)

Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation.

Definition at line 49 of file class.assClozeTestExport.php.

References $DIC, assQuestionExport\addAdditionalContentEditingModeInformation(), assQuestionExport\addGeneralMetadata(), assQuestionExport\addQTIMaterial(), assQuestionExport\addSuggestedSolution(), exportAnswerSpecificFeedbacks(), IL_INST_ID, null, ILIAS\Repository\object(), assClozeGap\TYPE_NUMERIC, assClozeGap\TYPE_SELECT, and assClozeGap\TYPE_TEXT.

49  : string
50  {
51  global $DIC;
52  $ilias = $DIC['ilias'];
53
54  $eval = new EvalMath();
55  $eval->suppress_errors = true;
56
57  $a_xml_writer = new ilXmlWriter();
58  // set xml header
59  $a_xml_writer->xmlHeader();
60  $a_xml_writer->xmlStartTag("questestinterop");
61  $attrs = [
62  "ident" => "il_" . IL_INST_ID . "_qst_" . $this->object->getId(),
63  "title" => $this->object->getTitle(),
64  "maxattempts" => $this->object->getNrOfTries()
65  ];
66  $a_xml_writer->xmlStartTag("item", $attrs);
67  // add question description
68  $a_xml_writer->xmlElement("qticomment", null, $this->object->getComment());
69  $a_xml_writer->xmlStartTag("itemmetadata");
70  $a_xml_writer->xmlStartTag("qtimetadata");
71  $a_xml_writer->xmlStartTag("qtimetadatafield");
72  $a_xml_writer->xmlElement("fieldlabel", null, "ILIAS_VERSION");
73  $a_xml_writer->xmlElement("fieldentry", null, $ilias->getSetting("ilias_version"));
74  $a_xml_writer->xmlEndTag("qtimetadatafield");
75  $a_xml_writer->xmlStartTag("qtimetadatafield");
76  $a_xml_writer->xmlElement("fieldlabel", null, "QUESTIONTYPE");
77  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getQuestionType());
78  $a_xml_writer->xmlEndTag("qtimetadatafield");
79  $a_xml_writer->xmlStartTag("qtimetadatafield");
80  $a_xml_writer->xmlElement("fieldlabel", null, "AUTHOR");
81  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getAuthor());
82  $a_xml_writer->xmlEndTag("qtimetadatafield");
83
84  // additional content editing information
85  $this->addAdditionalContentEditingModeInformation($a_xml_writer);
86  $this->addGeneralMetadata($a_xml_writer);
87
88  $a_xml_writer->xmlStartTag("qtimetadatafield");
89  $a_xml_writer->xmlElement("fieldlabel", null, "textgaprating");
90  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getTextgapRating());
91  $a_xml_writer->xmlEndTag("qtimetadatafield");
92
93  $a_xml_writer->xmlStartTag("qtimetadatafield");
94  $a_xml_writer->xmlElement("fieldlabel", null, "fixedTextLength");
95  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getFixedTextLength());
96  $a_xml_writer->xmlEndTag("qtimetadatafield");
97
98  $a_xml_writer->xmlStartTag("qtimetadatafield");
99  $a_xml_writer->xmlElement("fieldlabel", null, "identicalScoring");
100  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getIdenticalScoring());
101  $a_xml_writer->xmlEndTag("qtimetadatafield");
102
103  $a_xml_writer->xmlStartTag("qtimetadatafield");
104  $a_xml_writer->xmlElement("fieldlabel", null, "feedback_mode");
105  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getFeedbackMode());
106  $a_xml_writer->xmlEndTag("qtimetadatafield");
107
108  $a_xml_writer->xmlStartTag("qtimetadatafield");
109  $a_xml_writer->xmlElement("fieldlabel", null, "combinations");
110  $a_xml_writer->xmlElement("fieldentry", null, base64_encode(json_encode($this->object->getGapCombinations())));
111  $a_xml_writer->xmlEndTag("qtimetadatafield");
112
113  $a_xml_writer->xmlEndTag("qtimetadata");
114  $a_xml_writer->xmlEndTag("itemmetadata");
115
116  // PART I: qti presentation
117  $attrs = [
118  "label" => $this->object->getTitle()
119  ];
120  $a_xml_writer->xmlStartTag("presentation", $attrs);
121  // add flow to presentation
122  $a_xml_writer->xmlStartTag("flow");
123
124  $questionText = $this->object->getQuestion() ? $this->object->getQuestion() : ' ';
125  $this->addQTIMaterial($a_xml_writer, $questionText);
126
127  $text_parts = preg_split("/\[gap.*?\[\/gap\]/", $this->object->getClozeText());
128
129  // add material with question text to presentation
130  for ($i = 0; $i <= $this->object->getGapCount(); $i++) {
131  $this->addQTIMaterial($a_xml_writer, $text_parts[$i]);
132
133  if ($i < $this->object->getGapCount()) {
134  // add gap
135  $gap = $this->object->getGap($i);
136  switch ($gap->getType()) {
138  // comboboxes
139  $attrs = [
140  "ident" => "gap_$i",
141  "rcardinality" => "Single"
142  ];
143  $a_xml_writer->xmlStartTag("response_str", $attrs);
144  if ($i === 0) {
145  $a_xml_writer = $this->addSuggestedSolution($a_xml_writer);
146  }
147
148  $attrs = ["shuffle" => ($gap->getShuffle() ? "Yes" : "No")];
149  $a_xml_writer->xmlStartTag("render_choice", $attrs);
150
151  // add answers
152  foreach ($gap->getItems($this->randomGroup->dontShuffle()) as $answeritem) {
153  $attrs = [
154  "ident" => $answeritem->getOrder()
155  ];
156  $a_xml_writer->xmlStartTag("response_label", $attrs);
157  $a_xml_writer->xmlStartTag("material");
158  $a_xml_writer->xmlElement("mattext", null, $answeritem->getAnswertext());
159  $a_xml_writer->xmlEndTag("material");
160  $a_xml_writer->xmlEndTag("response_label");
161  }
162  $a_xml_writer->xmlEndTag("render_choice");
163  $a_xml_writer->xmlEndTag("response_str");
164  break;
166  // text fields
167  $attrs = [
168  "ident" => "gap_$i",
169  "rcardinality" => "Single"
170  ];
171  $a_xml_writer->xmlStartTag("response_str", $attrs);
172  if ($i === 0) {
173  $a_xml_writer = $this->addSuggestedSolution($a_xml_writer);
174  }
175  $attrs = [
176  "fibtype" => "String",
177  "prompt" => "Box",
178  "columns" => $gap->getMaxWidth(),
179  "maxchars" => $gap->getGapSize()
180  ];
181  $a_xml_writer->xmlStartTag("render_fib", $attrs);
182  $a_xml_writer->xmlEndTag("render_fib");
183  $a_xml_writer->xmlEndTag("response_str");
184  break;
186  // numeric fields
187  $attrs = [
188  "ident" => "gap_$i",
189  "numtype" => "Decimal",
190  "rcardinality" => "Single"
191  ];
192  $a_xml_writer->xmlStartTag("response_num", $attrs);
193  if ($i === 0) {
194  $a_xml_writer = $this->addSuggestedSolution($a_xml_writer);
195  }
196  $answeritem = $gap->getItem(0);
197  $attrs = [
198  "fibtype" => "Decimal",
199  "prompt" => "Box",
200  "columns" => $gap->getMaxWidth(),
201  "maxchars" => $gap->getGapSize()
202  ];
203  if (is_object($answeritem)) {
204  if ($eval->e($answeritem->getLowerBound()) !== false) {
205  $attrs["minnumber"] = $answeritem->getLowerBound();
206  }
207  if ($eval->e($answeritem->getUpperBound()) !== false) {
208  $attrs["maxnumber"] = $answeritem->getUpperBound();
209  }
210  }
211  $a_xml_writer->xmlStartTag("render_fib", $attrs);
212  $a_xml_writer->xmlEndTag("render_fib");
213  $a_xml_writer->xmlEndTag("response_num");
214  break;
215  }
216  }
217  }
218  $a_xml_writer->xmlEndTag("flow");
219  $a_xml_writer->xmlEndTag("presentation");
220
221  // PART II: qti resprocessing
222  $a_xml_writer->xmlStartTag("resprocessing");
223  $a_xml_writer->xmlStartTag("outcomes");
224  $a_xml_writer->xmlStartTag("decvar");
225  $a_xml_writer->xmlEndTag("decvar");
226  $a_xml_writer->xmlEndTag("outcomes");
227
228  // add response conditions
229  for ($i = 0; $i < $this->object->getGapCount(); $i++) {
230  $gap = $this->object->getGap($i);
231  switch ($gap->getType()) {
233  foreach ($gap->getItems($this->randomGroup->dontShuffle()) as $answer) {
234  $attrs = [
235  "continue" => "Yes"
236  ];
237  $a_xml_writer->xmlStartTag("respcondition", $attrs);
238  // qti conditionvar
239  $a_xml_writer->xmlStartTag("conditionvar");
240
241  $attrs = [
242  "respident" => "gap_$i"
243  ];
244  $a_xml_writer->xmlElement("varequal", $attrs, $answer->getAnswertext());
245  $a_xml_writer->xmlEndTag("conditionvar");
246  // qti setvar
247  $attrs = [
248  "action" => "Add"
249  ];
250  $a_xml_writer->xmlElement("setvar", $attrs, $answer->getPoints());
251  // qti displayfeedback
252  $linkrefid = "$i" . "_Response_" . $answer->getOrder();
253  $attrs = [
254  "feedbacktype" => "Response",
255  "linkrefid" => $linkrefid
256  ];
257  $a_xml_writer->xmlElement("displayfeedback", $attrs);
258  $a_xml_writer->xmlEndTag("respcondition");
259  }
260  break;
263  foreach ($gap->getItems($this->randomGroup->dontShuffle()) as $answer) {
264  $attrs = [
265  "continue" => "Yes"
266  ];
267  $a_xml_writer->xmlStartTag("respcondition", $attrs);
268  // qti conditionvar
269  $a_xml_writer->xmlStartTag("conditionvar");
270  $attrs = [
271  "respident" => "gap_$i"
272  ];
273  $a_xml_writer->xmlElement("varequal", $attrs, $answer->getAnswertext());
274  $a_xml_writer->xmlEndTag("conditionvar");
275  // qti setvar
276  $attrs = [
277  "action" => "Add"
278  ];
279  $a_xml_writer->xmlElement("setvar", $attrs, $answer->getPoints());
280  // qti displayfeedback
281  $linkrefid = "$i" . "_Response_" . $answer->getOrder();
282  $attrs = [
283  "feedbacktype" => "Response",
284  "linkrefid" => $linkrefid
285  ];
286  $a_xml_writer->xmlElement("displayfeedback", $attrs);
287  $a_xml_writer->xmlEndTag("respcondition");
288  }
289  break;
290  }
291  }
292
293  $feedback_allcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
294  $this->object->getId(),
295  true
296  );
297  if (strlen($feedback_allcorrect)) {
298  $attrs = [
299  "continue" => "Yes"
300  ];
301  $a_xml_writer->xmlStartTag("respcondition", $attrs);
302  // qti conditionvar
303  $a_xml_writer->xmlStartTag("conditionvar");
304
305  for ($i = 0; $i < $this->object->getGapCount(); $i++) {
306  $gap = $this->object->getGap($i);
307  $indexes = $gap->getBestSolutionIndexes();
308  if ($i > 0) {
309  $a_xml_writer->xmlStartTag("and");
310  }
311  switch ($gap->getType()) {
315  $k = 0;
316  foreach ($indexes as $key) {
317  if ($k > 0) {
318  $a_xml_writer->xmlStartTag("or");
319  }
320  $attrs = [
321  "respident" => "gap_$i"
322  ];
323  $answer = $gap->getItem($key);
324  $a_xml_writer->xmlElement("varequal", $attrs, $answer->getAnswertext());
325  if ($k > 0) {
326  $a_xml_writer->xmlEndTag("or");
327  }
328  $k++;
329  }
330  break;
331  }
332  if ($i > 0) {
333  $a_xml_writer->xmlEndTag("and");
334  }
335  }
336  $a_xml_writer->xmlEndTag("conditionvar");
337  // qti displayfeedback
338  $attrs = [
339  "feedbacktype" => "Response",
340  "linkrefid" => "response_allcorrect"
341  ];
342  $a_xml_writer->xmlElement("displayfeedback", $attrs);
343  $a_xml_writer->xmlEndTag("respcondition");
344  }
345  $feedback_onenotcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
346  $this->object->getId(),
347  false
348  );
349  if (strlen($feedback_onenotcorrect)) {
350  $attrs = [
351  "continue" => "Yes"
352  ];
353  $a_xml_writer->xmlStartTag("respcondition", $attrs);
354  // qti conditionvar
355  $a_xml_writer->xmlStartTag("conditionvar");
356
357  $a_xml_writer->xmlStartTag("not");
358  for ($i = 0; $i < $this->object->getGapCount(); $i++) {
359  $gap = $this->object->getGap($i);
360  $indexes = $gap->getBestSolutionIndexes();
361  if ($i > 0) {
362  $a_xml_writer->xmlStartTag("and");
363  }
364  switch ($gap->getType()) {
368  $k = 0;
369  foreach ($indexes as $key) {
370  if ($k > 0) {
371  $a_xml_writer->xmlStartTag("or");
372  }
373  $attrs = [
374  "respident" => "gap_$i"
375  ];
376  $answer = $gap->getItem($key);
377  $a_xml_writer->xmlElement("varequal", $attrs, $answer->getAnswertext());
378  if ($k > 0) {
379  $a_xml_writer->xmlEndTag("or");
380  }
381  $k++;
382  }
383  break;
384  }
385  if ($i > 0) {
386  $a_xml_writer->xmlEndTag("and");
387  }
388  }
389  $a_xml_writer->xmlEndTag("not");
390  $a_xml_writer->xmlEndTag("conditionvar");
391  // qti displayfeedback
392  $attrs = [
393  "feedbacktype" => "Response",
394  "linkrefid" => "response_onenotcorrect"
395  ];
396  $a_xml_writer->xmlElement("displayfeedback", $attrs);
397  $a_xml_writer->xmlEndTag("respcondition");
398  }
399
400  $a_xml_writer->xmlEndTag("resprocessing");
401
402  // PART III: qti itemfeedback
403  for ($i = 0; $i < $this->object->getGapCount(); $i++) {
404  $gap = $this->object->getGap($i);
405  switch ($gap->getType()) {
409  break;
410  }
411  }
412  $this->exportAnswerSpecificFeedbacks($a_xml_writer);
413
414  if (strlen($feedback_allcorrect)) {
415  $attrs = [
416  "ident" => "response_allcorrect",
417  "view" => "All"
418  ];
419  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
420  // qti flow_mat
421  $a_xml_writer->xmlStartTag("flow_mat");
422  $this->addQTIMaterial($a_xml_writer, $feedback_allcorrect);
423  $a_xml_writer->xmlEndTag("flow_mat");
424  $a_xml_writer->xmlEndTag("itemfeedback");
425  }
426  if (strlen($feedback_onenotcorrect)) {
427  $attrs = [
428  "ident" => "response_onenotcorrect",
429  "view" => "All"
430  ];
431  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
432  // qti flow_mat
433  $a_xml_writer->xmlStartTag("flow_mat");
434  $this->addQTIMaterial($a_xml_writer, $feedback_onenotcorrect);
435  $a_xml_writer->xmlEndTag("flow_mat");
436  $a_xml_writer->xmlEndTag("itemfeedback");
437  }
438
439  $a_xml_writer->xmlEndTag("item");
440  $a_xml_writer->xmlEndTag("questestinterop");
441
442  $xml = $a_xml_writer->xmlDumpMem(false);
443  if (!$a_include_header) {
444  $pos = strpos($xml, "?>");
445  $xml = substr($xml, $pos + 2);
446  }
447  return $xml;
448  }
const IL_INST_ID
Definition: constants.php:40
addQTIMaterial(ilXmlWriter $a_xml_writer, string $a_material, bool $close_material_tag=true, bool $add_mobs=true)
addGeneralMetadata(ilXmlWriter $xmlwriter)
while($session_entry=$r->fetchRow(ilDBConstants::FETCHMODE_ASSOC)) return null
exportAnswerSpecificFeedbacks(ilXmlWriter $xmlWriter)
global $DIC
Definition: shib_login.php:26
addAdditionalContentEditingModeInformation(ilXmlWriter $a_xml_writer)
adds a qti meta data field for ilias specific information of "additional content editing mode" (xml w...
addSuggestedSolution(ilXmlWriter $writer)
+ Here is the call graph for this function:

Field Documentation

◆ $randomGroup

RandomGroup assClozeTestExport::$randomGroup
private

Definition at line 33 of file class.assClozeTestExport.php.


The documentation for this class was generated from the following file:
