ILIAS\Tracking\View\Renderer\Renderer Class Reference

Inheritance diagram for ILIAS\Tracking\View\Renderer\Renderer:

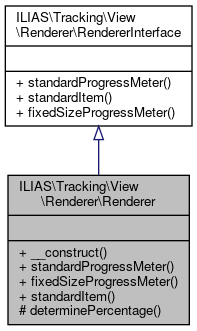

Collaboration diagram for ILIAS\Tracking\View\Renderer\Renderer:

Public Member Functions
	__construct (protected UIServices $ui)
	standardProgressMeter (LPInterface $lp_info)
	fixedSizeProgressMeter (LPInterface $lp_info)
	standardItem (ObjectDataInterface $object_info, PropertyListInterface $property_list, ?URI $title_link=null)
	The optional link is applied to the title. More...

Protected Member Functions
	determinePercentage (LPInterface $lp_info)

Detailed Description

Definition at line 36 of file Renderer.php.

Constructor & Destructor Documentation

__construct()

ILIAS\Tracking\View\Renderer\Renderer::__construct

(

protected UIServices

$ui

)

Definition at line 38 of file Renderer.php.

      {
    }

Member Function Documentation

determinePercentage()

ILIAS\Tracking\View\Renderer\Renderer::determinePercentage ( LPInterface  $lp_info )

protected

Definition at line 85 of file Renderer.php.

References ILIAS\Tracking\View\DataRetrieval\Info\LPInterface\getLPStatus(), ILIAS\Tracking\View\DataRetrieval\Info\LPInterface\getPercentage(), ILIAS\Tracking\View\DataRetrieval\Info\LPInterface\hasPercentage(), and ilLPStatus\LP_STATUS_COMPLETED_NUM.

Referenced by ILIAS\Tracking\View\Renderer\Renderer\fixedSizeProgressMeter(), and ILIAS\Tracking\View\Renderer\Renderer\standardProgressMeter().

     : int {
        $percentage = $lp_info->getPercentage();
        $percentage_by_status = $lp_info->getLPStatus() === ilLPStatus::LP_STATUS_COMPLETED_NUM ? 100 : 0;
        return !$lp_info->hasPercentage() ? $percentage_by_status : $percentage;
    }

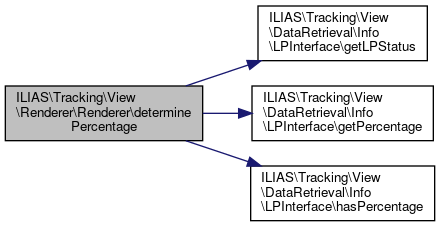

Here is the call graph for this function:

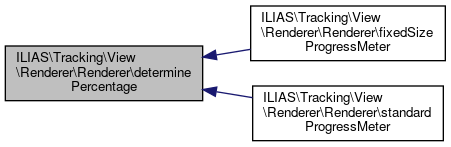

Here is the caller graph for this function:

fixedSizeProgressMeter()

ILIAS\Tracking\View\Renderer\Renderer::fixedSizeProgressMeter

(

LPInterface

$lp_info

)

Implements ILIAS\Tracking\View\Renderer\RendererInterface.

Definition at line 52 of file Renderer.php.

References ILIAS\Tracking\View\Renderer\Renderer\determinePercentage(), and ILIAS\Repository\ui().

     : UIStandardProgressMeter {
        return $this->ui->factory()->chart()->progressMeter()->fixedSize(
            100,
            $this->determinePercentage($lp_info)
        );
    }

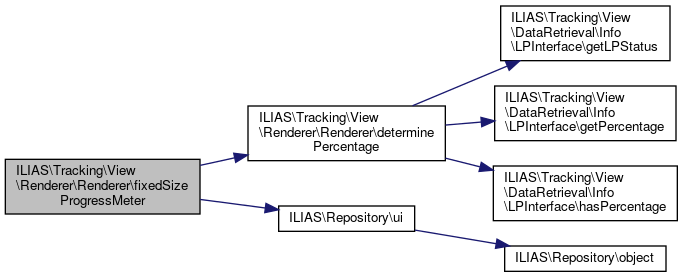

Here is the call graph for this function:

standardItem()

ILIAS\Tracking\View\Renderer\Renderer::standardItem	(	ObjectDataInterface	$object_info,
		PropertyListInterface	$property_list,
		?URI	$title_link = null
	)

The optional link is applied to the title.

Implements ILIAS\Tracking\View\Renderer\RendererInterface.

Definition at line 61 of file Renderer.php.

References ILIAS\Tracking\View\DataRetrieval\Info\ObjectDataInterface\getDescription(), ILIAS\Tracking\View\DataRetrieval\Info\ObjectDataInterface\getTitle(), ILIAS\Tracking\View\DataRetrieval\Info\ObjectDataInterface\getType(), ILIAS\Tracking\View\PropertyList\PropertyListInterface\key(), null, and ILIAS\Repository\ui().

     : UIStandardItem {
        $properties = [];
        foreach ($property_list as $property) {
            $properties[$property_list->key()] = $property;
        }
        $icon = $this->ui->factory()->symbol()->icon()->standard(
            $object_info->getType(),
            $object_info->getType() . " Icon",
            UIIconIcon::MEDIUM
        );
        $title = $object_info->getTitle();
        if ($title_link !== null) {
            $title = $this->ui->factory()->link()->standard($title, (string) $title_link);
        }
        return $this->ui->factory()->item()->standard($title)
            ->withProperties($properties)
            ->withDescription($object_info->getDescription())
            ->withLeadIcon($icon);
    }

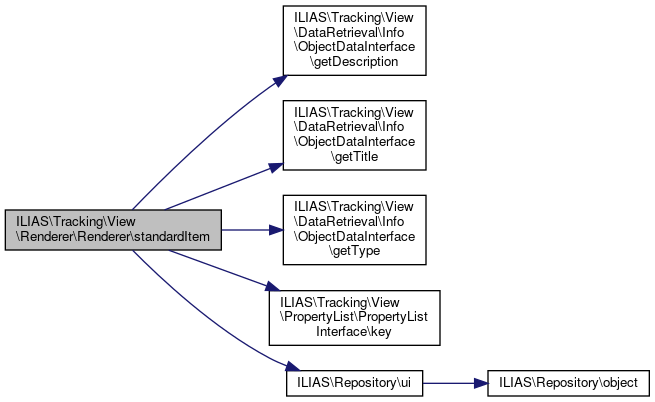

Here is the call graph for this function:

standardProgressMeter()

ILIAS\Tracking\View\Renderer\Renderer::standardProgressMeter

(

LPInterface

$lp_info

)

Implements ILIAS\Tracking\View\Renderer\RendererInterface.

Definition at line 43 of file Renderer.php.

References ILIAS\Tracking\View\Renderer\Renderer\determinePercentage(), and ILIAS\Repository\ui().

     : UIStandardProgressMeter {
        return $this->ui->factory()->chart()->progressMeter()->standard(
            100,
            $this->determinePercentage($lp_info)
        );
    }

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• components/ILIAS/Tracking/classes/View/Renderer/Renderer.php
