LatexRender Class Reference

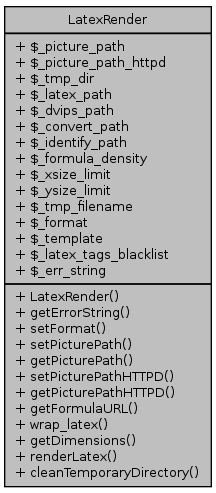

Collaboration diagram for LatexRender:

Public Member Functions
	LatexRender ($picture_path, $picture_path_httpd, $format="math")
	getErrorString ()
	setFormat ($format, $template)
	setPicturePath ($name)
	getPicturePath ()
	setPicturePathHTTPD ($name)
	getPicturePathHTTPD ()
	getFormulaURL ($latex_formula)
	wrap_latex ($latex_text)
	getDimensions ($filename)
	renderLatex ($latex_text)
	cleanTemporaryDirectory ()

Data Fields
	$_picture_path = ""
	$_picture_path_httpd = ""
	$_tmp_dir = "/tmp"
	$_latex_path = "/usr/bin/latex"
	$_dvips_path = "/usr/bin/dvips"
	$_convert_path = "/usr/bin/convert"
	$_identify_path = "/usr/bin/identify"
	$_formula_density = 120
	$_xsize_limit = 1024
	$_ysize_limit = 700
	$_tmp_filename
	$_format = ''
	$_template = ''
	$_latex_tags_blacklist
	$_err_string = ''

Member Function Documentation

cleanTemporaryDirectory

(

)

Cleans the temporary directory

getDimensions

(

$filename

)

/** returns the dimensions of a picture file using 'identify' of the imagemagick tools. The resulting array can be adressed with either $dim[0] / $dim[1] or $dim["x"] / $dim["y"]

Parameters

string

path to a picture

Returns

array containing the picture dimensions

getErrorString

(

)

getFormulaURL

(

$latex_formula

)

Tries to match the LaTeX Formula given as argument against the formula cache. If the picture has not been rendered before, it'll try to render the formula and drop it in the picture cache directory.

Parameters

string

formula in LaTeX format

Returns

the webserver based URL to a picture in PNG format which contains the requested LaTeX formula. If anything fails, the resultvalue is false.

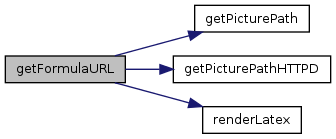

Here is the call graph for this function:

getPicturePath

(

)

Picture path Mutator function

Returns

the current picture path

Here is the caller graph for this function:

getPicturePathHTTPD

(

)

Picture path HTTPD Mutator function

Returns

the current picture path

Here is the caller graph for this function:

LatexRender	(		$picture_path,
			$picture_path_httpd,
			$format = "math"
	)

Initializes the class

Parameters

string	path where the rendered pictures should be stored
string	same path, but from the httpd chroot

renderLatex

(

$latex_text

)

Renders a LaTeX formula by the using the following method:

• write the formula into a wrapped tex-file in a temporary directory and change to it
• Create a DVI file using latex (tetex)
• Convert DVI file to Postscript (PS) using dvips (tetex)
• convert, trim and add transparancy by using 'convert' from the imagemagick package.
• Save the resulting image to the picture cache directory using an md5 hash as filename. Already rendered formulas can be found directly this way.

Parameters

string

LaTeX formula

Returns

true if the picture has been successfully saved to the picture cache directory

Here is the caller graph for this function:

setFormat	(		$format,
			$template
	)

Format mutator function

Parameters

string

sets the current format

setPicturePath

(

$name

)

Picture path Mutator function

Parameters

string

sets the current picture path to a new location

setPicturePathHTTPD

(

$name

)

Picture path HTTPD Mutator function

Parameters

string

sets the current httpd picture path to a new location

wrap_latex

(

$latex_text

)

wraps a minimalistic LaTeX document around the formula and returns a string containing the whole document as string. Customize if you want other fonts for example.

Parameters

string

formula in LaTeX format

Returns

minimalistic LaTeX document containing the given formula

Field Documentation

$_convert_path = "/usr/bin/convert"

$_dvips_path = "/usr/bin/dvips"

$_err_string = ''

$_format = ''

$_formula_density = 120

$_identify_path = "/usr/bin/identify"

$_latex_path = "/usr/bin/latex"

$_latex_tags_blacklist

Initial value:

 array(
    "include","def","command","loop","repeat","open","toks","output","input",
    "catcode","mathcode","name","item","section","%","^^","\$\$","mbox","csname","newhelp","makeatletter"
    )

$_picture_path = ""

$_picture_path_httpd = ""

$_template = ''

$_tmp_dir = "/tmp"

$_tmp_filename

$_xsize_limit = 1024

$_ysize_limit = 700

---

The documentation for this class was generated from the following file:

• lib/classes/latexrender.class.php
