ExportPDF Class Reference

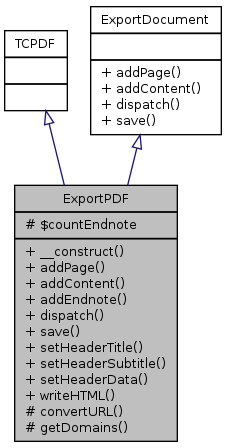

Inheritance diagram for ExportPDF:

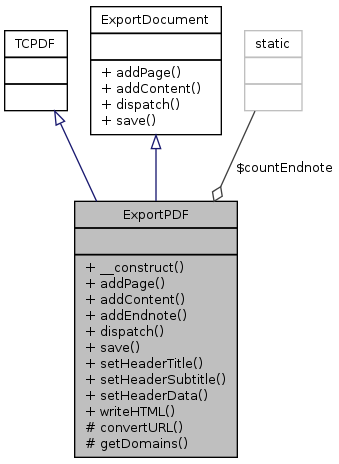

Collaboration diagram for ExportPDF:

Public Member Functions
	__construct ($orientation= 'P', $unit= 'mm', $format= 'A4', $unicode=false, $encoding= 'ISO-8859-1')
	addPage ($orientation= '', $format= '', $keepmargins=false, $tocpage=false)
	addContent ($content)
	addEndnote ($commented_by, $text)
	dispatch ($filename)
	save ($filename, $folder_id=null)
	setHeaderTitle ($title)
	setHeaderSubtitle ($subtitle)
	setHeaderData ($ln= '', $lw=0, $ht= '', $hs= '')
	writeHTML ($html, $ln=true, $fill=false, $reseth=false, $cell=false, $align= '')
Public Member Functions inherited from ExportDocument
	addPage ()

Protected Member Functions
	convertURL ($url)
	getDomains ()

Static Protected Attributes
static	$countEndnote = 0

Detailed Description

Class to create an PDF by putting in Stud.IP-formatted code. Usage:

$doc = new ExportPDF(); $doc->addPage(); $doc->addContent('Hallo, %wir%% benutzen :studip:-Formatierung.'); $doc->dispatch("test_pdf"); //lines following dispatch won't be accessed anymor, because dispatch //cancels all other output.

Constructor & Destructor Documentation

__construct	(		$orientation = 'P',
			$unit = 'mm',
			$format = 'A4',
			$unicode = false,
			$encoding = 'ISO-8859-1'
	)

Create a basic document (without any content so far).

Parameters

string	$orientation	page orientation. Possible values are (case insensitive): P or Portrait (default) L or Landscape '' (empty string) for automatic orientation
string	$unit	User measure unit. Possible values are: pt: point mm: millimeter (default) cm: centimeter in: inch A point equals 1/72 of inch, that is to say about 0.35 mm (an inch being 2.54 cm). This is a very common unit in typography; font sizes are expressed in that unit.
mixed	$format	The format used for pages. It can be either: one of the string values specified at getPageSizeFromFormat() or an array of parameters specified at setPageFormat().
boolean	$unicode	TRUE means that the input text is unicode (default = false)
String	$encoding	charset encoding; default is ISO-8859-1

Here is the call graph for this function:

Member Function Documentation

addContent

(

$content

)

Adding Stud.IP formatted code to the current page of the pdf. Remember to call addPage first.

Parameters

string

$content

Stud.IP formatted code

Implements ExportDocument.

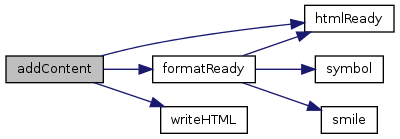

Here is the call graph for this function:

addEndnote	(		$commented_by,
			$text
	)

Parameters

<type>	$commented_by
<type>	$text

Returns

<type>

addPage	(		$orientation = '',
			$format = '',
			$keepmargins = false,
			$tocpage = false
	)

Adding a new page to the document. This page can contain even more content than for just one page. The pagebreak will be managed by tcpdf. But this function will create a new pagebreak. Needs to be called at least once to addContent.

Parameters

string	$orientation	page orientation. Possible values are (case insensitive): P or Portrait (default) L or Landscape '' (empty string) for automatic orientation
mixed	$format	The format used for pages. It can be either: one of the string values specified at getPageSizeFromFormat() or an array of parameters specified at setPageFormat().
boolean	$keepmargins	if true overwrites the default page margins with the current margins
boolean	$tocpage	if true set the tocpage state to true (the added page will be used to display Table Of Content).

convertURL (   $url )

protected

Converts URLs in images so that the webserver can access them without proxy.

Parameters

string

$url

of an image

Returns

string " src=\"".$converted_url."""

Here is the call graph for this function:

dispatch

(

$filename

)

Dispatches the PDF to the user and cancels all other output of Stud.IP.

Parameters

string

$filename

name of the future file without the extension.

Implements ExportDocument.

getDomains ( )

protected

finds an array with all domains of this Stud.IP and stores it in $this->domains

Here is the caller graph for this function:

save	(		$filename,
			$folder_id = null
	)

Saves the content as a file in the filesystem and returns a Stud.IP-document object.

Parameters

string	$filename	name of the future file without the extension.
mixed	$folder_id	md5-id of a given folder in database or null for nothing

Returns

StudipDocument of the exported file or false if creation of StudipDocument failed.

Implements ExportDocument.

Here is the call graph for this function:

setHeaderData	(		$ln = '',
			$lw = 0,
			$ht = '',
			$hs = ''
	)

Creates a header for each page with a custom logo defined

Parameters

string	$ln	header image logo
int	$lw	header image logo width in mm
string	$ht	string to print as title on document header
string	$hs	string to print on document header

Here is the call graph for this function:

Here is the caller graph for this function:

setHeaderSubtitle

(

$subtitle

)

Sets the subtitle of the header of each page.

Parameters

string

$subtitle

subtitle of the head

Here is the call graph for this function:

setHeaderTitle

(

$title

)

Sets the title of the header of each page.

Parameters

string

$title

title of the head

Here is the call graph for this function:

writeHTML	(		$html,
			$ln = true,
			$fill = false,
			$reseth = false,
			$cell = false,
			$align = ''
	)

Overrides writeHTML-method of tcpdf to convert image-urls, so that they aren't accessed via proxy but directly.

Parameters

string	$html	text to display
boolean	$ln	if true add a new line after text (default = true)
boolean	$fill	Indicates if the background must be painted (true) or transparent (false).
boolean	$reseth	if true reset the last cell height (default false).
boolean	$cell	if true add the current left (or right for RTL) padding to each Write (default false).
string	$align	Allows to center or align the text. Possible values are: L : left align C : center R : right align '' : empty string : left for LTR or right for RTL

Here is the caller graph for this function:

Field Documentation

$countEndnote = 0

staticprotected

---

The documentation for this class was generated from the following file:

• lib/classes/exportdocument/ExportPDF.class.php
