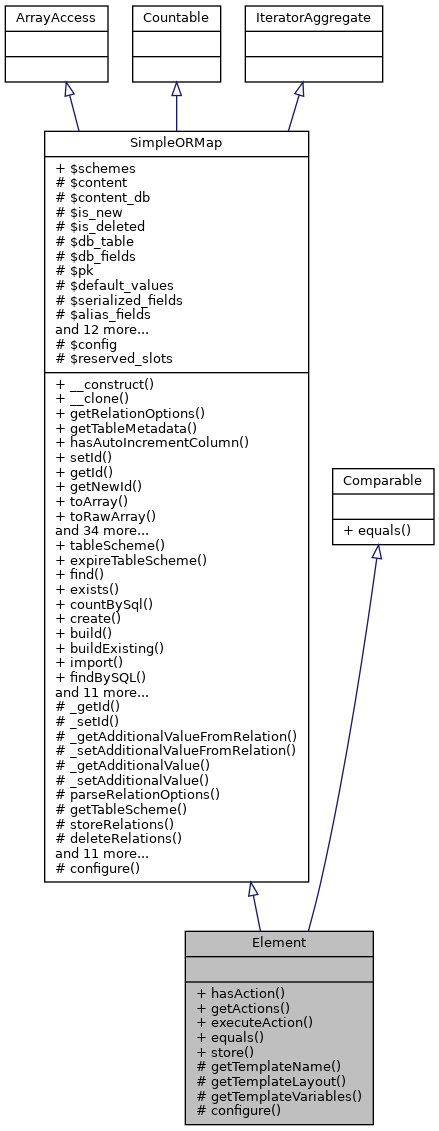

Inheritance diagram for Element:

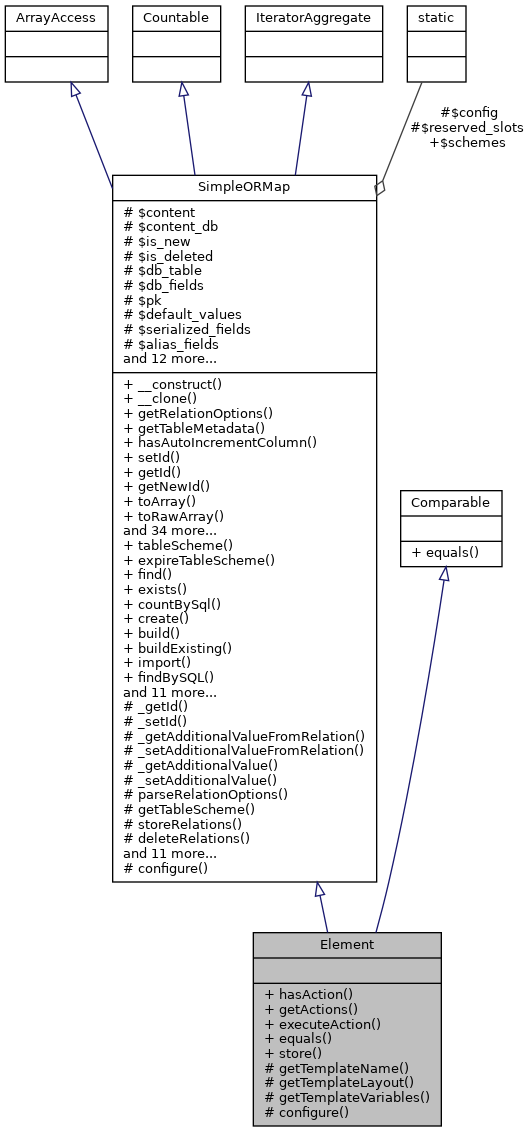

Collaboration diagram for Element:

Public Member Functions
	hasAction ($action)

	getActions (Range $range, $scope)

	executeAction ($action, array $parameters, $admin_mode=false)

	equals ($other)

	store ()

Public Member Functions inherited from SimpleORMap
	__construct ($id=null)

	__clone ()

	getRelationOptions ($relation)

	getTableMetadata ()

	hasAutoIncrementColumn ()

	setId ($id)

	getId ()

	getNewId ()

	toArray ($only_these_fields=null)

	toRawArray ($only_these_fields=null)

	toArrayRecursive ($only_these_fields=null)

	getValue ($field)

	getRelationValue ($relation, $field)

	getDefaultValue ($field)

	setValue ($field, $value)

	__get ($field)

	__set ($field, $value)

	__isset ($field)

	offsetExists ($offset)

	offsetGet ($offset)

	offsetSet ($offset, $value)

	offsetUnset ($offset)

	getIterator ()

	count ()

	isField ($field)

	isAdditionalField ($field)

	isAliasField ($field)

	isI18nField ($field)

	setData ($data, $reset=false)

	isNew ()

	isDeleted ()

	setNew ($is_new)

	getWhereQuery ()

	restore ()

	store ()

	triggerChdate ()

	delete ()

	isDirty ()

	isFieldDirty ($field)

	revertValue ($field)

	getPristineValue ($field)

	initRelation ($relation)

	resetRelation ($relation)

	cleanup ()

	equals ($other)

Protected Member Functions
	getTemplateName ()

	getTemplateLayout ()

	getTemplateVariables (array $variables=[])

Protected Member Functions inherited from SimpleORMap
	_getId ($field)

	_setId ($field, $value)

	_getAdditionalValueFromRelation ($field)

	_setAdditionalValueFromRelation ($field, $value)

	_getAdditionalValue ($field)

	_setAdditionalValue ($field, $value)

	parseRelationOptions ($type, $name, $options)

	getTableScheme ()

	storeRelations ($only_these=null)

	deleteRelations ()

	initializeContent ()

	applyCallbacks ($type)

	registerCallback ($types, $cb)

	unregisterCallback ($types, $cb)

	cbAutoIncrementColumn ($type)

	cbAutoKeyCreation ()

	cbNotificationMapper ($cb_type)

	cbAfterInitialize ($cb_type)

	setSerializedValue ($field, $value)

	setI18nValue ($field, $value)

	cbI18N ($type)

Static Protected Member Functions
static	configure ($config=[])

static	configure ($config=array())

Additional Inherited Members
Static Public Member Functions inherited from SimpleORMap
static	tableScheme ($db_table)

static	expireTableScheme ()

static	find ($id)

static	exists ($id)

static	countBySql ($sql=1, $params=array())

static	create ($data)

static	build ($data, $is_new=true)

static	buildExisting ($data)

static	import ($data)

static	findBySQL ($sql, $params=array())

static	findByObject (SimpleORMap $object)

static	findOneBySQL ($where, $params=array())

static	findThru ($foreign_key_value, $options)

static	findEachBySQL ($callable, $sql, $params=array())

static	findMany ($pks=array(), $order='', $order_params=array())

static	findEachMany ($callable, $pks=array(), $order='', $order_params=array())

static	findAndMapBySQL ($callable, $where, $params=array())

static	findAndMapMany ($callable, $pks=array(), $order='', $order_params=array())

static	deleteBySQL ($where, $params=array())

static	toObject ($id_or_object)

static	__callStatic ($name, $arguments)

Static Public Attributes inherited from SimpleORMap
static	$schemes = null

Protected Attributes inherited from SimpleORMap
	$content = array()

	$content_db = array()

	$is_new = true

	$is_deleted = false

	$db_table = ''

	$db_fields = null

	$pk = null

	$default_values = array()

	$serialized_fields = array()

	$alias_fields = array()

	$i18n_fields = array()

	$additional_fields = array()

	$relations = array()

	$has_many = array()

	$has_one = array()

	$belongs_to = array()

	$has_and_belongs_to_many = array()

	$registered_callbacks

	$known_slots = array()

	$notification_map = array()

	$additional_data = array()

	$getter_setter_map = array()

Static Protected Attributes inherited from SimpleORMap
static	$config = array()

static	$reserved_slots = array('value','newid','iterator','tablemetadata', 'relationvalue','wherequery','relationoptions','data','new','id')

Detailed Description

This model represents a widget element that is positioned in a container and contains a widget plus additional settings/options.

Author: Jan-Hendrik Willms tleil.nosp@m.ax+s.nosp@m.tudip.nosp@m.@gma.nosp@m.il.co.nosp@m.m @license GPL2 or any later version

Since: Stud.IP 4.1

Member Function Documentation

◆ configure()

static configure ( $config = [] )

staticprotected

Configures the model.

Parameters

array $config Configuration array

Reimplemented from SimpleORMap.

◆ equals()

equals ( $other )

Returns whether this element is equal to another element. Two elements are equal if all of the following conditions match:

Same widget (by id/type)
Same width and height
Same options/settings

Parameters

Element $other Element to test equality against

Returns: bool

Implements Comparable.

◆ executeAction()

executeAction	(		$action,
		array	$parameters,
			$admin_mode = `false`
	)

Executes an action on this element/widget. Since the execution is always invoked by a REST API call, the method is given the routemap that invoked the action call.

Parameters

string	$action	Action to execute
array	$parameters	Parameters to call the action method with
	mixed	Result of the action call

◆ getActions()

getActions	(	Range	$range,
			$scope
	)

Returns a list of actions that the element/widget supports. Each action is defined by a label and a callback and may have additional attributes for the html representation of the action.

Returns: array of WidgetAction

◆ getTemplateLayout()

getTemplateLayout ( )

protected

Returns the layout for this element's template.

Returns: Flexi_Template

Here is the call graph for this function:

◆ getTemplateName()

getTemplateName ( )

protected

Returns the template name for this element.

Returns: string

◆ getTemplateVariables()

getTemplateVariables ( array $variables = [] )

protected

Returns neccessary variables to render the element template.

Parameters

array $variables Optional additional variables

Returns: array of variables

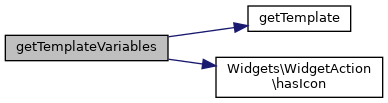

Here is the call graph for this function:

◆ hasAction()

hasAction ( $action )

Returns whether this element/widget supports the requested action.

Parameters

String $action Requested action

Returns: bool

◆ store()

store ( )

Stores this element. If the element was actually stored, store the connected container as well. This is neccessary to correctly adjust the parent id of the conainer.

Returns: int number of changed rows

Reimplemented from SimpleORMap.

The documentation for this class was generated from the following file:

lib/models/Widgets/Element.php
