Widget Class Reference

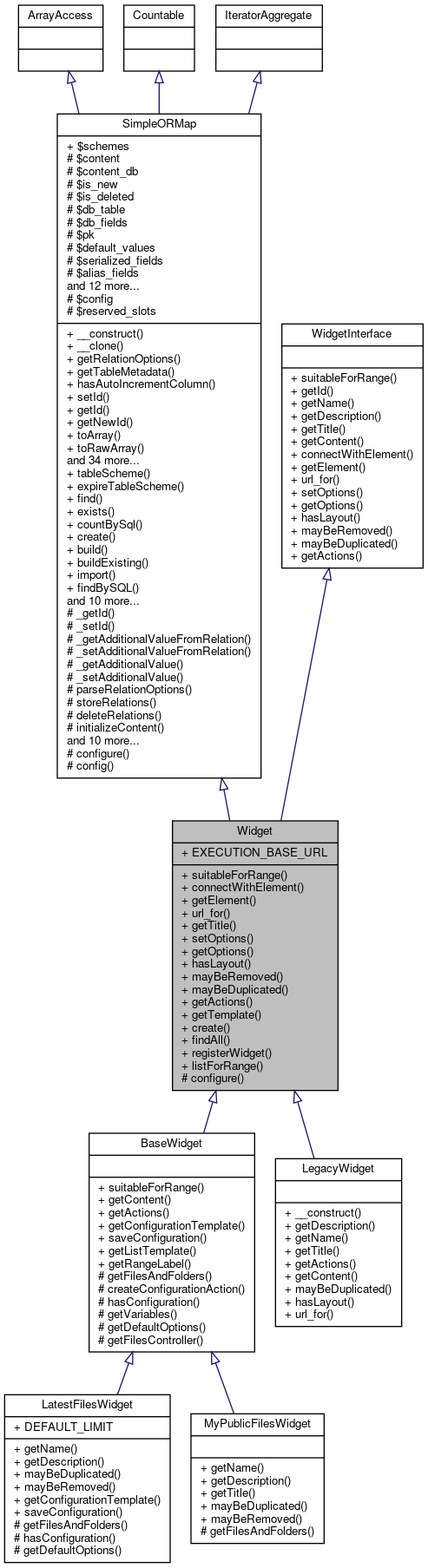

Inheritance diagram for Widget:

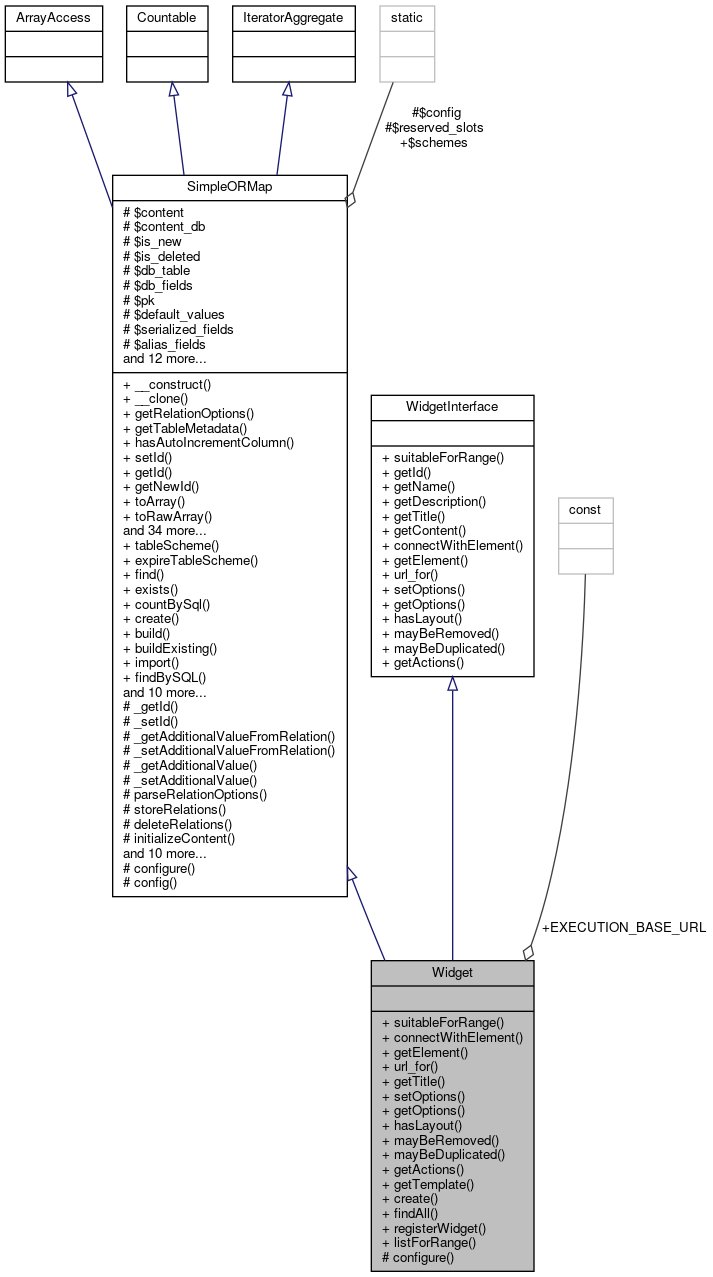

Collaboration diagram for Widget:

Public Member Functions
	suitableForRange (Range $range, $scope=null)
	connectWithElement (Element $element)
	getElement ()
	url_for ($to, $parameters=[])
	getTitle ()
	setOptions (array $options=[])
	getOptions ()
	hasLayout ()
	mayBeRemoved ()
	mayBeDuplicated ()
	getActions (Range $range, $scope)
	getTemplate ($name, array $variables=[])
Public Member Functions inherited from SimpleORMap
	__construct ($id=null)
	__clone ()
	getRelationOptions ($relation)
	getTableMetadata ()
	hasAutoIncrementColumn ()
	setId ($id)
	getId ()
	getNewId ()
	toArray ($only_these_fields=null)
	toRawArray ($only_these_fields=null)
	toArrayRecursive ($only_these_fields=null)
	getValue ($field)
	getRelationValue ($relation, $field)
	getDefaultValue ($field)
	setValue ($field, $value)
	__get ($field)
	__set ($field, $value)
	__isset ($field)
	offsetExists ($offset)
	offsetGet ($offset)
	offsetSet ($offset, $value)
	offsetUnset ($offset)
	getIterator ()
	count ()
	isField ($field)
	isAdditionalField ($field)
	isAliasField ($field)
	isI18nField ($field)
	setData ($data, $reset=false)
	isNew ()
	isDeleted ()
	setNew ($is_new)
	getWhereQuery ()
	restore ()
	store ()
	triggerChdate ()
	delete ()
	isDirty ()
	isFieldDirty ($field)
	revertValue ($field)
	getPristineValue ($field)
	initRelation ($relation)
	resetRelation ($relation)
	cleanup ()
Public Member Functions inherited from WidgetInterface
	getId ()
	getName ()
	getDescription ()
	getContent (Range $range, $scope)

Static Public Member Functions
static	create ($id, Range $range_to_check=null)
static	findAll ()
static	registerWidget (Widget $widget)
static	listForRange (Range $range, $scope=null)
Static Public Member Functions inherited from SimpleORMap
static	tableScheme ($db_table)
static	expireTableScheme ()
static	find ($id)
static	exists ($id)
static	countBySql ($sql=1, $params=array())
static	create ($data)
static	build ($data, $is_new=true)
static	buildExisting ($data)
static	import ($data)
static	findBySQL ($sql, $params=array())
static	findOneBySQL ($where, $params=array())
static	findThru ($foreign_key_value, $options)
static	findEachBySQL ($callable, $sql, $params=array())
static	findMany ($pks=array(), $order='', $order_params=array())
static	findEachMany ($callable, $pks=array(), $order='', $order_params=array())
static	findAndMapBySQL ($callable, $where, $params=array())
static	findAndMapMany ($callable, $pks=array(), $order='', $order_params=array())
static	deleteBySQL ($where, $params=array())
static	toObject ($id_or_object)
static	__callStatic ($name, $arguments)

Data Fields
const	EXECUTION_BASE_URL = 'dispatch.php/widgets/execute'

Static Protected Member Functions
static	configure ($config=[])
Static Protected Member Functions inherited from SimpleORMap
static	configure ($config=array())
static	config ($key)

Additional Inherited Members
Static Public Attributes inherited from SimpleORMap
static	$schemes = null
Protected Member Functions inherited from SimpleORMap
	_getId ($field)
	_setId ($field, $value)
	_getAdditionalValueFromRelation ($field)
	_setAdditionalValueFromRelation ($field, $value)
	_getAdditionalValue ($field)
	_setAdditionalValue ($field, $value)
	parseRelationOptions ($type, $name, $options)
	storeRelations ($only_these=null)
	deleteRelations ()
	initializeContent ()
	applyCallbacks ($type)
	registerCallback ($types, $cb)
	unregisterCallback ($types, $cb)
	cbAutoIncrementColumn ($type)
	cbAutoKeyCreation ()
	cbNotificationMapper ($cb_type)
	cbAfterInitialize ($cb_type)
	setSerializedValue ($field, $value)
	setI18nValue ($field, $value)
	cbI18N ($type)
Protected Attributes inherited from SimpleORMap
	$content = array()
	$content_db = array()
	$is_new = true
	$is_deleted = false
	$db_table = ''
	$db_fields = null
	$pk = null
	$default_values = array()
	$serialized_fields = array()
	$alias_fields = array()
	$i18n_fields = array()
	$additional_fields = array()
	$relations = array()
	$has_many = array()
	$has_one = array()
	$belongs_to = array()
	$has_and_belongs_to_many = array()
	$registered_callbacks = array()
	$known_slots = array()
	$notification_map = array()
	$additional_data = array()
	$getter_setter_map = array()
Static Protected Attributes inherited from SimpleORMap
static	$config = array()
static	$reserved_slots = array('value','newid','iterator','tablemetadata', 'relationvalue','wherequery','relationoptions','data','new','id')

Detailed Description

This model represents an abstract widget.

Author

Jan-Hendrik Willms tleil.nosp@m.ax+s.nosp@m.tudip.nosp@m.@gma.nosp@m.il.co.nosp@m.m GPL2 or any later version

Since

Stud.IP 4.1

Member Function Documentation

configure()

static configure (   $config = [] )

staticprotected

Configures the model.

Parameters

array

$config

Configuration array

Here is the call graph for this function:

connectWithElement()

connectWithElement

(

Element

$element

)

Connect this widget with an actual element of a container.

Parameters

Element

$element

Element to connect with

Implements WidgetInterface.

create()

static create (   $id, Range  $range_to_check = null  )

static

Creates a widget by id.

Parameters

int	$id	Id of the widgtet
mixed	$range	Optional range to check suitability for

Returns

Widget subclass

Exceptions

Exception

when widget is not enabled and $allow_disabled is false

Here is the call graph for this function:

findAll()

static findAll ( )

static

Return all available widgets.

Returns

array of widget instances

getActions()

getActions	(	Range	$range,
			$scope
	)

Returns a list of possible widget actions.

Returns

array of WidgetAction

Implements WidgetInterface.

getElement()

getElement

(

)

Returns the connected element of this widget.

Returns

Element or null if no element has been set.

Implements WidgetInterface.

getOptions()

getOptions

(

)

Returns the options for this widget instance. This might and should be overwritten by a subclass.

Returns

mixed

Implements WidgetInterface.

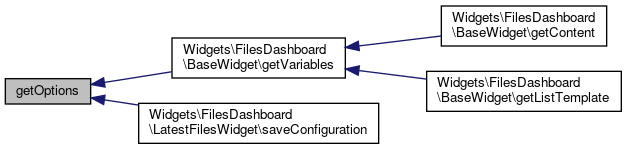

Here is the caller graph for this function:

getTemplate()

getTemplate	(		$name,
		array	$variables = []
	)

Opens and returns a template. Optionally, variables can be assigned.

Parameters

string	$name	Name of the template
array	$variables	Optional initial variables

Returns

Flexi_Template

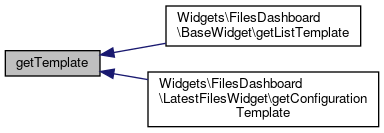

Here is the caller graph for this function:

getTitle()

getTitle

(

)

Returns the title of the widgets. Defaults to specified name.

Returns

string

Implements WidgetInterface.

Here is the caller graph for this function:

hasLayout()

hasLayout

(

)

Returns whether the widget should have a layout or not.

Returns

bool

Todo:

Really neccessary? Seems to got lost in development

Implements WidgetInterface.

listForRange()

static listForRange ( Range  $range,   $scope = null  )

static

Lists all available widgets for a certain range.

Parameters

Range	$range	Range to list widgets for
mixed	$scope	Optional scope to test for

Returns

array of widgets

Todo:

Permission check

Here is the call graph for this function:

mayBeDuplicated()

mayBeDuplicated

(

)

Returns whether this widget instance may be duplicated or used more than once in a container.

Returns

bool

Implements WidgetInterface.

mayBeRemoved()

mayBeRemoved

(

)

Returns whether this widget instance may be removed from a container.

Returns

bool

Implements WidgetInterface.

registerWidget()

static registerWidget ( Widget  $widget )

static

Registers a widget for use.

Parameters

Widget

$widget

Widget to register

Returns

Widget subclass (copy of given widget)

Here is the call graph for this function:

setOptions()

setOptions

(

array

$options = []

)

Sets the defined options for this widget instance. This method is usually only called when a widget container is loaded and the elements are initialized.

Parameters

array

$options

Implements WidgetInterface.

Here is the caller graph for this function:

suitableForRange()

suitableForRange	(	Range	$range,
			$scope = null
	)

Returns whether this widget is suitable for the given range and scope.

Parameters

Range	$range	Range to check
mixed	$scope	Scope to check (may be null)

Returns

bool indicating whether this widget is suitable

Implements WidgetInterface.

url_for()

url_for	(		$to,
			$parameters = []
	)

Returns a url for an action that is related to this widget. This method is variadic in such a way that you may pass as many strings as you like which will be concatenated to a valid url chunk. Only if the last passed parameter is an array, it will be used as the parameters for the generated url.

Parameters

String	$to	URL chunk to generate complete url for
array	$parameters	Additional url parameters

Implements WidgetInterface.

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

EXECUTION_BASE_URL

const EXECUTION_BASE_URL = 'dispatch.php/widgets/execute'

---

The documentation for this class was generated from the following file:

• lib/models/Widgets/Widget.php
