Icon Class Reference

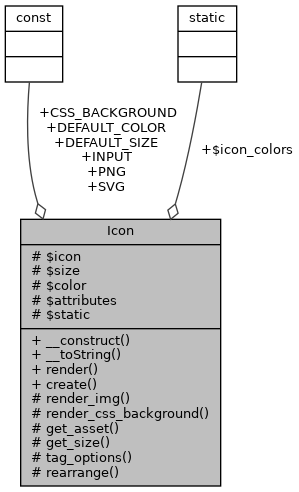

Collaboration diagram for Icon:

Public Member Functions
	__construct ($icon, $size=Icon::DEFAULT_SIZE, $color=Icon::DEFAULT_COLOR, $attributes=array(), $static=false)
	__toString ()
	render ($type=Icon::SVG)

Static Public Member Functions
static	create ($source, $size=Icon::DEFAULT_SIZE, $color=Icon::DEFAULT_COLOR, $icon=false, $attributes=array())

Data Fields
const	SVG = 1
const	PNG = 2
const	CSS_BACKGROUND = 4
const	INPUT = 256
const	DEFAULT_SIZE = 16
const	DEFAULT_COLOR = 'blue'

Static Public Attributes
static	$icon_colors

Protected Member Functions
	render_img ($type, $as_input)
	render_css_background ()
	get_asset ($type)
	get_size ()
	tag_options ($options)

Static Protected Member Functions
static	rearrange ($input, $defaults=array(), $extra=false)

Protected Attributes
	$icon
	$size = null
	$color = null
	$attributes = array()
	$static = false

Detailed Description

Icon class is used to create icon objects which can be rendered as svg or png. Output will be html. Optionally, the icon can be rendered as a css background.

Author

Jan-Hendrik Willms tleil.nosp@m.ax+s.nosp@m.tudip.nosp@m.@gma.nosp@m.il.co.nosp@m.m

Copyright

Stud.IP Core Group @license GPL2 or any later version

Since

3.2

Constructor & Destructor Documentation

__construct()

__construct	(		$icon,
			$size = Icon::DEFAULT_SIZE,
			$color = Icon::DEFAULT_COLOR,
			$attributes = array(),
			$static = false
	)

Constructor of the object.

Parameters

String	$source	Name of the icon, may contain a mixed definition like 'icons/16/blue/add/seminar.png' due to compatibility issues with Assets::img().
int	$size	Size of the icon, defaults to fixed default icon size
String	$color	Color of the icon, defaults to fixed default icon color
Array	$attributes	Additional attributes to pass the rendered output
bool	$static	Defines whether the icon is static (not from assets folder)

Member Function Documentation

__toString()

__toString

(

)

Function to be called whenever the object is converted to string.

Returns

String representation

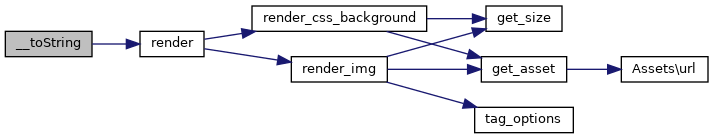

Here is the call graph for this function:

create()

static create (   $source,   $size = Icon::DEFAULT_SIZE,   $color = Icon::DEFAULT_COLOR,   $icon = false,   $attributes = array()  )

static

Parameters

String	$source	Name of the icon, may contain a mixed definition like 'icons/16/blue/add/seminar.png' due to compatibility issues with Assets::img().
int	$size	Size of the icon, defaults to fixed default icon size
String	$color	Color of the icon, defaults to fixed default icon color
mixed	$icon	Extra icon to apply to the icon, default is none
Array	$attributes	Additional attributes to pass the rendered output

Returns

Icon object

Here is the call graph for this function:

Here is the caller graph for this function:

get_asset()

get_asset (   $type )

protected

Get the correct asset for the icon.

Parameters

int

$type

Either svg or png, no other assets are defined.

Returns

String containing the url of the corresponding asset

Exceptions

Exception

if an invalid type was passed

Here is the call graph for this function:

Here is the caller graph for this function:

get_size()

get_size ( )

protected

Get the size of the icon. If a size was passed as a parameter and inside the attributes array during icon construction, the size from the attributes will be used.

Returns

int Size of the icon in pixels

Here is the caller graph for this function:

rearrange()

static rearrange (   $input,   $defaults = array(),   $extra = false  )

staticprotected

Rearranges passed parameters. Tries to detect given size, color and extra icon.

Parameters

mixed	$input	Either a relative or absolute url or an array
Array	$defaults	Default values for size, color and extra icon
mixed	$extra	Extra icon to apply to the icon, defaults to none

Returns

Array with the guessed values

Here is the call graph for this function:

Here is the caller graph for this function:

render()

render

(

$type = Icon::SVG

)

Renders the icon as svg, png or css background.

Parameters

int

$type

Defines in which manner the icon should be rendered, defaults to svg.

Returns

String containing the rendered output

Exceptions

Exception

if no valid type was passed

Here is the call graph for this function:

Here is the caller graph for this function:

render_css_background()

render_css_background ( )

protected

Renders the icon as a set of css background rules.

Returns

String containing the html representation for css backgrounds

Here is the call graph for this function:

Here is the caller graph for this function:

render_img()

render_img (   $type,   $as_input  )

protected

Renders the icon inside a img html tag.

Parameters

int

$type

Defines in which manner the icon should be rendered, should be either Icon::SVG or Icon::PNG.

Returns

String containing the html representation for the icon.

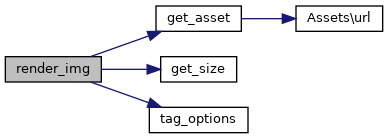

Here is the call graph for this function:

Here is the caller graph for this function:

tag_options()

tag_options (   $options )

protected

Renders an array of options as html attributes.

Parameters

Array

$options

1-dimensional associative array of options

Returns

String containing the representation of the options as html tag attributes.

Here is the caller graph for this function:

Field Documentation

$attributes

$attributes = array()

protected

$color

$color = null

protected

$icon

$icon

protected

$icon_colors

$icon_colors

static

Initial value:

= array(
        'black', 'blue', 'green', 'grey', 'lightblue', 'red', 'white', 'yellow',
    )

$size

$size = null

protected

$static

$static = false

protected

CSS_BACKGROUND

const CSS_BACKGROUND = 4

DEFAULT_COLOR

const DEFAULT_COLOR = 'blue'

DEFAULT_SIZE

const DEFAULT_SIZE = 16

INPUT

const INPUT = 256

PNG

const PNG = 2

SVG

const SVG = 1

---

The documentation for this class was generated from the following file:

• lib/classes/Icon.class.php
