TreeAbstract Class Reference

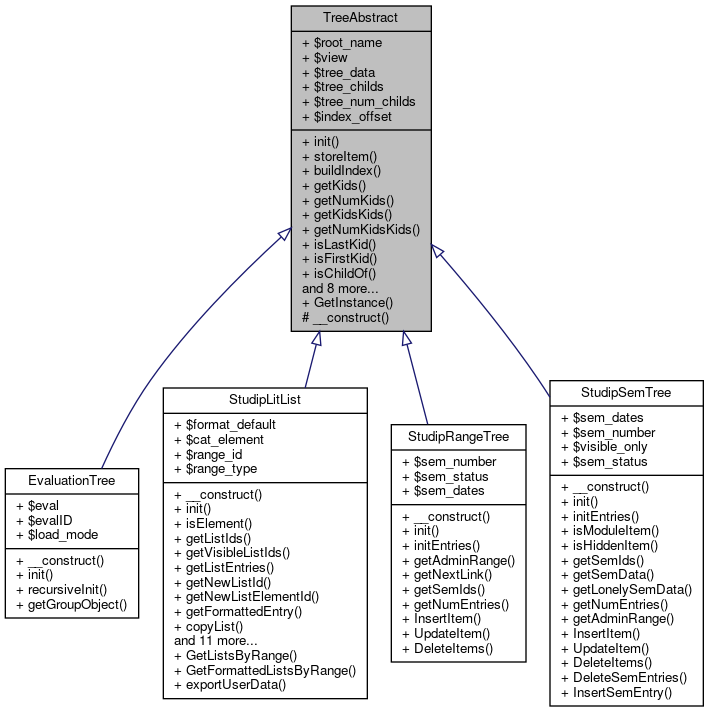

Inheritance diagram for TreeAbstract:

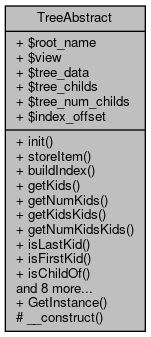

Collaboration diagram for TreeAbstract:

Public Member Functions
	init ()
	storeItem ($item_id, $parent_id, $name, $priority)
	buildIndex ($item_id=false)
	getKids ($item_id)
	getNumKids ($item_id)
	getKidsKids ($item_id, $in_recursion=false)
	getNumKidsKids ($item_id, $in_recursion=false)
	isLastKid ($item_id)
	isFirstKid ($item_id)
	isChildOf ($ancestor_id, $item_id)
	hasKids ($item_id)
	getItemPath ($item_id)
	getParents ($item_id)
	getShortPath ($item_id, $length=null, $delimeter=">", $offset=0)
	getMaxPriority ($parent_id)
	getNumEntries ($item_id, $num_entries_from_kids=false)
	getNumEntriesKids ($item_id, $in_recursion=false)
	getValue ($item_id, $field)

Static Public Member Functions
static	GetInstance ($class_name, $args=null, $invalidate_cache=false)

Data Fields
	$root_name
	$view
	$tree_data = []
	$tree_childs = []
	$tree_num_childs = []
	$index_offset = 0

Protected Member Functions
	__construct ()

Constructor & Destructor Documentation

__construct()

__construct ( )

protected

constructor

do not use directly, call &GetInstance()

Here is the call graph for this function:

Member Function Documentation

buildIndex()

buildIndex

(

$item_id = false

)

build an index for sorting purpose

build an index for sorting purpose

Parameters

string

$item_id

Here is the call graph for this function:

Here is the caller graph for this function:

GetInstance()

static GetInstance (   $class_name,   $args = null,   $invalidate_cache = false  )

static

static method used to ensure that only one instance exists

use this method if you need a reference to the tree object
usage:

$my_tree = StudipRangeTree::GetInstance("name_of_tree_class")

Parameters

string	$class_name	the name of the used tree_class
mixed	$args	argumentlist passed to the constructor in the tree_class (if needed)

Returns

mixed always an object, type is one of AbstractTree s childclasses

Here is the caller graph for this function:

getItemPath()

getItemPath

(

$item_id

)

Returns tree path

returns a string with the item and all parents separated with a slash

Parameters

string

$item_id

Returns

string

getKids()

getKids

(

$item_id

)

returns all direct kids

Parameters

string

$item_id

Returns

array

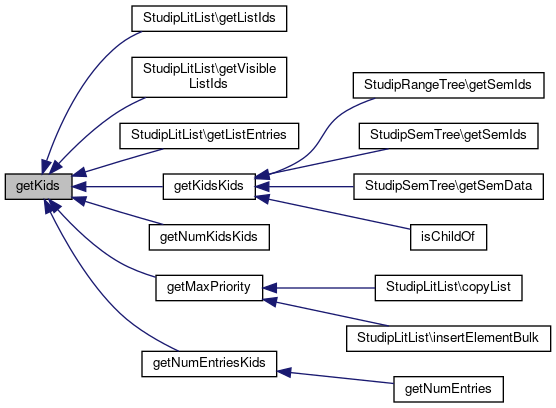

Here is the caller graph for this function:

getKidsKids()

getKidsKids	(		$item_id,
			$in_recursion = false
	)

returns all direct kids and kids of kids and so on...

Parameters

string	$item_id
bool	$in_recursion	only used in recursion

Returns

array

Here is the call graph for this function:

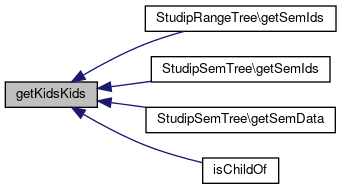

Here is the caller graph for this function:

getMaxPriority()

getMaxPriority

(

$parent_id

)

Returns the maximum priority value from a parents child

Parameters

string

$parent_id

Returns

int

Here is the call graph for this function:

Here is the caller graph for this function:

getNumEntries()

getNumEntries	(		$item_id,
			$num_entries_from_kids = false
	)

Reimplemented in StudipRangeTree, and StudipSemTree.

Here is the call graph for this function:

getNumEntriesKids()

getNumEntriesKids	(		$item_id,
			$in_recursion = false
	)

Here is the call graph for this function:

Here is the caller graph for this function:

getNumKids()

getNumKids

(

$item_id

)

returns the number of all direct kids

Parameters

string	$item_id
bool	$in_recursion

Returns

int

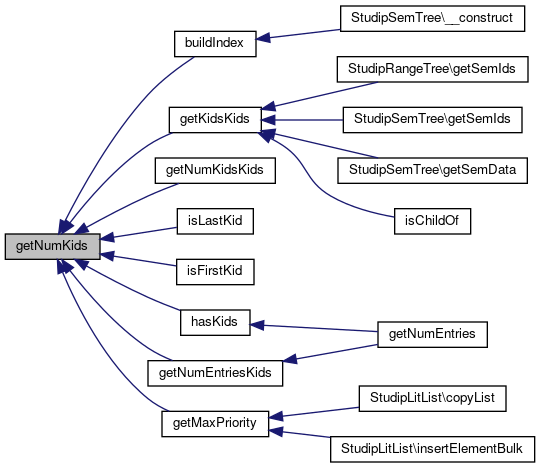

Here is the caller graph for this function:

getNumKidsKids()

getNumKidsKids	(		$item_id,
			$in_recursion = false
	)

returns the number of all kids and kidskids...

Parameters

string	$item_id
bool	$in_recursion

Returns

int

Here is the call graph for this function:

Here is the caller graph for this function:

getParents()

getParents

(

$item_id

)

Returns tree path as array of item_id s

returns an array containing all parents of given item

Parameters

string

$item_id

Returns

array

Here is the caller graph for this function:

getShortPath()

getShortPath	(		$item_id,
			$length = null,
			$delimeter = ">",
			$offset = 0
	)

Here is the call graph for this function:

getValue()

getValue	(		$item_id,
			$field
	)

Here is the caller graph for this function:

hasKids()

hasKids

(

$item_id

)

checks if item has one or more kids

Parameters

string

$item_id

Returns

boolean

Here is the call graph for this function:

Here is the caller graph for this function:

init()

init

(

)

initializes the tree

stores all tree items in array $tree_data must be overriden

Reimplemented in StudipLitList, StudipRangeTree, StudipSemTree, and EvaluationTree.

Here is the caller graph for this function:

isChildOf()

isChildOf	(		$ancestor_id,
			$item_id
	)

checks if given item is a kid or kidkid...of given ancestor

checks if given item is a kid or kidkid...of given ancestor

Parameters

string	$ancestor_id
string	$item_id

Returns

boolean

Here is the call graph for this function:

isFirstKid()

isFirstKid

(

$item_id

)

checks if item is the first kid

Parameters

string

$item_id

Returns

boolean

Here is the call graph for this function:

isLastKid()

isLastKid

(

$item_id

)

checks if item is the last kid

Parameters

string

$item_id

Returns

boolean

Here is the call graph for this function:

storeItem()

storeItem	(		$item_id,
			$parent_id,
			$name,
			$priority
	)

store one item in tree_data array

store one item in tree_data array

Parameters

string	$item_id
string	$parent_id
string	$name
integer	$priority

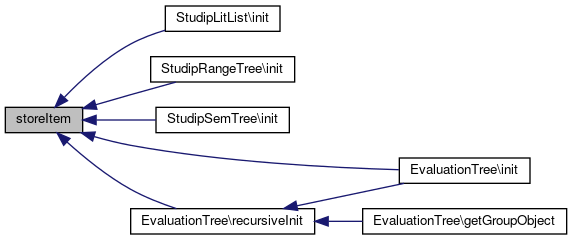

Here is the caller graph for this function:

Field Documentation

$index_offset

$index_offset = 0

$root_name

string $root_name

the name of the root element

@access private

$tree_childs

array $tree_childs = []

array containing the direct childs of all items

assoc. array, key is one from $tree_data, value is numeric array with keys from childs @access private

$tree_data

array $tree_data = []

array containing all tree items

associative array, key is an unique identifier (eg primary key from DB table) value is another assoc. array containing the other fieldname/fieldvalue pairs these fieldnames must be used : parent_id, name, priority @access public

$tree_num_childs

array $tree_num_childs = []

array containing the number of direct childs of all items

assoc. array, key is one from $tree_data @access private

$view

object DbView $view

object to handle database queries

@access private

---

The documentation for this class was generated from the following file:

• lib/classes/TreeAbstract.class.php
