PHPExcel_Reader_Excel5 Class Reference
+ Inheritance diagram for PHPExcel_Reader_Excel5:

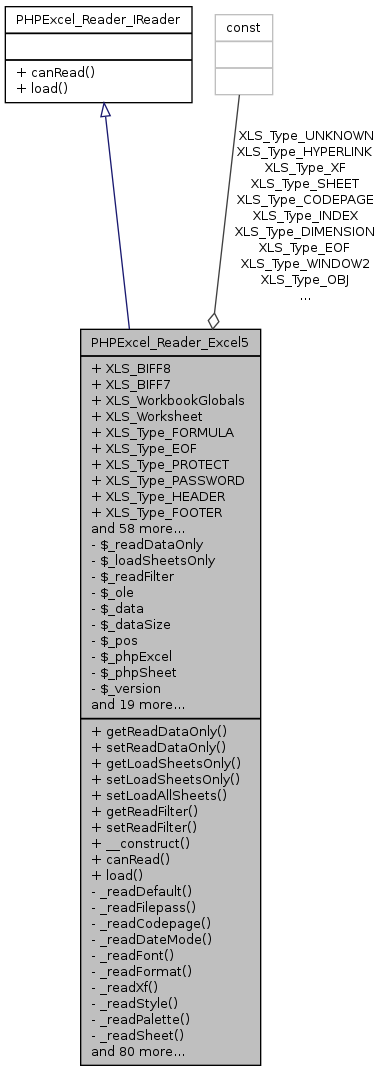

+ Collaboration diagram for PHPExcel_Reader_Excel5:

Public Member Functions

 getReadDataOnly ()
 Read data only?
 setReadDataOnly ($pValue=false)
 Set read data only.
 getLoadSheetsOnly ()
 Get which sheets to load.
 setLoadSheetsOnly ($value=null)
 Set which sheets to load.
 setLoadAllSheets ()
 Set all sheets to load.
 getReadFilter ()
 Read filter.
 setReadFilter (PHPExcel_Reader_IReadFilter $pValue)
 Set read filter.
 __construct ()
 Create a new PHPExcel_Reader_Excel5 instance.
 canRead ($pFilename)
 Can the current PHPExcel_Reader_IReader read the file?
 load ($pFilename)
 Loads PHPExcel from file.

Data Fields

const XLS_BIFF8 = 0x0600
const XLS_BIFF7 = 0x0500
const XLS_WorkbookGlobals = 0x0005
const XLS_Worksheet = 0x0010
const XLS_Type_FORMULA = 0x0006
const XLS_Type_EOF = 0x000a
const XLS_Type_PROTECT = 0x0012
const XLS_Type_PASSWORD = 0x0013
const XLS_Type_HEADER = 0x0014
const XLS_Type_FOOTER = 0x0015
const XLS_Type_EXTERNSHEET = 0x0017
const XLS_Type_DEFINEDNAME = 0x0018
const XLS_Type_VERTICALPAGEBREAKS = 0x001a
const XLS_Type_HORIZONTALPAGEBREAKS = 0x001b
const XLS_Type_NOTE = 0x001c
const XLS_Type_DATEMODE = 0x0022
const XLS_Type_LEFTMARGIN = 0x0026
const XLS_Type_RIGHTMARGIN = 0x0027
const XLS_Type_TOPMARGIN = 0x0028
const XLS_Type_BOTTOMMARGIN = 0x0029
const XLS_Type_PRINTGRIDLINES = 0x002b
const XLS_Type_FILEPASS = 0x002f
const XLS_Type_FONT = 0x0031
const XLS_Type_CONTINUE = 0x003c
const XLS_Type_PANE = 0x0041
const XLS_Type_CODEPAGE = 0x0042
const XLS_Type_DEFCOLWIDTH = 0x0055
const XLS_Type_OBJ = 0x005d
const XLS_Type_COLINFO = 0x007d
const XLS_Type_IMDATA = 0x007f
const XLS_Type_SHEETPR = 0x0081
const XLS_Type_HCENTER = 0x0083
const XLS_Type_VCENTER = 0x0084
const XLS_Type_SHEET = 0x0085
const XLS_Type_PALETTE = 0x0092
const XLS_Type_SCL = 0x00a0
const XLS_Type_PAGESETUP = 0x00a1
const XLS_Type_MULRK = 0x00bd
const XLS_Type_MULBLANK = 0x00be
const XLS_Type_DBCELL = 0x00d7
const XLS_Type_XF = 0x00e0
const XLS_Type_MERGEDCELLS = 0x00e5
const XLS_Type_MSODRAWINGGROUP = 0x00eb
const XLS_Type_MSODRAWING = 0x00ec
const XLS_Type_SST = 0x00fc
const XLS_Type_LABELSST = 0x00fd
const XLS_Type_EXTSST = 0x00ff
const XLS_Type_EXTERNALBOOK = 0x01ae
const XLS_Type_TXO = 0x01b6
const XLS_Type_HYPERLINK = 0x01b8
const XLS_Type_DIMENSION = 0x0200
const XLS_Type_BLANK = 0x0201
const XLS_Type_NUMBER = 0x0203
const XLS_Type_LABEL = 0x0204
const XLS_Type_BOOLERR = 0x0205
const XLS_Type_STRING = 0x0207
const XLS_Type_ROW = 0x0208
const XLS_Type_INDEX = 0x020b
const XLS_Type_ARRAY = 0x0221
const XLS_Type_DEFAULTROWHEIGHT = 0x0225
const XLS_Type_WINDOW2 = 0x023e
const XLS_Type_RK = 0x027e
const XLS_Type_STYLE = 0x0293
const XLS_Type_FORMAT = 0x041e
const XLS_Type_SHAREDFMLA = 0x04bc
const XLS_Type_BOF = 0x0809
const XLS_Type_RANGEPROTECTION = 0x0868
const XLS_Type_UNKNOWN = 0xffff

Private Member Functions

 _readDefault ()
 Reads a general type of BIFF record.
 _readFilepass ()
 FILEPASS.
 _readCodepage ()
 CODEPAGE.

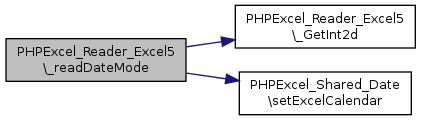

 _readDateMode ()
 DATEMODE.

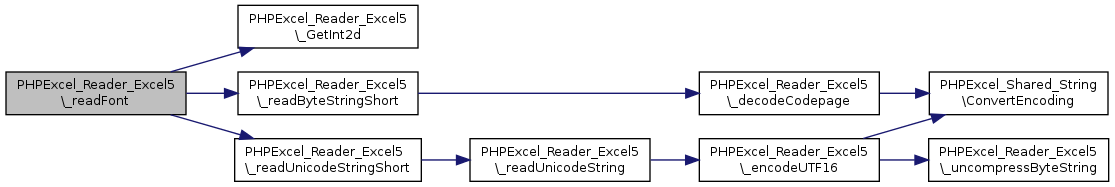

 _readFont ()
 Read a FONT record.
 _readFormat ()
 FORMAT.
 _readXf ()
 XF - Extended Format.
 _readStyle ()
 Read STYLE record.
 _readPalette ()
 Read PALETTE record.

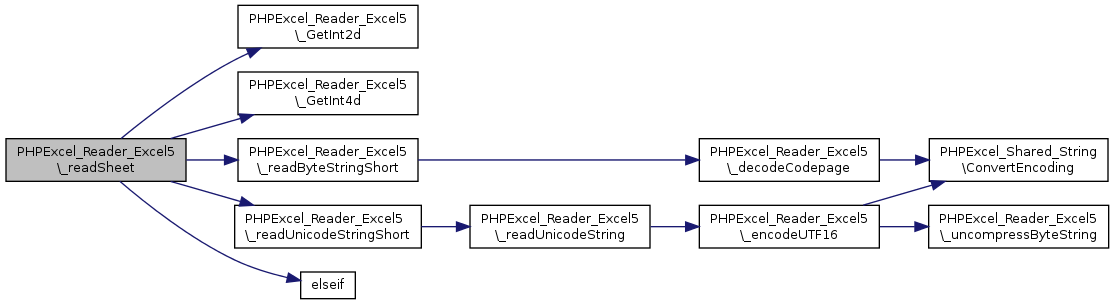

 _readSheet ()
 SHEET.
 _readExternalBook ()
 Read EXTERNALBOOK record.
 _readExternSheet ()
 Read EXTERNSHEET record.

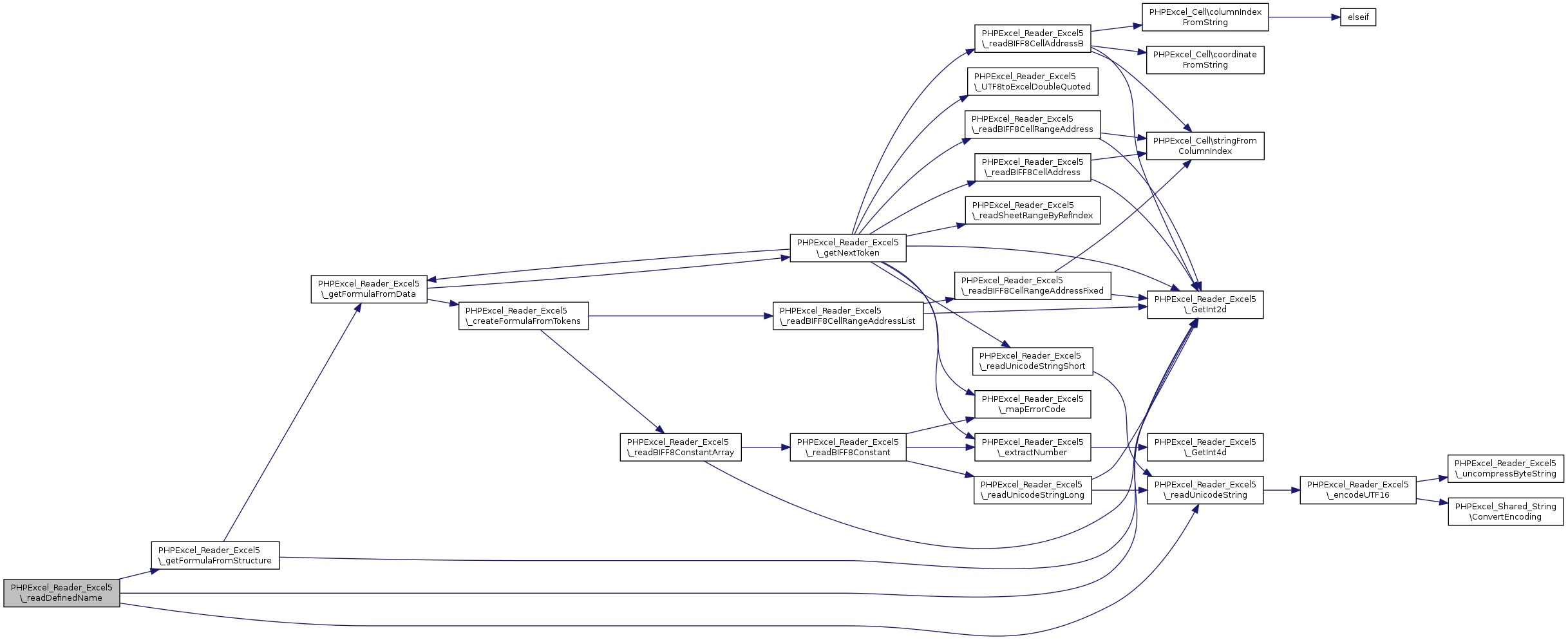

 _readDefinedName ()
 DEFINEDNAME.
 _readMsoDrawingGroup ()
 Read MSODRAWINGGROUP record.

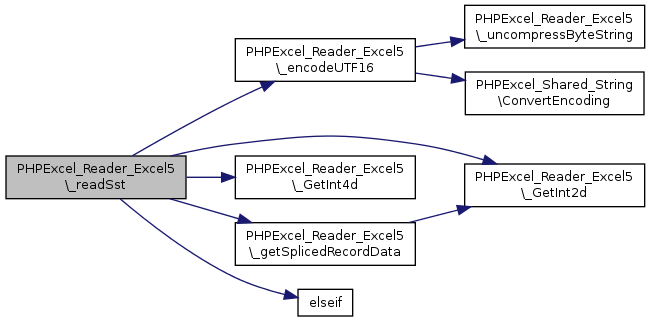

 _readSst ()
 SST - Shared String Table.
 _readPrintGridlines ()
 Read PRINTGRIDLINES record.
 _readDefaultRowHeight ()
 Read DEFAULTROWHEIGHT record.
 _readSheetPr ()
 Read SHEETPR record.
 _readHorizontalPageBreaks ()
 Read HORIZONTALPAGEBREAKS record.
 _readVerticalPageBreaks ()
 Read VERTICALPAGEBREAKS record.
 _readHeader ()
 Read HEADER record.

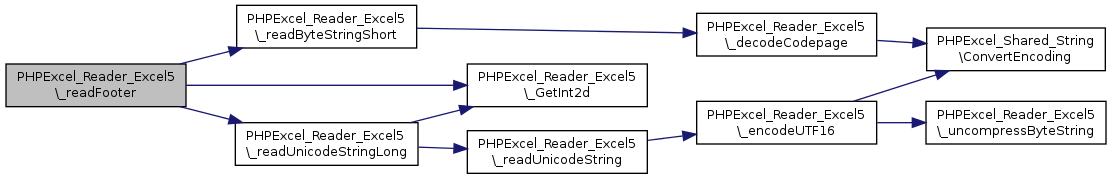

 _readFooter ()
 Read FOOTER record.
 _readHcenter ()
 Read HCENTER record.
 _readVcenter ()
 Read VCENTER record.
 _readLeftMargin ()
 Read LEFTMARGIN record.

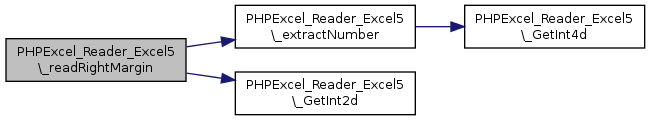

 _readRightMargin ()
 Read RIGHTMARGIN record.
 _readTopMargin ()
 Read TOPMARGIN record.
 _readBottomMargin ()
 Read BOTTOMMARGIN record.
 _readPageSetup ()
 Read PAGESETUP record.
 _readProtect ()
 PROTECT - Sheet protection (BIFF2 through BIFF8) if this record is omitted, then it also means no sheet protection.
 _readPassword ()
 PASSWORD - Sheet protection (hashed) password (BIFF2 through BIFF8)
 _readDefColWidth ()
 Read DEFCOLWIDTH record.
 _readColInfo ()
 Read COLINFO record.

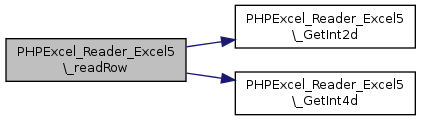

 _readRow ()
 ROW.
 _readRk ()
 Read RK record This record represents a cell that contains an RK value (encoded integer or floating-point value).
 _readLabelSst ()
 Read LABELSST record This record represents a cell that contains a string.
 _readMulRk ()
 Read MULRK record This record represents a cell range containing RK value cells.
 _readNumber ()
 Read NUMBER record This record represents a cell that contains a floating-point value.

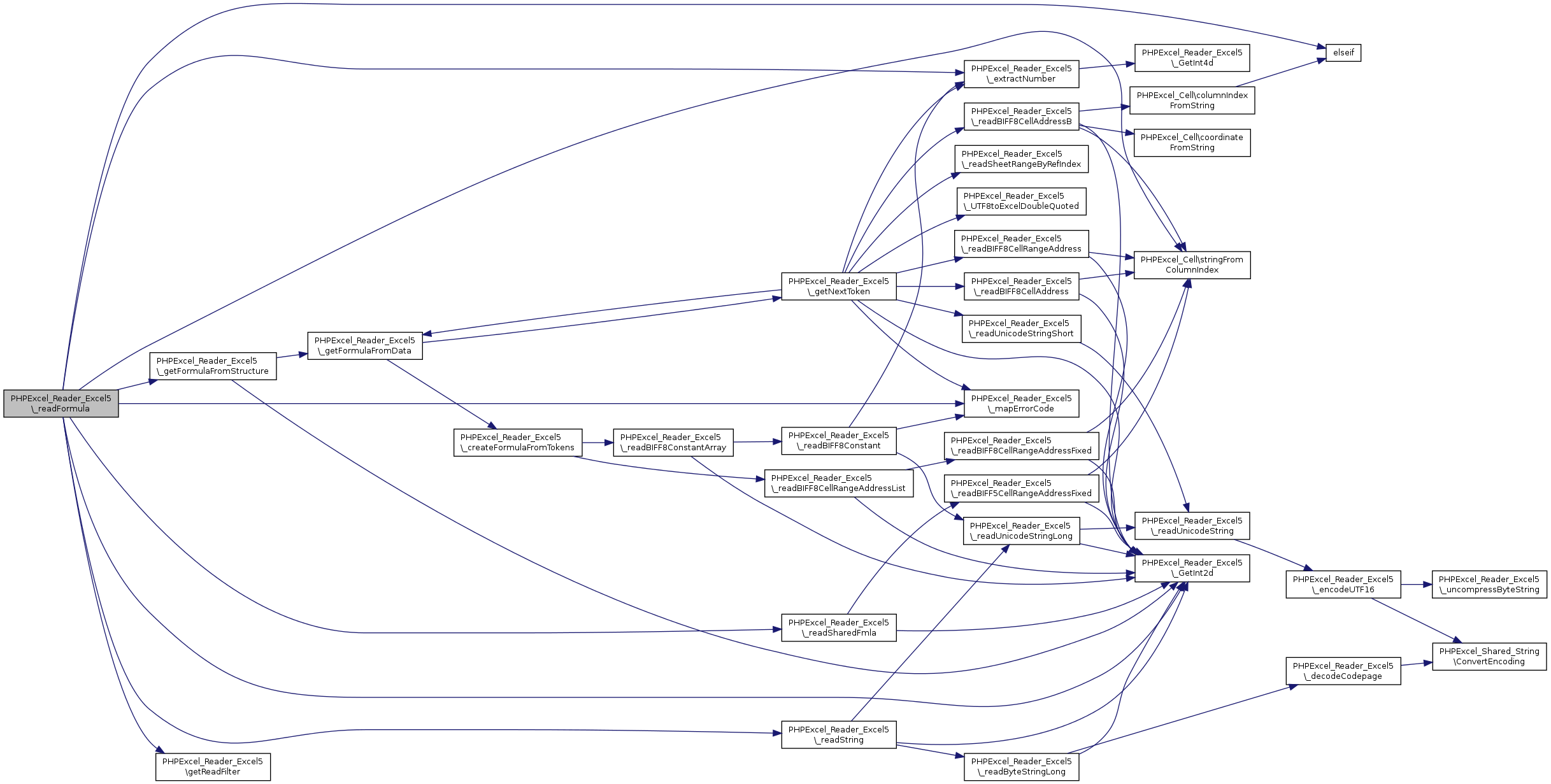

 _readFormula ()
 Read FORMULA record + perhaps a following STRING record if formula result is a string This record contains the token array and the result of a formula cell.
 _readSharedFmla ()
 Read a SHAREDFMLA record.
 _readString ()
 Read a STRING record from current stream position and advance the stream pointer to next record This record is used for storing result from FORMULA record when it is a string, and it occurs directly after the FORMULA record.

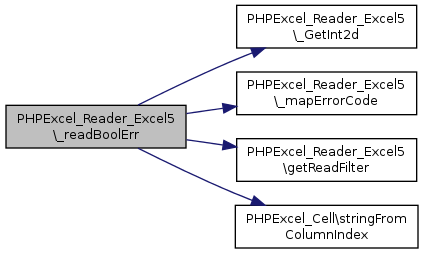

 _readBoolErr ()
 Read BOOLERR record This record represents a Boolean value or error value cell.
 _readMulBlank ()
 Read MULBLANK record This record represents a cell range of empty cells.
 _readLabel ()
 Read LABEL record This record represents a cell that contains a string.
 _readBlank ()
 Read BLANK record.
 _readMsoDrawing ()
 Read MSODRAWING record.
 _readObj ()
 Read OBJ record.
 _readWindow2 ()
 Read WINDOW2 record.
 _readScl ()
 Read SCL record.

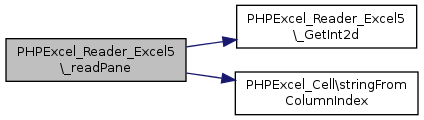

 _readPane ()
 Read PANE record.
 _readMergedCells ()
 MERGEDCELLS.

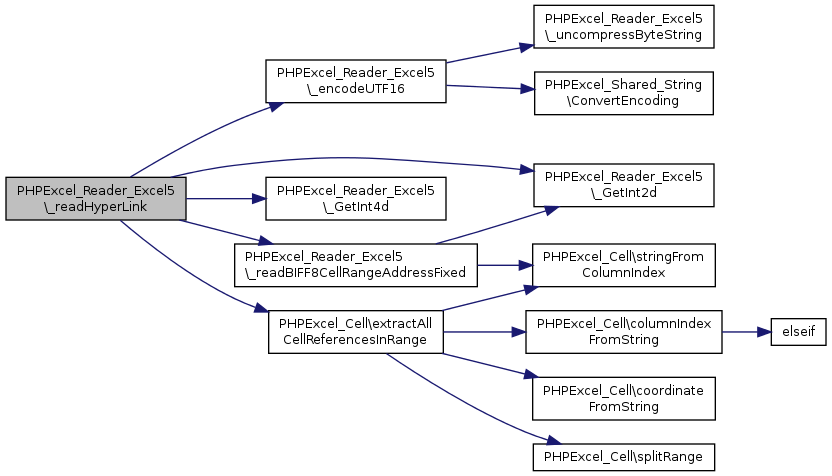

 _readHyperLink ()
 Read HYPERLINK record.
 _readRangeProtection ()
 Read RANGEPROTECTION record Reading of this record is based on Microsoft Office Excel 97-2000 Binary File Format Specification, where it is referred to as FEAT record.
 _readImData ()
 Read IMDATA record.
 _readContinue ()
 Read a free CONTINUE record.

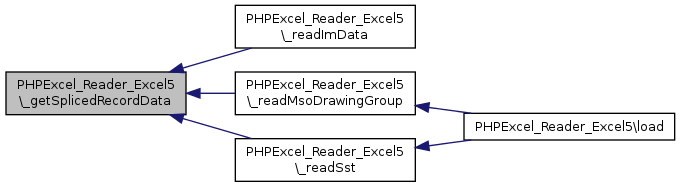

 _getSplicedRecordData ()
 Reads a record from current position in data stream and continues reading data as long as CONTINUE records are found.
 _getFormulaFromStructure ($formulaStructure, $baseCell= 'A1')
 Convert formula structure into human readable Excel formula like 'A3+A5*5'.
 _getFormulaFromData ($formulaData, $additionalData= '', $baseCell= 'A1')
 Take formula data and additional data for formula and return human readable formula.
 _createFormulaFromTokens ($tokens, $additionalData)
 Take array of tokens together with additional data for formula and return human readable formula.
 _getNextToken ($formulaData, $baseCell= 'A1')
 Fetch next token from binary formula data.
 _readBIFF8CellAddress ($cellAddressStructure)
 Reads a cell address in BIFF8 e.g.
 _readBIFF8CellAddressB ($cellAddressStructure, $baseCell= 'A1')
 Reads a cell address in BIFF8 for shared formulas.
 _readBIFF5CellRangeAddressFixed ($subData)
 Reads a cell range address in BIFF5 e.g.

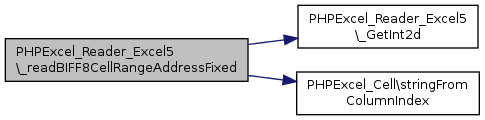

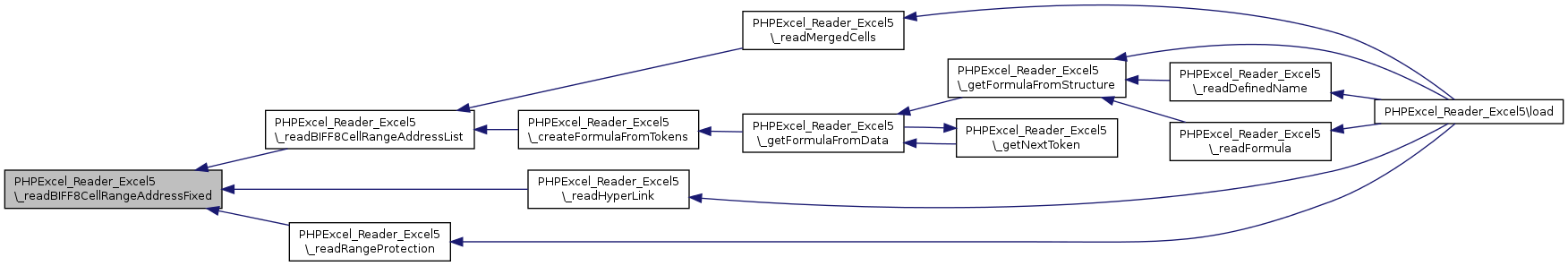

 _readBIFF8CellRangeAddressFixed ($subData)
 Reads a cell range address in BIFF8 e.g.

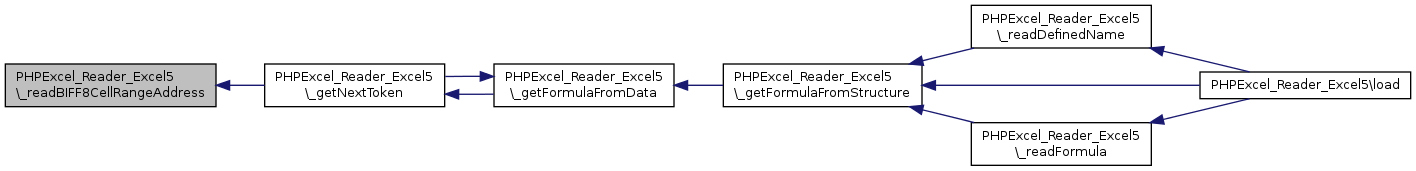

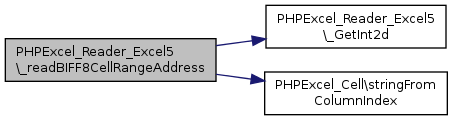

 _readBIFF8CellRangeAddress ($subData)
 Reads a cell range address in BIFF8 e.g.
 _readBIFF8CellRangeAddressList ($subData)
 Read BIFF8 cell range address list section 2.5.15.
 _readSheetRangeByRefIndex ($index)
 Get a sheet range like Sheet1:Sheet3 from REF index Note: If there is only one sheet in the range, one gets e.g Sheet1 It can also happen that the REF structure uses the -1 (FFFF) code to indicate deleted sheets, in which case an exception is thrown.
 _readBIFF8ConstantArray ($arrayData)
 read BIFF8 constant value array from array data returns e.g.
 _readBIFF8Constant ($valueData)
 read BIFF8 constant value which may be 'Empty Value', 'Number', 'String Value', 'Boolean Value', 'Error Value' section 2.5.7 returns e.g.
 _readRGB ($rgb)
 Extract RGB color OpenOffice.org's Documentation of the Microsoft Excel File Format, section 2.5.4.

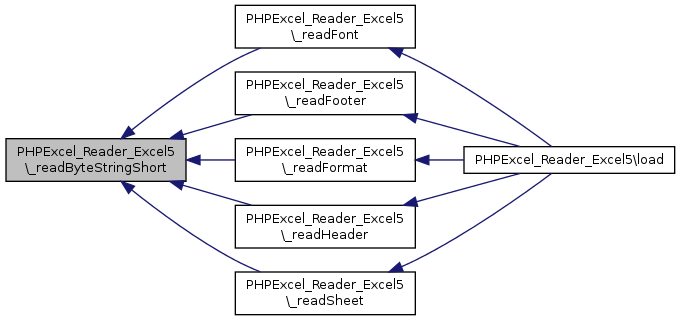

 _readByteStringShort ($subData)
 Read byte string (8-bit string length) OpenOffice documentation: 2.5.2.
 _readByteStringLong ($subData)
 Read byte string (16-bit string length) OpenOffice documentation: 2.5.2.

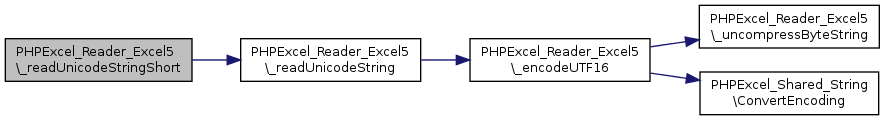

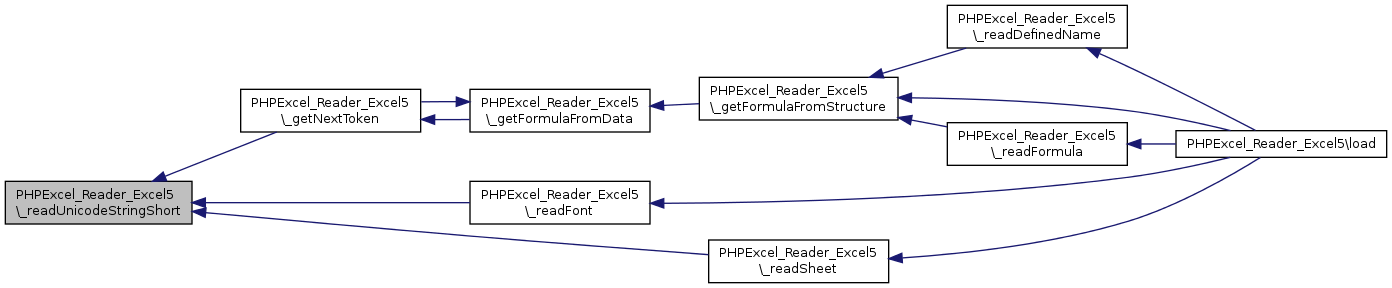

 _readUnicodeStringShort ($subData)
 Extracts an Excel Unicode short string (8-bit string length) OpenOffice documentation: 2.5.3 function will automatically find out where the Unicode string ends.
 _readUnicodeStringLong ($subData)
 Extracts an Excel Unicode long string (16-bit string length) OpenOffice documentation: 2.5.3 this function is under construction, needs to support rich text, and Asian phonetic settings.
 _readUnicodeString ($subData, $characterCount)
 Read Unicode string with no string length field, but with known character count this function is under construction, needs to support rich text, and Asian phonetic settings OpenOffice.org's Documentation of the Microsoft Excel File Format, section 2.5.3.
 _UTF8toExcelDoubleQuoted ($value)
 Convert UTF-8 string to string surounded by double quotes.
 _extractNumber ($data)
 Reads first 8 bytes of a string and return IEEE 754 float.
 _GetIEEE754 ($rknum)
 _encodeUTF16 ($string, $compressed= '')
 Get UTF-8 string from (compressed or uncompressed) UTF-16 string.
 _uncompressByteString ($string)
 Convert UTF-16 string in compressed notation to uncompressed form.
 _decodeCodepage ($string)
 Convert string to UTF-8.

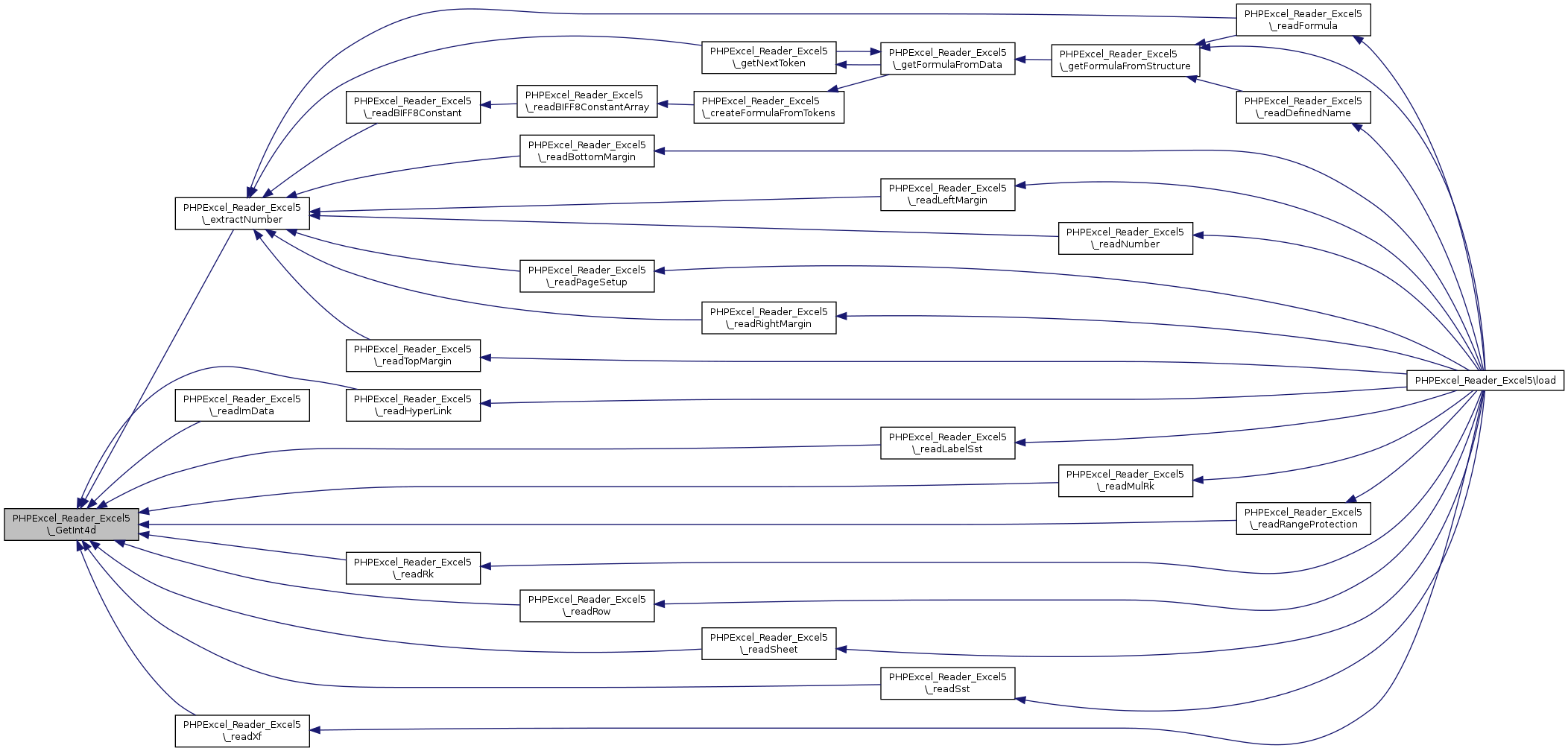

 _GetInt2d ($data, $pos)
 Read 16-bit unsigned integer.
 _GetInt4d ($data, $pos)
 Read 32-bit signed integer.

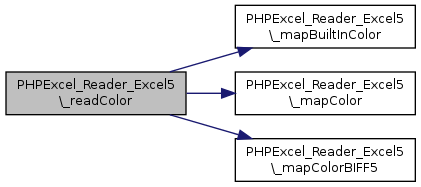

 _readColor ($color)
 Read color.
 _mapBorderStyle ($index)
 Map border style OpenOffice documentation: 2.5.11.
 _mapFillPattern ($index)
 Get fill pattern from index OpenOffice documentation: 2.5.12.
 _mapErrorCode ($subData)
 Map error code, e.g.
 _mapBuiltInColor ($color)
 Map built-in color to RGB value.
 _mapColorBIFF5 ($subData)
 Map color array from BIFF5 built-in color index.
 _mapColor ($subData)
 Map color array from BIFF8 built-in color index.

Private Attributes

 $_readDataOnly = false
 $_loadSheetsOnly = null
 $_readFilter = null
 $_ole
 $_data
 $_dataSize
 $_pos
 $_phpExcel
 $_phpSheet
 $_version
 $_codepage
 $_formats
 $_objFonts
 $_palette
 $_sheets
 $_externalBooks
 $_ref
 $_definedname
 $_sst
 $_frozen
 $_isFitToPages
 $_objs
 $_drawingGroupData
 $_drawingData
 $_xfIndex
 $_mapCellXfIndex
 $_mapCellStyleXfIndex
 $_sharedFormulas
 $_sharedFormulaParts

Detailed Description

Definition at line 120 of file Excel5.php.

Constructor & Destructor Documentation

PHPExcel_Reader_Excel5::__construct ( )

Create a new PHPExcel_Reader_Excel5 instance.

Definition at line 478 of file Excel5.php.

{
$this->_readFilter = new PHPExcel_Reader_DefaultReadFilter();
}

Member Function Documentation

PHPExcel_Reader_Excel5::_createFormulaFromTokens (   $tokens,
  $additionalData
)
private

Take array of tokens together with additional data for formula and return human readable formula.

Parameters
array$tokens
array$additionalDataAdditional binary data going with the formula
string$baseCellBase cell, only needed when formula contains tRefN tokens, e.g. with shared formulas
Returns
string Human readable formula

Definition at line 3650 of file Excel5.php.

References _readBIFF8CellRangeAddressList(), and _readBIFF8ConstantArray().

Referenced by _getFormulaFromData().

{
// empty formula?
if (count($tokens) == 0) {
return '';
}
$formulaStrings = array();
foreach ($tokens as $token) {
// initialize spaces
$space0 = isset($space0) ? $space0 : ''; // spaces before next token, not tParen
$space1 = isset($space1) ? $space1 : ''; // carriage returns before next token, not tParen
$space2 = isset($space2) ? $space2 : ''; // spaces before opening parenthesis
$space3 = isset($space3) ? $space3 : ''; // carriage returns before opening parenthesis
$space4 = isset($space4) ? $space4 : ''; // spaces before closing parenthesis
$space5 = isset($space5) ? $space5 : ''; // carriage returns before closing parenthesis
switch ($token['name']) {
case 'tAdd': // addition
case 'tConcat': // addition
case 'tDiv': // division
case 'tEQ': // equaltiy
case 'tGE': // greater than or equal
case 'tGT': // greater than
case 'tIsect': // intersection
case 'tLE': // less than or equal
case 'tList': // less than or equal
case 'tLT': // less than
case 'tMul': // multiplication
case 'tNE': // multiplication
case 'tPower': // power
case 'tRange': // range
case 'tSub': // subtraction
$op2 = array_pop($formulaStrings);
$op1 = array_pop($formulaStrings);
$formulaStrings[] = "$op1$space1$space0{$token['data']}$op2";
unset($space0, $space1);
break;
case 'tUplus': // unary plus
case 'tUminus': // unary minus
$op = array_pop($formulaStrings);
$formulaStrings[] = "$space1$space0{$token['data']}$op";
unset($space0, $space1);
break;
case 'tPercent': // percent sign
$op = array_pop($formulaStrings);
$formulaStrings[] = "$op$space1$space0{$token['data']}";
unset($space0, $space1);
break;
case 'tAttrVolatile': // indicates volatile function
case 'tAttrIf':
case 'tAttrSkip':
case 'tAttrChoose':
// token is only important for Excel formula evaluator
// do nothing
break;
case 'tAttrSpace': // space / carriage return
// space will be used when next token arrives, do not alter formulaString stack
switch ($token['data']['spacetype']) {
case 'type0':
$space0 = str_repeat(' ', $token['data']['spacecount']);
break;
case 'type1':
$space1 = str_repeat("\n", $token['data']['spacecount']);
break;
case 'type2':
$space2 = str_repeat(' ', $token['data']['spacecount']);
break;
case 'type3':
$space3 = str_repeat("\n", $token['data']['spacecount']);
break;
case 'type4':
$space4 = str_repeat(' ', $token['data']['spacecount']);
break;
case 'type5':
$space5 = str_repeat("\n", $token['data']['spacecount']);
break;
}
break;
case 'tAttrSum': // SUM function with one parameter
$op = array_pop($formulaStrings);
$formulaStrings[] = "{$space1}{$space0}SUM($op)";
unset($space0, $space1);
break;
case 'tFunc': // function with fixed number of arguments
case 'tFuncV': // function with variable number of arguments
$ops = array(); // array of operators
for ($i = 0; $i < $token['data']['args']; ++$i) {
$ops[] = array_pop($formulaStrings);
}
$ops = array_reverse($ops);
$formulaStrings[] = "$space1$space0{$token['data']['function']}(" . implode(',', $ops) . ")";
unset($space0, $space1);
break;
case 'tParen': // parenthesis
$expression = array_pop($formulaStrings);
$formulaStrings[] = "$space3$space2($expression$space5$space4)";
unset($space2, $space3, $space4, $space5);
break;
case 'tArray': // array constant
$constantArray = $this->_readBIFF8ConstantArray($additionalData);
$formulaStrings[] = $space1 . $space0 . $constantArray['value'];
$additionalData = substr($additionalData, $constantArray['size']); // bite of chunk of additional data
unset($space0, $space1);
break;
case 'tMemArea':
// bite off chunk of additional data
$cellRangeAddressList = $this->_readBIFF8CellRangeAddressList($additionalData);
$additionalData = substr($additionalData, $cellRangeAddressList['size']);
$formulaStrings[] = "$space1$space0{$token['data']}";
unset($space0, $space1);
break;
case 'tArea': // cell range address
case 'tBool': // boolean
case 'tErr': // error code
case 'tInt': // integer
case 'tMemErr':
case 'tMemFunc':
case 'tMissArg':
case 'tName':
case 'tNum': // number
case 'tRef': // single cell reference
case 'tRef3d': // 3d cell reference
case 'tArea3d': // 3d cell range reference
case 'tRefN':
case 'tStr': // string
$formulaStrings[] = "$space1$space0{$token['data']}";
unset($space0, $space1);
break;
}
}
$formulaString = $formulaStrings[0];
// for debug: dump the human readable formula
//echo '----' . "\n";
//echo 'Formula: ' . $formulaString;
return $formulaString;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_decodeCodepage (   $string)
private

Convert string to UTF-8.

Only used for BIFF5.

Parameters
string$string
Returns
string

Definition at line 4934 of file Excel5.php.

References $result, and PHPExcel_Shared_String\ConvertEncoding().

Referenced by _readByteStringLong(), and _readByteStringShort().

{
$result = PHPExcel_Shared_String::ConvertEncoding($string, 'UTF-8', $this->_codepage);
return $result;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_encodeUTF16 (   $string,
  $compressed = ''
)
private

Get UTF-8 string from (compressed or uncompressed) UTF-16 string.

Parameters
string$string
bool$compressed
Returns
string

Definition at line 4901 of file Excel5.php.

References $result, _uncompressByteString(), and PHPExcel_Shared_String\ConvertEncoding().

Referenced by _readHyperLink(), _readSst(), and _readUnicodeString().

{
if ($compressed) {
$string = $this->_uncompressByteString($string);
}
$result = PHPExcel_Shared_String::ConvertEncoding($string, 'UTF-8', 'UTF-16LE');
return $result;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_extractNumber (   $data)
private

Reads first 8 bytes of a string and return IEEE 754 float.

Parameters
string$dataBinary string that is at least 8 bytes long
Returns
float

Definition at line 4845 of file Excel5.php.

References $data, and _GetInt4d().

Referenced by _getNextToken(), _readBIFF8Constant(), _readBottomMargin(), _readFormula(), _readLeftMargin(), _readNumber(), _readPageSetup(), _readRightMargin(), and _readTopMargin().

{
$rknumhigh = $this->_GetInt4d($data, 4);
$rknumlow = $this->_GetInt4d($data, 0);
$sign = ($rknumhigh & 0x80000000) >> 31;
$exp = ($rknumhigh & 0x7ff00000) >> 20;
$mantissa = (0x100000 | ($rknumhigh & 0x000fffff));
$mantissalow1 = ($rknumlow & 0x80000000) >> 31;
$mantissalow2 = ($rknumlow & 0x7fffffff);
$value = $mantissa / pow( 2 , (20 - ($exp - 1023)));
if ($mantissalow1 != 0) {
$value += 1 / pow (2 , (21 - ($exp - 1023)));
}
$value += $mantissalow2 / pow (2 , (52 - ($exp - 1023)));
if ($sign) {
$value = -1 * $value;
}
return $value;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_getFormulaFromData (   $formulaData,
  $additionalData = '',
  $baseCell = 'A1'
)
private

Take formula data and additional data for formula and return human readable formula.

Parameters
string$formulaDataThe binary data for the formula itself
string$additionalDataAdditional binary data going with the formula
string$baseCellBase cell, only needed when formula contains tRefN tokens, e.g. with shared formulas
Returns
string Human readable formula

Definition at line 3624 of file Excel5.php.

References _createFormulaFromTokens(), and _getNextToken().

Referenced by _getFormulaFromStructure(), and _getNextToken().

{
// start parsing the formula data
$tokens = array();
while (strlen($formulaData) > 0 and $token = $this->_getNextToken($formulaData, $baseCell)) {
$tokens[] = $token;
$formulaData = substr($formulaData, $token['size']);
// for debug: dump the token
//var_dump($token);
}
$formulaString = $this->_createFormulaFromTokens($tokens, $additionalData);
return $formulaString;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_getFormulaFromStructure (   $formulaStructure,
  $baseCell = 'A1'
)
private

Convert formula structure into human readable Excel formula like 'A3+A5*5'.

Parameters
string$formulaStructureThe complete binary data for the formula
string$baseCellBase cell, only needed when formula contains tRefN tokens, e.g. with shared formulas
Returns
string Human readable formula

Definition at line 3585 of file Excel5.php.

References _getFormulaFromData(), and _GetInt2d().

Referenced by _readDefinedName(), _readFormula(), and load().

{
// offset: 0; size: 2; size of the following formula data
$sz = $this->_GetInt2d($formulaStructure, 0);
// offset: 2; size: sz
$formulaData = substr($formulaStructure, 2, $sz);
// for debug: dump the formula data
//echo '<xmp>';
//echo 'size: ' . $sz . "\n";
//echo 'the entire formula data: ';
//Debug::dump($formulaData);
//echo "\n----\n";
// offset: 2 + sz; size: variable (optional)
if (strlen($formulaStructure) > 2 + $sz) {
$additionalData = substr($formulaStructure, 2 + $sz);
// for debug: dump the additional data
//echo 'the entire additional data: ';
//Debug::dump($additionalData);
//echo "\n----\n";
} else {
$additionalData = '';
}
return $this->_getFormulaFromData($formulaData, $additionalData, $baseCell);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_GetIEEE754 (   $rknum)
private

Definition at line 4868 of file Excel5.php.

Referenced by _readMulRk(), and _readRk().

{
if (($rknum & 0x02) != 0) {
$value = $rknum >> 2;
}
else {
// changes by mmp, info on IEEE754 encoding from
// research.microsoft.com/~hollasch/cgindex/coding/ieeefloat.html
// The RK format calls for using only the most significant 30 bits
// of the 64 bit floating point value. The other 34 bits are assumed
// to be 0 so we use the upper 30 bits of $rknum as follows...
$sign = ($rknum & 0x80000000) >> 31;
$exp = ($rknum & 0x7ff00000) >> 20;
$mantissa = (0x100000 | ($rknum & 0x000ffffc));
$value = $mantissa / pow( 2 , (20- ($exp - 1023)));
if ($sign) {
$value = -1 * $value;
}
//end of changes by mmp
}
if (($rknum & 0x01) != 0) {
$value /= 100;
}
return $value;
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_GetInt2d (   $data,
  $pos
)
private

Read 16-bit unsigned integer.

Parameters
string$data
int$pos
Returns
int

Definition at line 4947 of file Excel5.php.

References $data.

Referenced by _getFormulaFromStructure(), _getNextToken(), _getSplicedRecordData(), _readBIFF5CellRangeAddressFixed(), _readBIFF8CellAddress(), _readBIFF8CellAddressB(), _readBIFF8CellRangeAddress(), _readBIFF8CellRangeAddressFixed(), _readBIFF8CellRangeAddressList(), _readBIFF8ConstantArray(), _readBlank(), _readBoolErr(), _readBottomMargin(), _readByteStringLong(), _readCodepage(), _readColInfo(), _readContinue(), _readDateMode(), _readDefault(), _readDefaultRowHeight(), _readDefColWidth(), _readDefinedName(), _readExternalBook(), _readExternSheet(), _readFilepass(), _readFont(), _readFooter(), _readFormat(), _readFormula(), _readHcenter(), _readHeader(), _readHorizontalPageBreaks(), _readHyperLink(), _readImData(), _readLabel(), _readLabelSst(), _readLeftMargin(), _readMergedCells(), _readMsoDrawing(), _readMsoDrawingGroup(), _readMulBlank(), _readMulRk(), _readNumber(), _readObj(), _readPageSetup(), _readPalette(), _readPane(), _readPassword(), _readPrintGridlines(), _readProtect(), _readRangeProtection(), _readRightMargin(), _readRk(), _readRow(), _readScl(), _readSharedFmla(), _readSheet(), _readSheetPr(), _readSst(), _readString(), _readStyle(), _readTopMargin(), _readUnicodeStringLong(), _readVcenter(), _readVerticalPageBreaks(), _readWindow2(), _readXf(), and load().

{
return ord($data[$pos]) | (ord($data[$pos + 1]) << 8);
}

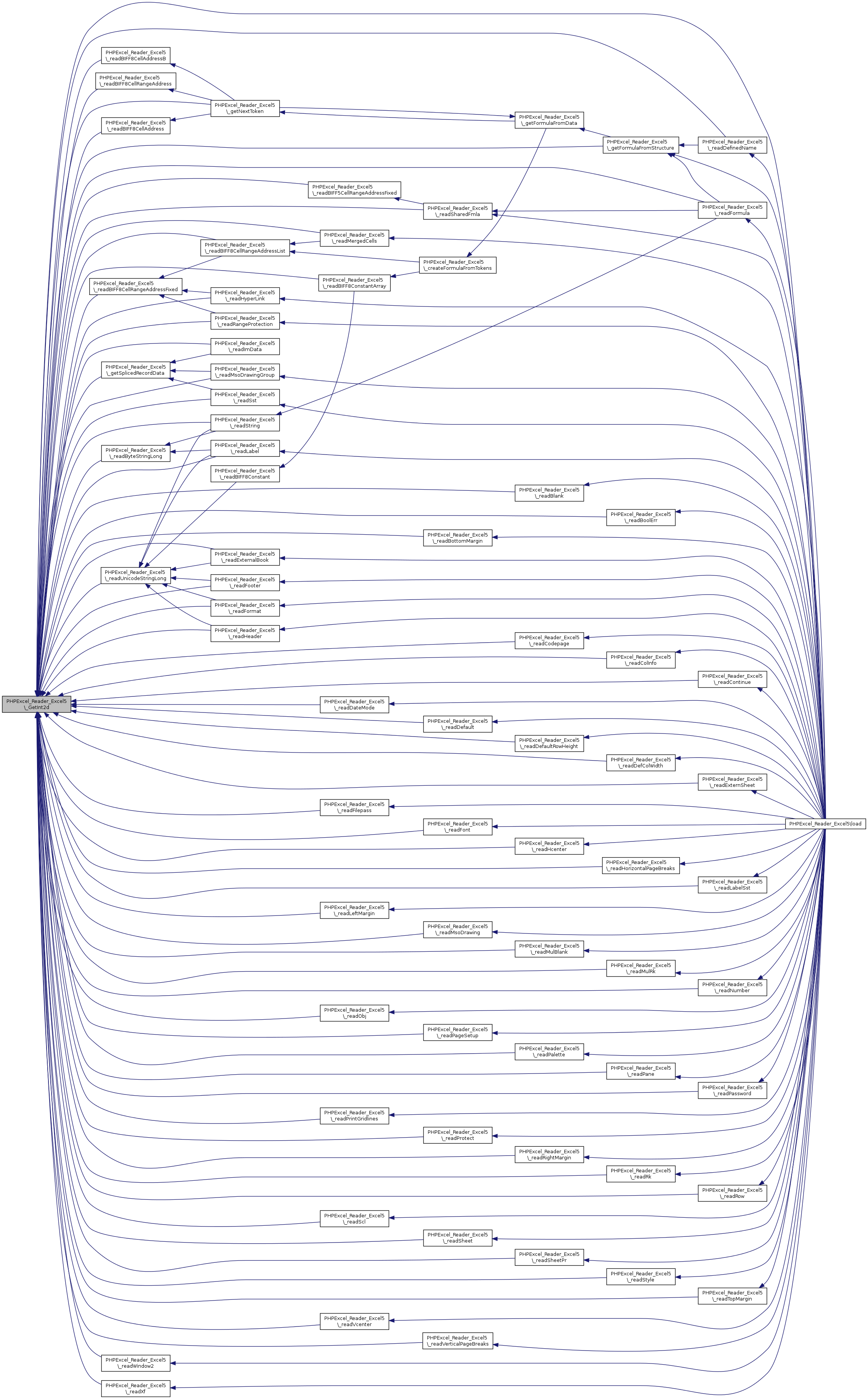

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_GetInt4d (   $data,
  $pos
)
private

Read 32-bit signed integer.

Parameters
string$data
int$pos
Returns
int

Definition at line 4959 of file Excel5.php.

References $data.

Referenced by _extractNumber(), _readHyperLink(), _readImData(), _readLabelSst(), _readMulRk(), _readRangeProtection(), _readRk(), _readRow(), _readSheet(), _readSst(), and _readXf().

{
//return ord($data[$pos]) | (ord($data[$pos + 1]) << 8) |
// (ord($data[$pos + 2]) << 16) | (ord($data[$pos + 3]) << 24);
// FIX: represent numbers correctly on 64-bit system
// http://sourceforge.net/tracker/index.php?func=detail&aid=1487372&group_id=99160&atid=623334
$_or_24 = ord($data[$pos + 3]);
if ($_or_24 >= 128) {
// negative number
$_ord_24 = -abs((256 - $_or_24) << 24);
} else {
$_ord_24 = ($_or_24 & 127) << 24;
}
return ord($data[$pos]) | (ord($data[$pos + 1]) << 8) | (ord($data[$pos + 2]) << 16) | $_ord_24;
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_getNextToken (   $formulaData,
  $baseCell = 'A1'
)
private

Fetch next token from binary formula data.

Parameters
stringFormula data
string$baseCellBase cell, only needed when formula contains tRefN tokens, e.g. with shared formulas
Returns
array
Exceptions
Exception

Definition at line 3798 of file Excel5.php.

References $data, $name, $size, _extractNumber(), _getFormulaFromData(), _GetInt2d(), _mapErrorCode(), _readBIFF8CellAddress(), _readBIFF8CellAddressB(), _readBIFF8CellRangeAddress(), _readSheetRangeByRefIndex(), _readUnicodeStringShort(), and _UTF8toExcelDoubleQuoted().

Referenced by _getFormulaFromData().

{
// offset: 0; size: 1; token id
$id = ord($formulaData[0]); // token id
$name = false; // initialize token name
switch ($id) {
case 0x03: $name = 'tAdd'; $size = 1; $data = '+'; break;
case 0x04: $name = 'tSub'; $size = 1; $data = '-'; break;
case 0x05: $name = 'tMul'; $size = 1; $data = '*'; break;
case 0x06: $name = 'tDiv'; $size = 1; $data = '/'; break;
case 0x07: $name = 'tPower'; $size = 1; $data = '^'; break;
case 0x08: $name = 'tConcat'; $size = 1; $data = '&'; break;
case 0x09: $name = 'tLT'; $size = 1; $data = '<'; break;
case 0x0A: $name = 'tLE'; $size = 1; $data = '<='; break;
case 0x0B: $name = 'tEQ'; $size = 1; $data = '='; break;
case 0x0C: $name = 'tGE'; $size = 1; $data = '>='; break;
case 0x0D: $name = 'tGT'; $size = 1; $data = '>'; break;
case 0x0E: $name = 'tNE'; $size = 1; $data = '<>'; break;
case 0x0F: $name = 'tIsect'; $size = 1; $data = ' '; break;
case 0x10: $name = 'tList'; $size = 1; $data = ','; break;
case 0x11: $name = 'tRange'; $size = 1; $data = ':'; break;
case 0x12: $name = 'tUplus'; $size = 1; $data = '+'; break;
case 0x13: $name = 'tUminus'; $size = 1; $data = '-'; break;
case 0x14: $name = 'tPercent'; $size = 1; $data = '%'; break;
case 0x15: // parenthesis
$name = 'tParen';
$size = 1;
$data = null;
break;
case 0x16: // missing argument
$name = 'tMissArg';
$size = 1;
$data = '';
break;
case 0x17: // string
$name = 'tStr';
// offset: 1; size: var; Unicode string, 8-bit string length
$string = $this->_readUnicodeStringShort(substr($formulaData, 1));
$size = 1 + $string['size'];
$data = $this->_UTF8toExcelDoubleQuoted($string['value']);
break;
case 0x19: // Special attribute
// offset: 1; size: 1; attribute type flags:
switch (ord($formulaData[1])) {
case 0x01:
$name = 'tAttrVolatile';
$size = 4;
$data = null;
break;
case 0x02:
$name = 'tAttrIf';
$size = 4;
$data = null;
break;
case 0x04:
$name = 'tAttrChoose';
// offset: 2; size: 2; number of choices in the CHOOSE function ($nc, number of parameters decreased by 1)
$nc = $this->_GetInt2d($formulaData, 2);
// offset: 4; size: 2 * $nc
// offset: 4 + 2 * $nc; size: 2
$size = 2 * $nc + 6;
$data = null;
break;
case 0x08:
$name = 'tAttrSkip';
$size = 4;
$data = null;
break;
case 0x10:
$name = 'tAttrSum';
$size = 4;
$data = null;
break;
case 0x40:
case 0x41:
$name = 'tAttrSpace';
$size = 4;
// offset: 2; size: 2; space type and position
switch (ord($formulaData[2])) {
case 0x00:
$spacetype = 'type0';
break;
case 0x01:
$spacetype = 'type1';
break;
case 0x02:
$spacetype = 'type2';
break;
case 0x03:
$spacetype = 'type3';
break;
case 0x04:
$spacetype = 'type4';
break;
case 0x05:
$spacetype = 'type5';
break;
default:
throw new Exception('Unrecognized space type in tAttrSpace token');
break;
}
// offset: 3; size: 1; number of inserted spaces/carriage returns
$spacecount = ord($formulaData[3]);
$data = array('spacetype' => $spacetype, 'spacecount' => $spacecount);
break;
default:
throw new Exception('Unrecognized attribute flag in tAttr token');
break;
}
break;
case 0x1C: // error code
// offset: 1; size: 1; error code
$name = 'tErr';
$size = 2;
$data = $this->_mapErrorCode(ord($formulaData[1]));
break;
case 0x1D: // boolean
// offset: 1; size: 1; 0 = false, 1 = true;
$name = 'tBool';
$size = 2;
$data = ord($formulaData[1]) ? 'TRUE' : 'FALSE';
break;
case 0x1E: // integer
// offset: 1; size: 2; unsigned 16-bit integer
$name = 'tInt';
$size = 3;
$data = $this->_GetInt2d($formulaData, 1);
break;
case 0x1F: // number
// offset: 1; size: 8;
$name = 'tNum';
$size = 9;
$data = $this->_extractNumber(substr($formulaData, 1));
$data = str_replace(',', '.', (string)$data); // in case non-English locale
break;
case 0x40: // array constant
case 0x60: // array constant
// offset: 1; size: 7; not used
$name = 'tArray';
$size = 8;
$data = null;
break;
case 0x41: // function with fixed number of arguments
$name = 'tFunc';
$size = 3;
// offset: 1; size: 2; index to built-in sheet function
switch ($this->_GetInt2d($formulaData, 1)) {
case 2: $function = 'ISNA'; $args = 1; break;
case 3: $function = 'ISERROR'; $args = 1; break;
case 10: $function = 'NA'; $args = 0; break;
case 15: $function = 'SIN'; $args = 1; break;
case 16: $function = 'COS'; $args = 1; break;
case 17: $function = 'TAN'; $args = 1; break;
case 18: $function = 'ATAN'; $args = 1; break;
case 19: $function = 'PI'; $args = 0; break;
case 20: $function = 'SQRT'; $args = 1; break;
case 21: $function = 'EXP'; $args = 1; break;
case 22: $function = 'LN'; $args = 1; break;
case 23: $function = 'LOG10'; $args = 1; break;
case 24: $function = 'ABS'; $args = 1; break;
case 25: $function = 'INT'; $args = 1; break;
case 26: $function = 'SIGN'; $args = 1; break;
case 27: $function = 'ROUND'; $args = 2; break;
case 30: $function = 'REPT'; $args = 2; break;
case 31: $function = 'MID'; $args = 3; break;
case 32: $function = 'LEN'; $args = 1; break;
case 33: $function = 'VALUE'; $args = 1; break;
case 34: $function = 'TRUE'; $args = 0; break;
case 35: $function = 'FALSE'; $args = 0; break;
case 38: $function = 'NOT'; $args = 1; break;
case 39: $function = 'MOD'; $args = 2; break;
case 40: $function = 'DCOUNT'; $args = 3; break;
case 41: $function = 'DSUM'; $args = 3; break;
case 42: $function = 'DAVERAGE'; $args = 3; break;
case 43: $function = 'DMIN'; $args = 3; break;
case 44: $function = 'DMAX'; $args = 3; break;
case 45: $function = 'DSTDEV'; $args = 3; break;
case 48: $function = 'TEXT'; $args = 2; break;
case 61: $function = 'MIRR'; $args = 3; break;
case 63: $function = 'RAND'; $args = 0; break;
case 65: $function = 'DATE'; $args = 3; break;
case 66: $function = 'TIME'; $args = 3; break;
case 67: $function = 'DAY'; $args = 1; break;
case 68: $function = 'MONTH'; $args = 1; break;
case 69: $function = 'YEAR'; $args = 1; break;
case 71: $function = 'HOUR'; $args = 1; break;
case 72: $function = 'MINUTE'; $args = 1; break;
case 73: $function = 'SECOND'; $args = 1; break;
case 74: $function = 'NOW'; $args = 0; break;
case 75: $function = 'AREAS'; $args = 1; break;
case 76: $function = 'ROWS'; $args = 1; break;
case 77: $function = 'COLUMNS'; $args = 1; break;
case 83: $function = 'TRANSPOSE'; $args = 1; break;
case 86: $function = 'TYPE'; $args = 1; break;
case 97: $function = 'ATAN2'; $args = 2; break;
case 98: $function = 'ASIN'; $args = 1; break;
case 99: $function = 'ACOS'; $args = 1; break;
case 105: $function = 'ISREF'; $args = 1; break;
case 111: $function = 'CHAR'; $args = 1; break;
case 112: $function = 'LOWER'; $args = 1; break;
case 113: $function = 'UPPER'; $args = 1; break;
case 114: $function = 'PROPER'; $args = 1; break;
case 117: $function = 'EXACT'; $args = 2; break;
case 118: $function = 'TRIM'; $args = 1; break;
case 119: $function = 'REPLACE'; $args = 4; break;
case 121: $function = 'CODE'; $args = 1; break;
case 126: $function = 'ISERR'; $args = 1; break;
case 127: $function = 'ISTEXT'; $args = 1; break;
case 128: $function = 'ISNUMBER'; $args = 1; break;
case 129: $function = 'ISBLANK'; $args = 1; break;
case 130: $function = 'T'; $args = 1; break;
case 131: $function = 'N'; $args = 1; break;
case 140: $function = 'DATEVALUE'; $args = 1; break;
case 141: $function = 'TIMEVALUE'; $args = 1; break;
case 142: $function = 'SLN'; $args = 3; break;
case 143: $function = 'SYD'; $args = 4; break;
case 162: $function = 'CLEAN'; $args = 1; break;
case 163: $function = 'MDETERM'; $args = 1; break;
case 164: $function = 'MINVERSE'; $args = 1; break;
case 165: $function = 'MMULT'; $args = 2; break;
case 184: $function = 'FACT'; $args = 1; break;
case 189: $function = 'DPRODUCT'; $args = 3; break;
case 190: $function = 'ISNONTEXT'; $args = 1; break;
case 195: $function = 'DSTDEVP'; $args = 3; break;
case 196: $function = 'DVARP'; $args = 3; break;
case 198: $function = 'ISLOGICAL'; $args = 1; break;
case 199: $function = 'DCOUNTA'; $args = 3; break;
case 207: $function = 'REPLACEB'; $args = 4; break;
case 210: $function = 'MIDB'; $args = 3; break;
case 211: $function = 'LENB'; $args = 1; break;
case 212: $function = 'ROUNDUP'; $args = 2; break;
case 213: $function = 'ROUNDDOWN'; $args = 2; break;
case 214: $function = 'ASC'; $args = 1; break;
case 215: $function = 'DBCS'; $args = 1; break;
case 221: $function = 'TODAY'; $args = 0; break;
case 229: $function = 'SINH'; $args = 1; break;
case 230: $function = 'COSH'; $args = 1; break;
case 231: $function = 'TANH'; $args = 1; break;
case 232: $function = 'ASINH'; $args = 1; break;
case 233: $function = 'ACOSH'; $args = 1; break;
case 234: $function = 'ATANH'; $args = 1; break;
case 235: $function = 'DGET'; $args = 3; break;
case 244: $function = 'INFO'; $args = 1; break;
case 252: $function = 'FREQUENCY'; $args = 2; break;
case 261: $function = 'ERROR.TYPE'; $args = 1; break;
case 271: $function = 'GAMMALN'; $args = 1; break;
case 273: $function = 'BINOMDIST'; $args = 4; break;
case 274: $function = 'CHIDIST'; $args = 2; break;
case 275: $function = 'CHIINV'; $args = 2; break;
case 276: $function = 'COMBIN'; $args = 2; break;
case 277: $function = 'CONFIDENCE'; $args = 3; break;
case 278: $function = 'CRITBINOM'; $args = 3; break;
case 279: $function = 'EVEN'; $args = 1; break;
case 280: $function = 'EXPONDIST'; $args = 3; break;
case 281: $function = 'FDIST'; $args = 3; break;
case 282: $function = 'FINV'; $args = 3; break;
case 283: $function = 'FISHER'; $args = 1; break;
case 284: $function = 'FISHERINV'; $args = 1; break;
case 285: $function = 'FLOOR'; $args = 2; break;
case 286: $function = 'GAMMADIST'; $args = 4; break;
case 287: $function = 'GAMMAINV'; $args = 3; break;
case 288: $function = 'CEILING'; $args = 2; break;
case 289: $function = 'HYPGEOMDIST'; $args = 4; break;
case 290: $function = 'LOGNORMDIST'; $args = 3; break;
case 291: $function = 'LOGINV'; $args = 3; break;
case 292: $function = 'NEGBINOMDIST'; $args = 3; break;
case 293: $function = 'NORMDIST'; $args = 4; break;
case 294: $function = 'NORMSDIST'; $args = 1; break;
case 295: $function = 'NORMINV'; $args = 3; break;
case 296: $function = 'NORMSINV'; $args = 1; break;
case 297: $function = 'STANDARDIZE'; $args = 3; break;
case 298: $function = 'ODD'; $args = 1; break;
case 299: $function = 'PERMUT'; $args = 2; break;
case 300: $function = 'POISSON'; $args = 3; break;
case 301: $function = 'TDIST'; $args = 3; break;
case 302: $function = 'WEIBULL'; $args = 4; break;
case 303: $function = 'SUMXMY2'; $args = 2; break;
case 304: $function = 'SUMX2MY2'; $args = 2; break;
case 305: $function = 'SUMX2PY2'; $args = 2; break;
case 306: $function = 'CHITEST'; $args = 2; break;
case 307: $function = 'CORREL'; $args = 2; break;
case 308: $function = 'COVAR'; $args = 2; break;
case 309: $function = 'FORECAST'; $args = 3; break;
case 310: $function = 'FTEST'; $args = 2; break;
case 311: $function = 'INTERCEPT'; $args = 2; break;
case 312: $function = 'PEARSON'; $args = 2; break;
case 313: $function = 'RSQ'; $args = 2; break;
case 314: $function = 'STEYX'; $args = 2; break;
case 315: $function = 'SLOPE'; $args = 2; break;
case 316: $function = 'TTEST'; $args = 4; break;
case 325: $function = 'LARGE'; $args = 2; break;
case 326: $function = 'SMALL'; $args = 2; break;
case 327: $function = 'QUARTILE'; $args = 2; break;
case 328: $function = 'PERCENTILE'; $args = 2; break;
case 331: $function = 'TRIMMEAN'; $args = 2; break;
case 332: $function = 'TINV'; $args = 2; break;
case 337: $function = 'POWER'; $args = 2; break;
case 342: $function = 'RADIANS'; $args = 1; break;
case 343: $function = 'DEGREES'; $args = 1; break;
case 346: $function = 'COUNTIF'; $args = 2; break;
case 347: $function = 'COUNTBLANK'; $args = 1; break;
case 350: $function = 'ISPMT'; $args = 4; break;
case 351: $function = 'DATEDIF'; $args = 3; break;
case 352: $function = 'DATESTRING'; $args = 1; break;
case 353: $function = 'NUMBERSTRING'; $args = 2; break;
case 360: $function = 'PHONETIC'; $args = 1; break;
default:
throw new Exception('Unrecognized function in formula');
break;
}
$data = array('function' => $function, 'args' => $args);
break;
case 0x22: // function with variable number of arguments
case 0x42: // function with variable number of arguments
case 0x62: // function with variable number of arguments
$name = 'tFuncV';
$size = 4;
// offset: 1; size: 1; number of arguments
$args = ord($formulaData[1]);
// offset: 2: size: 2; index to built-in sheet function
switch ($this->_GetInt2d($formulaData, 2)) {
case 0: $function = 'COUNT'; break;
case 1: $function = 'IF'; break;
case 4: $function = 'SUM'; break;
case 5: $function = 'AVERAGE'; break;
case 6: $function = 'MIN'; break;
case 7: $function = 'MAX'; break;
case 8: $function = 'ROW'; break;
case 9: $function = 'COLUMN'; break;
case 11: $function = 'NPV'; break;
case 12: $function = 'STDEV'; break;
case 13: $function = 'DOLLAR'; break;
case 14: $function = 'FIXED'; break;
case 28: $function = 'LOOKUP'; break;
case 29: $function = 'INDEX'; break;
case 36: $function = 'AND'; break;
case 37: $function = 'OR'; break;
case 46: $function = 'VAR'; break;
case 49: $function = 'LINEST'; break;
case 50: $function = 'TREND'; break;
case 51: $function = 'LOGEST'; break;
case 52: $function = 'GROWTH'; break;
case 56: $function = 'PV'; break;
case 57: $function = 'FV'; break;
case 58: $function = 'NPER'; break;
case 59: $function = 'PMT'; break;
case 60: $function = 'RATE'; break;
case 62: $function = 'IRR'; break;
case 64: $function = 'MATCH'; break;
case 70: $function = 'WEEKDAY'; break;
case 78: $function = 'OFFSET'; break;
case 82: $function = 'SEARCH'; break;
case 100: $function = 'CHOOSE'; break;
case 101: $function = 'HLOOKUP'; break;
case 102: $function = 'VLOOKUP'; break;
case 109: $function = 'LOG'; break;
case 115: $function = 'LEFT'; break;
case 116: $function = 'RIGHT'; break;
case 120: $function = 'SUBSTITUTE'; break;
case 124: $function = 'FIND'; break;
case 125: $function = 'CELL'; break;
case 144: $function = 'DDB'; break;
case 148: $function = 'INDIRECT'; break;
case 167: $function = 'IPMT'; break;
case 168: $function = 'PPMT'; break;
case 169: $function = 'COUNTA'; break;
case 183: $function = 'PRODUCT'; break;
case 193: $function = 'STDEVP'; break;
case 194: $function = 'VARP'; break;
case 197: $function = 'TRUNC'; break;
case 204: $function = 'USDOLLAR'; break;
case 205: $function = 'FINDB'; break;
case 206: $function = 'SEARCHB'; break;
case 208: $function = 'LEFTB'; break;
case 209: $function = 'RIGHTB'; break;
case 216: $function = 'RANK'; break;
case 219: $function = 'ADDRESS'; break;
case 220: $function = 'DAYS360'; break;
case 222: $function = 'VDB'; break;
case 227: $function = 'MEDIAN'; break;
case 228: $function = 'SUMPRODUCT'; break;
case 247: $function = 'DB'; break;
case 269: $function = 'AVEDEV'; break;
case 270: $function = 'BETADIST'; break;
case 272: $function = 'BETAINV'; break;
case 317: $function = 'PROB'; break;
case 318: $function = 'DEVSQ'; break;
case 319: $function = 'GEOMEAN'; break;
case 320: $function = 'HARMEAN'; break;
case 321: $function = 'SUMSQ'; break;
case 322: $function = 'KURT'; break;
case 323: $function = 'SKEW'; break;
case 324: $function = 'ZTEST'; break;
case 329: $function = 'PERCENTRANK'; break;
case 330: $function = 'MODE'; break;
case 336: $function = 'CONCATENATE'; break;
case 344: $function = 'SUBTOTAL'; break;
case 345: $function = 'SUMIF'; break;
case 354: $function = 'ROMAN'; break;
case 358: $function = 'GETPIVOTDATA'; break;
case 359: $function = 'HYPERLINK'; break;
case 361: $function = 'AVERAGEA'; break;
case 362: $function = 'MAXA'; break;
case 363: $function = 'MINA'; break;
case 364: $function = 'STDEVPA'; break;
case 365: $function = 'VARPA'; break;
case 366: $function = 'STDEVA'; break;
case 367: $function = 'VARA'; break;
default:
throw new Exception('Unrecognized function in formula');
break;
}
$data = array('function' => $function, 'args' => $args);
break;
case 0x23: // index to defined name
case 0x43:
$name = 'tName';
$size = 5;
// offset: 1; size: 2; one-based index to definedname record
$definedNameIndex = $this->_GetInt2d($formulaData, 1) - 1;
// offset: 2; size: 2; not used
$data = $this->_definedname[$definedNameIndex]['name'];
break;
case 0x24: // single cell reference e.g. A5
case 0x44:
case 0x64:
$name = 'tRef';
$size = 5;
$data = $this->_readBIFF8CellAddress(substr($formulaData, 1, 4));
break;
case 0x25: // cell range reference to cells in the same sheet
case 0x45:
case 0x65:
$name = 'tArea';
$size = 9;
$data = $this->_readBIFF8CellRangeAddress(substr($formulaData, 1, 8));
break;
case 0x26:
case 0x46:
$name = 'tMemArea';
// offset: 1; size: 4; not used
// offset: 5; size: 2; size of the following subexpression
$subSize = $this->_GetInt2d($formulaData, 5);
$size = 7 + $subSize;
$data = $this->_getFormulaFromData(substr($formulaData, 7, $subSize));
break;
case 0x47:
$name = 'tMemErr';
// offset: 1; size: 4; not used
// offset: 5; size: 2; size of the following subexpression
$subSize = $this->_GetInt2d($formulaData, 5);
$size = 7 + $subSize;
$data = $this->_getFormulaFromData(substr($formulaData, 7, $subSize));
break;
case 0x29:
case 0x49:
$name = 'tMemFunc';
// offset: 1; size: 2; size of the following subexpression
$subSize = $this->_GetInt2d($formulaData, 1);
$size = 3 + $subSize;
$data = $this->_getFormulaFromData(substr($formulaData, 3, $subSize));
break;
case 0x4C: // Relative reference, used in shared formulas and some other places
$name = 'tRefN';
$size = 5;
$data = $this->_readBIFF8CellAddressB(substr($formulaData, 1, 4), $baseCell);
break;
case 0x3A: // 3d reference to cell
case 0x5A:
$name = 'tRef3d';
$size = 7;
// offset: 1; size: 2; index to REF entry
$sheetRange = $this->_readSheetRangeByRefIndex($this->_GetInt2d($formulaData, 1));
// offset: 3; size: 4; cell address
$cellAddress = $this->_readBIFF8CellAddress(substr($formulaData, 3, 4));
$data = "$sheetRange!$cellAddress";
break;
case 0x3B: // 3d reference to cell range
case 0x5B:
$name = 'tArea3d';
$size = 11;
// offset: 1; size: 2; index to REF entry
$sheetRange = $this->_readSheetRangeByRefIndex($this->_GetInt2d($formulaData, 1));
// offset: 3; size: 8; cell address
$cellRangeAddress = $this->_readBIFF8CellRangeAddress(substr($formulaData, 3, 8));
$data = "$sheetRange!$cellRangeAddress";
break;
// case 0x39: // don't know how to deal with
default:
throw new Exception('Unrecognized token ' . sprintf('%02X', $id) . ' in formula');
break;
}
return array(
'id' => $id,
'name' => $name,
'size' => $size,
'data' => $data,
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_getSplicedRecordData ( )
private

Reads a record from current position in data stream and continues reading data as long as CONTINUE records are found.

Splices the record data pieces and returns the combined string as if record data is in one piece. Moves to next current position in data stream to start of next record different from a CONtINUE record

Returns
array

Definition at line 3545 of file Excel5.php.

References $data, and _GetInt2d().

Referenced by _readImData(), _readMsoDrawingGroup(), and _readSst().

{
$data = '';
$spliceOffsets = array();
$i = 0;
$spliceOffsets[0] = 0;
do {
++$i;
// offset: 0; size: 2; identifier
$identifier = $this->_GetInt2d($this->_data, $this->_pos);
// offset: 2; size: 2; length
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$data .= substr($this->_data, $this->_pos + 4, $length);
$spliceOffsets[$i] = $spliceOffsets[$i - 1] + $length;
$this->_pos += 4 + $length;
$nextIdentifier = $this->_GetInt2d($this->_data, $this->_pos);
}
while ($nextIdentifier == self::XLS_Type_CONTINUE);
$splicedData = array(
'recordData' => $data,
'spliceOffsets' => $spliceOffsets,
);
return $splicedData;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_mapBorderStyle (   $index)
private

Map border style OpenOffice documentation: 2.5.11.

Parameters
int$index
Returns
string

Definition at line 5011 of file Excel5.php.

References PHPExcel_Style_Border\BORDER_DASHDOT, PHPExcel_Style_Border\BORDER_DASHDOTDOT, PHPExcel_Style_Border\BORDER_DASHED, PHPExcel_Style_Border\BORDER_DOTTED, PHPExcel_Style_Border\BORDER_DOUBLE, PHPExcel_Style_Border\BORDER_HAIR, PHPExcel_Style_Border\BORDER_MEDIUM, PHPExcel_Style_Border\BORDER_MEDIUMDASHDOT, PHPExcel_Style_Border\BORDER_MEDIUMDASHDOTDOT, PHPExcel_Style_Border\BORDER_MEDIUMDASHED, PHPExcel_Style_Border\BORDER_NONE, PHPExcel_Style_Border\BORDER_SLANTDASHDOT, PHPExcel_Style_Border\BORDER_THICK, and PHPExcel_Style_Border\BORDER_THIN.

Referenced by _readXf().

{
switch ($index) {
case 0x00: return PHPExcel_Style_Border::BORDER_NONE;
case 0x01: return PHPExcel_Style_Border::BORDER_THIN;
case 0x02: return PHPExcel_Style_Border::BORDER_MEDIUM;
case 0x03: return PHPExcel_Style_Border::BORDER_DASHED;
case 0x04: return PHPExcel_Style_Border::BORDER_DOTTED;
case 0x05: return PHPExcel_Style_Border::BORDER_THICK;
case 0x06: return PHPExcel_Style_Border::BORDER_DOUBLE;
case 0x07: return PHPExcel_Style_Border::BORDER_HAIR;
case 0x08: return PHPExcel_Style_Border::BORDER_MEDIUMDASHED;
case 0x09: return PHPExcel_Style_Border::BORDER_DASHDOT;
case 0x0A: return PHPExcel_Style_Border::BORDER_MEDIUMDASHDOT;
case 0x0B: return PHPExcel_Style_Border::BORDER_DASHDOTDOT;
case 0x0C: return PHPExcel_Style_Border::BORDER_MEDIUMDASHDOTDOT;
case 0x0D: return PHPExcel_Style_Border::BORDER_SLANTDASHDOT;
default: return PHPExcel_Style_Border::BORDER_NONE;
}
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_mapBuiltInColor (   $color)
private

Map built-in color to RGB value.

Parameters
int$colorIndexed color
Returns
array

Definition at line 5091 of file Excel5.php.

Referenced by _readColor().

{
switch ($color) {
case 0x00: return array('rgb' => '000000');
case 0x01: return array('rgb' => 'FFFFFF');
case 0x02: return array('rgb' => 'FF0000');
case 0x03: return array('rgb' => '00FF00');
case 0x04: return array('rgb' => '0000FF');
case 0x05: return array('rgb' => 'FFFF00');
case 0x06: return array('rgb' => 'FF00FF');
case 0x07: return array('rgb' => '00FFFF');
case 0x40: return array('rgb' => '000000'); // system window text color
case 0x41: return array('rgb' => 'FFFFFF'); // system window background color
default: return array('rgb' => '000000');
}
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_mapColor (   $subData)
private

Map color array from BIFF8 built-in color index.

Parameters
int$subData
Returns
array

Definition at line 5183 of file Excel5.php.

Referenced by _readColor().

{
switch ($subData) {
case 0x08: return array('rgb' => '000000');
case 0x09: return array('rgb' => 'FFFFFF');
case 0x0A: return array('rgb' => 'FF0000');
case 0x0B: return array('rgb' => '00FF00');
case 0x0C: return array('rgb' => '0000FF');
case 0x0D: return array('rgb' => 'FFFF00');
case 0x0E: return array('rgb' => 'FF00FF');
case 0x0F: return array('rgb' => '00FFFF');
case 0x10: return array('rgb' => '800000');
case 0x11: return array('rgb' => '008000');
case 0x12: return array('rgb' => '000080');
case 0x13: return array('rgb' => '808000');
case 0x14: return array('rgb' => '800080');
case 0x15: return array('rgb' => '008080');
case 0x16: return array('rgb' => 'C0C0C0');
case 0x17: return array('rgb' => '808080');
case 0x18: return array('rgb' => '9999FF');
case 0x19: return array('rgb' => '993366');
case 0x1A: return array('rgb' => 'FFFFCC');
case 0x1B: return array('rgb' => 'CCFFFF');
case 0x1C: return array('rgb' => '660066');
case 0x1D: return array('rgb' => 'FF8080');
case 0x1E: return array('rgb' => '0066CC');
case 0x1F: return array('rgb' => 'CCCCFF');
case 0x20: return array('rgb' => '000080');
case 0x21: return array('rgb' => 'FF00FF');
case 0x22: return array('rgb' => 'FFFF00');
case 0x23: return array('rgb' => '00FFFF');
case 0x24: return array('rgb' => '800080');
case 0x25: return array('rgb' => '800000');
case 0x26: return array('rgb' => '008080');
case 0x27: return array('rgb' => '0000FF');
case 0x28: return array('rgb' => '00CCFF');
case 0x29: return array('rgb' => 'CCFFFF');
case 0x2A: return array('rgb' => 'CCFFCC');
case 0x2B: return array('rgb' => 'FFFF99');
case 0x2C: return array('rgb' => '99CCFF');
case 0x2D: return array('rgb' => 'FF99CC');
case 0x2E: return array('rgb' => 'CC99FF');
case 0x2F: return array('rgb' => 'FFCC99');
case 0x30: return array('rgb' => '3366FF');
case 0x31: return array('rgb' => '33CCCC');
case 0x32: return array('rgb' => '99CC00');
case 0x33: return array('rgb' => 'FFCC00');
case 0x34: return array('rgb' => 'FF9900');
case 0x35: return array('rgb' => 'FF6600');
case 0x36: return array('rgb' => '666699');
case 0x37: return array('rgb' => '969696');
case 0x38: return array('rgb' => '003366');
case 0x39: return array('rgb' => '339966');
case 0x3A: return array('rgb' => '003300');
case 0x3B: return array('rgb' => '333300');
case 0x3C: return array('rgb' => '993300');
case 0x3D: return array('rgb' => '993366');
case 0x3E: return array('rgb' => '333399');
case 0x3F: return array('rgb' => '333333');
default: return array('rgb' => '000000');
}
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_mapColorBIFF5 (   $subData)
private

Map color array from BIFF5 built-in color index.

Parameters
int$subData
Returns
array

Definition at line 5114 of file Excel5.php.

Referenced by _readColor().

{
switch ($subData) {
case 0x08: return array('rgb' => '000000');
case 0x09: return array('rgb' => 'FFFFFF');
case 0x0A: return array('rgb' => 'FF0000');
case 0x0B: return array('rgb' => '00FF00');
case 0x0C: return array('rgb' => '0000FF');
case 0x0D: return array('rgb' => 'FFFF00');
case 0x0E: return array('rgb' => 'FF00FF');
case 0x0F: return array('rgb' => '00FFFF');
case 0x10: return array('rgb' => '800000');
case 0x11: return array('rgb' => '008000');
case 0x12: return array('rgb' => '000080');
case 0x13: return array('rgb' => '808000');
case 0x14: return array('rgb' => '800080');
case 0x15: return array('rgb' => '008080');
case 0x16: return array('rgb' => 'C0C0C0');
case 0x17: return array('rgb' => '808080');
case 0x18: return array('rgb' => '8080FF');
case 0x19: return array('rgb' => '802060');
case 0x1A: return array('rgb' => 'FFFFC0');
case 0x1B: return array('rgb' => 'A0E0F0');
case 0x1C: return array('rgb' => '600080');
case 0x1D: return array('rgb' => 'FF8080');
case 0x1E: return array('rgb' => '0080C0');
case 0x1F: return array('rgb' => 'C0C0FF');
case 0x20: return array('rgb' => '000080');
case 0x21: return array('rgb' => 'FF00FF');
case 0x22: return array('rgb' => 'FFFF00');
case 0x23: return array('rgb' => '00FFFF');
case 0x24: return array('rgb' => '800080');
case 0x25: return array('rgb' => '800000');
case 0x26: return array('rgb' => '008080');
case 0x27: return array('rgb' => '0000FF');
case 0x28: return array('rgb' => '00CFFF');
case 0x29: return array('rgb' => '69FFFF');
case 0x2A: return array('rgb' => 'E0FFE0');
case 0x2B: return array('rgb' => 'FFFF80');
case 0x2C: return array('rgb' => 'A6CAF0');
case 0x2D: return array('rgb' => 'DD9CB3');
case 0x2E: return array('rgb' => 'B38FEE');
case 0x2F: return array('rgb' => 'E3E3E3');
case 0x30: return array('rgb' => '2A6FF9');
case 0x31: return array('rgb' => '3FB8CD');
case 0x32: return array('rgb' => '488436');
case 0x33: return array('rgb' => '958C41');
case 0x34: return array('rgb' => '8E5E42');
case 0x35: return array('rgb' => 'A0627A');
case 0x36: return array('rgb' => '624FAC');
case 0x37: return array('rgb' => '969696');
case 0x38: return array('rgb' => '1D2FBE');
case 0x39: return array('rgb' => '286676');
case 0x3A: return array('rgb' => '004500');
case 0x3B: return array('rgb' => '453E01');
case 0x3C: return array('rgb' => '6A2813');
case 0x3D: return array('rgb' => '85396A');
case 0x3E: return array('rgb' => '4A3285');
case 0x3F: return array('rgb' => '424242');
default: return array('rgb' => '000000');
}
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_mapErrorCode (   $subData)
private

Map error code, e.g.

'#N/A'

Parameters
int$subData
Returns
string

Definition at line 5071 of file Excel5.php.

Referenced by _getNextToken(), _readBIFF8Constant(), _readBoolErr(), and _readFormula().

{
switch ($subData) {
case 0x00: return '#NULL!'; break;
case 0x07: return '#DIV/0!'; break;
case 0x0F: return '#VALUE!'; break;
case 0x17: return '#REF!'; break;
case 0x1D: return '#NAME?'; break;
case 0x24: return '#NUM!'; break;
case 0x2A: return '#N/A'; break;
default: return false;
}
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_mapFillPattern (   $index)
private

Get fill pattern from index OpenOffice documentation: 2.5.12.

Parameters
int$index
Returns
string

Definition at line 5039 of file Excel5.php.

References PHPExcel_Style_Fill\FILL_NONE, PHPExcel_Style_Fill\FILL_PATTERN_DARKDOWN, PHPExcel_Style_Fill\FILL_PATTERN_DARKGRAY, PHPExcel_Style_Fill\FILL_PATTERN_DARKGRID, PHPExcel_Style_Fill\FILL_PATTERN_DARKHORIZONTAL, PHPExcel_Style_Fill\FILL_PATTERN_DARKTRELLIS, PHPExcel_Style_Fill\FILL_PATTERN_DARKUP, PHPExcel_Style_Fill\FILL_PATTERN_DARKVERTICAL, PHPExcel_Style_Fill\FILL_PATTERN_GRAY0625, PHPExcel_Style_Fill\FILL_PATTERN_GRAY125, PHPExcel_Style_Fill\FILL_PATTERN_LIGHTDOWN, PHPExcel_Style_Fill\FILL_PATTERN_LIGHTGRAY, PHPExcel_Style_Fill\FILL_PATTERN_LIGHTGRID, PHPExcel_Style_Fill\FILL_PATTERN_LIGHTHORIZONTAL, PHPExcel_Style_Fill\FILL_PATTERN_LIGHTTRELLIS, PHPExcel_Style_Fill\FILL_PATTERN_LIGHTUP, PHPExcel_Style_Fill\FILL_PATTERN_LIGHTVERTICAL, PHPExcel_Style_Fill\FILL_PATTERN_MEDIUMGRAY, and PHPExcel_Style_Fill\FILL_SOLID.

Referenced by _readXf().

{
switch ($index) {
case 0x00: return PHPExcel_Style_Fill::FILL_NONE;
case 0x01: return PHPExcel_Style_Fill::FILL_SOLID;
case 0x02: return PHPExcel_Style_Fill::FILL_PATTERN_MEDIUMGRAY;
case 0x03: return PHPExcel_Style_Fill::FILL_PATTERN_DARKGRAY;
case 0x04: return PHPExcel_Style_Fill::FILL_PATTERN_LIGHTGRAY;
case 0x05: return PHPExcel_Style_Fill::FILL_PATTERN_DARKHORIZONTAL;
case 0x06: return PHPExcel_Style_Fill::FILL_PATTERN_DARKVERTICAL;
case 0x07: return PHPExcel_Style_Fill::FILL_PATTERN_DARKDOWN;
case 0x08: return PHPExcel_Style_Fill::FILL_PATTERN_DARKUP;
case 0x09: return PHPExcel_Style_Fill::FILL_PATTERN_DARKGRID;
case 0x0A: return PHPExcel_Style_Fill::FILL_PATTERN_DARKTRELLIS;
case 0x0B: return PHPExcel_Style_Fill::FILL_PATTERN_LIGHTHORIZONTAL;
case 0x0C: return PHPExcel_Style_Fill::FILL_PATTERN_LIGHTVERTICAL;
case 0x0D: return PHPExcel_Style_Fill::FILL_PATTERN_LIGHTDOWN;
case 0x0E: return PHPExcel_Style_Fill::FILL_PATTERN_LIGHTUP;
case 0x0F: return PHPExcel_Style_Fill::FILL_PATTERN_LIGHTGRID;
case 0x10: return PHPExcel_Style_Fill::FILL_PATTERN_LIGHTTRELLIS;
case 0x11: return PHPExcel_Style_Fill::FILL_PATTERN_GRAY125;
case 0x12: return PHPExcel_Style_Fill::FILL_PATTERN_GRAY0625;
default: return PHPExcel_Style_Fill::FILL_NONE;
}
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBIFF5CellRangeAddressFixed (   $subData)
private

Reads a cell range address in BIFF5 e.g.

'A2:B6' or 'A1' always fixed range section 2.5.14

Parameters
string$subData
Returns
string
Exceptions
Exception

Definition at line 4388 of file Excel5.php.

References $lr, _GetInt2d(), and PHPExcel_Cell\stringFromColumnIndex().

Referenced by _readSharedFmla().

{
// offset: 0; size: 2; index to first row
$fr = $this->_GetInt2d($subData, 0) + 1;
// offset: 2; size: 2; index to last row
$lr = $this->_GetInt2d($subData, 2) + 1;
// offset: 4; size: 1; index to first column
$fc = ord($subData{4});
// offset: 5; size: 1; index to last column
$lc = ord($subData{5});
// check values
if ($fr > $lr || $fc > $lc) {
throw new Exception('Not a cell range address');
}
// column index to letter
$fc = PHPExcel_Cell::stringFromColumnIndex($fc);
$lc = PHPExcel_Cell::stringFromColumnIndex($lc);
if ($fr == $lr and $fc == $lc) {
return "$fc$fr";
}
return "$fc$fr:$lc$lr";
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBIFF8CellAddress (   $cellAddressStructure)
private

Reads a cell address in BIFF8 e.g.

'A2' or '$A$2' section 3.3.4

Parameters
string$cellAddressStructure
Returns
string

Definition at line 4314 of file Excel5.php.

References $row, _GetInt2d(), and PHPExcel_Cell\stringFromColumnIndex().

Referenced by _getNextToken().

{
// offset: 0; size: 2; index to row (0... 65535) (or offset (-32768... 32767))
$row = $this->_GetInt2d($cellAddressStructure, 0) + 1;
// offset: 2; size: 2; index to column or column offset + relative flags
// bit: 7-0; mask 0x00FF; column index
$column = PHPExcel_Cell::stringFromColumnIndex(0x00FF & $this->_GetInt2d($cellAddressStructure, 2));
// bit: 14; mask 0x4000; (1 = relative column index, 0 = absolute column index)
if (!(0x4000 & $this->_GetInt2d($cellAddressStructure, 2))) {
$column = '$' . $column;
}
// bit: 15; mask 0x8000; (1 = relative row index, 0 = absolute row index)
if (!(0x8000 & $this->_GetInt2d($cellAddressStructure, 2))) {
$row = '$' . $row;
}
return $column . $row;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBIFF8CellAddressB (   $cellAddressStructure,
  $baseCell = 'A1'
)
private

Reads a cell address in BIFF8 for shared formulas.

Uses positive and negative values for row and column to indicate offsets from a base cell section 3.3.4

Parameters
string$cellAddressStructure
string$baseCellBase cell, only needed when formula contains tRefN tokens, e.g. with shared formulas
Returns
string

Definition at line 4345 of file Excel5.php.

References $row, _GetInt2d(), PHPExcel_Cell\columnIndexFromString(), PHPExcel_Cell\coordinateFromString(), and PHPExcel_Cell\stringFromColumnIndex().

Referenced by _getNextToken().

{
list($baseCol, $baseRow) = PHPExcel_Cell::coordinateFromString($baseCell);
$baseCol = PHPExcel_Cell::columnIndexFromString($baseCol) - 1;
// offset: 0; size: 2; index to row (0... 65535) (or offset (-32768... 32767))
$rowIndex = $this->_GetInt2d($cellAddressStructure, 0);
$row = $this->_GetInt2d($cellAddressStructure, 0) + 1;
// offset: 2; size: 2; index to column or column offset + relative flags
// bit: 7-0; mask 0x00FF; column index
$colIndex = 0x00FF & $this->_GetInt2d($cellAddressStructure, 2);
// bit: 14; mask 0x4000; (1 = relative column index, 0 = absolute column index)
if (!(0x4000 & $this->_GetInt2d($cellAddressStructure, 2))) {
$column = PHPExcel_Cell::stringFromColumnIndex($colIndex);
$column = '$' . $column;
} else {
$colIndex = ($colIndex <= 127) ? $colIndex : $colIndex - 256;
$column = PHPExcel_Cell::stringFromColumnIndex($baseCol + $colIndex);
}
// bit: 15; mask 0x8000; (1 = relative row index, 0 = absolute row index)
if (!(0x8000 & $this->_GetInt2d($cellAddressStructure, 2))) {
$row = '$' . $row;
} else {
$rowIndex = ($rowIndex <= 32767) ? $rowIndex : $rowIndex - 65536;
$row = $baseRow + $rowIndex;
}
return $column . $row;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBIFF8CellRangeAddress (   $subData)
private

Reads a cell range address in BIFF8 e.g.

'A2:B6' or '$A$2:$B$6' there are flags indicating whether column/row index is relative section 3.3.4

Parameters
string$subData
Returns
string

Definition at line 4463 of file Excel5.php.

References $lr, _GetInt2d(), and PHPExcel_Cell\stringFromColumnIndex().

Referenced by _getNextToken().

{
// todo: if cell range is just a single cell, should this funciton
// not just return e.g. 'A1' and not 'A1:A1' ?
// offset: 0; size: 2; index to first row (0... 65535) (or offset (-32768... 32767))
$fr = $this->_GetInt2d($subData, 0) + 1;
// offset: 2; size: 2; index to last row (0... 65535) (or offset (-32768... 32767))
$lr = $this->_GetInt2d($subData, 2) + 1;
// offset: 4; size: 2; index to first column or column offset + relative flags
// bit: 7-0; mask 0x00FF; column index
$fc = PHPExcel_Cell::stringFromColumnIndex(0x00FF & $this->_GetInt2d($subData, 4));
// bit: 14; mask 0x4000; (1 = relative column index, 0 = absolute column index)
if (!(0x4000 & $this->_GetInt2d($subData, 4))) {
$fc = '$' . $fc;
}
// bit: 15; mask 0x8000; (1 = relative row index, 0 = absolute row index)
if (!(0x8000 & $this->_GetInt2d($subData, 4))) {
$fr = '$' . $fr;
}
// offset: 6; size: 2; index to last column or column offset + relative flags
// bit: 7-0; mask 0x00FF; column index
$lc = PHPExcel_Cell::stringFromColumnIndex(0x00FF & $this->_GetInt2d($subData, 6));
// bit: 14; mask 0x4000; (1 = relative column index, 0 = absolute column index)
if (!(0x4000 & $this->_GetInt2d($subData, 6))) {
$lc = '$' . $lc;
}
// bit: 15; mask 0x8000; (1 = relative row index, 0 = absolute row index)
if (!(0x8000 & $this->_GetInt2d($subData, 6))) {
$lr = '$' . $lr;
}
return "$fc$fr:$lc$lr";
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBIFF8CellRangeAddressFixed (   $subData)
private

Reads a cell range address in BIFF8 e.g.

'A2:B6' or 'A1' always fixed range section 2.5.14

Parameters
string$subData
Returns
string
Exceptions
Exception

Definition at line 4426 of file Excel5.php.

References $lr, _GetInt2d(), and PHPExcel_Cell\stringFromColumnIndex().

Referenced by _readBIFF8CellRangeAddressList(), _readHyperLink(), and _readRangeProtection().

{
// offset: 0; size: 2; index to first row
$fr = $this->_GetInt2d($subData, 0) + 1;
// offset: 2; size: 2; index to last row
$lr = $this->_GetInt2d($subData, 2) + 1;
// offset: 4; size: 2; index to first column
$fc = $this->_GetInt2d($subData, 4);
// offset: 6; size: 2; index to last column
$lc = $this->_GetInt2d($subData, 6);
// check values
if ($fr > $lr || $fc > $lc) {
throw new Exception('Not a cell range address');
}
// column index to letter
$fc = PHPExcel_Cell::stringFromColumnIndex($fc);
$lc = PHPExcel_Cell::stringFromColumnIndex($lc);
if ($fr == $lr and $fc == $lc) {
return "$fc$fr";
}
return "$fc$fr:$lc$lr";
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBIFF8CellRangeAddressList (   $subData)
private

Read BIFF8 cell range address list section 2.5.15.

Parameters
string$subData
Returns
array

Definition at line 4514 of file Excel5.php.

References _GetInt2d(), and _readBIFF8CellRangeAddressFixed().

Referenced by _createFormulaFromTokens(), and _readMergedCells().

{
$cellRangeAddresses = array();
// offset: 0; size: 2; number of the following cell range addresses
$nm = $this->_GetInt2d($subData, 0);
$offset = 2;
// offset: 2; size: 8 * $nm; list of $nm (fixed) cell range addresses
for ($i = 0; $i < $nm; ++$i) {
$cellRangeAddresses[] = $this->_readBIFF8CellRangeAddressFixed(substr($subData, $offset, 8));
$offset += 8;
}
return array(
'size' => 2 + 8 * $nm,
'cellRangeAddresses' => $cellRangeAddresses,
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBIFF8Constant (   $valueData)
private

read BIFF8 constant value which may be 'Empty Value', 'Number', 'String Value', 'Boolean Value', 'Error Value' section 2.5.7 returns e.g.

array('value' => '5', 'size' => 9)

Parameters
string$valueData
Returns
array

Definition at line 4637 of file Excel5.php.

References $size, _extractNumber(), _mapErrorCode(), and _readUnicodeStringLong().

Referenced by _readBIFF8ConstantArray().

{
// offset: 0; size: 1; identifier for type of constant
$identifier = ord($valueData[0]);
switch ($identifier) {
case 0x00: // empty constant (what is this?)
$value = '';
$size = 9;
break;
case 0x01: // number
// offset: 1; size: 8; IEEE 754 floating-point value
$value = $this->_extractNumber(substr($valueData, 1, 8));
$size = 9;
break;
case 0x02: // string value
// offset: 1; size: var; Unicode string, 16-bit string length
$string = $this->_readUnicodeStringLong(substr($valueData, 1));
$value = '"' . $string['value'] . '"';
$size = 1 + $string['size'];
break;
case 0x04: // boolean
// offset: 1; size: 1; 0 = FALSE, 1 = TRUE
if (ord($valueData[1])) {
$value = 'TRUE';
} else {
$value = 'FALSE';
}
$size = 9;
break;
case 0x10: // error code
// offset: 1; size: 1; error code
$value = $this->_mapErrorCode(ord($valueData[1]));
$size = 9;
break;
}
return array(
'value' => $value,
'size' => $size,
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBIFF8ConstantArray (   $arrayData)
private

read BIFF8 constant value array from array data returns e.g.

array('value' => '{1,2;3,4}', 'size' => 40} section 2.5.8

Parameters
string$arrayData
Returns
array

Definition at line 4599 of file Excel5.php.

References $size, _GetInt2d(), and _readBIFF8Constant().

Referenced by _createFormulaFromTokens().

{
// offset: 0; size: 1; number of columns decreased by 1
$nc = ord($arrayData[0]);
// offset: 1; size: 2; number of rows decreased by 1
$nr = $this->_GetInt2d($arrayData, 1);
$size = 3; // initialize
$arrayData = substr($arrayData, 3);
// offset: 3; size: var; list of ($nc + 1) * ($nr + 1) constant values
$matrixChunks = array();
for ($r = 1; $r <= $nr + 1; ++$r) {
$items = array();
for ($c = 1; $c <= $nc + 1; ++$c) {
$constant = $this->_readBIFF8Constant($arrayData);
$items[] = $constant['value'];
$arrayData = substr($arrayData, $constant['size']);
$size += $constant['size'];
}
$matrixChunks[] = implode(',', $items); // looks like e.g. '1,"hello"'
}
$matrix = '{' . implode(';', $matrixChunks) . '}';
return array(
'value' => $matrix,
'size' => $size,
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBlank ( )
private

Read BLANK record.

Definition at line 3063 of file Excel5.php.

References $row, _GetInt2d(), getReadFilter(), and PHPExcel_Cell\stringFromColumnIndex().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; row index
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; col index
$col = $this->_GetInt2d($recordData, 2);
$columnString = PHPExcel_Cell::stringFromColumnIndex($col);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
// offset: 4; size: 2; XF index
$xfindex = $this->_GetInt2d($recordData, 4);
// add style information
if (!$this->_readDataOnly) {
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBoolErr ( )
private

Read BOOLERR record This record represents a Boolean value or error value cell.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 2924 of file Excel5.php.

References $row, _GetInt2d(), _mapErrorCode(), getReadFilter(), PHPExcel_Cell\stringFromColumnIndex(), PHPExcel_Cell_DataType\TYPE_BOOL, and PHPExcel_Cell_DataType\TYPE_ERROR.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; row index
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; column index
$column = $this->_GetInt2d($recordData, 2);
$columnString = PHPExcel_Cell::stringFromColumnIndex($column);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
// offset: 4; size: 2; index to XF record
$xfindex = $this->_GetInt2d($recordData, 4);
// offset: 6; size: 1; the boolean value or error value
$boolErr = ord($recordData{6});
// offset: 7; size: 1; 0=boolean; 1=error
$isError = ord($recordData{7});
switch ($isError) {
case 0: // boolean
$value = (bool) $boolErr;
// add cell value
$this->_phpSheet->getCell($columnString . ($row + 1))->setValueExplicit($value, PHPExcel_Cell_DataType::TYPE_BOOL);
break;
case 1: // error type
$value = $this->_mapErrorCode($boolErr);
// add cell value
$this->_phpSheet->getCell($columnString . ($row + 1))->setValueExplicit($value, PHPExcel_Cell_DataType::TYPE_ERROR);
break;
}
// add cell style
if (!$this->_readDataOnly) {
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readBottomMargin ( )
private

Read BOTTOMMARGIN record.

Definition at line 2269 of file Excel5.php.

References _extractNumber(), and _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 8
$this->_phpSheet->getPageMargins()->setBottom($this->_extractNumber($recordData));
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readByteStringLong (   $subData)
private

Read byte string (16-bit string length) OpenOffice documentation: 2.5.2.

Parameters
string$subData
Returns
array

Definition at line 4731 of file Excel5.php.

References _decodeCodepage(), and _GetInt2d().

Referenced by _readLabel(), and _readString().

{
// offset: 0; size: 2; length of the string (character count)
$ln = $this->_GetInt2d($subData, 0);
// offset: 2: size: var; character array (8-bit characters)
$value = $this->_decodeCodepage(substr($subData, 2));
//return $string;
return array(
'value' => $value,
'size' => 2 + $ln, // size in bytes of data structure
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readByteStringShort (   $subData)
private

Read byte string (8-bit string length) OpenOffice documentation: 2.5.2.

Parameters
string$subData
Returns
array

Definition at line 4710 of file Excel5.php.

References _decodeCodepage().

Referenced by _readFont(), _readFooter(), _readFormat(), _readHeader(), and _readSheet().

{
// offset: 0; size: 1; length of the string (character count)
$ln = ord($subData[0]);
// offset: 1: size: var; character array (8-bit characters)
$value = $this->_decodeCodepage(substr($subData, 1, $ln));
return array(
'value' => $value,
'size' => 1 + $ln, // size in bytes of data structure
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readCodepage ( )
private

CODEPAGE.

This record stores the text encoding used to write byte strings, stored as MS Windows code page identifier.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 968 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; code page identifier
$codepage = $this->_GetInt2d($recordData, 0);
switch ($codepage) {
case 367: // ASCII
$this->_codepage ="ASCII";
break;
case 437: //OEM US
$this->_codepage ="CP437";
break;
case 720: //OEM Arabic
// currently not supported by libiconv
$this->_codepage = "";
break;
case 737: //OEM Greek
$this->_codepage ="CP737";
break;
case 775: //OEM Baltic
$this->_codepage ="CP775";
break;
case 850: //OEM Latin I
$this->_codepage ="CP850";
break;
case 852: //OEM Latin II (Central European)
$this->_codepage ="CP852";
break;
case 855: //OEM Cyrillic
$this->_codepage ="CP855";
break;
case 857: //OEM Turkish
$this->_codepage ="CP857";
break;
case 858: //OEM Multilingual Latin I with Euro
$this->_codepage ="CP858";
break;
case 860: //OEM Portugese
$this->_codepage ="CP860";
break;
case 861: //OEM Icelandic
$this->_codepage ="CP861";
break;
case 862: //OEM Hebrew
$this->_codepage ="CP862";
break;
case 863: //OEM Canadian (French)
$this->_codepage ="CP863";
break;
case 864: //OEM Arabic
$this->_codepage ="CP864";
break;
case 865: //OEM Nordic
$this->_codepage ="CP865";
break;
case 866: //OEM Cyrillic (Russian)
$this->_codepage ="CP866";
break;
case 869: //OEM Greek (Modern)
$this->_codepage ="CP869";
break;
case 874: //ANSI Thai
$this->_codepage ="CP874";
break;
case 932: //ANSI Japanese Shift-JIS
$this->_codepage ="CP932";
break;
case 936: //ANSI Chinese Simplified GBK
$this->_codepage ="CP936";
break;
case 949: //ANSI Korean (Wansung)
$this->_codepage ="CP949";
break;
case 950: //ANSI Chinese Traditional BIG5
$this->_codepage ="CP950";
break;
case 1200: //UTF-16 (BIFF8)
$this->_codepage ="UTF-16LE";
break;
case 1250:// ANSI Latin II (Central European)
$this->_codepage ="CP1250";
break;
case 1251: //ANSI Cyrillic
$this->_codepage ="CP1251";
break;
case 1252: //ANSI Latin I (BIFF4-BIFF7)
$this->_codepage ="CP1252";
break;
case 1253: //ANSI Greek
$this->_codepage ="CP1253";
break;
case 1254: //ANSI Turkish
$this->_codepage ="CP1254";
break;
case 1255: //ANSI Hebrew
$this->_codepage ="CP1255";
break;
case 1256: //ANSI Arabic
$this->_codepage ="CP1256";
break;
case 1257: //ANSI Baltic
$this->_codepage ="CP1257";
break;
case 1258: //ANSI Vietnamese
$this->_codepage ="CP1258";
break;
case 1361: //ANSI Korean (Johab)
$this->_codepage ="CP1361";
break;
case 10000: //Apple Roman
$this->_codepage = 'MAC';
break;
case 32768: //Apple Roman
$this->_codepage = 'MAC';
break;
case 32769: //ANSI Latin I (BIFF2-BIFF3)
// currently not supported by libiconv
$this->_codepage = "";
break;
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readColInfo ( )
private

Read COLINFO record.

Definition at line 2404 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; index to first column in range
$fc = $this->_GetInt2d($recordData, 0); // first column index
// offset: 2; size: 2; index to last column in range
$lc = $this->_GetInt2d($recordData, 2); // first column index
// offset: 4; size: 2; width of the column in 1/256 of the width of the zero character
$width = $this->_GetInt2d($recordData, 4);
// offset: 6; size: 2; index to XF record for default column formatting
$xfIndex = $this->_GetInt2d($recordData, 6);
// offset: 8; size: 2; option flags
// bit: 0; mask: 0x0001; 1= columns are hidden
$isHidden = (0x0001 & $this->_GetInt2d($recordData, 8)) >> 0;
// bit: 10-8; mask: 0x0700; outline level of the columns (0 = no outline)
$level = (0x0700 & $this->_GetInt2d($recordData, 8)) >> 8;
// bit: 12; mask: 0x1000; 1 = collapsed
$isCollapsed = (0x1000 & $this->_GetInt2d($recordData, 8)) >> 12;
// offset: 10; size: 2; not used
for ($i = $fc; $i <= $lc; ++$i) {
if ($lc == 255 || $lc == 256) {
$this->_phpSheet->getDefaultColumnDimension()->setWidth($width / 256);
break;
}
$this->_phpSheet->getColumnDimensionByColumn($i)->setWidth($width / 256);
$this->_phpSheet->getColumnDimensionByColumn($i)->setVisible(!$isHidden);
$this->_phpSheet->getColumnDimensionByColumn($i)->setOutlineLevel($level);
$this->_phpSheet->getColumnDimensionByColumn($i)->setCollapsed($isCollapsed);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readColor (   $color)
private

Read color.

Parameters
int$colorIndexed color
Returns
array RGB color value, example: array('rgb' => 'FF0000')

Definition at line 4982 of file Excel5.php.

References _mapBuiltInColor(), _mapColor(), and _mapColorBIFF5().

Referenced by load().

{
if ($color <= 0x07 || $color >= 0x40) {
// special built-in color
$color = $this->_mapBuiltInColor($color);
} else if (isset($this->_palette) && isset($this->_palette[$color - 8])) {
// palette color, color index 0x08 maps to pallete index 0
$color = $this->_palette[$color - 8];
} else {
// default color table
if ($this->_version == self::XLS_BIFF8) {
$color = $this->_mapColor($color);
} else {
// BIFF5
$color = $this->_mapColorBIFF5($color);
}
}
return $color;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readContinue ( )
private

Read a free CONTINUE record.

Free CONTINUE record may be a camouflaged MSODRAWING record When MSODRAWING data on a sheet exceeds 8224 bytes, CONTINUE records are used instead. Undocumented. In this case, we must treat the CONTINUE record as a MSODRAWING record

Definition at line 3504 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// check if we are reading drawing data
// this is in case a free CONTINUE record occurs in other circumstances we are unaware of
if ($this->_drawingData == '') {
return;
}
// check if record data is at least 4 bytes long, otherwise there is no chance this is MSODRAWING data
if (strlen($recordData) < 4) {
return;
}
// dirty check to see if CONTINUE record could be a camouflaged MSODRAWING record
// look inside CONTINUE record to see if it looks like a part of an Escher stream
// we know that Escher stream may be split at least at
// 0xF004 MsofbtSpContainer
// 0xF00D MsofbtClientTextbox
$validSplitPoints = array(0xF004, 0xF00D); // add identifiers if we find more
$splitPoint = $this->_GetInt2d($recordData, 2);
if (in_array($splitPoint, $validSplitPoints)) {
$this->_drawingData .= $recordData;
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readDateMode ( )
private

DATEMODE.

This record specifies the base date for displaying date values. All dates are stored as count of days past this base date. In BIFF2-BIFF4 this record is part of the Calculation Settings Block. In BIFF5-BIFF8 it is stored in the Workbook Globals Substream.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 1146 of file Excel5.php.

References _GetInt2d(), PHPExcel_Shared_Date\CALENDAR_MAC_1904, PHPExcel_Shared_Date\CALENDAR_WINDOWS_1900, and PHPExcel_Shared_Date\setExcelCalendar().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; 0 = base 1900, 1 = base 1904
PHPExcel_Shared_Date::setExcelCalendar(PHPExcel_Shared_Date::CALENDAR_WINDOWS_1900);
if (ord($recordData{0}) == 1) {
PHPExcel_Shared_Date::setExcelCalendar(PHPExcel_Shared_Date::CALENDAR_MAC_1904);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readDefault ( )
private

Reads a general type of BIFF record.

Does nothing except for moving stream pointer forward to next record.

Definition at line 928 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readDefaultRowHeight ( )
private

Read DEFAULTROWHEIGHT record.

Definition at line 2029 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; option flags
// offset: 2; size: 2; default height for unused rows, (twips 1/20 point)
$height = $this->_GetInt2d($recordData, 2);
$this->_phpSheet->getDefaultRowDimension()->setRowHeight($height / 20);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readDefColWidth ( )
private

Read DEFCOLWIDTH record.

Definition at line 2386 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; default column width
$width = $this->_GetInt2d($recordData, 0);
if ($width != 8) {
$this->_phpSheet->getDefaultColumnDimension()->setWidth($width);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readDefinedName ( )
private

DEFINEDNAME.

This record is part of a Link Table. It contains the name and the token array of an internal defined name. Token arrays of defined names contain tokens with aberrant token classes.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 1759 of file Excel5.php.

References _getFormulaFromStructure(), _GetInt2d(), and _readUnicodeString().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if ($this->_version == self::XLS_BIFF8) {
// retrieves named cells
// offset: 0; size: 2; option flags
$opts = $this->_GetInt2d($recordData, 0);
// bit: 5; mask: 0x0020; 0 = user-defined name, 1 = built-in-name
$isBuiltInName = (0x0020 & $opts) >> 5;
// offset: 2; size: 1; keyboard shortcut
// offset: 3; size: 1; length of the name (character count)
$nlen = ord($recordData{3});
// offset: 4; size: 2; size of the formula data (it can happen that this is zero)
$flen = $this->_GetInt2d($recordData, 4);
// offset: 14; size: var; Name (Unicode string without length field)
$string = $this->_readUnicodeString(substr($recordData, 14), $nlen);
// offset: var; size: $flen; formula data
$offset = 14 + $string['size'];
$formulaStructure = pack('v', $flen) . substr($recordData, $offset, $flen);
try {
$formula = $this->_getFormulaFromStructure($formulaStructure);
} catch (Exception $e) {
$formula = '';
}
$this->_definedname[] = array(
'isBuiltInName' => $isBuiltInName,
'name' => $string['value'],
'formula' => $formula,
);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readExternalBook ( )
private

Read EXTERNALBOOK record.

Definition at line 1660 of file Excel5.php.

References _GetInt2d(), _readUnicodeStringLong(), and elseif().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset within record data
$offset = 0;
// there are 4 types of records
if (strlen($recordData) > 4) {
// external reference
// offset: 0; size: 2; number of sheet names ($nm)
$nm = $this->_GetInt2d($recordData, 0);
$offset += 2;
// offset: 2; size: var; encoded URL without sheet name (Unicode string, 16-bit length)
$encodedUrlString = $this->_readUnicodeStringLong(substr($recordData, 2));
$offset += $encodedUrlString['size'];
// offset: var; size: var; list of $nm sheet names (Unicode strings, 16-bit length)
$externalSheetNames = array();
for ($i = 0; $i < $nm; ++$i) {
$externalSheetNameString = $this->_readUnicodeStringLong(substr($recordData, $offset));
$externalSheetNames[] = $externalSheetNameString['value'];
$offset += $externalSheetNameString['size'];
}
// store the record data
$this->_externalBooks[] = array(
'type' => 'external',
'encodedUrl' => $encodedUrlString['value'],
'externalSheetNames' => $externalSheetNames,
);
} elseif (substr($recordData, 2, 2) == pack('CC', 0x01, 0x04)) {
// internal reference
// offset: 0; size: 2; number of sheet in this document
// offset: 2; size: 2; 0x01 0x04
$this->_externalBooks[] = array(
'type' => 'internal',
);
} elseif (substr($recordData, 0, 4) == pack('VCC', 0x0001, 0x01, 0x3A)) {
// add-in function
// offset: 0; size: 2; 0x0001
$this->_externalBooks[] = array(
'type' => 'addInFunction',
);
} elseif (substr($recordData, 0, 2) == pack('V', 0x0000)) {
// DDE links, OLE links
// offset: 0; size: 2; 0x0000
// offset: 2; size: var; encoded source document name
$this->_externalBooks[] = array(
'type' => 'DDEorOLE',
);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readExternSheet ( )
private

Read EXTERNSHEET record.

Definition at line 1723 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// external sheet references provided for named cells
if ($this->_version == self::XLS_BIFF8) {
// offset: 0; size: 2; number of following ref structures
$nm = $this->_GetInt2d($recordData, 0);
for ($i = 0; $i < $nm; ++$i) {
$this->_ref[] = array(
// offset: 2 + 6 * $i; index to EXTERNALBOOK record
'externalBookIndex' => $this->_GetInt2d($recordData, 2 + 6 * $i),
// offset: 4 + 6 * $i; index to first sheet in EXTERNALBOOK record
'firstSheetIndex' => $this->_GetInt2d($recordData, 4 + 6 * $i),
// offset: 6 + 6 * $i; index to last sheet in EXTERNALBOOK record
'lastSheetIndex' => $this->_GetInt2d($recordData, 6 + 6 * $i),
);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readFilepass ( )
private

FILEPASS.

This record is part of the File Protection Block. It contains information about the read/write password of the file. All record contents following this record will be encrypted.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 948 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
throw new Exception('Cannot read encrypted file');
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readFont ( )
private

Read a FONT record.

Definition at line 1164 of file Excel5.php.

References $size, _GetInt2d(), _readByteStringShort(), _readUnicodeStringShort(), PHPExcel_Style_Font\UNDERLINE_DOUBLE, PHPExcel_Style_Font\UNDERLINE_DOUBLEACCOUNTING, PHPExcel_Style_Font\UNDERLINE_SINGLE, and PHPExcel_Style_Font\UNDERLINE_SINGLEACCOUNTING.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
$objFont = new PHPExcel_Style_Font();
// offset: 0; size: 2; height of the font (in twips = 1/20 of a point)
$size = $this->_GetInt2d($recordData, 0);
$objFont->setSize($size / 20);
// offset: 2; size: 2; option flags
// bit: 0; mask 0x0001; bold (redundant in BIFF5-BIFF8)
// bit: 1; mask 0x0002; italic
$isItalic = (0x0002 & $this->_GetInt2d($recordData, 2)) >> 1;
if ($isItalic) $objFont->setItalic(true);
// bit: 2; mask 0x0004; underlined (redundant in BIFF5-BIFF8)
// bit: 3; mask 0x0008; strike
$isStrike = (0x0008 & $this->_GetInt2d($recordData, 2)) >> 3;
if ($isStrike) $objFont->setStriketrough(true);
// offset: 4; size: 2; colour index
$colorIndex = $this->_GetInt2d($recordData, 4);
$objFont->colorIndex = $colorIndex;
// offset: 6; size: 2; font weight
$weight = $this->_GetInt2d($recordData, 6);
switch ($weight) {
case 0x02BC:
$objFont->setBold(true);
break;
}
// offset: 8; size: 2; escapement type
$escapement = $this->_GetInt2d($recordData, 8);
switch ($escapement) {
case 0x0001:
$objFont->setSuperScript(true);
break;
case 0x0002:
$objFont->setSubScript(true);
break;
}
// offset: 10; size: 1; underline type
$underlineType = ord($recordData{10});
switch ($underlineType) {
case 0x00:
break; // no underline
case 0x01:
$objFont->setUnderline(PHPExcel_Style_Font::UNDERLINE_SINGLE);
break;
case 0x02:
$objFont->setUnderline(PHPExcel_Style_Font::UNDERLINE_DOUBLE);
break;
case 0x21:
$objFont->setUnderline(PHPExcel_Style_Font::UNDERLINE_SINGLEACCOUNTING);
break;
case 0x22:
$objFont->setUnderline(PHPExcel_Style_Font::UNDERLINE_DOUBLEACCOUNTING);
break;
}
// offset: 11; size: 1; font family
// offset: 12; size: 1; character set
// offset: 13; size: 1; not used
// offset: 14; size: var; font name
if ($this->_version == self::XLS_BIFF8) {
$string = $this->_readUnicodeStringShort(substr($recordData, 14));
} else {
$string = $this->_readByteStringShort(substr($recordData, 14));
}
$objFont->setName($string['value']);
$this->_objFonts[] = $objFont;
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readFooter ( )
private

Read FOOTER record.

Definition at line 2154 of file Excel5.php.

References _GetInt2d(), _readByteStringShort(), and _readUnicodeStringLong().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: var
// realized that $recordData can be empty even when record exists
if ($recordData) {
if ($this->_version == self::XLS_BIFF8) {
$string = $this->_readUnicodeStringLong($recordData);
} else {
$string = $this->_readByteStringShort($recordData);
}
$this->_phpSheet->getHeaderFooter()->setOddFooter($string['value']);
$this->_phpSheet->getHeaderFooter()->setEvenFooter($string['value']);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readFormat ( )
private

FORMAT.

This record contains information about a number format. All FORMAT records occur together in a sequential list.

In BIFF2-BIFF4 other records referencing a FORMAT record contain a zero-based index into this list. From BIFF5 on the FORMAT record contains the index itself that will be used by other records.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 1261 of file Excel5.php.

References _GetInt2d(), _readByteStringShort(), and _readUnicodeStringLong().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
$indexCode = $this->_GetInt2d($recordData, 0);
if ($this->_version == self::XLS_BIFF8) {
$string = $this->_readUnicodeStringLong(substr($recordData, 2));
} else {
// BIFF7
$string = $this->_readByteStringShort(substr($recordData, 2));
}
$formatString = $string['value'];
$this->_formats[$indexCode] = $formatString;
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readFormula ( )
private

Read FORMULA record + perhaps a following STRING record if formula result is a string This record contains the token array and the result of a formula cell.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 2735 of file Excel5.php.

References $row, _extractNumber(), _getFormulaFromStructure(), _GetInt2d(), _mapErrorCode(), _readSharedFmla(), _readString(), elseif(), getReadFilter(), PHPExcel_Cell\stringFromColumnIndex(), PHPExcel_Cell_DataType\TYPE_BOOL, PHPExcel_Cell_DataType\TYPE_ERROR, PHPExcel_Cell_DataType\TYPE_FORMULA, PHPExcel_Cell_DataType\TYPE_NULL, PHPExcel_Cell_DataType\TYPE_NUMERIC, and PHPExcel_Cell_DataType\TYPE_STRING.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; row index
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; col index
$column = $this->_GetInt2d($recordData, 2);
$columnString = PHPExcel_Cell::stringFromColumnIndex($column);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
// offset: 20: size: variable; formula structure
$formulaStructure = substr($recordData, 20);
// offset: 14: size: 2; option flags, recalculate always, recalculate on open etc.
$options = $this->_GetInt2d($recordData, 14);
// bit: 0; mask: 0x0001; 1 = recalculate always
// bit: 1; mask: 0x0002; 1 = calculate on open
// bit: 2; mask: 0x0008; 1 = part of a shared formula
$isPartOfSharedFormula = (bool) (0x0008 & $options);
if ($isPartOfSharedFormula) {
// part of shared formula which means there will be a formula with a tExp token and nothing else
// get the base cell, grab tExp token
$baseRow = $this->_GetInt2d($formulaStructure, 3);
$baseCol = $this->_GetInt2d($formulaStructure, 5);
$this->_baseCell = PHPExcel_Cell::stringFromColumnIndex($baseCol). ($baseRow + 1);
// formula is added to this cell after the sheet has been read
$this->_sharedFormulaParts[$columnString . ($row + 1)] = $this->_baseCell;
}
// offset: 16: size: 4; not used
// offset: 4; size: 2; XF index
$xfindex = $this->_GetInt2d($recordData, 4);
// offset: 6; size: 8; result of the formula
if ( (ord($recordData{6}) == 0)
&& (ord($recordData{12}) == 255)
&& (ord($recordData{13}) == 255) ) {
// String formula. Result follows in appended STRING record
$dataType = PHPExcel_Cell_DataType::TYPE_STRING;
// read possible SHAREDFMLA record
$code = $this->_GetInt2d($this->_data, $this->_pos);
if ($code == self::XLS_Type_SHAREDFMLA) {
$this->_readSharedFmla();
}
// read STRING record
$value = $this->_readString();
} elseif ((ord($recordData{6}) == 1)
&& (ord($recordData{12}) == 255)
&& (ord($recordData{13}) == 255)) {
// Boolean formula. Result is in +2; 0=false, 1=true
$dataType = PHPExcel_Cell_DataType::TYPE_BOOL;
$value = (bool) ord($recordData{8});
} elseif ((ord($recordData{6}) == 2)
&& (ord($recordData{12}) == 255)
&& (ord($recordData{13}) == 255)) {
// Error formula. Error code is in +2
$dataType = PHPExcel_Cell_DataType::TYPE_ERROR;
$value = $this->_mapErrorCode(ord($recordData{8}));
} elseif ((ord($recordData{6}) == 3)
&& (ord($recordData{12}) == 255)
&& (ord($recordData{13}) == 255)) {
// Formula result is a null string
$dataType = PHPExcel_Cell_DataType::TYPE_NULL;
$value = '';
} else {
// forumla result is a number, first 14 bytes like _NUMBER record
$dataType = PHPExcel_Cell_DataType::TYPE_NUMERIC;
$value = $this->_extractNumber(substr($recordData, 6, 8));
}
// add cell style
if (!$this->_readDataOnly) {
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
// store the formula
if (!$isPartOfSharedFormula) {
// not part of shared formula
// add cell value. If we can read formula, populate with formula, otherwise just used cached value
try {
if ($this->_version != self::XLS_BIFF8) {
throw new Exception('Not BIFF8. Can only read BIFF8 formulas');
}
$formula = $this->_getFormulaFromStructure($formulaStructure); // get formula in human language
$this->_phpSheet->getCell($columnString . ($row + 1))->setValueExplicit('=' . $formula, PHPExcel_Cell_DataType::TYPE_FORMULA);
} catch (Exception $e) {
$this->_phpSheet->setCellValueExplicit($columnString . ($row + 1), $value, $dataType);
}
} else {
if ($this->_version == self::XLS_BIFF8) {
// do nothing at this point, formula id added later in the code
} else {
$this->_phpSheet->setCellValueExplicit($columnString . ($row + 1), $value, $dataType);
}
}
// store the cached calculated value
$this->_phpSheet->getCell($columnString . ($row + 1))->setCalculatedValue($value);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readHcenter ( )
private

Read HCENTER record.

Definition at line 2180 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; 0 = print sheet left aligned, 1 = print sheet centered horizontally
$isHorizontalCentered = (bool) $this->_GetInt2d($recordData, 0);
$this->_phpSheet->getPageSetup()->setHorizontalCentered($isHorizontalCentered);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readHeader ( )
private

Read HEADER record.

Definition at line 2127 of file Excel5.php.

References _GetInt2d(), _readByteStringShort(), and _readUnicodeStringLong().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: var
// realized that $recordData can be empty even when record exists
if ($recordData) {
if ($this->_version == self::XLS_BIFF8) {
$string = $this->_readUnicodeStringLong($recordData);
} else {
$string = $this->_readByteStringShort($recordData);
}
$this->_phpSheet->getHeaderFooter()->setOddHeader($string['value']);
$this->_phpSheet->getHeaderFooter()->setEvenHeader($string['value']);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readHorizontalPageBreaks ( )
private

Read HORIZONTALPAGEBREAKS record.

Definition at line 2072 of file Excel5.php.

References _GetInt2d(), and PHPExcel_Worksheet\BREAK_ROW.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if ($this->_version == self::XLS_BIFF8 && !$this->_readDataOnly) {
// offset: 0; size: 2; number of the following row index structures
$nm = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 6 * $nm; list of $nm row index structures
for ($i = 0; $i < $nm; ++$i) {
$r = $this->_GetInt2d($recordData, 2 + 6 * $i);
$cf = $this->_GetInt2d($recordData, 2 + 6 * $i + 2);
$cl = $this->_GetInt2d($recordData, 2 + 6 * $i + 4);
// not sure why two column indexes are necessary?
$this->_phpSheet->setBreakByColumnAndRow($cf, $r, PHPExcel_Worksheet::BREAK_ROW);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readHyperLink ( )
private

Read HYPERLINK record.

Definition at line 3240 of file Excel5.php.

References $desc, _encodeUTF16(), _GetInt2d(), _GetInt4d(), _readBIFF8CellRangeAddressFixed(), and PHPExcel_Cell\extractAllCellReferencesInRange().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer forward to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 8; cell range address of all cells containing this hyperlink
try {
$cellRange = $this->_readBIFF8CellRangeAddressFixed($recordData, 0, 8);
} catch (Exception $e) {
return;
}
// offset: 8, size: 16; GUID of StdLink
// offset: 24, size: 4; unknown value
// offset: 28, size: 4; option flags
// bit: 0; mask: 0x00000001; 0 = no link or extant, 1 = file link or URL
$isFileLinkOrUrl = (0x00000001 & $this->_GetInt2d($recordData, 28)) >> 0;
// bit: 1; mask: 0x00000002; 0 = relative path, 1 = absolute path or URL
$isAbsPathOrUrl = (0x00000001 & $this->_GetInt2d($recordData, 28)) >> 1;
// bit: 2 (and 4); mask: 0x00000014; 0 = no description
$hasDesc = (0x00000014 & $this->_GetInt2d($recordData, 28)) >> 2;
// bit: 3; mask: 0x00000008; 0 = no text, 1 = has text
$hasText = (0x00000008 & $this->_GetInt2d($recordData, 28)) >> 3;
// bit: 7; mask: 0x00000080; 0 = no target frame, 1 = has target frame
$hasFrame = (0x00000080 & $this->_GetInt2d($recordData, 28)) >> 7;
// bit: 8; mask: 0x00000100; 0 = file link or URL, 1 = UNC path (inc. server name)
$isUNC = (0x00000100 & $this->_GetInt2d($recordData, 28)) >> 8;
// offset within record data
$offset = 32;
if ($hasDesc) {
// offset: 32; size: var; character count of description text
$dl = $this->_GetInt4d($recordData, 32);
// offset: 36; size: var; character array of description text, no Unicode string header, always 16-bit characters, zero terminated
$desc = $this->_encodeUTF16(substr($recordData, 36, 2 * ($dl - 1)), false);
$offset += 4 + 2 * $dl;
}
if ($hasFrame) {
$fl = $this->_GetInt4d($recordData, $offset);
$offset += 4 + 2 * $fl;
}
// detect type of hyperlink (there are 4 types)
$hyperlinkType = null;
if ($isUNC) {
$hyperlinkType = 'UNC';
} else if (!$isFileLinkOrUrl) {
$hyperlinkType = 'workbook';
} else if (ord($recordData{$offset}) == 0x03) {
$hyperlinkType = 'local';
} else if (ord($recordData{$offset}) == 0xE0) {
$hyperlinkType = 'URL';
}
switch ($hyperlinkType) {
case 'URL':
// offset: var; size: 16; GUID of URL Moniker
$offset += 16;
// offset: var; size: 4; size (in bytes) of character array of the URL including trailing zero word
$us = $this->_GetInt4d($recordData, $offset);
$offset += 4;
// offset: var; size: $us; character array of the URL, no Unicode string header, always 16-bit characters, zero-terminated
$url = $this->_encodeUTF16(substr($recordData, $offset, $us - 2), false);
$url .= $hasText ? '#' : '';
$offset += $us;
break;
case 'workbook':
// section 5.58.5: Hyperlink to the Current Workbook
// e.g. Sheet2!B1:C2, stored in text mark field
$url = 'sheet://';
break;
case 'local':
// section 5.58.2: Hyperlink containing a URL
// e.g. http://example.org/index.php
// todo: implement
case 'UNC':
// section 5.58.4: Hyperlink to a File with UNC (Universal Naming Convention) Path
// todo: implement
default:
return;
}
if ($hasText) {
// offset: var; size: 4; character count of text mark including trailing zero word
$tl = $this->_GetInt4d($recordData, $offset);
$offset += 4;
// offset: var; size: var; character array of the text mark without the # sign, no Unicode header, always 16-bit characters, zero-terminated
$text = $this->_encodeUTF16(substr($recordData, $offset, 2 * ($tl - 1)), false);
$url .= $text;
}
// apply the hyperlink to all the relevant cells
foreach (PHPExcel_Cell::extractAllCellReferencesInRange($cellRange) as $coordinate) {
$this->_phpSheet->getCell($coordinate)->getHyperLink()->setUrl($url);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readImData ( )
private

Read IMDATA record.

Definition at line 3422 of file Excel5.php.

References $filename, $x, $y, _GetInt2d(), _GetInt4d(), and _getSplicedRecordData().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
// get spliced record data
$splicedRecordData = $this->_getSplicedRecordData();
$recordData = $splicedRecordData['recordData'];
// UNDER CONSTRUCTION
// offset: 0; size: 2; image format
$cf = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; environment from which the file was written
$env = $this->_GetInt2d($recordData, 2);
// offset: 4; size: 4; length of the image data
$lcb = $this->_GetInt4d($recordData, 4);
// offset: 8; size: var; image data
$iData = substr($recordData, 8);
switch ($cf) {
case 0x09: // Windows bitmap format
// BITMAPCOREINFO
// 1. BITMAPCOREHEADER
// offset: 0; size: 4; bcSize, Specifies the number of bytes required by the structure
$bcSize = $this->_GetInt4d($iData, 0);
var_dump($bcSize);
// offset: 4; size: 2; bcWidth, specifies the width of the bitmap, in pixels
$bcWidth = $this->_GetInt2d($iData, 4);
var_dump($bcWidth);
// offset: 6; size: 2; bcHeight, specifies the height of the bitmap, in pixels.
$bcHeight = $this->_GetInt2d($iData, 6);
var_dump($bcHeight);
$ih = imagecreatetruecolor($bcWidth, $bcHeight);
// offset: 8; size: 2; bcPlanes, specifies the number of planes for the target device. This value must be 1
// offset: 10; size: 2; bcBitCount specifies the number of bits-per-pixel. This value must be 1, 4, 8, or 24
$bcBitCount = $this->_GetInt2d($iData, 10);
var_dump($bcBitCount);
$rgbString = substr($iData, 12);
$rgbTriples = array();
while (strlen($rgbString) > 0) {
$rgbTriples[] = unpack('Cb/Cg/Cr', $rgbString);
$rgbString = substr($rgbString, 3);
}
$x = 0;
$y = 0;
foreach ($rgbTriples as $i => $rgbTriple) {
$color = imagecolorallocate($ih, $rgbTriple['r'], $rgbTriple['g'], $rgbTriple['b']);
imagesetpixel($ih, $x, $bcHeight - 1 - $y, $color);
$x = ($x + 1) % $bcWidth;
$y = $y + floor(($x + 1) / $bcWidth);
}
//imagepng($ih, 'image.png');
$drawing = new PHPExcel_Worksheet_Drawing();
$drawing->setPath($filename);
$drawing->setWorksheet($this->_phpSheet);
break;
case 0x02: // Windows metafile or Macintosh PICT format
case 0x0e: // native format
default;
break;
}
// _getSplicedRecordData() takes care of moving current position in data stream
}

+ Here is the call graph for this function:

PHPExcel_Reader_Excel5::_readLabel ( )
private

Read LABEL record This record represents a cell that contains a string.

In BIFF8 it is usually replaced by the LABELSST record. Excel still uses this record, if it copies unformatted text cells to the clipboard.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 3022 of file Excel5.php.

References $row, _GetInt2d(), _readByteStringLong(), _readUnicodeStringLong(), getReadFilter(), PHPExcel_Cell\stringFromColumnIndex(), and PHPExcel_Cell_DataType\TYPE_STRING.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; index to row
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; index to column
$column = $this->_GetInt2d($recordData, 2);
$columnString = PHPExcel_Cell::stringFromColumnIndex($column);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
// offset: 4; size: 2; XF index
$xfindex = $this->_GetInt2d($recordData, 4);
// add cell value
// todo: what if string is very long? continue record
if ($this->_version == self::XLS_BIFF8) {
$string = $this->_readUnicodeStringLong(substr($recordData, 6));
$value = $string['value'];
} else {
$string = $this->_readByteStringLong(substr($recordData, 6));
$value = $string['value'];
}
$this->_phpSheet->setCellValueExplicit($columnString . ($row + 1), $value, PHPExcel_Cell_DataType::TYPE_STRING);
// add cell style
if (!$this->_readDataOnly) {
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readLabelSst ( )
private

Read LABELSST record This record represents a cell that contains a string.

It replaces the LABEL record and RSTRING record used in BIFF2-BIFF5.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 2569 of file Excel5.php.

References $row, _GetInt2d(), _GetInt4d(), getReadFilter(), PHPExcel_Cell\stringFromColumnIndex(), and PHPExcel_Cell_DataType\TYPE_STRING.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; index to row
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; index to column
$column = $this->_GetInt2d($recordData, 2);
$columnString = PHPExcel_Cell::stringFromColumnIndex($column);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
// offset: 4; size: 2; index to XF record
$xfindex = $this->_GetInt2d($recordData, 4);
// offset: 6; size: 4; index to SST record
$index = $this->_GetInt4d($recordData, 6);
// add cell
if (($fmtRuns = $this->_sst[$index]['fmtRuns']) && !$this->_readDataOnly) {
// then we should treat as rich text
$richText = new PHPExcel_RichText($this->_phpSheet->getCell($columnString . ($row + 1)));
$charPos = 0;
for ($i = 0; $i <= count($this->_sst[$index]['fmtRuns']); ++$i) {
if (isset($fmtRuns[$i])) {
$text = mb_substr($this->_sst[$index]['value'], $charPos, $fmtRuns[$i]['charPos'] - $charPos, 'UTF-8');
$charPos = $fmtRuns[$i]['charPos'];
} else {
$text = mb_substr($this->_sst[$index]['value'], $charPos, mb_strlen($this->_sst[$index]['value']), 'UTF-8');
}
if (mb_strlen($text) > 0) {
if ($i == 0) { // first text run, no style
$richText->createText($text);
} else {
$textRun = $richText->createTextRun($text);
if (isset($fmtRuns[$i - 1])) {
if ($fmtRuns[$i - 1]['fontIndex'] < 4) {
$fontIndex = $fmtRuns[$i - 1]['fontIndex'];
} else {
// this has to do with that index 4 is omitted in all BIFF versions for some strange reason
// check the OpenOffice documentation of the FONT record
$fontIndex = $fmtRuns[$i - 1]['fontIndex'] - 1;
}
$textRun->setFont(clone $this->_objFonts[$fontIndex]);
}
}
}
}
} else {
$this->_phpSheet->setCellValueExplicit($columnString . ($row + 1), $this->_sst[$index]['value'], PHPExcel_Cell_DataType::TYPE_STRING);
}
// add style information
if (!$this->_readDataOnly) {
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readLeftMargin ( )
private

Read LEFTMARGIN record.

Definition at line 2218 of file Excel5.php.

References _extractNumber(), and _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 8
$this->_phpSheet->getPageMargins()->setLeft($this->_extractNumber($recordData));
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readMergedCells ( )
private

MERGEDCELLS.

This record contains the addresses of merged cell ranges in the current sheet.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 3221 of file Excel5.php.

References _GetInt2d(), and _readBIFF8CellRangeAddressList().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if ($this->_version == self::XLS_BIFF8 && !$this->_readDataOnly) {
$cellRangeAddressList = $this->_readBIFF8CellRangeAddressList($recordData);
foreach ($cellRangeAddressList['cellRangeAddresses'] as $cellRangeAddress) {
$this->_phpSheet->mergeCells($cellRangeAddress);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readMsoDrawing ( )
private

Read MSODRAWING record.

Definition at line 3094 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
$this->_drawingData .= $recordData;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readMsoDrawingGroup ( )
private

Read MSODRAWINGGROUP record.

Definition at line 1808 of file Excel5.php.

References _GetInt2d(), and _getSplicedRecordData().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
// get spliced record data
$splicedRecordData = $this->_getSplicedRecordData();
$recordData = $splicedRecordData['recordData'];
$this->_drawingGroupData .= $recordData;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readMulBlank ( )
private

Read MULBLANK record This record represents a cell range of empty cells.

All cells are located in the same row

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 2981 of file Excel5.php.

References $row, _GetInt2d(), getReadFilter(), and PHPExcel_Cell\stringFromColumnIndex().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; index to row
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; index to first column
$fc = $this->_GetInt2d($recordData, 2);
// offset: 4; size: 2 x nc; list of indexes to XF records
// add style information
if (!$this->_readDataOnly) {
for ($i = 0; $i < $length / 2 - 3; ++$i) {
$columnString = PHPExcel_Cell::stringFromColumnIndex($fc + $i);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
$xfindex = $this->_GetInt2d($recordData, 4 + 2 * $i);
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
}
}
// offset: 6; size 2; index to last column (not needed)
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readMulRk ( )
private

Read MULRK record This record represents a cell range containing RK value cells.

All cells are located in the same row.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 2642 of file Excel5.php.

References $columns, $row, _GetIEEE754(), _GetInt2d(), _GetInt4d(), getReadFilter(), PHPExcel_Cell\stringFromColumnIndex(), and PHPExcel_Cell_DataType\TYPE_NUMERIC.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; index to row
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; index to first column
$colFirst = $this->_GetInt2d($recordData, 2);
// offset: var; size: 2; index to last column
$colLast = $this->_GetInt2d($recordData, $length - 2);
$columns = $colLast - $colFirst + 1;
// offset within record data
$offset = 4;
for ($i = 0; $i < $columns; ++$i) {
$columnString = PHPExcel_Cell::stringFromColumnIndex($colFirst + $i);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
// offset: var; size: 2; index to XF record
$xfindex = $this->_GetInt2d($recordData, $offset);
// offset: var; size: 4; RK value
$numValue = $this->_GetIEEE754($this->_GetInt4d($recordData, $offset + 2));
if (!$this->_readDataOnly) {
// add style
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
// add cell value
$this->_phpSheet->setCellValueExplicit($columnString . ($row + 1), $numValue, PHPExcel_Cell_DataType::TYPE_NUMERIC);
}
$offset += 6;
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readNumber ( )
private

Read NUMBER record This record represents a cell that contains a floating-point value.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 2695 of file Excel5.php.

References $row, _extractNumber(), _GetInt2d(), getReadFilter(), PHPExcel_Cell\stringFromColumnIndex(), and PHPExcel_Cell_DataType\TYPE_NUMERIC.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; index to row
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size 2; index to column
$column = $this->_GetInt2d($recordData, 2);
$columnString = PHPExcel_Cell::stringFromColumnIndex($column);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
// offset 4; size: 2; index to XF record
$xfindex = $this->_GetInt2d($recordData, 4);
$numValue = $this->_extractNumber(substr($recordData, 6, 8));
// add cell style
if (!$this->_readDataOnly) {
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
// add cell value
$this->_phpSheet->setCellValueExplicit($columnString . ($row + 1), $numValue, PHPExcel_Cell_DataType::TYPE_NUMERIC);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readObj ( )
private

Read OBJ record.

Definition at line 3108 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if ($this->_readDataOnly || $this->_version != self::XLS_BIFF8) {
return;
}
// recordData consists of an array of subrecords looking like this:
// ft: 2 bytes; id number
// cb: 2 bytes; size in bytes of following data
// data: var; subrecord data
// for now, we are just interested in the second subrecord containing the object type
$ot = $this->_GetInt2d($recordData, 4);
$this->_objs[] = array(
'type' => $ot,
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readPageSetup ( )
private

Read PAGESETUP record.

Definition at line 2286 of file Excel5.php.

References _extractNumber(), _GetInt2d(), PHPExcel_Worksheet_PageSetup\ORIENTATION_LANDSCAPE, and PHPExcel_Worksheet_PageSetup\ORIENTATION_PORTRAIT.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; paper size
$paperSize = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; scaling factor
$scale = $this->_GetInt2d($recordData, 2);
// offset: 6; size: 2; fit worksheet width to this number of pages, 0 = use as many as needed
$fitToWidth = $this->_GetInt2d($recordData, 6);
// offset: 8; size: 2; fit worksheet height to this number of pages, 0 = use as many as needed
$fitToHeight = $this->_GetInt2d($recordData, 8);
// offset: 10; size: 2; option flags
// bit: 1; mask: 0x0002; 0=landscape, 1=portrait
$isPortrait = (0x0002 & $this->_GetInt2d($recordData, 10)) >> 1;
// bit: 2; mask: 0x0004; 1= paper size, scaling factor, paper orient. not init
// when this bit is set, do not use flags for those properties
$isNotInit = (0x0004 & $this->_GetInt2d($recordData, 10)) >> 2;
if (!$isNotInit) {
$this->_phpSheet->getPageSetup()->setPaperSize($paperSize);
switch ($isPortrait) {
case 0: $this->_phpSheet->getPageSetup()->setOrientation(PHPExcel_Worksheet_PageSetup::ORIENTATION_LANDSCAPE); break;
case 1: $this->_phpSheet->getPageSetup()->setOrientation(PHPExcel_Worksheet_PageSetup::ORIENTATION_PORTRAIT); break;
}
if (!$this->_isFitToPages) {
$this->_phpSheet->getPageSetup()->setScale($scale);
} else {
$this->_phpSheet->getPageSetup()->setFitToWidth($fitToWidth);
$this->_phpSheet->getPageSetup()->setFitToHeight($fitToHeight);
}
}
// offset: 16; size: 8; header margin (IEEE 754 floating-point value)
$marginHeader = $this->_extractNumber(substr($recordData, 16, 8));
$this->_phpSheet->getPageMargins()->setHeader($marginHeader);
// offset: 24; size: 8; footer margin (IEEE 754 floating-point value)
$marginFooter = $this->_extractNumber(substr($recordData, 24, 8));
$this->_phpSheet->getPageMargins()->setFooter($marginFooter);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readPalette ( )
private

Read PALETTE record.

Definition at line 1594 of file Excel5.php.

References _GetInt2d(), and _readRGB().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; number of following colors
$nm = $this->_GetInt2d($recordData, 0);
// list of RGB colors
for ($i = 0; $i < $nm; ++$i) {
$rgb = substr($recordData, 2 + 4 * $i, 4);
$this->_palette[] = $this->_readRGB($rgb);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readPane ( )
private

Read PANE record.

Definition at line 3188 of file Excel5.php.

References _GetInt2d(), and PHPExcel_Cell\stringFromColumnIndex().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; position of vertical split
$px = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; position of horizontal split
$py = $this->_GetInt2d($recordData, 2);
if ($this->_frozen) {
// frozen panes
$this->_phpSheet->freezePane(PHPExcel_Cell::stringFromColumnIndex($px) . ($py + 1));
} else {
// unfrozen panes; split windows; not supported by PHPExcel core
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readPassword ( )
private

PASSWORD - Sheet protection (hashed) password (BIFF2 through BIFF8)

Definition at line 2368 of file Excel5.php.

References $password, and _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; 16-bit hash value of password
$password = strtoupper(dechex($this->_GetInt2d($recordData, 0))); // the hashed password
$this->_phpSheet->getProtection()->setPassword($password, true);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readPrintGridlines ( )
private

Read PRINTGRIDLINES record.

Definition at line 2011 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if ($this->_version == self::XLS_BIFF8 && !$this->_readDataOnly) {
// offset: 0; size: 2; 0 = do not print sheet grid lines; 1 = print sheet gridlines
$printGridlines = (bool) $this->_GetInt2d($recordData, 0);
$this->_phpSheet->setPrintGridlines($printGridlines);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readProtect ( )
private

PROTECT - Sheet protection (BIFF2 through BIFF8) if this record is omitted, then it also means no sheet protection.

Definition at line 2345 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2;
// bit 0, mask 0x01; sheet protection
$isSheetProtected = (0x01 & $this->_GetInt2d($recordData, 0)) >> 0;
switch ($isSheetProtected) {
case 0: break;
case 1: $this->_phpSheet->getProtection()->setSheet(true); break;
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readRangeProtection ( )
private

Read RANGEPROTECTION record Reading of this record is based on Microsoft Office Excel 97-2000 Binary File Format Specification, where it is referred to as FEAT record.

Definition at line 3362 of file Excel5.php.

References _GetInt2d(), _GetInt4d(), and _readBIFF8CellRangeAddressFixed().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// local pointer in record data
$offset = 0;
if (!$this->_readDataOnly) {
$offset += 12;
// offset: 12; size: 2; shared feature type, 2 = enhanced protection, 4 = smart tag
$isf = $this->_GetInt2d($recordData, 12);
if ($isf != 2) {
// we only read FEAT records of type 2
return;
}
$offset += 2;
$offset += 5;
// offset: 19; size: 2; count of ref ranges this feature is on
$cref = $this->_GetInt2d($recordData, 19);
$offset += 2;
$offset += 6;
// offset: 27; size: 8 * $cref; list of cell ranges (like in hyperlink record)
$cellRanges = array();
for ($i = 0; $i < $cref; ++$i) {
try {
$cellRange = $this->_readBIFF8CellRangeAddressFixed(substr($recordData, 27 + 8 * $i, 8));
} catch (Exception $e) {
return;
}
$cellRanges[] = $cellRange;
$offset += 8;
}
// offset: var; size: var; variable length of feature specific data
$rgbFeat = substr($recordData, $offset);
$offset += 4;
// offset: var; size: 4; the encrypted password (only 16-bit although field is 32-bit)
$wPassword = $this->_GetInt4d($recordData, $offset);
$offset += 4;
// Apply range protection to sheet
if ($cellRanges) {
$this->_phpSheet->protectCells(implode(' ', $cellRanges), strtoupper(dechex($wPassword)), true);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readRGB (   $rgb)
private

Extract RGB color OpenOffice.org's Documentation of the Microsoft Excel File Format, section 2.5.4.

Parameters
string$rgbEncoded RGB value (4 bytes)
Returns
array

Definition at line 4686 of file Excel5.php.

Referenced by _readPalette().

{
// offset: 0; size 1; Red component
$r = ord($rgb{0});
// offset: 1; size: 1; Green component
$g = ord($rgb{1});
// offset: 2; size: 1; Blue component
$b = ord($rgb{2});
// HEX notation, e.g. 'FF00FC'
$rgb = sprintf('%02X', $r) . sprintf('%02X', $g) . sprintf('%02X', $b);
return array('rgb' => $rgb);
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readRightMargin ( )
private

Read RIGHTMARGIN record.

Definition at line 2235 of file Excel5.php.

References _extractNumber(), and _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 8
$this->_phpSheet->getPageMargins()->setRight($this->_extractNumber($recordData));
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readRk ( )
private

Read RK record This record represents a cell that contains an RK value (encoded integer or floating-point value).

If a floating-point value cannot be encoded to an RK value, a NUMBER record will be written. This record replaces the record INTEGER written in BIFF2.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 2526 of file Excel5.php.

References $row, _GetIEEE754(), _GetInt2d(), _GetInt4d(), getReadFilter(), PHPExcel_Cell\stringFromColumnIndex(), and PHPExcel_Cell_DataType\TYPE_NUMERIC.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; index to row
$row = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; index to column
$column = $this->_GetInt2d($recordData, 2);
$columnString = PHPExcel_Cell::stringFromColumnIndex($column);
// Read cell?
if ( !is_null($this->getReadFilter()) && $this->getReadFilter()->readCell($columnString, $row + 1, $this->_phpSheet->getTitle()) ) {
// offset: 4; size: 2; index to XF record
$xfindex = $this->_GetInt2d($recordData, 4);
// offset: 6; size: 4; RK value
$rknum = $this->_GetInt4d($recordData, 6);
$numValue = $this->_GetIEEE754($rknum);
// add style information
if (!$this->_readDataOnly) {
$this->_phpSheet->getCell($columnString . ($row + 1))->setXfIndex($this->_mapCellXfIndex[$xfindex]);
}
// add cell
$this->_phpSheet->setCellValueExplicit($columnString . ($row + 1), $numValue, PHPExcel_Cell_DataType::TYPE_NUMERIC);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readRow ( )
private

ROW.

This record contains the properties of a single row in a sheet. Rows and cells in a sheet are divided into blocks of 32 rows.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 2461 of file Excel5.php.

References _GetInt2d(), and _GetInt4d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; index of this row
$r = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; index to column of the first cell which is described by a cell record
// offset: 4; size: 2; index to column of the last cell which is described by a cell record, increased by 1
// offset: 6; size: 2;
// bit: 14-0; mask: 0x7FF; height of the row, in twips = 1/20 of a point
$height = (0x7FF & $this->_GetInt2d($recordData, 6)) >> 0;
// bit: 15: mask: 0x8000; 0 = row has custom height; 1= row has default height
$useDefaultHeight = (0x8000 & $this->_GetInt2d($recordData, 6)) >> 15;
if (!$useDefaultHeight) {
$this->_phpSheet->getRowDimension($r + 1)->setRowHeight($height / 20);
}
// offset: 8; size: 2; not used
// offset: 10; size: 2; not used in BIFF5-BIFF8
// offset: 12; size: 4; option flags and default row formatting
// bit: 2-0: mask: 0x00000007; outline level of the row
$level = (0x00000007 & $this->_GetInt4d($recordData, 12)) >> 0;
$this->_phpSheet->getRowDimension($r + 1)->setOutlineLevel($level);
// bit: 4; mask: 0x00000010; 1 = outline group start or ends here... and is collapsed
$isCollapsed = (0x00000010 & $this->_GetInt4d($recordData, 12)) >> 4;
$this->_phpSheet->getRowDimension($r + 1)->setCollapsed($isCollapsed);
// bit: 5; mask: 0x00000020; 1 = row is hidden
$isHidden = (0x00000020 & $this->_GetInt4d($recordData, 12)) >> 5;
$this->_phpSheet->getRowDimension($r + 1)->setVisible(!$isHidden);
// bit: 7; mask: 0x00000080; 1 = row has explicit default format
$hasDefaultFormat = (0x00000080 & $this->_GetInt4d($recordData, 12)) >> 7;
// bit: 27-16; mask: 0x0FFF0000; only applies when hasDefaultFormat = 1; index to XF record
$xfIndex = (0x0FFF0000 & $this->_GetInt4d($recordData, 12)) >> 16;
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readScl ( )
private

Read SCL record.

Definition at line 3167 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; numerator of the view magnification
$numerator = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 2; numerator of the view magnification
$denumerator = $this->_GetInt2d($recordData, 2);
// set the zoom scale (in percent)
$this->_phpSheet->getSheetView()->setZoomScale($numerator * 100 / $denumerator);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readSharedFmla ( )
private

Read a SHAREDFMLA record.

This function just stores the binary shared formula in the reader, which usually contains relative references. These will be used to construct the formula in each shared formula part after the sheet is read.

Definition at line 2865 of file Excel5.php.

References _GetInt2d(), and _readBIFF5CellRangeAddressFixed().

Referenced by _readFormula(), and load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0, size: 6; cell range address of the area used by the shared formula, not used for anything
$cellRange = substr($recordData, 0, 6);
$cellRange = $this->_readBIFF5CellRangeAddressFixed($cellRange); // note: even BIFF8 uses BIFF5 syntax
// offset: 6, size: 1; not used
// offset: 7, size: 1; number of existing FORMULA records for this shared formula
$no = ord($recordData{7});
// offset: 8, size: var; Binary token array of the shared formula
$formula = substr($recordData, 8);
// at this point we only store the shared formula for later use
$this->_sharedFormulas[$this->_baseCell] = $formula;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readSheet ( )
private

SHEET.

This record is located in the Workbook Globals Substream and represents a sheet inside the workbook. One SHEET record is written for each sheet. It stores the sheet name and a stream offset to the BOF record of the respective Sheet Substream within the Workbook Stream.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 1626 of file Excel5.php.

References _GetInt2d(), _GetInt4d(), _readByteStringShort(), _readUnicodeStringShort(), and elseif().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 4; absolute stream position of the BOF record of the sheet
$rec_offset = $this->_GetInt4d($recordData, 0);
// offset: 4; size: 1; sheet state
$rec_typeFlag = ord($recordData{4});
// offset: 5; size: 1; sheet type
$rec_visibilityFlag = ord($recordData{5});
// offset: 6; size: var; sheet name
if ($this->_version == self::XLS_BIFF8) {
$string = $this->_readUnicodeStringShort(substr($recordData, 6));
$rec_name = $string['value'];
} elseif ($this->_version == self::XLS_BIFF7) {
$string = $this->_readByteStringShort(substr($recordData, 6));
$rec_name = $string['value'];
}
$this->_sheets[] = array(
'name' => $rec_name,
'offset' => $rec_offset
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readSheetPr ( )
private

Read SHEETPR record.

Definition at line 2046 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2
// bit: 6; mask: 0x0040; 0 = outline buttons above outline group
$isSummaryBelow = (0x0040 & $this->_GetInt2d($recordData, 0)) >> 6;
$this->_phpSheet->setShowSummaryBelow($isSummaryBelow);
// bit: 7; mask: 0x0080; 0 = outline buttons left of outline group
$isSummaryRight = (0x0080 & $this->_GetInt2d($recordData, 0)) >> 7;
$this->_phpSheet->setShowSummaryRight($isSummaryRight);
// bit: 8; mask: 0x100; 0 = scale printout in percent, 1 = fit printout to number of pages
// this corresponds to radio button setting in page setup dialog in Excel
$this->_isFitToPages = (bool) ((0x0100 & $this->_GetInt2d($recordData, 0)) >> 8);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readSheetRangeByRefIndex (   $index)
private

Get a sheet range like Sheet1:Sheet3 from REF index Note: If there is only one sheet in the range, one gets e.g Sheet1 It can also happen that the REF structure uses the -1 (FFFF) code to indicate deleted sheets, in which case an exception is thrown.

Parameters
int$index
Returns
string|false
Exceptions
Exception

Definition at line 4544 of file Excel5.php.

References $type.

Referenced by _getNextToken().

{
if (isset($this->_ref[$index])) {
$type = $this->_externalBooks[$this->_ref[$index]['externalBookIndex']]['type'];
switch ($type) {
case 'internal':
// check if we have a deleted 3d reference
if ($this->_ref[$index]['firstSheetIndex'] == 0xFFFF or $this->_ref[$index]['lastSheetIndex'] == 0xFFFF) {
throw new Exception('Deleted sheet reference');
}
// we have normal sheet range (collapsed or uncollapsed)
$firstSheetName = $this->_sheets[$this->_ref[$index]['firstSheetIndex']]['name'];
$lastSheetName = $this->_sheets[$this->_ref[$index]['lastSheetIndex']]['name'];
if ($firstSheetName == $lastSheetName) {
// collapsed sheet range
$sheetRange = $firstSheetName;
} else {
$sheetRange = "$firstSheetName:$lastSheetName";
}
// escape the single-quotes
$sheetRange = str_replace("'", "''", $sheetRange);
// if there are special characters, we need to enclose the range in single-quotes
// todo: check if we have identified the whole set of special characters
// it seems that the following characters are not accepted for sheet names
// and we may assume that they are not present: []*/:\?
if (preg_match("/[ !\"@#£$%&{()}<>=+'|^,;-]/", $sheetRange)) {
$sheetRange = "'$sheetRange'";
}
return $sheetRange;
break;
default:
// TODO: external sheet support
throw new Exception('Excel5 reader only supports internal sheets in fomulas');
break;
}
}
return false;
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readSst ( )
private

SST - Shared String Table.

This record contains a list of all strings used anywhere in the workbook. Each string occurs only once. The workbook uses indexes into the list to reference the strings.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 1830 of file Excel5.php.

References _encodeUTF16(), _GetInt2d(), _GetInt4d(), _getSplicedRecordData(), and elseif().

Referenced by load().

{
// offset within (spliced) record data
$pos = 0;
// get spliced record data
$splicedRecordData = $this->_getSplicedRecordData();
$recordData = $splicedRecordData['recordData'];
$spliceOffsets = $splicedRecordData['spliceOffsets'];
// offset: 0; size: 4; total number of strings in the workbook
$pos += 4;
// offset: 4; size: 4; number of following strings ($nm)
$nm = $this->_GetInt4d($recordData, 4);
$pos += 4;
// loop through the Unicode strings (16-bit length)
for ($i = 0; $i < $nm; ++$i) {
// number of characters in the Unicode string
$numChars = $this->_GetInt2d($recordData, $pos);
$pos += 2;
// option flags
$optionFlags = ord($recordData{$pos});
++$pos;
// bit: 0; mask: 0x01; 0 = compressed; 1 = uncompressed
$isCompressed = (($optionFlags & 0x01) == 0) ;
// bit: 2; mask: 0x02; 0 = ordinary; 1 = Asian phonetic
$hasAsian = (($optionFlags & 0x04) != 0);
// bit: 3; mask: 0x03; 0 = ordinary; 1 = Rich-Text
$hasRichText = (($optionFlags & 0x08) != 0);
if ($hasRichText) {
// number of Rich-Text formatting runs
$formattingRuns = $this->_GetInt2d($recordData, $pos);
$pos += 2;
}
if ($hasAsian) {
// size of Asian phonetic setting
$extendedRunLength = $this->_GetInt4d($recordData, $pos);
$pos += 4;
}
// expected byte length of character array if not split
$len = ($isCompressed) ? $numChars : $numChars * 2;
// look up limit position
foreach ($spliceOffsets as $spliceOffset) {
if ($pos < $spliceOffset) {
$limitpos = $spliceOffset;
break;
}
}
if ($pos + $len <= $limitpos) {
// character array is not split between records
$retstr = substr($recordData, $pos, $len);
$pos += $len;
} else {
// character array is split between records
// first part of character array
$retstr = substr($recordData, $pos, $limitpos - $pos);
$bytesRead = $limitpos - $pos;
// remaining characters in Unicode string
$charsLeft = $numChars - (($isCompressed) ? $bytesRead : ($bytesRead / 2));
$pos = $limitpos;
// keep reading the characters
while ($charsLeft > 0) {
// look up next limit position, in case the string span more than one continue record
foreach ($spliceOffsets as $spliceOffset) {
if ($pos < $spliceOffset) {
$limitpos = $spliceOffset;
break;
}
}
// repeated option flags
// OpenOffice.org documentation 5.21
$option = ord($recordData{$pos});
++$pos;
if ($isCompressed && ($option == 0)) {
// 1st fragment compressed
// this fragment compressed
$len = min($charsLeft, $limitpos - $pos);
$retstr .= substr($recordData, $pos, $len);
$charsLeft -= $len;
$isCompressed = true;
} elseif (!$isCompressed && ($option != 0)) {
// 1st fragment uncompressed
// this fragment uncompressed
$len = min($charsLeft * 2, $limitpos - $pos);
$retstr .= substr($recordData, $pos, $len);
$charsLeft -= $len / 2;
$isCompressed = false;
} elseif (!$isCompressed && ($option == 0)) {
// 1st fragment uncompressed
// this fragment compressed
$len = min($charsLeft, $limitpos - $pos);
for ($j = 0; $j < $len; ++$j) {
$retstr .= $recordData{$pos + $j} . chr(0);
}
$charsLeft -= $len;
$isCompressed = false;
} else {
// 1st fragment compressed
// this fragment uncompressed
$newstr = '';
for ($j = 0; $j < strlen($retstr); ++$j) {
$newstr .= $retstr[$j] . chr(0);
}
$retstr = $newstr;
$len = min($charsLeft * 2, $limitpos - $pos);
$retstr .= substr($recordData, $pos, $len);
$charsLeft -= $len / 2;
$isCompressed = false;
}
$pos += $len;
}
}
// convert to UTF-8
$retstr = $this->_encodeUTF16($retstr, $isCompressed);
// read additional Rich-Text information, if any
$fmtRuns = array();
if ($hasRichText) {
// list of formatting runs
for ($j = 0; $j < $formattingRuns; ++$j) {
// first formatted character; zero-based
$charPos = $this->_GetInt2d($recordData, $pos + $j * 4);
// index to font record
$fontIndex = $this->_GetInt2d($recordData, $pos + 2 + $j * 4);
$fmtRuns[] = array(
'charPos' => $charPos,
'fontIndex' => $fontIndex,
);
}
$pos += 4 * $formattingRuns;
}
// read additional Asian phonetics information, if any
if ($hasAsian) {
// For Asian phonetic settings, we skip the extended string data
$pos += $extendedRunLength;
}
// store the shared sting
$this->_sst[] = array(
'value' => $retstr,
'fmtRuns' => $fmtRuns,
);
}
// _getSplicedRecordData() takes care of moving current position in data stream
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readString ( )
private

Read a STRING record from current stream position and advance the stream pointer to next record This record is used for storing result from FORMULA record when it is a string, and it occurs directly after the FORMULA record.

Returns
string The string contents as UTF-8

Definition at line 2897 of file Excel5.php.

References _GetInt2d(), _readByteStringLong(), and _readUnicodeStringLong().

Referenced by _readFormula().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if ($this->_version == self::XLS_BIFF8) {
$string = $this->_readUnicodeStringLong($recordData);
$value = $string['value'];
} else {
$string = $this->_readByteStringLong($recordData);
$value = $string['value'];
}
return $value;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readStyle ( )
private

Read STYLE record.

Definition at line 1554 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; index to XF record and flag for built-in style
$ixfe = $this->_GetInt2d($recordData, 0);
// bit: 11-0; mask 0x0FFF; index to XF record
$xfIndex = (0x0FFF & $ixfe) >> 0;
// bit: 15; mask 0x8000; 0 = user-defined style, 1 = built-in style
$isBuiltIn = (bool) ((0x8000 & $ixfe) >> 15);
if ($isBuiltIn) {
// offset: 2; size: 1; identifier for built-in style
$builtInId = ord($recordData{2});
switch ($builtInId) {
case 0x00:
// currently, we are not using this for anything
break;
default:
break;
}
} else {
// user-defined; not supported by PHPExcel
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readTopMargin ( )
private

Read TOPMARGIN record.

Definition at line 2252 of file Excel5.php.

References _extractNumber(), and _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 8
$this->_phpSheet->getPageMargins()->setTop($this->_extractNumber($recordData));
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readUnicodeString (   $subData,
  $characterCount
)
private

Read Unicode string with no string length field, but with known character count this function is under construction, needs to support rich text, and Asian phonetic settings OpenOffice.org's Documentation of the Microsoft Excel File Format, section 2.5.3.

Parameters
string$subData
int$characterCount
Returns
array

Definition at line 4801 of file Excel5.php.

References _encodeUTF16().

Referenced by _readDefinedName(), _readUnicodeStringLong(), and _readUnicodeStringShort().

{
$value = '';
// offset: 0: size: 1; option flags
// bit: 0; mask: 0x01; character compression (0 = compressed 8-bit, 1 = uncompressed 16-bit)
$isCompressed = !((0x01 & ord($subData[0])) >> 0);
// bit: 2; mask: 0x04; Asian phonetic settings
$hasAsian = (0x04) & ord($subData[0]) >> 2;
// bit: 3; mask: 0x08; Rich-Text settings
$hasRichText = (0x08) & ord($subData[0]) >> 3;
// offset: 1: size: var; character array
// this offset assumes richtext and Asian phonetic settings are off which is generally wrong
// needs to be fixed
$value = $this->_encodeUTF16(substr($subData, 1, $isCompressed ? $characterCount : 2 * $characterCount), $isCompressed);
return array(
'value' => $value,
'size' => $isCompressed ? 1 + $characterCount : 1 + 2 * $characterCount, // the size in bytes including the option flags
);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readUnicodeStringLong (   $subData)
private

Extracts an Excel Unicode long string (16-bit string length) OpenOffice documentation: 2.5.3 this function is under construction, needs to support rich text, and Asian phonetic settings.

Parameters
string$subData
Returns
array

Definition at line 4777 of file Excel5.php.

References _GetInt2d(), and _readUnicodeString().

Referenced by _readBIFF8Constant(), _readExternalBook(), _readFooter(), _readFormat(), _readHeader(), _readLabel(), and _readString().

{
$value = '';
// offset: 0: size: 2; length of the string (character count)
$characterCount = $this->_GetInt2d($subData, 0);
$string = $this->_readUnicodeString(substr($subData, 2), $characterCount);
// add 2 for the string length
$string['size'] += 2;
return $string;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readUnicodeStringShort (   $subData)
private

Extracts an Excel Unicode short string (8-bit string length) OpenOffice documentation: 2.5.3 function will automatically find out where the Unicode string ends.

Parameters
string$subData
Returns
array

Definition at line 4754 of file Excel5.php.

References _readUnicodeString().

Referenced by _getNextToken(), _readFont(), and _readSheet().

{
$value = '';
// offset: 0: size: 1; length of the string (character count)
$characterCount = ord($subData[0]);
$string = $this->_readUnicodeString(substr($subData, 1), $characterCount);
// add 1 for the string length
$string['size'] += 1;
return $string;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readVcenter ( )
private

Read VCENTER record.

Definition at line 2199 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if (!$this->_readDataOnly) {
// offset: 0; size: 2; 0 = print sheet aligned at top page border, 1 = print sheet vertically centered
$isVerticalCentered = (bool) $this->_GetInt2d($recordData, 0);
$this->_phpSheet->getPageSetup()->setVerticalCentered($isVerticalCentered);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readVerticalPageBreaks ( )
private

Read VERTICALPAGEBREAKS record.

Definition at line 2100 of file Excel5.php.

References _GetInt2d(), and PHPExcel_Worksheet\BREAK_COLUMN.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
if ($this->_version == self::XLS_BIFF8 && !$this->_readDataOnly) {
// offset: 0; size: 2; number of the following column index structures
$nm = $this->_GetInt2d($recordData, 0);
// offset: 2; size: 6 * $nm; list of $nm row index structures
for ($i = 0; $i < $nm; ++$i) {
$c = $this->_GetInt2d($recordData, 2 + 6 * $i);
$rf = $this->_GetInt2d($recordData, 2 + 6 * $i + 2);
$rl = $this->_GetInt2d($recordData, 2 + 6 * $i + 4);
// not sure why two row indexes are necessary?
$this->_phpSheet->setBreakByColumnAndRow($c, $rf, PHPExcel_Worksheet::BREAK_COLUMN);
}
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readWindow2 ( )
private

Read WINDOW2 record.

Definition at line 3136 of file Excel5.php.

References _GetInt2d().

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// offset: 0; size: 2; option flags
$options = $this->_GetInt2d($recordData, 0);
// bit: 1; mask: 0x0002; 0 = do not show gridlines, 1 = show gridlines
$showGridlines = (bool) ((0x0002 & $options) >> 1);
$this->_phpSheet->setShowGridlines($showGridlines);
// bit: 3; mask: 0x0008; 0 = panes are not frozen, 1 = panes are frozen
$this->_frozen = (bool) ((0x0008 & $options) >> 3);
// bit: 6; mask: 0x0040; 0 = columns from left to right, 1 = columns from right to left
$this->_phpSheet->setRightToLeft((bool)((0x0040 & $options) >> 6));
// bit: 10; mask: 0x0400; 0 = sheet not active, 1 = sheet active
$isActive = (bool) ((0x0400 & $options) >> 10);
if ($isActive) {
$this->_phpExcel->setActiveSheetIndex($this->_phpExcel->getIndex($this->_phpSheet));
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_readXf ( )
private

XF - Extended Format.

This record contains formatting information for cells, rows, columns or styles. According to http://support.microsoft.com/kb/147732 there are always at least 15 cell style XF and 1 cell XF. Inspection of Excel files generated by MS Office Excel shows that XF records 0-14 are cell style XF and XF record 15 is a cell XF We only read the first cell style XF and skip the remaining cell style XF records We read all cell XF records.

– "OpenOffice.org's Documentation of the Microsoft Excel File Format"

Definition at line 1298 of file Excel5.php.

References $_xfIndex, _GetInt2d(), _GetInt4d(), _mapBorderStyle(), _mapFillPattern(), PHPExcel_Style_NumberFormat\builtInFormatCode(), elseif(), PHPExcel_Style_Alignment\HORIZONTAL_CENTER, PHPExcel_Style_Alignment\HORIZONTAL_CENTER_CONTINUOUS, PHPExcel_Style_Alignment\HORIZONTAL_GENERAL, PHPExcel_Style_Alignment\HORIZONTAL_JUSTIFY, PHPExcel_Style_Alignment\HORIZONTAL_LEFT, PHPExcel_Style_Alignment\HORIZONTAL_RIGHT, PHPExcel_Style_Protection\PROTECTION_INHERIT, PHPExcel_Style_Protection\PROTECTION_PROTECTED, PHPExcel_Style_Protection\PROTECTION_UNPROTECTED, PHPExcel_Style_Alignment\VERTICAL_BOTTOM, PHPExcel_Style_Alignment\VERTICAL_CENTER, PHPExcel_Style_Alignment\VERTICAL_JUSTIFY, and PHPExcel_Style_Alignment\VERTICAL_TOP.

Referenced by load().

{
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
$objStyle = new PHPExcel_Style();
if (!$this->_readDataOnly) {
// offset: 0; size: 2; Index to FONT record
if ($this->_GetInt2d($recordData, 0) < 4) {
$fontIndex = $this->_GetInt2d($recordData, 0);
} else {
// this has to do with that index 4 is omitted in all BIFF versions for some strange reason
// check the OpenOffice documentation of the FONT record
$fontIndex = $this->_GetInt2d($recordData, 0) - 1;
}
$objStyle->setFont($this->_objFonts[$fontIndex]);
// offset: 2; size: 2; Index to FORMAT record
$numberFormatIndex = $this->_GetInt2d($recordData, 2);
if (isset($this->_formats[$numberFormatIndex])) {
// then we have user-defined format code
$numberformat = array('code' => $this->_formats[$numberFormatIndex]);
} elseif (($code = PHPExcel_Style_NumberFormat::builtInFormatCode($numberFormatIndex)) !== '') {
// then we have built-in format code
$numberformat = array('code' => $code);
} else {
// we set the general format code
$numberformat = array('code' => 'General');
}
$objStyle->getNumberFormat()->setFormatCode($numberformat['code']);
// offset: 4; size: 2; XF type, cell protection, and parent style XF
// bit 2-0; mask 0x0007; XF_TYPE_PROT
$xfTypeProt = $this->_GetInt2d($recordData, 4);
// bit 0; mask 0x01; 1 = cell is locked
$isLocked = (0x01 & $xfTypeProt) >> 0;
$objStyle->getProtection()->setLocked($isLocked ?
PHPExcel_Style_Protection::PROTECTION_INHERIT : PHPExcel_Style_Protection::PROTECTION_UNPROTECTED);
// bit 1; mask 0x02; 1 = Formula is hidden
$isHidden = (0x02 & $xfTypeProt) >> 1;
$objStyle->getProtection()->setHidden($isHidden ?
PHPExcel_Style_Protection::PROTECTION_PROTECTED : PHPExcel_Style_Protection::PROTECTION_UNPROTECTED);
// bit 2; mask 0x04; 0 = Cell XF, 1 = Cell Style XF
$isCellStyleXf = (0x04 & $xfTypeProt) >> 2;
// offset: 6; size: 1; Alignment and text break
// bit 2-0, mask 0x07; horizontal alignment
$horAlign = (0x07 & ord($recordData{6})) >> 0;
switch ($horAlign) {
case 0:
$objStyle->getAlignment()->setHorizontal(PHPExcel_Style_Alignment::HORIZONTAL_GENERAL);
break;
case 1:
$objStyle->getAlignment()->setHorizontal(PHPExcel_Style_Alignment::HORIZONTAL_LEFT);
break;
case 2:
$objStyle->getAlignment()->setHorizontal(PHPExcel_Style_Alignment::HORIZONTAL_CENTER);
break;
case 3:
$objStyle->getAlignment()->setHorizontal(PHPExcel_Style_Alignment::HORIZONTAL_RIGHT);
break;
case 5:
$objStyle->getAlignment()->setHorizontal(PHPExcel_Style_Alignment::HORIZONTAL_JUSTIFY);
break;
case 6:
$objStyle->getAlignment()->setHorizontal(PHPExcel_Style_Alignment::HORIZONTAL_CENTER_CONTINUOUS);
break;
}
// bit 3, mask 0x08; wrap text
$wrapText = (0x08 & ord($recordData{6})) >> 3;
switch ($wrapText) {
case 0:
$objStyle->getAlignment()->setWrapText(false);
break;
case 1:
$objStyle->getAlignment()->setWrapText(true);
break;
}
// bit 6-4, mask 0x70; vertical alignment
$vertAlign = (0x70 & ord($recordData{6})) >> 4;
switch ($vertAlign) {
case 0:
$objStyle->getAlignment()->setVertical(PHPExcel_Style_Alignment::VERTICAL_TOP);
break;
case 1:
$objStyle->getAlignment()->setVertical(PHPExcel_Style_Alignment::VERTICAL_CENTER);
break;
case 2:
$objStyle->getAlignment()->setVertical(PHPExcel_Style_Alignment::VERTICAL_BOTTOM);
break;
case 3:
$objStyle->getAlignment()->setVertical(PHPExcel_Style_Alignment::VERTICAL_JUSTIFY);
break;
}
if ($this->_version == self::XLS_BIFF8) {
// offset: 7; size: 1; XF_ROTATION: Text rotation angle
$angle = ord($recordData{7});
$rotation = 0;
if ($angle <= 90) {
$rotation = $angle;
} else if ($angle <= 180) {
$rotation = 90 - $angle;
} else if ($angle == 255) {
$rotation = -165;
}
$objStyle->getAlignment()->setTextRotation($rotation);
// offset: 8; size: 1; Indentation, shrink to cell size, and text direction
// bit: 3-0; mask: 0x0F; indent level
$indent = (0x0F & ord($recordData{8})) >> 0;
$objStyle->getAlignment()->setIndent($indent);
// bit: 4; mask: 0x10; 1 = shrink content to fit into cell
$shrinkToFit = (0x10 & ord($recordData{8})) >> 4;
switch ($shrinkToFit) {
case 0:
$objStyle->getAlignment()->setShrinkToFit(false);
break;
case 1:
$objStyle->getAlignment()->setShrinkToFit(true);
break;
}
// offset: 9; size: 1; Flags used for attribute groups
// offset: 10; size: 4; Cell border lines and background area
// bit: 3-0; mask: 0x0000000F; left style
if ($bordersLeftStyle = $this->_mapBorderStyle((0x0000000F & $this->_GetInt4d($recordData, 10)) >> 0)) {
$objStyle->getBorders()->getLeft()->setBorderStyle($bordersLeftStyle);
}
// bit: 7-4; mask: 0x000000F0; right style
if ($bordersRightStyle = $this->_mapBorderStyle((0x000000F0 & $this->_GetInt4d($recordData, 10)) >> 4)) {
$objStyle->getBorders()->getRight()->setBorderStyle($bordersRightStyle);
}
// bit: 11-8; mask: 0x00000F00; top style
if ($bordersTopStyle = $this->_mapBorderStyle((0x00000F00 & $this->_GetInt4d($recordData, 10)) >> 8)) {
$objStyle->getBorders()->getTop()->setBorderStyle($bordersTopStyle);
}
// bit: 15-12; mask: 0x0000F000; bottom style
if ($bordersBottomStyle = $this->_mapBorderStyle((0x0000F000 & $this->_GetInt4d($recordData, 10)) >> 12)) {
$objStyle->getBorders()->getBottom()->setBorderStyle($bordersBottomStyle);
}
// bit: 22-16; mask: 0x007F0000; left color
$objStyle->getBorders()->getLeft()->colorIndex = (0x007F0000 & $this->_GetInt4d($recordData, 10)) >> 16;
// bit: 29-23; mask: 0x3F800000; right color
$objStyle->getBorders()->getRight()->colorIndex = (0x3F800000 & $this->_GetInt4d($recordData, 10)) >> 23;
// offset: 14; size: 4;
// bit: 6-0; mask: 0x0000007F; top color
$objStyle->getBorders()->getTop()->colorIndex = (0x0000007F & $this->_GetInt4d($recordData, 14)) >> 0;
// bit: 13-7; mask: 0x00003F80; bottom color
$objStyle->getBorders()->getBottom()->colorIndex = (0x00003F80 & $this->_GetInt4d($recordData, 14)) >> 7;
// bit: 31-26; mask: 0xFC000000 fill pattern
if ($fillType = $this->_mapFillPattern((0xFC000000 & $this->_GetInt4d($recordData, 14)) >> 26)) {
$objStyle->getFill()->setFillType($fillType);
}
// offset: 18; size: 2; pattern and background colour
// bit: 6-0; mask: 0x007F; color index for pattern color
$objStyle->getFill()->startcolorIndex = (0x007F & $this->_GetInt2d($recordData, 18)) >> 0;
// bit: 13-7; mask: 0x3F80; color index for pattern background
$objStyle->getFill()->endcolorIndex = (0x3F80 & $this->_GetInt2d($recordData, 18)) >> 7;
} else {
// BIFF5
// offset: 7; size: 1; Text orientation and flags
$orientationAndFlags = ord($recordData{7});
// bit: 1-0; mask: 0x03; XF_ORIENTATION: Text orientation
$xfOrientation = (0x03 & $orientationAndFlags) >> 0;
switch ($xfOrientation) {
case 0:
$objStyle->getAlignment()->setTextRotation(0);
break;
case 1:
$objStyle->getAlignment()->setTextRotation(-165);
break;
case 2:
$objStyle->getAlignment()->setTextRotation(90);
break;
case 3:
$objStyle->getAlignment()->setTextRotation(-90);
break;
}
// offset: 8; size: 4; cell border lines and background area
$borderAndBackground = $this->_GetInt4d($recordData, 8);
// bit: 6-0; mask: 0x0000007F; color index for pattern color
$objStyle->getFill()->startcolorIndex = (0x0000007F & $borderAndBackground) >> 0;
// bit: 13-7; mask: 0x00003F80; color index for pattern background
$objStyle->getFill()->endcolorIndex = (0x00003F80 & $borderAndBackground) >> 7;
// bit: 21-16; mask: 0x003F0000; fill pattern
$objStyle->getFill()->setFillType($this->_mapFillPattern((0x003F0000 & $borderAndBackground) >> 16));
// bit: 24-22; mask: 0x01C00000; bottom line style
$objStyle->getBorders()->getBottom()->setBorderStyle($this->_mapBorderStyle((0x01C00000 & $borderAndBackground) >> 22));
// bit: 31-25; mask: 0xFE000000; bottom line color
$objStyle->getBorders()->getBottom()->colorIndex = (0xFE000000 & $borderAndBackground) >> 25;
// offset: 12; size: 4; cell border lines
$borderLines = $this->_GetInt4d($recordData, 12);
// bit: 2-0; mask: 0x00000007; top line style
$objStyle->getBorders()->getTop()->setBorderStyle($this->_mapBorderStyle((0x00000007 & $borderLines) >> 0));
// bit: 5-3; mask: 0x00000038; left line style
$objStyle->getBorders()->getLeft()->setBorderStyle($this->_mapBorderStyle((0x00000038 & $borderLines) >> 3));
// bit: 8-6; mask: 0x000001C0; right line style
$objStyle->getBorders()->getRight()->setBorderStyle($this->_mapBorderStyle((0x000001C0 & $borderLines) >> 6));
// bit: 15-9; mask: 0x0000FE00; top line color index
$objStyle->getBorders()->getTop()->colorIndex = (0x0000FE00 & $borderLines) >> 9;
// bit: 22-16; mask: 0x007F0000; left line color index
$objStyle->getBorders()->getLeft()->colorIndex = (0x007F0000 & $borderLines) >> 16;
// bit: 29-23; mask: 0x3F800000; right line color index
$objStyle->getBorders()->getRight()->colorIndex = (0x3F800000 & $borderLines) >> 23;
}
// add cellStyleXf or cellXf and update mapping
if ($isCellStyleXf) {
// we only read one style XF record which is always the first
if ($this->_xfIndex == 0) {
$this->_phpExcel->addCellStyleXf($objStyle);
$this->_mapCellStyleXfIndex[$this->_xfIndex] = 0;
}
} else {
// we read all cell XF records
$this->_phpExcel->addCellXf($objStyle);
$this->_mapCellXfIndex[$this->_xfIndex] = count($this->_phpExcel->getCellXfCollection()) - 1;
}
// update XF index for when we read next record
++$this->_xfIndex;
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_uncompressByteString (   $string)
private

Convert UTF-16 string in compressed notation to uncompressed form.

Only used for BIFF8.

Parameters
string$string
Returns
string

Definition at line 4918 of file Excel5.php.

Referenced by _encodeUTF16().

{
$uncompressedString = '';
for ($i = 0; $i < strlen($string); ++$i) {
$uncompressedString .= $string[$i] . "\0";
}
return $uncompressedString;
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::_UTF8toExcelDoubleQuoted (   $value)
private

Convert UTF-8 string to string surounded by double quotes.

Used for explicit string tokens in formulas. Example: hello"world &ndash;> "hello""world"

Parameters
string$valueUTF-8 encoded string
Returns
string

Definition at line 4834 of file Excel5.php.

Referenced by _getNextToken().

{
return '"' . str_replace('"', '""', $value) . '"';
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::canRead (   $pFilename)

Can the current PHPExcel_Reader_IReader read the file?

Parameters
string$pFileName
Returns
boolean

Implements PHPExcel_Reader_IReader.

Definition at line 488 of file Excel5.php.

References $res.

{
// Check if file exists
if (!file_exists($pFilename)) {
throw new Exception("Could not open " . $pFilename . " for reading! File does not exist.");
}
try {
// Use ParseXL for the hard work.
$this->_ole = new PHPExcel_Shared_OLERead();
// get excel data
$res = $this->_ole->read($pFilename);
return true;
} catch (Exception $e) {
return false;
}
}
PHPExcel_Reader_Excel5::getLoadSheetsOnly ( )

Get which sheets to load.

Returns
mixed

Definition at line 426 of file Excel5.php.

References $_loadSheetsOnly.

{
return $this->_loadSheetsOnly;
}
PHPExcel_Reader_Excel5::getReadDataOnly ( )

Read data only?

Returns
boolean

Definition at line 404 of file Excel5.php.

References $_readDataOnly.

{
return $this->_readDataOnly;
}
PHPExcel_Reader_Excel5::getReadFilter ( )

Read filter.

Returns
PHPExcel_Reader_IReadFilter

Definition at line 460 of file Excel5.php.

References $_readFilter.

Referenced by _readBlank(), _readBoolErr(), _readFormula(), _readLabel(), _readLabelSst(), _readMulBlank(), _readMulRk(), _readNumber(), and _readRk().

{
return $this->_readFilter;
}

+ Here is the caller graph for this function:

PHPExcel_Reader_Excel5::load (   $pFilename)

Loads PHPExcel from file.

Parameters
string$pFilename
Exceptions
Exception

Implements PHPExcel_Reader_IReader.

Definition at line 514 of file Excel5.php.

References $_phpExcel, $_pos, $n, $reader, $res, _getFormulaFromStructure(), _GetInt2d(), _readBlank(), _readBoolErr(), _readBottomMargin(), _readCodepage(), _readColInfo(), _readColor(), _readContinue(), _readDateMode(), _readDefault(), _readDefaultRowHeight(), _readDefColWidth(), _readDefinedName(), _readExternalBook(), _readExternSheet(), _readFilepass(), _readFont(), _readFooter(), _readFormat(), _readFormula(), _readHcenter(), _readHeader(), _readHorizontalPageBreaks(), _readHyperLink(), _readLabel(), _readLabelSst(), _readLeftMargin(), _readMergedCells(), _readMsoDrawing(), _readMsoDrawingGroup(), _readMulBlank(), _readMulRk(), _readNumber(), _readObj(), _readPageSetup(), _readPalette(), _readPane(), _readPassword(), _readPrintGridlines(), _readProtect(), _readRangeProtection(), _readRightMargin(), _readRk(), _readRow(), _readScl(), _readSharedFmla(), _readSheet(), _readSheetPr(), _readSst(), _readStyle(), _readTopMargin(), _readVcenter(), _readVerticalPageBreaks(), _readWindow2(), _readXf(), PHPExcel_Shared_Escher_DggContainer_BstoreContainer_BSE\BLIPTYPE_JPEG, PHPExcel_Shared_Escher_DggContainer_BstoreContainer_BSE\BLIPTYPE_PNG, PHPExcel_Cell\coordinateFromString(), elseif(), PHPExcel_Shared_Excel5\getDistanceX(), PHPExcel_Shared_Excel5\getDistanceY(), PHPExcel_Worksheet_MemoryDrawing\MIMETYPE_JPEG, PHPExcel_Worksheet_MemoryDrawing\MIMETYPE_PNG, PHPExcel\removeSheetByIndex(), PHPExcel_Worksheet_MemoryDrawing\RENDERING_JPEG, PHPExcel_Worksheet_MemoryDrawing\RENDERING_PNG, PHPExcel_Shared_Excel5\sizeCol(), PHPExcel_Shared_Excel5\sizeRow(), and PHPExcel_Cell_DataType\TYPE_FORMULA.

{
// Initialisations
$this->_phpExcel = new PHPExcel;
$this->_phpExcel->removeSheetByIndex(0); // remove 1st sheet
if (!$this->_readDataOnly) {
$this->_phpExcel->removeCellStyleXfByIndex(0); // remove the default style
$this->_phpExcel->removeCellXfByIndex(0); // remove the default style
}
// Use ParseXL for the hard work.
$this->_ole = new PHPExcel_Shared_OLERead();
// get excel data
$res = $this->_ole->read($pFilename);
$this->_data = $this->_ole->getWorkBook();
// total byte size of Excel data (workbook global substream + sheet substreams)
$this->_dataSize = strlen($this->_data);
// initialize
$this->_pos = 0;
$this->_codepage = 'CP1252';
$this->_formats = array();
$this->_objFonts = array();
$this->_palette = array();
$this->_sheets = array();
$this->_externalBooks = array();
$this->_ref = array();
$this->_definedname = array();
$this->_sst = array();
$this->_drawingGroupData = '';
$this->_xfIndex = '';
$this->_mapCellXfIndex = array();
$this->_mapCellStyleXfIndex = array();
// Parse Workbook Global Substream
while ($this->_pos < $this->_dataSize) {
$code = $this->_GetInt2d($this->_data, $this->_pos);
switch ($code) {
case self::XLS_Type_BOF:
$pos = $this->_pos;
$length = $this->_GetInt2d($this->_data, $pos + 2);
$recordData = substr($this->_data, $pos + 4, $length);
// offset: 0; size: 2; BIFF version
$this->_version = $this->_GetInt2d($this->_data, $pos + 4);
if (($this->_version != self::XLS_BIFF8) && ($this->_version != self::XLS_BIFF7)) {
return false;
}
// offset: 2; size: 2; type of stream
$substreamType = $this->_GetInt2d($this->_data, $pos + 6);
if ($substreamType != self::XLS_WorkbookGlobals) {
return false;
}
$this->_pos += 4 + $length;
break;
case self::XLS_Type_FILEPASS: $this->_readFilepass(); break;
case self::XLS_Type_CODEPAGE: $this->_readCodepage(); break;
case self::XLS_Type_DATEMODE: $this->_readDateMode(); break;
case self::XLS_Type_FONT: $this->_readFont(); break;
case self::XLS_Type_FORMAT: $this->_readFormat(); break;
case self::XLS_Type_XF: $this->_readXf(); break;
case self::XLS_Type_STYLE: $this->_readStyle(); break;
case self::XLS_Type_PALETTE: $this->_readPalette(); break;
case self::XLS_Type_SHEET: $this->_readSheet(); break;
case self::XLS_Type_EXTERNALBOOK: $this->_readExternalBook(); break;
case self::XLS_Type_EXTERNSHEET: $this->_readExternSheet(); break;
case self::XLS_Type_DEFINEDNAME: $this->_readDefinedName(); break;
case self::XLS_Type_MSODRAWINGGROUP: $this->_readMsoDrawingGroup(); break;
case self::XLS_Type_SST: $this->_readSst(); break;
case self::XLS_Type_EOF: $this->_readDefault(); break 2;
default: $this->_readDefault(); break;
}
}
// Resolve indexed colors for font, fill, and border colors
// Cannot be resolved already in XF record, because PALETTE record comes afterwards
if (!$this->_readDataOnly) {
foreach ($this->_objFonts as $objFont) {
$color = $this->_readColor($objFont->colorIndex);
$objFont->getColor()->setRGB($color['rgb']);
}
foreach ($this->_phpExcel->getCellXfCollection() as $objStyle) {
// fill start and end color
$startColor = $this->_readColor($objStyle->getFill()->startcolorIndex);
$objStyle->getFill()->getStartColor()->setRGB($startColor['rgb']);
$endColor = $this->_readColor($objStyle->getFill()->endcolorIndex);
$objStyle->getFill()->getEndColor()->setRGB($endColor['rgb']);
// border colors
$borderTopColor = $this->_readColor($objStyle->getBorders()->getTop()->colorIndex);
$objStyle->getBorders()->getTop()->getColor()->setRGB($borderTopColor['rgb']);
$borderRightColor = $this->_readColor($objStyle->getBorders()->getRight()->colorIndex);
$objStyle->getBorders()->getRight()->getColor()->setRGB($borderRightColor['rgb']);
$borderBottomColor = $this->_readColor($objStyle->getBorders()->getBottom()->colorIndex);
$objStyle->getBorders()->getBottom()->getColor()->setRGB($borderBottomColor['rgb']);
$borderLeftColor = $this->_readColor($objStyle->getBorders()->getLeft()->colorIndex);
$objStyle->getBorders()->getLeft()->getColor()->setRGB($borderLeftColor['rgb']);
}
}
// treat MSODRAWINGGROUP records, workbook-level Escher
if (!$this->_readDataOnly && $this->_drawingGroupData) {
$escherWorkbook = new PHPExcel_Shared_Escher();
$reader = new PHPExcel_Reader_Excel5_Escher($escherWorkbook);
$escherWorkbook = $reader->load($this->_drawingGroupData);
// debug Escher stream
//$debug = new Debug_Escher(new PHPExcel_Shared_Escher());
//$debug->load($this->_drawingGroupData);
}
// Parse the individual sheets
foreach ($this->_sheets as $sheet) {
// check if sheet should be skipped
if (isset($this->_loadSheetsOnly) && !in_array($sheet['name'], $this->_loadSheetsOnly)) {
continue;
}
// add sheet to PHPExcel object
$this->_phpSheet = $this->_phpExcel->createSheet();
$this->_phpSheet->setTitle($sheet['name']);
$this->_pos = $sheet['offset'];
// Initialize isFitToPages. May change after reading SHEETPR record.
$this->_isFitToPages = false;
// Initialize drawingData
$this->_drawingData = '';
// Initialize objs
$this->_objs = array();
// Initialize shared formula parts
$this->_sharedFormulaParts = array();
// Initialize shared formulas
$this->_sharedFormulas = array();
while ($this->_pos < $this->_dataSize) {
$code = $this->_GetInt2d($this->_data, $this->_pos);
switch ($code) {
case self::XLS_Type_BOF:
$length = $this->_GetInt2d($this->_data, $this->_pos + 2);
$recordData = substr($this->_data, $this->_pos + 4, $length);
// move stream pointer to next record
$this->_pos += 4 + $length;
// do not use this version information for anything
// it is unreliable (OpenOffice doc, 5.8), use only version information from the global stream
// offset: 2; size: 2; type of the following data
$substreamType = $this->_GetInt2d($recordData, 2);
if ($substreamType != self::XLS_Worksheet) {
break 2;
}
break;
case self::XLS_Type_PRINTGRIDLINES: $this->_readPrintGridlines(); break;
case self::XLS_Type_DEFAULTROWHEIGHT: $this->_readDefaultRowHeight(); break;
case self::XLS_Type_SHEETPR: $this->_readSheetPr(); break;
case self::XLS_Type_HORIZONTALPAGEBREAKS: $this->_readHorizontalPageBreaks(); break;
case self::XLS_Type_VERTICALPAGEBREAKS: $this->_readVerticalPageBreaks(); break;
case self::XLS_Type_HEADER: $this->_readHeader(); break;
case self::XLS_Type_FOOTER: $this->_readFooter(); break;
case self::XLS_Type_HCENTER: $this->_readHcenter(); break;
case self::XLS_Type_VCENTER: $this->_readVcenter(); break;
case self::XLS_Type_LEFTMARGIN: $this->_readLeftMargin(); break;
case self::XLS_Type_RIGHTMARGIN: $this->_readRightMargin(); break;
case self::XLS_Type_TOPMARGIN: $this->_readTopMargin(); break;
case self::XLS_Type_BOTTOMMARGIN: $this->_readBottomMargin(); break;
case self::XLS_Type_PAGESETUP: $this->_readPageSetup(); break;
case self::XLS_Type_PROTECT: $this->_readProtect(); break;
case self::XLS_Type_PASSWORD: $this->_readPassword(); break;
case self::XLS_Type_DEFCOLWIDTH: $this->_readDefColWidth(); break;
case self::XLS_Type_COLINFO: $this->_readColInfo(); break;
case self::XLS_Type_DIMENSION: $this->_readDefault(); break;
case self::XLS_Type_ROW: $this->_readRow(); break;
case self::XLS_Type_DBCELL: $this->_readDefault(); break;
case self::XLS_Type_RK: $this->_readRk(); break;
case self::XLS_Type_LABELSST: $this->_readLabelSst(); break;
case self::XLS_Type_MULRK: $this->_readMulRk(); break;
case self::XLS_Type_NUMBER: $this->_readNumber(); break;
case self::XLS_Type_FORMULA: $this->_readFormula(); break;
case self::XLS_Type_SHAREDFMLA: $this->_readSharedFmla(); break;
case self::XLS_Type_BOOLERR: $this->_readBoolErr(); break;
case self::XLS_Type_MULBLANK: $this->_readMulBlank(); break;
case self::XLS_Type_LABEL: $this->_readLabel(); break;
case self::XLS_Type_BLANK: $this->_readBlank(); break;
case self::XLS_Type_MSODRAWING: $this->_readMsoDrawing(); break;
case self::XLS_Type_OBJ: $this->_readObj(); break;
case self::XLS_Type_WINDOW2: $this->_readWindow2(); break;
case self::XLS_Type_SCL: $this->_readScl(); break;
case self::XLS_Type_PANE: $this->_readPane(); break;
case self::XLS_Type_MERGEDCELLS: $this->_readMergedCells(); break;
case self::XLS_Type_HYPERLINK: $this->_readHyperLink(); break;
case self::XLS_Type_RANGEPROTECTION: $this->_readRangeProtection(); break;
//case self::XLS_Type_IMDATA: $this->_readImData(); break;
case self::XLS_Type_CONTINUE: $this->_readContinue(); break;
case self::XLS_Type_EOF: $this->_readDefault(); break 2;
default: $this->_readDefault(); break;
}
}
// treat MSODRAWING records, sheet-level Escher
if (!$this->_readDataOnly && $this->_drawingData) {
$escherWorksheet = new PHPExcel_Shared_Escher();
$reader = new PHPExcel_Reader_Excel5_Escher($escherWorksheet);
$escherWorksheet = $reader->load($this->_drawingData);
// debug Escher stream
//$debug = new Debug_Escher(new PHPExcel_Shared_Escher());
//$debug->load($this->_drawingData);
// get all spContainers in one long array, so they can be mapped to OBJ records
$allSpContainers = $escherWorksheet->getDgContainer()->getSpgrContainer()->getAllSpContainers();
}
// treat OBJ records
foreach ($this->_objs as $n => $obj) {
// the first shape container never has a corresponding OBJ record, hence $n + 1
$spContainer = $allSpContainers[$n + 1];
// we skip all spContainers that are a part of a group shape since we cannot yet handle those
if ($spContainer->getNestingLevel() > 1) {
continue;
}
// calculate the width and height of the shape
list($startColumn, $startRow) = PHPExcel_Cell::coordinateFromString($spContainer->getStartCoordinates());
list($endColumn, $endRow) = PHPExcel_Cell::coordinateFromString($spContainer->getEndCoordinates());
$startOffsetX = $spContainer->getStartOffsetX();
$startOffsetY = $spContainer->getStartOffsetY();
$endOffsetX = $spContainer->getEndOffsetX();
$endOffsetY = $spContainer->getEndOffsetY();
$width = PHPExcel_Shared_Excel5::getDistanceX($this->_phpSheet, $startColumn, $startOffsetX, $endColumn, $endOffsetX);
$height = PHPExcel_Shared_Excel5::getDistanceY($this->_phpSheet, $startRow, $startOffsetY, $endRow, $endOffsetY);
// calculate offsetX and offsetY of the shape
$offsetX = $startOffsetX * PHPExcel_Shared_Excel5::sizeCol($this->_phpSheet, $startColumn) / 1024;
$offsetY = $startOffsetY * PHPExcel_Shared_Excel5::sizeRow($this->_phpSheet, $startRow) / 256;
switch ($obj['type']) {
case 0x08:
// picture
// get index to BSE entry (1-based)
$BSEindex = $spContainer->getOPT(0x0104);
$BSECollection = $escherWorkbook->getDggContainer()->getBstoreContainer()->getBSECollection();
$BSE = $BSECollection[$BSEindex - 1];
$blipType = $BSE->getBlipType();
// need check because some blip types are not supported by Escher reader such as EMF
if ($blip = $BSE->getBlip()) {
$ih = imagecreatefromstring($blip->getData());
$drawing = new PHPExcel_Worksheet_MemoryDrawing();
$drawing->setImageResource($ih);
// width, height, offsetX, offsetY
$drawing->setResizeProportional(false);
$drawing->setWidth($width);
$drawing->setHeight($height);
$drawing->setOffsetX($offsetX);
$drawing->setOffsetY($offsetY);
switch ($blipType) {
case PHPExcel_Shared_Escher_DggContainer_BstoreContainer_BSE::BLIPTYPE_JPEG:
$drawing->setRenderingFunction(PHPExcel_Worksheet_MemoryDrawing::RENDERING_JPEG);
$drawing->setMimeType(PHPExcel_Worksheet_MemoryDrawing::MIMETYPE_JPEG);
break;
case PHPExcel_Shared_Escher_DggContainer_BstoreContainer_BSE::BLIPTYPE_PNG:
$drawing->setRenderingFunction(PHPExcel_Worksheet_MemoryDrawing::RENDERING_PNG);
$drawing->setMimeType(PHPExcel_Worksheet_MemoryDrawing::MIMETYPE_PNG);
break;
}
$drawing->setWorksheet($this->_phpSheet);
$drawing->setCoordinates($spContainer->getStartCoordinates());
}
break;
default:
// other object type
break;
}
}
// treat SHAREDFMLA records
if ($this->_version == self::XLS_BIFF8) {
foreach ($this->_sharedFormulaParts as $cell => $baseCell) {
$formula = $this->_getFormulaFromStructure($this->_sharedFormulas[$baseCell], $cell);
$this->_phpSheet->getCell($cell)->setValueExplicit('=' . $formula, PHPExcel_Cell_DataType::TYPE_FORMULA);
}
}
}
// add the named ranges (defined names)
foreach ($this->_definedname as $definedName) {
if ($definedName['isBuiltInName']) {
switch ($definedName['name']) {
case pack('C', 0x06):
// print area
// in general, formula looks like this: Foo!$C$7:$J$66,Bar!$A$1:$IV$2
$ranges = explode(',', $definedName['formula']); // FIXME: what if sheetname contains comma?
foreach ($ranges as $range) {
// $range should look like this one of these
// Foo!$C$7:$J$66
// Bar!$A$1:$IV$2
$explodes = explode('!', $range);
if (count($explodes) == 2) {
if ($docSheet = $this->_phpExcel->getSheetByName($explodes[0])) {
$extractedRange = $explodes[1];
$extractedRange = str_replace('$', '', $extractedRange);
$docSheet->getPageSetup()->setPrintArea($extractedRange);
}
}
}
break;
case pack('C', 0x07):
// print titles (repeating rows)
// Assuming BIFF8, there are 3 cases
// 1. repeating rows
// formula looks like this: Sheet!$A$1:$IV$2
// rows 1-2 repeat
// 2. repeating columns
// formula looks like this: Sheet!$A$1:$B$65536
// columns A-B repeat
// 3. both repeating rows and repeating columns
// formula looks like this: Sheet!$A$1:$B$65536,Sheet!$A$1:$IV$2
$ranges = explode(',', $definedName['formula']); // FIXME: what if sheetname contains comma?
foreach ($ranges as $range) {
// $range should look like this one of these
// Sheet!$A$1:$B$65536
// Sheet!$A$1:$IV$2
$explodes = explode('!', $range);
if (count($explodes) == 2) {
if ($docSheet = $this->_phpExcel->getSheetByName($explodes[0])) {
$extractedRange = $explodes[1];
$extractedRange = str_replace('$', '', $extractedRange);
$coordinateStrings = explode(':', $extractedRange);
if (count($coordinateStrings) == 2) {
list($firstColumn, $firstRow) = PHPExcel_Cell::coordinateFromString($coordinateStrings[0]);
list($lastColumn, $lastRow) = PHPExcel_Cell::coordinateFromString($coordinateStrings[1]);
if ($firstColumn == 'A' and $lastColumn == 'IV') {
// then we have repeating rows
$docSheet->getPageSetup()->setRowsToRepeatAtTop(array($firstRow, $lastRow));
} elseif ($firstRow == 1 and $lastRow == 65536) {
// then we have repeating columns
$docSheet->getPageSetup()->setColumnsToRepeatAtLeft(array($firstColumn, $lastColumn));
}
}
}
}
}
break;
}
} else {
// Extract range
$explodes = explode('!', $definedName['formula']);
if (count($explodes) == 2) {
if ($docSheet = $this->_phpExcel->getSheetByName($explodes[0])) {
$extractedRange = $explodes[1];
$extractedRange = str_replace('$', '', $extractedRange);
$this->_phpExcel->addNamedRange( new PHPExcel_NamedRange((string)$definedName['name'], $docSheet, $extractedRange, false) );
}
}
}
}
return $this->_phpExcel;
}

+ Here is the call graph for this function:

PHPExcel_Reader_Excel5::setLoadAllSheets ( )

Set all sheets to load.

Returns
PHPExcel_Reader_Excel5

Definition at line 449 of file Excel5.php.

{
$this->_loadSheetsOnly = null;
return $this;
}
PHPExcel_Reader_Excel5::setLoadSheetsOnly (   $value = null)

Set which sheets to load.

Parameters
mixed$value
Returns
PHPExcel_Reader_Excel5

Definition at line 437 of file Excel5.php.

{
$this->_loadSheetsOnly = is_array($value) ?
$value : array($value);
return $this;
}
PHPExcel_Reader_Excel5::setReadDataOnly (   $pValue = false)

Set read data only.

Parameters
boolean$pValue
Returns
PHPExcel_Reader_Excel5

Definition at line 415 of file Excel5.php.

{
$this->_readDataOnly = $pValue;
return $this;
}
PHPExcel_Reader_Excel5::setReadFilter ( PHPExcel_Reader_IReadFilter  $pValue)

Set read filter.

Parameters
PHPExcel_Reader_IReadFilter$pValue
Returns
PHPExcel_Reader_Excel5

Definition at line 470 of file Excel5.php.

{
$this->_readFilter = $pValue;
return $this;
}

Field Documentation

PHPExcel_Reader_Excel5::$_codepage
private

Definition at line 270 of file Excel5.php.

PHPExcel_Reader_Excel5::$_data
private

Definition at line 227 of file Excel5.php.

PHPExcel_Reader_Excel5::$_dataSize
private

Definition at line 234 of file Excel5.php.

PHPExcel_Reader_Excel5::$_definedname
private

Definition at line 319 of file Excel5.php.

PHPExcel_Reader_Excel5::$_drawingData
private

Definition at line 361 of file Excel5.php.

PHPExcel_Reader_Excel5::$_drawingGroupData
private

Definition at line 354 of file Excel5.php.

PHPExcel_Reader_Excel5::$_externalBooks
private

Definition at line 305 of file Excel5.php.

PHPExcel_Reader_Excel5::$_formats
private

Definition at line 277 of file Excel5.php.

PHPExcel_Reader_Excel5::$_frozen
private

Definition at line 333 of file Excel5.php.

PHPExcel_Reader_Excel5::$_isFitToPages
private

Definition at line 340 of file Excel5.php.

PHPExcel_Reader_Excel5::$_loadSheetsOnly = null
private

Definition at line 206 of file Excel5.php.

Referenced by getLoadSheetsOnly().

PHPExcel_Reader_Excel5::$_mapCellStyleXfIndex
private

Definition at line 382 of file Excel5.php.

PHPExcel_Reader_Excel5::$_mapCellXfIndex
private

Definition at line 375 of file Excel5.php.

PHPExcel_Reader_Excel5::$_objFonts
private

Definition at line 284 of file Excel5.php.

PHPExcel_Reader_Excel5::$_objs
private

Definition at line 347 of file Excel5.php.

PHPExcel_Reader_Excel5::$_ole
private

Definition at line 220 of file Excel5.php.

PHPExcel_Reader_Excel5::$_palette
private

Definition at line 291 of file Excel5.php.

PHPExcel_Reader_Excel5::$_phpExcel
private

Definition at line 248 of file Excel5.php.

Referenced by load().

PHPExcel_Reader_Excel5::$_phpSheet
private

Definition at line 255 of file Excel5.php.

PHPExcel_Reader_Excel5::$_pos
private

Definition at line 241 of file Excel5.php.

Referenced by load().

PHPExcel_Reader_Excel5::$_readDataOnly = false
private

Definition at line 199 of file Excel5.php.

Referenced by getReadDataOnly().

PHPExcel_Reader_Excel5::$_readFilter = null
private

Definition at line 213 of file Excel5.php.

Referenced by getReadFilter().

PHPExcel_Reader_Excel5::$_ref
private

Definition at line 312 of file Excel5.php.

PHPExcel_Reader_Excel5::$_sharedFormulaParts
private

Definition at line 397 of file Excel5.php.

PHPExcel_Reader_Excel5::$_sharedFormulas
private

Definition at line 389 of file Excel5.php.

PHPExcel_Reader_Excel5::$_sheets
private

Definition at line 298 of file Excel5.php.

PHPExcel_Reader_Excel5::$_sst
private

Definition at line 326 of file Excel5.php.

PHPExcel_Reader_Excel5::$_version
private

Definition at line 262 of file Excel5.php.

PHPExcel_Reader_Excel5::$_xfIndex
private

Definition at line 368 of file Excel5.php.

Referenced by _readXf().

const PHPExcel_Reader_Excel5::XLS_BIFF7 = 0x0500

Definition at line 124 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_BIFF8 = 0x0600

Definition at line 123 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_ARRAY = 0x0221

Definition at line 183 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_BLANK = 0x0201

Definition at line 176 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_BOF = 0x0809

Definition at line 190 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_BOOLERR = 0x0205

Definition at line 179 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_BOTTOMMARGIN = 0x0029

Definition at line 144 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_CODEPAGE = 0x0042

Definition at line 150 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_COLINFO = 0x007d

Definition at line 153 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_CONTINUE = 0x003c

Definition at line 148 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_DATEMODE = 0x0022

Definition at line 140 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_DBCELL = 0x00d7

Definition at line 164 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_DEFAULTROWHEIGHT = 0x0225

Definition at line 184 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_DEFCOLWIDTH = 0x0055

Definition at line 151 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_DEFINEDNAME = 0x0018

Definition at line 136 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_DIMENSION = 0x0200

Definition at line 175 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_EOF = 0x000a

Definition at line 130 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_EXTERNALBOOK = 0x01ae

Definition at line 172 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_EXTERNSHEET = 0x0017

Definition at line 135 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_EXTSST = 0x00ff

Definition at line 171 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_FILEPASS = 0x002f

Definition at line 146 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_FONT = 0x0031

Definition at line 147 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_FOOTER = 0x0015

Definition at line 134 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_FORMAT = 0x041e

Definition at line 188 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_FORMULA = 0x0006

Definition at line 129 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_HCENTER = 0x0083

Definition at line 156 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_HEADER = 0x0014

Definition at line 133 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_HORIZONTALPAGEBREAKS = 0x001b

Definition at line 138 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_HYPERLINK = 0x01b8

Definition at line 174 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_IMDATA = 0x007f

Definition at line 154 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_INDEX = 0x020b

Definition at line 182 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_LABEL = 0x0204

Definition at line 178 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_LABELSST = 0x00fd

Definition at line 170 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_LEFTMARGIN = 0x0026

Definition at line 141 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_MERGEDCELLS = 0x00e5

Definition at line 166 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_MSODRAWING = 0x00ec

Definition at line 168 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_MSODRAWINGGROUP = 0x00eb

Definition at line 167 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_MULBLANK = 0x00be

Definition at line 163 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_MULRK = 0x00bd

Definition at line 162 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_NOTE = 0x001c

Definition at line 139 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_NUMBER = 0x0203

Definition at line 177 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_OBJ = 0x005d

Definition at line 152 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_PAGESETUP = 0x00a1

Definition at line 161 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_PALETTE = 0x0092

Definition at line 159 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_PANE = 0x0041

Definition at line 149 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_PASSWORD = 0x0013

Definition at line 132 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_PRINTGRIDLINES = 0x002b

Definition at line 145 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_PROTECT = 0x0012

Definition at line 131 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_RANGEPROTECTION = 0x0868

Definition at line 191 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_RIGHTMARGIN = 0x0027

Definition at line 142 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_RK = 0x027e

Definition at line 186 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_ROW = 0x0208

Definition at line 181 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_SCL = 0x00a0

Definition at line 160 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_SHAREDFMLA = 0x04bc

Definition at line 189 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_SHEET = 0x0085

Definition at line 158 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_SHEETPR = 0x0081

Definition at line 155 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_SST = 0x00fc

Definition at line 169 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_STRING = 0x0207

Definition at line 180 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_STYLE = 0x0293

Definition at line 187 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_TOPMARGIN = 0x0028

Definition at line 143 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_TXO = 0x01b6

Definition at line 173 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_UNKNOWN = 0xffff

Definition at line 192 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_VCENTER = 0x0084

Definition at line 157 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_VERTICALPAGEBREAKS = 0x001a

Definition at line 137 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_WINDOW2 = 0x023e

Definition at line 185 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Type_XF = 0x00e0

Definition at line 165 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_WorkbookGlobals = 0x0005

Definition at line 125 of file Excel5.php.

const PHPExcel_Reader_Excel5::XLS_Worksheet = 0x0010

Definition at line 126 of file Excel5.php.

The documentation for this class was generated from the following file:
