This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

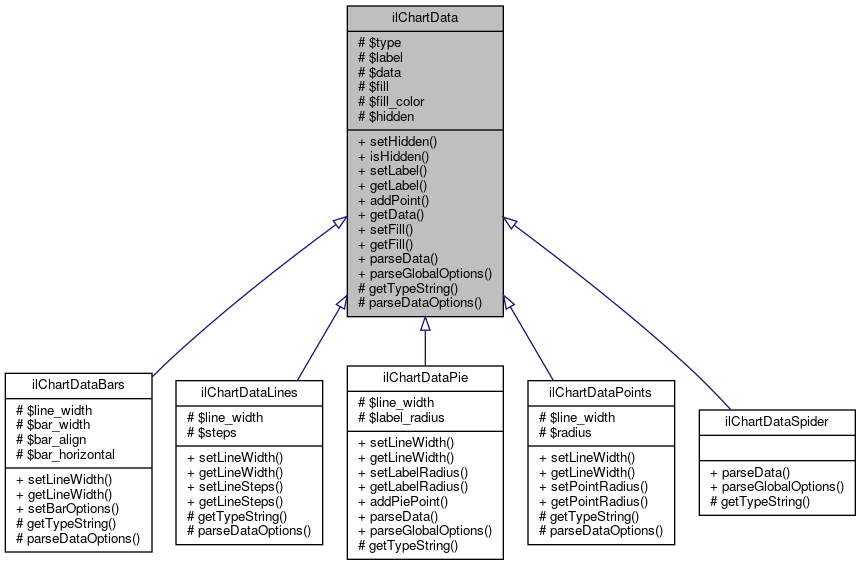

Inheritance diagram for ilChartData:

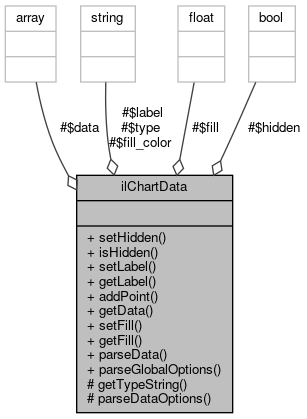

Collaboration diagram for ilChartData:

Public Member Functions
	setHidden (bool $a_value)

	isHidden ()

	setLabel (string $a_value)

	getLabel ()

	addPoint (float $a_x, ?float $a_y=null)
	Set data. More...

	getData ()
	Get data. More...

	setFill (float $a_value, string $a_color="")

	getFill ()

	parseData (array &$a_data)
	Convert data to flot config. More...

	parseGlobalOptions (stdClass $a_options, ilChart $a_chart)
	Convert (global) properties to flot config. More...

Protected Member Functions
	getTypeString ()

	parseDataOptions (array &$a_options)
	Convert data options to flot config. More...

Protected Attributes
string	$type = ""

string	$label = ""

array	$data = []

float	$fill = 0

string	$fill_color = ""

bool	$hidden = false

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too. If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Abstract chart data series base class

Author: Jörg Lützenkirchen luetz.nosp@m.enki.nosp@m.rchen.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Definition at line 20 of file class.ilChartData.php.

Member Function Documentation

◆ addPoint()

ilChartData::addPoint	(	float	$a_x,
		?float	$a_y = `null`
	)

Set data.

Parameters

float	$a_x
float	$a_y

Definition at line 57 of file class.ilChartData.php.

      : void {
         if ($a_y !== null) {
             $this->data[] = array($a_x, $a_y);
         } else {
             $this->data[] = $a_x;
         }
     }

◆ getData()

ilChartData::getData ( )

Get data.

Returns: array

Definition at line 73 of file class.ilChartData.php.

References $data.

Referenced by parseData().

                              : array
     {
         return $this->data;
     }

Here is the caller graph for this function:

◆ getFill()

ilChartData::getFill ( )

Definition at line 88 of file class.ilChartData.php.

Referenced by ilChartDataSpider\parseData(), parseData(), and ilChartDataPie\parseGlobalOptions().

                              : array
     {
         return array("fill" => $this->fill, "color" => $this->fill_color);
     }

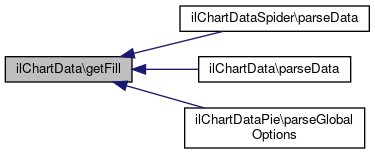

Here is the caller graph for this function:

◆ getLabel()

ilChartData::getLabel ( )

Definition at line 46 of file class.ilChartData.php.

References $label.

Referenced by parseData().

                               : string
     {
         return $this->label;
     }

Here is the caller graph for this function:

◆ getTypeString()

ilChartData::getTypeString ( )

abstractprotected

Referenced by parseData().

Here is the caller graph for this function:

◆ isHidden()

ilChartData::isHidden ( )

Definition at line 36 of file class.ilChartData.php.

References $hidden.

Referenced by ilChartDataPie\parseData(), and parseData().

                               : bool
     {
         return $this->hidden;
     }

Here is the caller graph for this function:

◆ parseData()

ilChartData::parseData ( array & $a_data )

Convert data to flot config.

Definition at line 103 of file class.ilChartData.php.

References getData(), getFill(), getLabel(), getTypeString(), isHidden(), parseDataOptions(), and ilChart\renderColor().

                                              : void
     {
         $series = new stdClass();
         $series->label = str_replace("\"", "\\\"", $this->getLabel());

         $series->data = array();
         foreach ($this->getData() as $point) {
             if (is_array($point)) {
                 $series->data[] = array($point[0], $point[1]);
             } else {
                 $series->data[] = $point;
             }
         }

         $options = array("show" => !$this->isHidden());

         $fill = $this->getFill();
         if ($fill["fill"]) {
             $options["fill"] = $fill["fill"];
             if ($fill["color"]) {
                 $options["fillColor"] = ilChart::renderColor($fill["color"], $fill["fill"]);
             }
         }

         $this->parseDataOptions($options);

         $series->{$this->getTypeString()} = $options;

         $a_data[] = $series;
     }

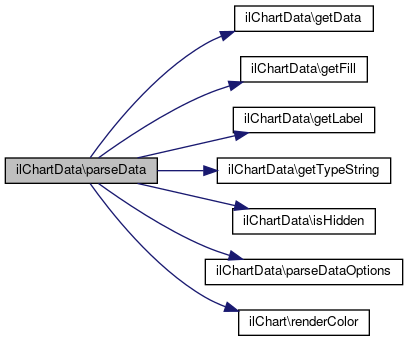

Here is the call graph for this function:

◆ parseDataOptions()

ilChartData::parseDataOptions ( array & $a_options )

protected

Convert data options to flot config.

Definition at line 96 of file class.ilChartData.php.

Referenced by parseData().

                                                           : void
     {
     }

Here is the caller graph for this function:

◆ parseGlobalOptions()

ilChartData::parseGlobalOptions	(	stdClass	$a_options,
		ilChart	$a_chart
	)

Convert (global) properties to flot config.

Definition at line 137 of file class.ilChartData.php.

                                                                              : void
     {
     }

◆ setFill()

ilChartData::setFill	(	float	$a_value,
		string	$a_color = `""`
	)

Definition at line 78 of file class.ilChartData.php.

References ilChart\isValidColor().

      : void {
         $this->fill = $a_value;
         if (ilChart::isValidColor($a_color)) {
             $this->fill_color = $a_color;
         }
     }

Here is the call graph for this function:

◆ setHidden()

ilChartData::setHidden ( bool $a_value )

Definition at line 31 of file class.ilChartData.php.

                                             : void
     {
         $this->hidden = $a_value;
     }

◆ setLabel()

ilChartData::setLabel ( string $a_value )

Definition at line 41 of file class.ilChartData.php.

                                              : void
     {
         $this->label = $a_value;
     }

Field Documentation

◆ $data

array ilChartData::$data = []

protected

Definition at line 24 of file class.ilChartData.php.

Referenced by getData().

◆ $fill

float ilChartData::$fill = 0

protected

Definition at line 25 of file class.ilChartData.php.

Referenced by ilChartDataSpider\parseData(), and ilChartDataPie\parseGlobalOptions().

◆ $fill_color

string ilChartData::$fill_color = ""

protected

Definition at line 26 of file class.ilChartData.php.

◆ $hidden

bool ilChartData::$hidden = false

protected

Definition at line 27 of file class.ilChartData.php.

Referenced by isHidden().

◆ $label

string ilChartData::$label = ""

protected

Definition at line 23 of file class.ilChartData.php.

Referenced by getLabel(), and ilChartDataSpider\parseGlobalOptions().

◆ $type

string ilChartData::$type = ""

protected

Definition at line 22 of file class.ilChartData.php.

The documentation for this class was generated from the following file:

components/ILIAS/Chart/classes/class.ilChartData.php
