This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

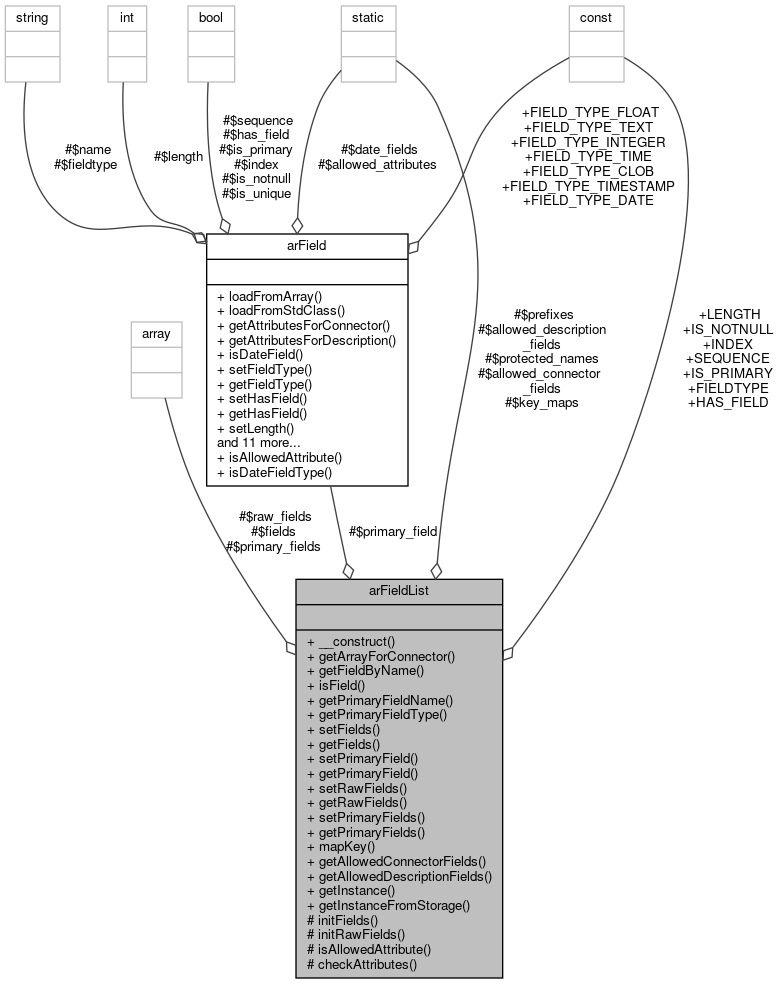

Collaboration diagram for arFieldList:

Public Member Functions
	__construct (protected ActiveRecord $activeRecord)
	arFieldList constructor. More...

	getArrayForConnector ()

	getFieldByName (string $field_name)

	isField (string $field_name)

	getPrimaryFieldName ()

	getPrimaryFieldType ()

	setFields (array $fields)

	getFields ()

	setPrimaryField (\arField $arField)

	getPrimaryField ()

	setRawFields (array $raw_fields)

	getRawFields ()

	setPrimaryFields (array $primary_fields)

	getPrimaryFields ()

Static Public Member Functions
static	mapKey (string $key)

static	getAllowedConnectorFields ()

static	getAllowedDescriptionFields ()

static	getInstance (ActiveRecord $activeRecord)

static	getInstanceFromStorage (\ActiveRecord $activeRecord)

Data Fields
const	HAS_FIELD = 'has_field'

const	IS_PRIMARY = 'is_primary'

const	IS_NOTNULL = 'is_notnull'

const	FIELDTYPE = 'fieldtype'

const	LENGTH = 'length'

const	SEQUENCE = 'sequence'

const	INDEX = 'index'

Protected Member Functions
	initFields ()

	initRawFields (ActiveRecord $ar)

Static Protected Member Functions
static	isAllowedAttribute (string $attribute_name)

static	checkAttributes (array $attributes)

Protected Attributes
arField array	$primary_field

array	$primary_fields = []

array	$raw_fields = []

array	$fields = []

Static Protected Attributes
static array	$prefixes = ['db', 'con']

static array	$protected_names = ['arConnector', 'arFieldList']

static array	$allowed_description_fields

static array	$allowed_connector_fields = [self::IS_NOTNULL, self::FIELDTYPE, self::LENGTH]

static array	$key_maps = [self::FIELDTYPE => 'type'

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Class arFieldList

Author: Fabian Schmid fs@st.nosp@m.uder.nosp@m.-raim.nosp@m.ann..nosp@m.ch

Version: 2.0.7

Definition at line 24 of file class.arFieldList.php.

Constructor & Destructor Documentation

◆ __construct()

arFieldList::__construct ( protected ActiveRecord $activeRecord )

arFieldList constructor.

Definition at line 55 of file class.arFieldList.php.

56 {

57 }

Member Function Documentation

◆ checkAttributes()

static arFieldList::checkAttributes ( array $attributes )

staticprotected

Definition at line 202 of file class.arFieldList.php.

                                                                 : bool
     {
         if (isset($attributes[self::HAS_FIELD]) && $attributes[self::HAS_FIELD] === 'true') {
             foreach (array_keys($attributes) as $atr) {
                 if (!self::isAllowedAttribute($atr)) {
                     return false;
                 }
             }
         } else {
             return false;
         }

         return true;
     }

◆ getAllowedConnectorFields()

static arFieldList::getAllowedConnectorFields ( )

static

Returns: mixed[]

Definition at line 71 of file class.arFieldList.php.

Referenced by arField\getAttributesForConnector().

                                                       : array
     {
         return self::$allowed_connector_fields;
     }

Here is the caller graph for this function:

◆ getAllowedDescriptionFields()

static arFieldList::getAllowedDescriptionFields ( )

static

Returns: mixed[]

Definition at line 79 of file class.arFieldList.php.

Referenced by arField\getAttributesForDescription().

                                                         : array
     {
         return self::$allowed_description_fields;
     }

Here is the caller graph for this function:

◆ getArrayForConnector()

arFieldList::getArrayForConnector ( )

Returns: array<string, array<int|string, mixed>>

Definition at line 108 of file class.arFieldList.php.

References getFields().

                                           : array
     {
         $return = [];
         foreach ($this->getFields() as $arField) {
             $return[$arField->getName()] = $arField->getAttributesForConnector();
         }

         return $return;
     }

Here is the call graph for this function:

◆ getFieldByName()

arFieldList::getFieldByName ( string $field_name )

Definition at line 132 of file class.arFieldList.php.

References getFields().

                                                       : ?arField
     {
         $field = null;
         static $field_map;
         $field_key = $this->activeRecord->getConnectorContainerName() . '.' . $field_name;
         if (is_array($field_map) && array_key_exists($field_key, $field_map)) {
             return $field_map[$field_key];
         }
         foreach ($this->getFields() as $field) {
             if ($field->getName() === $field_name) {
                 $field_map[$field_key] = $field;

                 return $field;
             }
         }
         return null;
     }

Here is the call graph for this function:

◆ getFields()

arFieldList::getFields ( )

Returns: arField[]

Definition at line 228 of file class.arFieldList.php.

References $fields.

Referenced by getArrayForConnector(), getFieldByName(), and isField().

                                : array
     {
         return $this->fields;
     }

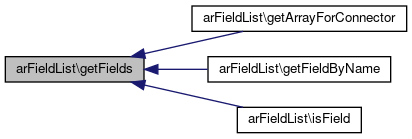

Here is the caller graph for this function:

◆ getInstance()

static arFieldList::getInstance ( ActiveRecord $activeRecord )

static

Definition at line 84 of file class.arFieldList.php.

References initRawFields().

Referenced by arFieldCache\store(), and ilServicesActiveRecordFieldTest\testFieldList().

                                                                   : \arFieldList
     {
         $self = new self($activeRecord);
         $self->initRawFields($activeRecord);
         $self->initFields();

         return $self;
     }

Here is the call graph for this function:

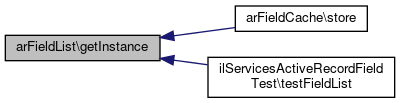

Here is the caller graph for this function:

◆ getInstanceFromStorage()

static arFieldList::getInstanceFromStorage ( \ActiveRecord $activeRecord )

static

Deprecated:

Definition at line 96 of file class.arFieldList.php.

References initRawFields().

Referenced by arFieldCache\storeFromStorage().

                                                                               : \arFieldList
     {
         $self = new self($activeRecord);
         $self->initRawFields($activeRecord);
         $self->initFields();

         return $self;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPrimaryField()

arFieldList::getPrimaryField ( )

Returns: |mixed[]

Definition at line 241 of file class.arFieldList.php.

References $primary_field.

Referenced by getPrimaryFieldName(), and getPrimaryFieldType().

                                      : \arField|array
     {
         return $this->primary_field;
     }

Here is the caller graph for this function:

◆ getPrimaryFieldName()

arFieldList::getPrimaryFieldName ( )

Definition at line 162 of file class.arFieldList.php.

References getPrimaryField().

                                          : string
     {
         return $this->getPrimaryField()->getName();
     }

Here is the call graph for this function:

◆ getPrimaryFields()

arFieldList::getPrimaryFields ( )

Returns: mixed[]

Definition at line 273 of file class.arFieldList.php.

References $primary_fields.

                                       : array
     {
         return $this->primary_fields;
     }

◆ getPrimaryFieldType()

arFieldList::getPrimaryFieldType ( )

Definition at line 167 of file class.arFieldList.php.

References getPrimaryField().

                                          : string
     {
         return $this->getPrimaryField()->getFieldType();
     }

Here is the call graph for this function:

◆ getRawFields()

arFieldList::getRawFields ( )

Returns: mixed[]

Definition at line 257 of file class.arFieldList.php.

References $raw_fields.

Referenced by initFields().

                                   : array
     {
         return $this->raw_fields;
     }

Here is the caller graph for this function:

◆ initFields()

arFieldList::initFields ( )

protected

Definition at line 118 of file class.arFieldList.php.

References getRawFields(), and setPrimaryField().

                                    : void
     {
         foreach ($this->getRawFields() as $fieldname => $attributes) {
             if (self::checkAttributes($attributes)) {
                 $arField = new arField();
                 $arField->loadFromArray($fieldname, $attributes);
                 $this->fields[] = $arField;
                 if ($arField->getPrimary()) {
                     $this->setPrimaryField($arField);
                 }
             }
         }
     }

Here is the call graph for this function:

◆ initRawFields()

arFieldList::initRawFields ( ActiveRecord $ar )

protected

Definition at line 172 of file class.arFieldList.php.

References setRawFields().

Referenced by getInstance(), and getInstanceFromStorage().

                                                       : void
     {
         $regex = "/[\t ]*\\* @(" . implode('|', self::$prefixes) . ")_([a-zA-Z0-9_]+)[\t ]+([a-zA-Z0-9_]+)/u";
         $reflection = new ReflectionClass($ar);
         $raw_fields = [];
         foreach ($reflection->getProperties() as $property) {
             if (in_array($property->getName(), self::$protected_names)) {
                 continue;
             }
             $properties_array = [];
             $has_property = false;
             foreach (explode("\n", $property->getDocComment()) as $line) {
                 if (preg_match($regex, $line, $matches)) {
                     $has_property = true;
                     $properties_array[$matches[2]] = $matches[3];
                 }
             }
             if ($has_property) {
                 $raw_fields[$property->getName()] = $properties_array;
             }
         }

         $this->setRawFields($raw_fields);
     }

Here is the call graph for this function:

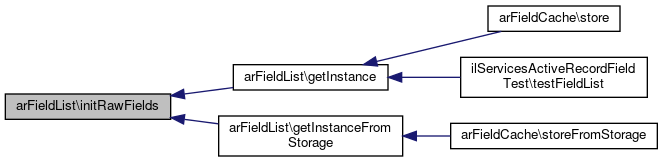

Here is the caller graph for this function:

◆ isAllowedAttribute()

static arFieldList::isAllowedAttribute ( string $attribute_name )

staticprotected

Definition at line 197 of file class.arFieldList.php.

                                                                         : bool
     {
         return in_array($attribute_name, array_merge(self::$allowed_description_fields, [self::HAS_FIELD]), true);
     }

◆ isField()

arFieldList::isField ( string $field_name )

Definition at line 150 of file class.arFieldList.php.

References getFields().

                                                : bool
     {
         $is_field = false;
         foreach ($this->getFields() as $arField) {
             if ($arField->getName() === $field_name) {
                 $is_field = true;
             }
         }

         return $is_field;
     }

Here is the call graph for this function:

◆ mapKey()

static arFieldList::mapKey ( string $key )

static

Definition at line 59 of file class.arFieldList.php.

Referenced by arBuilder\generateDBUpdateForInstallation(), arField\getAttributesForConnector(), and arField\getAttributesForDescription().

                                               : string
     {
         if (isset(self::$key_maps[$key])) {
             return self::$key_maps[$key];
         }

         return $key;
     }

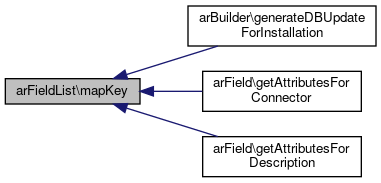

Here is the caller graph for this function:

◆ setFields()

arFieldList::setFields ( array $fields )

Parameters

Definition at line 220 of file class.arFieldList.php.

References $fields.

                                             : void
     {
         $this->fields = $fields;
     }

◆ setPrimaryField()

arFieldList::setPrimaryField ( \arField $arField )

Definition at line 233 of file class.arFieldList.php.

Referenced by initFields().

                                                       : void
     {
         $this->primary_field = $arField;
     }

Here is the caller graph for this function:

◆ setPrimaryFields()

arFieldList::setPrimaryFields ( array $primary_fields )

Parameters

mixed[] $primary_fields

Definition at line 265 of file class.arFieldList.php.

References $primary_fields.

                                                            : void
     {
         $this->primary_fields = $primary_fields;
     }

◆ setRawFields()

arFieldList::setRawFields ( array $raw_fields )

Parameters

mixed[] $raw_fields

Definition at line 249 of file class.arFieldList.php.

References $raw_fields.

Referenced by initRawFields().

                                                    : void
     {
         $this->raw_fields = $raw_fields;
     }

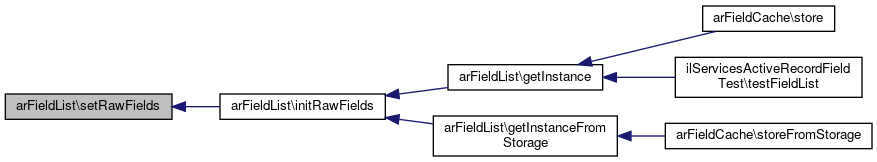

Here is the caller graph for this function:

Field Documentation

◆ $allowed_connector_fields

array arFieldList::$allowed_connector_fields = [self::IS_NOTNULL, self::FIELDTYPE, self::LENGTH]

staticprotected

Definition at line 45 of file class.arFieldList.php.

◆ $allowed_description_fields

array arFieldList::$allowed_description_fields

staticprotected

Initial value:

= [
        'is_unique',

        self::IS_PRIMARY,
        self::IS_NOTNULL,
        self::FIELDTYPE,
        self::LENGTH,
        self::SEQUENCE,
        self::INDEX,
    ]

Definition at line 35 of file class.arFieldList.php.

◆ $fields

array arFieldList::$fields = []

protected

Definition at line 49 of file class.arFieldList.php.

Referenced by getFields(), and setFields().

◆ $key_maps

array arFieldList::$key_maps = [self::FIELDTYPE => 'type'

staticprotected

Definition at line 50 of file class.arFieldList.php.

◆ $prefixes

array arFieldList::$prefixes = ['db', 'con']

staticprotected

Definition at line 33 of file class.arFieldList.php.

◆ $primary_field

arField array arFieldList::$primary_field

protected

Definition at line 46 of file class.arFieldList.php.

Referenced by getPrimaryField().

◆ $primary_fields

array arFieldList::$primary_fields = []

protected

Definition at line 47 of file class.arFieldList.php.

Referenced by getPrimaryFields(), and setPrimaryFields().

◆ $protected_names

array arFieldList::$protected_names = ['arConnector', 'arFieldList']

staticprotected

Definition at line 34 of file class.arFieldList.php.

◆ $raw_fields

array arFieldList::$raw_fields = []

protected

Definition at line 48 of file class.arFieldList.php.

Referenced by getRawFields(), and setRawFields().

◆ FIELDTYPE

const arFieldList::FIELDTYPE = 'fieldtype'

Definition at line 29 of file class.arFieldList.php.

Referenced by arField\isAllowedAttribute(), and arConverter\returnAttributesForField().

◆ HAS_FIELD

const arFieldList::HAS_FIELD = 'has_field'

Definition at line 26 of file class.arFieldList.php.

Referenced by arField\isAllowedAttribute(), and arConverter\returnAttributesForField().

◆ INDEX

const arFieldList::INDEX = 'index'

Definition at line 32 of file class.arFieldList.php.

◆ IS_NOTNULL

const arFieldList::IS_NOTNULL = 'is_notnull'

Definition at line 28 of file class.arFieldList.php.

Referenced by arConverter\returnAttributesForField().

◆ IS_PRIMARY

const arFieldList::IS_PRIMARY = 'is_primary'

Definition at line 27 of file class.arFieldList.php.

Referenced by arConverter\returnAttributesForField().

◆ LENGTH

const arFieldList::LENGTH = 'length'

Definition at line 30 of file class.arFieldList.php.

Referenced by arConverter\returnAttributesForField().

◆ SEQUENCE

const arFieldList::SEQUENCE = 'sequence'

Definition at line 31 of file class.arFieldList.php.

The documentation for this class was generated from the following file:

components/ILIAS/ActiveRecord/Fields/class.arFieldList.php

Public Member Functions

Static Public Member Functions

Data Fields

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ __construct()

Member Function Documentation

◆ checkAttributes()

◆ getAllowedConnectorFields()

◆ getAllowedDescriptionFields()

◆ getArrayForConnector()

◆ getFieldByName()

◆ getFields()

◆ getInstance()

◆ getInstanceFromStorage()

◆ getPrimaryField()

◆ getPrimaryFieldName()

◆ getPrimaryFields()

◆ getPrimaryFieldType()

◆ getRawFields()

◆ initFields()

◆ initRawFields()

◆ isAllowedAttribute()

◆ isField()

◆ mapKey()

◆ setFields()

◆ setPrimaryField()

◆ setPrimaryFields()

◆ setRawFields()

Field Documentation

◆ $allowed_connector_fields

◆ $allowed_description_fields

◆ $fields

◆ $key_maps

◆ $prefixes

◆ $primary_field

◆ $primary_fields

◆ $protected_names

◆ $raw_fields

◆ FIELDTYPE

◆ HAS_FIELD

◆ INDEX

◆ IS_NOTNULL

◆ IS_PRIMARY

◆ LENGTH

◆ SEQUENCE
