Public Member Functions
assMatchingQuestionExport Class Reference

Class for matching question exports. More...

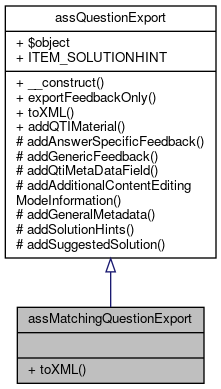

+ Inheritance diagram for assMatchingQuestionExport:

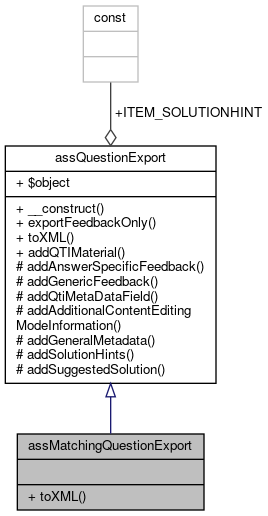

+ Collaboration diagram for assMatchingQuestionExport:

Public Member Functions

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation. More...

- Public Member Functions inherited from assQuestionExport
 __construct ($a_object)
 assQuestionExport constructor More...

 exportFeedbackOnly ($a_xml_writer)

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation. More...

 addQTIMaterial (ilXmlWriter $a_xml_writer, string $a_material, bool $close_material_tag=true, bool $add_mobs=true)


Additional Inherited Members

- Data Fields inherited from assQuestionExport
 $object

const ITEM_SOLUTIONHINT = 'solutionhint'

- Protected Member Functions inherited from assQuestionExport
 addAnswerSpecificFeedback (ilXmlWriter $a_xml_writer, $answers)

 addGenericFeedback (ilXmlWriter $a_xml_writer)

 addQtiMetaDataField (ilXmlWriter $a_xml_writer, $fieldLabel, $fieldValue)
 adds a qti meta data field with given name and value to the passed xml writer (xml writer must be in context of opened "qtimetadata" tag) More...

 addAdditionalContentEditingModeInformation (ilXmlWriter $a_xml_writer)
 adds a qti meta data field for ilias specific information of "additional content editing mode" (xml writer must be in context of opened "qtimetadata" tag) More...

 addGeneralMetadata (ilXmlWriter $xmlwriter)

 addSolutionHints (ilXmlWriter $writer)

 addSuggestedSolution (ilXmlWriter $writer)


Detailed Description

Class for matching question exports.

assMatchingQuestionExport is a class for matching question exports

Author
Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m
Version
$Id$ \

Definition at line 30 of file class.assMatchingQuestionExport.php.

Member Function Documentation

◆ toXML()

assMatchingQuestionExport::toXML (   $a_include_header = true,
  $a_include_binary = true,
  $a_shuffle = false,
  $test_output = false,
  $force_image_references = false
)

Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation.

Definition at line 37 of file class.assMatchingQuestionExport.php.

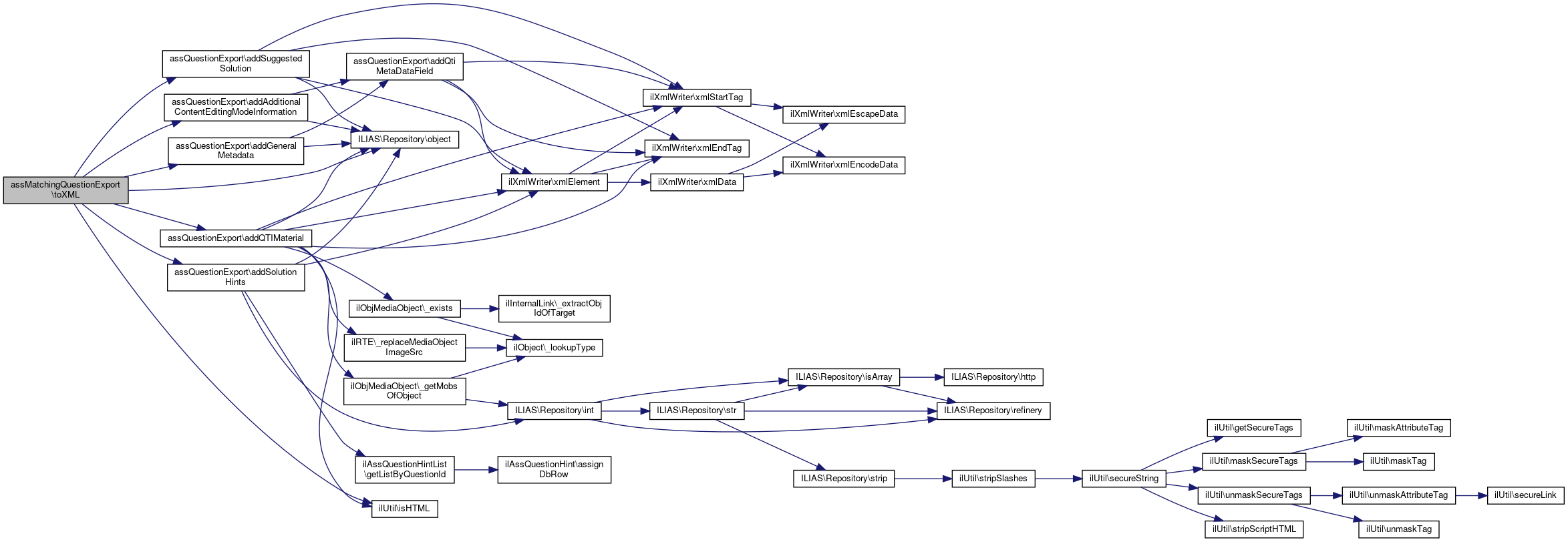

References $DIC, assQuestionExport\addAdditionalContentEditingModeInformation(), assQuestionExport\addGeneralMetadata(), assQuestionExport\addQTIMaterial(), assQuestionExport\addSolutionHints(), assQuestionExport\addSuggestedSolution(), IL_INST_ID, ilUtil\isHTML(), and ILIAS\Repository\object().

37  : string
38  {
39  global $DIC;
40  $ilias = $DIC['ilias'];
41
42  $a_xml_writer = new ilXmlWriter();
43  // set xml header
44  $a_xml_writer->xmlHeader();
45  $a_xml_writer->xmlStartTag("questestinterop");
46  $attrs = [
47  "ident" => "il_" . IL_INST_ID . "_qst_" . $this->object->getId(),
48  "title" => $this->object->getTitle(),
49  "maxattempts" => $this->object->getNrOfTries()
50  ];
51  $a_xml_writer->xmlStartTag("item", $attrs);
52  // add question description
53  $a_xml_writer->xmlElement("qticomment", null, $this->object->getComment());
54  $a_xml_writer->xmlStartTag("itemmetadata");
55  $a_xml_writer->xmlStartTag("qtimetadata");
56  $a_xml_writer->xmlStartTag("qtimetadatafield");
57  $a_xml_writer->xmlElement("fieldlabel", null, "ILIAS_VERSION");
58  $a_xml_writer->xmlElement("fieldentry", null, $ilias->getSetting("ilias_version"));
59  $a_xml_writer->xmlEndTag("qtimetadatafield");
60  $a_xml_writer->xmlStartTag("qtimetadatafield");
61  $a_xml_writer->xmlElement("fieldlabel", null, "QUESTIONTYPE");
62  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getQuestionType());
63  $a_xml_writer->xmlEndTag("qtimetadatafield");
64  $a_xml_writer->xmlStartTag("qtimetadatafield");
65  $a_xml_writer->xmlElement("fieldlabel", null, "AUTHOR");
66  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getAuthor());
67  $a_xml_writer->xmlEndTag("qtimetadatafield");
68
69  // additional content editing information
70  $this->addAdditionalContentEditingModeInformation($a_xml_writer);
71  $this->addGeneralMetadata($a_xml_writer);
72
73  $a_xml_writer->xmlStartTag("qtimetadatafield");
74  $a_xml_writer->xmlElement("fieldlabel", null, "shuffle");
75  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getShuffle());
76  $a_xml_writer->xmlEndTag("qtimetadatafield");
77  $a_xml_writer->xmlStartTag("qtimetadatafield");
78  $a_xml_writer->xmlElement("fieldlabel", null, "thumb_geometry");
79  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getThumbGeometry());
80  $a_xml_writer->xmlEndTag("qtimetadatafield");
81  $a_xml_writer->xmlStartTag("qtimetadatafield");
82  $a_xml_writer->xmlElement("fieldlabel", null, 'matching_mode');
83  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getMatchingMode());
84  $a_xml_writer->xmlEndTag("qtimetadatafield");
85  $a_xml_writer->xmlEndTag("qtimetadata");
86  $a_xml_writer->xmlEndTag("itemmetadata");
87
88  // PART I: qti presentation
89  $attrs = [
90  "label" => $this->object->getTitle()
91  ];
92  $a_xml_writer->xmlStartTag("presentation", $attrs);
93  // add flow to presentation
94  $a_xml_writer->xmlStartTag("flow");
95  // add material with question text to presentation
96  $this->addQTIMaterial($a_xml_writer, $this->object->getQuestion());
97  // add answers to presentation
98  $attrs = [
99  "ident" => "MQ",
100  "rcardinality" => "Multiple"
101  ];
102  $a_xml_writer->xmlStartTag("response_grp", $attrs);
103  $a_xml_writer = $this->addSuggestedSolution($a_xml_writer);
104  // shuffle output
105  $attrs = [];
106  if ($this->object->getShuffle()) {
107  $attrs = [
108  "shuffle" => "Yes"
109  ];
110  } else {
111  $attrs = [
112  "shuffle" => "No"
113  ];
114  }
115  $a_xml_writer->xmlStartTag("render_choice", $attrs);
116  // add answertext
117  $matchingtext_orders = [];
118  foreach ($this->object->getMatchingPairs() as $index => $matchingpair) {
119  array_push($matchingtext_orders, $matchingpair->getTerm()->getIdentifier());
120  }
121
122  $termids = [];
123  foreach ($this->object->getTerms() as $term) {
124  array_push($termids, $term->getidentifier());
125  }
126  // add answers
127  foreach ($this->object->getDefinitions() as $definition) {
128  $attrs = [
129  "ident" => $definition->getIdentifier(),
130  "match_max" => "1",
131  "match_group" => join(",", $termids)
132  ];
133  $a_xml_writer->xmlStartTag("response_label", $attrs);
134  $a_xml_writer->xmlStartTag("material");
135  if (strlen($definition->getPicture())) {
136  if ($force_image_references) {
137  $attrs = [
138  "imagtype" => "image/jpeg",
139  "label" => $definition->getPicture(),
140  "uri" => $this->object->getImagePathWeb() . $definition->getPicture()
141  ];
142  $a_xml_writer->xmlElement("matimage", $attrs);
143  } else {
144  $imagepath = $this->object->getImagePath() . $definition->getPicture();
145  $fh = @fopen($imagepath, "rb");
146  if ($fh != false) {
147  $imagefile = fread($fh, filesize($imagepath));
148  fclose($fh);
149  $base64 = base64_encode($imagefile);
150  $attrs = [
151  "imagtype" => "image/jpeg",
152  "label" => $definition->getPicture(),
153  "embedded" => "base64"
154  ];
155  $a_xml_writer->xmlElement("matimage", $attrs, $base64, false, false);
156  }
157  }
158  }
159  if (strlen($definition->getText())) {
160  $attrs = [
161  "texttype" => "text/plain"
162  ];
163  if (ilUtil::isHTML($definition->getText())) {
164  $attrs["texttype"] = "text/xhtml";
165  }
166  $a_xml_writer->xmlElement("mattext", $attrs, $definition->getText());
167  }
168  $a_xml_writer->xmlEndTag("material");
169  $a_xml_writer->xmlEndTag("response_label");
170  }
171  // add matchingtext
172  foreach ($this->object->getTerms() as $term) {
173  $attrs = [
174  "ident" => $term->getIdentifier()
175  ];
176  $a_xml_writer->xmlStartTag("response_label", $attrs);
177  $a_xml_writer->xmlStartTag("material");
178  if (strlen($term->getPicture())) {
179  if ($force_image_references) {
180  $attrs = [
181  "imagtype" => "image/jpeg",
182  "label" => $term->getPicture(),
183  "uri" => $this->object->getImagePathWeb() . $term->getPicture()
184  ];
185  $a_xml_writer->xmlElement("matimage", $attrs);
186  } else {
187  $imagepath = $this->object->getImagePath() . $term->getPicture();
188  $fh = @fopen($imagepath, "rb");
189  if ($fh != false) {
190  $imagefile = fread($fh, filesize($imagepath));
191  fclose($fh);
192  $base64 = base64_encode($imagefile);
193  $attrs = [
194  "imagtype" => "image/jpeg",
195  "label" => $term->getPicture(),
196  "embedded" => "base64"
197  ];
198  $a_xml_writer->xmlElement("matimage", $attrs, $base64, false, false);
199  }
200  }
201  }
202  if (strlen($term->getText())) {
203  $attrs = [
204  "texttype" => "text/plain"
205  ];
206  if (method_exists($this->object, 'isHTML') && $this->object->isHTML($term->text)) {
207  $attrs["texttype"] = "text/xhtml";
208  }
209  $a_xml_writer->xmlElement("mattext", $attrs, $term->getText());
210  }
211  $a_xml_writer->xmlEndTag("material");
212  $a_xml_writer->xmlEndTag("response_label");
213  }
214  $a_xml_writer->xmlEndTag("render_choice");
215  $a_xml_writer->xmlEndTag("response_grp");
216  $a_xml_writer->xmlEndTag("flow");
217  $a_xml_writer->xmlEndTag("presentation");
218
219  // PART II: qti resprocessing
220  $a_xml_writer->xmlStartTag("resprocessing");
221  $a_xml_writer->xmlStartTag("outcomes");
222  $a_xml_writer->xmlStartTag("decvar");
223  $a_xml_writer->xmlEndTag("decvar");
224  $a_xml_writer->xmlEndTag("outcomes");
225  // add response conditions
226  foreach ($this->object->getMatchingPairs() as $matchingpair) {
227  $attrs = [
228  "continue" => "Yes"
229  ];
230  $a_xml_writer->xmlStartTag("respcondition", $attrs);
231  // qti conditionvar
232  $a_xml_writer->xmlStartTag("conditionvar");
233  $attrs = [
234  "respident" => "MQ"
235  ];
236  $a_xml_writer->xmlElement("varsubset", $attrs, $matchingpair->getTerm()->getIdentifier() . "," . $matchingpair->getDefinition()->getidentifier());
237  $a_xml_writer->xmlEndTag("conditionvar");
238
239  // qti setvar
240  $attrs = [
241  "action" => "Add"
242  ];
243  $a_xml_writer->xmlElement("setvar", $attrs, $matchingpair->getPoints());
244  // qti displayfeedback
245  $attrs = [
246  "feedbacktype" => "Response",
247  "linkrefid" => "correct_" . $matchingpair->getTerm()->getIdentifier() . "_" . $matchingpair->getDefinition()->getIdentifier()
248  ];
249  $a_xml_writer->xmlElement("displayfeedback", $attrs);
250  $a_xml_writer->xmlEndTag("respcondition");
251  }
252
253  $feedback_allcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
254  $this->object->getId(),
255  true
256  );
257  if (strlen($feedback_allcorrect)) {
258  $attrs = [
259  "continue" => "Yes"
260  ];
261  $a_xml_writer->xmlStartTag("respcondition", $attrs);
262  // qti conditionvar
263  $a_xml_writer->xmlStartTag("conditionvar");
264
265  foreach ($this->object->getMatchingPairs() as $matchingpair) {
266  $attrs = [
267  "respident" => "MQ"
268  ];
269  $a_xml_writer->xmlElement("varsubset", $attrs, $matchingpair->getTerm()->getIdentifier() . "," . $matchingpair->getDefinition()->getIdentifier());
270  }
271  $a_xml_writer->xmlEndTag("conditionvar");
272  // qti displayfeedback
273  $attrs = [
274  "feedbacktype" => "Response",
275  "linkrefid" => "response_allcorrect"
276  ];
277  $a_xml_writer->xmlElement("displayfeedback", $attrs);
278  $a_xml_writer->xmlEndTag("respcondition");
279  }
280  $feedback_onenotcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
281  $this->object->getId(),
282  false
283  );
284  if (strlen($feedback_onenotcorrect)) {
285  $attrs = [
286  "continue" => "Yes"
287  ];
288  $a_xml_writer->xmlStartTag("respcondition", $attrs);
289  // qti conditionvar
290  $a_xml_writer->xmlStartTag("conditionvar");
291  $a_xml_writer->xmlStartTag("not");
292  foreach ($this->object->getMatchingPairs() as $matchingpair) {
293  $attrs = [
294  "respident" => "MQ"
295  ];
296  $a_xml_writer->xmlElement("varsubset", $attrs, $matchingpair->getTerm()->getIdentifier() . "," . $matchingpair->getDefinition()->getIdentifier());
297  }
298  $a_xml_writer->xmlEndTag("not");
299  $a_xml_writer->xmlEndTag("conditionvar");
300  // qti displayfeedback
301  $attrs = [
302  "feedbacktype" => "Response",
303  "linkrefid" => "response_onenotcorrect"
304  ];
305  $a_xml_writer->xmlElement("displayfeedback", $attrs);
306  $a_xml_writer->xmlEndTag("respcondition");
307  }
308
309  $a_xml_writer->xmlEndTag("resprocessing");
310
311  // PART III: qti itemfeedback
312  foreach ($this->object->getMatchingPairs() as $index => $matchingpair) {
313  $attrs = [
314  "ident" => "correct_" . $matchingpair->getTerm()->getIdentifier() . "_" . $matchingpair->getDefinition()->getIdentifier(),
315  "view" => "All"
316  ];
317  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
318  // qti flow_mat
319  $a_xml_writer->xmlStartTag("flow_mat");
320  $a_xml_writer->xmlStartTag("material");
321  $a_xml_writer->xmlElement("mattext", null, $this->object->feedbackOBJ->getSpecificAnswerFeedbackExportPresentation(
322  $this->object->getId(),
323  0,
324  $index
325  ));
326  $a_xml_writer->xmlEndTag("material");
327  $a_xml_writer->xmlEndTag("flow_mat");
328  $a_xml_writer->xmlEndTag("itemfeedback");
329  }
330
331  if (strlen($feedback_allcorrect)) {
332  $attrs = [
333  "ident" => "response_allcorrect",
334  "view" => "All"
335  ];
336  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
337  // qti flow_mat
338  $a_xml_writer->xmlStartTag("flow_mat");
339  $this->addQTIMaterial($a_xml_writer, $feedback_allcorrect);
340  $a_xml_writer->xmlEndTag("flow_mat");
341  $a_xml_writer->xmlEndTag("itemfeedback");
342  }
343  if (strlen($feedback_onenotcorrect)) {
344  $attrs = [
345  "ident" => "response_onenotcorrect",
346  "view" => "All"
347  ];
348  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
349  // qti flow_mat
350  $a_xml_writer->xmlStartTag("flow_mat");
351  $this->addQTIMaterial($a_xml_writer, $feedback_onenotcorrect);
352  $a_xml_writer->xmlEndTag("flow_mat");
353  $a_xml_writer->xmlEndTag("itemfeedback");
354  }
355
356  $a_xml_writer = $this->addSolutionHints($a_xml_writer);
357
358  $a_xml_writer->xmlEndTag("item");
359  $a_xml_writer->xmlEndTag("questestinterop");
360
361  $xml = $a_xml_writer->xmlDumpMem(false);
362  if (!$a_include_header) {
363  $pos = strpos($xml, "?>");
364  $xml = substr($xml, $pos + 2);
365  }
366  return $xml;
367  }
IL_INST_ID
const IL_INST_ID
Definition: constants.php:40
ilUtil\isHTML
static isHTML(string $a_text)
Checks if a given string contains HTML or not.
Definition: class.ilUtil.php:1159
assQuestionExport\addQTIMaterial
addQTIMaterial(ilXmlWriter $a_xml_writer, string $a_material, bool $close_material_tag=true, bool $add_mobs=true)
Definition: class.assQuestionExport.php:298
assQuestionExport\addGeneralMetadata
addGeneralMetadata(ilXmlWriter $xmlwriter)
Definition: class.assQuestionExport.php:218
$DIC
global $DIC
Definition: shib_login.php:25
assQuestionExport\addAdditionalContentEditingModeInformation
addAdditionalContentEditingModeInformation(ilXmlWriter $a_xml_writer)
adds a qti meta data field for ilias specific information of "additional content editing mode" (xml w...
Definition: class.assQuestionExport.php:206
assQuestionExport\addSuggestedSolution
addSuggestedSolution(ilXmlWriter $writer)
Definition: class.assQuestionExport.php:262
assQuestionExport\addSolutionHints
addSolutionHints(ilXmlWriter $writer)
Definition: class.assQuestionExport.php:237
+ Here is the call graph for this function:
The documentation for this class was generated from the following file:
