Xml Exporter class. More...

Inheritance diagram for ilXmlExporter:

Collaboration diagram for ilXmlExporter:

Public Member Functions
	__construct ()

	setExport (ilExport $a_exp)

	getExport ()

	getXmlRepresentation (string $a_entity, string $a_schema_version, string $a_id)

	init ()

	setExportDirectories (string $a_dir_relative, string $a_dir_absolute)

	getRelativeExportDirectory ()

	getAbsoluteExportDirectory ()

	getXmlExportHeadDependencies (string $a_entity, string $a_target_release, array $a_ids)
	Get head dependencies. More...

	getXmlExportTailDependencies (string $a_entity, string $a_target_release, array $a_ids)
	Get tail dependencies. More...

	getValidSchemaVersions (string $a_entity)
	Returns schema versions that the component can export to. More...

	determineSchemaVersion (string $a_entity, string $a_target_release)

Static Public Member Functions
static	lookupExportDirectory (string $a_obj_type, int $a_obj_id, string $a_export_type='xml', string $a_entity="")

Protected Attributes
ilExport	$exp

Detailed Description

Xml Exporter class.

Author: Alex Killing alex..nosp@m.kill.nosp@m.ing@g.nosp@m.mx.d.nosp@m.e

Version: $Id$

Definition at line 27 of file class.ilXmlExporter.php.

Constructor & Destructor Documentation

◆ __construct()

ilXmlExporter::__construct ( )

Definition at line 31 of file class.ilXmlExporter.php.

32 {

33 }

Member Function Documentation

◆ determineSchemaVersion()

ilXmlExporter::determineSchemaVersion	(	string	$a_entity,
		string	$a_target_release
	)

final

Definition at line 122 of file class.ilXmlExporter.php.

References getValidSchemaVersions(), and ILIAS_VERSION_NUMERIC.

      : array {
         $svs = $this->getValidSchemaVersions($a_entity);
         $rsv = [];
         foreach ($svs as $k => $sv) {
             $min_version = $sv["min"] ?? "";
             $max_version = $sv["max"] ?? "";
             if (
                 ($min_version === "" || version_compare($min_version, ILIAS_VERSION_NUMERIC, "<=")) &&
                 ($max_version === "" || version_compare($max_version, ILIAS_VERSION_NUMERIC, ">="))
             ) {
                 $rsv = $sv;
                 $rsv["schema_version"] = $k;
                 break;
             }
         }
         return $rsv;
     }

Here is the call graph for this function:

◆ getAbsoluteExportDirectory()

ilXmlExporter::getAbsoluteExportDirectory ( )

Definition at line 79 of file class.ilXmlExporter.php.

Referenced by ilStyleExporter\getXmlRepresentation(), ilContentPageExporter\getXmlRepresentation(), ilForumExporter\getXmlRepresentation(), ilIndividualAssessmentExporter\getXmlRepresentation(), ilMediaObjectsExporter\getXmlRepresentation(), ilBibliographicExporter\getXmlRepresentation(), ilDataCollectionExporter\getXmlRepresentation(), ilTestExporter\getXmlRepresentation(), and ilFileExporter\prepareExportDirectories().

                                                 : string
     {
         return $this->exp->getAbsoluteExportDirectory();
     }

Here is the caller graph for this function:

◆ getExport()

ilXmlExporter::getExport ( )

Definition at line 40 of file class.ilXmlExporter.php.

References $exp.

Referenced by ilLearningModuleExporter\getXmlRepresentation(), and ilDataSet\initByExporter().

                                : ilExport
     {
         return $this->exp;
     }

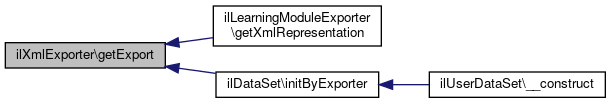

Here is the caller graph for this function:

◆ getRelativeExportDirectory()

ilXmlExporter::getRelativeExportDirectory ( )

Definition at line 74 of file class.ilXmlExporter.php.

                                                 : string
     {
         return $this->exp->getRelativeExportDirectory();
     }

◆ getValidSchemaVersions()

ilXmlExporter::getValidSchemaVersions ( string $a_entity )

abstract

Returns schema versions that the component can export to.

ILIAS chooses the first one, that has min/max constraints which fit to the target release. Please put the newest on top. Example: return array ( "4.1.0" => array( "namespace" => "http://www.ilias.de/Services/MetaData/md/4_1", "xsd_file" => "ilias_md_4_1.xsd", "min" => "4.1.0", "max" => "") );

Referenced by determineSchemaVersion(), and getXmlExportTailDependencies().

Here is the caller graph for this function:

◆ getXmlExportHeadDependencies()

ilXmlExporter::getXmlExportHeadDependencies	(	string	$a_entity,
		string	$a_target_release,
		array	$a_ids
	)

Get head dependencies.

Returns: array array of array with keys "component", entity", "ids"

Definition at line 88 of file class.ilXmlExporter.php.

      : array {
         return [];
     }

◆ getXmlExportTailDependencies()

ilXmlExporter::getXmlExportTailDependencies	(	string	$a_entity,
		string	$a_target_release,
		array	$a_ids
	)

Get tail dependencies.

Returns: array array of array with keys "component", entity", "ids"

Definition at line 100 of file class.ilXmlExporter.php.

References getValidSchemaVersions().

      : array {
         return array();
     }

Here is the call graph for this function:

◆ getXmlRepresentation()

ilXmlExporter::getXmlRepresentation	(	string	$a_entity,
		string	$a_schema_version,
		string	$a_id
	)

abstract

Referenced by lookupExportDirectory().

Here is the caller graph for this function:

◆ init()

ilXmlExporter::init ( )

abstract

Referenced by lookupExportDirectory().

Here is the caller graph for this function:

◆ lookupExportDirectory()

static ilXmlExporter::lookupExportDirectory	(	string	$a_obj_type,
		int	$a_obj_id,
		string	$a_export_type = `'xml'`,
		string	$a_entity = `""`
	)

static

Definition at line 45 of file class.ilXmlExporter.php.

References ilFileUtils\getDataDir(), getXmlRepresentation(), and init().

      : string {
         $ent = ($a_entity == "")
             ? ""
             : "_" . $a_entity;

         if ($a_export_type == 'xml') {
             return ilFileUtils::getDataDir() . "/" . $a_obj_type . $ent . "_data" . "/" . $a_obj_type . "_" . $a_obj_id . "/export";
         }
         return ilFileUtils::getDataDir() . "/" . $a_obj_type . $ent . "_data" . "/" . $a_obj_type . "_" . $a_obj_id . "/export_" . $a_export_type;
     }

Here is the call graph for this function:

◆ setExport()

ilXmlExporter::setExport ( ilExport $a_exp )

Definition at line 35 of file class.ilXmlExporter.php.

                                               : void
     {
         $this->exp = $a_exp;
     }

◆ setExportDirectories()

ilXmlExporter::setExportDirectories	(	string	$a_dir_relative,
		string	$a_dir_absolute
	)

Definition at line 69 of file class.ilXmlExporter.php.

                                                                                         : void
     {
         $this->exp->setExportDirectories($a_dir_relative, $a_dir_absolute);
     }

Field Documentation

◆ $exp

ilExport ilXmlExporter::$exp

protected

Definition at line 29 of file class.ilXmlExporter.php.

Referenced by getExport(), and ilOrgUnitExporter\sendAndCreateSimpleExportFile().

The documentation for this class was generated from the following file:

components/ILIAS/Export/classes/class.ilXmlExporter.php
