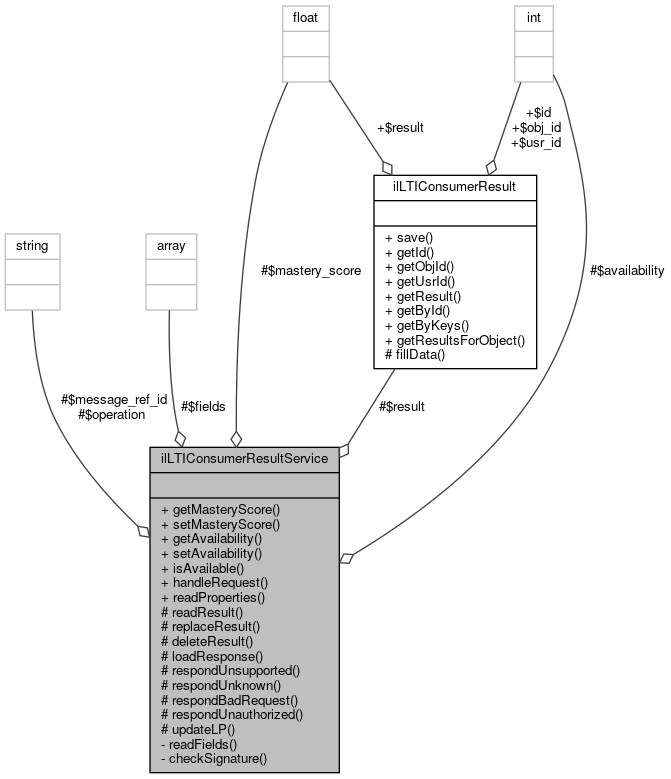

Collaboration diagram for ilLTIConsumerResultService:

Public Member Functions
	getMasteryScore ()

	setMasteryScore (float $mastery_score)

	getAvailability ()

	setAvailability (int $availability)

	isAvailable ()

	handleRequest ()
	Handle an incoming request from the LTI tool provider. More...

	readProperties (int $a_obj_id)
	Read the LTI Consumer object properties. More...

Protected Member Functions
	readResult (\SimpleXMLElement $request)
	Read a stored result. More...

	replaceResult (\SimpleXMLElement $request)
	Replace a stored result. More...

	deleteResult (\SimpleXMLElement $request)
	Delete a stored result. More...

	loadResponse ($a_name)
	Load the XML template for the response. More...

	respondUnsupported ()
	Send a response that the operation is not supported This depends on the status of the object. More...

	respondUnknown ()
	Send a "unknown operation" response. More...

	respondBadRequest (?string $message=null)
	Send a "bad request" response. More...

	respondUnauthorized (?string $message=null)
	Send an "unauthorized" response. More...

	updateLP ()

Protected Attributes
ilLTIConsumerResult	$result = null

int	$availability = 0

float	$mastery_score = 1

array	$fields = array()

string	$message_ref_id = ''

string	$operation = ''

Private Member Functions
	readFields (int $a_obj_id)
	Read the LTI Consumer object fields. More...

	checkSignature (string $a_key, string $a_secret)
	Check the reqest signature. More...

Detailed Description

Definition at line 34 of file class.ilLTIConsumerResultService.php.

Member Function Documentation

◆ checkSignature()

ilLTIConsumerResultService::checkSignature	(	string	$a_key,
		string	$a_secret
	)

private

Check the reqest signature.

Returns: bool Exception or true

Definition at line 391 of file class.ilLTIConsumerResultService.php.

References Vendor\Package\$e, and $server.

Referenced by handleRequest().

                                                                     : bool
     {
         $platform = new ilLTIPlatform();

         $platform->setKey($a_key);
         $platform->setSecret($a_secret);

         $store = new OAuthDataStore($platform);

         $server = new OAuthServer($store);
         $method = new OAuthSignatureMethod_HMAC_SHA1();
         $server->add_signature_method($method);

         $request = OAuthRequest::from_request();

         try {
             $server->verify_request($request);
         } catch (Exception $e) {
             return false;
         }
         return true;
     }

Here is the caller graph for this function:

◆ deleteResult()

ilLTIConsumerResultService::deleteResult ( \SimpleXMLElement $request )

protected

Delete a stored result.

Definition at line 241 of file class.ilLTIConsumerResultService.php.

References $response, ILIAS\UI\examples\Symbol\Glyph\Header\header(), loadResponse(), ilLPStatus\LP_STATUS_IN_PROGRESS_NUM, and ilLPStatus\writeStatus().

Referenced by handleRequest().

                                                                : void
     {
         $this->result->result = null;
         $this->result->save();

         $lp_status = ilLPStatus::LP_STATUS_IN_PROGRESS_NUM;
         $lp_percentage = 0;
         ilLPStatus::writeStatus($this->result->obj_id, $this->result->usr_id, $lp_status, $lp_percentage, true);

         $code = "success";
         $severity = "status";

         $response = $this->loadResponse('deleteResult.xml');
         $response = str_replace('{message_id}', md5((string) rand(0, 999_999_999)), $response);
         $response = str_replace('{message_ref_id}', $this->message_ref_id, $response);
         $response = str_replace('{operation}', $this->operation, $response);
         $response = str_replace('{code}', $code, $response);
         $response = str_replace('{severity}', $severity, $response);

         header('Content-type: application/xml');
         echo $response;
     }

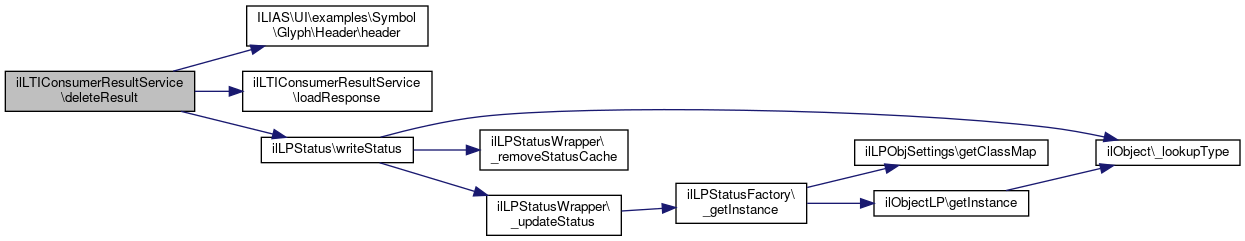

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getAvailability()

ilLTIConsumerResultService::getAvailability ( )

Definition at line 76 of file class.ilLTIConsumerResultService.php.

References $availability.

                                      : int
     {
         return $this->availability;
     }

◆ getMasteryScore()

ilLTIConsumerResultService::getMasteryScore ( )

Definition at line 66 of file class.ilLTIConsumerResultService.php.

References $mastery_score.

Referenced by replaceResult().

                                      : float
     {
         return $this->mastery_score;
     }

Here is the caller graph for this function:

◆ handleRequest()

ilLTIConsumerResultService::handleRequest ( )

Handle an incoming request from the LTI tool provider.

Definition at line 97 of file class.ilLTIConsumerResultService.php.

References $DIC, $token, checkSignature(), deleteResult(), ilLTIConsumerResult\getByKeys(), ilCmiXapiAuthToken\getInstanceByToken(), isAvailable(), readFields(), readProperties(), readResult(), replaceResult(), respondBadRequest(), respondUnauthorized(), respondUnknown(), respondUnsupported(), and updateLP().

                                    : void
     {
         try {

             global $DIC;
             $logger = $DIC->logger()->root();
             $logger->info('LTI Consumer Result Service: Incoming request');
             // get the request as xml
             $xml = simplexml_load_file('php://input');
             $logger->info('LTI Consumer Result Service: xml loaded');
             $this->message_ref_id = (string) $xml->imsx_POXHeader->imsx_POXRequestHeaderInfo->imsx_messageIdentifier;
             $children = (array) $xml->imsx_POXBody->children();
             $request = current($children);

             $ns = $xml->getNamespaces(true);
             $body = $xml->children($ns[''])->imsx_POXBody;

             $logger->info('LTI Consumer Result Service: request loaded');
             $this->operation = str_replace('Request', '', $request->getName());

             $request = $body->replaceResultRequest;
             $token = ilCmiXapiAuthToken::getInstanceByToken((string) $request->resultRecord->sourcedGUID->sourcedId);
             $logger->info("LTI Consumer Result Service: operation loaded ($this->operation), user " . $token->getUsrId() . " and objId " . $token->getObjId());

             $logger->info("LTI Consumer Result Service: token loaded");
             $this->result = ilLTIConsumerResult::getByKeys($token->getObjId(), $token->getUsrId(), false);
             if (empty($this->result)) {
                 $logger->error('LTI Consumer Result Service: Incoming request');
                 $this->respondUnauthorized("lti_consumer_results_id not found!");
                 return;
             }


             // check the object status
             $this->readProperties($this->result->obj_id);

             if (!$this->isAvailable()) {
                 $this->respondUnsupported();
                 return;
             }

             // Verify the signature
             $this->readFields($this->result->obj_id);
             $result = $this->checkSignature($this->fields['KEY'], $this->fields['SECRET']);
             if ($result instanceof Exception) {
                 $logger->error('LTI Consumer Result Service: Incoming request');
                 $this->respondUnauthorized($result->getMessage());
                 return;
             }

             $logger->info("LTI Consumer Result Service: Request signature verified, this->operation: $this->operation");

             // Dispatch the operation
             switch ($this->operation) {
                 case 'readResult':
                     $this->readResult($request);
                     break;

                 case 'replaceResult':
                     $this->replaceResult($request);
                     $this->updateLP();
                     break;

                 case 'deleteResult':
                     $this->deleteResult($request);
                     $this->updateLP();
                     break;

                 default:
                     $this->respondUnknown();
                     break;
             }
         } catch (Exception $exception) {
             $this->respondBadRequest($exception->getMessage());
         }
     }

Here is the call graph for this function:

◆ isAvailable()

ilLTIConsumerResultService::isAvailable ( )

Definition at line 86 of file class.ilLTIConsumerResultService.php.

Referenced by handleRequest().

                                  : bool
     {
         if ($this->availability == 0) {
             return false;
         }
         return true;
     }

Here is the caller graph for this function:

◆ loadResponse()

ilLTIConsumerResultService::loadResponse ( $a_name )

protected

Load the XML template for the response.

Parameters

string file name

Returns: string file content

Definition at line 270 of file class.ilLTIConsumerResultService.php.

Referenced by deleteResult(), readResult(), replaceResult(), respondUnknown(), and respondUnsupported().

                                             : string
     {
         return file_get_contents(__DIR__ . '/../responses/' . $a_name);
     }

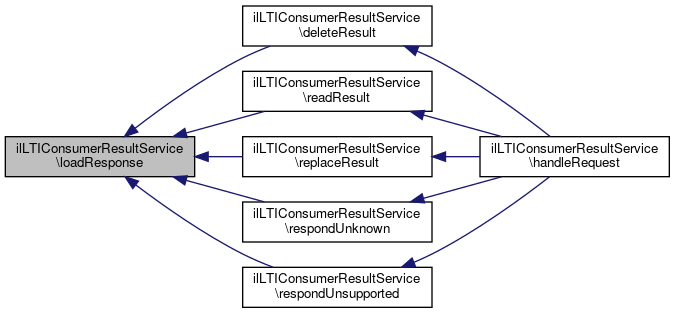

Here is the caller graph for this function:

◆ readFields()

ilLTIConsumerResultService::readFields ( int $a_obj_id )

private

Read the LTI Consumer object fields.

Definition at line 360 of file class.ilLTIConsumerResultService.php.

References $DIC, and $res.

Referenced by handleRequest().

                                               : void
     {
         global $DIC;

         $query = "
                         SELECT lti_ext_provider.provider_key, lti_ext_provider.provider_secret, lti_consumer_settings.launch_key, lti_consumer_settings.launch_secret
                         FROM lti_ext_provider, lti_consumer_settings
                         WHERE lti_ext_provider.id = lti_consumer_settings.provider_id
                         AND lti_consumer_settings.obj_id = %s
                 ";

         $res = $DIC->database()->queryF($query, array('integer'), array($a_obj_id));

         while ($row = $DIC->database()->fetchAssoc($res)) {
             if (strlen($row["launch_key"]) > 0) {
                 $this->fields["KEY"] = $row["launch_key"];
             } else {
                 $this->fields["KEY"] = $row["provider_key"];
             }
             if (strlen($row["launch_key"]) > 0) {
                 $this->fields["SECRET"] = $row["launch_secret"];
             } else {
                 $this->fields["SECRET"] = $row["provider_secret"];
             }
         }
     }

Here is the caller graph for this function:

◆ readProperties()

ilLTIConsumerResultService::readProperties ( int $a_obj_id )

Read the LTI Consumer object properties.

Definition at line 337 of file class.ilLTIConsumerResultService.php.

References $DIC, $res, setAvailability(), and setMasteryScore().

Referenced by handleRequest().

                                                  : void
     {
         global $DIC;

         $query = "
                         SELECT lti_ext_provider.availability, lti_consumer_settings.mastery_score
                         FROM lti_ext_provider, lti_consumer_settings
                         WHERE lti_ext_provider.id = lti_consumer_settings.provider_id
                         AND lti_consumer_settings.obj_id = %s
                 ";

         $res = $DIC->database()->queryF($query, array('integer'), array($a_obj_id));

         if ($row = $DIC->database()->fetchAssoc($res)) {
             //$this->properties = $row;
             $this->setAvailability((int) $row['availability']);
             $this->setMasteryScore((float) $row['mastery_score']);
         }
     }

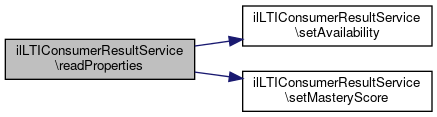

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readResult()

ilLTIConsumerResultService::readResult ( \SimpleXMLElement $request )

protected

Read a stored result.

Definition at line 177 of file class.ilLTIConsumerResultService.php.

References $response, ILIAS\UI\examples\Symbol\Glyph\Header\header(), and loadResponse().

Referenced by handleRequest().

                                                              : void
     {
         $response = $this->loadResponse('readResult.xml');
         $response = str_replace('{message_id}', md5((string) rand(0, 999_999_999)), $response);
         $response = str_replace('{message_ref_id}', $this->message_ref_id, $response);
         $response = str_replace('{operation}', $this->operation, $response);
         $response = str_replace('{result}', (string) $this->result->result, $response);

         header('Content-type: application/xml');
         echo $response;
     }

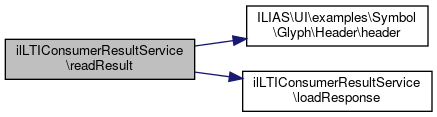

Here is the call graph for this function:

Here is the caller graph for this function:

◆ replaceResult()

ilLTIConsumerResultService::replaceResult ( \SimpleXMLElement $request )

protected

Replace a stored result.

Definition at line 192 of file class.ilLTIConsumerResultService.php.

References $DIC, $response, getMasteryScore(), ILIAS\UI\examples\Symbol\Glyph\Header\header(), ILIAS\Repository\int(), loadResponse(), ilLPStatus\LP_STATUS_COMPLETED_NUM, ilLPStatus\LP_STATUS_IN_PROGRESS_NUM, ilLTIConsumerResult\save(), and ilLPStatus\writeStatus().

Referenced by handleRequest().

                                                                 : void
     {
         global $DIC;
         $logger = $DIC->logger()->root();

         $result = (string) $request->resultRecord->result->resultScore->textString;
         $logger->info('LTI Consumer Result Service: Replace result. Result: ' . $result);
         if (!is_numeric($result)) {
             $code = "failure";
             $severity = "status";
             $description = "The result is not a number.";
         } elseif ($result > 1) {
             $code = "failure";
             $severity = "status";
             $description = "The result is out of range from 0 to 1.";
         } else {
             $this->result->result = (float) $result;
             $this->result->save();

             if ($result >= $this->getMasteryScore()) {
                 $lp_status = ilLPStatus::LP_STATUS_COMPLETED_NUM;
             } else {
                 $lp_status = ilLPStatus::LP_STATUS_IN_PROGRESS_NUM;
             }
             $lp_percentage = (int) round(100 * $result);

             //            Mantis #37080
             ilLPStatus::writeStatus($this->result->obj_id, $this->result->usr_id, $lp_status, $lp_percentage, true);

             $code = "success";
             $severity = "status";
             $description = sprintf("Score for %s is now %s", $this->result->id, $this->result->result);
         }

         $response = $this->loadResponse('replaceResult.xml');
         $response = str_replace('{message_id}', md5((string) rand(0, 999_999_999)), $response);
         $response = str_replace('{message_ref_id}', $this->message_ref_id, $response);
         $response = str_replace('{operation}', $this->operation, $response);
         $response = str_replace('{code}', $code, $response);
         $response = str_replace('{severity}', $severity, $response);
         $response = str_replace('{description}', $description, $response);

         header('Content-type: application/xml');
         echo $response;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ respondBadRequest()

ilLTIConsumerResultService::respondBadRequest ( ?string $message = null )

protected

Send a "bad request" response.

Definition at line 308 of file class.ilLTIConsumerResultService.php.

References ILIAS\UI\examples\Symbol\Glyph\Header\header().

Referenced by handleRequest().

                                                                  : void
     {
         header('HTTP/1.1 400 Bad Request');
         header('Content-type: text/plain');
         if (isset($message)) {
             echo $message;
         } else {
             echo 'This is not a well-formed LTI Basic Outcomes Service request.';
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ respondUnauthorized()

ilLTIConsumerResultService::respondUnauthorized ( ?string $message = null )

protected

Send an "unauthorized" response.

Parameters

string | null $message response message

Definition at line 323 of file class.ilLTIConsumerResultService.php.

References ILIAS\UI\examples\Symbol\Glyph\Header\header().

Referenced by handleRequest().

                                                                    : void
     {
         header('HTTP/1.1 401 Unauthorized');
         header('Content-type: text/plain');
         if (isset($message)) {
             echo $message;
         } else {
             echo 'This request could not be authorized.';
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ respondUnknown()

ilLTIConsumerResultService::respondUnknown ( )

protected

Send a "unknown operation" response.

Definition at line 294 of file class.ilLTIConsumerResultService.php.

References $response, ILIAS\UI\examples\Symbol\Glyph\Header\header(), and loadResponse().

Referenced by handleRequest().

                                        : void
     {
         $response = $this->loadResponse('unknown.xml');
         $response = str_replace('{message_id}', md5((string) rand(0, 999_999_999)), $response);
         $response = str_replace('{message_ref_id}', $this->message_ref_id, $response);
         $response = str_replace('{operation}', $this->operation, $response);

         header('Content-type: application/xml');
         echo $response;
     }

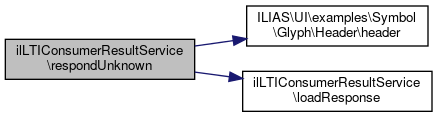

Here is the call graph for this function:

Here is the caller graph for this function:

◆ respondUnsupported()

ilLTIConsumerResultService::respondUnsupported ( )

protected

Send a response that the operation is not supported This depends on the status of the object.

Definition at line 280 of file class.ilLTIConsumerResultService.php.

References $response, ILIAS\UI\examples\Symbol\Glyph\Header\header(), and loadResponse().

Referenced by handleRequest().

                                            : void
     {
         $response = $this->loadResponse('unsupported.xml');
         $response = str_replace('{message_id}', md5((string) rand(0, 999_999_999)), $response);
         $response = str_replace('{message_ref_id}', $this->message_ref_id, $response);
         $response = str_replace('{operation}', $this->operation, $response);

         header('Content-type: application/xml');
         echo $response;
     }

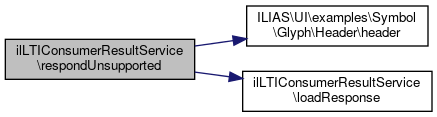

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setAvailability()

ilLTIConsumerResultService::setAvailability ( int $availability )

Definition at line 81 of file class.ilLTIConsumerResultService.php.

References $availability.

Referenced by readProperties().

                                                       : void
     {
         $this->availability = $availability;
     }

Here is the caller graph for this function:

◆ setMasteryScore()

ilLTIConsumerResultService::setMasteryScore ( float $mastery_score )

Definition at line 71 of file class.ilLTIConsumerResultService.php.

References $mastery_score.

Referenced by readProperties().

                                                          : void
     {
         $this->mastery_score = $mastery_score;
     }

Here is the caller graph for this function:

◆ updateLP()

ilLTIConsumerResultService::updateLP ( )

protected

Definition at line 414 of file class.ilLTIConsumerResultService.php.

References ilLPStatusWrapper\_updateStatus().

Referenced by handleRequest().

                                  : void
     {
         if (!($this->result instanceof ilLTIConsumerResult)) {
             return;
         }

         ilLPStatusWrapper::_updateStatus($this->result->getObjId(), $this->result->getUsrId());
     }
