Inheritance diagram for PHPlot_Data:

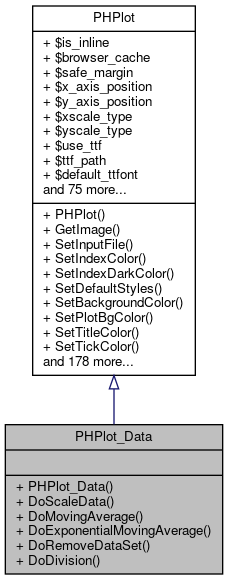

Collaboration diagram for PHPlot_Data:

Public Member Functions
	PHPlot_Data ($which_width=600, $which_height=400, $which_output_file=NULL, $which_input_file=NULL)

	DoScaleData ($even, $show_in_legend)

	DoMovingAverage ($datarow, $interval, $show=TRUE, $color=NULL, $width=NULL)

	DoExponentialMovingAverage ($datarow, $perc, $show_in_legend)
	Computes an exponentially smoothed moving average. More...

	DoRemoveDataSet ($index)

	DoDivision ($x, $y)

Public Member Functions inherited from PHPlot
	PHPlot ($which_width=600, $which_height=400, $which_output_file=NULL, $which_input_file=NULL)

	GetImage ($image_filename, &$width, &$height)

	SetInputFile ($which_input_file)

	SetIndexColor ($which_color)

	SetIndexDarkColor ($which_color)

	SetDefaultStyles ()

	SetBackgroundColor ($which_color)

	SetPlotBgColor ($which_color)

	SetTitleColor ($which_color)

	SetTickColor ($which_color)

	SetLabelColor ($which_color)

	SetTextColor ($which_color)

	SetLightGridColor ($which_color)

	SetGridColor ($which_color)

	SetImageBorderColor ($which_color)

	SetTransparentColor ($which_color)

	SetRGBArray ($which_color_array)

	SetRGBColor ($color_asked)

	SetDataColors ($which_data=NULL, $which_border=NULL)

	SetDataBorderColors ($which_br=NULL)

	SetErrorBarColors ($which_err=NULL)

	SetDefaultDashedStyle ($which_style)

	SetDashedStyle ($which_ndxcol)

	SetLineWidths ($which_lw=NULL)

	SetLineStyles ($which_ls=NULL)

	SetLineSpacing ($which_spc)

	SetUseTTF ($which_ttf)

	SetTTFPath ($which_path)

	SetDefaultTTFont ($which_font)

	SetDefaultFonts ()

	SetFont ($which_elem, $which_font, $which_size=12)

	ProcessTextGD ($draw_it, $font_number, $font_width, $font_height, $angle, $x, $y, $color, $text, $h_factor, $v_factor)

	ProcessTextTTF ($draw_it, $font_file, $font_size, $angle, $x, $y, $color, $text, $h_factor, $v_factor)

	ProcessText ($draw_it, $font, $angle, $x, $y, $color, $text, $halign, $valign)

	DrawText ($which_font, $which_angle, $which_xpos, $which_ypos, $which_color, $which_text, $which_halign='left', $which_valign='bottom')

	SizeText ($which_font, $which_angle, $which_text)

	SetFileFormat ($format)

	SetBgImage ($input_file, $mode='centeredtile')

	SetPlotAreaBgImage ($input_file, $mode='tile')

	SetOutputFile ($which_output_file)

	SetIsInline ($which_ii)

	PrintImage ()

	PrintError ($error_message)

	DrawError ($error_message, $where_x=NULL, $where_y=NULL)

	SetXDataLabelPos ($which_xdlp)

	SetYDataLabelPos ($which_ydlp, $which_distance_from_point=0)

	SetXTickLabelPos ($which_xtlp)

	SetYTickLabelPos ($which_ytlp)

	SetXLabelType ($which_xlt)

	SetYLabelType ($which_ylt)

	SetXTimeFormat ($which_xtf)

	SetYTimeFormat ($which_ytf)

	SetNumberFormat ($decimal_point, $thousands_sep)

	SetXLabelAngle ($which_xla)

	SetYLabelAngle ($which_yla)

	CheckOption ($which_opt, $which_acc, $which_func)

	SetBrowserCache ($which_browser_cache)

	SetPrintImage ($which_pi)

	SetLegend ($which_leg)

	SetLegendPixels ($which_x, $which_y)

	SetLegendWorld ($which_x, $which_y)

	SetLegendStyle ($text_align, $colorbox_align='', $style='')

	SetPlotBorderType ($pbt)

	SetImageBorderType ($sibt)

	SetDrawPlotAreaBackground ($dpab)

	SetDrawYGrid ($dyg)

	SetDrawXGrid ($dxg)

	SetDrawDashedGrid ($ddg)

	SetDrawXDataLabelLines ($dxdl)

	SetDrawYDataLabelLines ($dydl)

	SetTitle ($which_title)

	SetXTitle ($which_xtitle, $which_xpos='plotdown')

	SetYTitle ($which_ytitle, $which_ypos='plotleft')

	SetShading ($which_s)

	SetPlotType ($which_pt)

	SetYAxisPosition ($pos)

	SetXAxisPosition ($pos)

	SetXScaleType ($which_xst)

	SetYScaleType ($which_yst)

	SetPrecisionX ($which_prec)

	SetPrecisionY ($which_prec)

	SetErrorBarLineWidth ($which_seblw)

	SetLabelScalePosition ($which_blp)

	SetErrorBarSize ($which_ebs)

	SetErrorBarShape ($which_ebs)

	SetPointShapes ($which_pt)

	SetPointSizes ($which_ps)

	SetDrawBrokenLines ($bl)

	SetDataType ($which_dt)

	SetDataValues (&$which_dv)

	PadArrays ()

	pad_array (&$arr, $size)

	number_format ($number, $decimals=0)

	SetCallback ($reason, $function, $arg=NULL)

	GetCallback ($reason)

	RemoveCallback ($reason)

	DoCallback () # Note

	FindDataLimits ()

	CalcMargins ($maximize)

	CalcPlotAreaPixels ()

	SetMarginsPixels ($which_lm, $which_rm, $which_tm, $which_bm)

	SetPlotAreaPixels ($x1, $y1, $x2, $y2)

	CalcPlotAreaWorld ()

	SetPlotAreaWorld ($xmin=NULL, $ymin=NULL, $xmax=NULL, $ymax=NULL)

	CalcBarWidths ()

	CalcAxisPositions ()

	CalcTranslation ()

	xtr ($x_world)

	ytr ($y_world)

	CalcTicks ($which)

	CalcMaxTickLabelSize ($which)

	CalcMaxDataLabelSize ()

	FormatLabel ($which_pos, $which_lab)

	SetXTickIncrement ($which_ti='')

	SetYTickIncrement ($which_ti='')

	SetNumXTicks ($which_nt)

	SetNumYTicks ($which_nt)

	SetYTickPos ($which_tp)

	SetXTickPos ($which_tp)

	SetSkipTopTick ($skip)

	SetSkipBottomTick ($skip)

	SetSkipLeftTick ($skip)

	SetSkipRightTick ($skip)

	SetXTickLength ($which_xln)

	SetYTickLength ($which_yln)

	SetXTickCrossing ($which_xc)

	SetYTickCrossing ($which_yc)

	DrawBackground ()

	DrawPlotAreaBackground ()

	tile_img ($file, $xorig, $yorig, $width, $height, $mode)

	DrawImageBorder ()

	DrawTitle ()

	DrawXTitle ()

	DrawYTitle ()

	DrawYAxis ()

	DrawXAxis ()

	DrawYTick ($which_ylab, $which_ypix)

	DrawYTicks ()

	DrawXTick ($which_xlab, $which_xpix)

	DrawXTicks ()

	DrawPlotBorder ()

	DrawDataLabel ($which_font, $which_angle, $x_world, $y_world, $which_color, $which_text, $which_halign='center', $which_valign='bottom', $x_adjustment=0, $y_adjustment=0)

	DrawXDataLabel ($xlab, $xpos, $row=FALSE)

	DrawXDataLine ($xpos, $row)

	DrawLegend ()

	DrawAxisLegend ()

	DrawPieChart ()

	DrawDotsError ()

	DrawDots ()

	DrawThinBarLines ()

	DrawYErrorBar ($x_world, $y_world, $error_height, $error_bar_type, $color)

	DrawDot ($x_world, $y_world, $record, $color)

	DrawArea ()

	DrawLines ()

	DrawLinesError ()

	DrawSquared ()

	DrawBars ()

	DrawStackedBars ()

	DrawGraph ()

	SetDrawVertTicks ($which_dvt)

	SetDrawHorizTicks ($which_dht)

	SetNumHorizTicks ($n)

	SetNumVertTicks ($n)

	SetHorizTickIncrement ($inc)

	SetVertTickIncrement ($inc)

	SetVertTickPosition ($which_tp)

	SetHorizTickPosition ($which_tp)

	SetTitleFontSize ($which_size)

	SetAxisFontSize ($which_size)

	SetSmallFontSize ($which_size)

	SetXLabelFontSize ($which_size)

	SetYLabelFontSize ($which_size)

	SetXLabel ($which_xlab)

	SetYLabel ($which_ylab)

	SetTickLength ($which_tl)

	SetYGridLabelType ($which_yglt)

	SetXGridLabelType ($which_xglt)

	SetYGridLabelPos ($which_yglp)

	SetXGridLabelPos ($which_xglp)

	SetXTitlePos ($xpos)

	SetYTitlePos ($xpos)

	SetXDataLabelAngle ($which_xdla)

	SetDrawXDataLabels ($which_dxdl)

	SetNewPlotAreaPixels ($x1, $y1, $x2, $y2)

	SetColor ($which_color)

	SetLineWidth ($which_lw)

	SetPointShape ($which_pt)

	SetPointSize ($which_ps)

Additional Inherited Members
Data Fields inherited from PHPlot
	$is_inline = FALSE

	$browser_cache = FALSE

	$safe_margin = 5

	$x_axis_position = ''

	$y_axis_position = ''

	$xscale_type = 'linear'

	$yscale_type = 'linear'

	$use_ttf = FALSE

	$ttf_path = '.'

	$default_ttfont = 'benjamingothic.ttf'

	$line_spacing = 4

	$x_label_angle = 0

	$y_label_angle = 0

	$file_format = 'png'

	$output_file = ''

	$data_type = 'text-data'

	$plot_type = 'linepoints'

	$label_scale_position = 0.5

	$group_frac_width = 0.7

	$bar_extra_space = 0.5

	$bar_width_adjust = 1

	$y_precision = 1

	$x_precision = 1

	$data_units_text = ''

	$title_txt = ''

	$x_title_txt = ''

	$x_title_pos = 'plotdown'

	$y_title_txt = ''

	$y_title_pos = 'plotleft'

	$x_tick_label_pos = 'plotdown'

	$y_tick_label_pos = 'plotleft'

	$x_data_label_pos = 'plotdown'

	$y_data_label_pos = 'plotleft'

	$draw_x_data_label_lines = FALSE

	$draw_y_data_label_lines = FALSE

	$x_label_type = ''

	$y_label_type = ''

	$x_time_format = '%H:%M:%S'

	$y_time_format = '%H:%M:%S'

	$legend = ''

	$x_tick_length = 5

	$y_tick_length = 5

	$x_tick_cross = 3

	$y_tick_cross = 3

	$x_tick_pos = 'plotdown'

	$y_tick_pos = 'plotleft'

	$num_x_ticks = ''

	$num_y_ticks = ''

	$x_tick_inc = ''

	$y_tick_inc = ''

	$skip_top_tick = FALSE

	$skip_bottom_tick = FALSE

	$skip_left_tick = FALSE

	$skip_right_tick = FALSE

	$draw_x_grid = FALSE

	$draw_y_grid = TRUE

	$dashed_grid = TRUE

	$grid_at_foreground = FALSE

	$color_array = 'small'

	$i_border = array(194, 194, 194)

	$plot_bg_color = 'white'

	$bg_color = 'white'

	$label_color = 'black'

	$text_color = 'black'

	$grid_color = 'black'

	$light_grid_color = 'gray'

	$tick_color = 'black'

	$title_color = 'black'

	$data_colors = array('SkyBlue', 'green', 'orange', 'blue', 'orange', 'red', 'violet', 'azure1')

	$error_bar_colors = array('SkyBlue', 'green', 'orange', 'blue', 'orange', 'red', 'violet', 'azure1')

	$data_border_colors = array('black')

	$line_widths = 1

	$line_styles = array('solid', 'solid', 'dashed')

	$dashed_style = '2-4'

	$point_sizes = array(5,5,3)

	$point_shapes = array('diamond')

	$error_bar_size = 5

	$error_bar_shape = 'tee'

	$error_bar_line_width = 1

	$plot_border_type = 'sides'

	$image_border_type = 'none'

	$shading = 5

	$draw_plot_area_background = FALSE

	$draw_broken_lines = FALSE

	$callbacks

Detailed Description

Definition at line 18 of file phplot_data.php.

Member Function Documentation

◆ DoDivision()

PHPlot_Data::DoDivision	(	$x,
		$y
	)

Computes row x divided by row y, stores the result in row x and deletes row y

Definition at line 234 of file phplot_data.php.

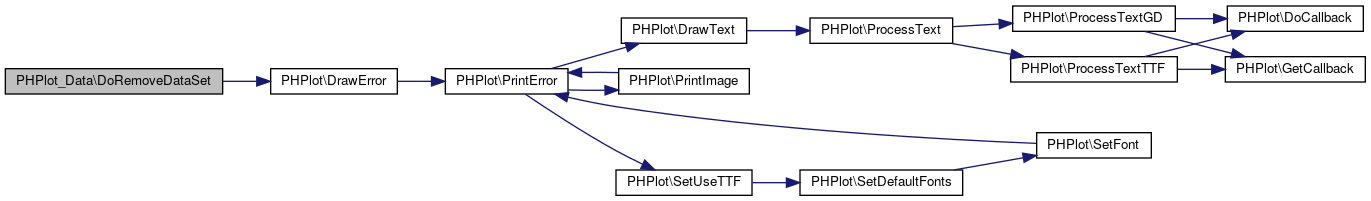

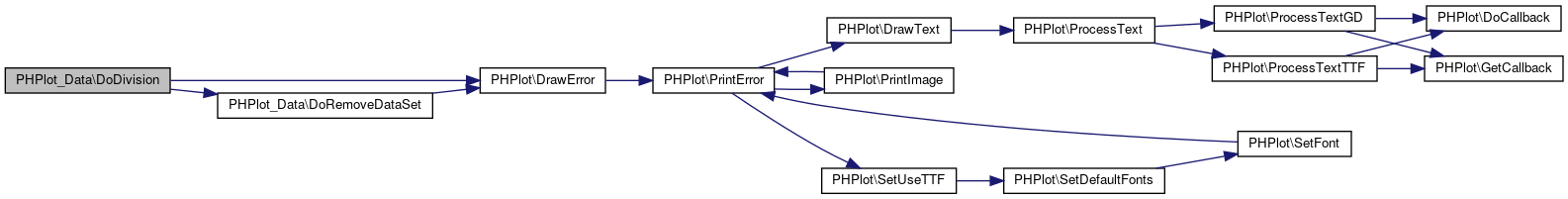

References DoRemoveDataSet(), and PHPlot\DrawError().

     {
         $offset = 1;
         if ($this->data_type == 'data-data') {
             $offset++;
         } elseif ($this->data_type != 'text-data') {
             $this->DrawError('wrong data type!!');
             return FALSE;
         }

         $x += $offset; $y += $offset;
         reset($this->data);
         while (list($key, $val) = each($this->data)) {
             if ($this->data[$key][$y] == 0) {
                 $this->data[$key][$x] = 0;
             } else {
                 $this->data[$key][$x] /= $this->data[$key][$y];
             }
         }

         $this->DoRemoveDataSet($y-$offset);
     } // function DoDivision

Here is the call graph for this function:

◆ DoExponentialMovingAverage()

PHPlot_Data::DoExponentialMovingAverage	(	$datarow,
		$perc,
		$show_in_legend
	)

Computes an exponentially smoothed moving average.

Parameters

int	perc "smoothing percentage" FIXME!!! I haven't checked this.

Definition at line 178 of file phplot_data.php.

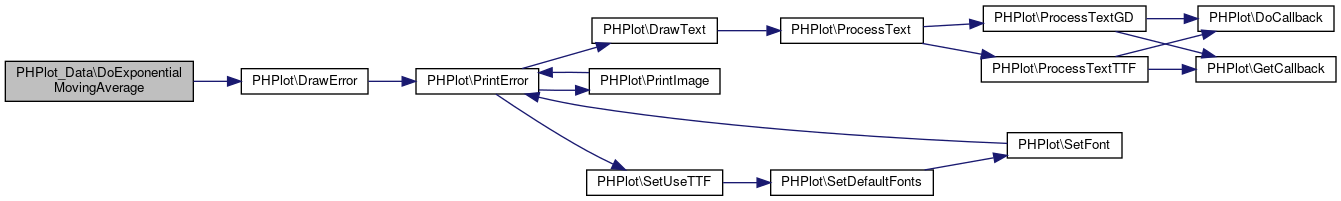

References PHPlot\DrawError().

     {
         if ($this->data_type == 'text-data') {
             $datarow++;
         } elseif ($this->data_type != 'data-data') {
             $this->DrawError('DoWeightedMovingAverage(): wrong data type!!');
             return FALSE;
         }

         if ($show_in_legend) {
             $this->legend[$datarow] .= " (MA: $interval)";
         }

         $storage[0] = $this->data[0][$datarow];
         for ($i=1;$i < $this->num_data_rows; $i++) {
             $storage[$i] = @ $storage[$i-1] + $perc * ($this->data[$i][$datarow] - $storage[$i-1]);
             $ma = array_sum($storage);
             $ma /= count($storage);
             $this->data[$i][$datarow] = $ma;
         }
         return TRUE;
     } // function DoExponentialMovingAverage()

Here is the call graph for this function:

◆ DoMovingAverage()

PHPlot_Data::DoMovingAverage	(	$datarow,
		$interval,
		$show = `TRUE`,
		$color = `NULL`,
		$width = `NULL`
	)

Computes a moving average of strength $interval for data row number $datarow, where 0 denotes the first row of y-data.

Parameters

int	datarow Index of the row whereupon to make calculations
int	interval Number of elements to use in average ("strength")
bool	show Whether to tell about the moving average in the legend.
string	color Color for the line to be drawn. This color is darkened. Can be named or #RRGGBB.
int	width Width of the line to be drawn.

Note: Original idea by Theimo Nagel

Definition at line 117 of file phplot_data.php.

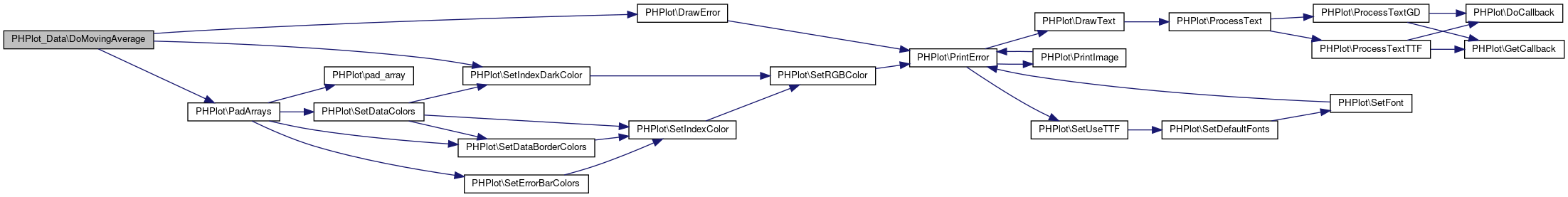

References PHPlot\DrawError(), PHPlot\PadArrays(), and PHPlot\SetIndexDarkColor().

     {
         $off = 1;               // Skip record #0 (data label)

         $this->PadArrays();

         if ($interval == 0) {
             $this->DrawError('DoMovingAverage(): interval can\'t be 0');
             return FALSE;
         }

         if ($datarow >= $this->records_per_group) {
             $this->DrawError("DoMovingAverage(): Data row out of bounds ($datarow >= $this->records_per_group)");
             return FALSE;
         }

         if ($this->data_type == 'text-data') {
             // Ok. No need to set the offset to skip more records.
         } elseif ($this->data_type == 'data-data') {
             $off++;             // first Y value at $data[][2]
         } else {
             $this->DrawError('DoMovingAverage(): wrong data type!!');
             return FALSE;
         }

         // Set color:
         if ($color) {
             array_push($this->ndx_data_colors, $this->SetIndexDarkColor($color));
         } else {
             array_push($this->ndx_data_colors, $this->SetIndexDarkColor($this->data_colors[$datarow]));
         }
         // Set line width:
         if ($width) {
             array_push($this->line_widths, $width);
         } else {
             array_push($this->line_widths,  $this->line_widths[$datarow] * 2);
         }
         // Show in legend?
         if ($show) {
             $this->legend[$this->records_per_group-1] = "(MA[$datarow]:$interval)";
         }

         $datarow += $off;
         for ($i = 0; $i < $this->num_data_rows; $i++) {
             $storage[$i % $interval] = @ $this->data[$i][$datarow];
             $ma = array_sum($storage);
             $ma /= count($storage);
             array_push($this->data[$i], $ma);   // Push the data onto the array
             $this->num_recs[$i]++;              // Tell the drawing functions it is there
         }
         $this->records_per_group++;
 //        $this->FindDataLimits();
         return TRUE;
     } //function DoMovingAverage()

Here is the call graph for this function:

◆ DoRemoveDataSet()

PHPlot_Data::DoRemoveDataSet ( $index )

Removes the DataSet of number $index

Definition at line 205 of file phplot_data.php.

References PHPlot\DrawError().

Referenced by DoDivision().

     {
         $offset = 1;
         if ($this->data_type == 'data-data') {
             $offset++;
         } elseif ($this->data_type != 'text-data') {
             $this->DrawError('wrong data type!!');
             return FALSE;
         }

         $index += $offset;
         foreach ($this->data as $key=>$val) {
             foreach ($val as $key2=>$val2) {
                 if ($key2 >= $index) {
                     if (isset($this->data[$key][$key2+1])) {
                         $this->data[$key][$key2] = $this->data[$key][$key2+1];
                     } else {
                         unset($this->data[$key][$key2]);
                     }
                 }
             }
         }
     } // function DoRemoveDataSet

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoScaleData()

PHPlot_Data::DoScaleData	(	$even,
		$show_in_legend
	)

Will scale all data rows Maybe later I will do a function that only scales some rows if $even is TRUE, data will be scaled with "even" factors.

Note: Original code by Thiemo Nagel

Definition at line 36 of file phplot_data.php.

References PHPlot\DrawError(), and PHPlot\SetYTickIncrement().

     {
         $offset = 0;        // We use this not to read labels in text-data

         if ($this->data_type == 'text-data') {
             $offset = 1;
         } elseif ($this->data_type != 'data-data') {
             $this->DrawError('wrong data type!!');
             return FALSE;
         }

         // Determine maxima for each data row in array $max
         // Put maximum of the maxima in $maxmax
         $maxmax = 0;
         for($i=0; $i < $this->num_data_rows; $i++) {
             $rowsize = count($this->data[$i]);
             for ($j=$offset; $j < $rowsize; $j++) {
                 if ($this->data[$i][$j] > @ $max[$j])
                     $max[$j] = $this->data[$i][$j];
                 if (@ $max[$j] > $maxmax)
                     $maxmax = $max[$j];
             }
         }

         // determine amplification factor $amplify
         $end = count($max) + $offset;
         for ($i=$offset; $i < $end; $i++) {
             if ($max[$i] == 0 || $max[$i] == $maxmax) {
                 $amplify[$i] = 1;  // no divide by zero
             } else {
                 if ($even) {
                     $amp = pow(10,round(log10($maxmax / $max[$i]))-1);
                     if ($amp * $max[$i] * 5 < $maxmax) {
                         $amp *= 5;
                     } elseif ($amp * $max[$i] * 2 < $maxmax) {
                         $amp *= 2;
                     }
                 } else {
                     $amp = $maxmax / $max[$i];
                     $digits = floor(log10($amp));
                     $amp = round($amp/pow(10,$digits-1))*pow(10,$digits-1);
                 }
                 $amplify[$i] = $amp;
             }
             if ($amplify[$i] != 1 && $show_in_legend)
                 @ $this->legend[$i] .= "*$amplify[$i]";
         }

         // Amplify data
         // On my machine, running 1000 iterations over 1000 rows of 12 elements each,
         // the for loops were 43.2% faster (MBD)
         for ($i = 0; $i < $this->num_data_rows; $i++) {
             $rowsize = count($this->data[$i]);
             for ($j=$offset; $j < $rowsize; $j++) {
                 $this->data[$i][$j] *= $amplify[$j];
             }
         }

         //Re-Scale Vertical Ticks if not already set
         if ( ! $this->y_tick_increment) {
             $this->SetYTickIncrement() ;
         }

         return TRUE;
     } //function DoScaleData

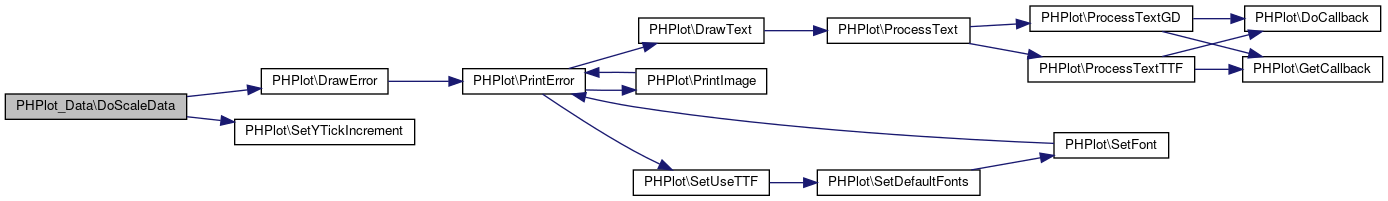

Here is the call graph for this function:

◆ PHPlot_Data()

PHPlot_Data::PHPlot_Data	(	$which_width = `600`,
		$which_height = `400`,
		$which_output_file = `NULL`,
		$which_input_file = `NULL`
	)

Constructor

Definition at line 23 of file phplot_data.php.

References PHPlot\PHPlot().

     {
         if (! isset($this->img)) {
             $this->PHPlot($which_width, $which_height, $which_output_file, $which_input_file);
         }
     }

Here is the call graph for this function:

The documentation for this class was generated from the following file:

Modules/SurveyQuestionPool/phplot/phplot_data.php

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ DoDivision()

◆ DoExponentialMovingAverage()

◆ DoMovingAverage()

◆ DoRemoveDataSet()

◆ DoScaleData()

◆ PHPlot_Data()
