Spreadsheet_Excel_Writer_BIFFwriter Class Reference

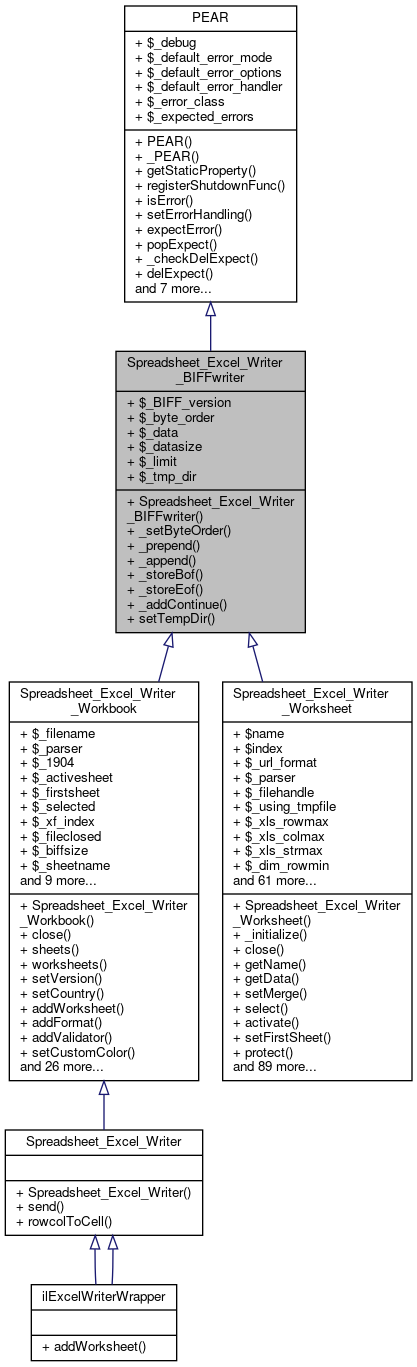

Inheritance diagram for Spreadsheet_Excel_Writer_BIFFwriter:

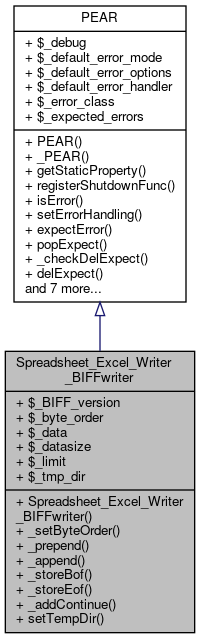

Collaboration diagram for Spreadsheet_Excel_Writer_BIFFwriter:

Public Member Functions
	Spreadsheet_Excel_Writer_BIFFwriter ()
	Constructor. More...
	_setByteOrder ()
	Determine the byte order and store it as class data to avoid recalculating it for each call to new(). More...
	_prepend ($data)
	General storage function. More...
	_append ($data)
	General storage function. More...
	_storeBof ($type)
	Writes Excel BOF record to indicate the beginning of a stream or sub-stream in the BIFF file. More...
	_storeEof ()
	Writes Excel EOF record to indicate the end of a BIFF stream. More...
	_addContinue ($data)
	Excel limits the size of BIFF records. More...
	setTempDir ($dir)
	Sets the temp dir used for storing the OLE file. More...
Public Member Functions inherited from PEAR
	PEAR ($error_class=null)
	Constructor. More...
	_PEAR ()
	Destructor (the emulated type of...). More...
&	getStaticProperty ($class, $var)
	If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them. More...
	registerShutdownFunc ($func, $args=array())
	Use this function to register a shutdown method for static classes. More...
	isError ($data, $code=null)
	Tell whether a value is a PEAR error. More...
	setErrorHandling ($mode=null, $options=null)
	Sets how errors generated by this object should be handled. More...
	expectError ($code=' *')
	This method is used to tell which errors you expect to get. More...
	popExpect ()
	This method pops one element off the expected error codes stack. More...
	_checkDelExpect ($error_code)
	This method checks unsets an error code if available. More...
	delExpect ($error_code)
	This method deletes all occurences of the specified element from the expected error codes stack. More...
&	raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
	This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied. More...
&	throwError ($message=null, $code=null, $userinfo=null)
	Simpler form of raiseError with fewer options. More...
	staticPushErrorHandling ($mode, $options=null)
	staticPopErrorHandling ()
	pushErrorHandling ($mode, $options=null)
	Push a new error handler on top of the error handler options stack. More...
	popErrorHandling ()
	Pop the last error handler used. More...
	loadExtension ($ext)
	OS independant PHP extension load. More...

Data Fields
	$_BIFF_version = 0x0500
	$_byte_order
	$_data
	$_datasize
	$_limit
	$_tmp_dir
Data Fields inherited from PEAR
	$_debug = false
	$_default_error_mode = null
	$_default_error_options = null
	$_default_error_handler = ''
	$_error_class = 'PEAR_Error'
	$_expected_errors = array()

Detailed Description

Definition at line 54 of file BIFFwriter.php.

Member Function Documentation

_addContinue()

Spreadsheet_Excel_Writer_BIFFwriter::_addContinue

(

$data

)

Excel limits the size of BIFF records.

In Excel 5 the limit is 2084 bytes. In Excel 97 the limit is 8228 bytes. Records that are longer than these limits must be split up into CONTINUE blocks.

This function takes a long BIFF record and inserts CONTINUE records as necessary.

Parameters

string

$data

The original binary data to be written

Returns

string A very convenient string of continue blocks private

Definition at line 219 of file BIFFwriter.php.

References $_limit, and $data.

Referenced by _append(), Spreadsheet_Excel_Writer_Worksheet\_append(), and _prepend().

    {
        $limit  = $this->_limit;
        $record = 0x003C;         // Record identifier

        // The first 2080/8224 bytes remain intact. However, we have to change
        // the length field of the record.
        $tmp = substr($data, 0, 2).pack("v", $limit-4).substr($data, 4, $limit - 4);

        $header = pack("vv", $record, $limit);  // Headers for continue records

        // Retrieve chunks of 2080/8224 bytes +4 for the header.
        $data_length = strlen($data);
        for ($i = $limit; $i <  ($data_length - $limit); $i += $limit) {
            $tmp .= $header;
            $tmp .= substr($data, $i, $limit);
        }

        // Retrieve the last chunk of data
        $header  = pack("vv", $record, strlen($data) - $i);
        $tmp    .= $header;
        $tmp    .= substr($data, $i, strlen($data) - $i);

        return $tmp;
    }

Here is the caller graph for this function:

_append()

Spreadsheet_Excel_Writer_BIFFwriter::_append

(

$data

)

General storage function.

Parameters

string

$data

binary data to append private

Definition at line 153 of file BIFFwriter.php.

References $data, and _addContinue().

Referenced by Spreadsheet_Excel_Writer_Workbook\_storeAllFonts(), Spreadsheet_Excel_Writer_Workbook\_storeAllXfs(), Spreadsheet_Excel_Writer_Workbook\_storeBoundsheet(), Spreadsheet_Excel_Writer_Workbook\_storeCodepage(), Spreadsheet_Excel_Writer_Workbook\_storeCountry(), Spreadsheet_Excel_Writer_Workbook\_storeDatemode(), _storeEof(), Spreadsheet_Excel_Writer_Workbook\_storeExterncount(), Spreadsheet_Excel_Writer_Workbook\_storeExternsheet(), Spreadsheet_Excel_Writer_Workbook\_storeExternsheetBiff8(), Spreadsheet_Excel_Writer_Workbook\_storeNameLong(), Spreadsheet_Excel_Writer_Workbook\_storeNameShort(), Spreadsheet_Excel_Writer_Workbook\_storeNumFormat(), Spreadsheet_Excel_Writer_Workbook\_storePalette(), Spreadsheet_Excel_Writer_Workbook\_storeSharedStringsTable(), Spreadsheet_Excel_Writer_Workbook\_storeStyle(), Spreadsheet_Excel_Writer_Workbook\_storeSupbookInternal(), and Spreadsheet_Excel_Writer_Workbook\_storeWindow1().

    {
        if (strlen($data) > $this->_limit) {
            $data = $this->_addContinue($data);
        }
        $this->_data      = $this->_data.$data;
        $this->_datasize += strlen($data);
    }

Here is the call graph for this function:

Here is the caller graph for this function:

_prepend()

Spreadsheet_Excel_Writer_BIFFwriter::_prepend

(

$data

)

General storage function.

Parameters

string

$data

binary data to prepend private

Definition at line 138 of file BIFFwriter.php.

References $data, and _addContinue().

Referenced by _storeBof(), Spreadsheet_Excel_Writer_Worksheet\_storeColinfo(), Spreadsheet_Excel_Writer_Worksheet\_storeDefcol(), Spreadsheet_Excel_Writer_Worksheet\_storeDimensions(), Spreadsheet_Excel_Writer_Worksheet\_storeExterncount(), Spreadsheet_Excel_Writer_Worksheet\_storeExternsheet(), Spreadsheet_Excel_Writer_Worksheet\_storeFooter(), Spreadsheet_Excel_Writer_Worksheet\_storeGridset(), Spreadsheet_Excel_Writer_Worksheet\_storeGuts(), Spreadsheet_Excel_Writer_Worksheet\_storeHbreak(), Spreadsheet_Excel_Writer_Worksheet\_storeHcenter(), Spreadsheet_Excel_Writer_Worksheet\_storeHeader(), Spreadsheet_Excel_Writer_Worksheet\_storeMarginBottom(), Spreadsheet_Excel_Writer_Worksheet\_storeMarginLeft(), Spreadsheet_Excel_Writer_Worksheet\_storeMarginRight(), Spreadsheet_Excel_Writer_Worksheet\_storeMarginTop(), Spreadsheet_Excel_Writer_Worksheet\_storePassword(), Spreadsheet_Excel_Writer_Worksheet\_storePrintGridlines(), Spreadsheet_Excel_Writer_Worksheet\_storePrintHeaders(), Spreadsheet_Excel_Writer_Worksheet\_storeProtect(), Spreadsheet_Excel_Writer_Worksheet\_storeSetup(), Spreadsheet_Excel_Writer_Worksheet\_storeVbreak(), Spreadsheet_Excel_Writer_Worksheet\_storeVcenter(), and Spreadsheet_Excel_Writer_Worksheet\_storeWsbool().

    {
        if (strlen($data) > $this->_limit) {
            $data = $this->_addContinue($data);
        }
        $this->_data      = $data.$this->_data;
        $this->_datasize += strlen($data);
    }

Here is the call graph for this function:

Here is the caller graph for this function:

_setByteOrder()

Spreadsheet_Excel_Writer_BIFFwriter::_setByteOrder

(

)

Determine the byte order and store it as class data to avoid recalculating it for each call to new().

private

Definition at line 115 of file BIFFwriter.php.

References PEAR\raiseError().

Referenced by Spreadsheet_Excel_Writer_BIFFwriter().

    {
        // Check if "pack" gives the required IEEE 64bit float
        $teststr = pack("d", 1.2345);
        $number  = pack("C8", 0x8D, 0x97, 0x6E, 0x12, 0x83, 0xC0, 0xF3, 0x3F);
        if ($number == $teststr) {
            $byte_order = 0;    // Little Endian
        } elseif ($number == strrev($teststr)){
            $byte_order = 1;    // Big Endian
        } else {
            // Give up. I'll fix this in a later version.
            return $this->raiseError("Required floating point format ".
                                     "not supported on this platform.");
        }
        $this->_byte_order = $byte_order;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

_storeBof()

Spreadsheet_Excel_Writer_BIFFwriter::_storeBof

(

$type

)

Writes Excel BOF record to indicate the beginning of a stream or sub-stream in the BIFF file.

Parameters

integer

$type

Type of BIFF file to write: 0x0005 Workbook, 0x0010 Worksheet. private

Definition at line 170 of file BIFFwriter.php.

References $_BIFF_version, $data, and _prepend().

Referenced by Spreadsheet_Excel_Writer_Workbook\_storeWorkbook(), and Spreadsheet_Excel_Writer_Worksheet\close().

    {
        $record  = 0x0809;        // Record identifier

        // According to the SDK $build and $year should be set to zero.
        // However, this throws a warning in Excel 5. So, use magic numbers.
        if ($this->_BIFF_version == 0x0500) {
            $length  = 0x0008;
            $unknown = '';
            $build   = 0x096C;
            $year    = 0x07C9;
        } elseif ($this->_BIFF_version == 0x0600) {
            $length  = 0x0010;
            $unknown = pack("VV", 0x00000041, 0x00000006); //unknown last 8 bytes for BIFF8
            $build   = 0x0DBB;
            $year    = 0x07CC;
        }
        $version = $this->_BIFF_version;

        $header  = pack("vv",   $record, $length);
        $data    = pack("vvvv", $version, $type, $build, $year);
        $this->_prepend($header . $data . $unknown);
    }

Here is the call graph for this function:

Here is the caller graph for this function:

_storeEof()

Spreadsheet_Excel_Writer_BIFFwriter::_storeEof

(

)

Writes Excel EOF record to indicate the end of a BIFF stream.

private

Definition at line 199 of file BIFFwriter.php.

References _append().

Referenced by Spreadsheet_Excel_Writer_Workbook\_storeWorkbook(), and Spreadsheet_Excel_Writer_Worksheet\close().

    {
        $record    = 0x000A;   // Record identifier
        $length    = 0x0000;   // Number of bytes to follow
        $header    = pack("vv", $record, $length);
        $this->_append($header);
    }

Here is the call graph for this function:

Here is the caller graph for this function:

setTempDir()

Spreadsheet_Excel_Writer_BIFFwriter::setTempDir

(

$dir

)

Sets the temp dir used for storing the OLE file.

public

Parameters

string

$dir

The dir to be used as temp dir

Returns

true if given dir is valid, false otherwise

Definition at line 252 of file BIFFwriter.php.

    {
        if (is_dir($dir)) {
            $this->_tmp_dir = $dir;
            return true;
        }
        return false;
    }

Spreadsheet_Excel_Writer_BIFFwriter()

Spreadsheet_Excel_Writer_BIFFwriter::Spreadsheet_Excel_Writer_BIFFwriter

(

)

Constructor.

public

Definition at line 98 of file BIFFwriter.php.

References _setByteOrder().

Referenced by Spreadsheet_Excel_Writer_Workbook\Spreadsheet_Excel_Writer_Workbook(), and Spreadsheet_Excel_Writer_Worksheet\Spreadsheet_Excel_Writer_Worksheet().

    {
        $this->_byte_order = '';
        $this->_data       = '';
        $this->_datasize   = 0;
        $this->_limit      = 2080;
        $this->_tmp_dir    = '';
        // Set the byte order
        $this->_setByteOrder();
    }

Here is the call graph for this function:

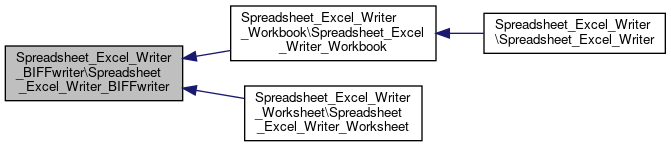

Here is the caller graph for this function:

Field Documentation

$_BIFF_version

Spreadsheet_Excel_Writer_BIFFwriter::$_BIFF_version = 0x0500

Definition at line 60 of file BIFFwriter.php.

Referenced by _storeBof().

$_byte_order

Spreadsheet_Excel_Writer_BIFFwriter::$_byte_order

Definition at line 66 of file BIFFwriter.php.

$_data

Spreadsheet_Excel_Writer_BIFFwriter::$_data

Definition at line 72 of file BIFFwriter.php.

Referenced by Spreadsheet_Excel_Writer_Worksheet\getData().

$_datasize

Spreadsheet_Excel_Writer_BIFFwriter::$_datasize

Definition at line 78 of file BIFFwriter.php.

Referenced by Spreadsheet_Excel_Writer_Workbook\_calcSheetOffsets().

$_limit

Spreadsheet_Excel_Writer_BIFFwriter::$_limit

Definition at line 85 of file BIFFwriter.php.

Referenced by _addContinue().

$_tmp_dir

Spreadsheet_Excel_Writer_BIFFwriter::$_tmp_dir

Definition at line 91 of file BIFFwriter.php.

---

The documentation for this class was generated from the following file:

• Services/PEAR/lib/Spreadsheet/Excel/Writer/BIFFwriter.php
