getid3_midi Class Reference
getID3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g // More...
Collaboration diagram for getid3_midi:
Public Member Functions | |
| getid3_midi (&$fd, &$ThisFileInfo, $scanwholefile=true) | |
| GeneralMIDIinstrumentLookup ($instrumentid) | |
| GeneralMIDIpercussionLookup ($instrumentid) | |
Detailed Description
getID3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //
Definition at line 17 of file module.audio.midi.php.
Member Function Documentation
◆ GeneralMIDIinstrumentLookup()
| getid3_midi::GeneralMIDIinstrumentLookup | ( | $instrumentid | ) |
This is not a comment!
0 Acoustic Grand 1 Bright Acoustic 2 Electric Grand 3 Honky-Tonk 4 Electric Piano 1 5 Electric Piano 2 6 Harpsichord 7 Clavier 8 Celesta 9 Glockenspiel 10 Music Box 11 Vibraphone 12 Marimba 13 Xylophone 14 Tubular Bells 15 Dulcimer 16 Drawbar Organ 17 Percussive Organ 18 Rock Organ 19 Church Organ 20 Reed Organ 21 Accordian 22 Harmonica 23 Tango Accordian 24 Acoustic Guitar (nylon) 25 Acoustic Guitar (steel) 26 Electric Guitar (jazz) 27 Electric Guitar (clean) 28 Electric Guitar (muted) 29 Overdriven Guitar 30 Distortion Guitar 31 Guitar Harmonics 32 Acoustic Bass 33 Electric Bass (finger) 34 Electric Bass (pick) 35 Fretless Bass 36 Slap Bass 1 37 Slap Bass 2 38 Synth Bass 1 39 Synth Bass 2 40 Violin 41 Viola 42 Cello 43 Contrabass 44 Tremolo Strings 45 Pizzicato Strings 46 Orchestral Strings 47 Timpani 48 String Ensemble 1 49 String Ensemble 2 50 SynthStrings 1 51 SynthStrings 2 52 Choir Aahs 53 Voice Oohs 54 Synth Voice 55 Orchestra Hit 56 Trumpet 57 Trombone 58 Tuba 59 Muted Trumpet 60 French Horn 61 Brass Section 62 SynthBrass 1 63 SynthBrass 2 64 Soprano Sax 65 Alto Sax 66 Tenor Sax 67 Baritone Sax 68 Oboe 69 English Horn 70 Bassoon 71 Clarinet 72 Piccolo 73 Flute 74 Recorder 75 Pan Flute 76 Blown Bottle 77 Shakuhachi 78 Whistle 79 Ocarina 80 Lead 1 (square) 81 Lead 2 (sawtooth) 82 Lead 3 (calliope) 83 Lead 4 (chiff) 84 Lead 5 (charang) 85 Lead 6 (voice) 86 Lead 7 (fifths) 87 Lead 8 (bass + lead) 88 Pad 1 (new age) 89 Pad 2 (warm) 90 Pad 3 (polysynth) 91 Pad 4 (choir) 92 Pad 5 (bowed) 93 Pad 6 (metallic) 94 Pad 7 (halo) 95 Pad 8 (sweep) 96 FX 1 (rain) 97 FX 2 (soundtrack) 98 FX 3 (crystal) 99 FX 4 (atmosphere) 100 FX 5 (brightness) 101 FX 6 (goblins) 102 FX 7 (echoes) 103 FX 8 (sci-fi) 104 Sitar 105 Banjo 106 Shamisen 107 Koto 108 Kalimba 109 Bagpipe 110 Fiddle 111 Shanai 112 Tinkle Bell 113 Agogo 114 Steel Drums 115 Woodblock 116 Taiko Drum 117 Melodic Tom 118 Synth Drum 119 Reverse Cymbal 120 Guitar Fret Noise 121 Breath Noise 122 Seashore 123 Bird Tweet 124 Telephone Ring 125 Helicopter 126 Applause 127 Gunshot
Definition at line 319 of file module.audio.midi.php.
319 {
320
321 $begin = __LINE__;
322
456 return getid3_lib::EmbeddedLookup($instrumentid, $begin, __LINE__, __FILE__, 'GeneralMIDIinstrument');
457 }
EmbeddedLookup($key, $begin, $end, $file, $name)
Definition: getid3.lib.php:1257
References getid3_lib\EmbeddedLookup().
Referenced by getid3_midi().
Here is the call graph for this function:
Here is the caller graph for this function:
◆ GeneralMIDIpercussionLookup()
| getid3_midi::GeneralMIDIpercussionLookup | ( | $instrumentid | ) |
This is not a comment!
35 Acoustic Bass Drum 36 Bass Drum 1 37 Side Stick 38 Acoustic Snare 39 Hand Clap 40 Electric Snare 41 Low Floor Tom 42 Closed Hi-Hat 43 High Floor Tom 44 Pedal Hi-Hat 45 Low Tom 46 Open Hi-Hat 47 Low-Mid Tom 48 Hi-Mid Tom 49 Crash Cymbal 1 50 High Tom 51 Ride Cymbal 1 52 Chinese Cymbal 53 Ride Bell 54 Tambourine 55 Splash Cymbal 56 Cowbell 57 Crash Cymbal 2 59 Ride Cymbal 2 60 Hi Bongo 61 Low Bongo 62 Mute Hi Conga 63 Open Hi Conga 64 Low Conga 65 High Timbale 66 Low Timbale 67 High Agogo 68 Low Agogo 69 Cabasa 70 Maracas 71 Short Whistle 72 Long Whistle 73 Short Guiro 74 Long Guiro 75 Claves 76 Hi Wood Block 77 Low Wood Block 78 Mute Cuica 79 Open Cuica 80 Mute Triangle 81 Open Triangle
Definition at line 459 of file module.audio.midi.php.
459 {
460
461 $begin = __LINE__;
462
514 return getid3_lib::EmbeddedLookup($instrumentid, $begin, __LINE__, __FILE__, 'GeneralMIDIpercussion');
515 }
References getid3_lib\EmbeddedLookup().
Referenced by getid3_midi().
Here is the call graph for this function:
Here is the caller graph for this function:
◆ getid3_midi()
| getid3_midi::getid3_midi | ( | & | $fd, |
| & | $ThisFileInfo, | ||
$scanwholefile = true |
|||
| ) |
Definition at line 20 of file module.audio.midi.php.
20 {
21
22 // shortcut
23 $ThisFileInfo['midi']['raw'] = array();
24 $thisfile_midi = &$ThisFileInfo['midi'];
25 $thisfile_midi_raw = &$thisfile_midi['raw'];
26
27 $ThisFileInfo['fileformat'] = 'midi';
28 $ThisFileInfo['audio']['dataformat'] = 'midi';
29
30 fseek($fd, $ThisFileInfo['avdataoffset'], SEEK_SET);
31 $MIDIdata = fread($fd, GETID3_FREAD_BUFFER_SIZE);
32 $offset = 0;
33 $MIDIheaderID = substr($MIDIdata, $offset, 4); // 'MThd'
34 if ($MIDIheaderID != 'MThd') {
35 $ThisFileInfo['error'][] = 'Expecting "MThd" at offset '.$ThisFileInfo['avdataoffset'].', found "'.$MIDIheaderID.'"';
36 unset($ThisFileInfo['fileformat']);
37 return false;
38 }
39 $offset += 4;
41 $offset += 4;
43 $offset += 2;
45 $offset += 2;
47 $offset += 2;
48
49 for ($i = 0; $i < $thisfile_midi_raw['tracks']; $i++) {
50 if ((strlen($MIDIdata) - $offset) < 8) {
51 $MIDIdata .= fread($fd, GETID3_FREAD_BUFFER_SIZE);
52 }
53 $trackID = substr($MIDIdata, $offset, 4);
54 $offset += 4;
55 if ($trackID == 'MTrk') {
56 $tracksize = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 4));
57 $offset += 4;
58 // $thisfile_midi['tracks'][$i]['size'] = $tracksize;
59 $trackdataarray[$i] = substr($MIDIdata, $offset, $tracksize);
60 $offset += $tracksize;
61 } else {
62 $ThisFileInfo['error'][] = 'Expecting "MTrk" at '.$offset.', found '.$trackID.' instead';
63 return false;
64 }
65 }
66
67 if (!isset($trackdataarray) || !is_array($trackdataarray)) {
68 $ThisFileInfo['error'][] = 'Cannot find MIDI track information';
69 unset($thisfile_midi);
70 unset($ThisFileInfo['fileformat']);
71 return false;
72 }
73
74 if ($scanwholefile) { // this can take quite a long time, so have the option to bypass it if speed is very important
75 $thisfile_midi['totalticks'] = 0;
76 $ThisFileInfo['playtime_seconds'] = 0;
77 $CurrentMicroSecondsPerBeat = 500000; // 120 beats per minute; 60,000,000 microseconds per minute -> 500,000 microseconds per beat
78 $CurrentBeatsPerMinute = 120; // 120 beats per minute; 60,000,000 microseconds per minute -> 500,000 microseconds per beat
79
80 foreach ($trackdataarray as $tracknumber => $trackdata) {
81
82 $eventsoffset = 0;
83 $LastIssuedMIDIcommand = 0;
84 $LastIssuedMIDIchannel = 0;
85 $CumulativeDeltaTime = 0;
86 $TicksAtCurrentBPM = 0;
87 while ($eventsoffset < strlen($trackdata)) {
88 $eventid = 0;
89 if (isset($MIDIevents[$tracknumber]) && is_array($MIDIevents[$tracknumber])) {
90 $eventid = count($MIDIevents[$tracknumber]);
91 }
92 $deltatime = 0;
93 for ($i = 0; $i < 4; $i++) {
94 $deltatimebyte = ord(substr($trackdata, $eventsoffset++, 1));
95 $deltatime = ($deltatime << 7) + ($deltatimebyte & 0x7F);
96 if ($deltatimebyte & 0x80) {
97 // another byte follows
98 } else {
99 break;
100 }
101 }
102 $CumulativeDeltaTime += $deltatime;
103 $TicksAtCurrentBPM += $deltatime;
104 $MIDIevents[$tracknumber][$eventid]['deltatime'] = $deltatime;
105 $MIDI_event_channel = ord(substr($trackdata, $eventsoffset++, 1));
106 if ($MIDI_event_channel & 0x80) {
107 // OK, normal event - MIDI command has MSB set
108 $LastIssuedMIDIcommand = $MIDI_event_channel >> 4;
109 $LastIssuedMIDIchannel = $MIDI_event_channel & 0x0F;
110 } else {
111 // running event - assume last command
112 $eventsoffset--;
113 }
114 $MIDIevents[$tracknumber][$eventid]['eventid'] = $LastIssuedMIDIcommand;
115 $MIDIevents[$tracknumber][$eventid]['channel'] = $LastIssuedMIDIchannel;
116 if ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x08) { // Note off (key is released)
117
118 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
119 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
120
121 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x09) { // Note on (key is pressed)
122
123 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
124 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
125
126 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0A) { // Key after-touch
127
128 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
129 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
130
131 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0B) { // Control Change
132
133 $controllernum = ord(substr($trackdata, $eventsoffset++, 1));
134 $newvalue = ord(substr($trackdata, $eventsoffset++, 1));
135
136 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0C) { // Program (patch) change
137
138 $newprogramnum = ord(substr($trackdata, $eventsoffset++, 1));
139
140 $thisfile_midi_raw['track'][$tracknumber]['instrumentid'] = $newprogramnum;
141 if ($tracknumber == 10) {
142 $thisfile_midi_raw['track'][$tracknumber]['instrument'] = $this->GeneralMIDIpercussionLookup($newprogramnum);
143 } else {
144 $thisfile_midi_raw['track'][$tracknumber]['instrument'] = $this->GeneralMIDIinstrumentLookup($newprogramnum);
145 }
146
147 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0D) { // Channel after-touch
148
149 $channelnumber = ord(substr($trackdata, $eventsoffset++, 1));
150
151 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0E) { // Pitch wheel change (2000H is normal or no change)
152
153 $changeLSB = ord(substr($trackdata, $eventsoffset++, 1));
154 $changeMSB = ord(substr($trackdata, $eventsoffset++, 1));
155 $pitchwheelchange = (($changeMSB & 0x7F) << 7) & ($changeLSB & 0x7F);
156
157 } elseif (($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0F) && ($MIDIevents[$tracknumber][$eventid]['channel'] == 0x0F)) {
158
159 $METAeventCommand = ord(substr($trackdata, $eventsoffset++, 1));
160 $METAeventLength = ord(substr($trackdata, $eventsoffset++, 1));
161 $METAeventData = substr($trackdata, $eventsoffset, $METAeventLength);
162 $eventsoffset += $METAeventLength;
163 switch ($METAeventCommand) {
164 case 0x00: // Set track sequence number
165 $track_sequence_number = getid3_lib::BigEndian2Int(substr($METAeventData, 0, $METAeventLength));
166 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['seqno'] = $track_sequence_number;
167 break;
168
169 case 0x01: // Text: generic
170 $text_generic = substr($METAeventData, 0, $METAeventLength);
171 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['text'] = $text_generic;
172 $thisfile_midi['comments']['comment'][] = $text_generic;
173 break;
174
175 case 0x02: // Text: copyright
176 $text_copyright = substr($METAeventData, 0, $METAeventLength);
177 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['copyright'] = $text_copyright;
178 $thisfile_midi['comments']['copyright'][] = $text_copyright;
179 break;
180
181 case 0x03: // Text: track name
182 $text_trackname = substr($METAeventData, 0, $METAeventLength);
183 $thisfile_midi_raw['track'][$tracknumber]['name'] = $text_trackname;
184 break;
185
186 case 0x04: // Text: track instrument name
187 $text_instrument = substr($METAeventData, 0, $METAeventLength);
188 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['instrument'] = $text_instrument;
189 break;
190
191 case 0x05: // Text: lyrics
192 $text_lyrics = substr($METAeventData, 0, $METAeventLength);
193 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['lyrics'] = $text_lyrics;
194 if (!isset($thisfile_midi['lyrics'])) {
195 $thisfile_midi['lyrics'] = '';
196 }
197 $thisfile_midi['lyrics'] .= $text_lyrics."\n";
198 break;
199
200 case 0x06: // Text: marker
201 $text_marker = substr($METAeventData, 0, $METAeventLength);
202 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['marker'] = $text_marker;
203 break;
204
205 case 0x07: // Text: cue point
206 $text_cuepoint = substr($METAeventData, 0, $METAeventLength);
207 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['cuepoint'] = $text_cuepoint;
208 break;
209
210 case 0x2F: // End Of Track
211 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['EOT'] = $CumulativeDeltaTime;
212 break;
213
214 case 0x51: // Tempo: microseconds / quarter note
215 $CurrentMicroSecondsPerBeat = getid3_lib::BigEndian2Int(substr($METAeventData, 0, $METAeventLength));
216 if ($CurrentMicroSecondsPerBeat == 0) {
217 $ThisFileInfo['error'][] = 'Corrupt MIDI file: CurrentMicroSecondsPerBeat == zero';
218 return false;
219 }
220 $thisfile_midi_raw['events'][$tracknumber][$CumulativeDeltaTime]['us_qnote'] = $CurrentMicroSecondsPerBeat;
221 $CurrentBeatsPerMinute = (1000000 / $CurrentMicroSecondsPerBeat) * 60;
222 $MicroSecondsPerQuarterNoteAfter[$CumulativeDeltaTime] = $CurrentMicroSecondsPerBeat;
223 $TicksAtCurrentBPM = 0;
224 break;
225
226 case 0x58: // Time signature
227 $timesig_numerator = getid3_lib::BigEndian2Int($METAeventData{0});
228 $timesig_denominator = pow(2, getid3_lib::BigEndian2Int($METAeventData{1})); // $02 -> x/4, $03 -> x/8, etc
229 $timesig_32inqnote = getid3_lib::BigEndian2Int($METAeventData{2}); // number of 32nd notes to the quarter note
230 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_32inqnote'] = $timesig_32inqnote;
231 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_numerator'] = $timesig_numerator;
232 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_denominator'] = $timesig_denominator;
233 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_text'] = $timesig_numerator.'/'.$timesig_denominator;
234 $thisfile_midi['timesignature'][] = $timesig_numerator.'/'.$timesig_denominator;
235 break;
236
237 case 0x59: // Keysignature
238 $keysig_sharpsflats = getid3_lib::BigEndian2Int($METAeventData{0});
239 if ($keysig_sharpsflats & 0x80) {
240 // (-7 -> 7 flats, 0 ->key of C, 7 -> 7 sharps)
241 $keysig_sharpsflats -= 256;
242 }
243
245 $keysigs = array(-7=>'Cb', -6=>'Gb', -5=>'Db', -4=>'Ab', -3=>'Eb', -2=>'Bb', -1=>'F', 0=>'C', 1=>'G', 2=>'D', 3=>'A', 4=>'E', 5=>'B', 6=>'F#', 7=>'C#');
246 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_sharps'] = (($keysig_sharpsflats > 0) ? abs($keysig_sharpsflats) : 0);
247 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_flats'] = (($keysig_sharpsflats < 0) ? abs($keysig_sharpsflats) : 0);
248 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_minor'] = (bool) $keysig_majorminor;
249 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_text'] = $keysigs[$keysig_sharpsflats].' '.($thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_minor'] ? 'minor' : 'major');
250
251 // $keysigs[$keysig_sharpsflats] gets an int key (correct) - $keysigs["$keysig_sharpsflats"] gets a string key (incorrect)
252 $thisfile_midi['keysignature'][] = $keysigs[$keysig_sharpsflats].' '.((bool) $keysig_majorminor ? 'minor' : 'major');
253 break;
254
255 case 0x7F: // Sequencer specific information
256 $custom_data = substr($METAeventData, 0, $METAeventLength);
257 break;
258
259 default:
260 $ThisFileInfo['warning'][] = 'Unhandled META Event Command: '.$METAeventCommand;
261 break;
262 }
263
264 } else {
265
266 $ThisFileInfo['warning'][] = 'Unhandled MIDI Event ID: '.$MIDIevents[$tracknumber][$eventid]['eventid'].' + Channel ID: '.$MIDIevents[$tracknumber][$eventid]['channel'];
267
268 }
269 }
270 if (($tracknumber > 0) || (count($trackdataarray) == 1)) {
271 $thisfile_midi['totalticks'] = max($thisfile_midi['totalticks'], $CumulativeDeltaTime);
272 }
273 }
274 $previoustickoffset = null;
275
276 ksort($MicroSecondsPerQuarterNoteAfter);
277 foreach ($MicroSecondsPerQuarterNoteAfter as $tickoffset => $microsecondsperbeat) {
278 if (is_null($previoustickoffset)) {
279 $prevmicrosecondsperbeat = $microsecondsperbeat;
280 $previoustickoffset = $tickoffset;
281 continue;
282 }
283 if ($thisfile_midi['totalticks'] > $tickoffset) {
284
285 if ($thisfile_midi_raw['ticksperqnote'] == 0) {
286 $ThisFileInfo['error'][] = 'Corrupt MIDI file: ticksperqnote == zero';
287 return false;
288 }
289
290 $ThisFileInfo['playtime_seconds'] += (($tickoffset - $previoustickoffset) / $thisfile_midi_raw['ticksperqnote']) * ($prevmicrosecondsperbeat / 1000000);
291
292 $prevmicrosecondsperbeat = $microsecondsperbeat;
293 $previoustickoffset = $tickoffset;
294 }
295 }
296 if ($thisfile_midi['totalticks'] > $previoustickoffset) {
297
298 if ($thisfile_midi_raw['ticksperqnote'] == 0) {
299 $ThisFileInfo['error'][] = 'Corrupt MIDI file: ticksperqnote == zero';
300 return false;
301 }
302
303 $ThisFileInfo['playtime_seconds'] += (($thisfile_midi['totalticks'] - $previoustickoffset) / $thisfile_midi_raw['ticksperqnote']) * ($microsecondsperbeat / 1000000);
304
305 }
306 }
307
308 if ($ThisFileInfo['playtime_seconds'] > 0) {
309 $ThisFileInfo['bitrate'] = (($ThisFileInfo['avdataend'] - $ThisFileInfo['avdataoffset']) * 8) / $ThisFileInfo['playtime_seconds'];
310 }
311
312 if (!empty($thisfile_midi['lyrics'])) {
313 $thisfile_midi['comments']['lyrics'][] = $thisfile_midi['lyrics'];
314 }
315
316 return true;
317 }
BigEndian2Int($byteword, $synchsafe=false, $signed=false)
Definition: getid3.lib.php:234
GeneralMIDIinstrumentLookup($instrumentid)
Definition: module.audio.midi.php:319
GeneralMIDIpercussionLookup($instrumentid)
Definition: module.audio.midi.php:459
References getid3_lib\BigEndian2Int(), GeneralMIDIinstrumentLookup(), GeneralMIDIpercussionLookup(), and GETID3_FREAD_BUFFER_SIZE.

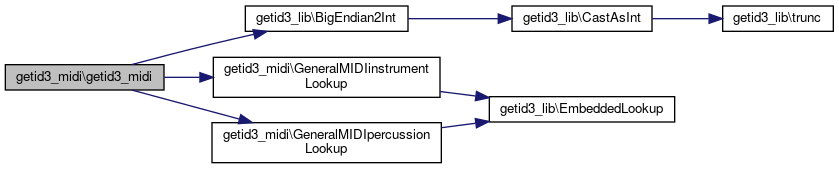

Here is the call graph for this function:
The documentation for this class was generated from the following file:
- Services/MediaObjects/getid3/getid3/module.audio.midi.php
