ilDataCollectionExporter Class Reference

Class ilDataCollectionExporter. More...

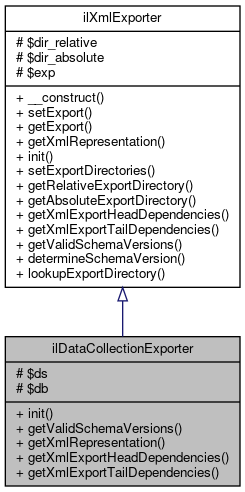

Inheritance diagram for ilDataCollectionExporter:

Collaboration diagram for ilDataCollectionExporter:

Public Member Functions
	init ()
	getValidSchemaVersions ($a_entity)
	getXmlRepresentation ($a_entity, $a_schema_version, $a_id)
	Get xml representation. More...
	getXmlExportHeadDependencies ($a_entity, $a_target_release, $a_ids)
	MOB/File fieldtypes objects are head dependencies They must be exported and imported first, so the new DC has the new IDs of those objects available. More...
	getXmlExportTailDependencies ($a_entity, $a_target_release, $a_ids)
	Get tail dependencies. More...
Public Member Functions inherited from ilXmlExporter
	__construct ()
	Constructor. More...
	setExport (ilExport $a_exp)
	Set export object. More...
	getExport ()
	Get export. More...
	getXmlRepresentation ($a_entity, $a_schema_version, $a_id)
	Get xml representation. More...
	init ()
	setExportDirectories ($a_dir_relative, $a_dir_absolute)
	Export directories. More...
	getRelativeExportDirectory ()
	Get relative export directory. More...
	getAbsoluteExportDirectory ()
	Get absolute export directory. More...
	getXmlExportHeadDependencies ($a_entity, $a_target_release, $a_ids)
	Get head dependencies. More...
	getXmlExportTailDependencies ($a_entity, $a_target_release, $a_ids)
	Get tail dependencies. More...
	getValidSchemaVersions ($a_entity)
	Returns schema versions that the component can export to. More...
	determineSchemaVersion ($a_entity, $a_target_release)
	Determine schema version. More...

Protected Attributes
	$ds
	$db
Protected Attributes inherited from ilXmlExporter
	$dir_relative
	$dir_absolute
	$exp

Additional Inherited Members
Static Public Member Functions inherited from ilXmlExporter
static	lookupExportDirectory ($a_obj_type, $a_obj_id, $a_export_type='xml', $a_entity="")
	export directory lookup More...

Detailed Description

Class ilDataCollectionExporter.

Author

Stefan Wanzenried sw@st.nosp@m.uder.nosp@m.-raim.nosp@m.ann..nosp@m.ch

Fabian Schmid fs@st.nosp@m.uder.nosp@m.-raim.nosp@m.ann..nosp@m.ch

Definition at line 14 of file class.ilDataCollectionExporter.php.

Member Function Documentation

getValidSchemaVersions()

ilDataCollectionExporter::getValidSchemaVersions

(

$a_entity

)

Parameters

string

$a_entity

Returns

array

Reimplemented from ilXmlExporter.

Definition at line 39 of file class.ilDataCollectionExporter.php.

                                                          {
                return array(
                        '4.5.0' => array(
                                'namespace' => 'http://www.ilias.de/Modules/DataCollection/dcl/4_5',
                                'xsd_file" => "ilias_dcl_4_5.xsd',
                                'uses_dataset' => true,
                                'min' => '4.5.0',
                                'max' => ''
                        )
                );
        }

getXmlExportHeadDependencies()

ilDataCollectionExporter::getXmlExportHeadDependencies	(		$a_entity,
			$a_target_release,
			$a_ids
	)

MOB/File fieldtypes objects are head dependencies They must be exported and imported first, so the new DC has the new IDs of those objects available.

Parameters

$a_entity
$a_target_release
$a_ids

Returns

array

Reimplemented from ilXmlExporter.

Definition at line 70 of file class.ilDataCollectionExporter.php.

                                                                                           {

                foreach ($a_ids as $id) {
                        $m_ids = ilObjMediaPool::getAllMobIds($id);
                        foreach ($m_ids as $m) {
                                $mob_ids[] = $m;
                        }
                }

                $dependencies = array(
                        ilDataCollectionDatatype::INPUTFORMAT_FILE => array(
                                'component' => 'Modules/File',
                                'entity' => 'file',
                                'ids' => array(),
                        ),
                        ilDataCollectionDatatype::INPUTFORMAT_MOB => array(
                                'component' => 'Services/MediaObjects',
                                'entity' => 'mob',
                                'ids' => array(),
                        ),
                );

                // Direct SQL query is faster than looping over objects
                $page_object_ids = array();
                foreach ($a_ids as $dcl_obj_id) {
                        $sql = "SELECT stloc2.value AS ext_id, f.`datatype_id` FROM il_dcl_stloc2_value AS stloc2 "
                                . " INNER JOIN il_dcl_record_field AS rf ON (rf.`id` = stloc2.`record_field_id`) "
                                . " INNER JOIN il_dcl_field AS f ON (rf.`field_id` = f.`id`) " . "INNER JOIN il_dcl_table AS t ON (t.`id` = f.`table_id`) "
                                . " WHERE t.`obj_id` = " . $this->db->quote($dcl_obj_id, 'integer') . " " . "AND f.datatype_id IN ("
                                . implode(',', array_keys($dependencies)) . ") AND stloc2.`value` IS NOT NULL";
                        $set = $this->db->query($sql);
                        while ($rec = $this->db->fetchObject($set)) {
                                $dependencies[$rec->datatype_id]['ids'][] = (int)$rec->ext_id;
                        }
                }

                // Return external dependencies/IDs if there are any
                $return = array();
                if (count($dependencies[ilDataCollectionDatatype::INPUTFORMAT_FILE]['ids'])) {
                        $return[] = $dependencies[ilDataCollectionDatatype::INPUTFORMAT_FILE];
                }
                if (count($dependencies[ilDataCollectionDatatype::INPUTFORMAT_MOB]['ids'])) {
                        $return[] = $dependencies[ilDataCollectionDatatype::INPUTFORMAT_MOB];
                }

                return $return;
        }

References ilObjMediaPool\getAllMobIds(), ilDataCollectionDatatype\INPUTFORMAT_FILE, and ilDataCollectionDatatype\INPUTFORMAT_MOB.

Here is the call graph for this function:

getXmlExportTailDependencies()

ilDataCollectionExporter::getXmlExportTailDependencies	(		$a_entity,
			$a_target_release,
			$a_ids
	)

Get tail dependencies.

Parameters

string	entity
string	target release
array	ids

Returns

array array of array with keys "component", entity", "ids"

Reimplemented from ilXmlExporter.

Definition at line 119 of file class.ilDataCollectionExporter.php.

                                                                                           {
                $page_object_ids = array();
                foreach ($a_ids as $dcl_obj_id) {
                        // If a DCL table has a detail view, we need to export the associated page objects!
                        $sql = "SELECT il_dcl_view.id AS page_obj_id FROM il_dcl_view " . " INNER JOIN il_dcl_table ON (il_dcl_table.id = il_dcl_view.table_id) "
                                . "WHERE il_dcl_table.obj_id = " . $this->db->quote($dcl_obj_id, 'integer') . " "
                                . "AND il_dcl_view.type=0 AND il_dcl_view.formtype=0";
                        $set = $this->db->query($sql);
                        while ($rec = $this->db->fetchObject($set)) {
                                $page_object_ids[] = "dclf:" . $rec->page_obj_id;
                        }
                }
                if (count($page_object_ids)) {
                        return array(
                                array(
                                        'component' => 'Services/COPage',
                                        'entity' => 'pg',
                                        'ids' => $page_object_ids,
                                )
                        );
                }

                return array();
        }

getXmlRepresentation()

ilDataCollectionExporter::getXmlRepresentation	(		$a_entity,
			$a_schema_version,
			$a_id
	)

Get xml representation.

Parameters

string	entity
string	schema version
string	id

Returns

string xml string

Reimplemented from ilXmlExporter.

Definition at line 52 of file class.ilDataCollectionExporter.php.

                                                                                  {
                ilUtil::makeDirParents($this->getAbsoluteExportDirectory());
                $this->ds->setExportDirectories($this->dir_relative, $this->dir_absolute);

                return $this->ds->getXmlRepresentation($a_entity, $a_schema_version, $a_id, '', true, true);
        }

References ilXmlExporter\getAbsoluteExportDirectory(), and ilUtil\makeDirParents().

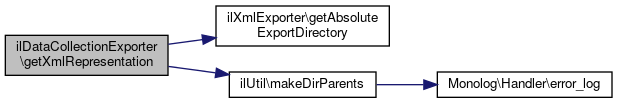

Here is the call graph for this function:

init()

ilDataCollectionExporter::init

(

)

Reimplemented from ilXmlExporter.

Definition at line 26 of file class.ilDataCollectionExporter.php.

                               {
                global $ilDB;
                $this->ds = new ilDataCollectionDataSet();
                $this->ds->setDSPrefix('ds');
                $this->db = $ilDB;
        }

References $ilDB.

Field Documentation

$db

ilDataCollectionExporter::$db

protected

Definition at line 23 of file class.ilDataCollectionExporter.php.

$ds

ilDataCollectionExporter::$ds

protected

Definition at line 19 of file class.ilDataCollectionExporter.php.

---

The documentation for this class was generated from the following file:

• Modules/DataCollection/classes/class.ilDataCollectionExporter.php
