ilDataCollectionDataSet Class Reference

DataCollection dataset class. More...

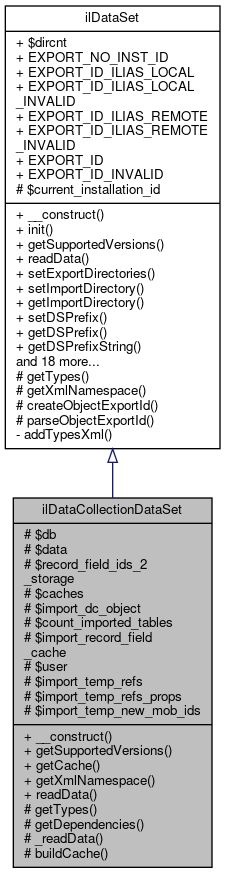

+ Inheritance diagram for ilDataCollectionDataSet:

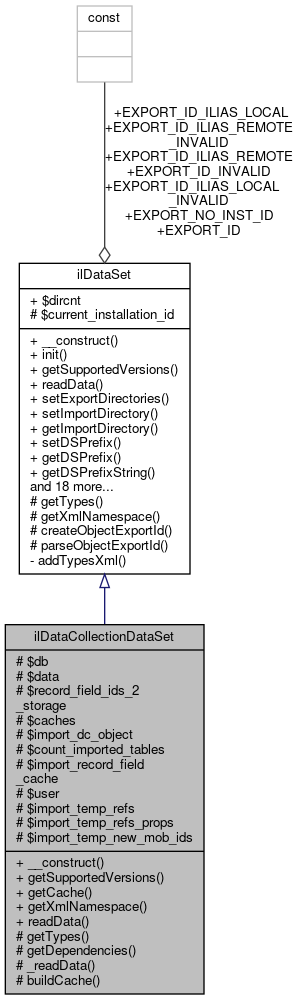

+ Collaboration diagram for ilDataCollectionDataSet:

Public Member Functions

 __construct ()

 getSupportedVersions ()

 getCache ($a_entity)
 Get cached data from a given entity. More...

 getXmlNamespace ($a_entity, $a_schema_version)

 readData ($a_entity, $a_version, $a_ids)
 Read data from Cache for a given entity and ID(s) More...

- Public Member Functions inherited from ilDataSet
 __construct ()
 Constructor. More...

 init ($a_entity, $a_schema_version)
 Init. More...

 getSupportedVersions ()
 Get supported version. More...

 readData ($a_entity, $a_version, $a_ids)
 Read data from DB. More...

 setExportDirectories ($a_relative, $a_absolute)
 Set export directories. More...

 setImportDirectory ($a_val)
 Set import directory. More...

 getImportDirectory ()
 Get import directory. More...

 setDSPrefix ($a_val)
 Set XML dataset namespace prefix. More...

 getDSPrefix ()
 Get XML dataset namespace prefix. More...

 getDSPrefixString ()

 getDirectDataFromQuery ($a_query, $a_convert_to_leading_upper=true)
 Get data from query.This is a standard procedure, all db field names are directly mapped to abstract fields. More...

 convertToLeadingUpper ($a_str)
 Make xyz_abc a XyzAbc string. More...

 getJsonRepresentation ()
 Get json representation. More...

 getXmlRepresentation ($a_entity, $a_schema_version, $a_ids, $a_field="", $a_omit_header=false, $a_omit_types=false)
 Get xml representation <dataset install_id="123" install_url="..."> <types entity="table_name" version="4.0.1"> <ftype name="field_1" type="text"> <ftype name="field_2" type="date"> <ftype name="field_3" type="integer"> </types> <types ...> ... More...

 addRecordsXml ($a_writer, $a_prefixes, $a_entity, $a_schema_version, $a_ids, $a_field="")
 Add records xml. More...

 afterXmlRecordWriting ($a_entity, $a_version, $a_set)
 After xml record writing hook record. More...

 getNamespaces (&$namespaces, $a_entity, $a_schema_version)
 Get xml namespaces. More...

 getXmlRecord ($a_entity, $a_version, $a_set)
 Get xml record for version. More...

 getJsonRecord ($a_set)
 Get json record for version. More...

 getXmlTypes ($a_entity, $a_version)
 Get xml types. More...

 getJsonTypes ($a_entity, $a_version)
 Get json types. More...

 getXMLEntityName ($a_entity, $a_version)
 Get entity name for xml (may be overwritten) More...

 getXMLEntityTag ($a_entity, $a_schema_version)
 Get entity tag. More...

 getJsonEntityName ($a_entity, $a_version)
 Get entity name for json (may be overwritten) More...

 setImport ($a_val)
 Set import object. More...

 getImport ()
 Get import object. More...

 setCurrentInstallationId ($a_val)
 Set current installation id. More...

 getCurrentInstallationId ()
 Get current installation id. More...


Protected Member Functions

 getTypes ($a_entity, $a_version)
 Map XML attributes of entities to datatypes (text, integer...) More...

 getDependencies ($a_entity, $a_version, $a_rec, $a_ids)
 Return dependencies form entities to other entities (in our case these are all the DB relations) More...

 _readData ($a_entity, $a_ids)
 Build data array, data is read from cache except dcl object itself. More...

 buildCache ($a_entity, $set)
 Helper method to build cache for data of all entities. More...

- Protected Member Functions inherited from ilDataSet
 getTypes ($a_entity, $a_version)
 Get (abstract) types for (abstract) field names. More...

 getXmlNamespace ($a_entity, $a_schema_version)
 Get xml namespace. More...

 createObjectExportId ($a_type, $a_id)
 Build ilias export id. More...

 parseObjectExportId ($a_id, $a_fallback_id=NULL)
 Parse export id. More...


Protected Attributes

 $db

 $data = array()

 $record_field_ids_2_storage = array()

 $caches

 $import_dc_object

 $count_imported_tables = 0

 $import_record_field_cache = array()

 $user

 $import_temp_refs = array()

 $import_temp_refs_props = array()

 $import_temp_new_mob_ids = array()

- Protected Attributes inherited from ilDataSet
 $current_installation_id = ""


Additional Inherited Members

- Data Fields inherited from ilDataSet
 $dircnt

const EXPORT_NO_INST_ID = 1

const EXPORT_ID_ILIAS_LOCAL = 2

const EXPORT_ID_ILIAS_LOCAL_INVALID = 3

const EXPORT_ID_ILIAS_REMOTE = 4

const EXPORT_ID_ILIAS_REMOTE_INVALID = 5

const EXPORT_ID = 6

const EXPORT_ID_INVALID = 7


Detailed Description

DataCollection dataset class.

Author
Stefan Wanzenried sw@st.nosp@m.uder.nosp@m.-raim.nosp@m.ann..nosp@m.ch
Fabian Schmid fs@st.nosp@m.uder.nosp@m.-raim.nosp@m.ann..nosp@m.ch

Definition at line 14 of file class.ilDataCollectionDataSet.php.

Constructor & Destructor Documentation

◆ __construct()

ilDataCollectionDataSet::__construct ( )

Definition at line 94 of file class.ilDataCollectionDataSet.php.

References $ilDB, and $ilUser.

94  {
95  global $ilDB, $ilUser;
96  parent::__construct();
97  $this->db = $ilDB;
98  $this->user = $ilUser;
99  }
$ilUser
global $ilUser
Definition: imgupload.php:15
$ilDB
global $ilDB
Definition: storeScorm2004.php:16

Member Function Documentation

◆ _readData()

ilDataCollectionDataSet::_readData (   $a_entity,
  $a_ids
)
protected

Build data array, data is read from cache except dcl object itself.

Parameters
$a_entity
$a_ids

Definition at line 619 of file class.ilDataCollectionDataSet.php.

References $data, ilObject\_lookupType(), and getCache().

Referenced by readData().

619  {
620  switch ($a_entity) {
621  case 'dcl':
622  foreach ($a_ids as $dcl_id) {
623  if (ilObject::_lookupType($dcl_id) == 'dcl') {
624  $obj = new ilObjDataCollection($dcl_id, false);
625  $data = array(
626  'id' => $dcl_id,
627  'title' => $obj->getTitle(),
628  'description' => $obj->getDescription(),
629  'main_table_id' => $obj->getMainTableId(),
630  'is_online' => $obj->getOnline(),
631  'rating' => $obj->getRating(),
632  'public_notes' => $obj->getPublicNotes(),
633  'approval' => $obj->getApproval(),
634  'notification' => $obj->getNotification(),
635  );
636  $this->caches['dcl'][$dcl_id] = $data;
637  $this->data[] = $data;
638  }
639  }
640  break;
641  default:
642  $data = $this->getCache($a_entity);
643  foreach ($a_ids as $id) {
644  $this->data[] = $data[$id];
645  }
646  }
647  }
ilDataCollectionDataSet\getCache
getCache($a_entity)
Get cached data from a given entity.
Definition: class.ilDataCollectionDataSet.php:118
ilObject\_lookupType
static _lookupType($a_id, $a_reference=false)
lookup object type
Definition: class.ilObject.php:1196
ilObjDataCollection
Class ilObjDataCollection.
Definition: class.ilObjDataCollection.php:19

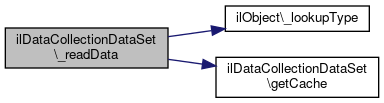

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ buildCache()

ilDataCollectionDataSet::buildCache (   $a_entity,
  $set
)
protected

Helper method to build cache for data of all entities.

Parameters
$a_entity
Object$setilDB->query() object

Definition at line 659 of file class.ilDataCollectionDataSet.php.

References $data, and getTypes().

Referenced by getDependencies().

659  {
660  $fields = array_keys($this->getTypes($a_entity, ''));
661  $ids = array();
662  while ($rec = $this->db->fetchObject($set)) {
663  $data = array();
664  foreach ($fields as $field) {
665  $data[$field] = $rec->{$field};
666  }
667  // il_dcl_viewdefinition is the only table that has no internal id, so we build primary from view_id AND field columns
668  $id = ($a_entity == 'il_dcl_viewdefinition') ? $rec->view_id . '_' . $rec->field : $rec->id;
669  $this->caches[$a_entity][$id] = $data;
670  $ids[] = $id;
671  }
672
673  return $ids;
674  }
ilDataCollectionDataSet\getTypes
getTypes($a_entity, $a_version)
Map XML attributes of entities to datatypes (text, integer...)
Definition: class.ilDataCollectionDataSet.php:400
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getCache()

ilDataCollectionDataSet::getCache (   $a_entity)

Get cached data from a given entity.

Parameters
$a_entity
Returns
mixed
Exceptions
ilException

Definition at line 118 of file class.ilDataCollectionDataSet.php.

Referenced by _readData().

118  {
119  if (!in_array($a_entity, array_keys($this->caches))) {
120  throw new ilException("Entity '$a_entity' does not exist in Cache");
121  }
122
123  return $this->caches[$a_entity];
124  }
ilException
Base class for ILIAS Exception handling.
Definition: class.ilException.php:34
+ Here is the caller graph for this function:

◆ getDependencies()

ilDataCollectionDataSet::getDependencies (   $a_entity,
  $a_version,
  $a_rec,
  $a_ids
)
protected

Return dependencies form entities to other entities (in our case these are all the DB relations)

Parameters
$a_entity
$a_version
$a_rec
$a_ids
Returns
array

Definition at line 511 of file class.ilDataCollectionDataSet.php.

References buildCache().

511  {
512  if (!$a_rec && !$a_ids) {
513  return false;
514  }
515  switch ($a_entity) {
516  case 'dcl':
517  $set = $this->db->query('SELECT * FROM il_dcl_table WHERE obj_id = ' . $this->db->quote($a_rec['id'], 'integer') . ' ORDER BY id');
518  $ids = $this->buildCache('il_dcl_table', $set);
519
520  return array(
521  'il_dcl_table' => array( 'ids' => $ids ),
522  );
523  break;
524  case 'il_dcl_table':
525  $set = $this->db->query('SELECT * FROM il_dcl_record WHERE table_id = ' . $this->db->quote($a_rec['id'], 'integer'));
526  $ids_records = $this->buildCache('il_dcl_record', $set);
527  $set = $this->db->query('SELECT * FROM il_dcl_field WHERE table_id = ' . $this->db->quote($a_rec['id'], 'integer'));
528  $ids_fields = $this->buildCache('il_dcl_field', $set);
529  $set = $this->db->query('SELECT * FROM il_dcl_view WHERE table_id = ' . $this->db->quote($a_rec['id'], 'integer'));
530  $ids_views = $this->buildCache('il_dcl_view', $set);
531
532  return array(
533  'il_dcl_field' => array( 'ids' => $ids_fields ),
534  'il_dcl_record' => array( 'ids' => $ids_records ),
535  'il_dcl_view' => array( 'ids' => $ids_views ),
536  );
537  case 'il_dcl_field':
538  $set = $this->db->query('SELECT * FROM il_dcl_field_prop WHERE field_id = ' . $this->db->quote($a_rec['id'], 'integer'));
539  $ids = $this->buildCache('il_dcl_field_prop', $set);
540
541  return array(
542  'il_dcl_field_prop' => array( 'ids' => $ids ),
543  );
544  case 'il_dcl_record':
545  $sql = 'SELECT rf.*, d.storage_location FROM il_dcl_record_field AS rf' . ' INNER JOIN il_dcl_field AS f ON (f.id = rf.field_id)'
546  . ' INNER JOIN il_dcl_datatype AS d ON (f.datatype_id = d.id) ' . ' WHERE rf.record_id = '
547  . $this->db->quote($a_rec['id'], 'integer');
548  $set = $this->db->query($sql);
549  $ids = $this->buildCache('il_dcl_record_field', $set);
550
551  $set = $this->db->query($sql);
552  while ($rec = $this->db->fetchObject($set)) {
553  $this->record_field_ids_2_storage[$rec->id] = $rec->storage_location;
554  }
555  // Also build a cache of all values, no matter in which table they are (il_dcl_stloc(1|2|3)_value)
556  $sql =
557  'SELECT rf.id AS record_field_id, st1.value AS value1, st2.value AS value2, st3.value AS value3 FROM il_dcl_record_field AS rf '
558  . 'LEFT JOIN il_dcl_stloc1_value AS st1 ON (st1.record_field_id = rf.id) '
559  . 'LEFT JOIN il_dcl_stloc2_value AS st2 ON (st2.record_field_id = rf.id) '
560  . 'LEFT JOIN il_dcl_stloc3_value AS st3 ON (st3.record_field_id = rf.id) ' . 'WHERE rf.record_id = '
561  . $this->db->quote($a_rec['id'], 'integer');
562  $set = $this->db->query($sql);
563
564  while ($rec = $this->db->fetchObject($set)) {
565  $stloc = $this->record_field_ids_2_storage[$rec->record_field_id];
566  $value = "value{$stloc}";
567  // Save reocrd field id. Internal ID is not used currently
568  $this->caches["il_dcl_stloc{$stloc}_value"][$rec->record_field_id] = array(
569  'record_field_id' => $rec->record_field_id,
570  'value' => $rec->{$value}
571  );
572  }
573
574  return array(
575  'il_dcl_record_field' => array( 'ids' => $ids )
576  );
577  case 'il_dcl_view':
578  $set = $this->db->query('SELECT * FROM il_dcl_viewdefinition WHERE view_id = ' . $this->db->quote($a_rec['id'], 'integer'));
579  $ids = $this->buildCache('il_dcl_viewdefinition', $set);
580
581  return array(
582  'il_dcl_viewdefinition' => array( 'ids' => $ids )
583  );
584  case 'il_dcl_record_field':
585  $record_field_id = $a_rec['id'];
586  $storage_loc = $this->record_field_ids_2_storage[$record_field_id];
587
588  return array(
589  "il_dcl_stloc{$storage_loc}_value" => array( 'ids' => array( $record_field_id ) )
590  );
591  }
592
593  return false;
594  }
ilDataCollectionDataSet\buildCache
buildCache($a_entity, $set)
Helper method to build cache for data of all entities.
Definition: class.ilDataCollectionDataSet.php:659
+ Here is the call graph for this function:

◆ getSupportedVersions()

ilDataCollectionDataSet::getSupportedVersions ( )
Returns
array

Definition at line 105 of file class.ilDataCollectionDataSet.php.

105  {
106  return array( '4.5.0' );
107  }

◆ getTypes()

ilDataCollectionDataSet::getTypes (   $a_entity,
  $a_version
)
protected

Map XML attributes of entities to datatypes (text, integer...)

Parameters
string$a_entity
string$a_version
Returns
array

Definition at line 400 of file class.ilDataCollectionDataSet.php.

Referenced by buildCache().

400  {
401  switch ($a_entity) {
402  case 'dcl':
403  return array(
404  "id" => "integer",
405  "title" => "text",
406  "description" => "text",
407  'main_table_id' => 'integer',
408  'is_online' => 'integer',
409  'rating' => 'integer',
410  'public_notes' => 'integer',
411  'approval' => 'integer',
412  'notification' => 'integer',
413  );
414  case 'il_dcl_table':
415  return array(
416  'id' => 'integer',
417  'obj_id' => 'integer',
418  'title' => 'text',
419  'add_perm' => 'integer',
420  'edit_perm' => 'integer',
421  'delete_perm' => 'integer',
422  'edit_by_owner' => 'integer',
423  'limited' => 'integer',
424  'limit_start' => 'text',
425  'limit_end' => 'text',
426  'is_visible' => 'integer',
427  'export_enabled' => 'integer',
428  'default_sort_field_id' => 'text',
429  'default_sort_field_order' => 'text',
430  'description' => 'text',
431  'public_comments' => 'integer',
432  'view_own_records_perm' => 'integer',
433  );
434  case 'il_dcl_field':
435  return array(
436  'id' => 'integer',
437  'table_id' => 'integer',
438  'title' => 'text',
439  'description' => 'text',
440  'datatype_id' => 'integer',
441  'required' => 'integer',
442  'is_unique' => 'integer',
443  'is_locked' => 'integer',
444  );
445  case 'il_dcl_field_prop':
446  return array(
447  'id' => 'integer',
448  'field_id' => 'integer',
449  'datatype_prop_id' => 'integer',
450  'value' => 'integer',
451  );
452  case 'il_dcl_record':
453  return array(
454  'id' => 'integer',
455  'table_id' => 'integer',
456  );
457  case 'il_dcl_record_field':
458  return array(
459  'id' => 'integer',
460  'record_id' => 'integer',
461  'field_id' => 'integer',
462  );
463  case 'il_dcl_stloc1_value':
464  return array(
465  'id' => 'integer',
466  'record_field_id' => 'integer',
467  'value' => 'text',
468  );
469  case 'il_dcl_stloc2_value':
470  return array(
471  'id' => 'integer',
472  'record_field_id' => 'integer',
473  'value' => 'text',
474  );
475  case 'il_dcl_stloc3_value':
476  return array(
477  'id' => 'integer',
478  'record_field_id' => 'integer',
479  'value' => 'text',
480  );
481  case 'il_dcl_view':
482  return array(
483  'id' => 'integer',
484  'table_id' => 'integer',
485  'type' => 'integer',
486  'formtype' => 'integer',
487  );
488  case 'il_dcl_viewdefinition':
489  return array(
490  'view_id' => 'integer',
491  'field' => 'string',
492  'field_order' => 'integer',
493  'is_set' => 'integer',
494  );
495  default:
496  return array();
497  }
498  }
+ Here is the caller graph for this function:

◆ getXmlNamespace()

ilDataCollectionDataSet::getXmlNamespace (   $a_entity,
  $a_schema_version
)
Parameters
string$a_entity
string$a_schema_version
Returns
string

Definition at line 133 of file class.ilDataCollectionDataSet.php.

References $row, ilObjMediaObject\_saveUsage(), ilDataCollectionCache\getFieldCache(), ilObjectFactory\getInstanceByObjId(), ilImportMapping\getMapping(), ilDataCollectionCache\getRecordCache(), ilDataCollectionCache\getTableCache(), IL_CAL_UNIX, ilDataCollectionDatatype\INPUTFORMAT_FILE, ilDataCollectionDatatype\INPUTFORMAT_ILIAS_REF, ilDataCollectionDatatype\INPUTFORMAT_MOB, ilDataCollectionDatatype\INPUTFORMAT_REFERENCE, ilDataCollectionField\PROPERTYID_N_REFERENCE, and ilDataCollectionField\PROPERTYID_REFERENCE.

133  {
134  return 'http://www.ilias.de/xml/Modules/DataCollection/' . $a_entity;
135  }
+ Here is the call graph for this function:

◆ readData()

ilDataCollectionDataSet::readData (   $a_entity,
  $a_version,
  $a_ids
)

Read data from Cache for a given entity and ID(s)

Parameters
string$a_entity
string$a_version
array$a_idsone or multiple ids

Definition at line 604 of file class.ilDataCollectionDataSet.php.

References _readData().

604  {
605  $this->data = array();
606  if (!is_array($a_ids)) {
607  $a_ids = array( $a_ids );
608  }
609  $this->_readData($a_entity, $a_ids);
610  }
ilDataCollectionDataSet\_readData
_readData($a_entity, $a_ids)
Build data array, data is read from cache except dcl object itself.
Definition: class.ilDataCollectionDataSet.php:619

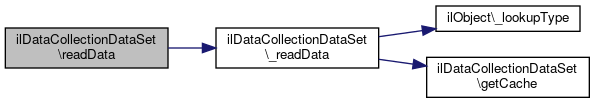

+ Here is the call graph for this function:

Field Documentation

◆ $caches

ilDataCollectionDataSet::$caches
protected
Initial value:
= array(
'dcl' => array(),
'il_dcl_table' => array(),
'il_dcl_field' => array(),
'il_dcl_field_prop' => array(),
'il_dcl_record' => array(),
'il_dcl_record_field' => array(),
'il_dcl_stloc1_value' => array(),
'il_dcl_stloc2_value' => array(),
'il_dcl_stloc3_value' => array(),
'il_dcl_view' => array(),
'il_dcl_viewdefinition' => array(),
)

Definition at line 49 of file class.ilDataCollectionDataSet.php.

◆ $count_imported_tables

ilDataCollectionDataSet::$count_imported_tables = 0
protected

Definition at line 69 of file class.ilDataCollectionDataSet.php.

◆ $data

ilDataCollectionDataSet::$data = array()
protected

Definition at line 23 of file class.ilDataCollectionDataSet.php.

Referenced by _readData(), and buildCache().

◆ $db

ilDataCollectionDataSet::$db
protected

Definition at line 19 of file class.ilDataCollectionDataSet.php.

◆ $import_dc_object

ilDataCollectionDataSet::$import_dc_object
protected

Definition at line 65 of file class.ilDataCollectionDataSet.php.

◆ $import_record_field_cache

ilDataCollectionDataSet::$import_record_field_cache = array()
protected

Definition at line 75 of file class.ilDataCollectionDataSet.php.

◆ $import_temp_new_mob_ids

ilDataCollectionDataSet::$import_temp_new_mob_ids = array()
protected

Definition at line 91 of file class.ilDataCollectionDataSet.php.

◆ $import_temp_refs

ilDataCollectionDataSet::$import_temp_refs = array()
protected

Definition at line 83 of file class.ilDataCollectionDataSet.php.

◆ $import_temp_refs_props

ilDataCollectionDataSet::$import_temp_refs_props = array()
protected

Definition at line 87 of file class.ilDataCollectionDataSet.php.

◆ $record_field_ids_2_storage

ilDataCollectionDataSet::$record_field_ids_2_storage = array()
protected

Definition at line 29 of file class.ilDataCollectionDataSet.php.

◆ $user

ilDataCollectionDataSet::$user
protected

Definition at line 79 of file class.ilDataCollectionDataSet.php.

The documentation for this class was generated from the following file:
