A dataset contains in data in a common structure that can be shared and transformed for different purposes easily, examples. More...

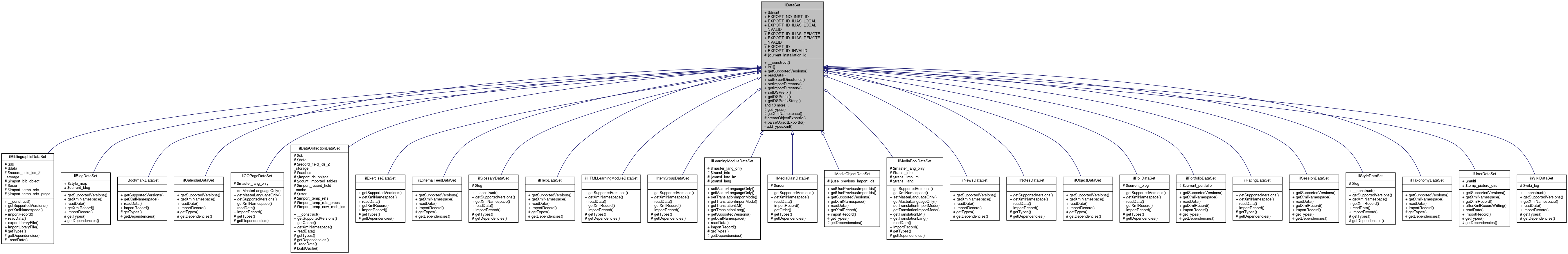

Inheritance diagram for ilDataSet:

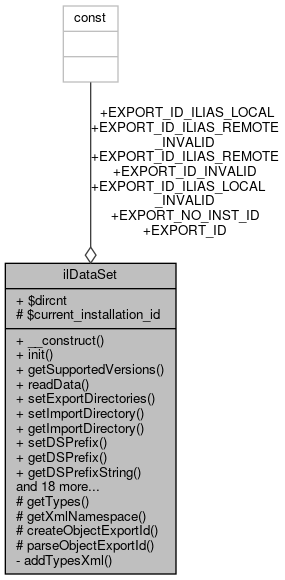

Collaboration diagram for ilDataSet:

Public Member Functions
	__construct ()
	Constructor. More...

	init ($a_entity, $a_schema_version)
	Init. More...

	getSupportedVersions ()
	Get supported version. More...

	readData ($a_entity, $a_version, $a_ids)
	Read data from DB. More...

	setExportDirectories ($a_relative, $a_absolute)
	Set export directories. More...

	setImportDirectory ($a_val)
	Set import directory. More...

	getImportDirectory ()
	Get import directory. More...

	setDSPrefix ($a_val)
	Set XML dataset namespace prefix. More...

	getDSPrefix ()
	Get XML dataset namespace prefix. More...

	getDSPrefixString ()

	getDirectDataFromQuery ($a_query, $a_convert_to_leading_upper=true)
	Get data from query.This is a standard procedure, all db field names are directly mapped to abstract fields. More...

	convertToLeadingUpper ($a_str)
	Make xyz_abc a XyzAbc string. More...

	getJsonRepresentation ()
	Get json representation. More...

	getXmlRepresentation ($a_entity, $a_schema_version, $a_ids, $a_field="", $a_omit_header=false, $a_omit_types=false)
	Get xml representation <dataset install_id="123" install_url="..."> <types entity="table_name" version="4.0.1"> <ftype name="field_1" type="text" > <ftype name="field_2" type="date" > <ftype name="field_3" type="integer" > </types> <types ...> ... </types> <set entity="table_name"> <rec> <field_1>content</field_1> <field_2>my_date</field_2> <field_3>my_number</field_3> </rec> ... </set> </dataset> More...

	addRecordsXml ($a_writer, $a_prefixes, $a_entity, $a_schema_version, $a_ids, $a_field="")
	Add records xml. More...

	afterXmlRecordWriting ($a_entity, $a_version, $a_set)
	After xml record writing hook record. More...

	getNamespaces (&$namespaces, $a_entity, $a_schema_version)
	Get xml namespaces. More...

	getXmlRecord ($a_entity, $a_version, $a_set)
	Get xml record for version. More...

	getJsonRecord ($a_set)
	Get json record for version. More...

	getXmlTypes ($a_entity, $a_version)
	Get xml types. More...

	getJsonTypes ($a_entity, $a_version)
	Get json types. More...

	getXMLEntityName ($a_entity, $a_version)
	Get entity name for xml (may be overwritten) More...

	getXMLEntityTag ($a_entity, $a_schema_version)
	Get entity tag. More...

	getJsonEntityName ($a_entity, $a_version)
	Get entity name for json (may be overwritten) More...

	setImport ($a_val)
	Set import object. More...

	getImport ()
	Get import object. More...

	setCurrentInstallationId ($a_val)
	Set current installation id. More...

	getCurrentInstallationId ()
	Get current installation id. More...

Data Fields
	$dircnt

const	EXPORT_NO_INST_ID = 1

const	EXPORT_ID_ILIAS_LOCAL = 2

const	EXPORT_ID_ILIAS_LOCAL_INVALID = 3

const	EXPORT_ID_ILIAS_REMOTE = 4

const	EXPORT_ID_ILIAS_REMOTE_INVALID = 5

const	EXPORT_ID = 6

const	EXPORT_ID_INVALID = 7

Protected Member Functions
	getTypes ($a_entity, $a_version)
	Get (abstract) types for (abstract) field names. More...

	getXmlNamespace ($a_entity, $a_schema_version)
	Get xml namespace. More...

	createObjectExportId ($a_type, $a_id)
	Build ilias export id. More...

	parseObjectExportId ($a_id, $a_fallback_id=NULL)
	Parse export id. More...

Protected Attributes
	$current_installation_id = ""

Private Member Functions
	addTypesXml ($a_writer, $a_entity, $a_schema_version)
	Add types to xml writer. More...

Detailed Description

A dataset contains in data in a common structure that can be shared and transformed for different purposes easily, examples.

transform associative arrays into (set-)xml and back (e.g. for import/export)
transform assiciative arrays into json and back (e.g. for ajax requests)

The general structure is:

entity name (many times this corresponds to a table name)
structure (this is a set of field names and types pairs) currently supported types: text, integer, timestamp planned: date, time, clob types correspond to db types, see http://www.ilias.de/docu/goto.php?target=pg_25354_42&client_id=docu
records (similar to records of a database query; associative arrays)

Author: Alex Killing alex..nosp@m.kill.nosp@m.ing@g.nosp@m.mx.d.nosp@m.e

Version: $Id$

Definition at line 24 of file class.ilDataSet.php.

Constructor & Destructor Documentation

◆ __construct()

ilDataSet::__construct ( )

Constructor.

Reimplemented in ilBibliographicDataSet, ilDataCollectionDataSet, ilGlossaryDataSet, ilWikiDataSet, and ilStyleDataSet.

Definition at line 41 of file class.ilDataSet.php.

        {
                $this->ds_log = ilLoggerFactory::getLogger('ds');
        }

References ilLoggerFactory\getLogger().

Here is the call graph for this function:

Member Function Documentation

◆ addRecordsXml()

ilDataSet::addRecordsXml	(	$a_writer,
		$a_prefixes,
		$a_entity,
		$a_schema_version,
		$a_ids,
		$a_field = `""`
	)

Add records xml.

Parameters

return

Definition at line 314 of file class.ilDataSet.php.

        {
                $types = $this->getXmlTypes($a_entity, $a_schema_version);

                $this->ds_log->debug("...read data");
                $this->readData($a_entity, $a_schema_version, $a_ids, $a_field);
                $this->ds_log->debug("...data: ".print_r($this->data, true));
                if (is_array($this->data))
                {
                        foreach ($this->data as $d)
                        {
                                $a_writer->xmlStartTag($this->getDSPrefixString()."Rec",
                                        array("Entity" => $this->getXmlEntityName($a_entity, $a_schema_version)));

                                // entity tag
                                $a_writer->xmlStartTag($this->getXmlEntityTag($a_entity, $a_schema_version));

                                $rec = $this->getXmlRecord($a_entity, $a_schema_version, $d);
                                foreach ($rec as $f => $c)
                                {
                                        switch ($types[$f])
                                        {
                                                case "directory":
                                                        if ($this->absolute_export_dir != "" && $this->relative_export_dir != "")
                                                        {
                                                                ilUtil::makeDirParents($this->absolute_export_dir."/dsDir_".$this->dircnt);
                                                                ilUtil::rCopy($c, $this->absolute_export_dir."/dsDir_".$this->dircnt);
//echo "<br>copy-".$c."-".$this->absolute_export_dir."/dsDir_".$this->dircnt."-";
                                                                $c = $this->relative_export_dir."/dsDir_".$this->dircnt;
                                                                $this->dircnt++;
                                                        }
                                                        break;
                                        }
                                        // this changes schema/dtd
                                        //$a_writer->xmlElement($a_prefixes[$a_entity].":".$f,
                                        //      array(), $c);
                                        $a_writer->xmlElement($f, array(), $c);
                                }

                                $a_writer->xmlEndTag($this->getXmlEntityTag($a_entity, $a_schema_version));

                                $a_writer->xmlEndTag($this->getDSPrefixString()."Rec");

                                $this->afterXmlRecordWriting($a_entity, $a_schema_version, $d);

                                // foreach record records of dependent entities
                                $this->ds_log->debug("...get dependencies");
                                $deps = $this->getDependencies($a_entity, $a_schema_version, $rec, $a_ids);
                                $this->ds_log->debug("...dependencies: ".print_r($deps, true));
                                if (is_array($deps))
                                {
                                        foreach ($deps as $dp => $par)
                                        {
                                                $this->addRecordsXml($a_writer, $a_prefixes, $dp, $a_schema_version, $par["ids"], $par["field"]);
                                        }
                                }
                        }
                }
                else if ($this->data === false)
                {
                        // false -> add records of dependent entities (no record)
                        $this->ds_log->debug("...get dependencies (no record)");
                        $deps = $this->getDependencies($a_entity, $a_schema_version, null, $a_ids);
                        if (is_array($deps))
                        {
                                foreach ($deps as $dp => $par)
                                {
                                        $this->addRecordsXml($a_writer, $a_prefixes, $dp, $a_schema_version, $par["ids"], $par["field"]);
                                }
                        }
                }
        }

References $d, $dircnt, addRecordsXml(), afterXmlRecordWriting(), getDSPrefixString(), getXmlRecord(), getXmlTypes(), ilUtil\makeDirParents(), ilUtil\rCopy(), and readData().

Referenced by addRecordsXml(), and getXmlRepresentation().

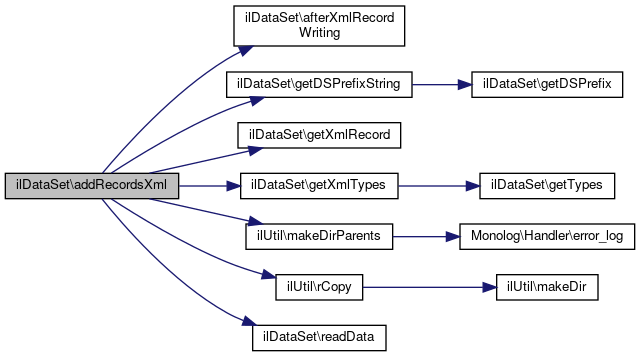

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addTypesXml()

ilDataSet::addTypesXml	(	$a_writer,
		$a_entity,
		$a_schema_version
	)

private

Add types to xml writer.

Parameters

Definition at line 402 of file class.ilDataSet.php.

        {
                $types = $this->getXmlTypes($a_entity, $a_schema_version);

                // add types of current entity
                if (is_array($types))
                {
                        $a_writer->xmlStartTag($this->getDSPrefixString()."Types",
                                array("Entity" => $this->getXmlEntityName($a_entity, $a_schema_version),
                                        "SchemaVersion" => $a_schema_version));
                        foreach ($this->getXmlTypes($a_entity, $a_schema_version) as $f => $t)
                        {
                                $a_writer->xmlElement($this->getDSPrefixString().'FieldType',
                                        array("Name" => $f, "Type" => $t));
                        }
                        $a_writer->xmlEndTag($this->getDSPrefixString()."Types");
                }

                // add types of dependent entities
                $deps = $this->getDependencies($a_entity, $a_schema_version, null, null);
                if (is_array($deps))
                {
                        foreach ($deps as $dp => $w)
                        {
                                $this->addTypesXml($a_writer, $dp, $a_schema_version);
                        }
                }

        }

References $t, $w, addTypesXml(), getDSPrefixString(), and getXmlTypes().

Referenced by addTypesXml(), and getXmlRepresentation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ afterXmlRecordWriting()

ilDataSet::afterXmlRecordWriting	(	$a_entity,
		$a_version,
		$a_set
	)

After xml record writing hook record.

Parameters

return

Reimplemented in ilUserDataSet.

Definition at line 393 of file class.ilDataSet.php.

394 {

395 }

Referenced by addRecordsXml().

Here is the caller graph for this function:

◆ convertToLeadingUpper()

ilDataSet::convertToLeadingUpper ( $a_str )

Make xyz_abc a XyzAbc string.

Parameters

return

Definition at line 192 of file class.ilDataSet.php.

        {
                $a_str = strtoupper(substr($a_str, 0, 1)).substr($a_str, 1);
                while (is_int($pos = strpos($a_str, "_")))
                {
                        $a_str = substr($a_str, 0, $pos).
                                strtoupper(substr($a_str, $pos+1, 1)).
                                substr($a_str, $pos+2);
                }
                return $a_str;
        }

Referenced by getDirectDataFromQuery(), getXMLEntityTag(), ilUserDataSet\importRecord(), ilLearningModuleDataSet\readData(), and ilMediaPoolDataSet\readData().

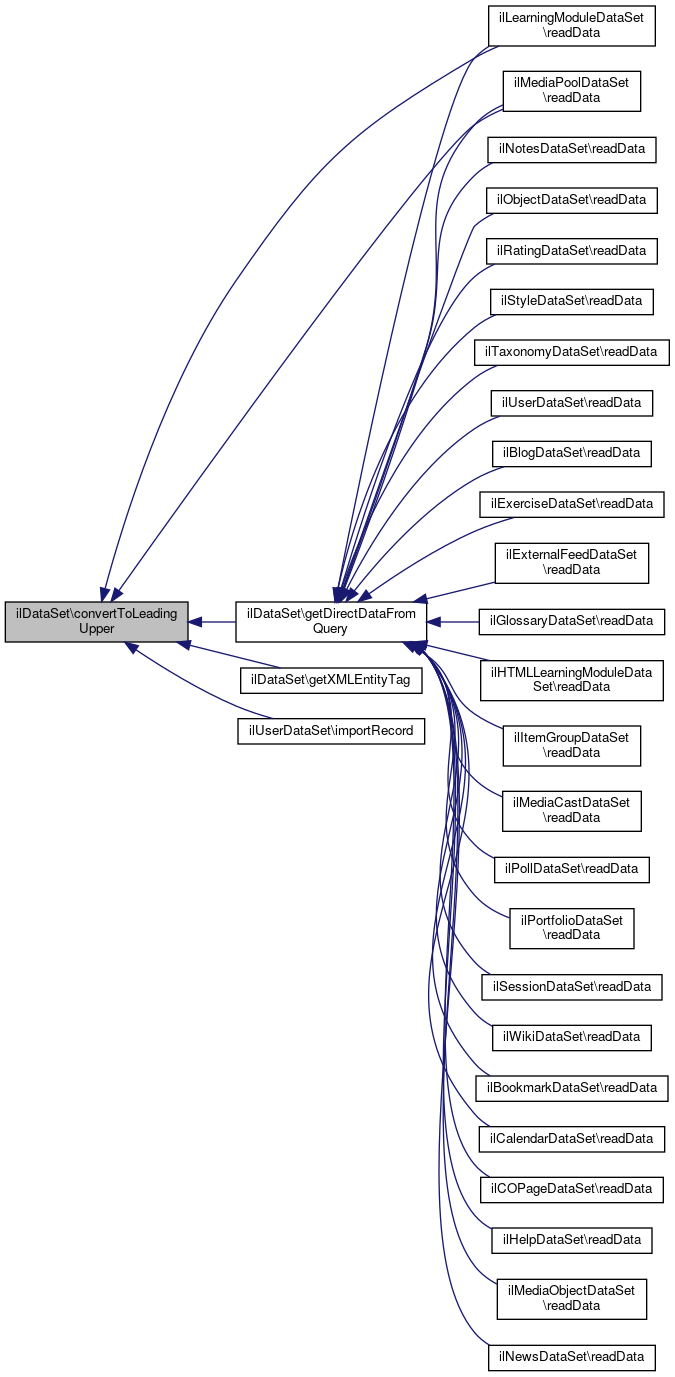

Here is the caller graph for this function:

◆ createObjectExportId()

ilDataSet::createObjectExportId	(	$a_type,
		$a_id
	)

protected

Build ilias export id.

Parameters

string	$a_type
int	$a_id

Returns: string

Definition at line 577 of file class.ilDataSet.php.

        {
                return "il_".IL_INST_ID."_".$a_type."_".$a_id;
        }

Referenced by ilBlogDataSet\readData().

Here is the caller graph for this function:

◆ getCurrentInstallationId()

ilDataSet::getCurrentInstallationId ( )

Get current installation id.

Returns: string current installation id

Definition at line 565 of file class.ilDataSet.php.

        {
                return $this->current_installation_id;
        }

References $current_installation_id.

Referenced by ilGlossaryDataSet\importRecord(), ilLearningModuleDataSet\importRecord(), and ilMediaObjectDataSet\importRecord().

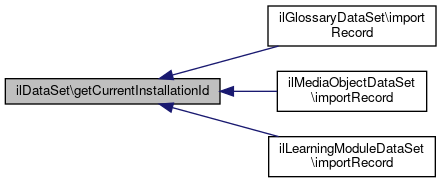

Here is the caller graph for this function:

◆ getDirectDataFromQuery()

ilDataSet::getDirectDataFromQuery	(	$a_query,
		$a_convert_to_leading_upper = `true`
	)

Get data from query.This is a standard procedure, all db field names are directly mapped to abstract fields.

Parameters

return

Definition at line 163 of file class.ilDataSet.php.

        {
                global $ilDB;

                $set = $ilDB->query($a_query);
                $this->data = array();
                while ($rec  = $ilDB->fetchAssoc($set))
                {
                        if ($a_convert_to_leading_upper)
                        {
                                $tmp = array();
                                foreach ($rec as $k => $v)
                                {
                                        $tmp[$this->convertToLeadingUpper($k)]
                                                = $v;
                                }
                                $rec = $tmp;
                        }

                        $this->data[] = $rec;
                }
        }

References $ilDB, and convertToLeadingUpper().

Here is the call graph for this function:

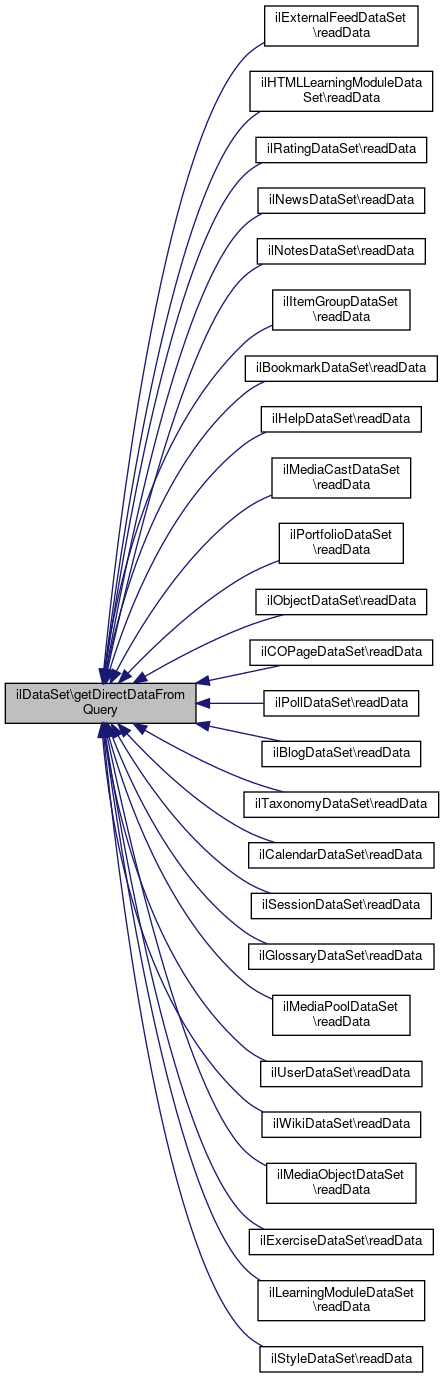

Here is the caller graph for this function:

◆ getDSPrefix()

ilDataSet::getDSPrefix ( )

Get XML dataset namespace prefix.

Returns: string XML dataset namespace prefix

Definition at line 143 of file class.ilDataSet.php.

        {
                return $this->var;
        }

Referenced by getDSPrefixString().

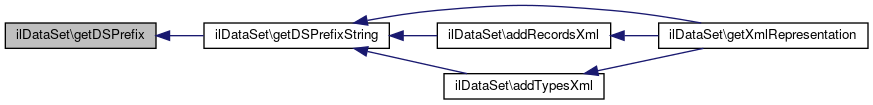

Here is the caller graph for this function:

◆ getDSPrefixString()

ilDataSet::getDSPrefixString ( )

Definition at line 148 of file class.ilDataSet.php.

        {
                if ($this->getDSPrefix() != "")
                {
                        return $this->getDSPrefix().":";
                }
        }

References getDSPrefix().

Referenced by addRecordsXml(), addTypesXml(), and getXmlRepresentation().

Here is the call graph for this function:

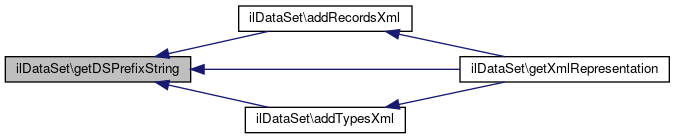

Here is the caller graph for this function:

◆ getImport()

ilDataSet::getImport ( )

Get import object.

Returns: object import object

Definition at line 545 of file class.ilDataSet.php.

        {
                return $this->import;
        }

◆ getImportDirectory()

ilDataSet::getImportDirectory ( )

Get import directory.

Returns: string import directory

Definition at line 123 of file class.ilDataSet.php.

        {
                return $this->import_directory;
        }

Referenced by ilBibliographicDataSet\importLibraryFile(), ilBlogDataSet\importRecord(), ilExerciseDataSet\importRecord(), ilHTMLLearningModuleDataSet\importRecord(), ilPollDataSet\importRecord(), ilPortfolioDataSet\importRecord(), ilMediaObjectDataSet\importRecord(), ilStyleDataSet\importRecord(), and ilUserDataSet\importRecord().

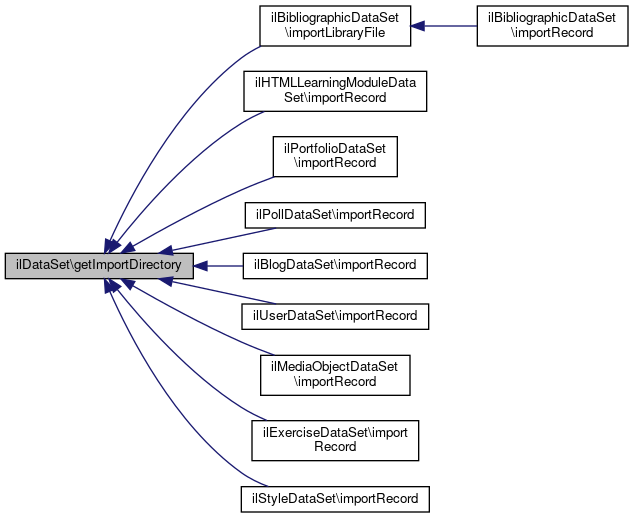

Here is the caller graph for this function:

◆ getJsonEntityName()

ilDataSet::getJsonEntityName	(	$a_entity,
		$a_version
	)

Get entity name for json (may be overwritten)

Definition at line 525 of file class.ilDataSet.php.

        {
                return $a_entity;
        }

Referenced by getJsonRepresentation().

Here is the caller graph for this function:

◆ getJsonRecord()

ilDataSet::getJsonRecord ( $a_set )

Get json record for version.

Parameters

array abstract data record

Returns: array json record

Definition at line 474 of file class.ilDataSet.php.

        {
                return $a_set;
        }

Referenced by getJsonRepresentation().

Here is the caller graph for this function:

◆ getJsonRepresentation()

ilDataSet::getJsonRepresentation ( )

final

Get json representation.

Definition at line 208 of file class.ilDataSet.php.

        {
                if ($this->version === false)
                {
                        return false;
                }

                $arr["entity"] = $this->getJsonEntityName();
                $arr["version"] = $this->version;
                $arr["install_id"] = IL_INST_ID;
                $arr["install_url"] = ILIAS_HTTP_PATH;
                $arr["types"] = $this->getJsonTypes();
                $arr["set"] = array();
                foreach ($this->data as $d)
                {
                        $arr["set"][] = $this->getJsonRecord($d);
                }

                include_once("./Services/JSON/classes/class.ilJsonUtil.php");

                return ilJsonUtil::encode($arr);
        }

References $d, ilJsonUtil\encode(), getJsonEntityName(), getJsonRecord(), and getJsonTypes().

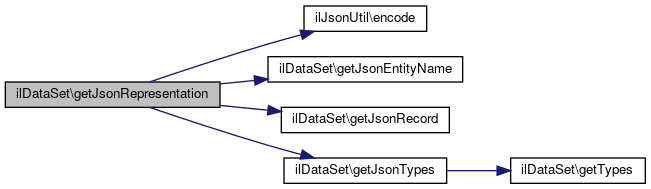

Here is the call graph for this function:

◆ getJsonTypes()

ilDataSet::getJsonTypes	(	$a_entity,
		$a_version
	)

Get json types.

Returns: array types array for json/version set in constructor

Definition at line 494 of file class.ilDataSet.php.

        {
                return $this->getTypes($a_entity, $a_version);
        }

References getTypes().

Referenced by getJsonRepresentation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getNamespaces()

ilDataSet::getNamespaces	(	&	$namespaces,
			$a_entity,
			$a_schema_version
	)

Get xml namespaces.

Parameters

array	namespaces per entity
string	entity
string	target release

Definition at line 439 of file class.ilDataSet.php.

        {
                $ns = $this->getXmlNamespace($a_entity, $a_schema_version);
                if ($ns != "")
                {
                        $namespaces[$a_entity] = $ns;
                }
                // add types of dependent entities
                $deps = $this->getDependencies($a_entity, $a_schema_version, null, null);
                if (is_array($deps))
                {
                        foreach ($deps as $dp => $w)
                        {
                                $this->getNamespaces($namespaces, $dp, $a_schema_version);
                        }
                }
        }

References $w, getNamespaces(), and getXmlNamespace().

Referenced by getNamespaces(), and getXmlRepresentation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSupportedVersions()

ilDataSet::getSupportedVersions ( )

abstract

Get supported version.

Returns: array array of supported version

Reimplemented in ilBibliographicDataSet, ilBlogDataSet, ilDataCollectionDataSet, ilExerciseDataSet, ilExternalFeedDataSet, ilGlossaryDataSet, ilHTMLLearningModuleDataSet, ilItemGroupDataSet, ilLearningModuleDataSet, ilMediaCastDataSet, ilMediaPoolDataSet, ilPollDataSet, ilPortfolioDataSet, ilSessionDataSet, ilWikiDataSet, ilBookmarkDataSet, ilCalendarDataSet, ilCOPageDataSet, ilHelpDataSet, ilMediaObjectDataSet, ilNewsDataSet, ilNotesDataSet, ilObjectDataSet, ilRatingDataSet, ilStyleDataSet, ilTaxonomyDataSet, and ilUserDataSet.

◆ getTypes()

ilDataSet::getTypes	(	$a_entity,
		$a_version
	)

abstractprotected

Get (abstract) types for (abstract) field names.

Please note that the abstract fields/types only depend on the version! Not on a choosen representation!

Returns: array types array, e.g. array("field_1" => "text", "field_2" => "integer", ...)

Reimplemented in ilBibliographicDataSet, ilBlogDataSet, ilDataCollectionDataSet, ilExerciseDataSet, ilExternalFeedDataSet, ilGlossaryDataSet, ilHTMLLearningModuleDataSet, ilItemGroupDataSet, ilLearningModuleDataSet, ilMediaCastDataSet, ilMediaPoolDataSet, ilPollDataSet, ilPortfolioDataSet, ilSessionDataSet, ilWikiDataSet, ilBookmarkDataSet, ilCalendarDataSet, ilCOPageDataSet, ilHelpDataSet, ilMediaObjectDataSet, ilNewsDataSet, ilNotesDataSet, ilObjectDataSet, ilRatingDataSet, ilStyleDataSet, ilTaxonomyDataSet, and ilUserDataSet.

Referenced by getJsonTypes(), and getXmlTypes().

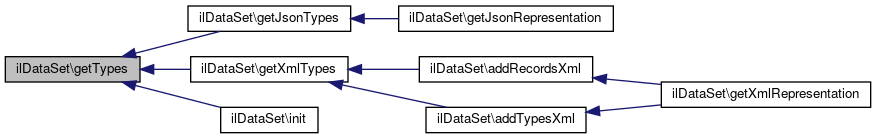

Here is the caller graph for this function:

◆ getXMLEntityName()

ilDataSet::getXMLEntityName	(	$a_entity,
		$a_version
	)

Get entity name for xml (may be overwritten)

Returns: string

Definition at line 505 of file class.ilDataSet.php.

        {
                return $a_entity;
        }

◆ getXMLEntityTag()

ilDataSet::getXMLEntityTag	(	$a_entity,
		$a_schema_version
	)

Get entity tag.

Parameters

return

Definition at line 516 of file class.ilDataSet.php.

        {
                return $this->convertToLeadingUpper($a_entity);
        }

References convertToLeadingUpper().

Here is the call graph for this function:

◆ getXmlNamespace()

ilDataSet::getXmlNamespace	(	$a_entity,
		$a_schema_version
	)

abstractprotected

Get xml namespace.

Reimplemented in ilBibliographicDataSet, ilBlogDataSet, ilDataCollectionDataSet, ilExerciseDataSet, ilExternalFeedDataSet, ilGlossaryDataSet, ilHTMLLearningModuleDataSet, ilItemGroupDataSet, ilLearningModuleDataSet, ilMediaCastDataSet, ilMediaPoolDataSet, ilPollDataSet, ilPortfolioDataSet, ilSessionDataSet, ilWikiDataSet, ilBookmarkDataSet, ilCalendarDataSet, ilCOPageDataSet, ilHelpDataSet, ilMediaObjectDataSet, ilNewsDataSet, ilNotesDataSet, ilObjectDataSet, ilRatingDataSet, ilStyleDataSet, ilTaxonomyDataSet, and ilUserDataSet.

Referenced by getNamespaces().

Here is the caller graph for this function:

◆ getXmlRecord()

ilDataSet::getXmlRecord	(	$a_entity,
		$a_version,
		$a_set
	)

Get xml record for version.

Parameters

array abstract data record

Returns: array xml record

Reimplemented in ilBlogDataSet, ilExerciseDataSet, ilHTMLLearningModuleDataSet, ilItemGroupDataSet, ilPollDataSet, ilPortfolioDataSet, ilSessionDataSet, ilMediaObjectDataSet, ilStyleDataSet, and ilUserDataSet.

Definition at line 463 of file class.ilDataSet.php.

        {
                return $a_set;
        }

Referenced by addRecordsXml().

Here is the caller graph for this function:

◆ getXmlRepresentation()

ilDataSet::getXmlRepresentation	(	$a_entity,
		$a_schema_version,
		$a_ids,
		$a_field = `""`,
		$a_omit_header = `false`,
		$a_omit_types = `false`
	)

final

Get xml representation <dataset install_id="123" install_url="..."> <types entity="table_name" version="4.0.1"> <ftype name="field_1" type="text" > <ftype name="field_2" type="date" > <ftype name="field_3" type="integer" > </types> <types ...> ... </types> <set entity="table_name"> <rec> <field_1>content</field_1> <field_2>my_date</field_2> <field_3>my_number</field_3> </rec> ... </set> </dataset>

Definition at line 252 of file class.ilDataSet.php.

        {
                $this->dircnt = 1;

                // step 1: check target release and supported versions



                // step 2: init writer
                include_once "./Services/Xml/classes/class.ilXmlWriter.php";
                $writer = new ilXmlWriter();
                if (!$a_omit_header)
                {
                        $writer->xmlHeader();
                }

                // collect namespaces
                $namespaces = $prefixes = array();
                $this->getNamespaces($namespaces, $a_entity, $a_schema_version);
                $atts = array("InstallationId" => IL_INST_ID,
                        "InstallationUrl" => ILIAS_HTTP_PATH, "TopEntity" => $a_entity);
                $cnt = 1;
                foreach ($namespaces as $entity => $ns)
                {
                        $prefix = "ns".$cnt;
                        $prefixes[$entity] = $prefix;
//                      $atts["xmlns:".$prefix] = $ns;
                        $cnt++;
                }

                $this->ds_log->debug("Start writing Dataset, entity: ".$a_entity.", schema version: ".$a_schema_version.
                        ", ids: ".print_r($a_ids, true));
                $writer->xmlStartTag($this->getDSPrefixString().'DataSet', $atts);

                // add types
                if (!$a_omit_types)
                {
                        $this->ds_log->debug("...write types");
                        $this->addTypesXml($writer, $a_entity, $a_schema_version);
                }

                // add records
                $this->ds_log->debug("...write records");
                $this->addRecordsXml($writer, $prefixes, $a_entity, $a_schema_version, $a_ids, $a_field);


                $writer->xmlEndTag($this->getDSPrefixString()."DataSet");
//if ($a_entity == "mep")
//{
//      echo "<pre>".htmlentities($writer->xmlDumpMem(true))."</pre>"; exit;
//}
                return $writer->xmlDumpMem(false);
        }

References addRecordsXml(), addTypesXml(), getDSPrefixString(), and getNamespaces().

Here is the call graph for this function:

◆ getXmlTypes()

ilDataSet::getXmlTypes	(	$a_entity,
		$a_version
	)

Get xml types.

Returns: array types array for xml/version set in constructor

Definition at line 484 of file class.ilDataSet.php.

        {
                return $this->getTypes($a_entity, $a_version);
        }

References getTypes().

Referenced by addRecordsXml(), and addTypesXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init()

ilDataSet::init	(	$a_entity,
		$a_schema_version
	)

final

Init.

Parameters

string	(abstract) entity name
string	version string, always the ILIAS release versions that defined the a structure or made changes to it, never use another version. Example: structure is defined in 4.1.0 and changed in 4.3.0 -> use these values only, not 4.2.0 (ask for the 4.1.0 version in ILIAS 4.2.0)

Definition at line 58 of file class.ilDataSet.php.

        {
                $this->entity = $a_entity;
                $this->schema_version = $a_schema_version;
                $this->data = array();
        }

◆ parseObjectExportId()

ilDataSet::parseObjectExportId	(	$a_id,
		$a_fallback_id = `NULL`
	)

protected

Parse export id.

Parameters

string	$a_id
int	$a_fallback_id

Returns: array type, id

Definition at line 589 of file class.ilDataSet.php.

        {
                // ilias export id?
                if(substr($a_id, 0, 3) == "il_")
                {
                        $parts = explode("_", $a_id);
                        $inst_id = $parts[1];
                        $type = $parts[2];
                        $id = $parts[3];

                        // missing installation ids?
                        if(($inst_id == 0 || IL_INST_ID == 0) && !DEVMODE)
                        {
                                return array("type"=>self::EXPORT_NO_INST_ID, "id"=>$a_fallback_id);
                        }

                        // same installation?
                        if($inst_id == IL_INST_ID)
                        {
                                // still existing?
                                if(ilObject::_lookupType($id) == $type)
                                {
                                        return array("type"=>self::EXPORT_ID_ILIAS_LOCAL, "id"=>$id);
                                }
                                // not found
                                else
                                {
                                        return array("type"=>self::EXPORT_ID_ILIAS_LOCAL_INVALID, "id"=>$a_fallback_id);
                                }
                        }
                        // different installation
                        else
                        {
                                $id = ilObject::_getIdForImportId($a_id);
                                // matching type?
                                if($id && ilObject::_lookupType($id) == $type)
                                {
                                        return array("type"=>self::EXPORT_ID_ILIAS_REMOTE, "id"=>$id);
                                }
                                // not found
                                else
                                {
                                        return array("type"=>self::EXPORT_ID_ILIAS_REMOTE_INVALID, "id"=>$a_fallback_id);
                                }
                        }
                }

                // external id
                $id = ilObject::_getIdForImportId($a_id);
                if($id)
                {
                        return array("type"=>self::EXPORT_ID, "id"=>$id);
                }
                else
                {
                        return array("type"=>self::EXPORT_ID_INVALID, "id"=>$a_fallback_id);
                }
        }

References ilObject\_getIdForImportId(), and ilObject\_lookupType().

Referenced by ilBlogDataSet\importRecord().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readData()

ilDataSet::readData	(	$a_entity,
		$a_version,
		$a_ids
	)

abstract

Read data from DB.

This should result in the abstract field structure of the version set in the constructor.

Parameters

array one or multiple ids

Reimplemented in ilBibliographicDataSet, and ilDataCollectionDataSet.

Referenced by addRecordsXml().

Here is the caller graph for this function:

◆ setCurrentInstallationId()

ilDataSet::setCurrentInstallationId ( $a_val )

Set current installation id.

Parameters

string $a_val current installation id

Definition at line 555 of file class.ilDataSet.php.

        {
                $this->current_installation_id = $a_val;
        }

◆ setDSPrefix()

ilDataSet::setDSPrefix ( $a_val )

Set XML dataset namespace prefix.

Parameters

string XML dataset namespace prefix

Definition at line 133 of file class.ilDataSet.php.

        {
                $this->var = $a_val;
        }

◆ setExportDirectories()

ilDataSet::setExportDirectories	(	$a_relative,
		$a_absolute
	)

Set export directories.

Parameters

return

Definition at line 102 of file class.ilDataSet.php.

        {
                $this->relative_export_dir = $a_relative;
                $this->absolute_export_dir = $a_absolute;
        }

◆ setImport()

ilDataSet::setImport ( $a_val )

Set import object.

Parameters

object import object

Definition at line 535 of file class.ilDataSet.php.

        {
                $this->import = $a_val;
        }

◆ setImportDirectory()

ilDataSet::setImportDirectory ( $a_val )

Set import directory.

Parameters

string import directory

Definition at line 113 of file class.ilDataSet.php.

        {
                $this->import_directory = $a_val;
        }

Field Documentation

◆ $current_installation_id

ilDataSet::$current_installation_id = ""

protected

Definition at line 27 of file class.ilDataSet.php.

Referenced by getCurrentInstallationId().

◆ $dircnt

ilDataSet::$dircnt

Definition at line 26 of file class.ilDataSet.php.

Referenced by addRecordsXml().

◆ EXPORT_ID

const ilDataSet::EXPORT_ID = 6

Definition at line 34 of file class.ilDataSet.php.

◆ EXPORT_ID_ILIAS_LOCAL

const ilDataSet::EXPORT_ID_ILIAS_LOCAL = 2

Definition at line 30 of file class.ilDataSet.php.

◆ EXPORT_ID_ILIAS_LOCAL_INVALID

const ilDataSet::EXPORT_ID_ILIAS_LOCAL_INVALID = 3

Definition at line 31 of file class.ilDataSet.php.

◆ EXPORT_ID_ILIAS_REMOTE

const ilDataSet::EXPORT_ID_ILIAS_REMOTE = 4

Definition at line 32 of file class.ilDataSet.php.

◆ EXPORT_ID_ILIAS_REMOTE_INVALID

const ilDataSet::EXPORT_ID_ILIAS_REMOTE_INVALID = 5

Definition at line 33 of file class.ilDataSet.php.

◆ EXPORT_ID_INVALID

const ilDataSet::EXPORT_ID_INVALID = 7

Definition at line 35 of file class.ilDataSet.php.

◆ EXPORT_NO_INST_ID

const ilDataSet::EXPORT_NO_INST_ID = 1

Definition at line 29 of file class.ilDataSet.php.

The documentation for this class was generated from the following file:

Services/DataSet/classes/class.ilDataSet.php

Public Member Functions

Data Fields

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ __construct()

Member Function Documentation

◆ addRecordsXml()

◆ addTypesXml()

◆ afterXmlRecordWriting()

◆ convertToLeadingUpper()

◆ createObjectExportId()

◆ getCurrentInstallationId()

◆ getDirectDataFromQuery()

◆ getDSPrefix()

◆ getDSPrefixString()

◆ getImport()

◆ getImportDirectory()

◆ getJsonEntityName()

◆ getJsonRecord()

◆ getJsonRepresentation()

◆ getJsonTypes()

◆ getNamespaces()

◆ getSupportedVersions()

◆ getTypes()

◆ getXMLEntityName()

◆ getXMLEntityTag()

◆ getXmlNamespace()

◆ getXmlRecord()

◆ getXmlRepresentation()

◆ getXmlTypes()

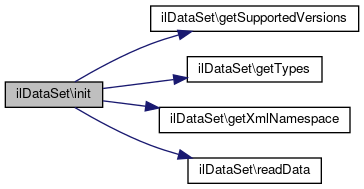

◆ init()

◆ parseObjectExportId()

◆ readData()

◆ setCurrentInstallationId()

◆ setDSPrefix()

◆ setExportDirectories()

◆ setImport()

◆ setImportDirectory()

Field Documentation

◆ $current_installation_id

◆ $dircnt

◆ EXPORT_ID

◆ EXPORT_ID_ILIAS_LOCAL

◆ EXPORT_ID_ILIAS_LOCAL_INVALID

◆ EXPORT_ID_ILIAS_REMOTE

◆ EXPORT_ID_ILIAS_REMOTE_INVALID

◆ EXPORT_ID_INVALID

◆ EXPORT_NO_INST_ID
