Public Member Functions
GetId3\Module\Audio\Voc Class Reference

GetId3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //. More...

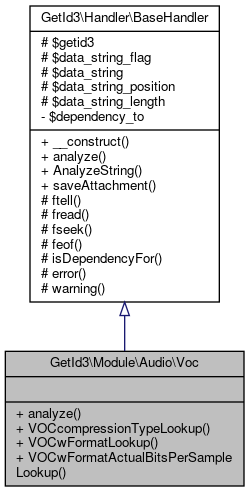

+ Inheritance diagram for GetId3\Module\Audio\Voc:
+ Collaboration diagram for GetId3\Module\Audio\Voc:

Public Member Functions

 analyze ()

 VOCcompressionTypeLookup ($index)
 array $VOCcompressionTypeLookup More...

 VOCwFormatLookup ($index)
 array $VOCwFormatLookup More...

 VOCwFormatActualBitsPerSampleLookup ($index)
 array $VOCwFormatLookup More...

- Public Member Functions inherited from GetId3\Handler\BaseHandler
 __construct (GetId3Core $getid3, $call_module=null)

 analyze ()
 Analyze from file pointer. More...

 AnalyzeString (&$string)
 Analyze from string instead. More...

 saveAttachment (&$ThisFileInfoIndex, $filename, $offset, $length)


Additional Inherited Members

- Protected Member Functions inherited from GetId3\Handler\BaseHandler
 ftell ()

 fread ($bytes)

 fseek ($bytes, $whence=SEEK_SET)

 feof ()

 isDependencyFor ($module)

 error ($text)

 warning ($text)

- Protected Attributes inherited from GetId3\Handler\BaseHandler
 $getid3

 $data_string_flag = false

 $data_string = ''

 $data_string_position = 0

 $data_string_length = 0


Detailed Description

GetId3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //.

module for analyzing Creative VOC Audio files

Author
James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g http://www.getid3.org

Definition at line 29 of file Voc.php.

Member Function Documentation

◆ analyze()

GetId3\Module\Audio\Voc::analyze ( )
Returns
boolean

Definition at line 36 of file Voc.php.

References $info, array, GetId3\Lib\Helper\CastAsInt(), GetId3\Handler\BaseHandler\feof(), GetId3\Handler\BaseHandler\fread(), GetId3\Handler\BaseHandler\fseek(), GetId3\Handler\BaseHandler\ftell(), GetId3\Lib\Helper\LittleEndian2Int(), GetId3\Lib\Helper\PrintHexBytes(), GetId3\Lib\Helper\safe_inc(), GetId3\Lib\Helper\trunc(), GetId3\Module\Audio\Voc\VOCcompressionTypeLookup(), GetId3\Module\Audio\Voc\VOCwFormatActualBitsPerSampleLookup(), and GetId3\Module\Audio\Voc\VOCwFormatLookup().

37  {
38  $info = &$this->getid3->info;
39
40  $OriginalAVdataOffset = $info['avdataoffset'];
41  fseek($this->getid3->fp, $info['avdataoffset'], SEEK_SET);
42  $VOCheader = fread($this->getid3->fp, 26);
43
44  $magic = 'Creative Voice File';
45  if (substr($VOCheader, 0, 19) != $magic) {
46  $info['error'][] = 'Expecting "'.Helper::PrintHexBytes($magic).'" at offset '.$info['avdataoffset'].', found "'.Helper::PrintHexBytes(substr($VOCheader, 0, 19)).'"';
47
48  return false;
49  }
50
51  // shortcuts
52  $thisfile_audio = &$info['audio'];
53  $info['voc'] = array();
54  $thisfile_voc = &$info['voc'];
55
56  $info['fileformat'] = 'voc';
57  $thisfile_audio['dataformat'] = 'voc';
58  $thisfile_audio['bitrate_mode'] = 'cbr';
59  $thisfile_audio['lossless'] = true;
60  $thisfile_audio['channels'] = 1; // might be overriden below
61  $thisfile_audio['bits_per_sample'] = 8; // might be overriden below
62
63  // byte # Description
64  // ------ ------------------------------------------
65  // 00-12 'Creative Voice File'
66  // 13 1A (eof to abort printing of file)
67  // 14-15 Offset of first datablock in .voc file (std 1A 00 in Intel Notation)
68  // 16-17 Version number (minor,major) (VOC-HDR puts 0A 01)
69  // 18-19 2's Comp of Ver. # + 1234h (VOC-HDR puts 29 11)
70
71  $thisfile_voc['header']['datablock_offset'] = Helper::LittleEndian2Int(substr($VOCheader, 20, 2));
72  $thisfile_voc['header']['minor_version'] = Helper::LittleEndian2Int(substr($VOCheader, 22, 1));
73  $thisfile_voc['header']['major_version'] = Helper::LittleEndian2Int(substr($VOCheader, 23, 1));
74
75  do {
76
77  $BlockOffset = ftell($this->getid3->fp);
78  $BlockData = fread($this->getid3->fp, 4);
79  $BlockType = ord($BlockData{0});
80  $BlockSize = Helper::LittleEndian2Int(substr($BlockData, 1, 3));
81  $ThisBlock = array();
82
83  Helper::safe_inc($thisfile_voc['blocktypes'][$BlockType], 1);
84  switch ($BlockType) {
85  case 0: // Terminator
86  // do nothing, we'll break out of the loop down below
87  break;
88
89  case 1: // Sound data
90  $BlockData .= fread($this->getid3->fp, 2);
91  if ($info['avdataoffset'] <= $OriginalAVdataOffset) {
92  $info['avdataoffset'] = ftell($this->getid3->fp);
93  }
94  fseek($this->getid3->fp, $BlockSize - 2, SEEK_CUR);
95
96  $ThisBlock['sample_rate_id'] = Helper::LittleEndian2Int(substr($BlockData, 4, 1));
97  $ThisBlock['compression_type'] = Helper::LittleEndian2Int(substr($BlockData, 5, 1));
98
99  $ThisBlock['compression_name'] = $this->VOCcompressionTypeLookup($ThisBlock['compression_type']);
100  if ($ThisBlock['compression_type'] <= 3) {
101  $thisfile_voc['compressed_bits_per_sample'] = Helper::CastAsInt(str_replace('-bit', '', $ThisBlock['compression_name']));
102  }
103
104  // Less accurate sample_rate calculation than the Extended block (#8) data (but better than nothing if Extended Block is not available)
105  if (empty($thisfile_audio['sample_rate'])) {
106  // SR byte = 256 - (1000000 / sample_rate)
107  $thisfile_audio['sample_rate'] = Helper::trunc((1000000 / (256 - $ThisBlock['sample_rate_id'])) / $thisfile_audio['channels']);
108  }
109  break;
110
111  case 2: // Sound continue
112  case 3: // Silence
113  case 4: // Marker
114  case 6: // Repeat
115  case 7: // End repeat
116  // nothing useful, just skip
117  fseek($this->getid3->fp, $BlockSize, SEEK_CUR);
118  break;
119
120  case 8: // Extended
121  $BlockData .= fread($this->getid3->fp, 4);
122
123  //00-01 Time Constant:
124  // Mono: 65536 - (256000000 / sample_rate)
125  // Stereo: 65536 - (256000000 / (sample_rate * 2))
126  $ThisBlock['time_constant'] = Helper::LittleEndian2Int(substr($BlockData, 4, 2));
127  $ThisBlock['pack_method'] = Helper::LittleEndian2Int(substr($BlockData, 6, 1));
128  $ThisBlock['stereo'] = (bool) Helper::LittleEndian2Int(substr($BlockData, 7, 1));
129
130  $thisfile_audio['channels'] = ($ThisBlock['stereo'] ? 2 : 1);
131  $thisfile_audio['sample_rate'] = Helper::trunc((256000000 / (65536 - $ThisBlock['time_constant'])) / $thisfile_audio['channels']);
132  break;
133
134  case 9: // data block that supersedes blocks 1 and 8. Used for stereo, 16 bit
135  $BlockData .= fread($this->getid3->fp, 12);
136  if ($info['avdataoffset'] <= $OriginalAVdataOffset) {
137  $info['avdataoffset'] = ftell($this->getid3->fp);
138  }
139  fseek($this->getid3->fp, $BlockSize - 12, SEEK_CUR);
140
141  $ThisBlock['sample_rate'] = Helper::LittleEndian2Int(substr($BlockData, 4, 4));
142  $ThisBlock['bits_per_sample'] = Helper::LittleEndian2Int(substr($BlockData, 8, 1));
143  $ThisBlock['channels'] = Helper::LittleEndian2Int(substr($BlockData, 9, 1));
144  $ThisBlock['wFormat'] = Helper::LittleEndian2Int(substr($BlockData, 10, 2));
145
146  $ThisBlock['compression_name'] = $this->VOCwFormatLookup($ThisBlock['wFormat']);
147  if ($this->VOCwFormatActualBitsPerSampleLookup($ThisBlock['wFormat'])) {
148  $thisfile_voc['compressed_bits_per_sample'] = $this->VOCwFormatActualBitsPerSampleLookup($ThisBlock['wFormat']);
149  }
150
151  $thisfile_audio['sample_rate'] = $ThisBlock['sample_rate'];
152  $thisfile_audio['bits_per_sample'] = $ThisBlock['bits_per_sample'];
153  $thisfile_audio['channels'] = $ThisBlock['channels'];
154  break;
155
156  default:
157  $info['warning'][] = 'Unhandled block type "'.$BlockType.'" at offset '.$BlockOffset;
158  fseek($this->getid3->fp, $BlockSize, SEEK_CUR);
159  break;
160  }
161
162  if (!empty($ThisBlock)) {
163  $ThisBlock['block_offset'] = $BlockOffset;
164  $ThisBlock['block_size'] = $BlockSize;
165  $ThisBlock['block_type_id'] = $BlockType;
166  $thisfile_voc['blocks'][] = $ThisBlock;
167  }
168
169  } while (!feof($this->getid3->fp) && ($BlockType != 0));
170
171  // Terminator block doesn't have size field, so seek back 3 spaces
172  fseek($this->getid3->fp, -3, SEEK_CUR);
173
174  ksort($thisfile_voc['blocktypes']);
175
176  if (!empty($thisfile_voc['compressed_bits_per_sample'])) {
177  $info['playtime_seconds'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / ($thisfile_voc['compressed_bits_per_sample'] * $thisfile_audio['channels'] * $thisfile_audio['sample_rate']);
178  $thisfile_audio['bitrate'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / $info['playtime_seconds'];
179  }
180
181  return true;
182  }
GetId3\Lib\Helper\PrintHexBytes
static PrintHexBytes($string, $hex=true, $spaces=true, $htmlencoding='UTF-8')
Definition: Helper.php:36
GetId3\Module\Audio\Voc\VOCwFormatActualBitsPerSampleLookup
VOCwFormatActualBitsPerSampleLookup($index)
array $VOCwFormatLookup
Definition: Voc.php:230
GetId3\Handler\BaseHandler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: BaseHandler.php:148
GetId3\Module\Audio\Voc\VOCwFormatLookup
VOCwFormatLookup($index)
array $VOCwFormatLookup
Definition: Voc.php:208
GetId3\Lib\Helper\trunc
static trunc($floatnumber)
Definition: Helper.php:67
$info
$info
Definition: example_052.php:80
GetId3\Lib\Helper\CastAsInt
static CastAsInt($floatnum)
Definition: Helper.php:107
GetId3\Module\Audio\Voc\VOCcompressionTypeLookup
VOCcompressionTypeLookup($index)
array $VOCcompressionTypeLookup
Definition: Voc.php:190
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
GetId3\Lib\Helper\LittleEndian2Int
static LittleEndian2Int($byteword, $signed=false)
Definition: Helper.php:413
GetId3\Lib\Helper\safe_inc
static safe_inc(&$variable, $increment=1)
Definition: Helper.php:91

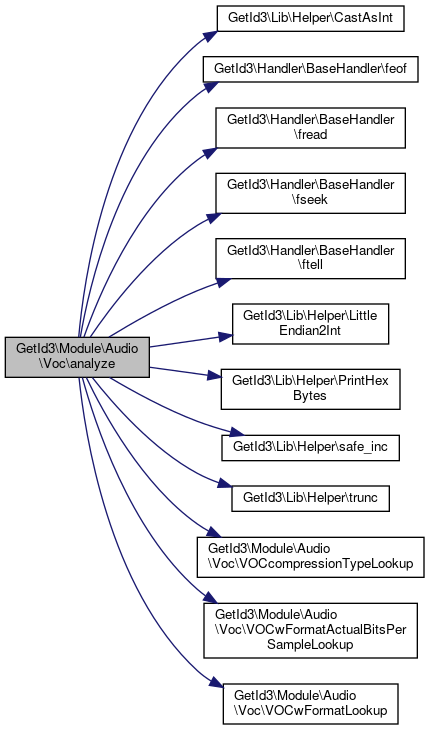

+ Here is the call graph for this function:

◆ VOCcompressionTypeLookup()

GetId3\Module\Audio\Voc::VOCcompressionTypeLookup (   $index)

array $VOCcompressionTypeLookup

Parameters
type$index
Returns
type

Definition at line 190 of file Voc.php.

References array.

Referenced by GetId3\Module\Audio\Voc\analyze().

191  {
192  static $VOCcompressionTypeLookup = array(
193  0 => '8-bit',
194  1 => '4-bit',
195  2 => '2.6-bit',
196  3 => '2-bit'
197  );
198
199  return (isset($VOCcompressionTypeLookup[$index]) ? $VOCcompressionTypeLookup[$index] : 'Multi DAC ('.($index - 3).') channels');
200  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:

◆ VOCwFormatActualBitsPerSampleLookup()

GetId3\Module\Audio\Voc::VOCwFormatActualBitsPerSampleLookup (   $index)

array $VOCwFormatLookup

Parameters
type$index
Returns
type

Definition at line 230 of file Voc.php.

References array.

Referenced by GetId3\Module\Audio\Voc\analyze().

231  {
232  static $VOCwFormatLookup = array(
233  0x0000 => 8,
234  0x0001 => 4,
235  0x0002 => 3,
236  0x0003 => 2,
237  0x0004 => 16,
238  0x0006 => 8,
239  0x0007 => 8,
240  0x2000 => 4
241  );
242
243  return (isset($VOCwFormatLookup[$index]) ? $VOCwFormatLookup[$index] : false);
244  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:

◆ VOCwFormatLookup()

GetId3\Module\Audio\Voc::VOCwFormatLookup (   $index)

array $VOCwFormatLookup

Parameters
type$index
Returns
type

Definition at line 208 of file Voc.php.

References array.

Referenced by GetId3\Module\Audio\Voc\analyze().

209  {
210  static $VOCwFormatLookup = array(
211  0x0000 => '8-bit unsigned PCM',
212  0x0001 => 'Creative 8-bit to 4-bit ADPCM',
213  0x0002 => 'Creative 8-bit to 3-bit ADPCM',
214  0x0003 => 'Creative 8-bit to 2-bit ADPCM',
215  0x0004 => '16-bit signed PCM',
216  0x0006 => 'CCITT a-Law',
217  0x0007 => 'CCITT u-Law',
218  0x2000 => 'Creative 16-bit to 4-bit ADPCM'
219  );
220
221  return (isset($VOCwFormatLookup[$index]) ? $VOCwFormatLookup[$index] : false);
222  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
+ Here is the caller graph for this function:
The documentation for this class was generated from the following file:
