PHPExcel_Reader_Excel2003XML Class Reference
+ Inheritance diagram for PHPExcel_Reader_Excel2003XML:
+ Collaboration diagram for PHPExcel_Reader_Excel2003XML:

Public Member Functions

 __construct ()
 Create a new PHPExcel_Reader_Excel2003XML. More...

 canRead ($pFilename)
 Can the current PHPExcel_Reader_IReader read the file? More...

 listWorksheetNames ($pFilename)
 Reads names of the worksheets from a file, without parsing the whole file to a PHPExcel object. More...

 listWorksheetInfo ($pFilename)
 Return worksheet info (Name, Last Column Letter, Last Column Index, Total Rows, Total Columns) More...

 load ($pFilename)
 Loads PHPExcel from file. More...

 loadIntoExisting ($pFilename, PHPExcel $objPHPExcel)
 Loads PHPExcel from file into PHPExcel instance. More...

- Public Member Functions inherited from PHPExcel_Reader_Abstract
 getReadDataOnly ()
 Read data only? If this is true, then the Reader will only read data values for cells, it will not read any formatting information. More...

 setReadDataOnly ($pValue=FALSE)
 Set read data only Set to true, to advise the Reader only to read data values for cells, and to ignore any formatting information. More...

 getIncludeCharts ()
 Read charts in workbook? If this is true, then the Reader will include any charts that exist in the workbook. More...

 setIncludeCharts ($pValue=FALSE)
 Set read charts in workbook Set to true, to advise the Reader to include any charts that exist in the workbook. More...

 getLoadSheetsOnly ()
 Get which sheets to load Returns either an array of worksheet names (the list of worksheets that should be loaded), or a null indicating that all worksheets in the workbook should be loaded. More...

 setLoadSheetsOnly ($value=NULL)
 Set which sheets to load. More...

 setLoadAllSheets ()
 Set all sheets to load Tells the Reader to load all worksheets from the workbook. More...

 getReadFilter ()
 Read filter. More...

 setReadFilter (PHPExcel_Reader_IReadFilter $pValue)
 Set read filter. More...

 canRead ($pFilename)
 Can the current PHPExcel_Reader_IReader read the file? More...

 securityScan ($xml)
 Scan theXML for use of <!ENTITY to prevent XXE/XEE attacks. More...

 securityScanFile ($filestream)
 Scan theXML for use of <!ENTITY to prevent XXE/XEE attacks. More...


Protected Member Functions

 _parseRichText ($is='')

- Protected Member Functions inherited from PHPExcel_Reader_Abstract
 _openFile ($pFilename)
 Open file for reading. More...


Static Protected Member Functions

static identifyFixedStyleValue ($styleList, &$styleAttributeValue)

static _pixel2WidthUnits ($pxs)
 pixel units to excel width units(units of 1/256th of a character width) More...

static _widthUnits2Pixel ($widthUnits)
 excel width units(units of 1/256th of a character width) to pixel units More...

static _hex2str ($hex)

static _convertStringEncoding ($string, $charset)


Protected Attributes

 $_styles = array()

 $_charSet = 'UTF-8'

- Protected Attributes inherited from PHPExcel_Reader_Abstract
 $_readDataOnly = FALSE

 $_includeCharts = FALSE

 $_loadSheetsOnly = NULL

 $_readFilter = NULL

 $_fileHandle = NULL


Detailed Description

Definition at line 45 of file Excel2003XML.php.

Constructor & Destructor Documentation

◆ __construct()

PHPExcel_Reader_Excel2003XML::__construct ( )

Create a new PHPExcel_Reader_Excel2003XML.

Definition at line 65 of file Excel2003XML.php.

65  {
66  $this->_readFilter = new PHPExcel_Reader_DefaultReadFilter();
67  }
PHPExcel_Reader_DefaultReadFilter
Definition: DefaultReadFilter.php:45

Member Function Documentation

◆ _convertStringEncoding()

static PHPExcel_Reader_Excel2003XML::_convertStringEncoding (   $string,
  $charset
)
staticprotected

Definition at line 793 of file Excel2003XML.php.

References PHPExcel_Shared_String\ConvertEncoding().

793  {
794  if ($charset != 'UTF-8') {
795  return PHPExcel_Shared_String::ConvertEncoding($string,'UTF-8',$charset);
796  }
797  return $string;
798  }
PHPExcel_Shared_String\ConvertEncoding
static ConvertEncoding($value, $to, $from)
Convert string from one encoding to another.
Definition: String.php:493
+ Here is the call graph for this function:

◆ _hex2str()

static PHPExcel_Reader_Excel2003XML::_hex2str (   $hex)
staticprotected

Definition at line 281 of file Excel2003XML.php.

281  {
282  return chr(hexdec($hex[1]));
283  }

◆ _parseRichText()

PHPExcel_Reader_Excel2003XML::_parseRichText (   $is = '')
protected

Definition at line 801 of file Excel2003XML.php.

Referenced by loadIntoExisting().

801  {
802  $value = new PHPExcel_RichText();
803
804  $value->createText(self::_convertStringEncoding($is,$this->_charSet));
805
806  return $value;
807  }
PHPExcel_RichText

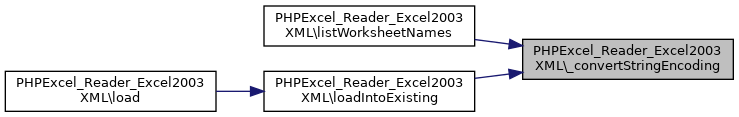

+ Here is the caller graph for this function:

◆ _pixel2WidthUnits()

static PHPExcel_Reader_Excel2003XML::_pixel2WidthUnits (   $pxs)
staticprotected

pixel units to excel width units(units of 1/256th of a character width)

Parameters
pxs
Returns

Definition at line 259 of file Excel2003XML.php.

References array.

259  {
260  $UNIT_OFFSET_MAP = array(0, 36, 73, 109, 146, 182, 219);
261
262  $widthUnits = 256 * ($pxs / 7);
263  $widthUnits += $UNIT_OFFSET_MAP[($pxs % 7)];
264  return $widthUnits;
265  }
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19

◆ _widthUnits2Pixel()

static PHPExcel_Reader_Excel2003XML::_widthUnits2Pixel (   $widthUnits)
staticprotected

excel width units(units of 1/256th of a character width) to pixel units

Parameters
widthUnits
Returns

Definition at line 273 of file Excel2003XML.php.

273  {
274  $pixels = ($widthUnits / 256) * 7;
275  $offsetWidthUnits = $widthUnits % 256;
276  $pixels += round($offsetWidthUnits / (256 / 7));
277  return $pixels;
278  }

◆ canRead()

PHPExcel_Reader_Excel2003XML::canRead (   $pFilename)

Can the current PHPExcel_Reader_IReader read the file?

Parameters
string$pFilename
Returns
boolean
Exceptions
PHPExcel_Reader_Exception

Implements PHPExcel_Reader_IReader.

Definition at line 77 of file Excel2003XML.php.

References PHPExcel_Reader_Abstract\$_fileHandle, $data, $valid, PHPExcel_Reader_Abstract\_openFile(), and array.

Referenced by listWorksheetNames(), and loadIntoExisting().

78  {
79
80  // Office xmlns:o="urn:schemas-microsoft-com:office:office"
81  // Excel xmlns:x="urn:schemas-microsoft-com:office:excel"
82  // XML Spreadsheet xmlns:ss="urn:schemas-microsoft-com:office:spreadsheet"
83  // Spreadsheet component xmlns:c="urn:schemas-microsoft-com:office:component:spreadsheet"
84  // XML schema xmlns:s="uuid:BDC6E3F0-6DA3-11d1-A2A3-00AA00C14882"
85  // XML data type xmlns:dt="uuid:C2F41010-65B3-11d1-A29F-00AA00C14882"
86  // MS-persist recordset xmlns:rs="urn:schemas-microsoft-com:rowset"
87  // Rowset xmlns:z="#RowsetSchema"
88  //
89
90  $signature = array(
91  '<?xml version="1.0"',
92  '<?mso-application progid="Excel.Sheet"?>'
93  );
94
95  // Open file
96  $this->_openFile($pFilename);
97  $fileHandle = $this->_fileHandle;
98
99  // Read sample data (first 2 KB will do)
100  $data = fread($fileHandle, 2048);
101  fclose($fileHandle);
102
103  $valid = true;
104  foreach($signature as $match) {
105  // every part of the signature must be present
106  if (strpos($data, $match) === false) {
107  $valid = false;
108  break;
109  }
110  }
111
112  // Retrieve charset encoding
113  if(preg_match('/<?xml.*encoding=[\'"](.*?)[\'"].*?>/um',$data,$matches)) {
114  $this->_charSet = strtoupper($matches[1]);
115  }
116 // echo 'Character Set is ',$this->_charSet,'<br />';
117
118  return $valid;
119  }
PHPExcel_Reader_Abstract\$_fileHandle
$_fileHandle
Definition: Abstract.php:70
$valid
$valid
Definition: dummy_client.php:53
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
PHPExcel_Reader_Abstract\_openFile
_openFile($pFilename)
Open file for reading.
Definition: Abstract.php:195
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ identifyFixedStyleValue()

static PHPExcel_Reader_Excel2003XML::identifyFixedStyleValue (   $styleList,
&  $styleAttributeValue
)
staticprotected

Definition at line 242 of file Excel2003XML.php.

References $style.

242  {
243  $styleAttributeValue = strtolower($styleAttributeValue);
244  foreach($styleList as $style) {
245  if ($styleAttributeValue == strtolower($style)) {
246  $styleAttributeValue = $style;
247  return true;
248  }
249  }
250  return false;
251  }
$style
$style
Definition: example_012.php:70

◆ listWorksheetInfo()

PHPExcel_Reader_Excel2003XML::listWorksheetInfo (   $pFilename)

Return worksheet info (Name, Last Column Letter, Last Column Index, Total Rows, Total Columns)

Parameters
string$pFilename
Exceptions
PHPExcel_Reader_Exception

Definition at line 159 of file Excel2003XML.php.

References $worksheet, array, PHPExcel_Settings\getLibXmlLoaderOptions(), PHPExcel_Reader_Abstract\securityScan(), string, and PHPExcel_Cell\stringFromColumnIndex().

160  {
161  // Check if file exists
162  if (!file_exists($pFilename)) {
163  throw new PHPExcel_Reader_Exception("Could not open " . $pFilename . " for reading! File does not exist.");
164  }
165
166  $worksheetInfo = array();
167
168  $xml = simplexml_load_string($this->securityScan(file_get_contents($pFilename)), 'SimpleXMLElement', PHPExcel_Settings::getLibXmlLoaderOptions());
169  $namespaces = $xml->getNamespaces(true);
170
171  $worksheetID = 1;
172  $xml_ss = $xml->children($namespaces['ss']);
173  foreach($xml_ss->Worksheet as $worksheet) {
174  $worksheet_ss = $worksheet->attributes($namespaces['ss']);
175
176  $tmpInfo = array();
177  $tmpInfo['worksheetName'] = '';
178  $tmpInfo['lastColumnLetter'] = 'A';
179  $tmpInfo['lastColumnIndex'] = 0;
180  $tmpInfo['totalRows'] = 0;
181  $tmpInfo['totalColumns'] = 0;
182
183  if (isset($worksheet_ss['Name'])) {
184  $tmpInfo['worksheetName'] = (string) $worksheet_ss['Name'];
185  } else {
186  $tmpInfo['worksheetName'] = "Worksheet_{$worksheetID}";
187  }
188
189  if (isset($worksheet->Table->Row)) {
190  $rowIndex = 0;
191
192  foreach($worksheet->Table->Row as $rowData) {
193  $columnIndex = 0;
194  $rowHasData = false;
195
196  foreach($rowData->Cell as $cell) {
197  if (isset($cell->Data)) {
198  $tmpInfo['lastColumnIndex'] = max($tmpInfo['lastColumnIndex'], $columnIndex);
199  $rowHasData = true;
200  }
201
202  ++$columnIndex;
203  }
204
205  ++$rowIndex;
206
207  if ($rowHasData) {
208  $tmpInfo['totalRows'] = max($tmpInfo['totalRows'], $rowIndex);
209  }
210  }
211  }
212
213  $tmpInfo['lastColumnLetter'] = PHPExcel_Cell::stringFromColumnIndex($tmpInfo['lastColumnIndex']);
214  $tmpInfo['totalColumns'] = $tmpInfo['lastColumnIndex'] + 1;
215
216  $worksheetInfo[] = $tmpInfo;
217  ++$worksheetID;
218  }
219
220  return $worksheetInfo;
221  }
$worksheet
$worksheet
Definition: 40duplicateStyle.php:17
string
Add rich text string
The name of the decorator.
Definition: 05featuredemo.inc.php:117
PHPExcel_Reader_Abstract\securityScan
securityScan($xml)
Scan theXML for use of <!ENTITY to prevent XXE/XEE attacks.
Definition: Abstract.php:236
PHPExcel_Settings\getLibXmlLoaderOptions
static getLibXmlLoaderOptions()
Get default options for libxml loader.
Definition: Settings.php:381
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
PHPExcel_Reader_Exception
Definition: Exception.php:36
PHPExcel_Cell\stringFromColumnIndex
static stringFromColumnIndex($pColumnIndex=0)
String from columnindex.
Definition: Cell.php:825
+ Here is the call graph for this function:

◆ listWorksheetNames()

PHPExcel_Reader_Excel2003XML::listWorksheetNames (   $pFilename)

Reads names of the worksheets from a file, without parsing the whole file to a PHPExcel object.

Parameters
string$pFilename
Exceptions
PHPExcel_Reader_Exception

Definition at line 128 of file Excel2003XML.php.

References $worksheet, array, canRead(), PHPExcel_Settings\getLibXmlLoaderOptions(), and PHPExcel_Reader_Abstract\securityScan().

129  {
130  // Check if file exists
131  if (!file_exists($pFilename)) {
132  throw new PHPExcel_Reader_Exception("Could not open " . $pFilename . " for reading! File does not exist.");
133  }
134  if (!$this->canRead($pFilename)) {
135  throw new PHPExcel_Reader_Exception($pFilename . " is an Invalid Spreadsheet file.");
136  }
137
138  $worksheetNames = array();
139
140  $xml = simplexml_load_string($this->securityScan(file_get_contents($pFilename)), 'SimpleXMLElement', PHPExcel_Settings::getLibXmlLoaderOptions());
141  $namespaces = $xml->getNamespaces(true);
142
143  $xml_ss = $xml->children($namespaces['ss']);
144  foreach($xml_ss->Worksheet as $worksheet) {
145  $worksheet_ss = $worksheet->attributes($namespaces['ss']);
146  $worksheetNames[] = self::_convertStringEncoding((string) $worksheet_ss['Name'],$this->_charSet);
147  }
148
149  return $worksheetNames;
150  }
PHPExcel_Reader_Excel2003XML\canRead
canRead($pFilename)
Can the current PHPExcel_Reader_IReader read the file?
Definition: Excel2003XML.php:77
$worksheet
$worksheet
Definition: 40duplicateStyle.php:17
PHPExcel_Reader_Abstract\securityScan
securityScan($xml)
Scan theXML for use of <!ENTITY to prevent XXE/XEE attacks.
Definition: Abstract.php:236
PHPExcel_Settings\getLibXmlLoaderOptions
static getLibXmlLoaderOptions()
Get default options for libxml loader.
Definition: Settings.php:381
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
PHPExcel_Reader_Exception
Definition: Exception.php:36
+ Here is the call graph for this function:

◆ load()

PHPExcel_Reader_Excel2003XML::load (   $pFilename)

Loads PHPExcel from file.

Parameters
string$pFilename
Returns
PHPExcel
Exceptions
PHPExcel_Reader_Exception

Implements PHPExcel_Reader_IReader.

Definition at line 231 of file Excel2003XML.php.

References $objPHPExcel, and loadIntoExisting().

232  {
233  // Create new PHPExcel
234  $objPHPExcel = new PHPExcel();
235  $objPHPExcel->removeSheetByIndex(0);
236
237  // Load into this instance
238  return $this->loadIntoExisting($pFilename, $objPHPExcel);
239  }
$objPHPExcel
$objPHPExcel
Definition: 01pharSimple.php:42
PHPExcel_Reader_Excel2003XML\loadIntoExisting
loadIntoExisting($pFilename, PHPExcel $objPHPExcel)
Loads PHPExcel from file into PHPExcel instance.
Definition: Excel2003XML.php:294
+ Here is the call graph for this function:

◆ loadIntoExisting()

PHPExcel_Reader_Excel2003XML::loadIntoExisting (   $pFilename,
PHPExcel  $objPHPExcel
)

Loads PHPExcel from file into PHPExcel instance.

Parameters
string$pFilename
PHPExcel$objPHPExcel
Returns
PHPExcel
Exceptions
PHPExcel_Reader_Exception

Definition at line 294 of file Excel2003XML.php.

References $objPHPExcel, $style, $worksheet, _parseRichText(), array, PHPExcel_Style_Border\BORDER_MEDIUM, canRead(), PHPExcel_Cell\columnIndexFromString(), PHPExcel\createSheet(), PHPExcel\getActiveSheet(), PHPExcel_Settings\getLibXmlLoaderOptions(), PHPExcel\getProperties(), PHPExcel_Reader_Abstract\getReadFilter(), PHPExcel_Style_Alignment\HORIZONTAL_CENTER, PHPExcel_Style_Alignment\HORIZONTAL_CENTER_CONTINUOUS, PHPExcel_Style_Alignment\HORIZONTAL_GENERAL, PHPExcel_Style_Alignment\HORIZONTAL_JUSTIFY, PHPExcel_Style_Alignment\HORIZONTAL_LEFT, PHPExcel_Style_Alignment\HORIZONTAL_RIGHT, PHPExcel_Shared_Date\PHPToExcel(), PHPExcel_DocumentProperties\PROPERTY_TYPE_BOOLEAN, PHPExcel_DocumentProperties\PROPERTY_TYPE_DATE, PHPExcel_DocumentProperties\PROPERTY_TYPE_FLOAT, PHPExcel_DocumentProperties\PROPERTY_TYPE_INTEGER, PHPExcel_DocumentProperties\PROPERTY_TYPE_STRING, PHPExcel_DocumentProperties\PROPERTY_TYPE_UNKNOWN, PHPExcel_Reader_Abstract\securityScan(), PHPExcel\setActiveSheetIndex(), string, PHPExcel_Cell\stringFromColumnIndex(), PHPExcel_Cell_DataType\TYPE_BOOL, PHPExcel_Cell_DataType\TYPE_ERROR, PHPExcel_Cell_DataType\TYPE_FORMULA, PHPExcel_Cell_DataType\TYPE_NULL, PHPExcel_Cell_DataType\TYPE_NUMERIC, PHPExcel_Cell_DataType\TYPE_STRING, PHPExcel_Style_Font\UNDERLINE_DOUBLE, PHPExcel_Style_Font\UNDERLINE_DOUBLEACCOUNTING, PHPExcel_Style_Font\UNDERLINE_NONE, PHPExcel_Style_Font\UNDERLINE_SINGLE, PHPExcel_Style_Font\UNDERLINE_SINGLEACCOUNTING, PHPExcel_Style_Alignment\VERTICAL_BOTTOM, PHPExcel_Style_Alignment\VERTICAL_CENTER, PHPExcel_Style_Alignment\VERTICAL_JUSTIFY, and PHPExcel_Style_Alignment\VERTICAL_TOP.

Referenced by load().

295  {
296  $fromFormats = array('\-', '\ ');
297  $toFormats = array('-', ' ');
298
299  $underlineStyles = array (
300  PHPExcel_Style_Font::UNDERLINE_NONE,
301  PHPExcel_Style_Font::UNDERLINE_DOUBLE,
302  PHPExcel_Style_Font::UNDERLINE_DOUBLEACCOUNTING,
303  PHPExcel_Style_Font::UNDERLINE_SINGLE,
304  PHPExcel_Style_Font::UNDERLINE_SINGLEACCOUNTING
305  );
306  $verticalAlignmentStyles = array (
307  PHPExcel_Style_Alignment::VERTICAL_BOTTOM,
308  PHPExcel_Style_Alignment::VERTICAL_TOP,
309  PHPExcel_Style_Alignment::VERTICAL_CENTER,
310  PHPExcel_Style_Alignment::VERTICAL_JUSTIFY
311  );
312  $horizontalAlignmentStyles = array (
313  PHPExcel_Style_Alignment::HORIZONTAL_GENERAL,
314  PHPExcel_Style_Alignment::HORIZONTAL_LEFT,
315  PHPExcel_Style_Alignment::HORIZONTAL_RIGHT,
316  PHPExcel_Style_Alignment::HORIZONTAL_CENTER,
317  PHPExcel_Style_Alignment::HORIZONTAL_CENTER_CONTINUOUS,
318  PHPExcel_Style_Alignment::HORIZONTAL_JUSTIFY
319  );
320
321  $timezoneObj = new DateTimeZone('Europe/London');
322  $GMT = new DateTimeZone('UTC');
323
324
325  // Check if file exists
326  if (!file_exists($pFilename)) {
327  throw new PHPExcel_Reader_Exception("Could not open " . $pFilename . " for reading! File does not exist.");
328  }
329
330  if (!$this->canRead($pFilename)) {
331  throw new PHPExcel_Reader_Exception($pFilename . " is an Invalid Spreadsheet file.");
332  }
333
334  $xml = simplexml_load_string($this->securityScan(file_get_contents($pFilename)), 'SimpleXMLElement', PHPExcel_Settings::getLibXmlLoaderOptions());
335  $namespaces = $xml->getNamespaces(true);
336
337  $docProps = $objPHPExcel->getProperties();
338  if (isset($xml->DocumentProperties[0])) {
339  foreach($xml->DocumentProperties[0] as $propertyName => $propertyValue) {
340  switch ($propertyName) {
341  case 'Title' :
342  $docProps->setTitle(self::_convertStringEncoding($propertyValue,$this->_charSet));
343  break;
344  case 'Subject' :
345  $docProps->setSubject(self::_convertStringEncoding($propertyValue,$this->_charSet));
346  break;
347  case 'Author' :
348  $docProps->setCreator(self::_convertStringEncoding($propertyValue,$this->_charSet));
349  break;
350  case 'Created' :
351  $creationDate = strtotime($propertyValue);
352  $docProps->setCreated($creationDate);
353  break;
354  case 'LastAuthor' :
355  $docProps->setLastModifiedBy(self::_convertStringEncoding($propertyValue,$this->_charSet));
356  break;
357  case 'LastSaved' :
358  $lastSaveDate = strtotime($propertyValue);
359  $docProps->setModified($lastSaveDate);
360  break;
361  case 'Company' :
362  $docProps->setCompany(self::_convertStringEncoding($propertyValue,$this->_charSet));
363  break;
364  case 'Category' :
365  $docProps->setCategory(self::_convertStringEncoding($propertyValue,$this->_charSet));
366  break;
367  case 'Manager' :
368  $docProps->setManager(self::_convertStringEncoding($propertyValue,$this->_charSet));
369  break;
370  case 'Keywords' :
371  $docProps->setKeywords(self::_convertStringEncoding($propertyValue,$this->_charSet));
372  break;
373  case 'Description' :
374  $docProps->setDescription(self::_convertStringEncoding($propertyValue,$this->_charSet));
375  break;
376  }
377  }
378  }
379  if (isset($xml->CustomDocumentProperties)) {
380  foreach($xml->CustomDocumentProperties[0] as $propertyName => $propertyValue) {
381  $propertyAttributes = $propertyValue->attributes($namespaces['dt']);
382  $propertyName = preg_replace_callback('/_x([0-9a-z]{4})_/','PHPExcel_Reader_Excel2003XML::_hex2str',$propertyName);
383  $propertyType = PHPExcel_DocumentProperties::PROPERTY_TYPE_UNKNOWN;
384  switch((string) $propertyAttributes) {
385  case 'string' :
386  $propertyType = PHPExcel_DocumentProperties::PROPERTY_TYPE_STRING;
387  $propertyValue = trim($propertyValue);
388  break;
389  case 'boolean' :
390  $propertyType = PHPExcel_DocumentProperties::PROPERTY_TYPE_BOOLEAN;
391  $propertyValue = (bool) $propertyValue;
392  break;
393  case 'integer' :
394  $propertyType = PHPExcel_DocumentProperties::PROPERTY_TYPE_INTEGER;
395  $propertyValue = intval($propertyValue);
396  break;
397  case 'float' :
398  $propertyType = PHPExcel_DocumentProperties::PROPERTY_TYPE_FLOAT;
399  $propertyValue = floatval($propertyValue);
400  break;
401  case 'dateTime.tz' :
402  $propertyType = PHPExcel_DocumentProperties::PROPERTY_TYPE_DATE;
403  $propertyValue = strtotime(trim($propertyValue));
404  break;
405  }
406  $docProps->setCustomProperty($propertyName,$propertyValue,$propertyType);
407  }
408  }
409
410  foreach($xml->Styles[0] as $style) {
411  $style_ss = $style->attributes($namespaces['ss']);
412  $styleID = (string) $style_ss['ID'];
413 // echo 'Style ID = '.$styleID.'<br />';
414  if ($styleID == 'Default') {
415  $this->_styles['Default'] = array();
416  } else {
417  $this->_styles[$styleID] = $this->_styles['Default'];
418  }
419  foreach ($style as $styleType => $styleData) {
420  $styleAttributes = $styleData->attributes($namespaces['ss']);
421 // echo $styleType.'<br />';
422  switch ($styleType) {
423  case 'Alignment' :
424  foreach($styleAttributes as $styleAttributeKey => $styleAttributeValue) {
425 // echo $styleAttributeKey.' = '.$styleAttributeValue.'<br />';
426  $styleAttributeValue = (string) $styleAttributeValue;
427  switch ($styleAttributeKey) {
428  case 'Vertical' :
429  if (self::identifyFixedStyleValue($verticalAlignmentStyles,$styleAttributeValue)) {
430  $this->_styles[$styleID]['alignment']['vertical'] = $styleAttributeValue;
431  }
432  break;
433  case 'Horizontal' :
434  if (self::identifyFixedStyleValue($horizontalAlignmentStyles,$styleAttributeValue)) {
435  $this->_styles[$styleID]['alignment']['horizontal'] = $styleAttributeValue;
436  }
437  break;
438  case 'WrapText' :
439  $this->_styles[$styleID]['alignment']['wrap'] = true;
440  break;
441  }
442  }
443  break;
444  case 'Borders' :
445  foreach($styleData->Border as $borderStyle) {
446  $borderAttributes = $borderStyle->attributes($namespaces['ss']);
447  $thisBorder = array();
448  foreach($borderAttributes as $borderStyleKey => $borderStyleValue) {
449 // echo $borderStyleKey.' = '.$borderStyleValue.'<br />';
450  switch ($borderStyleKey) {
451  case 'LineStyle' :
452  $thisBorder['style'] = PHPExcel_Style_Border::BORDER_MEDIUM;
453 // $thisBorder['style'] = $borderStyleValue;
454  break;
455  case 'Weight' :
456 // $thisBorder['style'] = $borderStyleValue;
457  break;
458  case 'Position' :
459  $borderPosition = strtolower($borderStyleValue);
460  break;
461  case 'Color' :
462  $borderColour = substr($borderStyleValue,1);
463  $thisBorder['color']['rgb'] = $borderColour;
464  break;
465  }
466  }
467  if (!empty($thisBorder)) {
468  if (($borderPosition == 'left') || ($borderPosition == 'right') || ($borderPosition == 'top') || ($borderPosition == 'bottom')) {
469  $this->_styles[$styleID]['borders'][$borderPosition] = $thisBorder;
470  }
471  }
472  }
473  break;
474  case 'Font' :
475  foreach($styleAttributes as $styleAttributeKey => $styleAttributeValue) {
476 // echo $styleAttributeKey.' = '.$styleAttributeValue.'<br />';
477  $styleAttributeValue = (string) $styleAttributeValue;
478  switch ($styleAttributeKey) {
479  case 'FontName' :
480  $this->_styles[$styleID]['font']['name'] = $styleAttributeValue;
481  break;
482  case 'Size' :
483  $this->_styles[$styleID]['font']['size'] = $styleAttributeValue;
484  break;
485  case 'Color' :
486  $this->_styles[$styleID]['font']['color']['rgb'] = substr($styleAttributeValue,1);
487  break;
488  case 'Bold' :
489  $this->_styles[$styleID]['font']['bold'] = true;
490  break;
491  case 'Italic' :
492  $this->_styles[$styleID]['font']['italic'] = true;
493  break;
494  case 'Underline' :
495  if (self::identifyFixedStyleValue($underlineStyles,$styleAttributeValue)) {
496  $this->_styles[$styleID]['font']['underline'] = $styleAttributeValue;
497  }
498  break;
499  }
500  }
501  break;
502  case 'Interior' :
503  foreach($styleAttributes as $styleAttributeKey => $styleAttributeValue) {
504 // echo $styleAttributeKey.' = '.$styleAttributeValue.'<br />';
505  switch ($styleAttributeKey) {
506  case 'Color' :
507  $this->_styles[$styleID]['fill']['color']['rgb'] = substr($styleAttributeValue,1);
508  break;
509  }
510  }
511  break;
512  case 'NumberFormat' :
513  foreach($styleAttributes as $styleAttributeKey => $styleAttributeValue) {
514 // echo $styleAttributeKey.' = '.$styleAttributeValue.'<br />';
515  $styleAttributeValue = str_replace($fromFormats,$toFormats,$styleAttributeValue);
516  switch ($styleAttributeValue) {
517  case 'Short Date' :
518  $styleAttributeValue = 'dd/mm/yyyy';
519  break;
520  }
521  if ($styleAttributeValue > '') {
522  $this->_styles[$styleID]['numberformat']['code'] = $styleAttributeValue;
523  }
524  }
525  break;
526  case 'Protection' :
527  foreach($styleAttributes as $styleAttributeKey => $styleAttributeValue) {
528 // echo $styleAttributeKey.' = '.$styleAttributeValue.'<br />';
529  }
530  break;
531  }
532  }
533 // print_r($this->_styles[$styleID]);
534 // echo '<hr />';
535  }
536 // echo '<hr />';
537
538  $worksheetID = 0;
539  $xml_ss = $xml->children($namespaces['ss']);
540
541  foreach($xml_ss->Worksheet as $worksheet) {
542  $worksheet_ss = $worksheet->attributes($namespaces['ss']);
543
544  if ((isset($this->_loadSheetsOnly)) && (isset($worksheet_ss['Name'])) &&
545  (!in_array($worksheet_ss['Name'], $this->_loadSheetsOnly))) {
546  continue;
547  }
548
549 // echo '<h3>Worksheet: ',$worksheet_ss['Name'],'<h3>';
550 //
551  // Create new Worksheet
552  $objPHPExcel->createSheet();
553  $objPHPExcel->setActiveSheetIndex($worksheetID);
554  if (isset($worksheet_ss['Name'])) {
555  $worksheetName = self::_convertStringEncoding((string) $worksheet_ss['Name'],$this->_charSet);
556  // Use false for $updateFormulaCellReferences to prevent adjustment of worksheet references in
557  // formula cells... during the load, all formulae should be correct, and we're simply bringing
558  // the worksheet name in line with the formula, not the reverse
559  $objPHPExcel->getActiveSheet()->setTitle($worksheetName,false);
560  }
561
562  $columnID = 'A';
563  if (isset($worksheet->Table->Column)) {
564  foreach($worksheet->Table->Column as $columnData) {
565  $columnData_ss = $columnData->attributes($namespaces['ss']);
566  if (isset($columnData_ss['Index'])) {
567  $columnID = PHPExcel_Cell::stringFromColumnIndex($columnData_ss['Index']-1);
568  }
569  if (isset($columnData_ss['Width'])) {
570  $columnWidth = $columnData_ss['Width'];
571 // echo '<b>Setting column width for '.$columnID.' to '.$columnWidth.'</b><br />';
572  $objPHPExcel->getActiveSheet()->getColumnDimension($columnID)->setWidth($columnWidth / 5.4);
573  }
574  ++$columnID;
575  }
576  }
577
578  $rowID = 1;
579  if (isset($worksheet->Table->Row)) {
580  $additionalMergedCells = 0;
581  foreach($worksheet->Table->Row as $rowData) {
582  $rowHasData = false;
583  $row_ss = $rowData->attributes($namespaces['ss']);
584  if (isset($row_ss['Index'])) {
585  $rowID = (integer) $row_ss['Index'];
586  }
587 // echo '<b>Row '.$rowID.'</b><br />';
588
589  $columnID = 'A';
590  foreach($rowData->Cell as $cell) {
591
592  $cell_ss = $cell->attributes($namespaces['ss']);
593  if (isset($cell_ss['Index'])) {
594  $columnID = PHPExcel_Cell::stringFromColumnIndex($cell_ss['Index']-1);
595  }
596  $cellRange = $columnID.$rowID;
597
598  if ($this->getReadFilter() !== NULL) {
599  if (!$this->getReadFilter()->readCell($columnID, $rowID, $worksheetName)) {
600  continue;
601  }
602  }
603
604  if ((isset($cell_ss['MergeAcross'])) || (isset($cell_ss['MergeDown']))) {
605  $columnTo = $columnID;
606  if (isset($cell_ss['MergeAcross'])) {
607  $additionalMergedCells += (int)$cell_ss['MergeAcross'];
608  $columnTo = PHPExcel_Cell::stringFromColumnIndex(PHPExcel_Cell::columnIndexFromString($columnID) + $cell_ss['MergeAcross'] -1);
609  }
610  $rowTo = $rowID;
611  if (isset($cell_ss['MergeDown'])) {
612  $rowTo = $rowTo + $cell_ss['MergeDown'];
613  }
614  $cellRange .= ':'.$columnTo.$rowTo;
615  $objPHPExcel->getActiveSheet()->mergeCells($cellRange);
616  }
617
618  $cellIsSet = $hasCalculatedValue = false;
619  $cellDataFormula = '';
620  if (isset($cell_ss['Formula'])) {
621  $cellDataFormula = $cell_ss['Formula'];
622  // added this as a check for array formulas
623  if (isset($cell_ss['ArrayRange'])) {
624  $cellDataCSEFormula = $cell_ss['ArrayRange'];
625 // echo "found an array formula at ".$columnID.$rowID."<br />";
626  }
627  $hasCalculatedValue = true;
628  }
629  if (isset($cell->Data)) {
630  $cellValue = $cellData = $cell->Data;
631  $type = PHPExcel_Cell_DataType::TYPE_NULL;
632  $cellData_ss = $cellData->attributes($namespaces['ss']);
633  if (isset($cellData_ss['Type'])) {
634  $cellDataType = $cellData_ss['Type'];
635  switch ($cellDataType) {
636  /*
637  const TYPE_STRING = 's';
638  const TYPE_FORMULA = 'f';
639  const TYPE_NUMERIC = 'n';
640  const TYPE_BOOL = 'b';
641  const TYPE_NULL = 'null';
642  const TYPE_INLINE = 'inlineStr';
643  const TYPE_ERROR = 'e';
644  */
645  case 'String' :
646  $cellValue = self::_convertStringEncoding($cellValue,$this->_charSet);
647  $type = PHPExcel_Cell_DataType::TYPE_STRING;
648  break;
649  case 'Number' :
650  $type = PHPExcel_Cell_DataType::TYPE_NUMERIC;
651  $cellValue = (float) $cellValue;
652  if (floor($cellValue) == $cellValue) {
653  $cellValue = (integer) $cellValue;
654  }
655  break;
656  case 'Boolean' :
657  $type = PHPExcel_Cell_DataType::TYPE_BOOL;
658  $cellValue = ($cellValue != 0);
659  break;
660  case 'DateTime' :
661  $type = PHPExcel_Cell_DataType::TYPE_NUMERIC;
662  $cellValue = PHPExcel_Shared_Date::PHPToExcel(strtotime($cellValue));
663  break;
664  case 'Error' :
665  $type = PHPExcel_Cell_DataType::TYPE_ERROR;
666  break;
667  }
668  }
669
670  if ($hasCalculatedValue) {
671 // echo 'FORMULA<br />';
672  $type = PHPExcel_Cell_DataType::TYPE_FORMULA;
673  $columnNumber = PHPExcel_Cell::columnIndexFromString($columnID);
674  if (substr($cellDataFormula,0,3) == 'of:') {
675  $cellDataFormula = substr($cellDataFormula,3);
676 // echo 'Before: ',$cellDataFormula,'<br />';
677  $temp = explode('"',$cellDataFormula);
678  $key = false;
679  foreach($temp as &$value) {
680  // Only replace in alternate array entries (i.e. non-quoted blocks)
681  if ($key = !$key) {
682  $value = str_replace(array('[.','.',']'),'',$value);
683  }
684  }
685  } else {
686  // Convert R1C1 style references to A1 style references (but only when not quoted)
687 // echo 'Before: ',$cellDataFormula,'<br />';
688  $temp = explode('"',$cellDataFormula);
689  $key = false;
690  foreach($temp as &$value) {
691  // Only replace in alternate array entries (i.e. non-quoted blocks)
692  if ($key = !$key) {
693  preg_match_all('/(R(\[?-?\d*\]?))(C(\[?-?\d*\]?))/',$value, $cellReferences,PREG_SET_ORDER+PREG_OFFSET_CAPTURE);
694  // Reverse the matches array, otherwise all our offsets will become incorrect if we modify our way
695  // through the formula from left to right. Reversing means that we work right to left.through
696  // the formula
697  $cellReferences = array_reverse($cellReferences);
698  // Loop through each R1C1 style reference in turn, converting it to its A1 style equivalent,
699  // then modify the formula to use that new reference
700  foreach($cellReferences as $cellReference) {
701  $rowReference = $cellReference[2][0];
702  // Empty R reference is the current row
703  if ($rowReference == '') $rowReference = $rowID;
704  // Bracketed R references are relative to the current row
705  if ($rowReference{0} == '[') $rowReference = $rowID + trim($rowReference,'[]');
706  $columnReference = $cellReference[4][0];
707  // Empty C reference is the current column
708  if ($columnReference == '') $columnReference = $columnNumber;
709  // Bracketed C references are relative to the current column
710  if ($columnReference{0} == '[') $columnReference = $columnNumber + trim($columnReference,'[]');
711  $A1CellReference = PHPExcel_Cell::stringFromColumnIndex($columnReference-1).$rowReference;
712  $value = substr_replace($value,$A1CellReference,$cellReference[0][1],strlen($cellReference[0][0]));
713  }
714  }
715  }
716  }
717  unset($value);
718  // Then rebuild the formula string
719  $cellDataFormula = implode('"',$temp);
720 // echo 'After: ',$cellDataFormula,'<br />';
721  }
722
723 // echo 'Cell '.$columnID.$rowID.' is a '.$type.' with a value of '.(($hasCalculatedValue) ? $cellDataFormula : $cellValue).'<br />';
724 //
725  $objPHPExcel->getActiveSheet()->getCell($columnID.$rowID)->setValueExplicit((($hasCalculatedValue) ? $cellDataFormula : $cellValue),$type);
726  if ($hasCalculatedValue) {
727 // echo 'Formula result is '.$cellValue.'<br />';
728  $objPHPExcel->getActiveSheet()->getCell($columnID.$rowID)->setCalculatedValue($cellValue);
729  }
730  $cellIsSet = $rowHasData = true;
731  }
732
733  if (isset($cell->Comment)) {
734 // echo '<b>comment found</b><br />';
735  $commentAttributes = $cell->Comment->attributes($namespaces['ss']);
736  $author = 'unknown';
737  if (isset($commentAttributes->Author)) {
738  $author = (string)$commentAttributes->Author;
739 // echo 'Author: ',$author,'<br />';
740  }
741  $node = $cell->Comment->Data->asXML();
742 // $annotation = str_replace('html:','',substr($node,49,-10));
743 // echo $annotation,'<br />';
744  $annotation = strip_tags($node);
745 // echo 'Annotation: ',$annotation,'<br />';
746  $objPHPExcel->getActiveSheet()->getComment( $columnID.$rowID )
747  ->setAuthor(self::_convertStringEncoding($author ,$this->_charSet))
748  ->setText($this->_parseRichText($annotation) );
749  }
750
751  if (($cellIsSet) && (isset($cell_ss['StyleID']))) {
752  $style = (string) $cell_ss['StyleID'];
753 // echo 'Cell style for '.$columnID.$rowID.' is '.$style.'<br />';
754  if ((isset($this->_styles[$style])) && (!empty($this->_styles[$style]))) {
755 // echo 'Cell '.$columnID.$rowID.'<br />';
756 // print_r($this->_styles[$style]);
757 // echo '<br />';
758  if (!$objPHPExcel->getActiveSheet()->cellExists($columnID.$rowID)) {
759  $objPHPExcel->getActiveSheet()->getCell($columnID.$rowID)->setValue(NULL);
760  }
761  $objPHPExcel->getActiveSheet()->getStyle($cellRange)->applyFromArray($this->_styles[$style]);
762  }
763  }
764  ++$columnID;
765  while ($additionalMergedCells > 0) {
766  ++$columnID;
767  $additionalMergedCells--;
768  }
769  }
770
771  if ($rowHasData) {
772  if (isset($row_ss['StyleID'])) {
773  $rowStyle = $row_ss['StyleID'];
774  }
775  if (isset($row_ss['Height'])) {
776  $rowHeight = $row_ss['Height'];
777 // echo '<b>Setting row height to '.$rowHeight.'</b><br />';
778  $objPHPExcel->getActiveSheet()->getRowDimension($rowID)->setRowHeight($rowHeight);
779  }
780  }
781
782  ++$rowID;
783  }
784  }
785  ++$worksheetID;
786  }
787
788  // Return
789  return $objPHPExcel;
790  }
PHPExcel_Reader_Excel2003XML\canRead
canRead($pFilename)
Can the current PHPExcel_Reader_IReader read the file?
Definition: Excel2003XML.php:77
$worksheet
$worksheet
Definition: 40duplicateStyle.php:17
$style
$style
Definition: example_012.php:70
PHPExcel_Cell_DataType\TYPE_BOOL
const TYPE_BOOL
Definition: DataType.php:43
PHPExcel_Style_Alignment\HORIZONTAL_LEFT
const HORIZONTAL_LEFT
Definition: Alignment.php:40
$objPHPExcel
$objPHPExcel
Definition: 01pharSimple.php:42
PHPExcel\getProperties
getProperties()
Get properties.
Definition: PHPExcel.php:425
PHPExcel_Style_Alignment\VERTICAL_TOP
const VERTICAL_TOP
Definition: Alignment.php:50
PHPExcel_Style_Alignment\HORIZONTAL_GENERAL
const HORIZONTAL_GENERAL
Definition: Alignment.php:39
string
Add rich text string
The name of the decorator.
Definition: 05featuredemo.inc.php:117
PHPExcel_Style_Font\UNDERLINE_NONE
const UNDERLINE_NONE
Definition: Font.php:39
PHPExcel_Cell_DataType\TYPE_ERROR
const TYPE_ERROR
Definition: DataType.php:46
PHPExcel_Reader_Excel2003XML\_parseRichText
_parseRichText($is='')
Definition: Excel2003XML.php:801
PHPExcel\createSheet
createSheet($iSheetIndex=NULL)
Create sheet and add it to this workbook.
Definition: PHPExcel.php:479
PHPExcel_Style_Font\UNDERLINE_SINGLE
const UNDERLINE_SINGLE
Definition: Font.php:42
PHPExcel_Reader_Abstract\securityScan
securityScan($xml)
Scan theXML for use of <!ENTITY to prevent XXE/XEE attacks.
Definition: Abstract.php:236
PHPExcel_Style_Alignment\VERTICAL_JUSTIFY
const VERTICAL_JUSTIFY
Definition: Alignment.php:52
PHPExcel_Style_Font\UNDERLINE_DOUBLE
const UNDERLINE_DOUBLE
Definition: Font.php:40
PHPExcel_DocumentProperties\PROPERTY_TYPE_STRING
const PROPERTY_TYPE_STRING
Definition: DocumentProperties.php:43
PHPExcel_Style_Font\UNDERLINE_DOUBLEACCOUNTING
const UNDERLINE_DOUBLEACCOUNTING
Definition: Font.php:41
PHPExcel_Style_Alignment\HORIZONTAL_CENTER_CONTINUOUS
const HORIZONTAL_CENTER_CONTINUOUS
Definition: Alignment.php:43
PHPExcel_Cell_DataType\TYPE_NULL
const TYPE_NULL
Definition: DataType.php:44
PHPExcel_DocumentProperties\PROPERTY_TYPE_FLOAT
const PROPERTY_TYPE_FLOAT
Definition: DocumentProperties.php:41
PHPExcel_DocumentProperties\PROPERTY_TYPE_BOOLEAN
const PROPERTY_TYPE_BOOLEAN
constants
Definition: DocumentProperties.php:39
PHPExcel_Style_Alignment\HORIZONTAL_JUSTIFY
const HORIZONTAL_JUSTIFY
Definition: Alignment.php:44
PHPExcel_Style_Border\BORDER_MEDIUM
const BORDER_MEDIUM
Definition: Border.php:46
PHPExcel_Cell_DataType\TYPE_STRING
const TYPE_STRING
Definition: DataType.php:40
PHPExcel_Settings\getLibXmlLoaderOptions
static getLibXmlLoaderOptions()
Get default options for libxml loader.
Definition: Settings.php:381
PHPExcel_Style_Font\UNDERLINE_SINGLEACCOUNTING
const UNDERLINE_SINGLEACCOUNTING
Definition: Font.php:43
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19
PHPExcel_DocumentProperties\PROPERTY_TYPE_INTEGER
const PROPERTY_TYPE_INTEGER
Definition: DocumentProperties.php:40
PHPExcel_DocumentProperties\PROPERTY_TYPE_UNKNOWN
const PROPERTY_TYPE_UNKNOWN
Definition: DocumentProperties.php:44
PHPExcel\getActiveSheet
getActiveSheet()
Get active sheet.
Definition: PHPExcel.php:467
PHPExcel_DocumentProperties\PROPERTY_TYPE_DATE
const PROPERTY_TYPE_DATE
Definition: DocumentProperties.php:42
PHPExcel_Reader_Abstract\getReadFilter
getReadFilter()
Read filter.
Definition: Abstract.php:173
PHPExcel_Cell\columnIndexFromString
static columnIndexFromString($pString='A')
Column index from string.
Definition: Cell.php:782
PHPExcel_Style_Alignment\VERTICAL_CENTER
const VERTICAL_CENTER
Definition: Alignment.php:51
PHPExcel_Reader_Exception
Definition: Exception.php:36
PHPExcel_Cell\stringFromColumnIndex
static stringFromColumnIndex($pColumnIndex=0)
String from columnindex.
Definition: Cell.php:825
PHPExcel\setActiveSheetIndex
setActiveSheetIndex($pIndex=0)
Set active sheet index.
Definition: PHPExcel.php:683
PHPExcel_Style_Alignment\VERTICAL_BOTTOM
const VERTICAL_BOTTOM
Definition: Alignment.php:49
PHPExcel_Style_Alignment\HORIZONTAL_RIGHT
const HORIZONTAL_RIGHT
Definition: Alignment.php:41
PHPExcel_Cell_DataType\TYPE_NUMERIC
const TYPE_NUMERIC
Definition: DataType.php:42
PHPExcel_Shared_Date\PHPToExcel
static PHPToExcel($dateValue=0, $adjustToTimezone=FALSE, $timezone=NULL)
Convert a date from PHP to Excel.
Definition: Date.php:185
PHPExcel_Cell_DataType\TYPE_FORMULA
const TYPE_FORMULA
Definition: DataType.php:41
PHPExcel_Style_Alignment\HORIZONTAL_CENTER
const HORIZONTAL_CENTER
Definition: Alignment.php:42
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Field Documentation

◆ $_charSet

PHPExcel_Reader_Excel2003XML::$_charSet = 'UTF-8'
protected

Definition at line 59 of file Excel2003XML.php.

◆ $_styles

PHPExcel_Reader_Excel2003XML::$_styles = array()
protected

Definition at line 52 of file Excel2003XML.php.

The documentation for this class was generated from the following file:
