ILIAS  release_9 Revision v9.13-25-g2c18ec4c24f
Public Member Functions
assMultipleChoiceExport Class Reference
Modules/TestQuestionPool

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

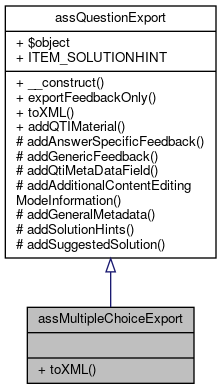

+ Inheritance diagram for assMultipleChoiceExport:

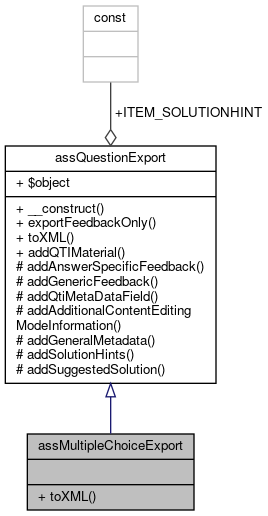

+ Collaboration diagram for assMultipleChoiceExport:

Public Member Functions

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation public. More...

- Public Member Functions inherited from assQuestionExport
 __construct ($a_object)
 assQuestionExport constructor More...

 exportFeedbackOnly ($a_xml_writer)

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation. More...

 addQTIMaterial (ilXmlWriter $a_xml_writer, string $a_material, bool $close_material_tag=true, bool $add_mobs=true)


Additional Inherited Members

- Data Fields inherited from assQuestionExport
 $object

const ITEM_SOLUTIONHINT = 'solutionhint'

- Protected Member Functions inherited from assQuestionExport
 addAnswerSpecificFeedback (ilXmlWriter $a_xml_writer, $answers)

 addGenericFeedback (ilXmlWriter $a_xml_writer)

 addQtiMetaDataField (ilXmlWriter $a_xml_writer, $fieldLabel, $fieldValue)
 adds a qti meta data field with given name and value to the passed xml writer (xml writer must be in context of opened "qtimetadata" tag) More...

 addAdditionalContentEditingModeInformation (ilXmlWriter $a_xml_writer)
 adds a qti meta data field for ilias specific information of "additional content editing mode" (xml writer must be in context of opened "qtimetadata" tag) More...

 addGeneralMetadata (ilXmlWriter $xmlwriter)

 addSolutionHints (ilXmlWriter $writer)

 addSuggestedSolution (ilXmlWriter $writer)


Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Class for multiple choice question exports

assMultipleChoiceExport is a class for multiple choice question exports

Author
Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m
Version
$Id$

Definition at line 29 of file class.assMultipleChoiceExport.php.

Member Function Documentation

◆ toXML()

assMultipleChoiceExport::toXML (   $a_include_header = true,
  $a_include_binary = true,
  $a_shuffle = false,
  $test_output = false,
  $force_image_references = false
)

Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation public.

Definition at line 37 of file class.assMultipleChoiceExport.php.

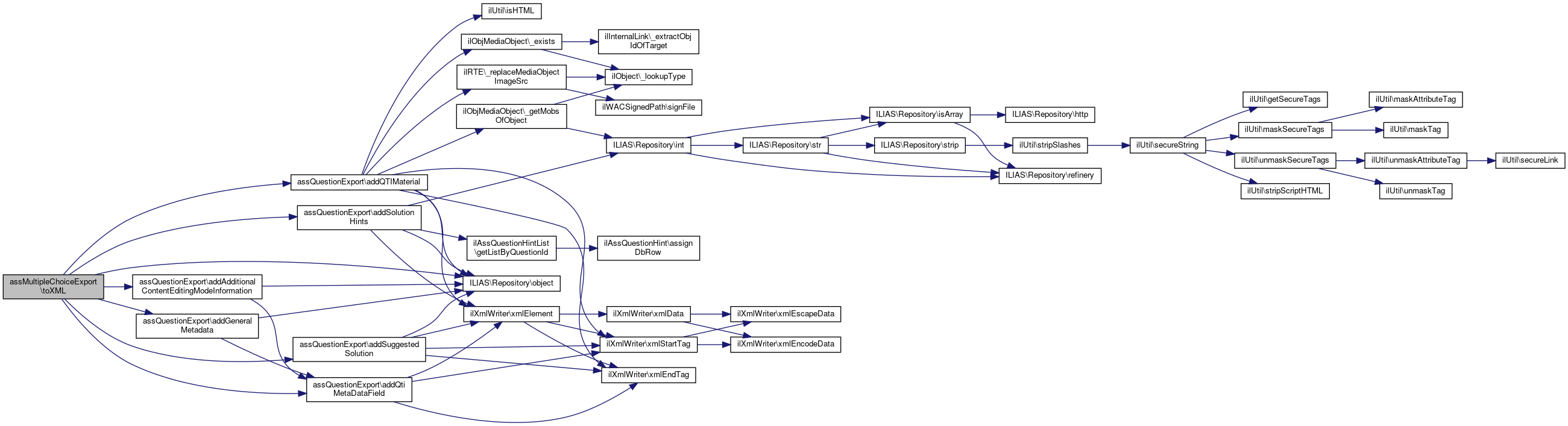

References $DIC, assQuestionExport\addAdditionalContentEditingModeInformation(), assQuestionExport\addGeneralMetadata(), assQuestionExport\addQTIMaterial(), assQuestionExport\addQtiMetaDataField(), assQuestionExport\addSolutionHints(), assQuestionExport\addSuggestedSolution(), IL_INST_ID, MULTIPLE_CHOICE_QUESTION_IDENTIFIER, and ILIAS\Repository\object().

37  : string
38  {
39  global $DIC;
40  $ilias = $DIC['ilias'];
41
42  $a_xml_writer = new ilXmlWriter();
43  // set xml header
44  $a_xml_writer->xmlHeader();
45  $a_xml_writer->xmlStartTag("questestinterop");
46  $attrs = [
47  "ident" => "il_" . IL_INST_ID . "_qst_" . $this->object->getId(),
48  "title" => $this->object->getTitle(),
49  "maxattempts" => $this->object->getNrOfTries()
50  ];
51  $a_xml_writer->xmlStartTag("item", $attrs);
52  // add question description
53  $a_xml_writer->xmlElement("qticomment", null, $this->object->getComment());
54  $a_xml_writer->xmlStartTag("itemmetadata");
55  $a_xml_writer->xmlStartTag("qtimetadata");
56  $a_xml_writer->xmlStartTag("qtimetadatafield");
57  $a_xml_writer->xmlElement("fieldlabel", null, "ILIAS_VERSION");
58  $a_xml_writer->xmlElement("fieldentry", null, $ilias->getSetting("ilias_version"));
59  $a_xml_writer->xmlEndTag("qtimetadatafield");
60  $a_xml_writer->xmlStartTag("qtimetadatafield");
61  $a_xml_writer->xmlElement("fieldlabel", null, "QUESTIONTYPE");
62  $a_xml_writer->xmlElement("fieldentry", null, MULTIPLE_CHOICE_QUESTION_IDENTIFIER);
63  $a_xml_writer->xmlEndTag("qtimetadatafield");
64  $a_xml_writer->xmlStartTag("qtimetadatafield");
65  $a_xml_writer->xmlElement("fieldlabel", null, "AUTHOR");
66  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getAuthor());
67  $a_xml_writer->xmlEndTag("qtimetadatafield");
68
69  // additional content editing information
70  $this->addAdditionalContentEditingModeInformation($a_xml_writer);
71  $this->addGeneralMetadata($a_xml_writer);
72
73  $a_xml_writer->xmlStartTag("qtimetadatafield");
74  $a_xml_writer->xmlElement("fieldlabel", null, "thumb_size");
75  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getThumbSize());
76  $a_xml_writer->xmlEndTag("qtimetadatafield");
77
78  $a_xml_writer->xmlStartTag("qtimetadatafield");
79  $a_xml_writer->xmlElement("fieldlabel", null, "feedback_setting");
80  $a_xml_writer->xmlElement("fieldentry", null, $this->object->getSpecificFeedbackSetting());
81  $a_xml_writer->xmlEndTag("qtimetadatafield");
82
83  $this->addQtiMetaDataField($a_xml_writer, 'singleline', $this->object->isSingleline() ? 1 : 0);
84
85  $a_xml_writer->xmlEndTag("qtimetadata");
86  $a_xml_writer->xmlEndTag("itemmetadata");
87
88  // PART I: qti presentation
89  $attrs = [
90  "label" => $this->object->getTitle()
91  ];
92  $a_xml_writer->xmlStartTag("presentation", $attrs);
93  // add flow to presentation
94  $a_xml_writer->xmlStartTag("flow");
95  // add material with question text to presentation
96  $this->addQTIMaterial($a_xml_writer, $this->object->getQuestion());
97  // add answers to presentation
98  $attrs = [
99  "ident" => "MCMR",
100  "rcardinality" => "Multiple"
101  ];
102  $a_xml_writer->xmlStartTag("response_lid", $attrs);
103  $a_xml_writer = $this->addSuggestedSolution($a_xml_writer);
104  // shuffle output and max choice
105  $attrs = ['shuffle' => $this->object->getShuffle() ? 'Yes' : 'No'];
106  if ($this->object->getSelectionLimit()) {
107  $attrs['minnumber'] = '0';
108  $attrs['maxnumber'] = (string) $this->object->getSelectionLimit();
109  }
110  $a_xml_writer->xmlStartTag("render_choice", $attrs);
111  $answers = &$this->object->getAnswers();
112  $akeys = array_keys($answers);
113  if ($this->object->getShuffle() && $a_shuffle) {
114  $akeys = shuffle($akeys);
115  }
116  // add answers
117  foreach ($akeys as $index) {
118  $answer = $answers[$index];
119  $attrs = [
120  "ident" => $index
121  ];
122  $a_xml_writer->xmlStartTag("response_label", $attrs);
123
124  if ($answer->hasImage()) {
125  $this->addQTIMaterial($a_xml_writer, $answer->getAnswertext(), false, false);
126  $imagetype = "image/jpeg";
127  if (preg_match("/.*\.(png|gif)$/", $answer->getImage(), $matches)) {
128  $imagetype = "image/" . $matches[1];
129  }
130  if ($force_image_references) {
131  $attrs = [
132  "imagtype" => $imagetype,
133  "label" => $answer->getImage(),
134  "uri" => $this->object->getImagePathWeb() . $answer->getImage()
135  ];
136  $a_xml_writer->xmlElement("matimage", $attrs);
137  } else {
138  $imagepath = $this->object->getImagePath() . $answer->getImage();
139  $fh = @fopen($imagepath, "rb");
140  if ($fh != false) {
141  $imagefile = fread($fh, filesize($imagepath));
142  fclose($fh);
143  $base64 = base64_encode($imagefile);
144  $attrs = [
145  "imagtype" => $imagetype,
146  "label" => $answer->getImage(),
147  "embedded" => "base64"
148  ];
149  $a_xml_writer->xmlElement("matimage", $attrs, $base64, false, false);
150  }
151  }
152  $a_xml_writer->xmlEndTag("material");
153  } else {
154  $this->addQTIMaterial($a_xml_writer, $answer->getAnswertext());
155  }
156  $a_xml_writer->xmlEndTag("response_label");
157  }
158  $a_xml_writer->xmlEndTag("render_choice");
159  $a_xml_writer->xmlEndTag("response_lid");
160  $a_xml_writer->xmlEndTag("flow");
161  $a_xml_writer->xmlEndTag("presentation");
162
163  // PART II: qti resprocessing
164  $a_xml_writer->xmlStartTag("resprocessing");
165  $a_xml_writer->xmlStartTag("outcomes");
166  $a_xml_writer->xmlStartTag("decvar");
167  $a_xml_writer->xmlEndTag("decvar");
168  $a_xml_writer->xmlEndTag("outcomes");
169  // add response conditions
170  foreach ($answers as $index => $answer) {
171  $attrs = [
172  "continue" => "Yes"
173  ];
174  $a_xml_writer->xmlStartTag("respcondition", $attrs);
175  // qti conditionvar
176  $a_xml_writer->xmlStartTag("conditionvar");
177  $attrs = [
178  "respident" => "MCMR"
179  ];
180  $a_xml_writer->xmlElement("varequal", $attrs, $index);
181  $a_xml_writer->xmlEndTag("conditionvar");
182  // qti setvar
183  $attrs = [
184  "action" => "Add"
185  ];
186  $a_xml_writer->xmlElement("setvar", $attrs, $answer->getPoints());
187  // qti displayfeedback
188  $linkrefid = "response_$index";
189  $attrs = [
190  "feedbacktype" => "Response",
191  "linkrefid" => $linkrefid
192  ];
193  $a_xml_writer->xmlElement("displayfeedback", $attrs);
194  $a_xml_writer->xmlEndTag("respcondition");
195  $attrs = [
196  "continue" => "Yes"
197  ];
198  $a_xml_writer->xmlStartTag("respcondition", $attrs);
199
200  // qti conditionvar
201  $a_xml_writer->xmlStartTag("conditionvar");
202  $attrs = [
203  "respident" => "MCMR"
204  ];
205  $a_xml_writer->xmlStartTag("not");
206  $a_xml_writer->xmlElement("varequal", $attrs, $index);
207  $a_xml_writer->xmlEndTag("not");
208  $a_xml_writer->xmlEndTag("conditionvar");
209  // qti setvar
210  $attrs = [
211  "action" => "Add"
212  ];
213  $a_xml_writer->xmlElement("setvar", $attrs, $answer->getPointsUnchecked());
214  $a_xml_writer->xmlEndTag("respcondition");
215  }
216  $feedback_allcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
217  $this->object->getId(),
218  true
219  );
220  if (strlen($feedback_allcorrect)) {
221  $attrs = [
222  "continue" => "Yes"
223  ];
224  $a_xml_writer->xmlStartTag("respcondition", $attrs);
225  // qti conditionvar
226  $a_xml_writer->xmlStartTag("conditionvar");
227  foreach ($answers as $index => $answer) {
228  if ($answer->getPointsChecked() < $answer->getPointsUnchecked()) {
229  $a_xml_writer->xmlStartTag("not");
230  }
231  $attrs = [
232  "respident" => "MCMR"
233  ];
234  $a_xml_writer->xmlElement("varequal", $attrs, $index);
235  if ($answer->getPointsChecked() < $answer->getPointsUnchecked()) {
236  $a_xml_writer->xmlEndTag("not");
237  }
238  }
239  $a_xml_writer->xmlEndTag("conditionvar");
240  // qti displayfeedback
241  $attrs = [
242  "feedbacktype" => "Response",
243  "linkrefid" => "response_allcorrect"
244  ];
245  $a_xml_writer->xmlElement("displayfeedback", $attrs);
246  $a_xml_writer->xmlEndTag("respcondition");
247  }
248  $feedback_onenotcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
249  $this->object->getId(),
250  false
251  );
252  if (strlen($feedback_onenotcorrect)) {
253  $attrs = [
254  "continue" => "Yes"
255  ];
256  $a_xml_writer->xmlStartTag("respcondition", $attrs);
257  // qti conditionvar
258  $a_xml_writer->xmlStartTag("conditionvar");
259  foreach ($answers as $index => $answer) {
260  if ($index > 0) {
261  $a_xml_writer->xmlStartTag("or");
262  }
263  if ($answer->getPointsChecked() >= $answer->getPointsUnchecked()) {
264  $a_xml_writer->xmlStartTag("not");
265  }
266  $attrs = [
267  "respident" => "MCMR"
268  ];
269  $a_xml_writer->xmlElement("varequal", $attrs, $index);
270  if ($answer->getPointsChecked() >= $answer->getPointsUnchecked()) {
271  $a_xml_writer->xmlEndTag("not");
272  }
273  if ($index > 0) {
274  $a_xml_writer->xmlEndTag("or");
275  }
276  }
277  $a_xml_writer->xmlEndTag("conditionvar");
278  // qti displayfeedback
279  $attrs = [
280  "feedbacktype" => "Response",
281  "linkrefid" => "response_onenotcorrect"
282  ];
283  $a_xml_writer->xmlElement("displayfeedback", $attrs);
284  $a_xml_writer->xmlEndTag("respcondition");
285  }
286  $a_xml_writer->xmlEndTag("resprocessing");
287
288  // PART III: qti itemfeedback
289  foreach ($answers as $index => $answer) {
290  $linkrefid = "response_$index";
291  $attrs = [
292  "ident" => $linkrefid,
293  "view" => "All"
294  ];
295  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
296  // qti flow_mat
297  $a_xml_writer->xmlStartTag("flow_mat");
298  $fb = $this->object->feedbackOBJ->getSpecificAnswerFeedbackExportPresentation(
299  $this->object->getId(),
300  0,
301  $index
302  );
303  $this->addQTIMaterial($a_xml_writer, $fb);
304  $a_xml_writer->xmlEndTag("flow_mat");
305  $a_xml_writer->xmlEndTag("itemfeedback");
306  }
307  if (strlen($feedback_allcorrect)) {
308  $attrs = [
309  "ident" => "response_allcorrect",
310  "view" => "All"
311  ];
312  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
313  // qti flow_mat
314  $a_xml_writer->xmlStartTag("flow_mat");
315  $this->addQTIMaterial($a_xml_writer, $feedback_allcorrect);
316  $a_xml_writer->xmlEndTag("flow_mat");
317  $a_xml_writer->xmlEndTag("itemfeedback");
318  }
319  if (strlen($feedback_onenotcorrect)) {
320  $attrs = [
321  "ident" => "response_onenotcorrect",
322  "view" => "All"
323  ];
324  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
325  // qti flow_mat
326  $a_xml_writer->xmlStartTag("flow_mat");
327  $this->addQTIMaterial($a_xml_writer, $feedback_onenotcorrect);
328  $a_xml_writer->xmlEndTag("flow_mat");
329  $a_xml_writer->xmlEndTag("itemfeedback");
330  }
331
332  $a_xml_writer = $this->addSolutionHints($a_xml_writer);
333
334  $a_xml_writer->xmlEndTag("item");
335  $a_xml_writer->xmlEndTag("questestinterop");
336
337  $xml = $a_xml_writer->xmlDumpMem(false);
338  if (!$a_include_header) {
339  $pos = strpos($xml, "?>");
340  $xml = substr($xml, $pos + 2);
341  }
342  return $xml;
343  }
MULTIPLE_CHOICE_QUESTION_IDENTIFIER
const MULTIPLE_CHOICE_QUESTION_IDENTIFIER
Definition: inc.AssessmentConstants.php:45
IL_INST_ID
const IL_INST_ID
Definition: constants.php:40
assQuestionExport\addQTIMaterial
addQTIMaterial(ilXmlWriter $a_xml_writer, string $a_material, bool $close_material_tag=true, bool $add_mobs=true)
Definition: class.assQuestionExport.php:299
ilXmlWriter
This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Le...
Definition: class.ilXmlWriter.php:32
assQuestionExport\addGeneralMetadata
addGeneralMetadata(ilXmlWriter $xmlwriter)
Definition: class.assQuestionExport.php:218
assQuestionExport\addQtiMetaDataField
addQtiMetaDataField(ilXmlWriter $a_xml_writer, $fieldLabel, $fieldValue)
adds a qti meta data field with given name and value to the passed xml writer (xml writer must be in ...
Definition: class.assQuestionExport.php:190
$DIC
global $DIC
Definition: feed.php:28
assQuestionExport\addAdditionalContentEditingModeInformation
addAdditionalContentEditingModeInformation(ilXmlWriter $a_xml_writer)
adds a qti meta data field for ilias specific information of "additional content editing mode" (xml w...
Definition: class.assQuestionExport.php:206
assQuestionExport\addSuggestedSolution
addSuggestedSolution(ilXmlWriter $writer)
Definition: class.assQuestionExport.php:262
assQuestionExport\addSolutionHints
addSolutionHints(ilXmlWriter $writer)
Definition: class.assQuestionExport.php:237
+ Here is the call graph for this function:
The documentation for this class was generated from the following file:
