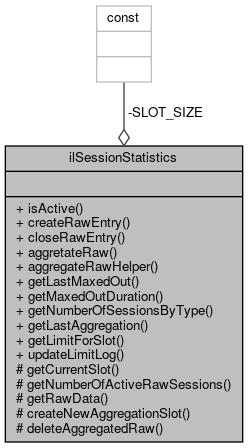

Collaboration diagram for ilSessionStatistics:

Static Public Member Functions
static	isActive ()
	Is session statistics active at all? More...

static	createRawEntry (string $a_session_id, int $a_session_type, int $a_timestamp, int $a_user_id)
	Create raw data entry. More...

static	closeRawEntry ($a_session_id, ?int $a_context=null, $a_expired_at=null)
	Close raw data entry. More...

static	aggretateRaw (int $a_now)
	Aggregate raw session data (older than given time) More...

static	aggregateRawHelper (int $a_begin, int $a_end)
	Aggregate statistics data for one slot. More...

static	getLastMaxedOut ()
	Get latest slot during which sessions were maxed out. More...

static	getMaxedOutDuration (int $a_from, int $a_to)
	Get maxed out duration in given timeframe. More...

static	getNumberOfSessionsByType (int $a_from, int $a_to)
	Get session counters by type (opened, closed) More...

static	getLastAggregation ()
	Get timestamp of last aggregation. More...

static	getLimitForSlot (int $a_timestamp)
	Get max session setting for given timestamp. More...

static	updateLimitLog (int $a_new_value)
	Log max session setting. More...

Static Protected Member Functions
static	getCurrentSlot (int $a_now)
	Get next slot to aggregate. More...

static	getNumberOfActiveRawSessions (int $a_time)
	Count number of active sessions at given time. More...

static	getRawData (int $a_begin, int $a_end)
	Read raw data for timespan. More...

static	createNewAggregationSlot (int $a_now)
	Create new slot (using table lock) More...

static	deleteAggregatedRaw ($a_now)
	Remove already aggregated raw data. More...

Private Attributes
const	SLOT_SIZE = 15

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning

Author: Jörg Lützenkirchen luetz.nosp@m.enki.nosp@m.rchen.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Definition at line 24 of file class.ilSessionStatistics.php.

Member Function Documentation

◆ aggregateRawHelper()

static ilSessionStatistics::aggregateRawHelper	(	int	$a_begin,
		int	$a_end
	)

static

Aggregate statistics data for one slot.

Definition at line 274 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, $ilSetting, ilSession\SESSION_CLOSE_EXPIRE, ilSession\SESSION_CLOSE_FIRST, ilSession\SESSION_CLOSE_IDLE, ilSession\SESSION_CLOSE_LIMIT, ilSession\SESSION_CLOSE_LOGIN, and ilSession\SESSION_CLOSE_USER.

                                                                        : void
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];
         $ilSetting = $DIC['ilSetting'];

         // "relevant" closing types
         $separate_closed = array(ilSession::SESSION_CLOSE_USER,
             ilSession::SESSION_CLOSE_EXPIRE,
             ilSession::SESSION_CLOSE_IDLE,
             ilSession::SESSION_CLOSE_FIRST,
             ilSession::SESSION_CLOSE_LIMIT,
             ilSession::SESSION_CLOSE_LOGIN);

         // gather/process data (build event timeline)
         $closed_counter = $events = array();
         $opened_counter = 0;
         foreach (self::getRawData($a_begin, $a_end) as $item) {
             // open/close counters are _not_ time related

             // we could filter for undefined/invalid closing contexts
             // and ignore those items, but this would make any debugging
             // close to impossible
             // "closed_other" would have been a good idea...

             // session opened
             if ($item["start_time"] >= $a_begin) {
                 $opened_counter++;
                 $events[$item["start_time"]][] = 1;
             }
             // session closed
             if ($item["end_time"] && $item["end_time"] <= $a_end) {
                 if (in_array($item["end_context"], $separate_closed, true)) {
                     if (!isset($closed_counter[$item["end_context"]])) {
                         $closed_counter[$item["end_context"]] = 0;
                     }

                     $closed_counter[$item["end_context"]]++;
                 } else {
                     $closed_counter[0] = ($closed_counter[0] ?? 0) + 1;
                 }
                 $events[$item["end_time"]][] = -1;
             }
         }

         // initialising active statistical values
         $active_begin = self::getNumberOfActiveRawSessions($a_begin - 1);
         $active_end = $active_min = $active_max = $active_avg = $active_begin;

         // parsing events / building avergages
         if (count($events)) {
             $last_update_avg = $a_begin - 1;
             $slot_seconds = self::SLOT_SIZE * 60;
             $active_avg = 0;

             // parse all open/closing events
             ksort($events);
             foreach ($events as $ts => $actions) {
                 // actions which occur in the same second are "merged"
                 foreach ($actions as $action) {
                     // max
                     if ($action > 0) {
                         $active_end++;
                     }
                     // min
                     else {
                         $active_end--;
                     }
                 }

                 // max
                 if ($active_end > $active_max) {
                     $active_max = $active_end;
                 }

                 // min
                 if ($active_end < $active_min) {
                     $active_min = $active_end;
                 }

                 // avg
                 $diff = $ts - $last_update_avg;
                 $active_avg += $diff / $slot_seconds * $active_end;
                 $last_update_avg = $ts;
             }

             // add up to end of slot if needed
             if ($last_update_avg < $a_end) {
                 $diff = $a_end - $last_update_avg;
                 $active_avg += $diff / $slot_seconds * $active_end;
             }

             $active_avg = round($active_avg);
         }
         unset($events);


         // do we (really) need a log here?
         // $max_sessions = (int)$ilSetting->get("session_max_count", ilSessionControl::DEFAULT_MAX_COUNT);
         $max_sessions = self::getLimitForSlot($a_begin);

         // save aggregated data
         $fields = array(
             "active_min" => array("integer", $active_min),
             "active_max" => array("integer", $active_max),
             "active_avg" => array("integer", $active_avg),
             "active_end" => array("integer", $active_end),
             "opened" => array("integer", $opened_counter),
             "closed_manual" => array("integer", (int) ($closed_counter[ilSession::SESSION_CLOSE_USER] ?? 0)),
             "closed_expire" => array("integer", (int) ($closed_counter[ilSession::SESSION_CLOSE_EXPIRE] ?? 0)),
             "closed_idle" => array("integer", (int) ($closed_counter[ilSession::SESSION_CLOSE_IDLE] ?? 0)),
             "closed_idle_first" => array("integer", (int) ($closed_counter[ilSession::SESSION_CLOSE_FIRST] ?? 0)),
             "closed_limit" => array("integer", (int) ($closed_counter[ilSession::SESSION_CLOSE_LIMIT] ?? 0)),
             "closed_login" => array("integer", (int) ($closed_counter[ilSession::SESSION_CLOSE_LOGIN] ?? 0)),
             "closed_misc" => array("integer", (int) ($closed_counter[0] ?? 0)),
             "max_sessions" => array("integer", $max_sessions)
         );
         $ilDB->update(
             "usr_session_stats",
             $fields,
             array("slot_begin" => array("integer", $a_begin),
                 "slot_end" => array("integer", $a_end))
         );
     }

◆ aggretateRaw()

static ilSessionStatistics::aggretateRaw ( int $a_now )

static

Aggregate raw session data (older than given time)

Parameters

integer $a_now

Definition at line 254 of file class.ilSessionStatistics.php.

Referenced by ilSessionStatisticsGUI\adminSync(), ilSession\lookupExpireTime(), and ilAuthDestroyExpiredSessionsCron\run().

                                                    : void
     {
         if (!self::isActive()) {
             return;
         }

         $slot = self::createNewAggregationSlot($a_now);
         while (is_array($slot)) {
             self::aggregateRawHelper($slot[0], $slot[1]);
             $slot = self::createNewAggregationSlot($a_now);
         }

         // #12728
         self::deleteAggregatedRaw($a_now);
     }

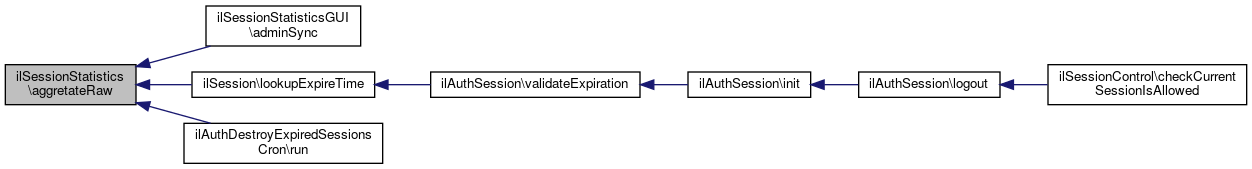

Here is the caller graph for this function:

◆ closeRawEntry()

static ilSessionStatistics::closeRawEntry	(		$a_session_id,
		?int	$a_context = `null`,
			$a_expired_at = `null`
	)

static

Close raw data entry.

Parameters

int \| array	$a_session_id
int	$a_context
int \| bool	$a_expired_at

Definition at line 76 of file class.ilSessionStatistics.php.

References $DIC, $id, and $ilDB.

Referenced by ilSession\_destroy().

                                                                                                      : void
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         if (!self::isActive()) {
             return;
         }

         // single entry
         if (!is_array($a_session_id)) {
             if ($a_expired_at) {
                 $end_time = $a_expired_at;
             } else {
                 $end_time = time();
             }
             $sql = "UPDATE usr_session_stats_raw" .
                 " SET end_time = " . $ilDB->quote($end_time, "integer");
             if ($a_context) {
                 $sql .= ",end_context = " . $ilDB->quote($a_context, "integer");
             }
             $sql .= " WHERE session_id = " . $ilDB->quote($a_session_id, "text") .
                 " AND end_time IS NULL";
             $ilDB->manipulate($sql);
         }
         // batch closing
         elseif (!$a_expired_at) {
             $sql = "UPDATE usr_session_stats_raw" .
                 " SET end_time = " . $ilDB->quote(time(), "integer");
             if ($a_context) {
                 $sql .= ",end_context = " . $ilDB->quote($a_context, "integer");
             }
             $sql .= " WHERE " . $ilDB->in("session_id", $a_session_id, false, "text") .
                 " AND end_time IS NULL";
             $ilDB->manipulate($sql);
         }
         // batch with individual timestamps
         else {
             foreach ($a_session_id as $id => $ts) {
                 $sql = "UPDATE usr_session_stats_raw" .
                     " SET end_time = " . $ilDB->quote($ts, "integer");
                 if ($a_context) {
                     $sql .= ",end_context = " . $ilDB->quote($a_context, "integer");
                 }
                 $sql .= " WHERE session_id = " . $ilDB->quote($id, "text") .
                     " AND end_time IS NULL";
                 $ilDB->manipulate($sql);
             }
         }
     }

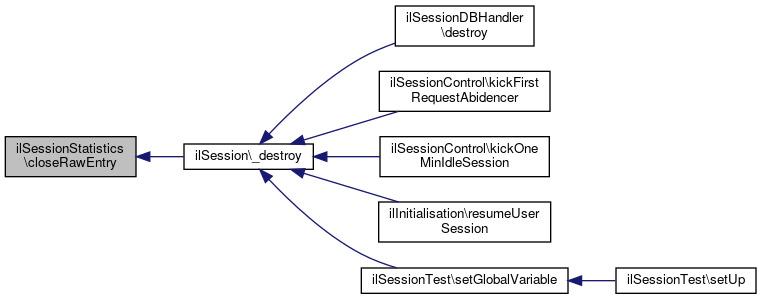

Here is the caller graph for this function:

◆ createNewAggregationSlot()

static ilSessionStatistics::createNewAggregationSlot ( int $a_now )

staticprotected

Create new slot (using table lock)

Returns: array begin, end

Definition at line 219 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, and ilDBInterface\insert().

                                                                   : ?array
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         $ilAtomQuery = $ilDB->buildAtomQuery();
         $ilAtomQuery->addTableLock("usr_session_stats");

         $ilAtomQuery->addQueryCallable(function (ilDBInterface $ilDB) use ($a_now, &$slot) {
             // if we had to wait for the lock, no current slot should be returned here
             $slot = self::getCurrentSlot($a_now);
             if (!is_array($slot)) {
                 $slot = null;
                 return;
             }

             // save slot to mark as taken
             $fields = array(
                 "slot_begin" => array("integer", $slot[0]),
                 "slot_end" => array("integer", $slot[1]),
             );
             $ilDB->insert("usr_session_stats", $fields);
         });

         $ilAtomQuery->run();

         return $slot;
     }

Here is the call graph for this function:

◆ createRawEntry()

static ilSessionStatistics::createRawEntry	(	string	$a_session_id,
		int	$a_session_type,
		int	$a_timestamp,
		int	$a_user_id
	)

static

Create raw data entry.

Definition at line 43 of file class.ilSessionStatistics.php.

References $DIC, and $ilDB.

Referenced by ilSessionControl\checkCurrentSessionIsAllowed(), and ilSession\lookupExpireTime().

                                                                                                                       : void
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         if (!$a_user_id || !$a_session_id || !self::isActive()) {
             return;
         }

         // #9669: if a session was destroyed and somehow the session id is still
         // in use there will be a id-collision for the raw-entry

         $ilDB->replace(
             "usr_session_stats_raw",
             array(
                 "session_id" => array("text", $a_session_id)
             ),
             array(
                 "type" => array("integer", $a_session_type),
                 "start_time" => array("integer", $a_timestamp),
                 "user_id" => array("integer", $a_user_id)
             )
         );
     }

Here is the caller graph for this function:

◆ deleteAggregatedRaw()

static ilSessionStatistics::deleteAggregatedRaw ( $a_now )

staticprotected

Remove already aggregated raw data.

Parameters

integer $a_now

Definition at line 405 of file class.ilSessionStatistics.php.

References $DIC, and $ilDB.

                                                          : void
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         // we are rather defensive here - 7 days BEFORE current aggregation
         $cut = $a_now - (60 * 60 * 24 * 7);

         $ilDB->manipulate("DELETE FROM usr_session_stats_raw" .
             " WHERE start_time <= " . $ilDB->quote($cut, "integer"));
     }

◆ getCurrentSlot()

static ilSessionStatistics::getCurrentSlot ( int $a_now )

staticprotected

Get next slot to aggregate.

Returns: array begin, end

Definition at line 133 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, $res, and ILIAS\Repository\int().

                                                         : ?array
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         // get latest slot in db
         $sql = "SELECT MAX(slot_end) previous_slot_end" .
             " FROM usr_session_stats";
         $res = $ilDB->query($sql);
         $row = $ilDB->fetchAssoc($res);
         $previous_slot_end = $row["previous_slot_end"];

         // no previous slot?  calculate last complete slot
         // should we use minimum session raw date instead? (problem: table lock)
         if (!$previous_slot_end) {
             $slot = (int) (floor(date("i") / self::SLOT_SIZE));
             // last slot of previous hour
             if (!$slot) {
                 $current_slot_begin = mktime((int) date("H", $a_now) - 1, 60 - self::SLOT_SIZE, 0);
             }
             // "normalize" to slot
             else {
                 $current_slot_begin = mktime((int) date("H", $a_now), ($slot - 1) * self::SLOT_SIZE, 0);
             }
         } else {
             $current_slot_begin = $previous_slot_end + 1;
         }

         $current_slot_end = $current_slot_begin + (60 * self::SLOT_SIZE) - 1;

         // no complete slot: nothing to do yet
         if ($current_slot_end < $a_now) {
             return array($current_slot_begin, $current_slot_end);
         }
         return null;
     }

Here is the call graph for this function:

◆ getLastAggregation()

static ilSessionStatistics::getLastAggregation ( )

static

Get timestamp of last aggregation.

Definition at line 514 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, and $res.

Referenced by ilSessionStatisticsGUI\renderCurrentBasics().

                                                : ?int
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         $sql = "SELECT max(slot_end) latest FROM usr_session_stats";
         $res = $ilDB->query($sql);
         $row = $ilDB->fetchAssoc($res);
         if ($row["latest"]) {
             return (int) $row["latest"];
         }
         //TODO check if return null as timestamp causes issues
         return null;
     }

Here is the caller graph for this function:

◆ getLastMaxedOut()

static ilSessionStatistics::getLastMaxedOut ( )

static

Get latest slot during which sessions were maxed out.

Definition at line 421 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, and $res.

Referenced by ilSessionStatisticsGUI\renderCurrentBasics().

                                             : int
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         $sql = "SELECT max(slot_end) latest FROM usr_session_stats" .
             " WHERE active_max >= max_sessions" .
             " AND max_sessions > " . $ilDB->quote(0, "integer");
         $res = $ilDB->query($sql);
         $row = $ilDB->fetchAssoc($res);
         if ($row["latest"]) {
             return (int) $row["latest"];
         }
         return 0;
     }

Here is the caller graph for this function:

◆ getLimitForSlot()

static ilSessionStatistics::getLimitForSlot ( int $a_timestamp )

static

Get max session setting for given timestamp.

Definition at line 534 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, $ilSetting, $res, and ilSessionControl\DEFAULT_MAX_COUNT.

                                                             : int
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];
         $ilSetting = $DIC['ilSetting'];

         $ilDB->setLimit(1);
         $sql = "SELECT maxval FROM usr_session_log" .
             " WHERE tstamp <= " . $ilDB->quote($a_timestamp, "integer") .
             " ORDER BY tstamp DESC";
         $res = $ilDB->query($sql);
         $val = $ilDB->fetchAssoc($res);
         if (isset($val["maxval"]) && $val["maxval"]) {
             return (int) $val["maxval"];
         }

         return (int) $ilSetting->get("session_max_count", (string) ilSessionControl::DEFAULT_MAX_COUNT);
     }

◆ getMaxedOutDuration()

static ilSessionStatistics::getMaxedOutDuration	(	int	$a_from,
		int	$a_to
	)

static

Get maxed out duration in given timeframe.

Returns: ?int seconds

Definition at line 443 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, and $res.

Referenced by ilSessionStatisticsGUI\buildData().

                                                                       : ?int
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         $sql = "SELECT SUM(slot_end-slot_begin) dur FROM usr_session_stats" .
             " WHERE active_max >= max_sessions" .
             " AND max_sessions > " . $ilDB->quote(0, "integer") .
             " AND slot_end > " . $ilDB->quote($a_from, "integer") .
             " AND slot_begin < " . $ilDB->quote($a_to, "integer");
         $res = $ilDB->query($sql);
         $row = $ilDB->fetchAssoc($res);
         if ($row["dur"]) {
             return (int) $row["dur"];
         }
         //TODO check if return null as timestamp causes issues
         return null;
     }

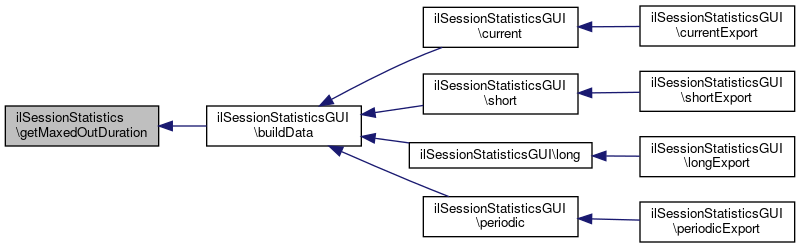

Here is the caller graph for this function:

◆ getNumberOfActiveRawSessions()

static ilSessionStatistics::getNumberOfActiveRawSessions ( int $a_time )

staticprotected

Count number of active sessions at given time.

Parameters

integer $a_time

Returns: integer

Definition at line 177 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, $res, and ilSessionControl\$session_types_controlled.

                                                                        : int
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         $sql = "SELECT COUNT(*) counter FROM usr_session_stats_raw" .
             " WHERE (end_time IS NULL OR end_time >= " . $ilDB->quote($a_time, "integer") . ")" .
             " AND start_time <= " . $ilDB->quote($a_time, "integer") .
             " AND " . $ilDB->in("type", ilSessionControl::$session_types_controlled, false, "integer");
         $res = $ilDB->query($sql);
         $row = $ilDB->fetchAssoc($res);
         return (int) $row["counter"];
     }

◆ getNumberOfSessionsByType()

static ilSessionStatistics::getNumberOfSessionsByType	(	int	$a_from,
		int	$a_to
	)

static

Get session counters by type (opened, closed)

Definition at line 466 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, ILIAS\LTI\ToolProvider\$key, $res, and ILIAS\Repository\int().

Referenced by ilSessionStatisticsGUI\buildData().

                                                                             : array
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         $sql = "SELECT SUM(opened) opened, SUM(closed_manual) closed_manual," .
             " SUM(closed_expire) closed_expire, SUM(closed_idle) closed_idle," .
             " SUM(closed_idle_first) closed_idle_first, SUM(closed_limit) closed_limit," .
             " SUM(closed_login) closed_login, SUM(closed_misc) closed_misc" .
             " FROM usr_session_stats" .
             " WHERE slot_end > " . $ilDB->quote($a_from, "integer") .
             " AND slot_begin < " . $ilDB->quote($a_to, "integer");
         $res = $ilDB->query($sql);
         return $ilDB->fetchAssoc($res);
     }

Here is the call graph for this function:

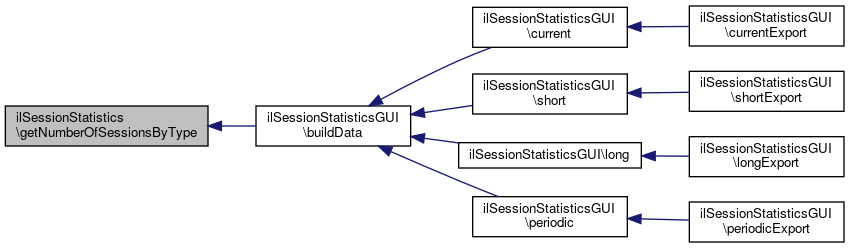

Here is the caller graph for this function:

◆ getRawData()

static ilSessionStatistics::getRawData	(	int	$a_begin,
		int	$a_end
	)

staticprotected

Read raw data for timespan.

Definition at line 195 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, $res, and ilSessionControl\$session_types_controlled.

                                                                   : array
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];

         $sql = "SELECT start_time,end_time,end_context FROM usr_session_stats_raw" .
             " WHERE start_time <= " . $ilDB->quote($a_end, "integer") .
             " AND (end_time IS NULL OR end_time >= " . $ilDB->quote($a_begin, "integer") . ")" .
             " AND " . $ilDB->in("type", ilSessionControl::$session_types_controlled, false, "integer") .
             " ORDER BY start_time";
         $res = $ilDB->query($sql);
         $all = array();
         while ($row = $ilDB->fetchAssoc($res)) {
             $all[] = $row;
         }
         return $all;
     }

◆ isActive()

static ilSessionStatistics::isActive ( )

static

Is session statistics active at all?

Definition at line 31 of file class.ilSessionStatistics.php.

References $DIC, and $ilSetting.

                                      : bool
     {
         global $DIC;

         $ilSetting = $DIC['ilSetting'];

         return (bool) $ilSetting->get('session_statistics', "1");
     }

◆ updateLimitLog()

static ilSessionStatistics::updateLimitLog ( int $a_new_value )

static

Log max session setting.

Definition at line 557 of file class.ilSessionStatistics.php.

References $DIC, $ilDB, $ilSetting, ilSessionControl\DEFAULT_MAX_COUNT, and ILIAS\Repository\int().

Referenced by ilObjUserFolderGUI\saveGeneralSettingsObject().

                                                            : void
     {
         global $DIC;

         $ilDB = $DIC['ilDB'];
         $ilSetting = $DIC['ilSetting'];
         $ilUser = $DIC['ilUser'];

         $new_value = $a_new_value;
         $old_value = (int) $ilSetting->get("session_max_count", (string) ilSessionControl::DEFAULT_MAX_COUNT);

         if ($new_value !== $old_value) {
             $fields = array(
                 "tstamp" => array("timestamp", time()),
                 "maxval" => array("integer", $new_value),
                 "user_id" => array("integer", $ilUser->getId())
             );
             $ilDB->insert("usr_session_log", $fields);
         }
     }

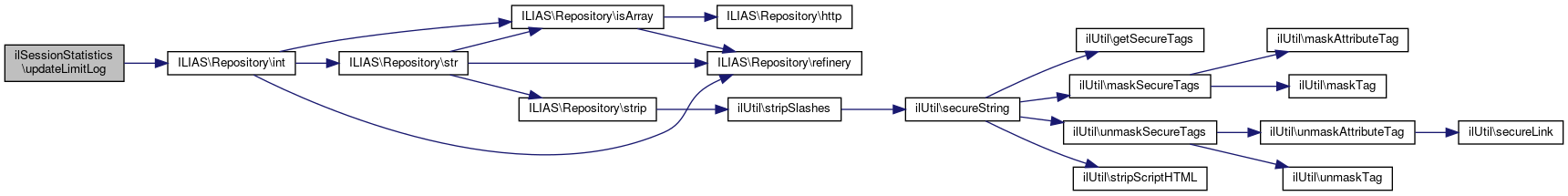

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ SLOT_SIZE

const ilSessionStatistics::SLOT_SIZE = 15

private

Definition at line 26 of file class.ilSessionStatistics.php.

The documentation for this class was generated from the following file:

Services/Authentication/classes/class.ilSessionStatistics.php

Static Public Member Functions

Static Protected Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ aggregateRawHelper()

◆ aggretateRaw()

◆ closeRawEntry()

◆ createNewAggregationSlot()

◆ createRawEntry()

◆ deleteAggregatedRaw()

◆ getCurrentSlot()

◆ getLastAggregation()

◆ getLastMaxedOut()

◆ getLimitForSlot()

◆ getMaxedOutDuration()

◆ getNumberOfActiveRawSessions()

◆ getNumberOfSessionsByType()

◆ getRawData()

◆ isActive()

◆ updateLimitLog()

Field Documentation

◆ SLOT_SIZE
