This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

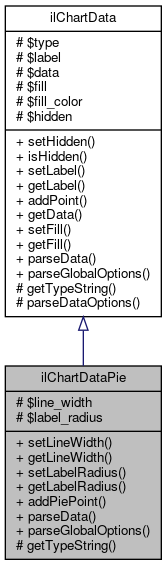

Inheritance diagram for ilChartDataPie:

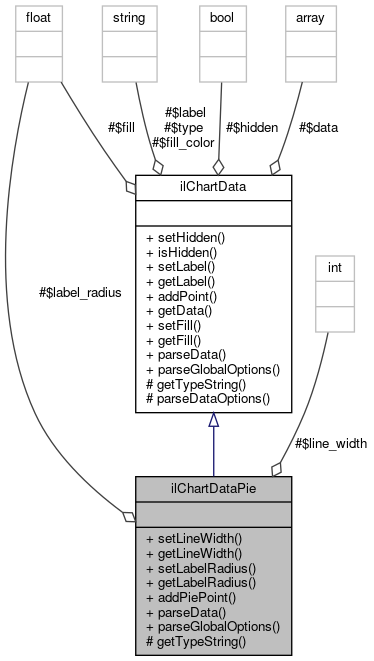

Collaboration diagram for ilChartDataPie:

Public Member Functions
	setLineWidth (int $a_value)

	getLineWidth ()

	setLabelRadius (float $a_value)
	Sets the radius at which to place the labels. More...

	getLabelRadius ()

	addPiePoint (int $a_value, string $a_caption=null)

	parseData (array &$a_data)

	parseGlobalOptions (stdClass $a_options, ilChart $a_chart)

Public Member Functions inherited from ilChartData
	setHidden (bool $a_value)

	isHidden ()

	setLabel (string $a_value)

	getLabel ()

	addPoint (float $a_x, ?float $a_y=null)
	Set data. More...

	getData ()
	Get data. More...

	setFill (float $a_value, string $a_color="")

	getFill ()

	parseData (array &$a_data)
	Convert data to flot config. More...

	parseGlobalOptions (stdClass $a_options, ilChart $a_chart)
	Convert (global) properties to flot config. More...

Protected Member Functions
	getTypeString ()

Protected Member Functions inherited from ilChartData
	getTypeString ()

	parseDataOptions (array &$a_options)
	Convert data options to flot config. More...

Protected Attributes
int	$line_width = 0

float	$label_radius = 0

Protected Attributes inherited from ilChartData
string	$type = ""

string	$label = ""

array	$data = []

float	$fill = 0

string	$fill_color = ""

bool	$hidden = false

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too. If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Chart data pie series

Author: Jörg Lützenkirchen luetz.nosp@m.enki.nosp@m.rchen.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Definition at line 20 of file class.ilChartDataPie.php.

Member Function Documentation

◆ addPiePoint()

ilChartDataPie::addPiePoint	(	int	$a_value,
		string	$a_caption = `null`
	)

Definition at line 55 of file class.ilChartDataPie.php.

                                                                        : void
     {
         $this->data[] = array($a_value, $a_caption);
     }

◆ getLabelRadius()

ilChartDataPie::getLabelRadius ( )

Definition at line 50 of file class.ilChartDataPie.php.

References $label_radius.

Referenced by parseData(), and parseGlobalOptions().

                                     : float
     {
         return $this->label_radius;
     }

Here is the caller graph for this function:

◆ getLineWidth()

ilChartDataPie::getLineWidth ( )

Definition at line 35 of file class.ilChartDataPie.php.

References $line_width.

Referenced by parseGlobalOptions().

                                   : int
     {
         return $this->line_width;
     }

Here is the caller graph for this function:

◆ getTypeString()

ilChartDataPie::getTypeString ( )

protected

Definition at line 25 of file class.ilChartDataPie.php.

Referenced by parseData().

                                       : string
     {
         return "pie";
     }

Here is the caller graph for this function:

◆ parseData()

ilChartDataPie::parseData ( array & $a_data )

Definition at line 60 of file class.ilChartDataPie.php.

References getLabelRadius(), getTypeString(), and ilChartData\isHidden().

                                              : void
     {
         foreach ($this->data as $slice) {
             $series = new stdClass();
             $series->label = str_replace("\"", "\\\"", $slice[1]);

             // add percentage to legend
             if (!$this->getLabelRadius()) {
                 $series->label .= " (" . $slice[0] . "%)";
             }

             $series->data = $slice[0];

             $options = array("show" => !$this->isHidden());

             $series->{$this->getTypeString()} = $options;

             $a_data[] = $series;
         }
     }

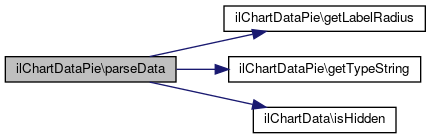

Here is the call graph for this function:

◆ parseGlobalOptions()

ilChartDataPie::parseGlobalOptions	(	stdClass	$a_options,
		ilChart	$a_chart
	)

Definition at line 81 of file class.ilChartDataPie.php.

References ilChartData\$fill, ilChartData\getFill(), getLabelRadius(), getLineWidth(), and ilChart\renderColor().

                                                                              : void
     {
         $a_options->series->pie = new stdClass();
         $a_options->series->pie->show = true;

         // fill vs. stroke - trying to normalize data attributes

         $fill = $this->getFill();
         $width = $this->getLineWidth();
         if ($fill["fill"] || $width) {
             $a_options->series->pie->stroke = new stdClass();
             if ($width) {
                 $a_options->series->pie->stroke->width = $width;
             }
             if ($fill["color"]) {
                 $a_options->series->pie->stroke->color = ilChart::renderColor($fill["color"], $fill["fill"]);
             }
         }

         $radius = $this->getLabelRadius();
         if ($radius) {
             $a_options->series->pie->label = new stdClass();
             $a_options->series->pie->label->background = new stdClass();
             $a_options->series->pie->radius = 1;
             $a_options->series->pie->label->radius = $radius;
             $a_options->series->pie->label->show = true;
             $a_options->series->pie->label->background->color = "#444";
             $a_options->series->pie->label->background->opacity = 0.8;
         }
     }

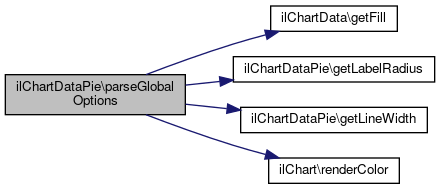

Here is the call graph for this function:

◆ setLabelRadius()

ilChartDataPie::setLabelRadius ( float $a_value )

Sets the radius at which to place the labels.

If value is between 0 and 1 (inclusive) then it will use that as a percentage of the available space (size of the container), otherwise it will use the value as a direct pixel length.

Definition at line 45 of file class.ilChartDataPie.php.

                                                   : void
     {
         $this->label_radius = $a_value;
     }

◆ setLineWidth()

ilChartDataPie::setLineWidth ( int $a_value )

Definition at line 30 of file class.ilChartDataPie.php.

                                               : void
     {
         $this->line_width = $a_value;
     }

Field Documentation

◆ $label_radius

float ilChartDataPie::$label_radius = 0

protected

Definition at line 23 of file class.ilChartDataPie.php.

Referenced by getLabelRadius().

◆ $line_width

int ilChartDataPie::$line_width = 0

protected

Definition at line 22 of file class.ilChartDataPie.php.

Referenced by getLineWidth().

The documentation for this class was generated from the following file:

Services/Chart/classes/class.ilChartDataPie.php
