Collaboration diagram for ilPageLayout:

Public Member Functions
	__construct (int $a_id=0)

	getActive ()

	getDescription ()

	setDescription (string $a_description)

	getTitle ()

	setTitle (string $a_title)

	getId ()

	setModules (array $a_values=[])

	getModules ()

	activate (bool $a_setting=true)
	(De-)Activate layout More...

	delete ()
	Delete page layout. More...

	update ()
	Update page layout. More...

	readObject ()

	setXMLContent (string $content)

	getXMLContent ()

	copyXmlContent (bool $self_ass=true)

	getPreview ()

Static Public Member Functions
static	getLayoutsAsArray (int $a_active=0)

static	getLayouts (bool $a_active=false, int $a_module=0)

static	activeLayouts (int $a_module=0)
	Get active layouts. More...

static	import (string $a_filename, string $a_filepath)
	Import page layout. More...

static	getAvailableModules ()

Data Fields
const	SEQ_TEMPLATE_DIR = './Modules/Scorm2004/templates/editor/page_layouts_temp/thumbnails'

const	MODULE_SCORM = 1

const	MODULE_PORTFOLIO = 2

const	MODULE_LM = 3

int	$layout_id = 0

string	$title = ""

string	$description = ""

bool	$active = false

array	$modules = array()

Protected Member Functions
	xslt (string $xml, array $params)

Protected Attributes
string	$xml_content = null

ILIAS COPage Dom DomUtil	$dom_util

int	$special_page

int	$style_id

ilDBInterface	$db

Private Member Functions
	getXSLPath ()

	generatePreview ()

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Class for Page Layouts

Author: Hendrik Holtmann holtm.nosp@m.ann@.nosp@m.me.co.nosp@m.m

Definition at line 24 of file class.ilPageLayout.php.

Constructor & Destructor Documentation

◆ __construct()

ilPageLayout::__construct ( int $a_id = 0 )

Definition at line 42 of file class.ilPageLayout.php.

References $DIC, and $ilDB.

       {
         global $DIC;

         $this->db = $DIC->database();
         $ilDB = $DIC->database();

         //create new instance
         if ($a_id == 0) {
             $this->layout_id = $ilDB->nextId("page_layout");
             $ilDB->insert("page_layout", array(
                 "layout_id" => array("integer", $this->layout_id),
                 "active" => array("integer", 0),
                 "title" => array("text", ""),
                 "content" => array("clob", ""),
                 "description" => array("text", "")
                 ));
             //$query = "INSERT INTO page_layout(active) values (0);";
             //$result = $ilDB->query($query);
             //$query = "SELECT LAST_INSERT_ID() as id";
             //$res = $ilDB->query($query);
             //$row = $res->fetchRow(ilDBConstants::FETCHMODE_OBJECT);
             //$this->layout_id = $row->id;
             $this->active = false;
         } else {
             $this->layout_id = $a_id;
         }
         $this->dom_util = $DIC->copage()->internal()->domain()->domUtil();
     }

Member Function Documentation

◆ activate()

ilPageLayout::activate ( bool $a_setting = true )

(De-)Activate layout

Definition at line 134 of file class.ilPageLayout.php.

References $db, and $ilDB.

      : void {
         $ilDB = $this->db;

         $query = "UPDATE page_layout SET active=" . $ilDB->quote($a_setting, "integer") .
             " WHERE layout_id =" . $ilDB->quote($this->layout_id, "integer");
         $result = $ilDB->manipulate($query);
     }

◆ activeLayouts()

static ilPageLayout::activeLayouts ( int $a_module = 0 )

static

Get active layouts.

Definition at line 337 of file class.ilPageLayout.php.

Referenced by ilChapterHierarchyFormGUI\__construct(), ilPCLayoutTemplateGUI\initCreationForm(), ilObjPortfolioBaseGUI\initPageForm(), ilPageConfig\loadParentKey(), and ilPageLayoutGUI\setTabs().

      : array {
         return self::getLayouts(true, $a_module);
     }

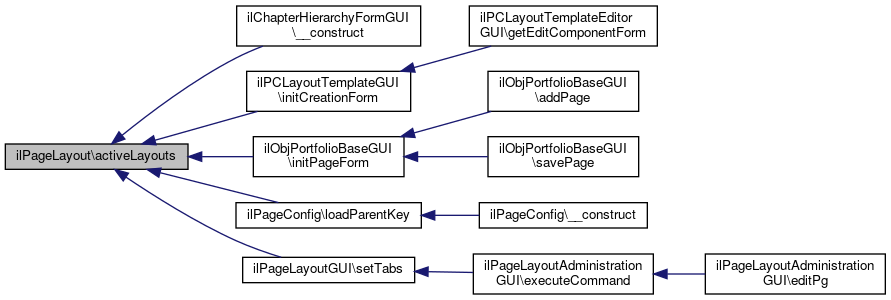

Here is the caller graph for this function:

◆ copyXmlContent()

ilPageLayout::copyXmlContent ( bool $self_ass = true )

Definition at line 221 of file class.ilPageLayout.php.

                                                          : string
     {
         $layout_page = new ilPageLayoutPage($this->layout_id);
         return $layout_page->copyXmlContent(true, 0, 0, $self_ass);
     }

◆ delete()

ilPageLayout::delete ( )

Delete page layout.

Definition at line 147 of file class.ilPageLayout.php.

References $db, and $ilDB.

                             : void
     {
         $ilDB = $this->db;

         $query = "DELETE FROM page_layout WHERE layout_id =" . $ilDB->quote($this->layout_id, "integer");
         $result = $ilDB->manipulate($query);
     }

◆ generatePreview()

ilPageLayout::generatePreview ( )

private

Definition at line 237 of file class.ilPageLayout.php.

References $path, getXMLContent(), and xslt().

Referenced by getPreview().

                                       : string
     {
         $error = null;
         $dom = $this->dom_util->docFromString($this->getXMLContent(), $error);
         $path = "////PlaceHolder";
         $nodes = $this->dom_util->path($dom, $path);
         foreach ($nodes as $node) {
             $height = $node->getAttribute("Height");

             $height = str_ireplace("px", "", $height);
             $height = $height / 10;
             $node->setAttribute("Height", $height . "px");
         }

         $xml = $this->dom_util->dump($dom->documentElement);
         $output = $this->xslt($xml, []);
         return $output;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getActive()

ilPageLayout::getActive ( )

Definition at line 73 of file class.ilPageLayout.php.

References $active.

                                : bool
     {
         return $this->active;
     }

◆ getAvailableModules()

static ilPageLayout::getAvailableModules ( )

static

Definition at line 359 of file class.ilPageLayout.php.

References $DIC, and $lng.

Referenced by ilPageLayoutTableGUI\getPageLayouts(), ilPageLayoutAdministrationGUI\initAddPageLayoutForm(), ilPageLayoutGUI\initForm(), and setModules().

                                                 : array
     {
         global $DIC;

         $lng = $DIC->language();

         return array(
             self::MODULE_PORTFOLIO => $lng->txt("style_page_layout_module_portfolio"),
             self::MODULE_LM => $lng->txt("style_page_layout_module_learning_module")
         );
     }

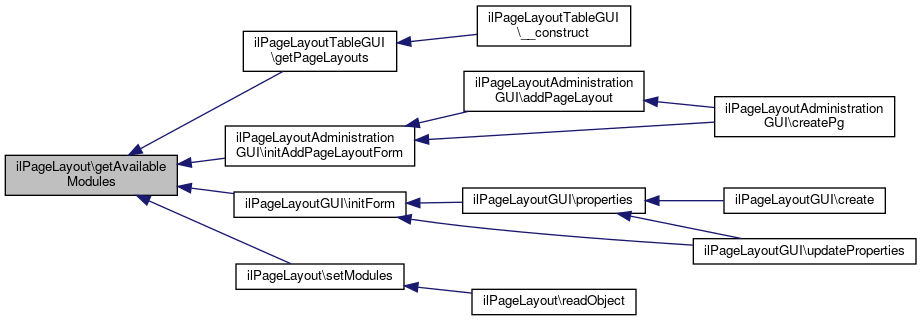

Here is the caller graph for this function:

◆ getDescription()

ilPageLayout::getDescription ( )

Definition at line 78 of file class.ilPageLayout.php.

References $description.

                                     : string
     {
         return $this->description;
     }

◆ getId()

ilPageLayout::getId ( )

Definition at line 98 of file class.ilPageLayout.php.

References $layout_id.

                            : int
     {
         return $this->layout_id;
     }

◆ getLayouts()

static ilPageLayout::getLayouts	(	bool	$a_active = `false`,
		int	$a_module = `0`
	)

static

Definition at line 298 of file class.ilPageLayout.php.

References $DIC, $ilDB, and ilDBConstants\FETCHMODE_ASSOC.

Referenced by ilPageLayoutAdministrationGUI\initAddPageLayoutForm().

      : array {
         global $DIC;

         $ilDB = $DIC->database();
         $arr_layouts = array();
         $add = "";
         $conc = " WHERE ";
         if ($a_active) {
             $add .= $conc . " (active = 1)";
             $conc = " AND ";
         }
         switch ($a_module) {
             case self::MODULE_SCORM:
                 $add .= $conc . " mod_scorm = 1";
                 break;

             case self::MODULE_PORTFOLIO:
                 $add .= $conc . " mod_portfolio = 1";
                 break;

             case self::MODULE_LM:
                 $add .= $conc . " mod_lm = 1";
                 break;
         }
         $query = "SELECT layout_id FROM page_layout $add ORDER BY title ";
         $result = $ilDB->query($query);
         while ($row = $result->fetchRow(ilDBConstants::FETCHMODE_ASSOC)) {
             $arr_layouts[] = new ilPageLayout($row['layout_id']);
         }

         return $arr_layouts;
     }

Here is the caller graph for this function:

◆ getLayoutsAsArray()

static ilPageLayout::getLayoutsAsArray ( int $a_active = 0 )

static

Definition at line 277 of file class.ilPageLayout.php.

References $DIC, $ilDB, ilPageObject\_exists(), and ilDBConstants\FETCHMODE_ASSOC.

Referenced by ilPageLayoutTableGUI\getPageLayouts().

      : array {
         global $DIC;

         $ilDB = $DIC->database();
         $arr_layouts = array();
         $add = "";
         if ($a_active != 0) {
             $add = "WHERE (active=1)";
         }
         $query = "SELECT * FROM page_layout $add ORDER BY title ";
         $result = $ilDB->query($query);
         while ($row = $result->fetchRow(ilDBConstants::FETCHMODE_ASSOC)) {
             if (ilPageObject::_exists("stys", $row["layout_id"])) {
                 $arr_layouts[] = $row;
             }
         }
         return $arr_layouts;
     }

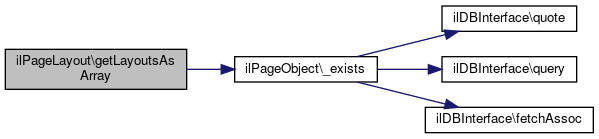

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getModules()

ilPageLayout::getModules ( )

Definition at line 126 of file class.ilPageLayout.php.

References $modules.

                                 : array
     {
         return $this->modules;
     }

◆ getPreview()

ilPageLayout::getPreview ( )

Definition at line 227 of file class.ilPageLayout.php.

References generatePreview().

                                 : string
     {
         return $this->generatePreview();
     }

Here is the call graph for this function:

◆ getTitle()

ilPageLayout::getTitle ( )

Definition at line 88 of file class.ilPageLayout.php.

References $title.

                               : string
     {
         return $this->title;
     }

◆ getXMLContent()

ilPageLayout::getXMLContent ( )

Definition at line 212 of file class.ilPageLayout.php.

References $xml_content.

Referenced by generatePreview().

                                    : string
     {
         if (!is_null($this->xml_content)) {
             return $this->xml_content;
         }
         $layout_page = new ilPageLayoutPage($this->layout_id);
         return $layout_page->getXMLContent();
     }

Here is the caller graph for this function:

◆ getXSLPath()

ilPageLayout::getXSLPath ( )

private

Definition at line 232 of file class.ilPageLayout.php.

Referenced by xslt().

                                  : string
     {
         return "./Services/COPage/Layout/xml/layout2html.xsl";
     }

Here is the caller graph for this function:

◆ import()

static ilPageLayout::import	(	string	$a_filename,
		string	$a_filepath
	)

static

Import page layout.

Definition at line 346 of file class.ilPageLayout.php.

Referenced by ilPageLayoutAdministrationGUI\importPageLayout().

      : void {
         $imp = new ilImport();
         $imp->importEntity(
             $a_filepath,
             $a_filename,
             "pgtp",
             "Services/COPage"
         );
     }

Here is the caller graph for this function:

◆ readObject()

ilPageLayout::readObject ( )

Definition at line 184 of file class.ilPageLayout.php.

References $db, $ilDB, and setModules().

                                 : void
     {
         $ilDB = $this->db;
         $query = "SELECT * FROM page_layout WHERE layout_id =" . $ilDB->quote($this->layout_id, "integer");
         $result = $ilDB->query($query);
         $row = $ilDB->fetchAssoc($result);
         $this->title = (string) $row['title'];
         $this->description = (string) $row['description'];
         $this->active = (bool) $row['active'];

         $mods = array();
         if ($row["mod_scorm"]) {
             $mods[] = self::MODULE_SCORM;
         }
         if ($row["mod_portfolio"]) {
             $mods[] = self::MODULE_PORTFOLIO;
         }
         if ($row["mod_lm"]) {
             $mods[] = self::MODULE_LM;
         }
         $this->setModules($mods);
     }

Here is the call graph for this function:

◆ setDescription()

ilPageLayout::setDescription ( string $a_description )

Definition at line 83 of file class.ilPageLayout.php.

                                                          : void
     {
         $this->description = $a_description;
     }

◆ setModules()

ilPageLayout::setModules ( array $a_values = [] )

Definition at line 116 of file class.ilPageLayout.php.

References $valid, and getAvailableModules().

Referenced by readObject().

                                                     : void
     {
         if ($a_values) {
             $valid = array_keys($this->getAvailableModules());
             $this->modules = array_intersect($a_values, $valid);
         } else {
             $this->modules = array();
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setTitle()

ilPageLayout::setTitle ( string $a_title )

Definition at line 93 of file class.ilPageLayout.php.

                                              : void
     {
         $this->title = $a_title;
     }

◆ setXMLContent()

ilPageLayout::setXMLContent ( string $content )

Definition at line 207 of file class.ilPageLayout.php.

                                                   : void
     {
         $this->xml_content = $content;
     }

◆ update()

ilPageLayout::update ( )

Update page layout.

Definition at line 158 of file class.ilPageLayout.php.

References $db, and $ilDB.

                             : void
     {
         $ilDB = $this->db;

         $mod_scorm = $mod_portfolio = $mod_lm = 0;
         if (in_array(self::MODULE_SCORM, $this->modules)) {
             $mod_scorm = 1;
         }
         if (in_array(self::MODULE_PORTFOLIO, $this->modules)) {
             $mod_portfolio = 1;
         }
         if (in_array(self::MODULE_LM, $this->modules)) {
             $mod_lm = 1;
         }

         $query = "UPDATE page_layout SET title=" . $ilDB->quote($this->title, "text") .
             ",description =" . $ilDB->quote($this->description, "text") .
             ",active =" . $ilDB->quote($this->active, "integer") .
             ",mod_scorm =" . $ilDB->quote($mod_scorm, "integer") .
             ",mod_portfolio =" . $ilDB->quote($mod_portfolio, "integer") .
             ",mod_lm =" . $ilDB->quote($mod_lm, "integer") .
             " WHERE layout_id =" . $ilDB->quote($this->layout_id, "integer");

         $result = $ilDB->manipulate($query);
     }

◆ xslt()

ilPageLayout::xslt	(	string	$xml,
		array	$params
	)

protected

Definition at line 256 of file class.ilPageLayout.php.

References ILIAS\LTI\ToolProvider\$key, and getXSLPath().

Referenced by generatePreview().

      : string {
         $xslt = new \XSLTProcessor();
         $xsl = file_get_contents($this->getXSLPath());
         $xslt_domdoc = new \DomDocument();
         $xslt_domdoc->loadXML($xsl);
         $xslt->importStylesheet($xslt_domdoc);
         foreach ($params as $key => $value) {
             $xslt->setParameter("", $key, (string) $value);
         }
         $xml_domdoc = new \DomDocument();
         $xml_domdoc->loadXML($xml);
         // show warnings again due to discussion in #12866
         $result = $xslt->transformToXml($xml_domdoc);
         unset($xslt);
         return $result;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ $active

bool ilPageLayout::$active = false

Definition at line 39 of file class.ilPageLayout.php.

Referenced by getActive().

◆ $db

ilDBInterface ilPageLayout::$db

protected

Definition at line 35 of file class.ilPageLayout.php.

Referenced by activate(), delete(), readObject(), and update().

◆ $description

string ilPageLayout::$description = ""

Definition at line 38 of file class.ilPageLayout.php.

Referenced by getDescription().

◆ $dom_util

ILIAS COPage Dom DomUtil ilPageLayout::$dom_util

protected

Definition at line 31 of file class.ilPageLayout.php.

◆ $layout_id

int ilPageLayout::$layout_id = 0

Definition at line 36 of file class.ilPageLayout.php.

Referenced by getId().

◆ $modules

array ilPageLayout::$modules = array()

Definition at line 40 of file class.ilPageLayout.php.

Referenced by getModules().

◆ $special_page

int ilPageLayout::$special_page

protected

Definition at line 32 of file class.ilPageLayout.php.

◆ $style_id

int ilPageLayout::$style_id

protected

Definition at line 33 of file class.ilPageLayout.php.

◆ $title

string ilPageLayout::$title = ""

Definition at line 37 of file class.ilPageLayout.php.

Referenced by getTitle().

◆ $xml_content

string ilPageLayout::$xml_content = null

protected

Definition at line 30 of file class.ilPageLayout.php.

Referenced by getXMLContent().

◆ MODULE_LM

const ilPageLayout::MODULE_LM = 3

Definition at line 29 of file class.ilPageLayout.php.

Referenced by ilChapterHierarchyFormGUI\__construct(), ilPageLayoutTableGUI\fillRow(), ilLMPageConfig\init(), ilStructureObjectGUI\initInsertTemplateForm(), and ilLMPageObjectGUI\initNewPageForm().

◆ MODULE_PORTFOLIO

const ilPageLayout::MODULE_PORTFOLIO = 2

Definition at line 28 of file class.ilPageLayout.php.

Referenced by ilPageLayoutTableGUI\fillRow(), and ilObjPortfolioBaseGUI\initPageForm().

◆ MODULE_SCORM

const ilPageLayout::MODULE_SCORM = 1

Definition at line 27 of file class.ilPageLayout.php.

Referenced by ilPageLayoutTableGUI\fillRow().

◆ SEQ_TEMPLATE_DIR

const ilPageLayout::SEQ_TEMPLATE_DIR = './Modules/Scorm2004/templates/editor/page_layouts_temp/thumbnails'

Definition at line 26 of file class.ilPageLayout.php.

The documentation for this class was generated from the following file:

Services/COPage/Layout/classes/class.ilPageLayout.php

Public Member Functions

Static Public Member Functions

Data Fields

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ __construct()

Member Function Documentation

◆ activate()

◆ activeLayouts()

◆ copyXmlContent()

◆ delete()

◆ generatePreview()

◆ getActive()

◆ getAvailableModules()

◆ getDescription()

◆ getId()

◆ getLayouts()

◆ getLayoutsAsArray()

◆ getModules()

◆ getPreview()

◆ getTitle()

◆ getXMLContent()

◆ getXSLPath()

◆ import()

◆ readObject()

◆ setDescription()

◆ setModules()

◆ setTitle()

◆ setXMLContent()

◆ update()

◆ xslt()

Field Documentation

◆ $active

◆ $db

◆ $description

◆ $dom_util

◆ $layout_id

◆ $modules

◆ $special_page

◆ $style_id

◆ $title

◆ $xml_content

◆ MODULE_LM

◆ MODULE_PORTFOLIO

◆ MODULE_SCORM

◆ SEQ_TEMPLATE_DIR
