nusoap_xmlschema Class Reference

parses an XML Schema, allows access to it's data, other utility methods. More...

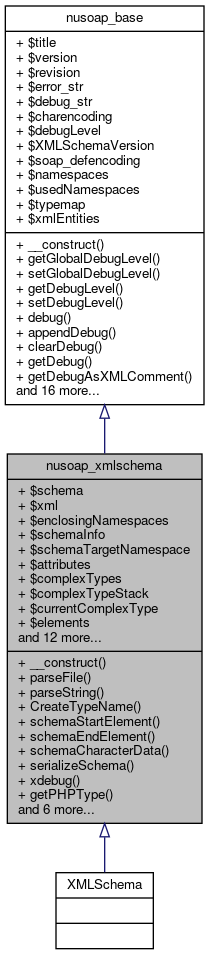

+ Inheritance diagram for nusoap_xmlschema:

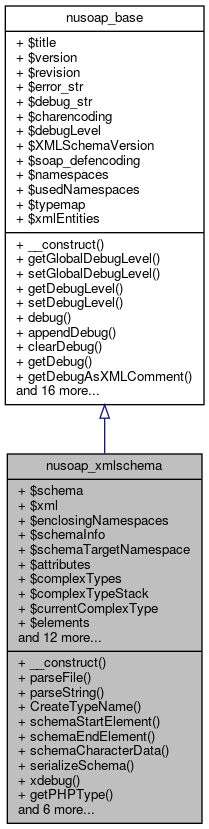

+ Collaboration diagram for nusoap_xmlschema:

Public Member Functions

 __construct ($schema='', $xml='', $namespaces=array())
 constructor More...

 parseFile ($xml, $type)
 parse an XML file More...

 parseString ($xml, $type)
 parse an XML string More...

 CreateTypeName ($ename)
 gets a type name for an unnamed type More...

 schemaStartElement ($parser, $name, $attrs)
 start-element handler More...

 schemaEndElement ($parser, $name)
 end-element handler More...

 schemaCharacterData ($parser, $data)
 element content handler More...

 serializeSchema ()
 serialize the schema More...

 xdebug ($string)
 adds debug data to the clas level debug string More...

 getPHPType ($type, $ns)
 get the PHP type of a user defined type in the schema PHP type is kind of a misnomer since it actually returns 'struct' for assoc. More...

 getTypeDef ($type)
 returns an associative array of information about a given type returns false if no type exists by the given name More...

 serializeTypeDef ($type)
 returns a sample serialization of a given type, or false if no type by the given name More...

 typeToForm ($name, $type)
 returns HTML form elements that allow a user to enter values for creating an instance of the given type. More...

 addComplexType ($name, $typeClass='complexType', $phpType='array', $compositor='', $restrictionBase='', $elements=array(), $attrs=array(), $arrayType='')
 adds a complex type to the schema More...

 addSimpleType ($name, $restrictionBase='', $typeClass='simpleType', $phpType='scalar', $enumeration=array())
 adds a simple type to the schema More...

 addElement ($attrs)
 adds an element to the schema More...

- Public Member Functions inherited from nusoap_base
 __construct ()
 constructor More...

 getGlobalDebugLevel ()
 gets the global debug level, which applies to future instances More...

 setGlobalDebugLevel ($level)
 sets the global debug level, which applies to future instances More...

 getDebugLevel ()
 gets the debug level for this instance More...

 setDebugLevel ($level)
 sets the debug level for this instance More...

 debug ($string)
 adds debug data to the instance debug string with formatting More...

 appendDebug ($string)
 adds debug data to the instance debug string without formatting More...

 clearDebug ()
 clears the current debug data for this instance More...

& getDebug ()
 gets the current debug data for this instance More...

& getDebugAsXMLComment ()
 gets the current debug data for this instance as an XML comment this may change the contents of the debug data More...

 expandEntities ($val)
 expands entities, e.g. More...

 getError ()
 returns error string if present More...

 setError ($str)
 sets error string More...

 isArraySimpleOrStruct ($val)
 detect if array is a simple array or a struct (associative array) More...

 serialize_val ($val, $name=false, $type=false, $name_ns=false, $type_ns=false, $attributes=false, $use='encoded', $soapval=false)
 serializes PHP values in accordance w/ section 5. More...

 serializeEnvelope ($body, $headers=false, $namespaces=array(), $style='rpc', $use='encoded', $encodingStyle='http://schemas.xmlsoap.org/soap/encoding/')
 serializes a message More...

 formatDump ($str)
 formats a string to be inserted into an HTML stream More...

 contractQname ($qname)
 contracts (changes namespace to prefix) a qualified name More...

 expandQname ($qname)
 expands (changes prefix to namespace) a qualified name More...

 getLocalPart ($str)
 returns the local part of a prefixed string returns the original string, if not prefixed More...

 getPrefix ($str)
 returns the prefix part of a prefixed string returns false, if not prefixed More...

 getNamespaceFromPrefix ($prefix)
 pass it a prefix, it returns a namespace More...

 getPrefixFromNamespace ($ns)
 returns the prefix for a given namespace (or prefix) or false if no prefixes registered for the given namespace More...

 getmicrotime ()
 returns the time in ODBC canonical form with microseconds More...

 varDump ($data)
 Returns a string with the output of var_dump. More...

 __toString ()
 represents the object as a string More...


Data Fields

 $schema = ''

 $xml = ''

 $enclosingNamespaces

 $schemaInfo = array()

 $schemaTargetNamespace = ''

 $attributes = array()

 $complexTypes = array()

 $complexTypeStack = array()

 $currentComplexType = null

 $elements = array()

 $elementStack = array()

 $currentElement = null

 $simpleTypes = array()

 $simpleTypeStack = array()

 $currentSimpleType = null

 $imports = array()

 $parser

 $position = 0

 $depth = 0

 $depth_array = array()

 $message = array()

 $defaultNamespace = array()

- Data Fields inherited from nusoap_base
 $title = 'NuSOAP'

 $version = '0.7.3'

 $revision = '$Revision$'

 $error_str = ''

 $debug_str = ''

 $charencoding = true

 $debugLevel

 $XMLSchemaVersion = 'http://www.w3.org/2001/XMLSchema'

 $soap_defencoding = 'UTF-8'

 $namespaces

 $usedNamespaces = array()

 $typemap

 $xmlEntities


Detailed Description

parses an XML Schema, allows access to it's data, other utility methods.

imperfect, no validation... yet, but quite functional.

Author
Dietrich Ayala dietr.nosp@m.ich@.nosp@m.ganx4.nosp@m..com
Scott Nichol snich.nosp@m.ol@u.nosp@m.sers..nosp@m.sour.nosp@m.cefor.nosp@m.ge.n.nosp@m.et
Version
$Id$ public

Definition at line 1127 of file nusoap.php.

Constructor & Destructor Documentation

◆ __construct()

nusoap_xmlschema::__construct (   $schema = '',
  $xml = '',
  $namespaces = array()
)

constructor

Parameters
string$schemaschema document URI
string$xmlxml document URI
string$namespacesnamespaces defined in enclosing XML public

Definition at line 1166 of file nusoap.php.

References nusoap_base\$namespaces, ILIAS\MetaData\Repository\Validation\Data\__construct(), and nusoap_base\debug().

1167  {
1168  parent::__construct();
1169  $this->debug('nusoap_xmlschema class instantiated, inside constructor');
1170  // files
1171  $this->schema = $schema;
1172  $this->xml = $xml;
1173
1174  // namespaces
1175  $this->enclosingNamespaces = $namespaces;
1176  $this->namespaces = array_merge($this->namespaces, $namespaces);
1177
1178  // parse schema file
1179  if ($schema != '') {
1180  $this->debug('initial schema file: ' . $schema);
1181  $this->parseFile($schema, 'schema');
1182  }
1183
1184  // parse xml file
1185  if ($xml != '') {
1186  $this->debug('initial xml file: ' . $xml);
1187  $this->parseFile($xml, 'xml');
1188  }
1189  }
nusoap_xmlschema\parseFile
parseFile($xml, $type)
parse an XML file
Definition: nusoap.php:1199
nusoap_base\debug
debug($string)
adds debug data to the instance debug string with formatting
Definition: nusoap.php:292
ILIAS\MetaData\Repository\Validation\Data\__construct
__construct(VocabulariesInterface $vocabularies)
Definition: VocabularyBridge.php:31
nusoap_xmlschema\$xml
$xml
Definition: nusoap.php:1131
nusoap_xmlschema\$schema
$schema
Definition: nusoap.php:1130
nusoap_base\$namespaces
$namespaces
Definition: nusoap.php:174

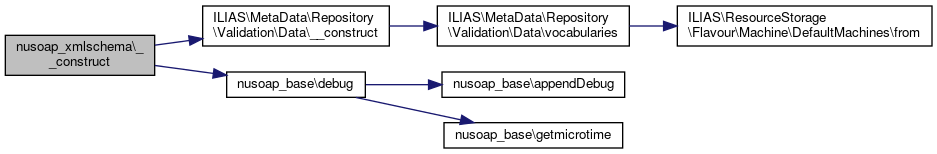

+ Here is the call graph for this function:

Member Function Documentation

◆ addComplexType()

nusoap_xmlschema::addComplexType (   $name,
  $typeClass = 'complexType',
  $phpType = 'array',
  $compositor = '',
  $restrictionBase = '',
  $elements = array(),
  $attrs = array(),
  $arrayType = ''
)

adds a complex type to the schema

example: array

addType( 'ArrayOfstring', 'complexType', 'array', '', 'SOAP-ENC:Array', array('ref'=>'SOAP-ENC:arrayType','wsdl:arrayType'=>'string[]'), 'xsd:string' );

example: PHP associative array ( SOAP Struct )

addType( 'SOAPStruct', 'complexType', 'struct', 'all', array('myVar'=> array('name'=>'myVar','type'=>'string') );

Parameters
name
typeClass(complexType|simpleType|attribute)
phpTypecurrently supported are array and struct (php assoc array)
compositor(all|sequence|choice)
restrictionBasenamespace:name (http://schemas.xmlsoap.org/soap/encoding/:Array)
elements= array ( name = array(name=>'',type=>'') )
attrs= array( array( 'ref' => "http://schemas.xmlsoap.org/soap/encoding/:arrayType", "http://schemas.xmlsoap.org/wsdl/:arrayType" => "string[]" ) )
arrayTypenamespace:name (http://www.w3.org/2001/XMLSchema:string) public
See also
getTypeDef

Definition at line 1994 of file nusoap.php.

References nusoap_base\appendDebug(), and nusoap_base\varDump().

1995  {
1996  $this->complexTypes[$name] = array(
1997  'name' => $name,
1998  'typeClass' => $typeClass,
1999  'phpType' => $phpType,
2000  'compositor'=> $compositor,
2001  'restrictionBase' => $restrictionBase,
2002  'elements' => $elements,
2003  'attrs' => $attrs,
2004  'arrayType' => $arrayType
2005  );
2006
2007  $this->xdebug("addComplexType $name:");
2008  $this->appendDebug($this->varDump($this->complexTypes[$name]));
2009  }
nusoap_base\appendDebug
appendDebug($string)
adds debug data to the instance debug string without formatting
Definition: nusoap.php:305
nusoap_xmlschema\$elements
$elements
Definition: nusoap.php:1142
nusoap_xmlschema\xdebug
xdebug($string)
adds debug data to the clas level debug string
Definition: nusoap.php:1756
nusoap_base\varDump
varDump($data)
Returns a string with the output of var_dump.
Definition: nusoap.php:909
+ Here is the call graph for this function:

◆ addElement()

nusoap_xmlschema::addElement (   $attrs)

adds an element to the schema

Parameters
array$attrsattributes that must include name and type
See also
nusoap_xmlschema public

Definition at line 2044 of file nusoap.php.

References nusoap_base\appendDebug(), nusoap_base\getPrefix(), and nusoap_base\varDump().

2045  {
2046  if (! $this->getPrefix($attrs['type'])) {
2047  $attrs['type'] = $this->schemaTargetNamespace . ':' . $attrs['type'];
2048  }
2049  $this->elements[ $attrs['name'] ] = $attrs;
2050  $this->elements[ $attrs['name'] ]['typeClass'] = 'element';
2051
2052  $this->xdebug("addElement " . $attrs['name']);
2053  $this->appendDebug($this->varDump($this->elements[ $attrs['name'] ]));
2054  }
nusoap_base\appendDebug
appendDebug($string)
adds debug data to the instance debug string without formatting
Definition: nusoap.php:305
nusoap_xmlschema\xdebug
xdebug($string)
adds debug data to the clas level debug string
Definition: nusoap.php:1756
nusoap_base\varDump
varDump($data)
Returns a string with the output of var_dump.
Definition: nusoap.php:909
nusoap_base\getPrefix
getPrefix($str)
returns the prefix part of a prefixed string returns false, if not prefixed
Definition: nusoap.php:839
+ Here is the call graph for this function:

◆ addSimpleType()

nusoap_xmlschema::addSimpleType (   $name,
  $restrictionBase = '',
  $typeClass = 'simpleType',
  $phpType = 'scalar',
  $enumeration = array()
)

adds a simple type to the schema

Parameters
string$name
string$restrictionBasenamespace:name (http://schemas.xmlsoap.org/soap/encoding/:Array)
string$typeClass(should always be simpleType)
string$phpType(should always be scalar)
array$enumerationarray of values public
See also
nusoap_xmlschema
getTypeDef

Definition at line 2023 of file nusoap.php.

References nusoap_base\appendDebug(), and nusoap_base\varDump().

2024  {
2025  $this->simpleTypes[$name] = array(
2026  'name' => $name,
2027  'typeClass' => $typeClass,
2028  'phpType' => $phpType,
2029  'type' => $restrictionBase,
2030  'enumeration' => $enumeration
2031  );
2032
2033  $this->xdebug("addSimpleType $name:");
2034  $this->appendDebug($this->varDump($this->simpleTypes[$name]));
2035  }
nusoap_base\appendDebug
appendDebug($string)
adds debug data to the instance debug string without formatting
Definition: nusoap.php:305
nusoap_xmlschema\xdebug
xdebug($string)
adds debug data to the clas level debug string
Definition: nusoap.php:1756
nusoap_base\varDump
varDump($data)
Returns a string with the output of var_dump.
Definition: nusoap.php:909
+ Here is the call graph for this function:

◆ CreateTypeName()

nusoap_xmlschema::CreateTypeName (   $ename)

gets a type name for an unnamed type

Parameters
stringElement name
Returns
string A type name for an unnamed type private

Definition at line 1274 of file nusoap.php.

References $scope.

1275  {
1276  $scope = '';
1277  for ($i = 0; $i < count($this->complexTypeStack); $i++) {
1278  $scope .= $this->complexTypeStack[$i] . '_';
1279  }
1280  return $scope . $ename . '_ContainedType';
1281  }
$scope
$scope
Definition: ltiregstart.php:53

◆ getPHPType()

nusoap_xmlschema::getPHPType (   $type,
  $ns
)

get the PHP type of a user defined type in the schema PHP type is kind of a misnomer since it actually returns 'struct' for assoc.

arrays returns false if no type exists, or not w/ the given namespace else returns a string that is either a native php type, or 'struct'

Parameters
string$typename of defined type
string$nsnamespace of type
Returns
mixed public
Deprecated:

Definition at line 1773 of file nusoap.php.

1774  {
1775  if (isset($this->typemap[$ns][$type])) {
1776  //print "found type '$type' and ns $ns in typemap<br>";
1777  return $this->typemap[$ns][$type];
1778  } elseif (isset($this->complexTypes[$type])) {
1779  //print "getting type '$type' and ns $ns from complexTypes array<br>";
1780  return $this->complexTypes[$type]['phpType'];
1781  }
1782  return false;
1783  }

◆ getTypeDef()

nusoap_xmlschema::getTypeDef (   $type)

returns an associative array of information about a given type returns false if no type exists by the given name

For a complexType typeDef = array( 'restrictionBase' => '', 'phpType' => '', 'compositor' => '(sequence|all)', 'elements' => array(), // refs to elements array 'attrs' => array() // refs to attributes array ... and so on (see addComplexType) )

For simpleType or element, the array has different keys.

Parameters
string$type
Returns
mixed public
See also
addComplexType
addSimpleType
addElement

Definition at line 1807 of file nusoap.php.

References nusoap_base\varDump().

1808  {
1809  //$this->debug("in getTypeDef for type $type");
1810  if (substr($type, -1) == '^') {
1811  $is_element = 1;
1812  $type = substr($type, 0, -1);
1813  } else {
1814  $is_element = 0;
1815  }
1816
1817  if ((! $is_element) && isset($this->complexTypes[$type])) {
1818  $this->xdebug("in getTypeDef, found complexType $type");
1819  return $this->complexTypes[$type];
1820  } elseif ((! $is_element) && isset($this->simpleTypes[$type])) {
1821  $this->xdebug("in getTypeDef, found simpleType $type");
1822  if (!isset($this->simpleTypes[$type]['phpType'])) {
1823  // get info for type to tack onto the simple type
1824  // TODO: can this ever really apply (i.e. what is a simpleType really?)
1825  $uqType = substr($this->simpleTypes[$type]['type'], strrpos($this->simpleTypes[$type]['type'], ':') + 1);
1826  $ns = substr($this->simpleTypes[$type]['type'], 0, strrpos($this->simpleTypes[$type]['type'], ':'));
1827  $etype = $this->getTypeDef($uqType);
1828  if ($etype) {
1829  $this->xdebug("in getTypeDef, found type for simpleType $type:");
1830  $this->xdebug($this->varDump($etype));
1831  if (isset($etype['phpType'])) {
1832  $this->simpleTypes[$type]['phpType'] = $etype['phpType'];
1833  }
1834  if (isset($etype['elements'])) {
1835  $this->simpleTypes[$type]['elements'] = $etype['elements'];
1836  }
1837  }
1838  }
1839  return $this->simpleTypes[$type];
1840  } elseif (isset($this->elements[$type])) {
1841  $this->xdebug("in getTypeDef, found element $type");
1842  if (!isset($this->elements[$type]['phpType'])) {
1843  // get info for type to tack onto the element
1844  $uqType = substr($this->elements[$type]['type'], strrpos($this->elements[$type]['type'], ':') + 1);
1845  $ns = substr($this->elements[$type]['type'], 0, strrpos($this->elements[$type]['type'], ':'));
1846  $etype = $this->getTypeDef($uqType);
1847  if ($etype) {
1848  $this->xdebug("in getTypeDef, found type for element $type:");
1849  $this->xdebug($this->varDump($etype));
1850  if (isset($etype['phpType'])) {
1851  $this->elements[$type]['phpType'] = $etype['phpType'];
1852  }
1853  if (isset($etype['elements'])) {
1854  $this->elements[$type]['elements'] = $etype['elements'];
1855  }
1856  } elseif ($ns == 'http://www.w3.org/2001/XMLSchema') {
1857  $this->xdebug("in getTypeDef, element $type is an XSD type");
1858  $this->elements[$type]['phpType'] = 'scalar';
1859  }
1860  }
1861  return $this->elements[$type];
1862  } elseif (isset($this->attributes[$type])) {
1863  $this->xdebug("in getTypeDef, found attribute $type");
1864  return $this->attributes[$type];
1865  } elseif (preg_match('/_ContainedType$/', $type)) {
1866  $this->xdebug("in getTypeDef, have an untyped element $type");
1867  $typeDef['typeClass'] = 'simpleType';
1868  $typeDef['phpType'] = 'scalar';
1869  $typeDef['type'] = 'http://www.w3.org/2001/XMLSchema:string';
1870  return $typeDef;
1871  }
1872  $this->xdebug("in getTypeDef, did not find $type");
1873  return false;
1874  }
nusoap_xmlschema\getTypeDef
getTypeDef($type)
returns an associative array of information about a given type returns false if no type exists by the...
Definition: nusoap.php:1807
nusoap_xmlschema\xdebug
xdebug($string)
adds debug data to the clas level debug string
Definition: nusoap.php:1756
nusoap_base\varDump
varDump($data)
Returns a string with the output of var_dump.
Definition: nusoap.php:909
+ Here is the call graph for this function:

◆ parseFile()

nusoap_xmlschema::parseFile (   $xml,
  $type
)

parse an XML file

Parameters
string$xmlpath/URL to XML file
string$type(schema | xml)
Returns
boolean public

Definition at line 1199 of file nusoap.php.

References nusoap_base\debug(), and nusoap_base\setError().

1200  {
1201  // parse xml file
1202  if ($xml != "") {
1203  $xmlStr = @join("", @file($xml));
1204  if ($xmlStr == "") {
1205  $msg = 'Error reading XML from ' . $xml;
1206  $this->setError($msg);
1207  $this->debug($msg);
1208  return false;
1209  } else {
1210  $this->debug("parsing $xml");
1211  $this->parseString($xmlStr, $type);
1212  $this->debug("done parsing $xml");
1213  return true;
1214  }
1215  }
1216  return false;
1217  }
nusoap_base\setError
setError($str)
sets error string
Definition: nusoap.php:395
nusoap_xmlschema\parseString
parseString($xml, $type)
parse an XML string
Definition: nusoap.php:1226
nusoap_base\debug
debug($string)
adds debug data to the instance debug string with formatting
Definition: nusoap.php:292
nusoap_xmlschema\$xml
$xml
Definition: nusoap.php:1131

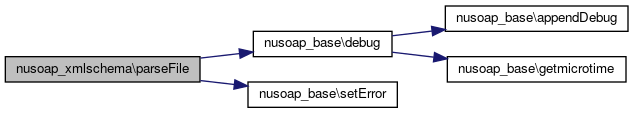

+ Here is the call graph for this function:

◆ parseString()

nusoap_xmlschema::parseString (   $xml,
  $type
)

parse an XML string

Parameters
string$xmlpath or URL
string$type(schema|xml) private

Definition at line 1226 of file nusoap.php.

References nusoap_base\debug(), and nusoap_base\setError().

1227  {
1228  // parse xml string
1229  if ($xml != "") {
1230  // Create an XML parser.
1231  $this->parser = xml_parser_create();
1232  // Set the options for parsing the XML data.
1233  xml_parser_set_option($this->parser, XML_OPTION_CASE_FOLDING, 0);
1234
1235  // Set the object for the parser.
1236  xml_set_object($this->parser, $this);
1237
1238  // Set the element handlers for the parser.
1239  if ($type == "schema") {
1240  xml_set_element_handler($this->parser, 'schemaStartElement', 'schemaEndElement');
1241  xml_set_character_data_handler($this->parser, 'schemaCharacterData');
1242  } elseif ($type == "xml") {
1243  xml_set_element_handler($this->parser, 'xmlStartElement', 'xmlEndElement');
1244  xml_set_character_data_handler($this->parser, 'xmlCharacterData');
1245  }
1246
1247  // Parse the XML file.
1248  if (!xml_parse($this->parser, $xml, true)) {
1249  // Display an error message.
1250  $errstr = sprintf(
1251  'XML error parsing XML schema on line %d: %s',
1252  xml_get_current_line_number($this->parser),
1253  xml_error_string(xml_get_error_code($this->parser))
1254  );
1255  $this->debug($errstr);
1256  $this->debug("XML payload:\n" . $xml);
1257  $this->setError($errstr);
1258  }
1259
1260  xml_parser_free($this->parser);
1261  } else {
1262  $this->debug('no xml passed to parseString()!!');
1263  $this->setError('no xml passed to parseString()!!');
1264  }
1265  }
nusoap_base\setError
setError($str)
sets error string
Definition: nusoap.php:395
nusoap_base\debug
debug($string)
adds debug data to the instance debug string with formatting
Definition: nusoap.php:292
nusoap_xmlschema\$xml
$xml
Definition: nusoap.php:1131

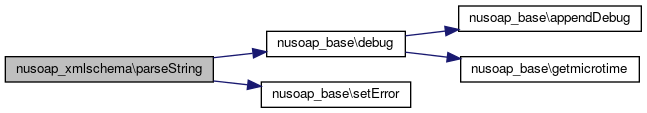

+ Here is the call graph for this function:

◆ schemaCharacterData()

nusoap_xmlschema::schemaCharacterData (   $parser,
  $data
)

element content handler

Parameters
string$parserXML parser object
string$dataelement content private

Definition at line 1627 of file nusoap.php.

References $data.

1628  {
1629  $pos = $this->depth_array[$this->depth - 1];
1630  $this->message[$pos]['cdata'] .= $data;
1631  }

◆ schemaEndElement()

nusoap_xmlschema::schemaEndElement (   $parser,
  $name
)

end-element handler

Parameters
string$parserXML parser object
string$nameelement name private

Definition at line 1589 of file nusoap.php.

References nusoap_base\getLocalPart(), and nusoap_base\getPrefix().

1590  {
1591  // bring depth down a notch
1592  $this->depth--;
1593  // position of current element is equal to the last value left in depth_array for my depth
1594  if (isset($this->depth_array[$this->depth])) {
1595  $pos = $this->depth_array[$this->depth];
1596  }
1597  // get element prefix
1598  if ($prefix = $this->getPrefix($name)) {
1599  // get unqualified name
1600  $name = $this->getLocalPart($name);
1601  } else {
1602  $prefix = '';
1603  }
1604  // move on...
1605  if ($name == 'complexType') {
1606  $this->xdebug('done processing complexType ' . ($this->currentComplexType ? $this->currentComplexType : '(unknown)'));
1607  $this->currentComplexType = array_pop($this->complexTypeStack);
1608  //$this->currentElement = false;
1609  }
1610  if ($name == 'element') {
1611  $this->xdebug('done processing element ' . ($this->currentElement ? $this->currentElement : '(unknown)'));
1612  $this->currentElement = array_pop($this->elementStack);
1613  }
1614  if ($name == 'simpleType') {
1615  $this->xdebug('done processing simpleType ' . ($this->currentSimpleType ? $this->currentSimpleType : '(unknown)'));
1616  $this->currentSimpleType = array_pop($this->simpleTypeStack);
1617  }
1618  }
nusoap_xmlschema\$depth
$depth
Definition: nusoap.php:1153
nusoap_base\getLocalPart
getLocalPart($str)
returns the local part of a prefixed string returns the original string, if not prefixed ...
Definition: nusoap.php:821
nusoap_xmlschema\xdebug
xdebug($string)
adds debug data to the clas level debug string
Definition: nusoap.php:1756
nusoap_base\getPrefix
getPrefix($str)
returns the prefix part of a prefixed string returns false, if not prefixed
Definition: nusoap.php:839
+ Here is the call graph for this function:

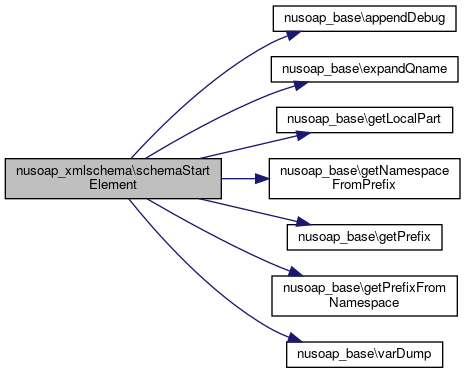

◆ schemaStartElement()

nusoap_xmlschema::schemaStartElement (   $parser,
  $name,
  $attrs
)

start-element handler

Parameters
string$parserXML parser object
string$nameelement name
string$attrsassociative array of attributes private

Definition at line 1291 of file nusoap.php.

References nusoap_base\appendDebug(), nusoap_base\expandQname(), nusoap_base\getLocalPart(), nusoap_base\getNamespaceFromPrefix(), nusoap_base\getPrefix(), nusoap_base\getPrefixFromNamespace(), and nusoap_base\varDump().

1292  {
1293
1294  // position in the total number of elements, starting from 0
1295  $pos = $this->position++;
1296  $depth = $this->depth++;
1297  // set self as current value for this depth
1298  $this->depth_array[$depth] = $pos;
1299  $this->message[$pos] = array('cdata' => '');
1300  if ($depth > 0) {
1301  $this->defaultNamespace[$pos] = $this->defaultNamespace[$this->depth_array[$depth - 1]];
1302  } else {
1303  $this->defaultNamespace[$pos] = false;
1304  }
1305
1306  // get element prefix
1307  if ($prefix = $this->getPrefix($name)) {
1308  // get unqualified name
1309  $name = $this->getLocalPart($name);
1310  } else {
1311  $prefix = '';
1312  }
1313
1314  // loop thru attributes, expanding, and registering namespace declarations
1315  if (count($attrs) > 0) {
1316  foreach ($attrs as $k => $v) {
1317  // if ns declarations, add to class level array of valid namespaces
1318  if (preg_match('/^xmlns/', $k)) {
1319  //$this->xdebug("$k: $v");
1320  //$this->xdebug('ns_prefix: '.$this->getPrefix($k));
1321  if ($ns_prefix = substr(strrchr($k, ':'), 1)) {
1322  //$this->xdebug("Add namespace[$ns_prefix] = $v");
1323  $this->namespaces[$ns_prefix] = $v;
1324  } else {
1325  $this->defaultNamespace[$pos] = $v;
1326  if (! $this->getPrefixFromNamespace($v)) {
1327  $this->namespaces['ns' . (count($this->namespaces)+1)] = $v;
1328  }
1329  }
1330  if ($v == 'http://www.w3.org/2001/XMLSchema' || $v == 'http://www.w3.org/1999/XMLSchema' || $v == 'http://www.w3.org/2000/10/XMLSchema') {
1331  $this->XMLSchemaVersion = $v;
1332  $this->namespaces['xsi'] = $v . '-instance';
1333  }
1334  }
1335  }
1336  foreach ($attrs as $k => $v) {
1337  // expand each attribute
1338  $k = strpos($k, ':') ? $this->expandQname($k) : $k;
1339  $v = strpos($v, ':') ? $this->expandQname($v) : $v;
1340  $eAttrs[$k] = $v;
1341  }
1342  $attrs = $eAttrs;
1343  } else {
1344  $attrs = array();
1345  }
1346  // find status, register data
1347  switch ($name) {
1348  case 'all': // (optional) compositor content for a complexType
1349  case 'choice':
1350  case 'group':
1351  case 'sequence':
1352  //$this->xdebug("compositor $name for currentComplexType: $this->currentComplexType and currentElement: $this->currentElement");
1353  $this->complexTypes[$this->currentComplexType]['compositor'] = $name;
1354  //if($name == 'all' || $name == 'sequence'){
1355  // $this->complexTypes[$this->currentComplexType]['phpType'] = 'struct';
1356  //}
1357  break;
1358  case 'attribute': // complexType attribute
1359  //$this->xdebug("parsing attribute $attrs[name] $attrs[ref] of value: ".$attrs['http://schemas.xmlsoap.org/wsdl/:arrayType']);
1360  $this->xdebug("parsing attribute:");
1361  $this->appendDebug($this->varDump($attrs));
1362  if (!isset($attrs['form'])) {
1363  $attrs['form'] = $this->schemaInfo['attributeFormDefault'];
1364  }
1365  if (isset($attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'])) {
1366  $v = $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'];
1367  if (!strpos($v, ':')) {
1368  // no namespace in arrayType attribute value...
1369  if ($this->defaultNamespace[$pos]) {
1370  // ...so use the default
1371  $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'] = $this->defaultNamespace[$pos] . ':' . $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'];
1372  }
1373  }
1374  }
1375  if (isset($attrs['name'])) {
1376  $this->attributes[$attrs['name']] = $attrs;
1377  $aname = $attrs['name'];
1378  } elseif (isset($attrs['ref']) && $attrs['ref'] == 'http://schemas.xmlsoap.org/soap/encoding/:arrayType') {
1379  if (isset($attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'])) {
1380  $aname = $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'];
1381  } else {
1382  $aname = '';
1383  }
1384  } elseif (isset($attrs['ref'])) {
1385  $aname = $attrs['ref'];
1386  $this->attributes[$attrs['ref']] = $attrs;
1387  }
1388
1389  if ($this->currentComplexType) { // This should *always* be
1390  $this->complexTypes[$this->currentComplexType]['attrs'][$aname] = $attrs;
1391  }
1392  // arrayType attribute
1393  if (isset($attrs['http://schemas.xmlsoap.org/wsdl/:arrayType']) || $this->getLocalPart($aname) == 'arrayType') {
1394  $this->complexTypes[$this->currentComplexType]['phpType'] = 'array';
1395  $prefix = $this->getPrefix($aname);
1396  if (isset($attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'])) {
1397  $v = $attrs['http://schemas.xmlsoap.org/wsdl/:arrayType'];
1398  } else {
1399  $v = '';
1400  }
1401  if (strpos($v, '[,]')) {
1402  $this->complexTypes[$this->currentComplexType]['multidimensional'] = true;
1403  }
1404  $v = substr($v, 0, strpos($v, '[')); // clip the []
1405  if (!strpos($v, ':') && isset($this->typemap[$this->XMLSchemaVersion][$v])) {
1406  $v = $this->XMLSchemaVersion . ':' . $v;
1407  }
1408  $this->complexTypes[$this->currentComplexType]['arrayType'] = $v;
1409  }
1410  break;
1411  case 'complexContent': // (optional) content for a complexType
1412  break;
1413  case 'complexType':
1414  array_push($this->complexTypeStack, $this->currentComplexType);
1415  if (isset($attrs['name'])) {
1416  // TODO: what is the scope of named complexTypes that appear
1417  // nested within other c complexTypes?
1418  $this->xdebug('processing named complexType ' . $attrs['name']);
1419  //$this->currentElement = false;
1420  $this->currentComplexType = $attrs['name'];
1421  $this->complexTypes[$this->currentComplexType] = $attrs;
1422  $this->complexTypes[$this->currentComplexType]['typeClass'] = 'complexType';
1423  // This is for constructs like
1424  // <complexType name="ListOfString" base="soap:Array">
1425  // <sequence>
1426  // <element name="string" type="xsd:string"
1427  // minOccurs="0" maxOccurs="unbounded" />
1428  // </sequence>
1429  // </complexType>
1430  if (isset($attrs['base']) && preg_match('/:Array$/', $attrs['base'])) {
1431  $this->xdebug('complexType is unusual array');
1432  $this->complexTypes[$this->currentComplexType]['phpType'] = 'array';
1433  } else {
1434  $this->complexTypes[$this->currentComplexType]['phpType'] = 'struct';
1435  }
1436  } else {
1437  $name = $this->CreateTypeName($this->currentElement);
1438  $this->xdebug('processing unnamed complexType for element ' . $this->currentElement . ' named ' . $name);
1439  $this->currentComplexType = $name;
1440  //$this->currentElement = false;
1441  $this->complexTypes[$this->currentComplexType] = $attrs;
1442  $this->complexTypes[$this->currentComplexType]['typeClass'] = 'complexType';
1443  // This is for constructs like
1444  // <complexType name="ListOfString" base="soap:Array">
1445  // <sequence>
1446  // <element name="string" type="xsd:string"
1447  // minOccurs="0" maxOccurs="unbounded" />
1448  // </sequence>
1449  // </complexType>
1450  if (isset($attrs['base']) && preg_match('/:Array$/', $attrs['base'])) {
1451  $this->xdebug('complexType is unusual array');
1452  $this->complexTypes[$this->currentComplexType]['phpType'] = 'array';
1453  } else {
1454  $this->complexTypes[$this->currentComplexType]['phpType'] = 'struct';
1455  }
1456  }
1457  break;
1458  case 'element':
1459  array_push($this->elementStack, $this->currentElement);
1460  if (!isset($attrs['form'])) {
1461  $attrs['form'] = $this->schemaInfo['elementFormDefault'];
1462  }
1463  if (isset($attrs['type'])) {
1464  $this->xdebug("processing typed element " . $attrs['name'] . " of type " . $attrs['type']);
1465  if (! $this->getPrefix($attrs['type'])) {
1466  if ($this->defaultNamespace[$pos]) {
1467  $attrs['type'] = $this->defaultNamespace[$pos] . ':' . $attrs['type'];
1468  $this->xdebug('used default namespace to make type ' . $attrs['type']);
1469  }
1470  }
1471  // This is for constructs like
1472  // <complexType name="ListOfString" base="soap:Array">
1473  // <sequence>
1474  // <element name="string" type="xsd:string"
1475  // minOccurs="0" maxOccurs="unbounded" />
1476  // </sequence>
1477  // </complexType>
1478  if ($this->currentComplexType && $this->complexTypes[$this->currentComplexType]['phpType'] == 'array') {
1479  $this->xdebug('arrayType for unusual array is ' . $attrs['type']);
1480  $this->complexTypes[$this->currentComplexType]['arrayType'] = $attrs['type'];
1481  }
1482  $this->currentElement = $attrs['name'];
1483  $ename = $attrs['name'];
1484  } elseif (isset($attrs['ref'])) {
1485  $this->xdebug("processing element as ref to " . $attrs['ref']);
1486  $this->currentElement = "ref to " . $attrs['ref'];
1487  $ename = $this->getLocalPart($attrs['ref']);
1488  } else {
1489  $type = $this->CreateTypeName($this->currentComplexType . '_' . $attrs['name']);
1490  $this->xdebug("processing untyped element " . $attrs['name'] . ' type ' . $type);
1491  $this->currentElement = $attrs['name'];
1492  $attrs['type'] = $this->schemaTargetNamespace . ':' . $type;
1493  $ename = $attrs['name'];
1494  }
1495  if (isset($ename) && $this->currentComplexType) {
1496  $this->xdebug("add element $ename to complexType $this->currentComplexType");
1497  $this->complexTypes[$this->currentComplexType]['elements'][$ename] = $attrs;
1498  } elseif (!isset($attrs['ref'])) {
1499  $this->xdebug("add element $ename to elements array");
1500  $this->elements[ $attrs['name'] ] = $attrs;
1501  $this->elements[ $attrs['name'] ]['typeClass'] = 'element';
1502  }
1503  break;
1504  case 'enumeration': // restriction value list member
1505  $this->xdebug('enumeration ' . $attrs['value']);
1506  if ($this->currentSimpleType) {
1507  $this->simpleTypes[$this->currentSimpleType]['enumeration'][] = $attrs['value'];
1508  } elseif ($this->currentComplexType) {
1509  $this->complexTypes[$this->currentComplexType]['enumeration'][] = $attrs['value'];
1510  }
1511  break;
1512  case 'extension': // simpleContent or complexContent type extension
1513  $this->xdebug('extension ' . $attrs['base']);
1514  if ($this->currentComplexType) {
1515  $this->complexTypes[$this->currentComplexType]['extensionBase'] = $attrs['base'];
1516  }
1517  break;
1518  case 'import':
1519  if (isset($attrs['schemaLocation'])) {
1520  //$this->xdebug('import namespace ' . $attrs['namespace'] . ' from ' . $attrs['schemaLocation']);
1521  $this->imports[$attrs['namespace']][] = array('location' => $attrs['schemaLocation'], 'loaded' => false);
1522  } else {
1523  //$this->xdebug('import namespace ' . $attrs['namespace']);
1524  $this->imports[$attrs['namespace']][] = array('location' => '', 'loaded' => true);
1525  if (! $this->getPrefixFromNamespace($attrs['namespace'])) {
1526  $this->namespaces['ns' . (count($this->namespaces)+1)] = $attrs['namespace'];
1527  }
1528  }
1529  break;
1530  case 'list': // simpleType value list
1531  break;
1532  case 'restriction': // simpleType, simpleContent or complexContent value restriction
1533  $this->xdebug('restriction ' . $attrs['base']);
1534  if ($this->currentSimpleType) {
1535  $this->simpleTypes[$this->currentSimpleType]['type'] = $attrs['base'];
1536  } elseif ($this->currentComplexType) {
1537  $this->complexTypes[$this->currentComplexType]['restrictionBase'] = $attrs['base'];
1538  if (strstr($attrs['base'], ':') == ':Array') {
1539  $this->complexTypes[$this->currentComplexType]['phpType'] = 'array';
1540  }
1541  }
1542  break;
1543  case 'schema':
1544  $this->schemaInfo = $attrs;
1545  $this->schemaInfo['schemaVersion'] = $this->getNamespaceFromPrefix($prefix);
1546  if (isset($attrs['targetNamespace'])) {
1547  $this->schemaTargetNamespace = $attrs['targetNamespace'];
1548  }
1549  if (!isset($attrs['elementFormDefault'])) {
1550  $this->schemaInfo['elementFormDefault'] = 'unqualified';
1551  }
1552  if (!isset($attrs['attributeFormDefault'])) {
1553  $this->schemaInfo['attributeFormDefault'] = 'unqualified';
1554  }
1555  break;
1556  case 'simpleContent': // (optional) content for a complexType
1557  break;
1558  case 'simpleType':
1559  array_push($this->simpleTypeStack, $this->currentSimpleType);
1560  if (isset($attrs['name'])) {
1561  $this->xdebug("processing simpleType for name " . $attrs['name']);
1562  $this->currentSimpleType = $attrs['name'];
1563  $this->simpleTypes[ $attrs['name'] ] = $attrs;
1564  $this->simpleTypes[ $attrs['name'] ]['typeClass'] = 'simpleType';
1565  $this->simpleTypes[ $attrs['name'] ]['phpType'] = 'scalar';
1566  } else {
1567  $name = $this->CreateTypeName($this->currentComplexType . '_' . $this->currentElement);
1568  $this->xdebug('processing unnamed simpleType for element ' . $this->currentElement . ' named ' . $name);
1569  $this->currentSimpleType = $name;
1570  //$this->currentElement = false;
1571  $this->simpleTypes[$this->currentSimpleType] = $attrs;
1572  $this->simpleTypes[$this->currentSimpleType]['phpType'] = 'scalar';
1573  }
1574  break;
1575  case 'union': // simpleType type list
1576  break;
1577  default:
1578  //$this->xdebug("do not have anything to do for element $name");
1579  }
1580  }
nusoap_base\appendDebug
appendDebug($string)
adds debug data to the instance debug string without formatting
Definition: nusoap.php:305
nusoap_xmlschema\$depth
$depth
Definition: nusoap.php:1153
nusoap_base\getLocalPart
getLocalPart($str)
returns the local part of a prefixed string returns the original string, if not prefixed ...
Definition: nusoap.php:821
nusoap_xmlschema\xdebug
xdebug($string)
adds debug data to the clas level debug string
Definition: nusoap.php:1756
nusoap_base\getPrefixFromNamespace
getPrefixFromNamespace($ns)
returns the prefix for a given namespace (or prefix) or false if no prefixes registered for the given...
Definition: nusoap.php:872
nusoap_base\expandQname
expandQname($qname)
expands (changes prefix to namespace) a qualified name
Definition: nusoap.php:795
nusoap_base\varDump
varDump($data)
Returns a string with the output of var_dump.
Definition: nusoap.php:909
nusoap_base\getPrefix
getPrefix($str)
returns the prefix part of a prefixed string returns false, if not prefixed
Definition: nusoap.php:839
nusoap_xmlschema\$currentComplexType
$currentComplexType
Definition: nusoap.php:1141
nusoap_xmlschema\CreateTypeName
CreateTypeName($ename)
gets a type name for an unnamed type
Definition: nusoap.php:1274
nusoap_base\getNamespaceFromPrefix
getNamespaceFromPrefix($prefix)
pass it a prefix, it returns a namespace
Definition: nusoap.php:855
nusoap_xmlschema\$currentSimpleType
$currentSimpleType
Definition: nusoap.php:1147
+ Here is the call graph for this function:

◆ serializeSchema()

nusoap_xmlschema::serializeSchema ( )

serialize the schema

public

Definition at line 1638 of file nusoap.php.

References Vendor\Package\$a, Vendor\Package\$e, and nusoap_base\getPrefixFromNamespace().

1639  {
1640  $schemaPrefix = $this->getPrefixFromNamespace($this->XMLSchemaVersion);
1641  $xml = '';
1642  // imports
1643  if (sizeof($this->imports) > 0) {
1644  foreach ($this->imports as $ns => $list) {
1645  foreach ($list as $ii) {
1646  if ($ii['location'] != '') {
1647  $xml .= " <$schemaPrefix:import location=\"" . $ii['location'] . '" namespace="' . $ns . "\" />\n";
1648  } else {
1649  $xml .= " <$schemaPrefix:import namespace=\"" . $ns . "\" />\n";
1650  }
1651  }
1652  }
1653  }
1654  // complex types
1655  foreach ($this->complexTypes as $typeName => $attrs) {
1656  $contentStr = '';
1657  // serialize child elements
1658  if (isset($attrs['elements']) && (count($attrs['elements']) > 0)) {
1659  foreach ($attrs['elements'] as $element => $eParts) {
1660  if (isset($eParts['ref'])) {
1661  $contentStr .= " <$schemaPrefix:element ref=\"$element\"/>\n";
1662  } else {
1663  $contentStr .= " <$schemaPrefix:element name=\"$element\" type=\"" . $this->contractQName($eParts['type']) . "\"";
1664  foreach ($eParts as $aName => $aValue) {
1665  // handle, e.g., abstract, default, form, minOccurs, maxOccurs, nillable
1666  if ($aName != 'name' && $aName != 'type') {
1667  $contentStr .= " $aName=\"$aValue\"";
1668  }
1669  }
1670  $contentStr .= "/>\n";
1671  }
1672  }
1673  // compositor wraps elements
1674  if (isset($attrs['compositor']) && ($attrs['compositor'] != '')) {
1675  $contentStr = " <$schemaPrefix:$attrs[compositor]>\n" . $contentStr . " </$schemaPrefix:$attrs[compositor]>\n";
1676  }
1677  }
1678  // attributes
1679  if (isset($attrs['attrs']) && (count($attrs['attrs']) >= 1)) {
1680  foreach ($attrs['attrs'] as $attr => $aParts) {
1681  $contentStr .= " <$schemaPrefix:attribute";
1682  foreach ($aParts as $a => $v) {
1683  if ($a == 'ref' || $a == 'type') {
1684  $contentStr .= " $a=\"" . $this->contractQName($v) . '"';
1685  } elseif ($a == 'http://schemas.xmlsoap.org/wsdl/:arrayType') {
1686  $this->usedNamespaces['wsdl'] = $this->namespaces['wsdl'];
1687  $contentStr .= ' wsdl:arrayType="' . $this->contractQName($v) . '"';
1688  } else {
1689  $contentStr .= " $a=\"$v\"";
1690  }
1691  }
1692  $contentStr .= "/>\n";
1693  }
1694  }
1695  // if restriction
1696  if (isset($attrs['restrictionBase']) && $attrs['restrictionBase'] != '') {
1697  $contentStr = " <$schemaPrefix:restriction base=\"" . $this->contractQName($attrs['restrictionBase']) . "\">\n" . $contentStr . " </$schemaPrefix:restriction>\n";
1698  // complex or simple content
1699  if ((isset($attrs['elements']) && count($attrs['elements']) > 0) || (isset($attrs['attrs']) && count($attrs['attrs']) > 0)) {
1700  $contentStr = " <$schemaPrefix:complexContent>\n" . $contentStr . " </$schemaPrefix:complexContent>\n";
1701  }
1702  }
1703  // finalize complex type
1704  if ($contentStr != '') {
1705  $contentStr = " <$schemaPrefix:complexType name=\"$typeName\">\n" . $contentStr . " </$schemaPrefix:complexType>\n";
1706  } else {
1707  $contentStr = " <$schemaPrefix:complexType name=\"$typeName\"/>\n";
1708  }
1709  $xml .= $contentStr;
1710  }
1711  // simple types
1712  if (isset($this->simpleTypes) && count($this->simpleTypes) > 0) {
1713  foreach ($this->simpleTypes as $typeName => $eParts) {
1714  $xml .= " <$schemaPrefix:simpleType name=\"$typeName\">\n <$schemaPrefix:restriction base=\"" . $this->contractQName($eParts['type']) . "\">\n";
1715  if (isset($eParts['enumeration'])) {
1716  foreach ($eParts['enumeration'] as $e) {
1717  $xml .= " <$schemaPrefix:enumeration value=\"$e\"/>\n";
1718  }
1719  }
1720  $xml .= " </$schemaPrefix:restriction>\n </$schemaPrefix:simpleType>";
1721  }
1722  }
1723  // elements
1724  if (isset($this->elements) && count($this->elements) > 0) {
1725  foreach ($this->elements as $element => $eParts) {
1726  $xml .= " <$schemaPrefix:element name=\"$element\" type=\"" . $this->contractQName($eParts['type']) . "\"/>\n";
1727  }
1728  }
1729  // attributes
1730  if (isset($this->attributes) && count($this->attributes) > 0) {
1731  foreach ($this->attributes as $attr => $aParts) {
1732  $xml .= " <$schemaPrefix:attribute name=\"$attr\" type=\"" . $this->contractQName($aParts['type']) . "\"\n/>";
1733  }
1734  }
1735  // finish 'er up
1736  $attr = '';
1737  foreach ($this->schemaInfo as $k => $v) {
1738  if ($k == 'elementFormDefault' || $k == 'attributeFormDefault') {
1739  $attr .= " $k=\"$v\"";
1740  }
1741  }
1742  $el = "<$schemaPrefix:schema$attr targetNamespace=\"$this->schemaTargetNamespace\"\n";
1743  foreach (array_diff($this->usedNamespaces, $this->enclosingNamespaces) as $nsp => $ns) {
1744  $el .= " xmlns:$nsp=\"$ns\"";
1745  }
1746  $xml = $el . ">\n" . $xml . "</$schemaPrefix:schema>\n";
1747  return $xml;
1748  }
nusoap_base\getPrefixFromNamespace
getPrefixFromNamespace($ns)
returns the prefix for a given namespace (or prefix) or false if no prefixes registered for the given...
Definition: nusoap.php:872
nusoap_xmlschema\$xml
$xml
Definition: nusoap.php:1131
Vendor\Package\$a
$a
thx to https://mlocati.github.io/php-cs-fixer-configurator for the examples
Definition: example_cleaned.php:49
+ Here is the call graph for this function:

◆ serializeTypeDef()

nusoap_xmlschema::serializeTypeDef (   $type)

returns a sample serialization of a given type, or false if no type by the given name

Parameters
string$typename of type
Returns
mixed public
Deprecated:

Definition at line 1884 of file nusoap.php.

References $data.

1885  {
1886  //print "in sTD() for type $type<br>";
1887  if ($typeDef = $this->getTypeDef($type)) {
1888  $str .= '<' . $type;
1889  if (is_array($typeDef['attrs'])) {
1890  foreach ($typeDef['attrs'] as $attName => $data) {
1891  $str .= " $attName=\"{type = " . $data['type'] . "}\"";
1892  }
1893  }
1894  $str .= " xmlns=\"" . $this->schema['targetNamespace'] . "\"";
1895  if (count($typeDef['elements']) > 0) {
1896  $str .= ">";
1897  foreach ($typeDef['elements'] as $element => $eData) {
1898  $str .= $this->serializeTypeDef($element);
1899  }
1900  $str .= "</$type>";
1901  } elseif ($typeDef['typeClass'] == 'element') {
1902  $str .= "></$type>";
1903  } else {
1904  $str .= "/>";
1905  }
1906  return $str;
1907  }
1908  return false;
1909  }
nusoap_xmlschema\getTypeDef
getTypeDef($type)
returns an associative array of information about a given type returns false if no type exists by the...
Definition: nusoap.php:1807
nusoap_xmlschema\serializeTypeDef
serializeTypeDef($type)
returns a sample serialization of a given type, or false if no type by the given name ...
Definition: nusoap.php:1884

◆ typeToForm()

nusoap_xmlschema::typeToForm (   $name,
  $type
)

returns HTML form elements that allow a user to enter values for creating an instance of the given type.

Parameters
string$namename for type instance
string$typename of type
Returns
string public
Deprecated:

Definition at line 1921 of file nusoap.php.

References nusoap_base\getLocalPart().

1922  {
1923  // get typedef
1924  if ($typeDef = $this->getTypeDef($type)) {
1925  // if struct
1926  if ($typeDef['phpType'] == 'struct') {
1927  $buffer .= '<table>';
1928  foreach ($typeDef['elements'] as $child => $childDef) {
1929  $buffer .= "
1930  <tr><td align='right'>$childDef[name] (type: " . $this->getLocalPart($childDef['type']) . "):</td>
1931  <td><input type='text' name='parameters[" . $name . "][$childDef[name]]'></td></tr>";
1932  }
1933  $buffer .= '</table>';
1934  // if array
1935  } elseif ($typeDef['phpType'] == 'array') {
1936  $buffer .= '<table>';
1937  for ($i=0;$i < 3; $i++) {
1938  $buffer .= "
1939  <tr><td align='right'>array item (type: $typeDef[arrayType]):</td>
1940  <td><input type='text' name='parameters[" . $name . "][]'></td></tr>";
1941  }
1942  $buffer .= '</table>';
1943  // if scalar
1944  } else {
1945  $buffer .= "<input type='text' name='parameters[$name]'>";
1946  }
1947  } else {
1948  $buffer .= "<input type='text' name='parameters[$name]'>";
1949  }
1950  return $buffer;
1951  }
nusoap_base\getLocalPart
getLocalPart($str)
returns the local part of a prefixed string returns the original string, if not prefixed ...
Definition: nusoap.php:821
nusoap_xmlschema\getTypeDef
getTypeDef($type)
returns an associative array of information about a given type returns false if no type exists by the...
Definition: nusoap.php:1807
+ Here is the call graph for this function:

◆ xdebug()

nusoap_xmlschema::xdebug (   $string)

adds debug data to the clas level debug string

Parameters
string$stringdebug data private

Definition at line 1756 of file nusoap.php.

References nusoap_base\debug().

1757  {
1758  $this->debug('<' . $this->schemaTargetNamespace . '> ' . $string);
1759  }
nusoap_base\debug
debug($string)
adds debug data to the instance debug string with formatting
Definition: nusoap.php:292
+ Here is the call graph for this function:

Field Documentation

◆ $attributes

nusoap_xmlschema::$attributes = array()

Definition at line 1138 of file nusoap.php.

◆ $complexTypes

nusoap_xmlschema::$complexTypes = array()

Definition at line 1139 of file nusoap.php.

◆ $complexTypeStack

nusoap_xmlschema::$complexTypeStack = array()

Definition at line 1140 of file nusoap.php.

◆ $currentComplexType

nusoap_xmlschema::$currentComplexType = null

Definition at line 1141 of file nusoap.php.

◆ $currentElement

nusoap_xmlschema::$currentElement = null

Definition at line 1144 of file nusoap.php.

◆ $currentSimpleType

nusoap_xmlschema::$currentSimpleType = null

Definition at line 1147 of file nusoap.php.

◆ $defaultNamespace

nusoap_xmlschema::$defaultNamespace = array()

Definition at line 1156 of file nusoap.php.

◆ $depth

nusoap_xmlschema::$depth = 0

Definition at line 1153 of file nusoap.php.

◆ $depth_array

nusoap_xmlschema::$depth_array = array()

Definition at line 1154 of file nusoap.php.

◆ $elements

nusoap_xmlschema::$elements = array()

Definition at line 1142 of file nusoap.php.

◆ $elementStack

nusoap_xmlschema::$elementStack = array()

Definition at line 1143 of file nusoap.php.

◆ $enclosingNamespaces

nusoap_xmlschema::$enclosingNamespaces

Definition at line 1133 of file nusoap.php.

◆ $imports

nusoap_xmlschema::$imports = array()

Definition at line 1149 of file nusoap.php.

◆ $message

nusoap_xmlschema::$message = array()

Definition at line 1155 of file nusoap.php.

◆ $parser

nusoap_xmlschema::$parser

Definition at line 1151 of file nusoap.php.

◆ $position

nusoap_xmlschema::$position = 0

Definition at line 1152 of file nusoap.php.

◆ $schema

nusoap_xmlschema::$schema = ''

Definition at line 1130 of file nusoap.php.

◆ $schemaInfo

nusoap_xmlschema::$schemaInfo = array()

Definition at line 1135 of file nusoap.php.

◆ $schemaTargetNamespace

nusoap_xmlschema::$schemaTargetNamespace = ''

Definition at line 1136 of file nusoap.php.

◆ $simpleTypes

nusoap_xmlschema::$simpleTypes = array()

Definition at line 1145 of file nusoap.php.

◆ $simpleTypeStack

nusoap_xmlschema::$simpleTypeStack = array()

Definition at line 1146 of file nusoap.php.

◆ $xml

nusoap_xmlschema::$xml = ''

Definition at line 1131 of file nusoap.php.

The documentation for this class was generated from the following file:
