assOrderingHorizontalExport Class Reference

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

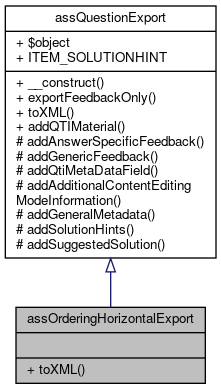

Inheritance diagram for assOrderingHorizontalExport:

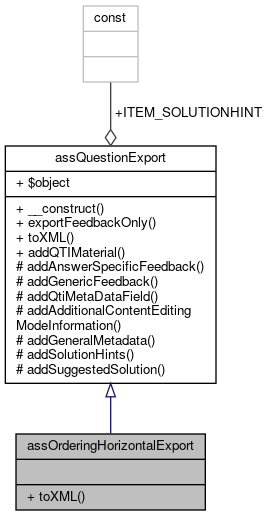

Collaboration diagram for assOrderingHorizontalExport:

Public Member Functions
	toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
	Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation public. More...
Public Member Functions inherited from assQuestionExport
	__construct ($a_object)
	assQuestionExport constructor More...
	exportFeedbackOnly ($a_xml_writer)
	toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
	Returns a QTI xml representation of the question Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation. More...
	addQTIMaterial (ilXmlWriter $a_xml_writer, string $a_material, bool $close_material_tag=true, bool $add_mobs=true)

Additional Inherited Members
Data Fields inherited from assQuestionExport
	$object
const	ITEM_SOLUTIONHINT = 'solutionhint'
Protected Member Functions inherited from assQuestionExport
	addAnswerSpecificFeedback (ilXmlWriter $a_xml_writer, $answers)
	addGenericFeedback (ilXmlWriter $a_xml_writer)
	addQtiMetaDataField (ilXmlWriter $a_xml_writer, $fieldLabel, $fieldValue)
	adds a qti meta data field with given name and value to the passed xml writer (xml writer must be in context of opened "qtimetadata" tag) More...
	addAdditionalContentEditingModeInformation (ilXmlWriter $a_xml_writer)
	adds a qti meta data field for ilias specific information of "additional content editing mode" (xml writer must be in context of opened "qtimetadata" tag) More...
	addGeneralMetadata (ilXmlWriter $xmlwriter)
	addSolutionHints (ilXmlWriter $writer)
	addSuggestedSolution (ilXmlWriter $writer)

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Class for formula question question exports

assOrderingHorizontalExport is a class for single choice question exports

Author

Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m

Version

$Id$ \

Definition at line 27 of file class.assOrderingHorizontalExport.php.

Member Function Documentation

toXML()

assOrderingHorizontalExport::toXML	(		$a_include_header = true,
			$a_include_binary = true,
			$a_shuffle = false,
			$test_output = false,
			$force_image_references = false
	)

Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation public.

Definition at line 34 of file class.assOrderingHorizontalExport.php.

References $DIC, assQuestionExport\addAdditionalContentEditingModeInformation(), assQuestionExport\addGeneralMetadata(), assQuestionExport\addGenericFeedback(), assQuestionExport\addQTIMaterial(), assQuestionExport\addSolutionHints(), assQuestionExport\addSuggestedSolution(), IL_INST_ID, and ILIAS\Repository\object().

                                                                                                                                                        : string
    {
        global $DIC;
        $ilias = $DIC['ilias'];

        $a_xml_writer = new ilXmlWriter();
        // set xml header
        $a_xml_writer->xmlHeader();
        $a_xml_writer->xmlStartTag("questestinterop");
        $attrs = [
            "ident" => "il_" . IL_INST_ID . "_qst_" . $this->object->getId(),
            "title" => $this->object->getTitle(),
            "maxattempts" => $this->object->getNrOfTries()
        ];
        $a_xml_writer->xmlStartTag("item", $attrs);
        // add question description
        $a_xml_writer->xmlElement("qticomment", null, $this->object->getComment());
        $a_xml_writer->xmlStartTag("itemmetadata");
        $a_xml_writer->xmlStartTag("qtimetadata");
        $a_xml_writer->xmlStartTag("qtimetadatafield");
        $a_xml_writer->xmlElement("fieldlabel", null, "ILIAS_VERSION");
        $a_xml_writer->xmlElement("fieldentry", null, $ilias->getSetting("ilias_version"));
        $a_xml_writer->xmlEndTag("qtimetadatafield");
        $a_xml_writer->xmlStartTag("qtimetadatafield");
        $a_xml_writer->xmlElement("fieldlabel", null, "QUESTIONTYPE");
        $a_xml_writer->xmlElement("fieldentry", null, $this->object->getQuestionType());
        $a_xml_writer->xmlEndTag("qtimetadatafield");
        $a_xml_writer->xmlStartTag("qtimetadatafield");
        $a_xml_writer->xmlElement("fieldlabel", null, "AUTHOR");
        $a_xml_writer->xmlElement("fieldentry", null, $this->object->getAuthor());
        $a_xml_writer->xmlEndTag("qtimetadatafield");

        // additional content editing information
        $this->addAdditionalContentEditingModeInformation($a_xml_writer);
        $this->addGeneralMetadata($a_xml_writer);

        $a_xml_writer->xmlStartTag("qtimetadatafield");
        $a_xml_writer->xmlElement("fieldlabel", null, "points");
        $a_xml_writer->xmlElement("fieldentry", null, $this->object->getPoints());
        $a_xml_writer->xmlEndTag("qtimetadatafield");
        $a_xml_writer->xmlStartTag("qtimetadatafield");
        $a_xml_writer->xmlElement("fieldlabel", null, "ordertext");
        $a_xml_writer->xmlElement("fieldentry", null, $this->object->getOrderText());
        $a_xml_writer->xmlEndTag("qtimetadatafield");
        $a_xml_writer->xmlStartTag("qtimetadatafield");
        $a_xml_writer->xmlElement("fieldlabel", null, "textsize");
        $a_xml_writer->xmlElement("fieldentry", null, $this->object->getTextSize());
        $a_xml_writer->xmlEndTag("qtimetadatafield");
        $a_xml_writer->xmlStartTag("qtimetadatafield");
        $a_xml_writer->xmlElement("fieldlabel", null, "separator");
        $a_xml_writer->xmlElement("fieldentry", null, $this->object->getSeparator());
        $a_xml_writer->xmlEndTag("qtimetadatafield");
        $a_xml_writer->xmlEndTag("qtimetadata");
        $a_xml_writer->xmlEndTag("itemmetadata");

        // PART I: qti presentation
        $attrs = [
            "label" => $this->object->getTitle()
        ];
        $a_xml_writer->xmlStartTag("presentation", $attrs);
        // add flow to presentation
        $a_xml_writer->xmlStartTag("flow");
        // add material with question text to presentation
        $this->addQTIMaterial($a_xml_writer, $this->object->getQuestion());
        // add answers to presentation
        $a_xml_writer->xmlEndTag("flow");
        $a_xml_writer = $this->addSuggestedSolution($a_xml_writer);
        $a_xml_writer->xmlEndTag("presentation");

        $this->addGenericFeedback($a_xml_writer);

        $a_xml_writer = $this->addSolutionHints($a_xml_writer);

        $a_xml_writer->xmlEndTag("item");
        $a_xml_writer->xmlEndTag("questestinterop");

        $xml = $a_xml_writer->xmlDumpMem(false);
        if (!$a_include_header) {
            $pos = strpos($xml, "?>");
            $xml = substr($xml, $pos + 2);
        }
        return $xml;
    }

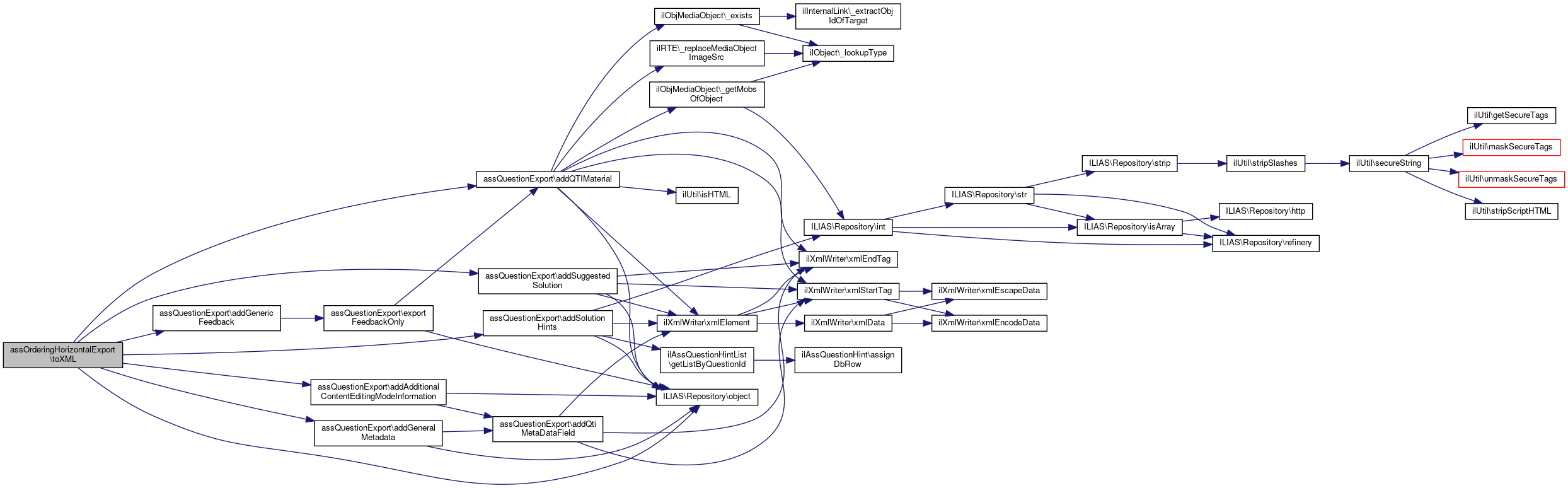

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• components/ILIAS/TestQuestionPool/classes/export/qti12/class.assOrderingHorizontalExport.php
