SurveyMatrixQuestionEvaluation Class Reference

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

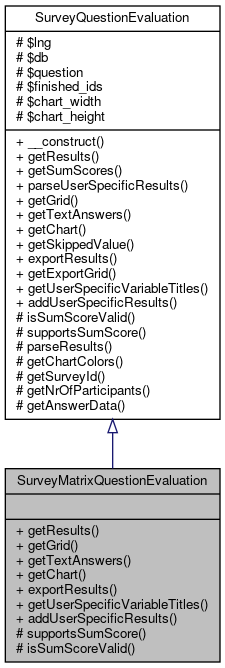

Inheritance diagram for SurveyMatrixQuestionEvaluation:

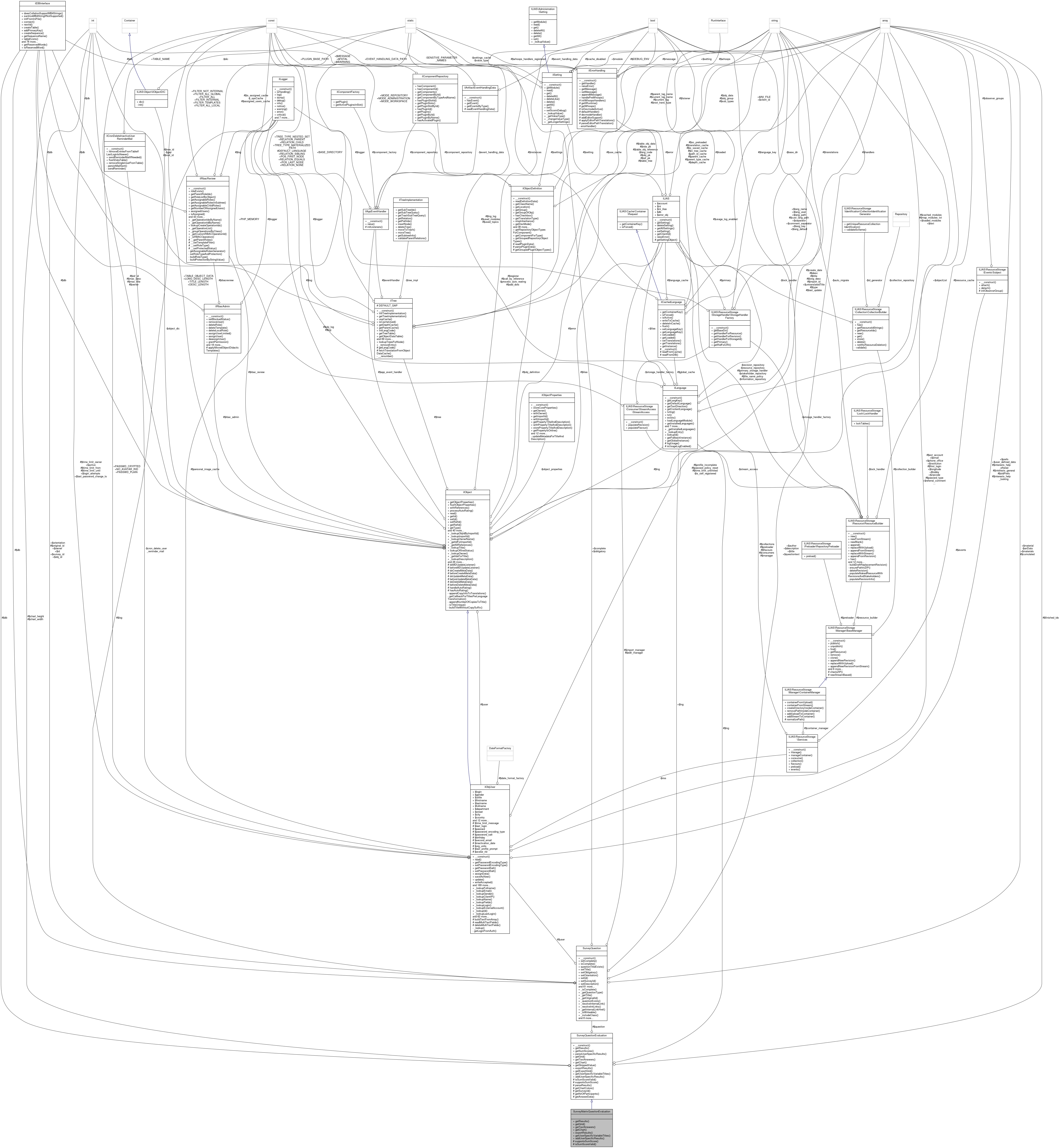

Collaboration diagram for SurveyMatrixQuestionEvaluation:

Public Member Functions
	getResults ()
	getGrid ( $a_results, bool $a_abs=true, bool $a_perc=true)
	getTextAnswers ($a_results)
	getChart ($a_results)
	exportResults ( $a_results, bool $a_do_title, bool $a_do_label)
	getUserSpecificVariableTitles (array &$a_title_row, array &$a_title_row2, bool $a_do_title, bool $a_do_label)
	addUserSpecificResults (array &$a_row, int $a_user_id, $a_results)
Public Member Functions inherited from SurveyQuestionEvaluation
	__construct (SurveyQuestion $a_question, array $a_finished_ids=[])
	getResults ()
	Get results. More...
	getSumScores ()
	Get sum score for this question for all active ids of run. More...
	parseUserSpecificResults ($a_qres, int $a_user_id)
	getGrid ( $a_results, bool $a_abs=true, bool $a_perc=true)
	Get grid data. More...
	getTextAnswers ($a_results)
	Get text answers. More...
	getChart ($a_results)
	getSkippedValue ()
	Get caption for skipped value. More...
	exportResults ( $a_results, bool $a_do_title, bool $a_do_label)
	getExportGrid ($a_results)
	Get grid data. More...
	getUserSpecificVariableTitles (array &$a_title_row, array &$a_title_row2, bool $a_do_title, bool $a_do_label)
	Get title columns for user-specific export. More...
	addUserSpecificResults (array &$a_row, int $a_user_id, $a_results)

Protected Member Functions
	supportsSumScore ()
	isSumScoreValid (int $nr_answer_records)
Protected Member Functions inherited from SurveyQuestionEvaluation
	isSumScoreValid (int $nr_answer_records)
	Is sum score ok (question needs to be fully answered) More...
	supportsSumScore ()
	parseResults (ilSurveyEvaluationResults $a_results, array $a_answers, SurveyCategories $a_categories=null)
	Parse answer data into results instance. More...
	getChartColors ()
	getSurveyId ()
	getNrOfParticipants ()
	Returns the number of participants for a survey. More...
	getAnswerData ()

Additional Inherited Members
Protected Attributes inherited from SurveyQuestionEvaluation
ilLanguage	$lng
ilDBInterface	$db
SurveyQuestion	$question
array	$finished_ids
int	$chart_width = 400
int	$chart_height = 300

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Survey matrix evaluation

Author

Jörg Lützenkirchen luetz.nosp@m.enki.nosp@m.rchen.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Definition at line 23 of file class.SurveyMatrixQuestionEvaluation.php.

Member Function Documentation

addUserSpecificResults()

SurveyMatrixQuestionEvaluation::addUserSpecificResults	(	array &	$a_row,
		int	$a_user_id,
			$a_results
	)

Parameters

array | ilSurveyEvaluationResults

$a_results

Definition at line 353 of file class.SurveyMatrixQuestionEvaluation.php.

References SurveyQuestionEvaluation\getSkippedValue().

     : void {
        $answer_map = array();
        foreach ($a_results as $row_results) {
            $row_title = $row_results[0];
            $row_result = $row_results[1];

            $answers = $row_result->getUserResults($a_user_id);
            if ($answers !== null) {
                foreach ($answers as $answer) {
                    // mc
                    if ($this->question->getSubtype() === 1) {
                        $answer_map[$row_title . "|" . $answer[2]] = $answer[2];
                    } else {
                        $answer_map[$row_title] = $answer[3];
                        $answer_map[$row_title . "|scale"] = $answer[2];                // see #20646
                    }
                    if ($answer[1]) {
                        $answer_map[$row_title . "|txt"] = $answer[1];
                    }
                }
            }
        }

        if (!count($answer_map)) {
            $a_row[] = $this->getSkippedValue();
        } else {
            $a_row[] = "";
        }

        for ($i = 0; $i < $this->question->getRowCount(); $i++) {
            $row = $this->question->getRow($i);
            $row_title = $row->title;

            $a_row[] = $answer_map[$row_title] ?? null;
            if ($this->question->getSubtype() === 0) {
                $a_row[] = $answer_map[$row_title . "|scale"] ?? null;    // see #20646
            }

            if ($row->other) {
                $a_row[] = $answer_map[$row_title . "|txt"] ?? null;
            }

            // mc
            if ($this->question->getSubtype() === 1) {
                for ($index = 0; $index < $this->question->getColumnCount(); $index++) {
                    $col = $this->question->getColumn($index);
                    $a_row[] = $answer_map[$row_title . "|" . $col->scale] ?? null;
                }
            }
        }
    }

Here is the call graph for this function:

exportResults()

SurveyMatrixQuestionEvaluation::exportResults	(		$a_results,
		bool	$a_do_title,
		bool	$a_do_label
	)

Parameters

array | ilSurveyEvaluationResults

$a_results

Definition at line 218 of file class.SurveyMatrixQuestionEvaluation.php.

References SurveyQuestionEvaluation\$question, SurveyQuestion\_getQuestionTypeName(), SurveyQuestion\getQuestiontext(), SurveyQuestion\getQuestionType(), SurveyQuestion\getTitle(), and ILIAS\Repository\int().

     : array {
        $question = $a_results[0][1]->getQuestion();

        $rows = array();
        $row = array();

        if ($a_do_title) {
            $row[] = $question->getTitle();
        }
        if ($a_do_label) {
            $row[] = $question->label;
        }

        $row[] = $question->getQuestiontext();
        $row[] = SurveyQuestion::_getQuestionTypeName($question->getQuestionType());

        $row[] = (int) $a_results[0][1]->getUsersAnswered();
        $row[] = (int) $a_results[0][1]->getUsersSkipped();
        $row[] = null;
        $row[] = null;
        $row[] = null;
        $row[] = null;
        $row[] = null;

        $rows[] = $row;

        foreach ($a_results as $row_result) {
            $row_title = $row_result[0];
            $row_res = $row_result[1];

            $row = array();

            if ($a_do_title) {
                $row[] = null;
            }
            if ($a_do_label) {
                $row[] = null;
            }

            $row[] = $row_title;
            $row[] = null;

            $row[] = null;
            $row[] = null;

            // :TODO:
            $row[] = is_array($row_res->getModeValue())
                ? implode(", ", $row_res->getModeValue())
                : $row_res->getModeValue();

            $row[] = $row_res->getModeValueAsText();
            $row[] = (int) $row_res->getModeNrOfSelections();

            // :TODO:
            $row[] = $row_res->getMedianAsText();

            $row[] = $row_res->getMean();

            $rows[] = $row;
        }
        return $rows;
    }

Here is the call graph for this function:

getChart()

SurveyMatrixQuestionEvaluation::getChart

(

$a_results

)

Parameters

array | ilSurveyEvaluationResults

$a_results

Definition at line 137 of file class.SurveyMatrixQuestionEvaluation.php.

References $data, ilChartGrid\DATA_BARS, SurveyQuestionEvaluation\getChartColors(), ILIAS\Survey\Mode\getId(), ilChart\getInstanceByType(), ilStr\shortenTextExtended(), and ilChart\TYPE_GRID.

                                        : ?array
    {
        $chart = ilChart::getInstanceByType(ilChart::TYPE_GRID, $a_results[0][1]->getQuestion()->getId());
        $chart->setXAxisToInteger(true);
        $chart->setStacked(true);

        $colors = $this->getChartColors();
        $chart->setColors($colors);

        // :TODO:
        //$chart->setsize($this->chart_width, $this->chart_height);

        $data = $labels = $legend = array();

        $row_idx = count($a_results);

        $row_counter = 0;
        $text_shortened = false;
        foreach ($a_results as $row) {
            $row_idx--;

            $row_title = $row[0];
            $row_results = $row[1];

            #20363
            $row_title = ++$row_counter . ". " . $row_title;
            $labels[$row_idx] = ilStr::shortenTextExtended($row_title, 50, true);
            if ($labels[$row_idx] != $row_title) {
                $text_shortened = true;
            }
            //$labels[$row_idx] = wordwrap(ilUtil::shortenText($row_title, 50, true), 30, "<br />");

            $vars = $row_results->getVariables();
            if ($vars) {
                foreach ($vars as $idx => $var) {
                    if (!array_key_exists($idx, $data)) {
                        $data[$idx] = $chart->getDataInstance(ilChartGrid::DATA_BARS);
                        $data[$idx]->setLabel($var->cat->title);
                        $data[$idx]->setBarOptions(0.5, "center", true);
                        $data[$idx]->setFill(1);

                        $legend[] = array(
                            $var->cat->title,
                            $colors[$idx]
                        );
                    }

                    $data[$idx]->addPoint((float) $var->abs, $row_idx);
                }
            }
        }

        //Chart height depending on the number of questions. Not fixed anymore.
        $this->chart_height = count($a_results) * 40;
        //Chart width 500px if one or + question string are longer than 60 char. Otherwise the default width still aplied.
        if ($text_shortened) {
            $this->chart_width = 500;
        }
        $chart->setSize((string) $this->chart_width, (string) $this->chart_height);

        foreach ($data as $var) {
            $chart->addData($var);
        }

        $chart->setTicks(false, $labels, true);

        return array(
            $chart->getHTML(),
            $legend
        );
    }

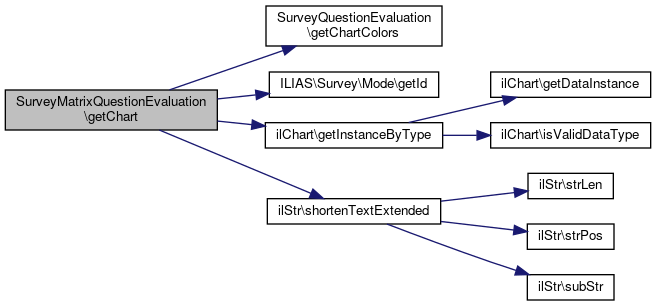

Here is the call graph for this function:

getGrid()

SurveyMatrixQuestionEvaluation::getGrid	(		$a_results,
		bool	$a_abs = true,
		bool	$a_perc = true
	)

Parameters

array | ilSurveyEvaluationResults

$a_results

Definition at line 65 of file class.SurveyMatrixQuestionEvaluation.php.

References $res.

     : array {
        $res = array(
            "cols" => array(),
            "rows" => array()
        );

        $tmp = $a_results;
        $tmp = array_shift($tmp);
        $vars = $tmp[1]->getVariables();
        if ($vars) {
            foreach ($vars as $var) {
                $res["cols"][] = $var->cat->title;
            }
        }
        $q_counter = 0;
        foreach ($a_results as $results_row) {
            #20363
            $parsed_row = array(
                ++$q_counter . ". " . $results_row[0]
            );

            $vars = $results_row[1]->getVariables();
            if ($vars) {
                foreach ($vars as $var) {
                    $perc = $var->perc
                        ? sprintf("%.2f", $var->perc * 100) . "%"
                        : "0%";

                    if ($a_abs && $a_perc) {
                        $parsed_row[] = $var->abs . " / " . $perc;
                    } elseif ($a_abs) {
                        $parsed_row[] = $var->abs;
                    } else {
                        $parsed_row[] = $perc;
                    }
                }
            }

            $res["rows"][] = $parsed_row;
        }
        return $res;
    }

getResults()

SurveyMatrixQuestionEvaluation::getResults

(

)

Returns

ilSurveyEvaluationResults|array

Definition at line 32 of file class.SurveyMatrixQuestionEvaluation.php.

References $r, $results, SurveyQuestionEvaluation\getAnswerData(), and SurveyQuestionEvaluation\parseResults().

    {
        $results = array();

        $answers = $this->getAnswerData();

        // parse rows
        for ($r = 0; $r < $this->question->getRowCount(); $r++) {
            $row_results = new ilSurveyEvaluationResults($this->question);

            $this->parseResults(
                $row_results,
                (array) ($answers[$r] ?? []),
                $this->question->getColumns()
            );

            $results[] = array(
                $this->question->getRow($r)->title,
                $row_results
            );
        }

        return $results;
    }

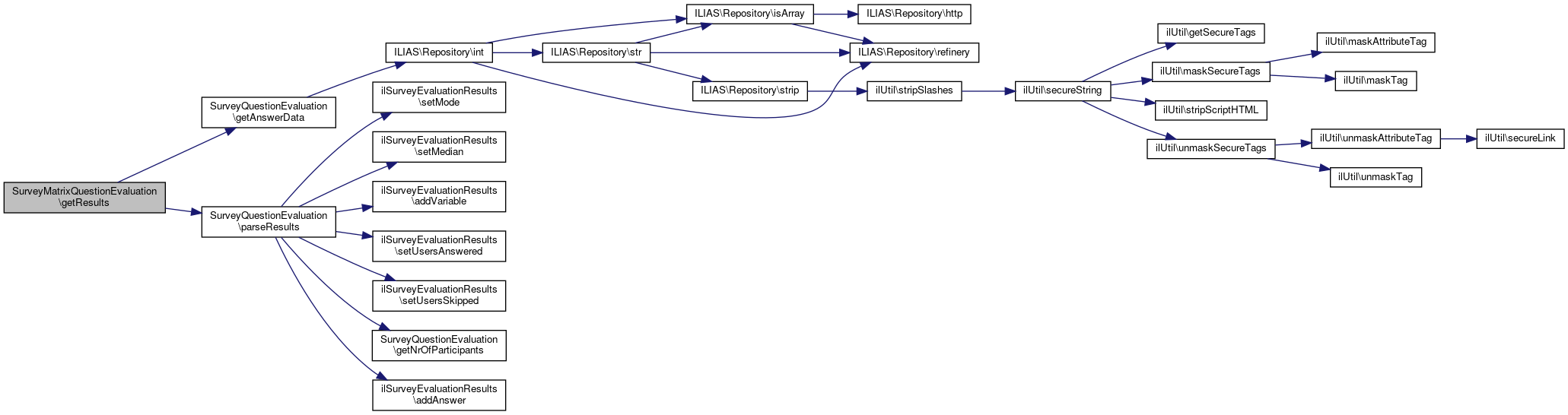

Here is the call graph for this function:

getTextAnswers()

SurveyMatrixQuestionEvaluation::getTextAnswers

(

$a_results

)

Parameters

array | ilSurveyEvaluationResults

$a_results

Definition at line 115 of file class.SurveyMatrixQuestionEvaluation.php.

References $res.

                                              : array
    {
        $res = array();

        foreach ($a_results as $results_row) {
            $texts = $results_row[1]->getMappedTextAnswers();
            if ($texts) {
                $idx = $results_row[0];
                foreach ($texts as $answers) {
                    foreach ($answers as $answer) {
                        $res[$idx][] = $answer;
                    }
                }
            }
        }

        return $res;
    }

getUserSpecificVariableTitles()

SurveyMatrixQuestionEvaluation::getUserSpecificVariableTitles	(	array &	$a_title_row,
		array &	$a_title_row2,
		bool	$a_do_title,
		bool	$a_do_label
	)

Definition at line 285 of file class.SurveyMatrixQuestionEvaluation.php.

References SurveyQuestionEvaluation\$lng, and ilLanguage\txt().

     : void {
        $lng = $this->lng;

        for ($i = 0; $i < $this->question->getRowCount(); $i++) {
            // create row title according label, add 'other column'
            $row = $this->question->getRow($i);

            if ($a_do_title && $a_do_label) {
                $a_title_row[] = $row->title;
                $a_title_row2[] = $row->label;

                if ($this->question->getSubtype() == 0) {
                    $a_title_row[] = $row->title;        // see #20646
                    $a_title_row2[] = $row->label;        // see #20646
                }

                if ($row->other) {
                    $a_title_row[] = $row->title;
                    $a_title_row2[] = $lng->txt('other');
                }
            } elseif ($a_do_title) {
                $a_title_row[] = $row->title;
                $a_title_row2[] = "";

                if ($this->question->getSubtype() == 0) {
                    $a_title_row[] = $row->title;        // see #20646
                    $a_title_row2[] = "";                // see #20646
                }

                if ($row->other) {
                    $a_title_row[] = $row->title;
                    $a_title_row2[] = $lng->txt('other');
                }
            } else {
                $a_title_row[] = $row->label;
                $a_title_row2[] = "";

                if ($this->question->getSubtype() == 0) {
                    $a_title_row[] = $row->label;        // see #20646
                    $a_title_row2[] = "";                // see #20646
                }

                if ($row->other) {
                    $a_title_row[] = $row->label;
                    $a_title_row2[] = $lng->txt('other');
                }
            }

            // mc
            if ($this->question->getSubtype() === 1) {
                for ($index = 0; $index < $this->question->getColumnCount(); $index++) {
                    $col = $this->question->getColumn($index);

                    $a_title_row[] = $col->title . " [" . $col->scale . "]";
                    $a_title_row2[] = "";
                }
            }
        }
    }

Here is the call graph for this function:

isSumScoreValid()

SurveyMatrixQuestionEvaluation::isSumScoreValid ( int  $nr_answer_records )

protected

Definition at line 414 of file class.SurveyMatrixQuestionEvaluation.php.

                                                              : bool
    {
        if ($nr_answer_records === $this->question->getRowCount()) {
            return true;
        }
        return false;
    }

supportsSumScore()

SurveyMatrixQuestionEvaluation::supportsSumScore ( )

protected

Definition at line 409 of file class.SurveyMatrixQuestionEvaluation.php.

                                         : bool
    {
        return true;
    }

---

The documentation for this class was generated from the following file:

• Modules/SurveyQuestionPool/Questions/class.SurveyMatrixQuestionEvaluation.php
