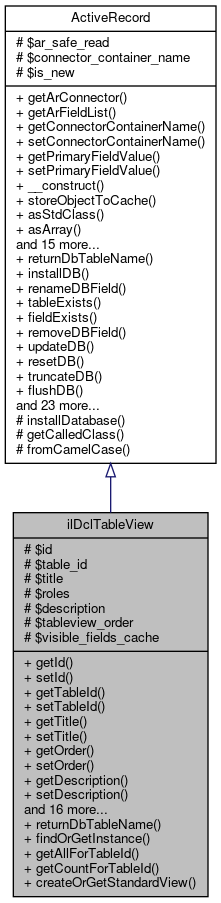

Inheritance diagram for ilDclTableView:

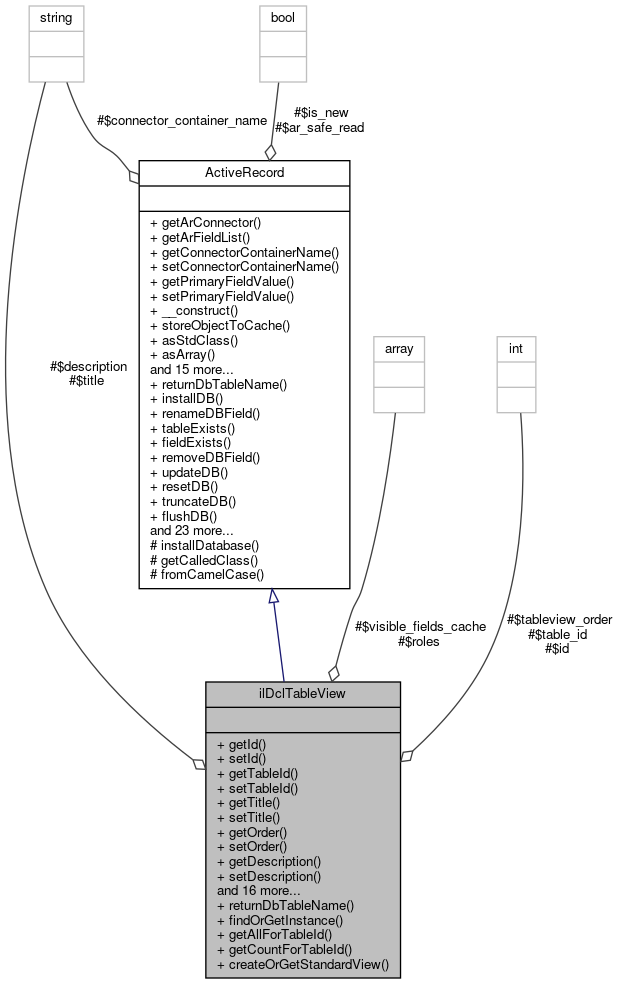

Collaboration diagram for ilDclTableView:

Public Member Functions
	getId ()

	setId (int $id)

	getTableId ()

	setTableId (int $table_id)

	getTitle ()

	setTitle (string $title)

	getOrder ()

	setOrder (int $order)

	getDescription ()

	setDescription (string $description)

	getTableviewOrder ()

	setTableviewOrder (int $tableview_order)

	getRoles ()

	setRoles (array $roles)

	sleep ($field_name)

	wakeUp ($field_name, $field_value)

	delete ()

	getTable ()

	getFilterableFieldSettings ()
	getFilterableFields Returns all fieldsetting-objects of this tableview which have set their filterable to true, including standard fields. More...

	getVisibleFields ()
	Returns all field-objects of this tableview which have set their visibility to true, including standard fields. More...

	getFieldSettings ()

	getFieldSetting ($field_id)

	create (bool $create_default_settings=true)

	createDefaultSettings ()
	create default ilDclTableViewFieldSetting entries More...

	createFieldSetting ($field_id)
	create ilDclTableViewFieldSetting for this tableview and the given field id More...

	cloneStructure (ilDclTableView $orig, array $new_fields)

Public Member Functions inherited from ActiveRecord
	getArConnector ()

	getArFieldList ()

	getConnectorContainerName ()
	Return the Name of your Connector Table More...

	setConnectorContainerName (string $connector_container_name)

	getPrimaryFieldValue ()

	setPrimaryFieldValue ($value)

	__construct (mixed $primary_key=0)

	storeObjectToCache ()

	asStdClass ()

	asArray ()

	buildFromArray (array $array)

	fixDateField ($field_name, $value)

	sleep ($field_name)

	wakeUp ($field_name, $field_value)

	getArrayForConnector ()

	installConnector ()

	store ()

	save ()

	create ()

	copy (int $new_id=0)

	afterObjectLoad ()

	read ()

	update ()

	delete ()

	__call ($name, $arguments)

Static Public Member Functions
static	returnDbTableName ()

static	findOrGetInstance ($primary_key, array $add_constructor_args=[])

static	getAllForTableId (int $table_id)

static	getCountForTableId (int $table_id)

static	createOrGetStandardView (int $table_id)

Static Public Member Functions inherited from ActiveRecord
static	returnDbTableName ()

static	installDB ()

static	renameDBField (string $old_name, string $new_name)

static	tableExists ()

static	fieldExists (string $field_name)

static	removeDBField (string $field_name)

static	updateDB ()

static	resetDB ()

static	truncateDB ()

static	flushDB ()
	never use in ILIAS Core, Plugins only More...

static	preloadObjects ()

static	additionalParams (array $additional_params)

static	findOrFail ($primary_key, array $add_constructor_args=[])
	Tries to find the object and throws an Exception if object is not found, instead of returning null. More...

static	findOrGetInstance ($primary_key, array $add_constructor_args=[])

static	where ($where, $operator=null)

static	innerjoinAR (ActiveRecord $activeRecord, $on_this, $on_external, array $fields=[' *'], string $operator='=', bool $both_external=false)

static	innerjoin ( $tablename, $on_this, $on_external, array $fields=[' *'], string $operator='=', bool $both_external=false)

static	leftjoin ( $tablename, $on_this, $on_external, array $fields=[' *'], string $operator='=', bool $both_external=false)

static	orderBy (string $orderBy, string $orderDirection='ASC')

static	dateFormat (string $date_format='d.m.Y - H:i:s')

static	limit (int $start, int $end)

static	affectedRows ()

static	count ()

static	get ()

static	debug ()

static	first ()

static	getCollection ()

static	last ()

static	getFirstFromLastQuery ()

static	connector (arConnector $arConnector)

static	raw (bool $set_raw=true)

static	getArray (?string $key=null, $values=null)

static	_toCamelCase (string $str, bool $capitalise_first_char=false)

Protected Attributes
int	$id

int	$table_id = 0

string	$title = ""

array	$roles = []

string	$description = ''

int	$tableview_order = 0

array	$visible_fields_cache = []

Protected Attributes inherited from ActiveRecord
bool	$ar_safe_read = true

string	$connector_container_name = ''

bool	$is_new = true

Additional Inherited Members
Protected Member Functions inherited from ActiveRecord
	installDatabase ()

Static Protected Member Functions inherited from ActiveRecord
static	getCalledClass ()
	Returns an instance of the instatiated calling active record (needs to be done in static methods) : This should be cached somehow More...

static	fromCamelCase (string $str)

Detailed Description

Definition at line 21 of file class.ilDclTableView.php.

Member Function Documentation

◆ cloneStructure()

ilDclTableView::cloneStructure	(	ilDclTableView	$orig,
		array	$new_fields
	)

Parameters

ilDclTableView	$orig
array	$new_fields	fields mapping

Definition at line 343 of file class.ilDclTableView.php.

References $DIC, Vendor\Package\$f, ilPageObject\copy(), ActiveRecord\create(), createFieldSetting(), ilDclDetailedViewDefinition\exists(), getDescription(), getFieldSettings(), getId(), getOrder(), getRoles(), getTitle(), ilDclCache\setCloneOf(), setDescription(), setOrder(), setRoles(), setTitle(), and ilDclCache\TYPE_TABLEVIEW.

                                                                            : void
     {
         global $DIC;
         //clone structure
         $this->setTitle($orig->getTitle() . ' ' . $DIC->language()->txt('copy_of_suffix'));
         $this->setOrder($orig->getOrder());
         $this->setDescription($orig->getDescription());
         $this->setRoles($orig->getRoles());
         $this->create(false); //create default setting, adjust them later

         //clone default values
         $f = new ilDclDefaultValueFactory();

         //clone fieldsettings
         foreach ($orig->getFieldSettings() as $orig_fieldsetting) {
             $new_fieldsetting = new ilDclTableViewFieldSetting();
             $new_fieldsetting->setTableviewId($this->getId());
             if ($new_fields[$orig_fieldsetting->getField()] ?? null) {
                 //normal fields
                 $new_fieldsetting->setField($new_fields[$orig_fieldsetting->getField()]->getId());
             } else {
                 //standard fields
                 $new_fieldsetting->setField($orig_fieldsetting->getField());
             }
             $new_field_id = $new_fieldsetting->cloneStructure($orig_fieldsetting);

             //clone default value
             $datatype = $orig_fieldsetting->getFieldObject()->getDatatypeId();
             $match = ilDclTableViewBaseDefaultValue::findSingle($datatype, $orig_fieldsetting->getId());

             if (!is_null($match)) {
                 $new_default_value = $f->create($datatype);
                 $new_default_value->setTviewSetId($new_field_id);
                 $new_default_value->setValue($match->getValue());
                 $new_default_value->create();
             }
         }
         $this->createFieldSetting('comments');

         //clone pageobject
         if (ilDclDetailedViewDefinition::exists($orig->getId())) {
             $orig_pageobject = new ilDclDetailedViewDefinition($orig->getId());
             $orig_pageobject->copy($this->getId());
         }

         // mandatory for all cloning functions
         ilDclCache::setCloneOf($orig->getId(), $this->getId(), ilDclCache::TYPE_TABLEVIEW);
     }

Here is the call graph for this function:

◆ create()

ilDclTableView::create ( bool $create_default_settings = true )

Definition at line 285 of file class.ilDclTableView.php.

References createDefaultSettings().

                                                                 : void
     {
         parent::create();
         if ($create_default_settings) {
             $this->createDefaultSettings();
         }
     }

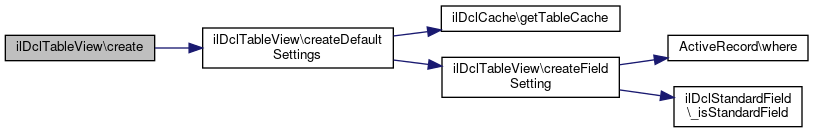

Here is the call graph for this function:

◆ createDefaultSettings()

ilDclTableView::createDefaultSettings ( )

create default ilDclTableViewFieldSetting entries

Definition at line 296 of file class.ilDclTableView.php.

References createFieldSetting(), and ilDclCache\getTableCache().

Referenced by create().

                                            : void
     {
         $table = ilDclCache::getTableCache($this->table_id);

         foreach ($table->getFieldIds() as $field_id) {
             $this->createFieldSetting($field_id);
         }

         //ilDclTable->getFieldIds won't reuturn comments if they are disabled,
         //still we have to create a fieldsetting for this field
         if (!$table->getPublicCommentsEnabled()) {
             $this->createFieldSetting('comments');
         }
     }

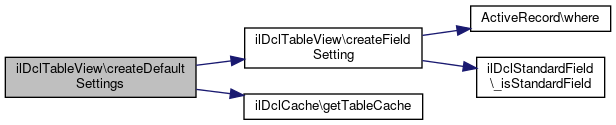

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createFieldSetting()

ilDclTableView::createFieldSetting ( $field_id )

create ilDclTableViewFieldSetting for this tableview and the given field id

Parameters

int | string $field_id

Definition at line 315 of file class.ilDclTableView.php.

References ilDclStandardField\_isStandardField(), and ActiveRecord\where().

Referenced by cloneStructure(), and createDefaultSettings().

                                                  : void
     {
         if (!ilDclTableViewFieldSetting::where(
             [
                 'tableview_id' => $this->id,
                 'field' => $field_id,
             ]
         )->get()
         ) {
             $field_set = new ilDclTableViewFieldSetting();
             $field_set->setTableviewId($this->id);
             $field_set->setField($field_id);
             $field_set->setVisible(!ilDclStandardField::_isStandardField($field_id));
             $field_set->setFilterChangeable(true);
             $field_set->setLockedCreate(false);
             $field_set->setLockedEdit(false);
             $field_set->setRequiredCreate(false);
             $field_set->setRequiredEdit(false);
             $field_set->setVisibleCreate(true);
             $field_set->setVisibleEdit(true);
             $field_set->create();
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createOrGetStandardView()

static ilDclTableView::createOrGetStandardView ( int $table_id )

static

Parameters

$table_id

Returns: ilDclTableView|ActiveRecord

Definition at line 409 of file class.ilDclTableView.php.

References $DIC, $http, $lng, $ref_id, ILIAS\Repository\$refinery, ActiveRecord\first(), and ActiveRecord\orderBy().

Referenced by ilDclTable\doCreate(), and ilDataCollectionDataSet\getXmlNamespace().

                                                                  : ActiveRecord
     {
         if ($standardview = self::where(['table_id' => $table_id])->orderBy('tableview_order')->first()) {
             return $standardview;
         }

         global $DIC;
         $rbacreview = $DIC['rbacreview'];
         $http = $DIC->http();
         $refinery = $DIC->refinery();

         $roles = [];

         $ref_id = $http->wrapper()->query()->retrieve('ref_id', $refinery->kindlyTo()->int());
         foreach ($rbacreview->getParentRoleIds($ref_id) as $role_array) {
             $roles[] = $role_array['obj_id'];
         }

         $view = new self();

         $hasRefId = $http->wrapper()->query()->has('ref_id');

         if ($hasRefId) {
             global $DIC;
             $rbacreview = $DIC['rbacreview'];

             $ref_id = $http->wrapper()->query()->retrieve('ref_id', $refinery->kindlyTo()->int());

             $roles = [];
             foreach ($rbacreview->getParentRoleIds($ref_id) as $role_array) {
                 $roles[] = $role_array['obj_id'];
             }
             $view->setRoles(array_merge($roles, $rbacreview->getLocalRoles($ref_id)));
         }
         $view->setTableId($table_id);
         // bugfix mantis 0023307
         $lng = $DIC['lng'];
         $view->setTitle($lng->txt('dcl_title_standardview'));
         $view->setTableviewOrder(10);
         $view->create();

         return $view;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ delete()

ilDclTableView::delete ( )

Definition at line 180 of file class.ilDclTableView.php.

References getFieldSettings().

                             : void
     {
         //Delete settings
         foreach ($this->getFieldSettings() as $setting) {
             $setting->delete();
         }
         parent::delete();
     }

Here is the call graph for this function:

◆ findOrGetInstance()

static ilDclTableView::findOrGetInstance	(		$primary_key,
		array	$add_constructor_args = `[]`
	)

static

Returns: ActiveRecord|ilDclTableView

Definition at line 197 of file class.ilDclTableView.php.

Referenced by ilDclCreateViewDefinitionGUI\__construct(), ilDclEditViewDefinitionGUI\__construct(), ilDclRecordEditGUI\__construct(), and ilDclTableViewGUI\executeCommand().

                                                                                             : ActiveRecord
     {
         return parent::findOrGetInstance($primary_key, $add_constructor_args);
     }

Here is the caller graph for this function:

◆ getAllForTableId()

static ilDclTableView::getAllForTableId ( int $table_id )

static

Returns: ilDclTableView[]|ActiveRecord[]

Definition at line 395 of file class.ilDclTableView.php.

Referenced by ilDclBaseFieldModel\addToTableViews(), and ilDclTable\getTableViews().

                                                           : array
     {
         return self::where(['table_id' => $table_id])->orderBy('tableview_order')->get();
     }

Here is the caller graph for this function:

◆ getCountForTableId()

static ilDclTableView::getCountForTableId ( int $table_id )

static

Definition at line 400 of file class.ilDclTableView.php.

Referenced by ilDclTable\getNewTableviewOrder().

                                                             : int
     {
         return self::where(['table_id' => $table_id])->orderBy('tableview_order')->count();
     }

Here is the caller graph for this function:

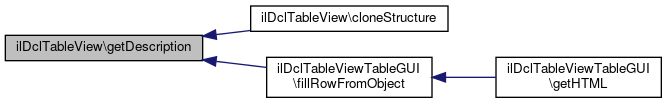

◆ getDescription()

ilDclTableView::getDescription ( )

Definition at line 125 of file class.ilDclTableView.php.

References $description.

Referenced by cloneStructure(), and ilDclTableViewTableGUI\fillRowFromObject().

                                     : string
     {
         return $this->description;
     }

Here is the caller graph for this function:

◆ getFieldSetting()

ilDclTableView::getFieldSetting ( $field_id )

Parameters

$field_id

Returns: ilDclTableViewFieldSetting|ActiveRecord

Definition at line 277 of file class.ilDclTableView.php.

References getId(), and ActiveRecord\where().

                                               : ActiveRecord
     {
         return ilDclTableViewFieldSetting::where([
             'tableview_id' => $this->getId(),
             'field' => $field_id
         ])->first();
     }

Here is the call graph for this function:

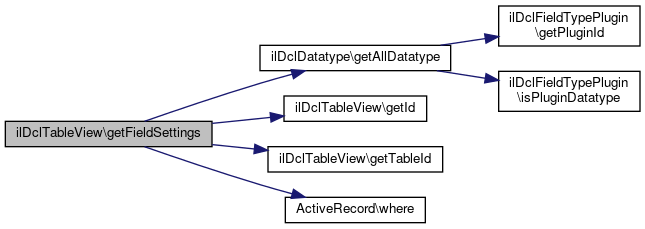

◆ getFieldSettings()

ilDclTableView::getFieldSettings ( )

Returns: ilDclTableViewFieldSetting[]

Exceptions

arException

Definition at line 253 of file class.ilDclTableView.php.

References ILIAS\LTI\ToolProvider\$settings, ilDclDatatype\getAllDatatype(), getId(), getTableId(), and ActiveRecord\where().

Referenced by cloneStructure(), and delete().

                                       : array
     {
         $settings = ilDclTableViewFieldSetting::where(
             [
                 'tableview_id' => $this->getId(),
                 'il_dcl_tfield_set.table_id' => $this->getTableId(),
             ]
         )->innerjoin('il_dcl_tfield_set', 'field', 'field', [])->orderBy('il_dcl_tfield_set.field_order')->get();

         $result = [];
         foreach ($settings as $setting) {
             $datatype = $setting->getFieldObject()->getDatatypeId();
             if ($datatype === null || in_array($datatype, array_keys(ilDclDatatype::getAllDatatype()))) {
                 $result[] = $setting;
             }
         }

         return $result;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFilterableFieldSettings()

ilDclTableView::getFilterableFieldSettings ( )

getFilterableFields Returns all fieldsetting-objects of this tableview which have set their filterable to true, including standard fields.

Returns: ilDclBaseFieldModel[]|ilDclTableViewFieldSetting[]

Definition at line 207 of file class.ilDclTableView.php.

References getTableId(), and ActiveRecord\where().

                                                 : array
     {
         return ilDclTableViewFieldSetting::where(
             [
                 "tableview_id" => $this->id,
                 'in_filter' => 1,
                 'il_dcl_tfield_set.table_id' => $this->getTableId(),
             ]
         )->innerjoin('il_dcl_tfield_set', 'field', 'field', [])
                                          ->orderBy('il_dcl_tfield_set.field_order')
                                          ->get();
     }

Here is the call graph for this function:

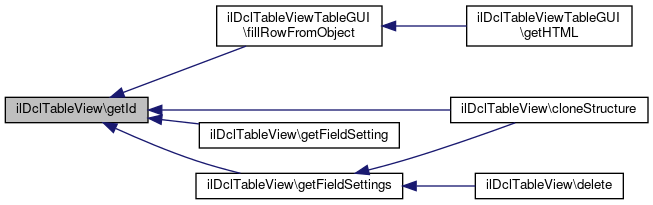

◆ getId()

ilDclTableView::getId ( )

Definition at line 85 of file class.ilDclTableView.php.

References $id.

Referenced by cloneStructure(), ilDclTableViewTableGUI\fillRowFromObject(), getFieldSetting(), and getFieldSettings().

                            : ?int
     {
         return $this->id;
     }

Here is the caller graph for this function:

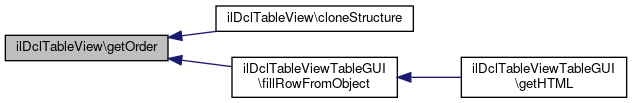

◆ getOrder()

ilDclTableView::getOrder ( )

Definition at line 115 of file class.ilDclTableView.php.

References $tableview_order.

Referenced by cloneStructure(), and ilDclTableViewTableGUI\fillRowFromObject().

                               : int
     {
         return $this->tableview_order;
     }

Here is the caller graph for this function:

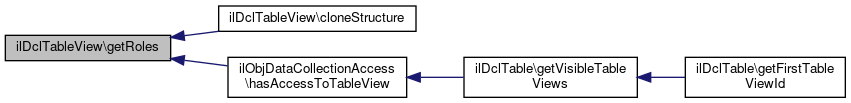

◆ getRoles()

ilDclTableView::getRoles ( )

Definition at line 145 of file class.ilDclTableView.php.

References $roles.

Referenced by cloneStructure(), and ilObjDataCollectionAccess\hasAccessToTableView().

                               : array
     {
         return $this->roles;
     }

Here is the caller graph for this function:

◆ getTable()

ilDclTableView::getTable ( )

Definition at line 189 of file class.ilDclTableView.php.

References ilDclCache\getTableCache().

                               : ilDclTable
     {
         return ilDclCache::getTableCache($this->table_id);
     }

Here is the call graph for this function:

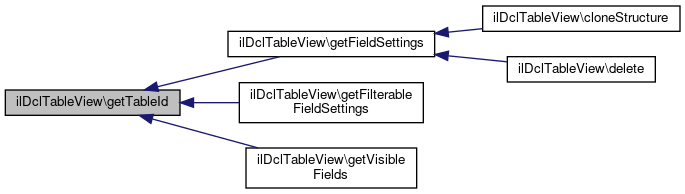

◆ getTableId()

ilDclTableView::getTableId ( )

Definition at line 95 of file class.ilDclTableView.php.

References $table_id.

Referenced by getFieldSettings(), getFilterableFieldSettings(), and getVisibleFields().

                                 : int
     {
         return $this->table_id;
     }

Here is the caller graph for this function:

◆ getTableviewOrder()

ilDclTableView::getTableviewOrder ( )

Definition at line 135 of file class.ilDclTableView.php.

References $tableview_order.

                                        : int
     {
         return $this->tableview_order;
     }

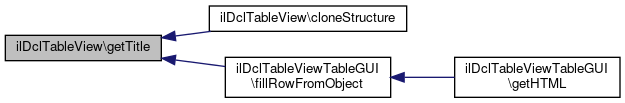

◆ getTitle()

ilDclTableView::getTitle ( )

Definition at line 105 of file class.ilDclTableView.php.

References $title.

Referenced by cloneStructure(), and ilDclTableViewTableGUI\fillRowFromObject().

                               : string
     {
         return $this->title;
     }

Here is the caller graph for this function:

◆ getVisibleFields()

ilDclTableView::getVisibleFields ( )

Returns all field-objects of this tableview which have set their visibility to true, including standard fields.

Returns: ilDclBaseFieldModel[]|ilDclTableViewFieldSetting[]

Definition at line 224 of file class.ilDclTableView.php.

References $visible_fields_cache, getTableId(), and ActiveRecord\where().

                                       : array
     {
         if (!$this->visible_fields_cache) {
             $visible = ilDclTableViewFieldSetting::where(
                 [
                     "tableview_id" => $this->id,
                     'visible' => true,
                     'il_dcl_tfield_set.table_id' => $this->getTableId(),
                 ]
             )->innerjoin(
                 'il_dcl_tfield_set',
                 'field',
                 'field',
                 []
             )->orderBy('il_dcl_tfield_set.field_order')->get();
             $fields = [];
             foreach ($visible as $field_rec) {
                 $fields[] = $field_rec->getFieldObject();
             }
             $this->visible_fields_cache = $fields;
         }

         return $this->visible_fields_cache;
     }

Here is the call graph for this function:

◆ returnDbTableName()

static ilDclTableView::returnDbTableName ( )

static

Returns: string Return the Name of your Database Table

Definition at line 80 of file class.ilDclTableView.php.

                                               : string
     {
         return "il_dcl_tableview";
     }

◆ setDescription()

ilDclTableView::setDescription ( string $description )

Definition at line 130 of file class.ilDclTableView.php.

References $description.

Referenced by cloneStructure().

                                                        : void
     {
         $this->description = $description;
     }

Here is the caller graph for this function:

◆ setId()

ilDclTableView::setId ( int $id )

Definition at line 90 of file class.ilDclTableView.php.

References $id.

                                   : void
     {
         $this->id = $id;
     }

◆ setOrder()

ilDclTableView::setOrder ( int $order )

Definition at line 120 of file class.ilDclTableView.php.

Referenced by cloneStructure().

                                         : void
     {
         $this->tableview_order = $order;
     }

Here is the caller graph for this function:

◆ setRoles()

ilDclTableView::setRoles ( array $roles )

Definition at line 150 of file class.ilDclTableView.php.

References $roles.

Referenced by cloneStructure().

                                           : void
     {
         $this->roles = $roles;
     }

Here is the caller graph for this function:

◆ setTableId()

ilDclTableView::setTableId ( int $table_id )

Definition at line 100 of file class.ilDclTableView.php.

References $table_id.

                                              : void
     {
         $this->table_id = $table_id;
     }

◆ setTableviewOrder()

ilDclTableView::setTableviewOrder ( int $tableview_order )

Definition at line 140 of file class.ilDclTableView.php.

References $tableview_order.

                                                            : void
     {
         $this->tableview_order = $tableview_order;
     }

◆ setTitle()

ilDclTableView::setTitle ( string $title )

Definition at line 110 of file class.ilDclTableView.php.

References $title.

Referenced by cloneStructure().

                                            : void
     {
         $this->title = $title;
     }

Here is the caller graph for this function:

◆ sleep()

ilDclTableView::sleep ( $field_name )

Parameters

string $field_name

Definition at line 158 of file class.ilDclTableView.php.

                                       : ?string
     {
         if ($field_name == 'roles') {
             return json_encode($this->roles);
         }

         return null;
     }

◆ wakeUp()

ilDclTableView::wakeUp	(	$field_name,
		$field_value
	)

Parameters

string	$field_name
int \| string	$field_value

Definition at line 171 of file class.ilDclTableView.php.

                                                      : ?array
     {
         if ($field_name == 'roles') {
             return json_decode($field_value);
         }

         return null;
     }

Field Documentation

◆ $description

string ilDclTableView::$description = ''

protected

Definition at line 63 of file class.ilDclTableView.php.

Referenced by getDescription(), and setDescription().

◆ $id

int ilDclTableView::$id

protected

Definition at line 33 of file class.ilDclTableView.php.

Referenced by getId(), and setId().

◆ $roles

array ilDclTableView::$roles = []

protected

Definition at line 56 of file class.ilDclTableView.php.

Referenced by getRoles(), and setRoles().

◆ $table_id

int ilDclTableView::$table_id = 0

protected

Definition at line 41 of file class.ilDclTableView.php.

Referenced by getTableId(), and setTableId().

◆ $tableview_order

int ilDclTableView::$tableview_order = 0

protected

Definition at line 70 of file class.ilDclTableView.php.

Referenced by getOrder(), getTableviewOrder(), and setTableviewOrder().

◆ $title

string ilDclTableView::$title = ""

protected

Definition at line 49 of file class.ilDclTableView.php.

Referenced by getTitle(), and setTitle().

◆ $visible_fields_cache

array ilDclTableView::$visible_fields_cache = []

protected

Definition at line 74 of file class.ilDclTableView.php.

Referenced by getVisibleFields().

The documentation for this class was generated from the following file:

Modules/DataCollection/classes/TableView/class.ilDclTableView.php

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ cloneStructure()

◆ create()

◆ createDefaultSettings()

◆ createFieldSetting()

◆ createOrGetStandardView()

◆ delete()

◆ findOrGetInstance()

◆ getAllForTableId()

◆ getCountForTableId()

◆ getDescription()

◆ getFieldSetting()

◆ getFieldSettings()

◆ getFilterableFieldSettings()

◆ getId()

◆ getOrder()

◆ getRoles()

◆ getTable()

◆ getTableId()

◆ getTableviewOrder()

◆ getTitle()

◆ getVisibleFields()

◆ returnDbTableName()

◆ setDescription()

◆ setId()

◆ setOrder()

◆ setRoles()

◆ setTableId()

◆ setTableviewOrder()

◆ setTitle()

◆ sleep()

◆ wakeUp()

Field Documentation

◆ $description

◆ $id

◆ $roles

◆ $table_id

◆ $tableview_order

◆ $title

◆ $visible_fields_cache
