ilPortfolioDataSet Class Reference

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

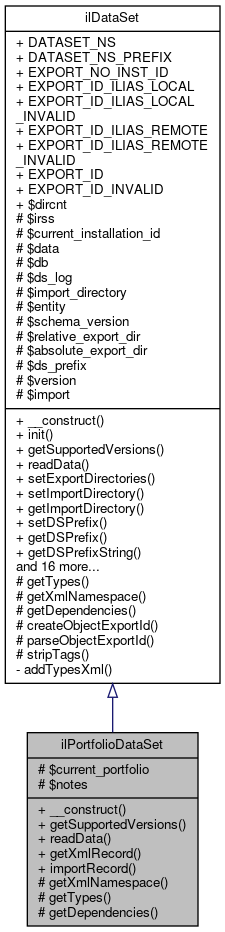

Inheritance diagram for ilPortfolioDataSet:

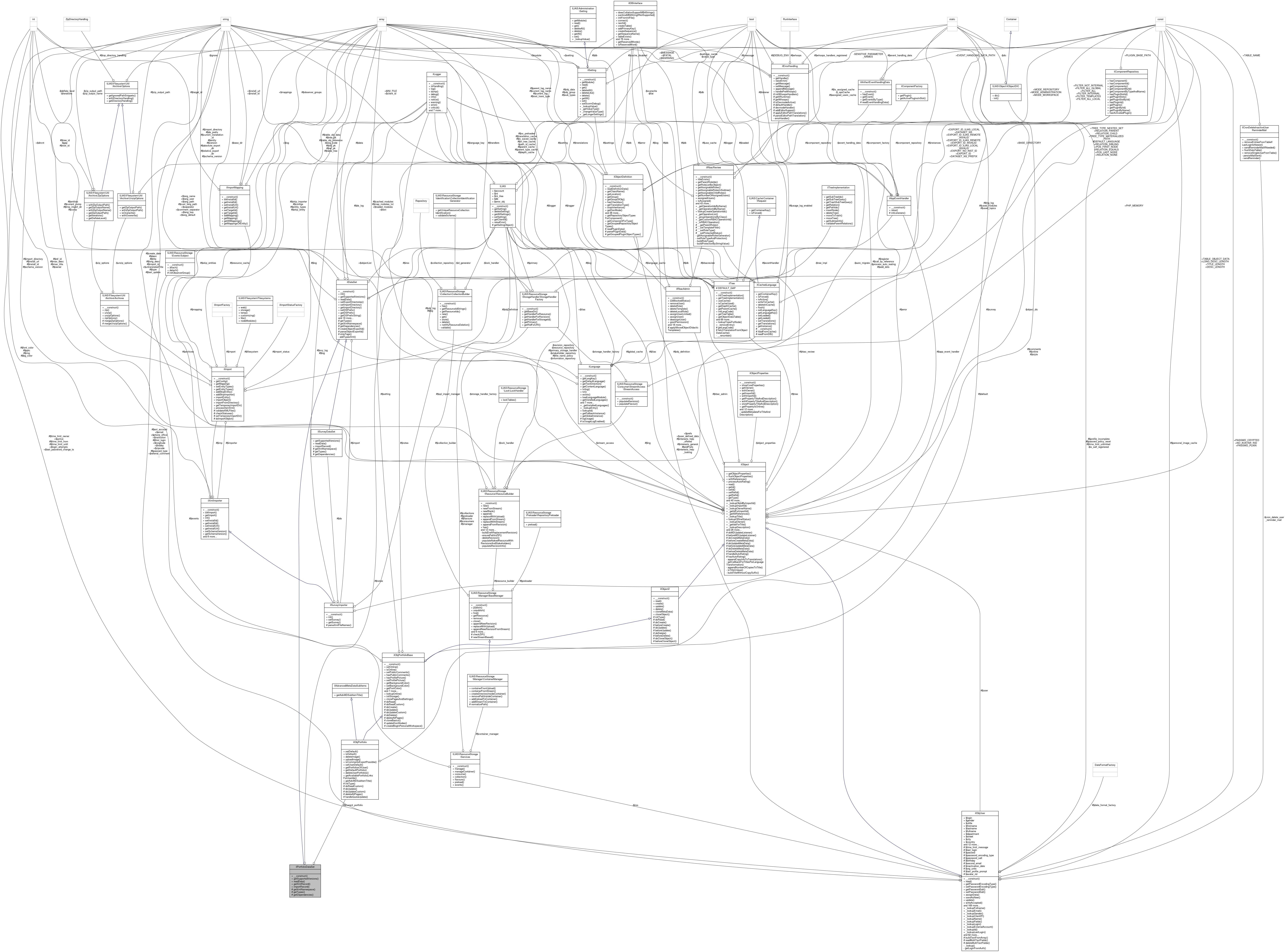

Collaboration diagram for ilPortfolioDataSet:

Public Member Functions
	__construct ()
	getSupportedVersions ()
	readData (string $a_entity, string $a_version, array $a_ids)
	getXmlRecord (string $a_entity, string $a_version, array $a_set)
	importRecord (string $a_entity, array $a_types, array $a_rec, ilImportMapping $a_mapping, string $a_schema_version)
Public Member Functions inherited from ilDataSet
	__construct ()
	init (string $a_entity, string $a_schema_version)
	Init. More...
	getSupportedVersions ()
	readData (string $a_entity, string $a_version, array $a_ids)
	Read data from DB. More...
	setExportDirectories (string $a_relative, string $a_absolute)
	setImportDirectory (string $a_val)
	getImportDirectory ()
	setDSPrefix (string $a_val)
	getDSPrefix ()
	getDSPrefixString ()
	getDirectDataFromQuery (string $a_query, bool $a_convert_to_leading_upper=true, bool $a_set=true)
	Get data from query.This is a standard procedure, all db field names are directly mapped to abstract fields. More...
	convertToLeadingUpper (string $a_str)
	Make xyz_abc a XyzAbc string. More...
	getXmlRepresentation (string $a_entity, string $a_schema_version, ?array $a_ids, string $a_field="", bool $a_omit_header=false, bool $a_omit_types=false)
	Get xml representation <dataset install_id="123" install_url="..."> <types entity="table_name" version="4.0.1"> <ftype name="field_1" type="text"> <ftype name="field_2" type="date"> <ftype name="field_3" type="integer"> </types> <types ...> ... More...
	addRecordsXml (ilXmlWriter $a_writer, array $a_prefixes, string $a_entity, string $a_schema_version, array $a_ids, ?string $a_field="")
	afterXmlRecordWriting (string $a_entity, string $a_version, array $a_set)
	getNamespaces (array &$namespaces, string $a_entity, string $a_schema_version)
	getXmlRecord (string $a_entity, string $a_version, array $a_set)
	Get xml record for version. More...
	getXmlTypes (string $a_entity, string $a_version)
	Get xml types. More...
	getXMLEntityName (string $a_entity, string $a_version)
	Get entity name for xml (may be overwritten) More...
	getXMLEntityTag (string $a_entity, string $a_schema_version)
	Get entity tag. More...
	setImport (ilSurveyImporter $a_val)
	getImport ()
	setCurrentInstallationId (string $a_val)
	getCurrentInstallationId ()
	importRecord (string $a_entity, array $a_types, array $a_rec, ilImportMapping $a_mapping, string $a_schema_version)
	Needs to be overwritten for import use case. More...
	getCollection (array $record, string $entity, string $schema_version, string $field, string $value)

Protected Member Functions
	getXmlNamespace (string $a_entity, string $a_schema_version)
	getTypes (string $a_entity, string $a_version)
	getDependencies (string $a_entity, string $a_version, ?array $a_rec=null, ?array $a_ids=null)
Protected Member Functions inherited from ilDataSet
	getTypes (string $a_entity, string $a_version)
	Get (abstract) types for (abstract) field names. More...
	getXmlNamespace (string $a_entity, string $a_schema_version)
	getDependencies (string $a_entity, string $a_version, ?array $a_rec=null, ?array $a_ids=null)
	createObjectExportId (string $a_type, string $a_id)
	Build ilias export id. More...
	parseObjectExportId (string $a_id, ?string $a_fallback_id=null)
	Parse export id. More...
	stripTags (array $rec, array $omit_keys=[])

Protected Attributes
ilObjPortfolio	$current_portfolio
ILIAS Notes Service	$notes
Protected Attributes inherited from ilDataSet
ILIAS ResourceStorage Services	$irss
string	$current_installation_id = ""
array	$data = []
ilDBInterface	$db
ilLogger	$ds_log
string	$import_directory = ""
string	$entity = ""
string	$schema_version = ""
string	$relative_export_dir = ""
string	$absolute_export_dir = ""
string	$ds_prefix = "ds"
string	$version = ""
ilSurveyImporter	$import

Additional Inherited Members
Data Fields inherited from ilDataSet
const	DATASET_NS = 'http://www.ilias.de/Services/DataSet/ds/4_3'
const	DATASET_NS_PREFIX = 'ds'
const	EXPORT_NO_INST_ID = 1
const	EXPORT_ID_ILIAS_LOCAL = 2
const	EXPORT_ID_ILIAS_LOCAL_INVALID = 3
const	EXPORT_ID_ILIAS_REMOTE = 4
const	EXPORT_ID_ILIAS_REMOTE_INVALID = 5
const	EXPORT_ID = 6
const	EXPORT_ID_INVALID = 7
int	$dircnt = 0

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Portfolio Data set class

Only for portfolio templates!

This class implements the following entities:

• portfolio: object data (usr_portfolio)
• portfolio_page: data from table usr_portfolio_page

Author

Jörg Lützenkirchen luetz.nosp@m.enki.nosp@m.rchen.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Definition at line 30 of file class.ilPortfolioDataSet.php.

Constructor & Destructor Documentation

__construct()

ilPortfolioDataSet::__construct

(

)

Definition at line 35 of file class.ilPortfolioDataSet.php.

References $DIC, and ILIAS\MetaData\Repository\Validation\Data\__construct().

    {
        global $DIC;

        parent::__construct();
        $this->notes = $DIC->notes();
    }

Here is the call graph for this function:

Member Function Documentation

getDependencies()

ilPortfolioDataSet::getDependencies ( string  $a_entity, string  $a_version, ?array  $a_rec = null, ?array  $a_ids = null  )

protected

Definition at line 132 of file class.ilPortfolioDataSet.php.

     : array {
        if ($a_entity === "prtt") {
            return array(
                "portfolio_page" => array("ids" => $a_rec["Id"] ?? null)
            );
        }
        return [];
    }

getSupportedVersions()

ilPortfolioDataSet::getSupportedVersions

(

)

Definition at line 44 of file class.ilPortfolioDataSet.php.

                                          : array
    {
        return array("4.4.0", "5.0.0");
    }

getTypes()

ilPortfolioDataSet::getTypes ( string  $a_entity, string  $a_version  )

protected

Definition at line 54 of file class.ilPortfolioDataSet.php.

                                                                    : array
    {
        if ($a_entity === "prtt") {
            switch ($a_version) {
                case "4.4.0":
                case "5.0.0":
                    return array(
                        "Id" => "integer",
                        "Title" => "text",
                        "Description" => "text",
                        "Comments" => "integer",
                        "BgColor" => "text",
                        "FontColor" => "text",
                        "Img" => "text",
                        "Ppic" => "integer",
                        "Dir" => "directory"
                        );
            }
        }

        if ($a_entity === "portfolio_page") {
            switch ($a_version) {
                case "4.4.0":
                case "5.0.0":
                    return array(
                        "Id" => "integer",
                        "PortfolioId" => "integer",
                        "Title" => "integer",
                        "OrderNr" => "integer",
                        "Type" => "text"
                    );
            }
        }
        return [];
    }

getXmlNamespace()

ilPortfolioDataSet::getXmlNamespace ( string  $a_entity, string  $a_schema_version  )

protected

Definition at line 49 of file class.ilPortfolioDataSet.php.

                                                                                  : string
    {
        return "https://www.ilias.de/xml/Modules/Portfolio/" . $a_entity;
    }

getXmlRecord()

ilPortfolioDataSet::getXmlRecord	(	string	$a_entity,
		string	$a_version,
		array	$a_set
	)

Definition at line 146 of file class.ilPortfolioDataSet.php.

References ilObjPortfolioBase\initStorage().

     : array {
        if ($a_entity === "prtt") {
            $dir = ilObjPortfolioTemplate::initStorage($a_set["Id"]);
            $a_set["Dir"] = $dir;

            $a_set["Comments"] = $this->notes->domain()->commentsActive((int) $a_set["Id"]);
        }

        return $a_set;
    }

Here is the call graph for this function:

importRecord()

ilPortfolioDataSet::importRecord	(	string	$a_entity,
		array	$a_types,
		array	$a_rec,
		ilImportMapping	$a_mapping,
		string	$a_schema_version
	)

Definition at line 162 of file class.ilPortfolioDataSet.php.

References ilImportMapping\addMapping(), ilDataSet\getImportDirectory(), ilObjectFactory\getInstanceByObjId(), ilImportMapping\getMapping(), ilObjPortfolioBase\initStorage(), ILIAS\Repository\int(), ilFileUtils\rCopy(), and ilDataSet\stripTags().

     : void {
        $a_rec = $this->stripTags($a_rec);
        switch ($a_entity) {
            case "prtt":

                // container copy
                if ($new_id = $a_mapping->getMapping("Services/Container", "objs", $a_rec["Id"])) {
                    $newObj = ilObjectFactory::getInstanceByObjId($new_id, false);
                } else {
                    $newObj = new ilObjPortfolioTemplate();
                    $newObj->create();
                }

                $newObj->setTitle($a_rec["Title"]);
                $newObj->setDescription($a_rec["Description"]);
                $newObj->setPublicComments($a_rec["Comments"]);
                $newObj->setBackgroundColor($a_rec["BgColor"]);
                $newObj->setFontColor($a_rec["FontColor"]);
                $newObj->setProfilePicture($a_rec["Ppic"]);
                $newObj->setImage($a_rec["Img"]);
                $newObj->update();

                // handle image(s)
                if ($a_rec["Img"]) {
                    $dir = str_replace("..", "", $a_rec["Dir"]);
                    if ($dir !== "" && $this->getImportDirectory() !== "") {
                        $source_dir = $this->getImportDirectory() . "/" . $dir;
                        $target_dir = ilObjPortfolioTemplate::initStorage($newObj->getId());
                        ilFileUtils::rCopy($source_dir, $target_dir);
                    }
                }

                $a_mapping->addMapping("Modules/Portfolio", "prtt", $a_rec["Id"], $newObj->getId());
                $a_mapping->addMapping("Services/Object", "obj", $a_rec["Id"], $newObj->getId());
                break;

            case "portfolio_page":
                $prtt_id = (int) $a_mapping->getMapping("Modules/Portfolio", "prtt", $a_rec["PortfolioId"]);
                if ($prtt_id) {
                    $newObj = new ilPortfolioTemplatePage();
                    $newObj->setPortfolioId($prtt_id);
                    $newObj->setTitle($a_rec["Title"]);
                    $newObj->setType($a_rec["Type"]);
                    $newObj->setOrderNr($a_rec["OrderNr"]);
                    $newObj->create(true);

                    $a_mapping->addMapping("Services/COPage", "pg", "prtt:" . $a_rec["Id"], "prtt:" . $newObj->getId());
                }
                break;
        }
    }

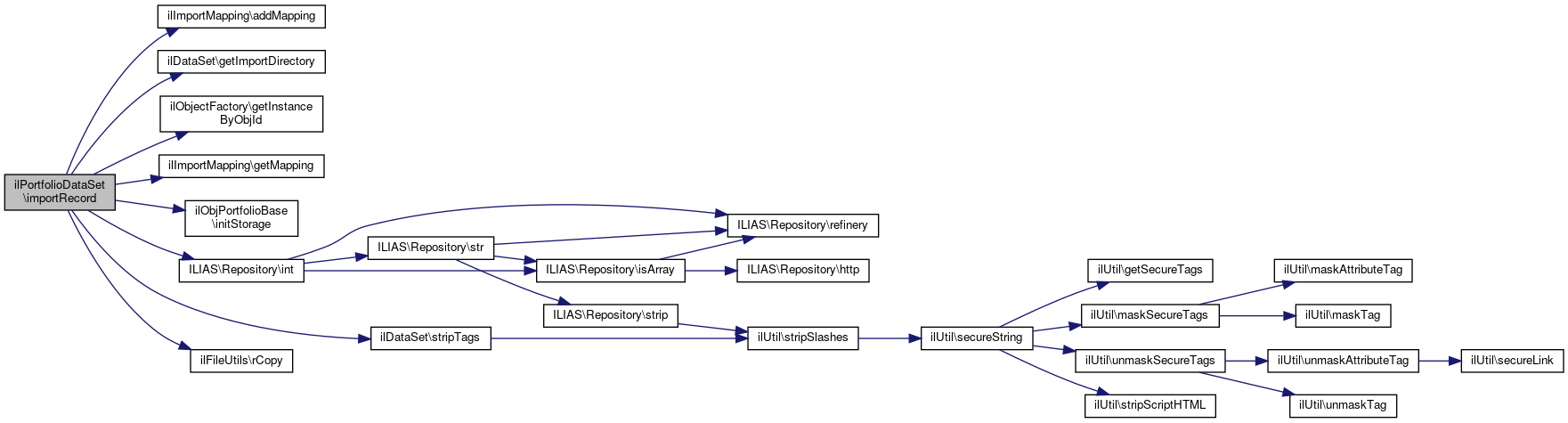

Here is the call graph for this function:

readData()

ilPortfolioDataSet::readData	(	string	$a_entity,
		string	$a_version,
		array	$a_ids
	)

Definition at line 90 of file class.ilPortfolioDataSet.php.

References ilDataSet\$db, $ilDB, and ilDataSet\getDirectDataFromQuery().

                                                                               : void
    {
        $ilDB = $this->db;

        if (!is_array($a_ids)) {
            $a_ids = array($a_ids);
        }

        if ($a_entity === "prtt") {
            switch ($a_version) {
                case "4.4.0":
                    $this->getDirectDataFromQuery("SELECT prtf.id,od.title,od.description," .
                        "prtf.comments,prtf.bg_color,prtf.font_color,prtf.img,prtf.ppic" .
                        " FROM usr_portfolio prtf" .
                        " JOIN object_data od ON (od.obj_id = prtf.id)" .
                        " WHERE " . $ilDB->in("prtf.id", $a_ids, false, "integer") .
                        " AND od.type = " . $ilDB->quote("prtt", "text"));
                    break;

                case "5.0.0":
                    $this->getDirectDataFromQuery("SELECT prtf.id,od.title,od.description," .
                        "prtf.bg_color,prtf.font_color,prtf.img,prtf.ppic" .
                        " FROM usr_portfolio prtf" .
                        " JOIN object_data od ON (od.obj_id = prtf.id)" .
                        " WHERE " . $ilDB->in("prtf.id", $a_ids, false, "integer") .
                        " AND od.type = " . $ilDB->quote("prtt", "text"));
                    break;
            }
        }

        if ($a_entity === "portfolio_page") {
            switch ($a_version) {
                case "4.4.0":
                case "5.0.0":
                    $this->getDirectDataFromQuery("SELECT id,portfolio_id,title,order_nr,type" .
                        " FROM usr_portfolio_page" .
                        " WHERE " . $ilDB->in("portfolio_id", $a_ids, false, "integer"));
                    break;
            }
        }
    }

Here is the call graph for this function:

Field Documentation

$current_portfolio

ilObjPortfolio ilPortfolioDataSet::$current_portfolio

protected

Definition at line 32 of file class.ilPortfolioDataSet.php.

$notes

ILIAS Notes Service ilPortfolioDataSet::$notes

protected

Definition at line 33 of file class.ilPortfolioDataSet.php.

---

The documentation for this class was generated from the following file:

• Modules/Portfolio/Export/class.ilPortfolioDataSet.php
