nusoap_server Class Reference

nusoap_server allows the user to create a SOAP server that is capable of receiving messages and returning responses More...

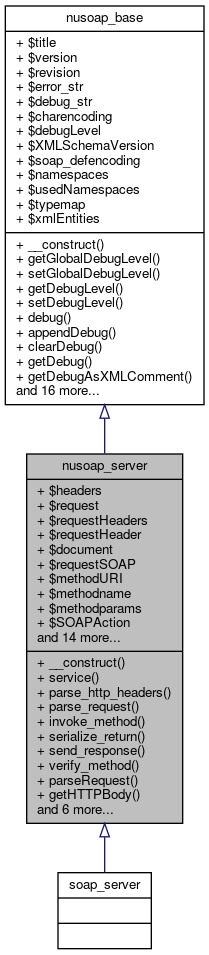

Inheritance diagram for nusoap_server:

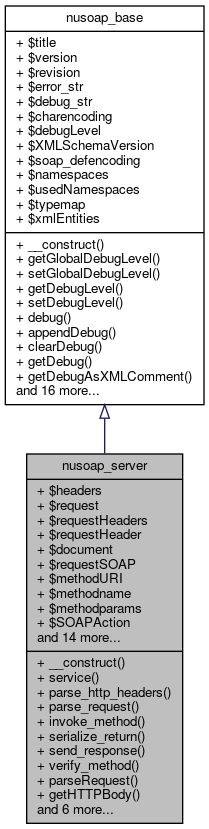

Collaboration diagram for nusoap_server:

Public Member Functions
	__construct ($wsdl=false)
	constructor the optional parameter is a path to a WSDL file that you'd like to bind the server instance to. More...
	service ($data)
	processes request and returns response More...
	parse_http_headers ()
	parses HTTP request headers. More...
	parse_request ($data='')
	parses a request More...
	invoke_method ()
	invokes a PHP function for the requested SOAP method More...
	serialize_return ()
	serializes the return value from a PHP function into a full SOAP Envelope More...
	send_response ()
	sends an HTTP response More...
	verify_method ($operation, $request)
	takes the value that was created by parsing the request and compares to the method's signature, if available. More...
	parseRequest ($headers, $data)
	processes SOAP message received from client More...
	getHTTPBody ($soapmsg)
	gets the HTTP body for the current response. More...
	getHTTPContentType ()
	gets the HTTP content type for the current response. More...
	getHTTPContentTypeCharset ()
	gets the HTTP content type charset for the current response. More...
	add_to_map ($methodname, $in, $out)
	add a method to the dispatch map (this has been replaced by the register method) More...
	register ($name, $in=array(), $out=array(), $namespace=false, $soapaction=false, $style=false, $use=false, $documentation='', $encodingStyle='')
	register a service function with the server More...
	fault ($faultcode, $faultstring, $faultactor='', $faultdetail='')
	Specify a fault to be returned to the client. More...
	configureWSDL ($serviceName, $namespace=false, $endpoint=false, $style='rpc', $transport='http://schemas.xmlsoap.org/soap/http', $schemaTargetNamespace=false)
	Sets up wsdl object. More...
Public Member Functions inherited from nusoap_base
	__construct ()
	constructor More...
	getGlobalDebugLevel ()
	gets the global debug level, which applies to future instances More...
	setGlobalDebugLevel ($level)
	sets the global debug level, which applies to future instances More...
	getDebugLevel ()
	gets the debug level for this instance More...
	setDebugLevel ($level)
	sets the debug level for this instance More...
	debug ($string)
	adds debug data to the instance debug string with formatting More...
	appendDebug ($string)
	adds debug data to the instance debug string without formatting More...
	clearDebug ()
	clears the current debug data for this instance More...
&	getDebug ()
	gets the current debug data for this instance More...
&	getDebugAsXMLComment ()
	gets the current debug data for this instance as an XML comment this may change the contents of the debug data More...
	expandEntities ($val)
	expands entities, e.g. More...
	getError ()
	returns error string if present More...
	setError ($str)
	sets error string More...
	isArraySimpleOrStruct ($val)
	detect if array is a simple array or a struct (associative array) More...
	serialize_val ($val, $name=false, $type=false, $name_ns=false, $type_ns=false, $attributes=false, $use='encoded', $soapval=false)
	serializes PHP values in accordance w/ section 5. More...
	serializeEnvelope ($body, $headers=false, $namespaces=array(), $style='rpc', $use='encoded', $encodingStyle='http://schemas.xmlsoap.org/soap/encoding/')
	serializes a message More...
	formatDump ($str)
	formats a string to be inserted into an HTML stream More...
	contractQname ($qname)
	contracts (changes namespace to prefix) a qualified name More...
	expandQname ($qname)
	expands (changes prefix to namespace) a qualified name More...
	getLocalPart ($str)
	returns the local part of a prefixed string returns the original string, if not prefixed More...
	getPrefix ($str)
	returns the prefix part of a prefixed string returns false, if not prefixed More...
	getNamespaceFromPrefix ($prefix)
	pass it a prefix, it returns a namespace More...
	getPrefixFromNamespace ($ns)
	returns the prefix for a given namespace (or prefix) or false if no prefixes registered for the given namespace More...
	getmicrotime ()
	returns the time in ODBC canonical form with microseconds More...
	varDump ($data)
	Returns a string with the output of var_dump. More...
	__toString ()
	represents the object as a string More...

Data Fields
	$headers = array()
	$request = ''
	$requestHeaders = ''
	$requestHeader = null
	$document = ''
	$requestSOAP = ''
	$methodURI = ''
	$methodname = ''
	$methodparams = array()
	$SOAPAction = ''
	$xml_encoding = ''
	$decode_utf8 = true
	$outgoing_headers = array()
	$response = ''
	$responseHeaders = ''
	$responseSOAP = ''
	$methodreturn = false
	$methodreturnisliteralxml = false
	$fault = false
	$result = 'successful'
	$operations = array()
	$wsdl = false
	$externalWSDLURL = false
	$debug_flag = false
Data Fields inherited from nusoap_base
	$title = 'NuSOAP'
	$version = '0.7.3'
	$revision = '$Revision$'
	$error_str = ''
	$debug_str = ''
	$charencoding = true
	$debugLevel
	$XMLSchemaVersion = 'http://www.w3.org/2001/XMLSchema'
	$soap_defencoding = 'UTF-8'
	$namespaces
	$usedNamespaces = array()
	$typemap
	$xmlEntities

Detailed Description

nusoap_server allows the user to create a SOAP server that is capable of receiving messages and returning responses

Author

Dietrich Ayala dietr.nosp@m.ich@.nosp@m.ganx4.nosp@m..com

Scott Nichol snich.nosp@m.ol@u.nosp@m.sers..nosp@m.sour.nosp@m.cefor.nosp@m.ge.n.nosp@m.et

Version

$Id$ public

Definition at line 3520 of file nusoap.php.

Constructor & Destructor Documentation

__construct()

nusoap_server::__construct

(

$wsdl = false

)

constructor the optional parameter is a path to a WSDL file that you'd like to bind the server instance to.

Parameters

mixed

$wsdl

file path or URL (string), or wsdl instance (object) public

Definition at line 3678 of file nusoap.php.

References $_SERVER, ILIAS\MetaData\Repository\Validation\Data\__construct(), nusoap_base\appendDebug(), nusoap_base\clearDebug(), nusoap_base\debug(), nusoap_base\getDebug(), nusoap_base\getError(), and nusoap_base\varDump().

    {
        parent::__construct();
        // turn on debugging?
        global $debug;
        global $HTTP_SERVER_VARS;

        if (isset($_SERVER)) {
            $this->debug("_SERVER is defined:");
            $this->appendDebug($this->varDump($_SERVER));
        } elseif (isset($HTTP_SERVER_VARS)) {
            $this->debug("HTTP_SERVER_VARS is defined:");
            $this->appendDebug($this->varDump($HTTP_SERVER_VARS));
        } else {
            $this->debug("Neither _SERVER nor HTTP_SERVER_VARS is defined.");
        }

        if (isset($debug)) {
            $this->debug("In nusoap_server, set debug_flag=$debug based on global flag");
            $this->debug_flag = $debug;
        } elseif (isset($_SERVER['QUERY_STRING'])) {
            $qs = explode('&', $_SERVER['QUERY_STRING']);
            foreach ($qs as $v) {
                if (substr($v, 0, 6) == 'debug=') {
                    $this->debug("In nusoap_server, set debug_flag=" . substr($v, 6) . " based on query string #1");
                    $this->debug_flag = substr($v, 6);
                }
            }
        } elseif (isset($HTTP_SERVER_VARS['QUERY_STRING'])) {
            $qs = explode('&', $HTTP_SERVER_VARS['QUERY_STRING']);
            foreach ($qs as $v) {
                if (substr($v, 0, 6) == 'debug=') {
                    $this->debug("In nusoap_server, set debug_flag=" . substr($v, 6) . " based on query string #2");
                    $this->debug_flag = substr($v, 6);
                }
            }
        }

        // wsdl
        if ($wsdl) {
            $this->debug("In nusoap_server, WSDL is specified");
            if (is_object($wsdl) && (get_class($wsdl) == 'wsdl')) {
                $this->wsdl = $wsdl;
                $this->externalWSDLURL = $this->wsdl->wsdl;
                $this->debug('Use existing wsdl instance from ' . $this->externalWSDLURL);
            } else {
                $this->debug('Create wsdl from ' . $wsdl);
                $this->wsdl = new wsdl($wsdl);
                $this->externalWSDLURL = $wsdl;
            }
            $this->appendDebug($this->wsdl->getDebug());
            $this->wsdl->clearDebug();
            if ($err = $this->wsdl->getError()) {
                die('WSDL ERROR: ' . $err);
            }
        }
    }

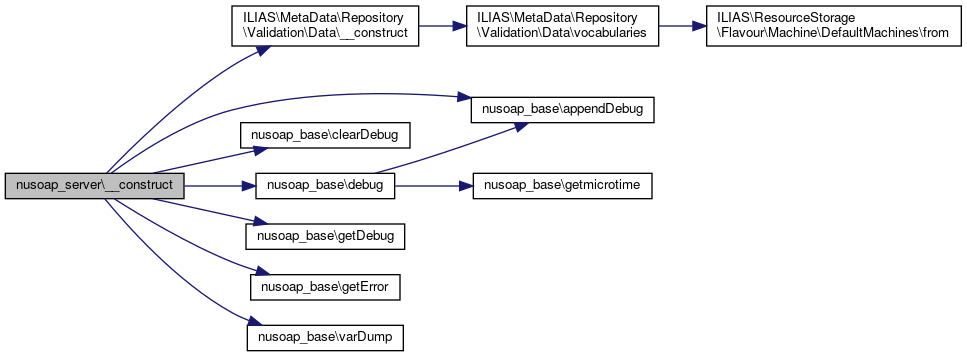

Here is the call graph for this function:

Member Function Documentation

add_to_map()

nusoap_server::add_to_map	(		$methodname,
			$in,
			$out
	)

add a method to the dispatch map (this has been replaced by the register method)

Parameters

string	$methodname
string	$in	array of input values
string	$out	array of output values public

Deprecated:

Definition at line 4414 of file nusoap.php.

References $out.

    {
        $this->operations[$methodname] = array('name' => $methodname,'in' => $in,'out' => $out);
    }

configureWSDL()

nusoap_server::configureWSDL	(		$serviceName,
			$namespace = false,
			$endpoint = false,
			$style = 'rpc',
			$transport = 'http://schemas.xmlsoap.org/soap/http',
			$schemaTargetNamespace = false
	)

Sets up wsdl object.

Acts as a flag to enable internal WSDL generation

Parameters

string	$serviceName,name	of the service
mixed	$namespace	optional 'tns' service namespace or false
mixed	$endpoint	optional URL of service endpoint or false
string	$style	optional (rpc|document) WSDL style (also specified by operation)
string	$transport	optional SOAP transport
mixed	$schemaTargetNamespace	optional 'types' targetNamespace for service schema or false

Definition at line 4523 of file nusoap.php.

References $_SERVER, $namespace, $serviceName, and nusoap_base\setError().

                                                                                                                       ://schemas.xmlsoap.org/soap/http', $schemaTargetNamespace = false)
    {
        global $HTTP_SERVER_VARS;

        if (isset($_SERVER)) {
            $SERVER_NAME = $_SERVER['SERVER_NAME'];
            $SERVER_PORT = $_SERVER['SERVER_PORT'];
            $SCRIPT_NAME = isset($_SERVER['PHP_SELF']) ? $_SERVER['PHP_SELF'] : $_SERVER['SCRIPT_NAME'];
            $HTTPS = isset($_SERVER['HTTPS']) ? $_SERVER['HTTPS'] : (isset($HTTP_SERVER_VARS['HTTPS']) ? $HTTP_SERVER_VARS['HTTPS'] : 'off');
        } elseif (isset($HTTP_SERVER_VARS)) {
            $SERVER_NAME = $HTTP_SERVER_VARS['SERVER_NAME'];
            $SERVER_PORT = $HTTP_SERVER_VARS['SERVER_PORT'];
            $SCRIPT_NAME = isset($HTTP_SERVER_VARS['PHP_SELF']) ? $HTTP_SERVER_VARS['PHP_SELF'] : $HTTP_SERVER_VARS['SCRIPT_NAME'];
            $HTTPS = isset($HTTP_SERVER_VARS['HTTPS']) ? $HTTP_SERVER_VARS['HTTPS'] : 'off';
        } else {
            $this->setError("Neither _SERVER nor HTTP_SERVER_VARS is available");
        }
        // If server name has port number attached then strip it (else port number gets duplicated in WSDL output) (occurred using lighttpd and FastCGI)
        $colon = strpos($SERVER_NAME, ":");
        if ($colon) {
            $SERVER_NAME = substr($SERVER_NAME, 0, $colon);
        }
        if ($SERVER_PORT == 80) {
            $SERVER_PORT = '';
        } else {
            $SERVER_PORT = ':' . $SERVER_PORT;
        }
        if (false == $namespace) {
            $namespace = "http://$SERVER_NAME/soap/$serviceName";
        }

        if (false == $endpoint) {
            if ($HTTPS == '1' || $HTTPS == 'on') {
                $SCHEME = 'https';
            } else {
                $SCHEME = 'http';
            }
            $endpoint = "$SCHEME://$SERVER_NAME$SERVER_PORT$SCRIPT_NAME";
        }

        if (false == $schemaTargetNamespace) {
            $schemaTargetNamespace = $namespace;
        }

        $this->wsdl = new wsdl();
        $this->wsdl->serviceName = $serviceName;
        $this->wsdl->endpoint = $endpoint;
        $this->wsdl->namespaces['tns'] = $namespace;
        $this->wsdl->namespaces['soap'] = 'http://schemas.xmlsoap.org/wsdl/soap/';
        $this->wsdl->namespaces['wsdl'] = 'http://schemas.xmlsoap.org/wsdl/';
        if ($schemaTargetNamespace != $namespace) {
            $this->wsdl->namespaces['types'] = $schemaTargetNamespace;
        }
        $this->wsdl->schemas[$schemaTargetNamespace][0] = new nusoap_xmlschema('', '', $this->wsdl->namespaces);
        if ($style == 'document') {
            $this->wsdl->schemas[$schemaTargetNamespace][0]->schemaInfo['elementFormDefault'] = 'qualified';
        }
        $this->wsdl->schemas[$schemaTargetNamespace][0]->schemaTargetNamespace = $schemaTargetNamespace;
        $this->wsdl->schemas[$schemaTargetNamespace][0]->imports['http://schemas.xmlsoap.org/soap/encoding/'][0] = array('location' => '', 'loaded' => true);
        $this->wsdl->schemas[$schemaTargetNamespace][0]->imports['http://schemas.xmlsoap.org/wsdl/'][0] = array('location' => '', 'loaded' => true);
        $this->wsdl->bindings[$serviceName . 'Binding'] = array(
            'name'=>$serviceName . 'Binding',
            'style'=>$style,
            'transport'=>$transport,
            'portType'=>$serviceName . 'PortType');
        $this->wsdl->ports[$serviceName . 'Port'] = array(
            'binding'=>$serviceName . 'Binding',
            'location'=>$endpoint,
            'bindingType'=>'http://schemas.xmlsoap.org/wsdl/soap/');
    }

Here is the call graph for this function:

fault()

nusoap_server::fault	(		$faultcode,
			$faultstring,
			$faultactor = '',
			$faultdetail = ''
	)

Specify a fault to be returned to the client.

This also acts as a flag to the server that a fault has occured.

Parameters

string	$faultcode
string	$faultstring
string	$faultactor
string	$faultdetail	public

Definition at line 4503 of file nusoap.php.

References nusoap_base\$soap_defencoding, and nusoap_base\getDebug().

    {
        if ($faultdetail == '' && $this->debug_flag) {
            $faultdetail = $this->getDebug();
        }
        $this->fault = new nusoap_fault($faultcode, $faultactor, $faultstring, $faultdetail);
        $this->fault->soap_defencoding = $this->soap_defencoding;
    }

Here is the call graph for this function:

getHTTPBody()

nusoap_server::getHTTPBody

(

$soapmsg

)

gets the HTTP body for the current response.

Parameters

string

$soapmsg

The SOAP payload

Returns

string The HTTP body, which includes the SOAP payload private

Definition at line 4373 of file nusoap.php.

    {
        return $soapmsg;
    }

getHTTPContentType()

nusoap_server::getHTTPContentType

(

)

gets the HTTP content type for the current response.

Note: getHTTPBody must be called before this.

Returns

string the HTTP content type for the current response. private

Definition at line 4386 of file nusoap.php.

    {
        return 'text/xml';
    }

getHTTPContentTypeCharset()

nusoap_server::getHTTPContentTypeCharset

(

)

gets the HTTP content type charset for the current response.

returns false for non-text content types.

Note: getHTTPBody must be called before this.

Returns

string the HTTP content type charset for the current response. private

Definition at line 4400 of file nusoap.php.

References nusoap_base\$soap_defencoding.

    {
        return $this->soap_defencoding;
    }

invoke_method()

nusoap_server::invoke_method

(

)

invokes a PHP function for the requested SOAP method

The following fields are set by this function (when successful)

methodreturn

Note that the PHP function that is called may also set the following fields to affect the response sent to the client

responseHeaders outgoing_headers

This sets the fault field on error

private

Definition at line 3982 of file nusoap.php.

References $param, nusoap_base\appendDebug(), nusoap_base\debug(), wsdl\getOperationData(), wsdl\getOperationDataForSoapAction(), and nusoap_base\varDump().

    {
        $this->debug('in invoke_method, methodname=' . $this->methodname . ' methodURI=' . $this->methodURI . ' SOAPAction=' . $this->SOAPAction);

        if ($this->wsdl) {
            if ($this->opData = $this->wsdl->getOperationData($this->methodname)) {
                $this->debug('in invoke_method, found WSDL operation=' . $this->methodname);
                $this->appendDebug('opData=' . $this->varDump($this->opData));
            } elseif ($this->opData = $this->wsdl->getOperationDataForSoapAction($this->SOAPAction)) {
                // Note: hopefully this case will only be used for doc/lit, since rpc services should have wrapper element
                $this->debug('in invoke_method, found WSDL soapAction=' . $this->SOAPAction . ' for operation=' . $this->opData['name']);
                $this->appendDebug('opData=' . $this->varDump($this->opData));
                $this->methodname = $this->opData['name'];
            } else {
                $this->debug('in invoke_method, no WSDL for operation=' . $this->methodname);
                $this->fault('SOAP-ENV:Client', "Operation '" . $this->methodname . "' is not defined in the WSDL for this service");
                return;
            }
        } else {
            $this->debug('in invoke_method, no WSDL to validate method');
        }

        // if a . is present in $this->methodname, we see if there is a class in scope,
        // which could be referred to. We will also distinguish between two deliminators,
        // to allow methods to be called a the class or an instance
        $class = '';
        $method = '';
        if (strpos($this->methodname, '..') > 0) {
            $delim = '..';
        } elseif (strpos($this->methodname, '.') > 0) {
            $delim = '.';
        } else {
            $delim = '';
        }

        if (strlen($delim) > 0 && substr_count($this->methodname, $delim) == 1 &&
            class_exists(substr($this->methodname, 0, strpos($this->methodname, $delim)))) {
            // get the class and method name
            $class = substr($this->methodname, 0, strpos($this->methodname, $delim));
            $method = substr($this->methodname, strpos($this->methodname, $delim) + strlen($delim));
            $this->debug("in invoke_method, class=$class method=$method delim=$delim");
        }
        // set class handler
        // added to support single operations
        if ($class == '' && $this->class !='') {
            $class = $this->class;
            $delim = "..";
            $method = $this->methodname;
        }

        // does method exist?
        if ($class == '') {
            if (!function_exists($this->methodname)) {
                $this->debug("in invoke_method, function '$this->methodname' not found!");
                $this->result = 'fault: method not found';
                $this->fault('SOAP-ENV:Client', "method '$this->methodname' not defined in service");
                return;
            }
        } else {
            $method_to_compare = (substr(phpversion(), 0, 2) == '4.') ? strtolower($method) : $method;
            if (!in_array($method_to_compare, get_class_methods($class))) {
                $this->debug("in invoke_method, method '$this->methodname' not found in class '$class'!");
                $this->result = 'fault: method not found';
                $this->fault('SOAP-ENV:Client', "method '$this->methodname' not defined in service");
                return;
            }
        }

        // evaluate message, getting back parameters
        // verify that request parameters match the method's signature
        if (! $this->verify_method($this->methodname, $this->methodparams)) {
            // debug
            $this->debug('ERROR: request not verified against method signature');
            $this->result = 'fault: request failed validation against method signature';
            // return fault
            $this->fault('SOAP-ENV:Client', "Operation '$this->methodname' not defined in service.");
            return;
        }

        // if there are parameters to pass
        $this->debug('in invoke_method, params:');
        $this->appendDebug($this->varDump($this->methodparams));
        $this->debug("in invoke_method, calling '$this->methodname'");
        if (!function_exists('call_user_func_array')) {
            if ($class == '') {
                $this->debug('in invoke_method, calling function using eval()');
                $funcCall = "\$this->methodreturn = $this->methodname(";
            } else {
                if ($delim == '..') {
                    $this->debug('in invoke_method, calling class method using eval()');
                    $funcCall = "\$this->methodreturn = " . $class . "::" . $method . "(";
                } else {
                    $this->debug('in invoke_method, calling instance method using eval()');
                    // generate unique instance name
                    $instname = "\$inst_" . time();
                    $funcCall = $instname . " = new " . $class . "(); ";
                    $funcCall .= "\$this->methodreturn = " . $instname . "->" . $method . "(";
                }
            }
            if ($this->methodparams) {
                foreach ($this->methodparams as $param) {
                    if (is_array($param) || is_object($param)) {
                        $this->fault('SOAP-ENV:Client', 'NuSOAP does not handle complexType parameters correctly when using eval; call_user_func_array must be available');
                        return;
                    }
                    $funcCall .= "\"$param\",";
                }
                $funcCall = substr($funcCall, 0, -1);
            }
            $funcCall .= ');';
            $this->debug('in invoke_method, function call: ' . $funcCall);
            @eval($funcCall);
        } else {
            if ($class == '') {
                $this->debug('in invoke_method, calling function using call_user_func_array()');
                $call_arg = "$this->methodname";        // straight assignment changes $this->methodname to lower case after call_user_func_array()
            } elseif ($delim == '..') {
                $this->debug('in invoke_method, calling class method using call_user_func_array()');
                $call_arg = array($class, $method);
            } else {
                $this->debug('in invoke_method, calling instance method using call_user_func_array()');
                $instance = new $class();
                $call_arg = array(&$instance, $method);
            }
            if (is_array($this->methodparams)) {
                $this->methodreturn = call_user_func_array($call_arg, array_values($this->methodparams));
            } else {
                $this->methodreturn = call_user_func_array($call_arg, array());
            }
        }
        $this->debug('in invoke_method, methodreturn:');
        $this->appendDebug($this->varDump($this->methodreturn));
        $this->debug("in invoke_method, called method $this->methodname, received data of type " . gettype($this->methodreturn));
    }

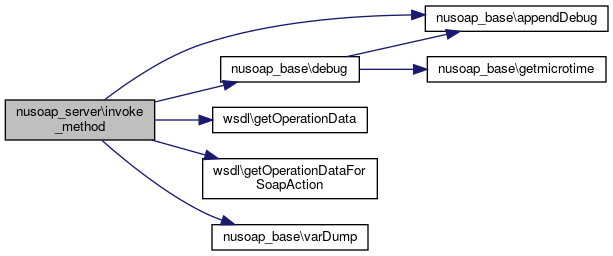

Here is the call graph for this function:

parse_http_headers()

nusoap_server::parse_http_headers

(

)

parses HTTP request headers.

The following fields are set by this function (when successful)

headers request xml_encoding SOAPAction

private

Definition at line 3805 of file nusoap.php.

References $_SERVER, nusoap_base\debug(), and nusoap_base\setError().

    {
        global $HTTP_SERVER_VARS;

        $this->request = '';
        $this->SOAPAction = '';
        if (function_exists('getallheaders')) {
            $this->debug("In parse_http_headers, use getallheaders");
            $headers = getallheaders();
            foreach ($headers as $k=>$v) {
                $k = strtolower($k);
                $this->headers[$k] = $v;
                $this->request .= "$k: $v\r\n";
                $this->debug("$k: $v");
            }
            // get SOAPAction header
            if (isset($this->headers['soapaction'])) {
                $this->SOAPAction = str_replace('"', '', $this->headers['soapaction']);
            }
            // get the character encoding of the incoming request
            if (isset($this->headers['content-type']) && strpos($this->headers['content-type'], '=')) {
                $enc = str_replace('"', '', substr(strstr($this->headers["content-type"], '='), 1));
                if (preg_match('/^(ISO-8859-1|US-ASCII|UTF-8)$/i', $enc)) {
                    $this->xml_encoding = strtoupper($enc);
                } else {
                    $this->xml_encoding = 'US-ASCII';
                }
            } else {
                // should be US-ASCII for HTTP 1.0 or ISO-8859-1 for HTTP 1.1
                $this->xml_encoding = 'ISO-8859-1';
            }
        } elseif (isset($_SERVER) && is_array($_SERVER)) {
            $this->debug("In parse_http_headers, use _SERVER");
            foreach ($_SERVER as $k => $v) {
                if (substr($k, 0, 5) == 'HTTP_') {
                    $k = str_replace(' ', '-', strtolower(str_replace('_', ' ', substr($k, 5))));
                } else {
                    $k = str_replace(' ', '-', strtolower(str_replace('_', ' ', $k)));
                }
                if ($k == 'soapaction') {
                    // get SOAPAction header
                    $k = 'SOAPAction';
                    $v = str_replace('"', '', $v);
                    $v = str_replace('\\', '', $v);
                    $this->SOAPAction = $v;
                } elseif ($k == 'content-type') {
                    // get the character encoding of the incoming request
                    if (strpos($v, '=')) {
                        $enc = substr(strstr($v, '='), 1);
                        $enc = str_replace('"', '', $enc);
                        $enc = str_replace('\\', '', $enc);
                        if (preg_match('/^(ISO-8859-1|US-ASCII|UTF-8)$/i', $enc)) {
                            $this->xml_encoding = strtoupper($enc);
                        } else {
                            $this->xml_encoding = 'US-ASCII';
                        }
                    } else {
                        // should be US-ASCII for HTTP 1.0 or ISO-8859-1 for HTTP 1.1
                        $this->xml_encoding = 'ISO-8859-1';
                    }
                }
                $this->headers[$k] = $v;
                $this->request .= "$k: $v\r\n";
                $this->debug("$k: $v");
            }
        } elseif (is_array($HTTP_SERVER_VARS)) {
            $this->debug("In parse_http_headers, use HTTP_SERVER_VARS");
            foreach ($HTTP_SERVER_VARS as $k => $v) {
                if (substr($k, 0, 5) == 'HTTP_') {
                    $k = str_replace(' ', '-', strtolower(str_replace('_', ' ', substr($k, 5))));
                    $k = strtolower(substr($k, 5));
                } else {
                    $k = str_replace(' ', '-', strtolower(str_replace('_', ' ', $k)));
                    $k = strtolower($k);
                }
                if ($k == 'soapaction') {
                    // get SOAPAction header
                    $k = 'SOAPAction';
                    $v = str_replace('"', '', $v);
                    $v = str_replace('\\', '', $v);
                    $this->SOAPAction = $v;
                } elseif ($k == 'content-type') {
                    // get the character encoding of the incoming request
                    if (strpos($v, '=')) {
                        $enc = substr(strstr($v, '='), 1);
                        $enc = str_replace('"', '', $enc);
                        $enc = str_replace('\\', '', $enc);
                        if (preg_match('/^(ISO-8859-1|US-ASCII|UTF-8)$/i', $enc)) {
                            $this->xml_encoding = strtoupper($enc);
                        } else {
                            $this->xml_encoding = 'US-ASCII';
                        }
                    } else {
                        // should be US-ASCII for HTTP 1.0 or ISO-8859-1 for HTTP 1.1
                        $this->xml_encoding = 'ISO-8859-1';
                    }
                }
                $this->headers[$k] = $v;
                $this->request .= "$k: $v\r\n";
                $this->debug("$k: $v");
            }
        } else {
            $this->debug("In parse_http_headers, HTTP headers not accessible");
            $this->setError("HTTP headers not accessible");
        }
    }

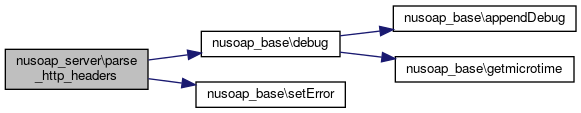

Here is the call graph for this function:

parse_request()

nusoap_server::parse_request

(

$data = ''

)

parses a request

The following fields are set by this function (when successful)

headers request xml_encoding SOAPAction request requestSOAP methodURI methodname methodparams requestHeaders document

This sets the fault field on error

Parameters

string

$data

XML string private

Definition at line 3934 of file nusoap.php.

References $data, and nusoap_base\debug().

    {
        $this->debug('entering parse_request()');
        $this->parse_http_headers();
        $this->debug('got character encoding: ' . $this->xml_encoding);
        // uncompress if necessary
        if (isset($this->headers['content-encoding']) && $this->headers['content-encoding'] != '') {
            $this->debug('got content encoding: ' . $this->headers['content-encoding']);
            if ($this->headers['content-encoding'] == 'deflate' || $this->headers['content-encoding'] == 'gzip') {
                // if decoding works, use it. else assume data wasn't gzencoded
                if (function_exists('gzuncompress')) {
                    if ($this->headers['content-encoding'] == 'deflate' && $degzdata = @gzuncompress($data)) {
                        $data = $degzdata;
                    } elseif ($this->headers['content-encoding'] == 'gzip' && $degzdata = gzinflate(substr($data, 10))) {
                        $data = $degzdata;
                    } else {
                        $this->fault('SOAP-ENV:Client', 'Errors occurred when trying to decode the data');
                        return;
                    }
                } else {
                    $this->fault('SOAP-ENV:Client', 'This Server does not support compressed data');
                    return;
                }
            }
        }
        $this->request .= "\r\n" . $data;
        $data = $this->parseRequest($this->headers, $data);
        $this->requestSOAP = $data;
        $this->debug('leaving parse_request');
    }

Here is the call graph for this function:

parseRequest()

nusoap_server::parseRequest	(		$headers,
			$data
	)

processes SOAP message received from client

Parameters

array	$headers	The HTTP headers
string	$data	unprocessed request data from client

Returns

mixed value of the message, decoded into a PHP type private

Definition at line 4321 of file nusoap.php.

References $data, nusoap_base\debug(), and nusoap_base\setError().

    {
        $this->debug('Entering parseRequest() for data of length ' . strlen($data) . ' and type ' . $headers['content-type']);
        if (!strstr($headers['content-type'], 'text/xml')) {
            $this->setError('Request not of type text/xml');
            return false;
        }
        if (strpos($headers['content-type'], '=')) {
            $enc = str_replace('"', '', substr(strstr($headers["content-type"], '='), 1));
            $this->debug('Got response encoding: ' . $enc);
            if (preg_match('/^(ISO-8859-1|US-ASCII|UTF-8)$/i', $enc)) {
                $this->xml_encoding = strtoupper($enc);
            } else {
                $this->xml_encoding = 'US-ASCII';
            }
        } else {
            // should be US-ASCII for HTTP 1.0 or ISO-8859-1 for HTTP 1.1
            $this->xml_encoding = 'ISO-8859-1';
        }
        $this->debug('Use encoding: ' . $this->xml_encoding . ' when creating nusoap_parser');
        // parse response, get soap parser obj
        $parser = new nusoap_parser($data, $this->xml_encoding, '', $this->decode_utf8);
        // parser debug
        $this->debug("parser debug: \n" . $parser->getDebug());
        // if fault occurred during message parsing
        if ($err = $parser->getError()) {
            $this->result = 'fault: error in msg parsing: ' . $err;
            $this->fault('SOAP-ENV:Client', "error in msg parsing:\n" . $err);
        // else successfully parsed request into soapval object
        } else {
            // get/set methodname
            $this->methodURI = $parser->root_struct_namespace;
            $this->methodname = $parser->root_struct_name;
            $this->debug('methodname: ' . $this->methodname . ' methodURI: ' . $this->methodURI);
            $this->debug('calling parser->get_soapbody()');
            $this->methodparams = $parser->get_soapbody();
            // get SOAP headers
            $this->requestHeaders = $parser->getHeaders();
            // get SOAP Header
            $this->requestHeader = $parser->get_soapheader();
            // add document for doclit support
            $this->document = $parser->document;
        }
    }

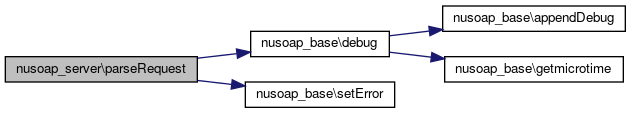

Here is the call graph for this function:

register()

nusoap_server::register	(		$name,
			$in = array(),
			$out = array(),
			$namespace = false,
			$soapaction = false,
			$style = false,
			$use = false,
			$documentation = '',
			$encodingStyle = ''
	)

register a service function with the server

Parameters

string	$name	the name of the PHP function, class.method or class..method
array	$in	assoc array of input values: key = param name, value = param type
array	$out	assoc array of output values: key = param name, value = param type
mixed	$namespace	the element namespace for the method or false
mixed	$soapaction	the soapaction for the method or false
mixed	$style	optional (rpc|document) or false Note: when 'document' is specified, parameter and return wrappers are created for you automatically
mixed	$use	optional (encoded|literal) or false
string	$documentation	optional Description to include in WSDL
string	$encodingStyle	optional (usually 'http://schemas.xmlsoap.org/soap/encoding/' for encoded) public

Definition at line 4433 of file nusoap.php.

References $_SERVER, $namespace, $out, wsdl\addOperation(), and nusoap_base\setError().

    {
        global $HTTP_SERVER_VARS;

        if ($this->externalWSDLURL) {
            die('You cannot bind to an external WSDL file, and register methods outside of it! Please choose either WSDL or no WSDL.');
        }
        if (! $name) {
            die('You must specify a name when you register an operation');
        }
        if (!is_array($in)) {
            die('You must provide an array for operation inputs');
        }
        if (!is_array($out)) {
            die('You must provide an array for operation outputs');
        }
        if (false == $namespace) {
        }
        if (false == $soapaction) {
            if (isset($_SERVER)) {
                $SERVER_NAME = $_SERVER['SERVER_NAME'];
                $SCRIPT_NAME = isset($_SERVER['PHP_SELF']) ? $_SERVER['PHP_SELF'] : $_SERVER['SCRIPT_NAME'];
                $HTTPS = isset($_SERVER['HTTPS']) ? $_SERVER['HTTPS'] : (isset($HTTP_SERVER_VARS['HTTPS']) ? $HTTP_SERVER_VARS['HTTPS'] : 'off');
            } elseif (isset($HTTP_SERVER_VARS)) {
                $SERVER_NAME = $HTTP_SERVER_VARS['SERVER_NAME'];
                $SCRIPT_NAME = isset($HTTP_SERVER_VARS['PHP_SELF']) ? $HTTP_SERVER_VARS['PHP_SELF'] : $HTTP_SERVER_VARS['SCRIPT_NAME'];
                $HTTPS = isset($HTTP_SERVER_VARS['HTTPS']) ? $HTTP_SERVER_VARS['HTTPS'] : 'off';
            } else {
                $this->setError("Neither _SERVER nor HTTP_SERVER_VARS is available");
            }
            if ($HTTPS == '1' || $HTTPS == 'on') {
                $SCHEME = 'https';
            } else {
                $SCHEME = 'http';
            }
            $soapaction = "$SCHEME://$SERVER_NAME$SCRIPT_NAME/$name";
        }
        if (false == $style) {
            $style = "rpc";
        }
        if (false == $use) {
            $use = "encoded";
        }
        if ($use == 'encoded' && $encodingStyle = '') {
            $encodingStyle = 'http://schemas.xmlsoap.org/soap/encoding/';
        }

        $this->operations[$name] = array(
        'name' => $name,
        'in' => $in,
        'out' => $out,
        'namespace' => $namespace,
        'soapaction' => $soapaction,
        'style' => $style);
        if ($this->wsdl) {
            $this->wsdl->addOperation($name, $in, $out, $namespace, $soapaction, $style, $use, $documentation, $encodingStyle);
        }
        return true;
    }

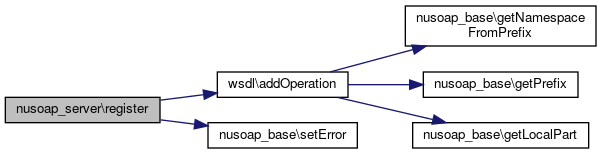

Here is the call graph for this function:

send_response()

nusoap_server::send_response

(

)

sends an HTTP response

The following fields are set by this function (when successful)

outgoing_headers response

private

Definition at line 4221 of file nusoap.php.

References $payload, nusoap_base\debug(), nusoap_base\getDebugAsXMLComment(), and ILIAS\UI\examples\Symbol\Glyph\Header\header().

    {
        $this->debug('Enter send_response');
        if ($this->fault) {
            $payload = $this->fault->serialize();
            $this->outgoing_headers[] = "HTTP/1.0 500 Internal Server Error";
            $this->outgoing_headers[] = "Status: 500 Internal Server Error";
        } else {
            $payload = $this->responseSOAP;
            // Some combinations of PHP+Web server allow the Status
            // to come through as a header.  Since OK is the default
            // just do nothing.
            // $this->outgoing_headers[] = "HTTP/1.0 200 OK";
            // $this->outgoing_headers[] = "Status: 200 OK";
        }
        // add debug data if in debug mode
        if (isset($this->debug_flag) && $this->debug_flag) {
            $payload .= $this->getDebugAsXMLComment();
        }
        $this->outgoing_headers[] = "Server: $this->title Server v$this->version";
        preg_match('/\$Revisio' . 'n: ([^ ]+)/', $this->revision, $rev);
        $this->outgoing_headers[] = "X-SOAP-Server: $this->title/$this->version (" . $rev[1] . ")";
        // Let the Web server decide about this
        //$this->outgoing_headers[] = "Connection: Close\r\n";
        $payload = $this->getHTTPBody($payload);
        $type = $this->getHTTPContentType();
        $charset = $this->getHTTPContentTypeCharset();
        $this->outgoing_headers[] = "Content-Type: $type" . ($charset ? '; charset=' . $charset : '');
        //begin code to compress payload - by John
        // NOTE: there is no way to know whether the Web server will also compress
        // this data.
        if (strlen($payload) > 1024 && isset($this->headers) && isset($this->headers['accept-encoding'])) {
            if (strstr($this->headers['accept-encoding'], 'gzip')) {
                if (function_exists('gzencode')) {
                    if (isset($this->debug_flag) && $this->debug_flag) {
                        $payload .= "<!-- Content being gzipped -->";
                    }
                    $this->outgoing_headers[] = "Content-Encoding: gzip";
                    $payload = gzencode($payload);
                } else {
                    if (isset($this->debug_flag) && $this->debug_flag) {
                        $payload .= "<!-- Content will not be gzipped: no gzencode -->";
                    }
                }
            } elseif (strstr($this->headers['accept-encoding'], 'deflate')) {
                // Note: MSIE requires gzdeflate output (no Zlib header and checksum),
                // instead of gzcompress output,
                // which conflicts with HTTP 1.1 spec (http://www.w3.org/Protocols/rfc2616/rfc2616-sec3.html#sec3.5)
                if (function_exists('gzdeflate')) {
                    if (isset($this->debug_flag) && $this->debug_flag) {
                        $payload .= "<!-- Content being deflated -->";
                    }
                    $this->outgoing_headers[] = "Content-Encoding: deflate";
                    $payload = gzdeflate($payload);
                } else {
                    if (isset($this->debug_flag) && $this->debug_flag) {
                        $payload .= "<!-- Content will not be deflated: no gzcompress -->";
                    }
                }
            }
        }
        //end code
        $this->outgoing_headers[] = "Content-Length: " . strlen($payload);
        reset($this->outgoing_headers);
        foreach ($this->outgoing_headers as $hdr) {
            header($hdr, false);
        }
        print $payload;
        $this->response = join("\r\n", $this->outgoing_headers) . "\r\n\r\n" . $payload;
    }

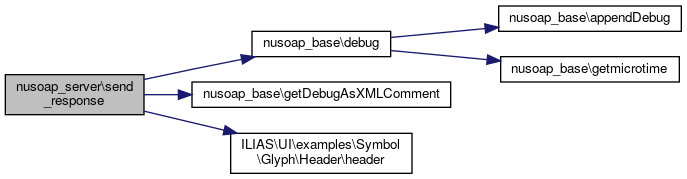

Here is the call graph for this function:

serialize_return()

nusoap_server::serialize_return

(

)

serializes the return value from a PHP function into a full SOAP Envelope

The following fields are set by this function (when successful)

responseSOAP

This sets the fault field on error

private

Definition at line 4128 of file nusoap.php.

References $payload, nusoap_base\appendDebug(), nusoap_base\clearDebug(), nusoap_base\debug(), nusoap_base\getDebug(), nusoap_base\getError(), nusoap_base\serialize_val(), nusoap_base\serializeEnvelope(), wsdl\serializeRPCParameters(), and nusoap_base\varDump().

    {
        $this->debug('Entering serialize_return methodname: ' . $this->methodname . ' methodURI: ' . $this->methodURI);
        // if fault
        if (isset($this->methodreturn) && ((get_class((object)$this->methodreturn) == 'soap_fault') || (get_class((object)$this->methodreturn) == 'nusoap_fault'))) {
            $this->debug('got a fault object from method');
            $this->fault = $this->methodreturn;
            return;
        } elseif ($this->methodreturnisliteralxml) {
            $return_val = $this->methodreturn;
        // returned value(s)
        } else {
            $this->debug('got a(n) ' . gettype($this->methodreturn) . ' from method');
            $this->debug('serializing return value');
            if ($this->wsdl) {
                if (sizeof($this->opData['output']['parts']) > 1) {
                    $this->debug('more than one output part, so use the method return unchanged');
                    $opParams = $this->methodreturn;
                } elseif (sizeof($this->opData['output']['parts']) == 1) {
                    $this->debug('exactly one output part, so wrap the method return in a simple array');
                    // TODO: verify that it is not already wrapped!
                    //foreach ($this->opData['output']['parts'] as $name => $type) {
                    //  $this->debug('wrap in element named ' . $name);
                    //}
                    $opParams = array($this->methodreturn);
                }
                $return_val = $this->wsdl->serializeRPCParameters($this->methodname, 'output', $opParams);
                $this->appendDebug($this->wsdl->getDebug());
                $this->wsdl->clearDebug();
                if ($errstr = $this->wsdl->getError()) {
                    $this->debug('got wsdl error: ' . $errstr);
                    $this->fault('SOAP-ENV:Server', 'unable to serialize result');
                    return;
                }
            } else {
                if (isset($this->methodreturn)) {
                    $return_val = $this->serialize_val($this->methodreturn, 'return');
                } else {
                    $return_val = '';
                    $this->debug('in absence of WSDL, assume void return for backward compatibility');
                }
            }
        }
        $this->debug('return value:');
        $this->appendDebug($this->varDump($return_val));

        $this->debug('serializing response');
        if ($this->wsdl) {
            $this->debug('have WSDL for serialization: style is ' . $this->opData['style']);
            if ($this->opData['style'] == 'rpc') {
                $this->debug('style is rpc for serialization: use is ' . $this->opData['output']['use']);
                if ($this->opData['output']['use'] == 'literal') {
                    // http://www.ws-i.org/Profiles/BasicProfile-1.1-2004-08-24.html R2735 says rpc/literal accessor elements should not be in a namespace
                    $payload = '<ns1:' . $this->methodname . 'Response xmlns:ns1="' . $this->methodURI . '">' . $return_val . '</ns1:' . $this->methodname . "Response>";
                } else {
                    $payload = '<ns1:' . $this->methodname . 'Response xmlns:ns1="' . $this->methodURI . '">' . $return_val . '</ns1:' . $this->methodname . "Response>";
                }
            } else {
                $this->debug('style is not rpc for serialization: assume document');
                $payload = $return_val;
            }
        } else {
            $this->debug('do not have WSDL for serialization: assume rpc/encoded');
            $payload = '<ns1:' . $this->methodname . 'Response xmlns:ns1="' . $this->methodURI . '">' . $return_val . '</ns1:' . $this->methodname . "Response>";
        }
        $this->result = 'successful';
        if ($this->wsdl) {
            //if($this->debug_flag){
            $this->appendDebug($this->wsdl->getDebug());
            //  }
            if (isset($opData['output']['encodingStyle'])) {
                $encodingStyle = $opData['output']['encodingStyle'];
            } else {
                $encodingStyle = '';
            }
            // Added: In case we use a WSDL, return a serialized env. WITH the usedNamespaces.
            $this->responseSOAP = $this->serializeEnvelope($payload, $this->responseHeaders, $this->wsdl->usedNamespaces, $this->opData['style'], $this->opData['output']['use'], $encodingStyle);
        } else {
            $this->responseSOAP = $this->serializeEnvelope($payload, $this->responseHeaders);
        }
        $this->debug("Leaving serialize_return");
    }

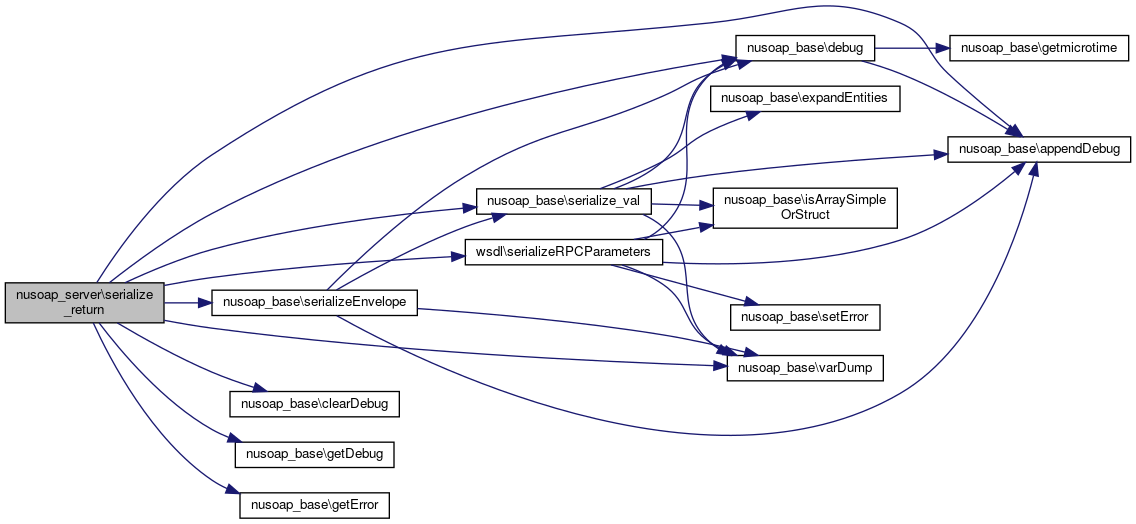

Here is the call graph for this function:

service()

nusoap_server::service

(

$data

)

processes request and returns response

Parameters

string

$data

usually is the value of $HTTP_RAW_POST_DATA public

Definition at line 3742 of file nusoap.php.

References $_SERVER, $data, nusoap_base\appendDebug(), nusoap_base\debug(), nusoap_base\getDebugAsXMLComment(), ILIAS\UI\examples\Symbol\Glyph\Header\header(), wsdl\serialize(), nusoap_base\varDump(), and wsdl\webDescription().

    {
        global $HTTP_SERVER_VARS;

        if (isset($_SERVER['QUERY_STRING'])) {
            $qs = $_SERVER['QUERY_STRING'];
        } elseif (isset($HTTP_SERVER_VARS['QUERY_STRING'])) {
            $qs = $HTTP_SERVER_VARS['QUERY_STRING'];
        } else {
            $qs = '';
        }
        $this->debug("In service, query string=$qs");

        if (preg_match('/wsdl/', $qs)) {
            $this->debug("In service, this is a request for WSDL");
            if ($this->externalWSDLURL) {
                if (strpos($this->externalWSDLURL, "://")!==false) { // assume URL
                    header('Location: ' . $this->externalWSDLURL);
                } else { // assume file
                    header("Content-Type: text/xml\r\n");
                    $fp = fopen($this->externalWSDLURL, 'r');
                    fpassthru($fp);
                }
            } elseif ($this->wsdl) {
                header("Content-Type: text/xml; charset=ISO-8859-1\r\n");
                print $this->wsdl->serialize($this->debug_flag);
                if ($this->debug_flag) {
                    $this->debug('wsdl:');
                    $this->appendDebug($this->varDump($this->wsdl));
                    print $this->getDebugAsXMLComment();
                }
            } else {
                header("Content-Type: text/html; charset=ISO-8859-1\r\n");
                print "This service does not provide WSDL";
            }
        } elseif ($data == '' && $this->wsdl) {
            $this->debug("In service, there is no data, so return Web description");
            print $this->wsdl->webDescription();
        } else {
            $this->debug("In service, invoke the request");
            $this->parse_request($data);
            if (! $this->fault) {
                $this->invoke_method();
            }
            if (! $this->fault) {
                $this->serialize_return();
            }
            $this->send_response();
        }
    }

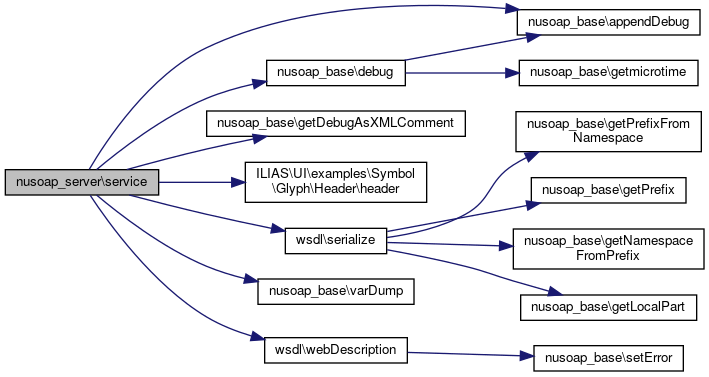

Here is the call graph for this function:

verify_method()

nusoap_server::verify_method	(		$operation,
			$request
	)

takes the value that was created by parsing the request and compares to the method's signature, if available.

Parameters

string	$operation	The operation to be invoked
array	$request	The array of parameter values

Returns

boolean Whether the operation was found private

Definition at line 4301 of file nusoap.php.

References wsdl\getOperationData().

    {
        if (isset($this->wsdl) && is_object($this->wsdl)) {
            if ($this->wsdl->getOperationData($operation)) {
                return true;
            }
        } elseif (isset($this->operations[$operation])) {
            return true;
        }
        return false;
    }

Here is the call graph for this function:

Field Documentation

$debug_flag

nusoap_server::$debug_flag = false

Definition at line 3668 of file nusoap.php.

$decode_utf8

nusoap_server::$decode_utf8 = true

Definition at line 3593 of file nusoap.php.

$document

nusoap_server::$document = ''

Definition at line 3551 of file nusoap.php.

$externalWSDLURL

nusoap_server::$externalWSDLURL = false

Definition at line 3662 of file nusoap.php.

$fault

nusoap_server::$fault = false

Definition at line 3636 of file nusoap.php.

$headers

nusoap_server::$headers = array()

Definition at line 3527 of file nusoap.php.

$methodname

nusoap_server::$methodname = ''

Definition at line 3569 of file nusoap.php.

$methodparams

nusoap_server::$methodparams = array()

Definition at line 3575 of file nusoap.php.

$methodreturn

nusoap_server::$methodreturn = false

Definition at line 3624 of file nusoap.php.

$methodreturnisliteralxml

nusoap_server::$methodreturnisliteralxml = false

Definition at line 3630 of file nusoap.php.

$methodURI

nusoap_server::$methodURI = ''

Definition at line 3563 of file nusoap.php.

$operations

nusoap_server::$operations = array()

Definition at line 3650 of file nusoap.php.

$outgoing_headers

nusoap_server::$outgoing_headers = array()

Definition at line 3600 of file nusoap.php.

$request

nusoap_server::$request = ''

Definition at line 3533 of file nusoap.php.

$requestHeader

nusoap_server::$requestHeader = null

Definition at line 3545 of file nusoap.php.

$requestHeaders

nusoap_server::$requestHeaders = ''

Definition at line 3539 of file nusoap.php.

$requestSOAP

nusoap_server::$requestSOAP = ''

Definition at line 3557 of file nusoap.php.

$response

nusoap_server::$response = ''

Definition at line 3606 of file nusoap.php.

$responseHeaders

nusoap_server::$responseHeaders = ''

Definition at line 3612 of file nusoap.php.

$responseSOAP

nusoap_server::$responseSOAP = ''

Definition at line 3618 of file nusoap.php.

$result

nusoap_server::$result = 'successful'

Definition at line 3642 of file nusoap.php.

$SOAPAction

nusoap_server::$SOAPAction = ''

Definition at line 3581 of file nusoap.php.

$wsdl

nusoap_server::$wsdl = false

Definition at line 3656 of file nusoap.php.

$xml_encoding

nusoap_server::$xml_encoding = ''

Definition at line 3587 of file nusoap.php.

---

The documentation for this class was generated from the following file:

• webservice/soap/lib/nusoap.php
