This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

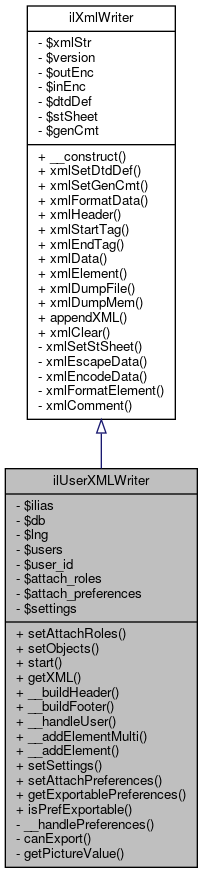

Inheritance diagram for ilUserXMLWriter:

Collaboration diagram for ilUserXMLWriter:

Public Member Functions
	setAttachRoles (bool $value)

	setObjects (array $users)

	start ()

	getXML ()

	__buildHeader ()

	__buildFooter ()

	__handleUser (array $row)

	__addElementMulti (string $tagname, array $value, ?array $attrs=null, ?string $settingsname=null, bool $requiredTag=false)

	__addElement (string $tagname, ?string $value, array $attrs=null, ?string $settingsname=null, bool $requiredTag=false)

	setSettings (array $settings)

	setAttachPreferences (bool $attach_preferences)
	if set to true, all preferences of a user will be set More...

Public Member Functions inherited from ilXmlWriter
	__construct (string $version="1.0", string $outEnc="utf-8", string $inEnc="utf-8")

	xmlSetDtdDef (string $dtdDef)
	Sets dtd definition. More...

	xmlSetGenCmt (string $genCmt)
	Sets generated comment. More...

	xmlFormatData (string $data)
	Indents text for better reading. More...

	xmlHeader ()
	Writes xml header. More...

	xmlStartTag (string $tag, ?array $attrs=null, bool $empty=false, bool $encode=true, bool $escape=true)
	Writes a starttag. More...

	xmlEndTag (string $tag)
	Writes an endtag. More...

	xmlData (string $data, bool $encode=true, bool $escape=true)
	Writes data. More...

	xmlElement (string $tag, $attrs=null, $data=null, $encode=true, $escape=true)
	Writes a basic element (no children, just textual content) More...

	xmlDumpFile (string $file, bool $format=true)
	Dumps xml document from memory into a file. More...

	xmlDumpMem (bool $format=true)
	Returns xml document from memory. More...

	appendXML (string $a_str)
	append xml string to document More...

	xmlClear ()
	clears xmlStr More...

Static Public Member Functions
static	getExportablePreferences ()
	return exportable preference keys as found in db More...

static	isPrefExportable (string $key)
	returns wether a key from db is exportable or not More...

Private Member Functions
	__handlePreferences (array $prefs, array $row)

	canExport (string $tagname, ?string $settingsname=null)

	getPictureValue (int $usr_id)
	return array with base-encoded picture data as key value, encoding type as encoding, and image type as key type. More...

Private Attributes
ILIAS	$ilias

ilDBInterface	$db

ilLanguage	$lng

array	$users

int	$user_id = 0

bool	$attach_roles = false

bool	$attach_preferences = false

array	$settings = []
	fields to be exported More...

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning XML writer class Class to simplify manual writing of xml documents. It only supports writing xml sequentially, because the xml document is saved in a string with no additional structure information. The author is responsible for well-formedness and validity of the xml document.

Author: Stefan Meyer meyer.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Definition at line 28 of file class.ilUserXMLWriter.php.

Member Function Documentation

◆ __addElement()

ilUserXMLWriter::__addElement	(	string	$tagname,
		?string	$value,
		array	$attrs = `null`,
		?string	$settingsname = `null`,
		bool	$requiredTag = `false`
	)

Definition at line 288 of file class.ilUserXMLWriter.php.

References canExport(), and ilXmlWriter\xmlElement().

Referenced by __addElementMulti(), and __handleUser().

      : void {
         if ($this->canExport($tagname, $settingsname)
             && ($value !== null
                 || $requiredTag
                 || is_array($attrs) && count($attrs) > 0)) {
             $this->xmlElement($tagname, $attrs, (string) $value);
         }
     }

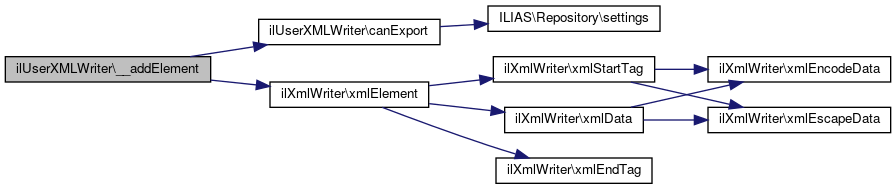

Here is the call graph for this function:

Here is the caller graph for this function:

◆ __addElementMulti()

ilUserXMLWriter::__addElementMulti	(	string	$tagname,
		array	$value,
		?array	$attrs = `null`,
		?string	$settingsname = `null`,
		bool	$requiredTag = `false`
	)

Definition at line 276 of file class.ilUserXMLWriter.php.

References __addElement().

Referenced by __handleUser().

      : void {
         foreach ($value as $item) {
             $this->__addElement($tagname, $item, $attrs, $settingsname, $requiredTag);
         }
     }

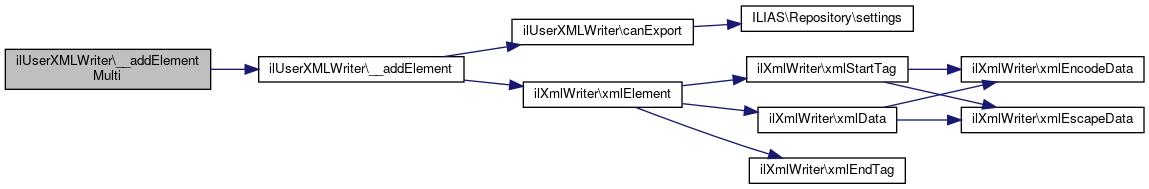

Here is the call graph for this function:

Here is the caller graph for this function:

◆ __buildFooter()

ilUserXMLWriter::__buildFooter ( )

Definition at line 105 of file class.ilUserXMLWriter.php.

References ilXmlWriter\xmlEndTag().

Referenced by start().

                                    : void
     {
         $this->xmlEndTag('Users');
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ __buildHeader()

ilUserXMLWriter::__buildHeader ( )

Definition at line 96 of file class.ilUserXMLWriter.php.

References ilXmlWriter\xmlHeader(), ilXmlWriter\xmlSetDtdDef(), ilXmlWriter\xmlSetGenCmt(), and ilXmlWriter\xmlStartTag().

Referenced by start().

                                    : void
     {
         $this->xmlSetDtdDef('<!DOCTYPE Users PUBLIC "-//ILIAS//DTD UserImport//EN" "' . ILIAS_HTTP_PATH . '/xml/ilias_user_5_1.dtd">');
         $this->xmlSetGenCmt('User of ilias system');
         $this->xmlHeader();

         $this->xmlStartTag('Users');
     }

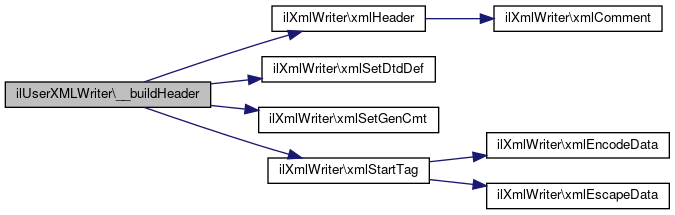

Here is the call graph for this function:

Here is the caller graph for this function:

◆ __handlePreferences()

ilUserXMLWriter::__handlePreferences	(	array	$prefs,
		array	$row
	)

private

Definition at line 258 of file class.ilUserXMLWriter.php.

References ILIAS\LTI\ToolProvider\$key, ilXmlWriter\xmlElement(), ilXmlWriter\xmlEndTag(), and ilXmlWriter\xmlStartTag().

Referenced by __handleUser().

                                                                   : void // Missing array type.
     {
         //todo nadia: test mail_address_option
         $mailOptions = new ilMailOptions($row['usr_id']);
         $prefs['mail_incoming_type'] = $mailOptions->getIncomingType();
         $prefs['mail_address_option'] = $mailOptions->getEmailAddressMode();
         $prefs['mail_signature'] = $mailOptions->getSignature();
         if ($prefs !== []) {
             $this->xmlStartTag('Prefs');
             foreach ($prefs as $key => $value) {
                 if (self::isPrefExportable($key)) {
                     $this->xmlElement('Pref', ['key' => $key], $value);
                 }
             }
             $this->xmlEndTag('Prefs');
         }
     }

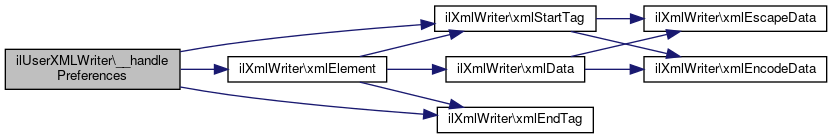

Here is the call graph for this function:

Here is the caller graph for this function:

◆ __handleUser()

ilUserXMLWriter::__handleUser ( array $row )

Definition at line 110 of file class.ilUserXMLWriter.php.

References __addElement(), __addElementMulti(), __handlePreferences(), ilObjUser\_getPreferences(), canExport(), ilDBConstants\FETCHMODE_ASSOC, ilObjUserFolder\getExportSettings(), getPictureValue(), IL_INST_ID, ILIAS\Repository\lng(), ROLE_FOLDER_ID, setSettings(), ILIAS\Repository\settings(), ilXmlWriter\xmlElement(), ilXmlWriter\xmlEndTag(), and ilXmlWriter\xmlStartTag().

Referenced by start().

                                             : void // Missing array type.
     {
         if ($this->settings === []) {
             $this->setSettings(ilObjUserFolder::getExportSettings());
         }

         $prefs = ilObjUser::_getPreferences($row['usr_id']);

         if ($row['language'] === null
             || $row['language'] === '') {
             $row['language'] = $this->lng->getDefaultLanguage();
         }

         $attrs = [
             'Id' => 'il_' . IL_INST_ID . '_usr_' . $row['usr_id'],
             'Language' => $row['language'],
             'Action' => 'Update'
         ];

         $this->xmlStartTag('User', $attrs);

         $this->xmlElement('Login', null, $row['login']);

         if ($this->attach_roles == true) {
             $query = sprintf(
                 'SELECT object_data.title, object_data.description,  rbac_fa.* ' .
                             'FROM object_data, rbac_ua, rbac_fa WHERE rbac_ua.usr_id = %s ' .
                             'AND rbac_ua.rol_id = rbac_fa.rol_id AND object_data.obj_id = rbac_fa.rol_id',
                 $this->db->quote($row['usr_id'], 'integer')
             );
             $rbacresult = $this->db->query($query);

             while ($rbacrow = $rbacresult->fetchRow(ilDBConstants::FETCHMODE_ASSOC)) {
                 if ($rbacrow['assign'] != 'y') {
                     continue;
                 }

                 $type = '';

                 if ($rbacrow['parent'] == ROLE_FOLDER_ID) {
                     $type = 'Global';
                 } else {
                     $type = 'Local';
                 }
                 if ($type !== '') {
                     $this->xmlElement(
                         'Role',
                         ['Id' => 'il_' . IL_INST_ID . '_role_' . $rbacrow['rol_id'], 'Type' => $type],
                         $rbacrow['title']
                     );
                 }
             }
         }

         $this->__addElement('Firstname', $row['firstname']);
         $this->__addElement('Lastname', $row['lastname']);
         $this->__addElement('Title', $row['title']);

         if ($this->canExport('PersonalPicture', 'upload')) {
             $imageData = $this->getPictureValue($row['usr_id']);
             if ($imageData) {
                 $value = array_shift($imageData); //$imageData['value'];
                 $this->__addElement('PersonalPicture', $value, $imageData, 'upload');
             }
         }


         $this->__addElement('Gender', $row['gender']);
         $this->__addElement('Email', $row['email']);
         $this->__addElement('SecondEmail', $row['second_email'], null, 'second_email');
         $this->__addElement('Birthday', $row['birthday']);
         $this->__addElement('Institution', $row['institution']);
         $this->__addElement('Street', $row['street']);
         $this->__addElement('City', $row['city']);
         $this->__addElement('PostalCode', $row['zipcode'], null, 'zipcode');
         $this->__addElement('Country', $row['country']);
         $this->__addElement('SelCountry', $row['sel_country'], null, 'sel_country');
         $this->__addElement('PhoneOffice', $row['phone_office'], null, 'phone_office');
         $this->__addElement('PhoneHome', $row['phone_home'], null, 'phone_home');
         $this->__addElement('PhoneMobile', $row['phone_mobile'], null, 'phone_mobile');
         $this->__addElement('Fax', $row['fax']);
         $this->__addElement('Hobby', $row['hobby']);

         $this->__addElementMulti('GeneralInterest', $row['interests_general'] ?? [], null, 'interests_general');
         $this->__addElementMulti('OfferingHelp', $row['interests_help_offered'] ?? [], null, 'interests_help_offered');
         $this->__addElementMulti('LookingForHelp', $row['interests_help_looking'] ?? [], null, 'interests_help_looking');

         $this->__addElement('Department', $row['department']);
         $this->__addElement('Comment', $row['referral_comment'], null, 'referral_comment');
         $this->__addElement('Matriculation', $row['matriculation']);
         $this->__addElement('Active', $row['active'] ? 'true' : 'false');
         $this->__addElement('ClientIP', $row['client_ip'], null, 'client_ip');
         $this->__addElement('TimeLimitOwner', $row['time_limit_owner'], null, 'time_limit_owner');
         $this->__addElement('TimeLimitUnlimited', $row['time_limit_unlimited'], null, 'time_limit_unlimited');
         $this->__addElement('TimeLimitFrom', $row['time_limit_from'], null, 'time_limit_from');
         $this->__addElement('TimeLimitUntil', $row['time_limit_until'], null, 'time_limit_until');
         $this->__addElement('TimeLimitMessage', $row['time_limit_message'], null, 'time_limit_message');
         $this->__addElement('ApproveDate', $row['approve_date'], null, 'approve_date');
         $this->__addElement('AgreeDate', $row['agree_date'], null, 'agree_date');

         if ($row['auth_mode'] !== null
             && $row['auth_mode'] !== '') {
             $this->__addElement('AuthMode', null, ['type' => $row['auth_mode']], 'auth_mode', true);
         }

         if ($row['ext_account'] !== null
             && $row['ext_account'] !== '') {
             $this->__addElement('ExternalAccount', $row['ext_account'], null, 'ext_account', true);
         }

         if (isset($prefs['skin'])
             && isset($prefs['style'])
             && $this->canExport('Look', 'skin_style')) {
             $this->__addElement(
                 'Look',
                 null,
                 [
                     'Skin' => $prefs['skin'], 'Style' => $prefs['style']
                 ],
                 'skin_style',
                 true
             );
         }


         $this->__addElement('LastUpdate', $row['last_update'], null, 'last_update');
         $this->__addElement('LastLogin', $row['last_login'], null, 'last_login');

         $udf_data = new ilUserDefinedData($row['usr_id']);
         $udf_data->addToXML($this);

         $this->__addElement('AccountInfo', $row['ext_account'], ['Type' => 'external']);

         $this->__addElement('GMapsInfo', null, [
             'longitude' => $row['longitude'],
             'latitude' => $row['latitude'],
             'zoom' => $row['loc_zoom']]);

         $this->__addElement('Feedhash', $row['feed_hash']);

         if ($this->attach_preferences || $this->canExport('prefs', 'preferences')) {
             $this->__handlePreferences($prefs, $row);
         }

         $this->xmlEndTag('User');
     }

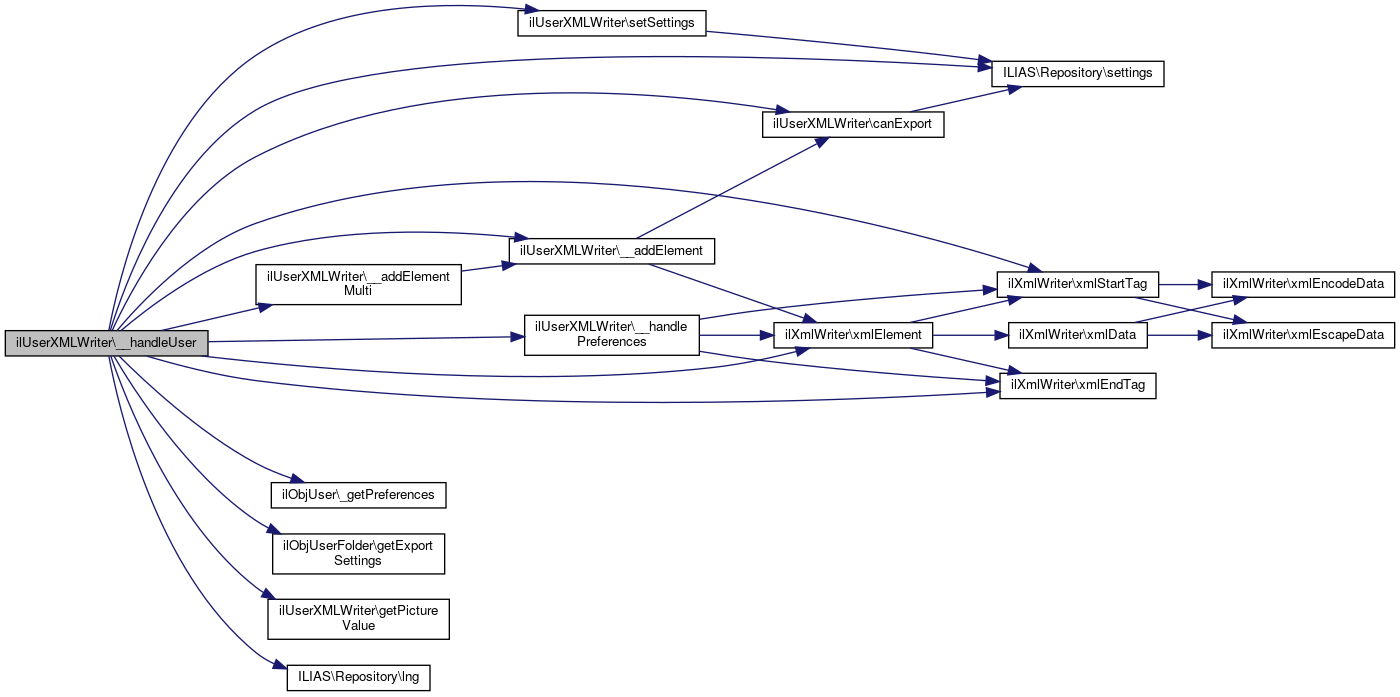

Here is the call graph for this function:

Here is the caller graph for this function:

◆ canExport()

ilUserXMLWriter::canExport	(	string	$tagname,
		?string	$settingsname = `null`
	)

private

Definition at line 303 of file class.ilUserXMLWriter.php.

References ILIAS\Repository\settings().

Referenced by __addElement(), and __handleUser().

      : bool {
         return $this->settings === []
             || in_array(strtolower($tagname), $this->settings) !== false
             || in_array($settingsname, $this->settings) !== false;
     }

Here is the call graph for this function:

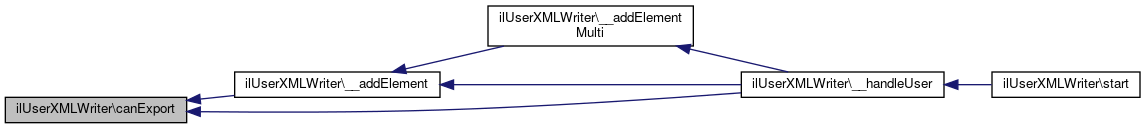

Here is the caller graph for this function:

◆ getExportablePreferences()

static ilUserXMLWriter::getExportablePreferences ( )

static

return exportable preference keys as found in db

Definition at line 354 of file class.ilUserXMLWriter.php.

                                                      : array // Missing array type.
     {
         return [
                 'hits_per_page',
                 'public_city',
                 'public_country',
                 'public_department',
                 'public_email',
                 'public_second_email',
                 'public_fax',
                 'public_hobby',
                 'public_institution',
                 'public_matriculation',
                 'public_phone',
                 'public_phone_home',
                 'public_phone_mobile',
                 'public_phone_office',
                 'public_profile',
                 'public_street',
                 'public_upload',
                 'public_zip',
                 'send_info_mails',
                 /*'show_users_online',*/
                 'hide_own_online_status',
                 'bs_allow_to_contact_me',
                 'chat_osc_accept_msg',
                 'chat_broadcast_typing',
                 'user_tz',
                 'weekstart',
                 'mail_incoming_type',
                 'mail_signature',
                 'mail_linebreak',
                 'public_interests_general',
                 'public_interests_help_offered',
                 'public_interests_help_looking'
         ];
     }

◆ getPictureValue()

ilUserXMLWriter::getPictureValue ( int $usr_id )

private

return array with base-encoded picture data as key value, encoding type as encoding, and image type as key type.

Definition at line 321 of file class.ilUserXMLWriter.php.

Referenced by __handleUser().

                                                  : ?array
     {
         $avatar_resolver = new ilUserAvatarResolver($usr_id);
         $avatar_resolver->setForcePicture(true);
         if (!$avatar_resolver->hasProfilePicture()) {
             return null;
         }

         [$image_data, $image_type] = $avatar_resolver->getUserPictureForVCard();

         if ($image_data === null || $image_type === null) {
             return null;
         }

         return [
             'value' => base64_encode($image_data),
             'encoding' => 'Base64',
             'imagetype' => $image_type
         ];
     }

Here is the caller graph for this function:

◆ getXML()

ilUserXMLWriter::getXML ( )

Definition at line 90 of file class.ilUserXMLWriter.php.

References ilXmlWriter\xmlDumpMem().

                             : string
     {
         return $this->xmlDumpMem(false);
     }

Here is the call graph for this function:

◆ isPrefExportable()

static ilUserXMLWriter::isPrefExportable ( string $key )

static

returns wether a key from db is exportable or not

Definition at line 395 of file class.ilUserXMLWriter.php.

Referenced by ilUserImportParser\importEndTag(), and ilUserImportParser\verifyPref().

                                                         : bool
     {
         return in_array($key, self::getExportablePreferences());
     }

Here is the caller graph for this function:

◆ setAttachPreferences()

ilUserXMLWriter::setAttachPreferences ( bool $attach_preferences )

if set to true, all preferences of a user will be set

Definition at line 346 of file class.ilUserXMLWriter.php.

References $attach_preferences.

                                                                   : void
     {
         $this->attach_preferences = $attach_preferences;
     }

◆ setAttachRoles()

ilUserXMLWriter::setAttachRoles ( bool $value )

Definition at line 59 of file class.ilUserXMLWriter.php.

                                                : void
     {
         $this->attach_roles = $value;
     }

◆ setObjects()

ilUserXMLWriter::setObjects ( array $users )

Definition at line 64 of file class.ilUserXMLWriter.php.

References $users.

                                             : void // Missing array type.
     {
         $this->users = $users;
     }

◆ setSettings()

ilUserXMLWriter::setSettings ( array $settings )

Definition at line 312 of file class.ilUserXMLWriter.php.

References $settings, and ILIAS\Repository\settings().

Referenced by __handleUser().

                                                 : void // Missing array type.
     {
         $this->settings = $settings;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ start()

ilUserXMLWriter::start ( )

Definition at line 70 of file class.ilUserXMLWriter.php.

References __buildFooter(), __buildHeader(), __handleUser(), and ilUserDefinedFields\_getInstance().

                            : bool
     {
         if (!is_array($this->users)) {
             return false;
         }

         $this->__buildHeader();

         $udf_data = ilUserDefinedFields::_getInstance();
         $udf_data->addToXML($this);

         foreach ($this->users as $user) {
             $this->__handleUser($user);
         }

         $this->__buildFooter();

         return true;
     }

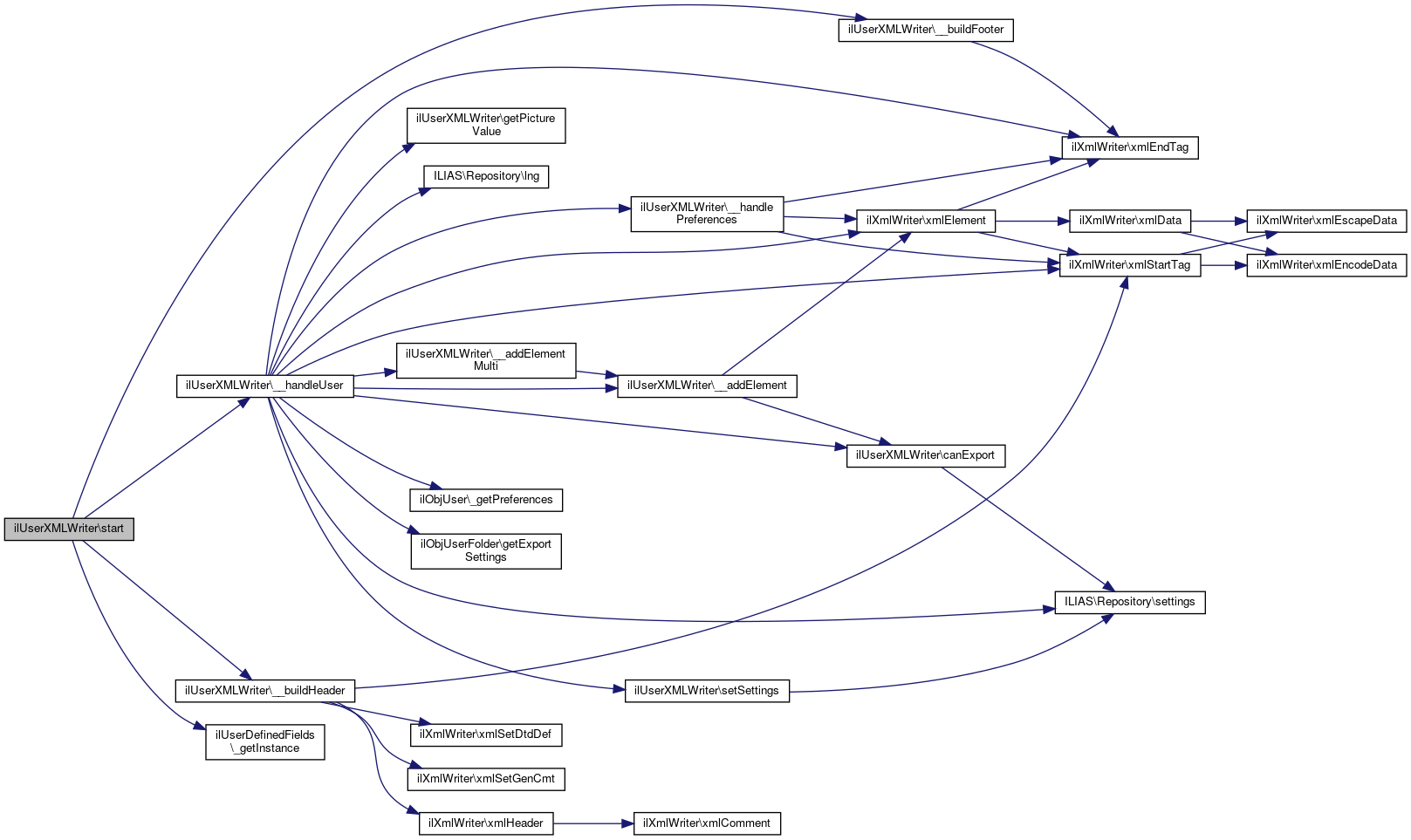

Here is the call graph for this function:

Field Documentation

◆ $attach_preferences

bool ilUserXMLWriter::$attach_preferences = false

private

Definition at line 36 of file class.ilUserXMLWriter.php.

Referenced by setAttachPreferences().

◆ $attach_roles

bool ilUserXMLWriter::$attach_roles = false

private

Definition at line 35 of file class.ilUserXMLWriter.php.

◆ $db

ilDBInterface ilUserXMLWriter::$db

private

Definition at line 31 of file class.ilUserXMLWriter.php.

◆ $ilias

ILIAS ilUserXMLWriter::$ilias

private

Definition at line 30 of file class.ilUserXMLWriter.php.

◆ $lng

ilLanguage ilUserXMLWriter::$lng

private

Definition at line 32 of file class.ilUserXMLWriter.php.

◆ $settings

array ilUserXMLWriter::$settings = []

private

fields to be exported

Definition at line 42 of file class.ilUserXMLWriter.php.

Referenced by setSettings().

◆ $user_id

int ilUserXMLWriter::$user_id = 0

private

Definition at line 34 of file class.ilUserXMLWriter.php.

◆ $users

array ilUserXMLWriter::$users

private

Definition at line 33 of file class.ilUserXMLWriter.php.

Referenced by setObjects().

The documentation for this class was generated from the following file:

Services/User/classes/class.ilUserXMLWriter.php

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ __addElement()

◆ __addElementMulti()

◆ __buildFooter()

◆ __buildHeader()

◆ __handlePreferences()

◆ __handleUser()

◆ canExport()

◆ getExportablePreferences()

◆ getPictureValue()

◆ getXML()

◆ isPrefExportable()

◆ setAttachPreferences()

◆ setAttachRoles()

◆ setObjects()

◆ setSettings()

◆ start()

Field Documentation

◆ $attach_preferences

◆ $attach_roles

◆ $db

◆ $ilias

◆ $lng

◆ $settings

◆ $user_id

◆ $users
