Class for numeric questions. More...
Inheritance diagram for assNumeric:

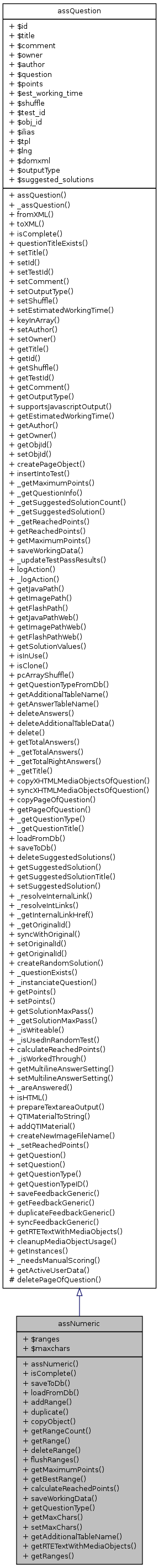

Collaboration diagram for assNumeric:
Public Member Functions | |
| assNumeric ($title="", $comment="", $author="", $owner=-1, $question="") | |
| assNumeric constructor | |
| isComplete () | |
| Returns true, if a numeric question is complete for use. | |
| saveToDb ($original_id="") | |
| Saves a assNumeric object to a database. | |
| loadFromDb ($question_id) | |
| Loads a assNumeric object from a database. | |
| addRange ($lowerlimit=0.0, $upperlimit=0.0, $points=0.0, $order=0) | |
| Adds a range to the numeric question. | |
| duplicate ($for_test=true, $title="", $author="", $owner="") | |
| Duplicates an assNumericQuestion. | |
| copyObject ($target_questionpool, $title="") | |
| Copies an assNumeric object. | |
| getRangeCount () | |
| Returns the number of ranges. | |
| getRange ($index=0) | |
| Returns a range. | |
| deleteRange ($index=0) | |
| Deletes a range. | |
| flushRanges () | |
| Deletes all ranges. | |
| getMaximumPoints () | |
| Returns the maximum points, a learner can reach answering the question. | |
| getBestRange () | |
| Returns the range with the maximum points, a learner can reach answering the question. | |
| calculateReachedPoints ($active_id, $pass=NULL) | |
| Returns the points, a learner has reached answering the question. | |
| saveWorkingData ($active_id, $pass=NULL) | |
| Saves the learners input of the question to the database. | |
| getQuestionType () | |
| Returns the question type of the question. | |
| getMaxChars () | |
| Returns the maximum number of characters for the numeric input field. | |
| setMaxChars ($maxchars) | |
| Sets the maximum number of characters for the numeric input field. | |
| getAdditionalTableName () | |
| Returns the name of the additional question data table in the database. | |
| getRTETextWithMediaObjects () | |
| Collects all text in the question which could contain media objects which were created with the Rich Text Editor. | |
| & | getRanges () |
| Returns the ranges array. | |
Data Fields | |
| $ranges | |
| $maxchars | |
Detailed Description
Class for numeric questions.
assNumeric is a class for numeric questions. To solve a numeric question, a learner has to enter a numerical value in a defined range
- Version:
- Id:
- class.assNumeric.php 18645 2009-01-20 18:35:38Z hschottm
Definition at line 37 of file class.assNumeric.php.
Member Function Documentation
| assNumeric::addRange | ( | $ | lowerlimit = 0.0, |
|
| $ | upperlimit = 0.0, |
|||
| $ | points = 0.0, |
|||
| $ | order = 0 | |||
| ) |
Adds a range to the numeric question.
Adds a range to the numeric question. An assNumericRange object will be created and assigned to the array $this->ranges
- Parameters:
-
double $lowerlimit The lower limit of the range double $upperlimit The upper limit of the range double $points The points for entering a number in the correct range integer $order The display order of the range public
- See also:
- $ranges
- assNumericalRange
Definition at line 290 of file class.assNumeric.php.
References assQuestion::$points.
{
$found = -1;
foreach ($this->ranges as $key => $range)
{
if ($range->getOrder() == $order)
{
$found = $order;
}
}
include_once "./Modules/TestQuestionPool/classes/class.assNumericRange.php";
if ($found >= 0)
{
// insert range
$range = new assNumericRange($lowerlimit, $upperlimit, $points, $found);
array_push($this->ranges, $range);
for ($i = $found + 1; $i < count($this->ranges); $i++)
{
$this->ranges[$i] = $this->ranges[$i-1];
}
$this->ranges[$found] = $range;
}
else
{
// append range
$range = new assNumericRange($lowerlimit, $upperlimit, $points, count($this->ranges));
array_push($this->ranges, $range);
}
}
| assNumeric::assNumeric | ( | $ | title = "", |
|
| $ | comment = "", |
|||
| $ | author = "", |
|||
| $ | owner = -1, |
|||
| $ | question = "" | |||
| ) |
assNumeric constructor
The constructor takes possible arguments an creates an instance of the assNumeric object.
- Parameters:
-
string $title A title string to describe the question string $comment A comment string to describe the question string $author A string containing the name of the questions author integer $owner A numerical ID to identify the owner/creator string $question The question string of the numeric question public
- See also:
- assQuestion:assQuestion()
Definition at line 70 of file class.assNumeric.php.
References assQuestion::$author, assQuestion::$comment, assQuestion::$owner, assQuestion::$question, assQuestion::$title, and assQuestion::assQuestion().
{
$this->assQuestion($title, $comment, $author, $owner, $question);
$this->ranges = array();
$this->maxchars = 6;
}
Here is the call graph for this function:
| assNumeric::calculateReachedPoints | ( | $ | active_id, | |
| $ | pass = NULL | |||
| ) |
Returns the points, a learner has reached answering the question.
Returns the points, a learner has reached answering the question The points are calculated from the given answers including checks for all special scoring options in the test container.
- Parameters:
-
integer $user_id The database ID of the learner integer $test_id The database Id of the test containing the question public
Definition at line 543 of file class.assNumeric.php.
References $data, assQuestion::$points, assQuestion::getId(), and assQuestion::getSolutionMaxPass().
{
global $ilDB;
$found_values = array();
if (is_null($pass))
{
$pass = $this->getSolutionMaxPass($active_id);
}
$query = sprintf("SELECT * FROM tst_solutions WHERE active_fi = %s AND question_fi = %s AND pass = %s",
$ilDB->quote($active_id . ""),
$ilDB->quote($this->getId() . ""),
$ilDB->quote($pass . "")
);
$result = $ilDB->query($query);
$data = $result->fetchRow(DB_FETCHMODE_ASSOC);
$enteredvalue = $data["value1"];
//if (!is_numeric($enteredvalue)) return 0;
$points = 0;
foreach ($this->ranges as $key => $range)
{
if ($points == 0)
{
if ($range->contains($enteredvalue))
{
$points = $range->getPoints();
}
}
}
$points = parent::calculateReachedPoints($active_id, $pass = NULL, $points);
return $points;
}
Here is the call graph for this function:
| assNumeric::copyObject | ( | $ | target_questionpool, | |
| $ | title = "" | |||
| ) |
Copies an assNumeric object.
Copies an assNumeric object
public
Definition at line 385 of file class.assNumeric.php.
References assQuestion::$title, assQuestion::_getOriginalId(), and assQuestion::getObjId().
{
if ($this->id <= 0)
{
// The question has not been saved. It cannot be duplicated
return;
}
// duplicate the question in database
$clone = $this;
include_once ("./Modules/TestQuestionPool/classes/class.assQuestion.php");
$original_id = assQuestion::_getOriginalId($this->id);
$clone->id = -1;
$source_questionpool = $this->getObjId();
$clone->setObjId($target_questionpool);
if ($title)
{
$clone->setTitle($title);
}
$clone->saveToDb();
// copy question page content
$clone->copyPageOfQuestion($original_id);
// copy XHTML media objects
$clone->copyXHTMLMediaObjectsOfQuestion($original_id);
// duplicate the generic feedback
$clone->duplicateFeedbackGeneric($original_id);
return $clone->id;
}
Here is the call graph for this function:
| assNumeric::deleteRange | ( | $ | index = 0 |
) |
Deletes a range.
Deletes a range with a given index. The index of the first range is 0, the index of the second range is 1 and so on.
- Parameters:
-
integer $index A nonnegative index of the n-th range public
- See also:
- $ranges
Definition at line 459 of file class.assNumeric.php.
{
if ($index < 0) return;
if (count($this->ranges) < 1) return;
if ($index >= count($this->ranges)) return;
unset($this->ranges[$index]);
$this->ranges = array_values($this->ranges);
for ($i = 0; $i < count($this->ranges); $i++)
{
if ($this->ranges[$i]->getOrder() > $index)
{
$this->ranges[$i]->setOrder($i);
}
}
}
| assNumeric::duplicate | ( | $ | for_test = true, |
|
| $ | title = "", |
|||
| $ | author = "", |
|||
| $ | owner = "" | |||
| ) |
Duplicates an assNumericQuestion.
Duplicates an assNumericQuestion
public
Definition at line 332 of file class.assNumeric.php.
References assQuestion::$author, assQuestion::$owner, assQuestion::$title, assQuestion::_getOriginalId(), and assQuestion::getId().
{
if ($this->id <= 0)
{
// The question has not been saved. It cannot be duplicated
return;
}
// duplicate the question in database
$this_id = $this->getId();
$clone = $this;
include_once ("./Modules/TestQuestionPool/classes/class.assQuestion.php");
$original_id = assQuestion::_getOriginalId($this->id);
$clone->id = -1;
if ($title)
{
$clone->setTitle($title);
}
if ($author)
{
$clone->setAuthor($author);
}
if ($owner)
{
$clone->setOwner($owner);
}
if ($for_test)
{
$clone->saveToDb($original_id);
}
else
{
$clone->saveToDb();
}
// copy question page content
$clone->copyPageOfQuestion($this_id);
// copy XHTML media objects
$clone->copyXHTMLMediaObjectsOfQuestion($this_id);
// duplicate the generic feedback
$clone->duplicateFeedbackGeneric($this_id);
return $clone->id;
}
Here is the call graph for this function:
| assNumeric::flushRanges | ( | ) |
Deletes all ranges.
Deletes all ranges
public
- See also:
- $ranges
Definition at line 483 of file class.assNumeric.php.
{
$this->ranges = array();
}
| assNumeric::getAdditionalTableName | ( | ) |
Returns the name of the additional question data table in the database.
Returns the name of the additional question data table in the database
- Returns:
- string The additional table name public
Reimplemented from assQuestion.
Definition at line 720 of file class.assNumeric.php.
{
return "qpl_question_numeric";
}
| assNumeric::getBestRange | ( | ) |
Returns the range with the maximum points, a learner can reach answering the question.
Returns the range with the maximum points, a learner can reach answering the question
public
- See also:
- $points
Definition at line 517 of file class.assNumeric.php.
{
$max = 0;
$bestrange = NULL;
foreach ($this->ranges as $key => $range)
{
if ($range->getPoints() > $max)
{
$max = $range->getPoints();
$bestrange = $range;
}
}
return $bestrange;
}
| assNumeric::getMaxChars | ( | ) |
Returns the maximum number of characters for the numeric input field.
Returns the maximum number of characters for the numeric input field
- Returns:
- integer The maximum number of characters public
Definition at line 694 of file class.assNumeric.php.
Referenced by saveToDb().
{
return $this->maxchars;
}
Here is the caller graph for this function:
| assNumeric::getMaximumPoints | ( | ) |
Returns the maximum points, a learner can reach answering the question.
Returns the maximum points, a learner can reach answering the question
public
- See also:
- $points
Reimplemented from assQuestion.
Definition at line 496 of file class.assNumeric.php.
Referenced by isComplete(), and saveToDb().
{
$max = 0;
foreach ($this->ranges as $key => $range)
{
if ($range->getPoints() > $max)
{
$max = $range->getPoints();
}
}
return $max;
}
Here is the caller graph for this function:
| assNumeric::getQuestionType | ( | ) |
Returns the question type of the question.
Returns the question type of the question
- Returns:
- integer The question type of the question public
Reimplemented from assQuestion.
Definition at line 681 of file class.assNumeric.php.
{
return "assNumeric";
}
| assNumeric::getRange | ( | $ | index = 0 |
) |
Returns a range.
Returns a range with a given index. The index of the first range is 0, the index of the second range is 1 and so on.
- Parameters:
-
integer $index A nonnegative index of the n-th range
- Returns:
- object assNumericelRange-Object containing the range public
- See also:
- $ranges
Definition at line 440 of file class.assNumeric.php.
{
if ($index < 0) return NULL;
if (count($this->ranges) < 1) return NULL;
if ($index >= count($this->ranges)) return NULL;
return $this->ranges[$index];
}
| assNumeric::getRangeCount | ( | ) |
Returns the number of ranges.
Returns the number of ranges
- Returns:
- integer The number of ranges of the numeric question public
- See also:
- $ranges
Definition at line 424 of file class.assNumeric.php.
{
return count($this->ranges);
}
| & assNumeric::getRanges | ( | ) |
Returns the ranges array.
Definition at line 737 of file class.assNumeric.php.
{
return $this->ranges;
}
| assNumeric::getRTETextWithMediaObjects | ( | ) |
Collects all text in the question which could contain media objects which were created with the Rich Text Editor.
Reimplemented from assQuestion.
Definition at line 729 of file class.assNumeric.php.
{
return parent::getRTETextWithMediaObjects();
}
| assNumeric::isComplete | ( | ) |
Returns true, if a numeric question is complete for use.
Returns true, if a numeric question is complete for use
- Returns:
- boolean True, if the numeric question is complete for use, otherwise false public
Reimplemented from assQuestion.
Definition at line 91 of file class.assNumeric.php.
References getMaximumPoints().
Referenced by saveToDb().
{
if (($this->title) and ($this->author) and ($this->question) and (count($this->ranges)) and ($this->getMaximumPoints() > 0))
{
return true;
}
else
{
return false;
}
}
Here is the call graph for this function:
Here is the caller graph for this function:
| assNumeric::loadFromDb | ( | $ | question_id | ) |
Loads a assNumeric object from a database.
Loads a assNumeric object from a database (experimental)
- Parameters:
-
object $db A pear DB object integer $question_id A unique key which defines the multiple choice test in the database public
Reimplemented from assQuestion.
Definition at line 230 of file class.assNumeric.php.
References $data, ilRTE::_replaceMediaObjectImageSrc(), and assQuestion::setEstimatedWorkingTime().
{
global $ilDB;
$query = sprintf("SELECT qpl_questions.*, qpl_question_numeric.* FROM qpl_questions, qpl_question_numeric WHERE question_id = %s AND qpl_questions.question_id = qpl_question_numeric.question_fi",
$ilDB->quote($question_id)
);
$result = $ilDB->query($query);
if (strcmp(strtolower(get_class($result)), db_result) == 0)
{
if ($result->numRows() == 1)
{
$data = $result->fetchRow(DB_FETCHMODE_OBJECT);
$this->id = $question_id;
$this->title = $data->title;
$this->comment = $data->comment;
$this->solution_hint = $data->solution_hint;
$this->original_id = $data->original_id;
$this->obj_id = $data->obj_fi;
$this->author = $data->author;
$this->owner = $data->owner;
$this->points = $data->points;
include_once("./Services/RTE/classes/class.ilRTE.php");
$this->question = ilRTE::_replaceMediaObjectImageSrc($data->question_text, 1);
$this->maxchars = $data->maxNumOfChars;
$this->setEstimatedWorkingTime(substr($data->working_time, 0, 2), substr($data->working_time, 3, 2), substr($data->working_time, 6, 2));
}
$query = sprintf("SELECT * FROM qpl_numeric_range WHERE question_fi = %s ORDER BY aorder ASC",
$ilDB->quote($question_id)
);
$result = $ilDB->query($query);
include_once "./Modules/TestQuestionPool/classes/class.assNumericRange.php";
if (strcmp(strtolower(get_class($result)), db_result) == 0)
{
while ($data = $result->fetchRow(DB_FETCHMODE_ASSOC))
{
array_push($this->ranges, new assNumericRange($data["lowerlimit"], $data["upperlimit"], $data["points"], $data["aorder"]));
}
}
}
parent::loadFromDb($question_id);
}
Here is the call graph for this function:
| assNumeric::saveToDb | ( | $ | original_id = "" |
) |
Saves a assNumeric object to a database.
Saves a assNumeric object to a database (experimental)
- Parameters:
-
object $db A pear DB object public
Reimplemented from assQuestion.
Definition at line 111 of file class.assNumeric.php.
References ilRTE::_replaceMediaObjectImageSrc(), assQuestion::createPageObject(), assQuestion::getEstimatedWorkingTime(), getMaxChars(), getMaximumPoints(), assQuestion::getQuestionTypeID(), assQuestion::getTestId(), assQuestion::insertIntoTest(), and isComplete().
{
global $ilDB;
$complete = 0;
if ($this->isComplete())
{
$complete = 1;
}
$estw_time = $this->getEstimatedWorkingTime();
$estw_time = sprintf("%02d:%02d:%02d", $estw_time['h'], $estw_time['m'], $estw_time['s']);
if ($original_id)
{
$original_id = $ilDB->quote($original_id);
}
else
{
$original_id = "NULL";
}
// cleanup RTE images which are not inserted into the question text
include_once("./Services/RTE/classes/class.ilRTE.php");
if ($this->id == -1)
{
// Neuen Datensatz schreiben
$now = getdate();
$question_type = $this->getQuestionTypeID();
$created = sprintf("%04d%02d%02d%02d%02d%02d", $now['year'], $now['mon'], $now['mday'], $now['hours'], $now['minutes'], $now['seconds']);
$query = sprintf("INSERT INTO qpl_questions (question_id, question_type_fi, obj_fi, title, comment, author, owner, question_text, points, working_time, complete, created, original_id, TIMESTAMP) VALUES (NULL, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, NULL)",
$ilDB->quote($question_type),
$ilDB->quote($this->obj_id),
$ilDB->quote($this->title),
$ilDB->quote($this->comment),
$ilDB->quote($this->author),
$ilDB->quote($this->owner),
$ilDB->quote(ilRTE::_replaceMediaObjectImageSrc($this->question, 0)),
$ilDB->quote($this->getMaximumPoints() . ""),
$ilDB->quote($estw_time),
$ilDB->quote("$complete"),
$ilDB->quote($created),
$original_id
);
$result = $ilDB->query($query);
if ($result == DB_OK)
{
$this->id = $ilDB->getLastInsertId();
$query = sprintf("INSERT INTO qpl_question_numeric (question_fi, maxNumOfChars) VALUES (%s, %s)",
$ilDB->quote($this->id . ""),
$ilDB->quote($this->getMaxChars() . "")
);
$ilDB->query($query);
// create page object of question
$this->createPageObject();
if ($this->getTestId() > 0)
{
$this->insertIntoTest($this->getTestId());
}
}
}
else
{
// Vorhandenen Datensatz aktualisieren
$query = sprintf("UPDATE qpl_questions SET obj_fi = %s, title = %s, comment = %s, author = %s, question_text = %s, points = %s, working_time=%s, complete = %s WHERE question_id = %s",
$ilDB->quote($this->obj_id. ""),
$ilDB->quote($this->title),
$ilDB->quote($this->comment),
$ilDB->quote($this->author),
$ilDB->quote(ilRTE::_replaceMediaObjectImageSrc($this->question, 0)),
$ilDB->quote($this->getMaximumPoints() . ""),
$ilDB->quote($estw_time),
$ilDB->quote("$complete"),
$ilDB->quote($this->id)
);
$result = $ilDB->query($query);
$query = sprintf("UPDATE qpl_question_numeric SET maxNumOfChars = %s WHERE question_fi = %s",
$ilDB->quote($this->getMaxChars() . ""),
$ilDB->quote($this->id . "")
);
$result = $ilDB->query($query);
}
if ($result == DB_OK)
{
// Write Ranges to the database
// 1. delete old ranges
$query = sprintf("DELETE FROM qpl_numeric_range WHERE question_fi = %s",
$ilDB->quote($this->id)
);
$result = $ilDB->query($query);
// 2. write ranges
foreach ($this->ranges as $key => $range)
{
$query = sprintf("INSERT INTO qpl_numeric_range (range_id, question_fi, lowerlimit, upperlimit, points, aorder, lastchange) VALUES (NULL, %s, %s, %s, %s, %s, NULL)",
$ilDB->quote($this->id),
$ilDB->quote($range->getLowerLimit()),
$ilDB->quote($range->getUpperLimit() . ""),
$ilDB->quote($range->getPoints() . ""),
$ilDB->quote($range->getOrder() . "")
);
$answer_result = $ilDB->query($query);
}
}
parent::saveToDb($original_id);
}

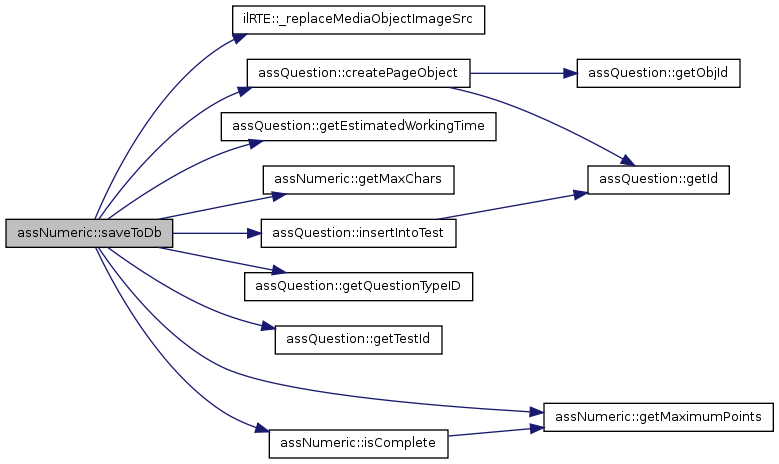

Here is the call graph for this function:
| assNumeric::saveWorkingData | ( | $ | active_id, | |
| $ | pass = NULL | |||
| ) |
Saves the learners input of the question to the database.
Saves the learners input of the question to the database
- Parameters:
-
integer $test_id The database id of the test containing this question
- Returns:
- boolean Indicates the save status (true if saved successful, false otherwise) public
- See also:
- $ranges
Reimplemented from assQuestion.
Definition at line 588 of file class.assNumeric.php.
References ilObjAssessmentFolder::_enabledAssessmentLogging(), ilObjAssessmentFolder::_getLogLanguage(), ilObjTest::_getPass(), assQuestion::getId(), assQuestion::logAction(), and ilUtil::sendInfo().
{
global $ilDB;
global $ilUser;
if (is_null($pass))
{
include_once "./Modules/Test/classes/class.ilObjTest.php";
$pass = ilObjTest::_getPass($active_id);
}
$entered_values = 0;
$numeric_result = str_replace(",",".",$_POST["numeric_result"]);
include_once "./Services/Math/classes/class.EvalMath.php";
$math = new EvalMath();
$math->suppress_errors = TRUE;
$result = $math->evaluate($numeric_result);
$returnvalue = true;
if (($result === FALSE) || ($result === TRUE))
{
ilUtil::sendInfo($this->lng->txt("err_no_numeric_value"), true);
$returnvalue = false;
}
$query = sprintf("SELECT * FROM tst_solutions WHERE active_fi = %s AND question_fi = %s AND pass = %s",
$ilDB->quote($active_id . ""),
$ilDB->quote($this->getId() . ""),
$ilDB->quote($pass . "")
);
$result = $ilDB->query($query);
$row = $result->fetchRow(DB_FETCHMODE_OBJECT);
$update = $row->solution_id;
if ($update)
{
if (strlen($numeric_result))
{
$query = sprintf("UPDATE tst_solutions SET value1 = %s WHERE solution_id = %s",
$ilDB->quote(trim($numeric_result)),
$ilDB->quote($update)
);
$result = $ilDB->query($query);
$entered_values++;
}
else
{
$query = sprintf("DELETE FROM tst_solutions WHERE solution_id = %s",
$ilDB->quote($update)
);
$result = $ilDB->query($query);
}
}
else
{
if (strlen($numeric_result))
{
$query = sprintf("INSERT INTO tst_solutions (solution_id, active_fi, question_fi, value1, value2, pass, TIMESTAMP) VALUES (NULL, %s, %s, %s, NULL, %s, NULL)",
$ilDB->quote($active_id),
$ilDB->quote($this->getId()),
$ilDB->quote(trim($numeric_result)),
$ilDB->quote($pass . "")
);
$result = $ilDB->query($query);
$entered_values++;
}
}
if ($entered_values)
{
include_once ("./classes/class.ilObjAssessmentFolder.php");
if (ilObjAssessmentFolder::_enabledAssessmentLogging())
{
$this->logAction($this->lng->txtlng("assessment", "log_user_entered_values", ilObjAssessmentFolder::_getLogLanguage()), $active_id, $this->getId());
}
}
else
{
include_once ("./classes/class.ilObjAssessmentFolder.php");
if (ilObjAssessmentFolder::_enabledAssessmentLogging())
{
$this->logAction($this->lng->txtlng("assessment", "log_user_not_entered_values", ilObjAssessmentFolder::_getLogLanguage()), $active_id, $this->getId());
}
}
parent::saveWorkingData($active_id, $pass);
return $returnvalue;
}

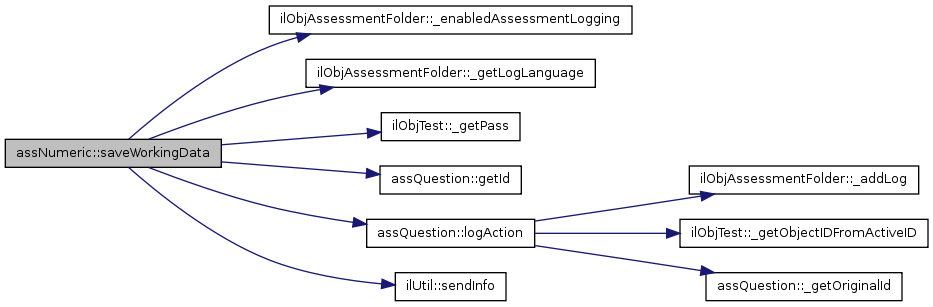

Here is the call graph for this function:
| assNumeric::setMaxChars | ( | $ | maxchars | ) |
Sets the maximum number of characters for the numeric input field.
Sets the maximum number of characters for the numeric input field
- Parameters:
-
integer $maxchars The maximum number of characters public
Definition at line 707 of file class.assNumeric.php.
References $maxchars.
{
$this->maxchars = $maxchars;
}
Field Documentation
| assNumeric::$maxchars |
Definition at line 55 of file class.assNumeric.php.
Referenced by setMaxChars().
| assNumeric::$ranges |
Definition at line 46 of file class.assNumeric.php.
The documentation for this class was generated from the following file:
- Modules/TestQuestionPool/classes/class.assNumeric.php
